2. To minimize your time and produce an inverter that works properly, it is very important that you follow the procedure in the lab document LC output filter (100µH, 10µF) Fuseholder s and 10 A fuse s for DC input not shown in this photo 10µF input ripple current capacitor across DC input

3. ! Simultaneously View VGS for A+ and A− (use both scope ground leads) Asymmetrical firing circuit produces slow turn on, fast turn off, to provide blanking A− Off A+ On You must avoid overlap in “on” times

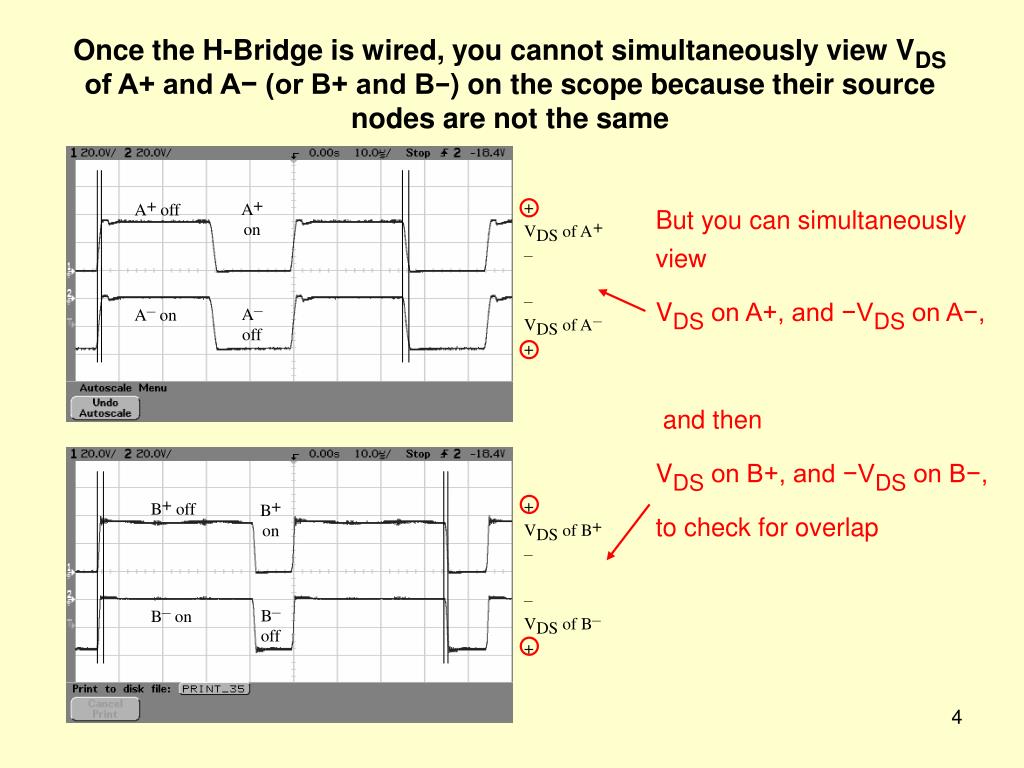

4. Once the H-Bridge is wired, you cannot simultaneously view VDS of A+ and A− (or B+ and B−) on the scope because their source nodes are not the same + + But you can simultaneously view VDS on A+, and −VDS on A−, and then VDS on B+, and −VDS on B−, to check for overlap + A A o ff + on V of A D S – – – – A A o n – V of A D S o ff + + + + B off B + V of B on D S – – – – B B on – V of B D S o ff +

5. ! Loaded (with a resistor) and no output filter Load Voltage – No Filter. ma 1.

6. ! With Filter Load Voltage – With Filter. ma 1. Very Effective!

7. The Filter Has a Cutoff Frequency of About 5kHz + a Vac output 100µH, 9A or 10A − b inductor symbolic + Point “a” in H - bridge Vac output – 10µF, 50V, bipolar, high - frequency capacitor Point “b” in H - bridge

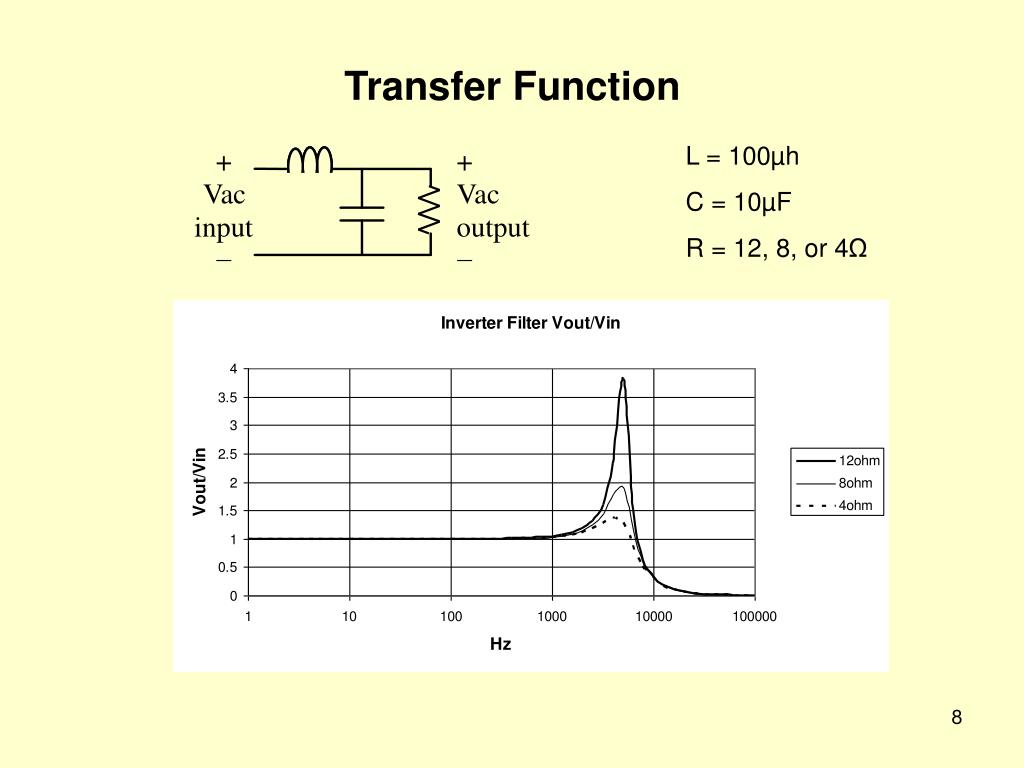

8. + + Vac Vac input output − − Transfer Function L = 100µh C = 10µF R = 12, 8, or 4Ω
