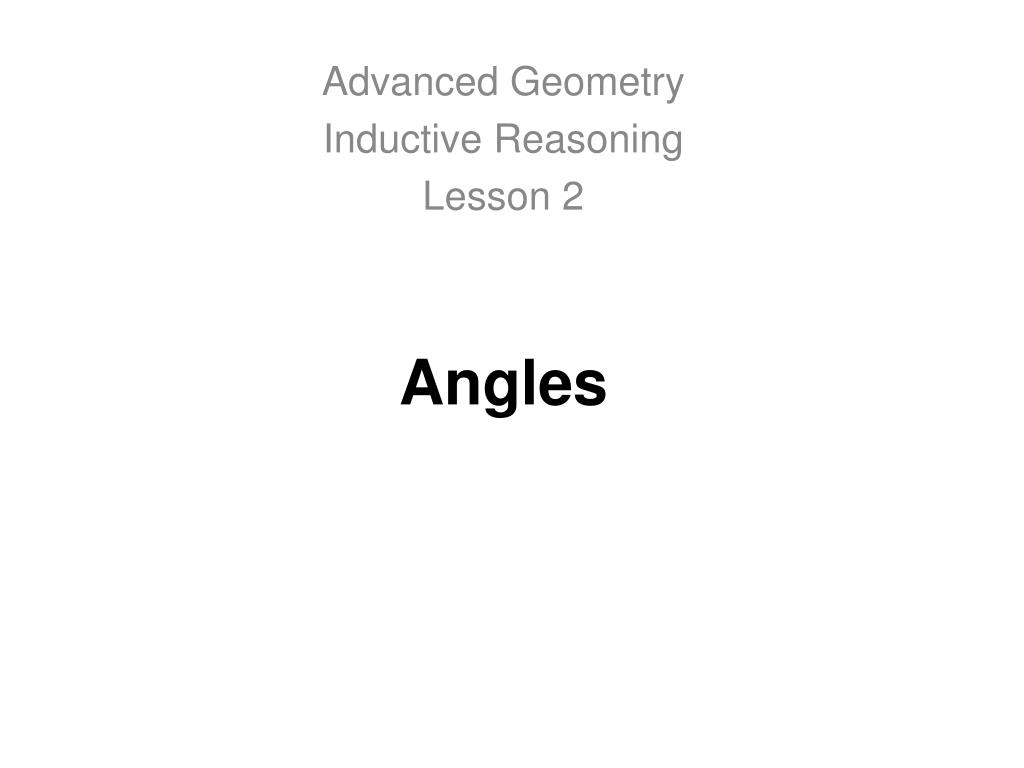

advanced geometry inductive reasoning lesson 2

Angles

Advanced Geometry

Inductive Reasoning

Lesson 2

slide2

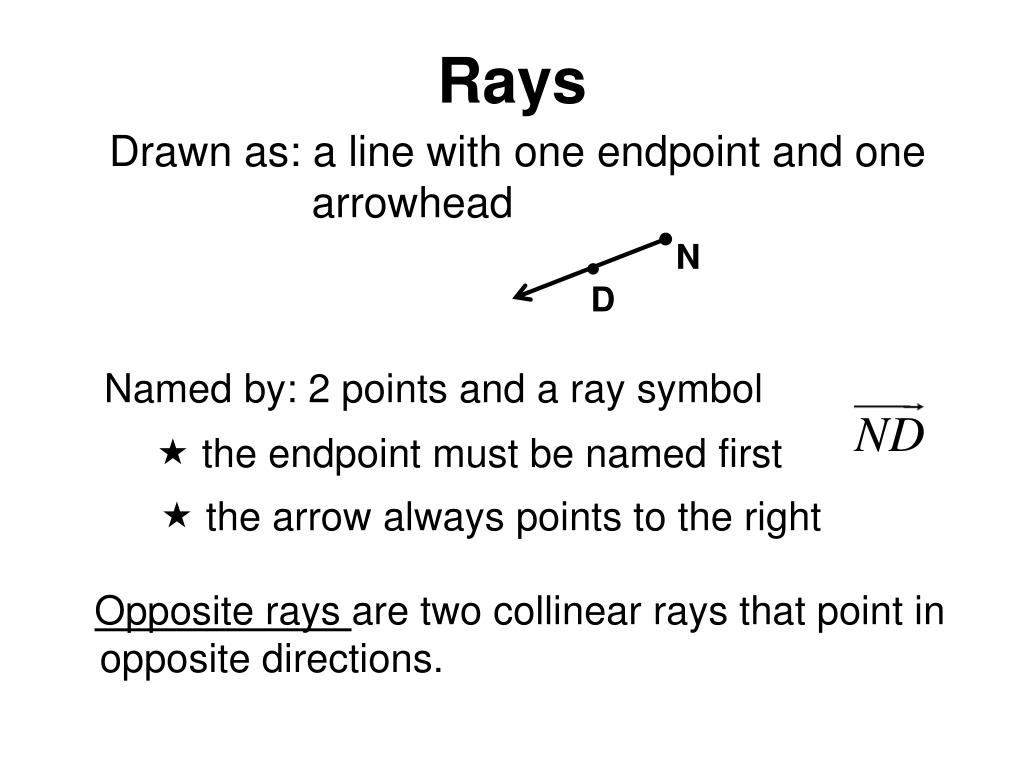

Rays

Drawn as: a line with one endpoint and one

arrowhead

N

D

Named by: 2 points and a ray symbol

  •  the endpoint must be named first

 the arrow always points to the right

Opposite rays are two collinear rays that point in opposite directions.

angle
Angle

Parts of an Angle

vertex – the common endpoint

B

sides – the rays

Regions

interior

exterior

on the angle

slide4

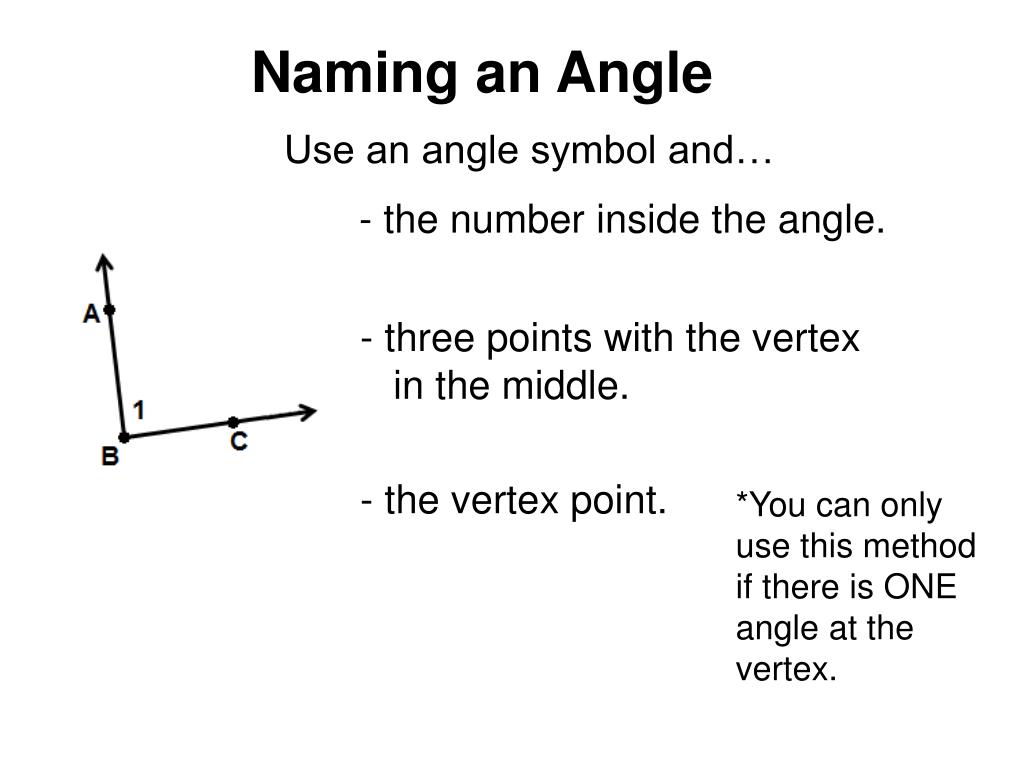

Naming an Angle

Use an angle symbol and…

- the number inside the angle.

  • three points with the vertex
  • in the middle.

- the vertex point.

*You can only use this method if there is ONE angle at the vertex.

examples

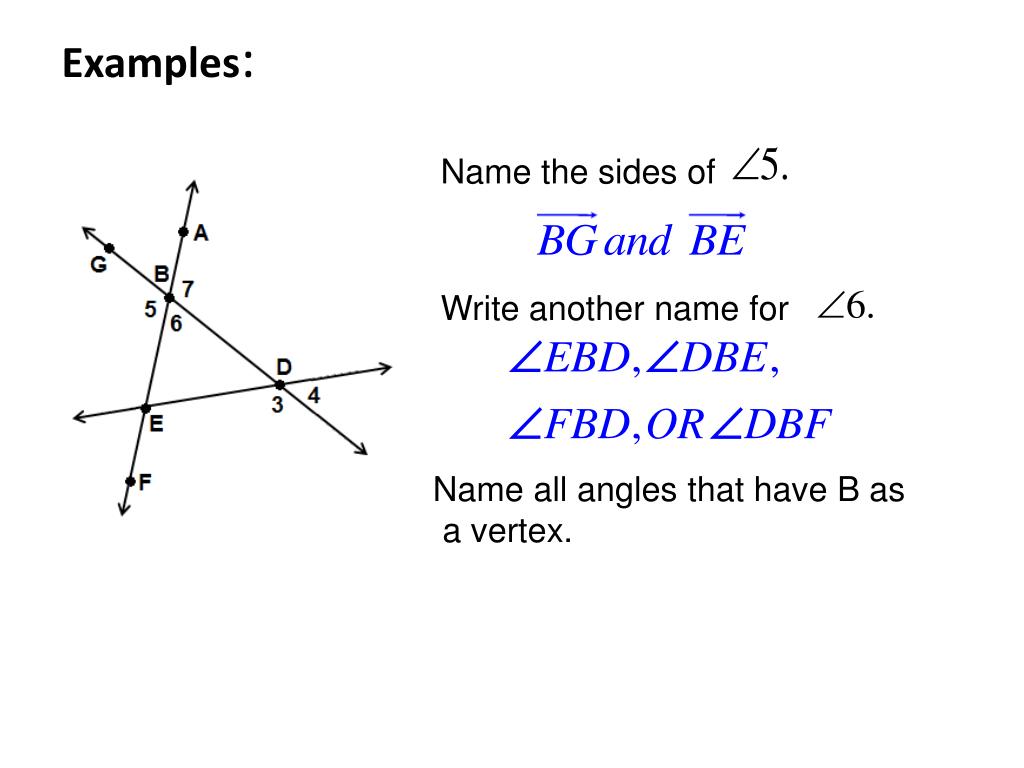

Examples:

Name the sides of

Write another name for

Name all angles that have B as

a vertex.

angle classifications
Angle Classifications
  • Right angle– measures exactly 90°
  • Acute angle – measure is less than 90°
  • Obtuse angle– measure is greater than 90° and less than 180°
  • Straight angle – an angle with a
  • degree measure of exactly 180°
  • (a.k.a. straight line)
slide9

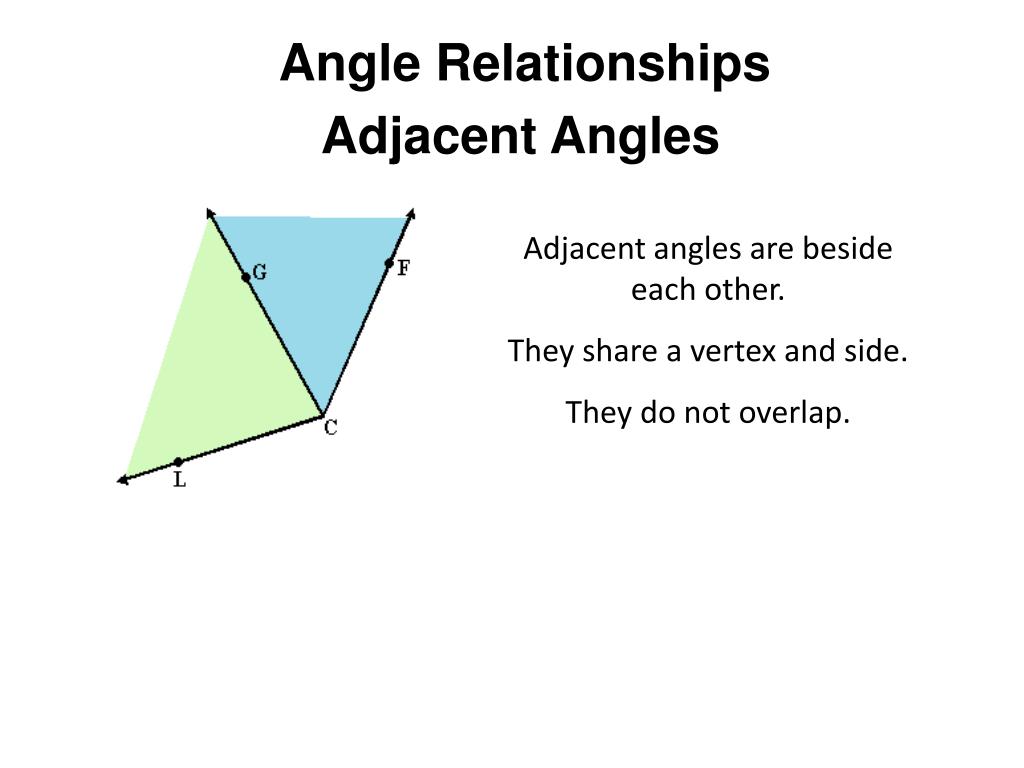

Angle Relationships

Adjacent Angles

Adjacent angles are beside each other.

They share a vertex and side.

They do not overlap.

slide10

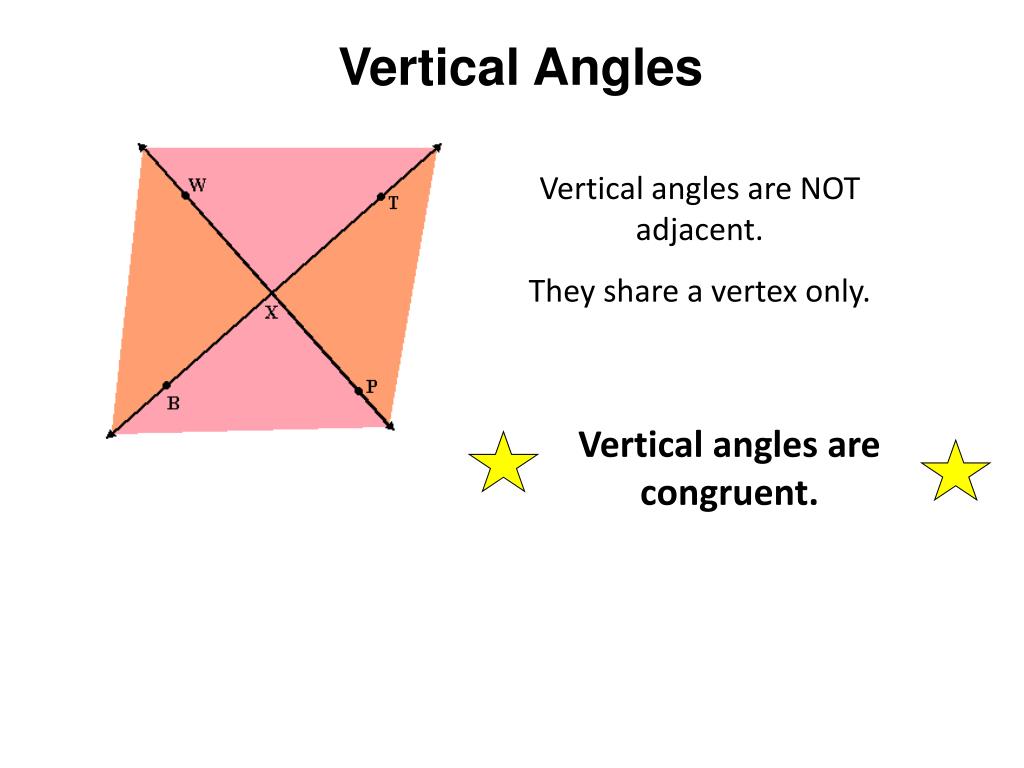

Vertical Angles

Vertical angles are NOT adjacent.

They share a vertex only.

Vertical angles are congruent.

slide11

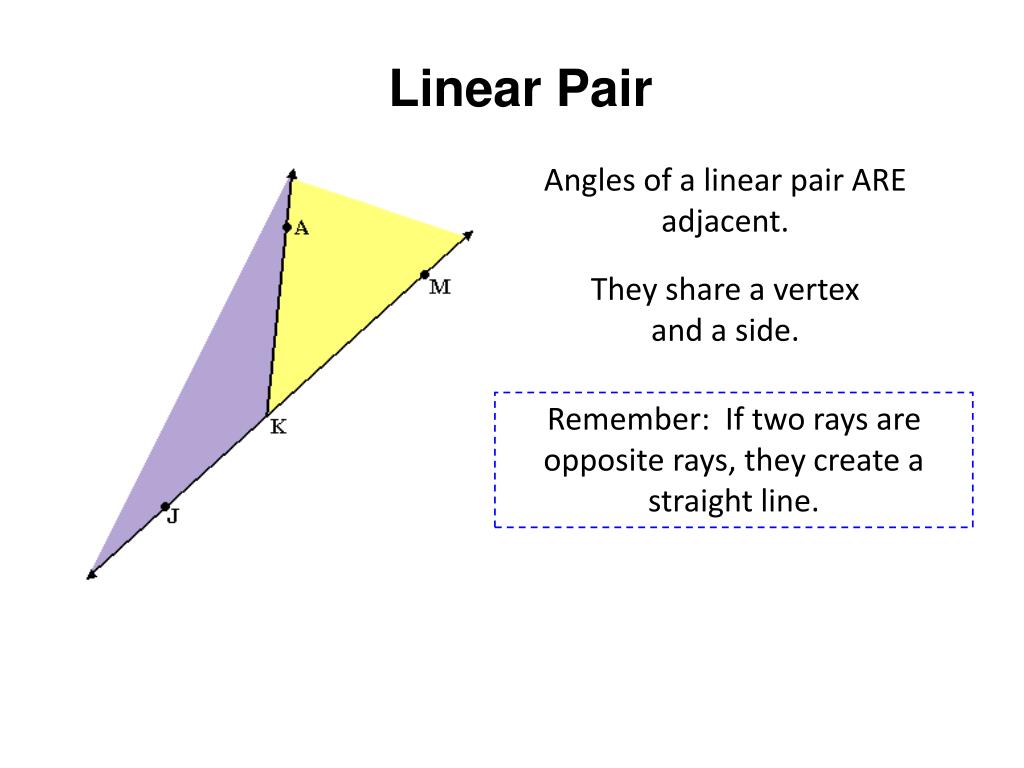

Linear Pair

Angles of a linear pair ARE adjacent.

They share a vertex

and a side.

Remember: If two rays are opposite rays, they create a straight line.

slide12

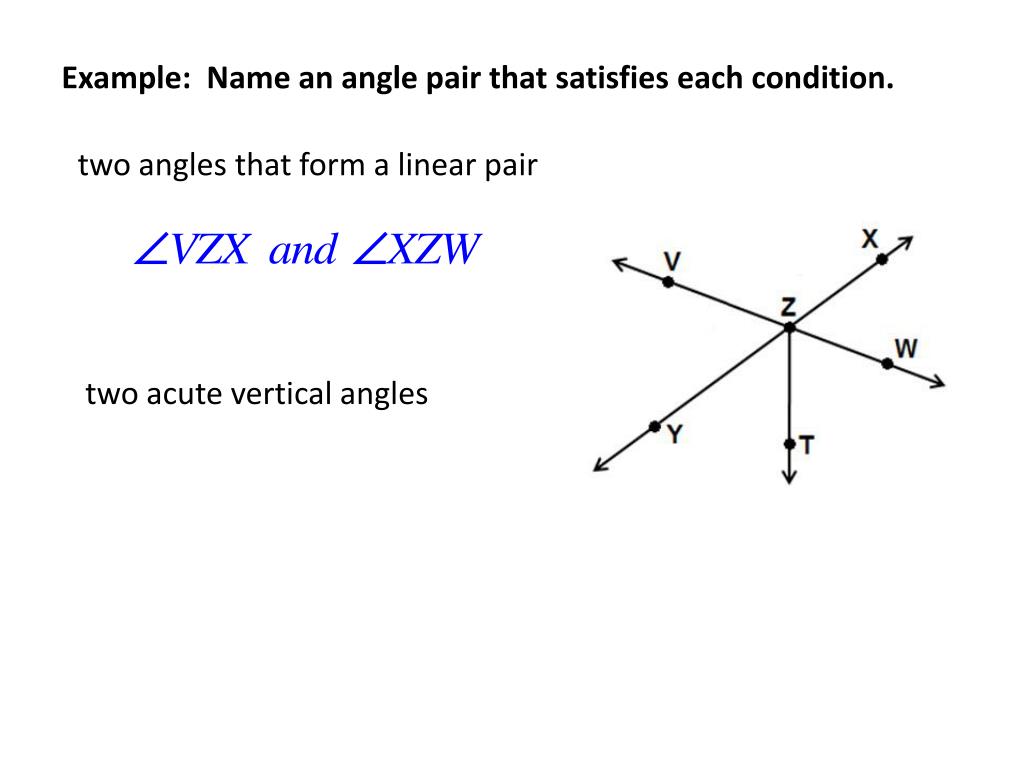

Example: Name an angle pair that satisfies each condition.

two angles that form a linear pair

two acute vertical angles

slide13

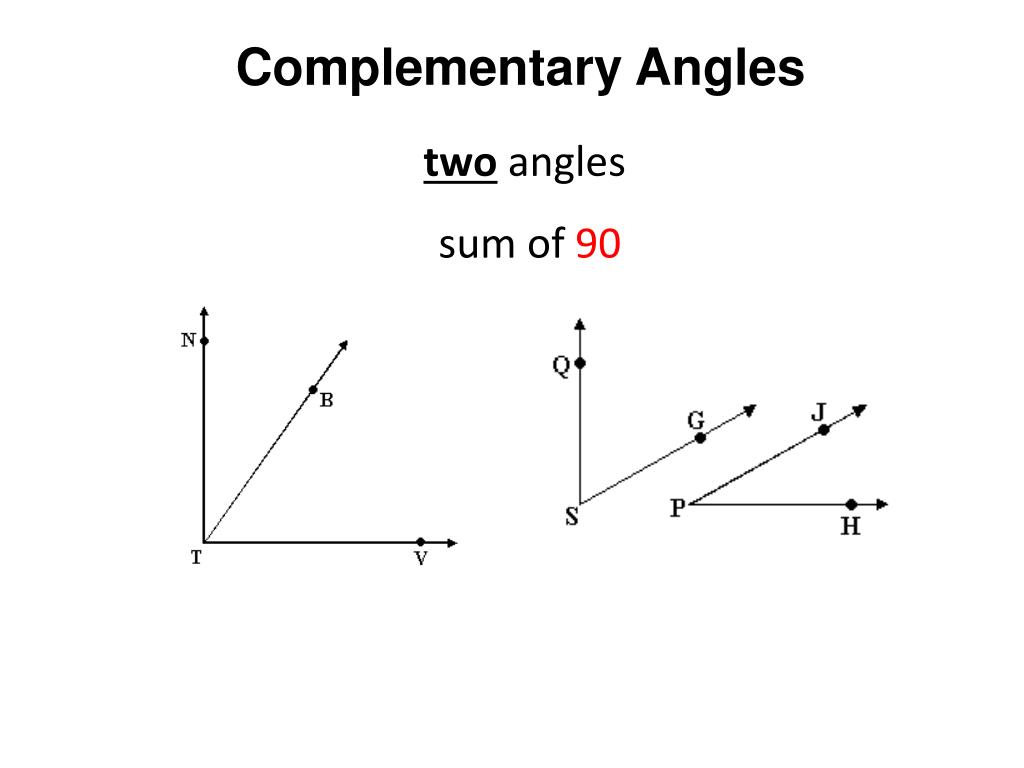

Complementary Angles

two angles

sum of 90

slide14

Supplementary Angles

two angles

sum of 180

LINEAR PAIRS ARE

ALWAYS

SUPPLEMENTARY.

slide15

Example:

If BCE and ECD are supplementary, find ECF and FCD.

slide16

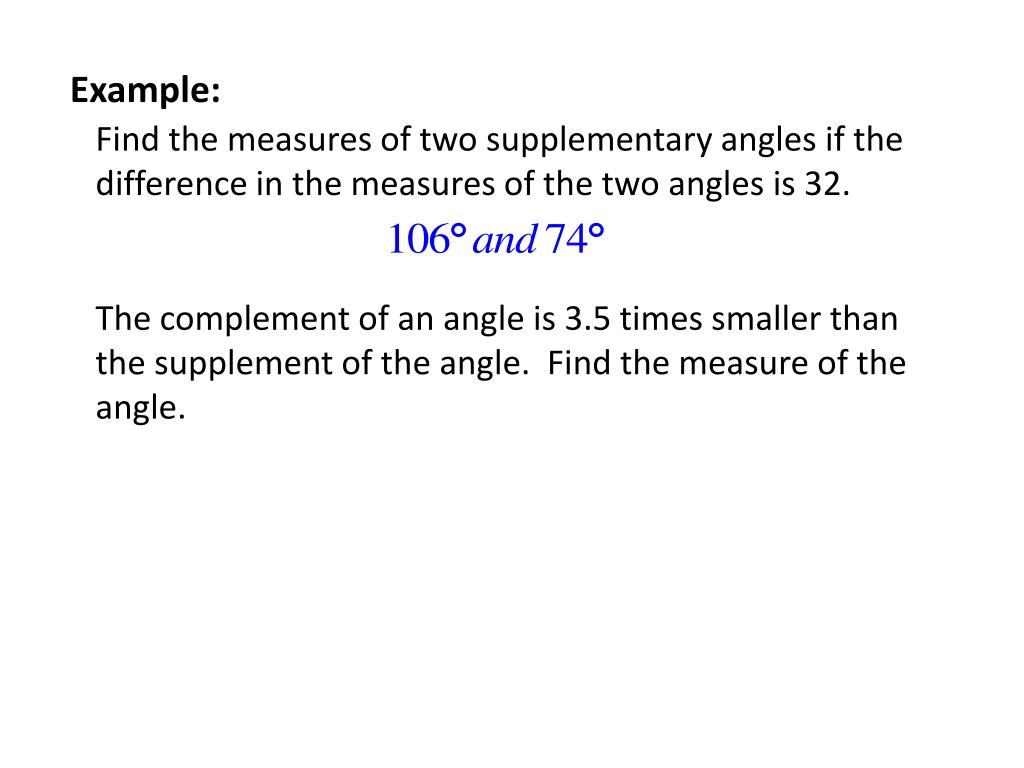

Example:

Find the measures of two supplementary angles if the difference in the measures of the two angles is 32.

The complement of an angle is 3.5 times smaller than the supplement of the angle. Find the measure of the angle.
