SPE 84066

Wellsite Information Transfer Standard Markup Language, WITSML, an UpdateM.A Kirkman, SPE, BP; M.E. Symmonds, SPE, Schlumberger; S.W. Harbinson, SPE, Landmark Graphics; J.A. Shields, SPE, Baker Hughes; M. Will, Schlumberger; A. Doniger, SPE, POSC


What is witsml

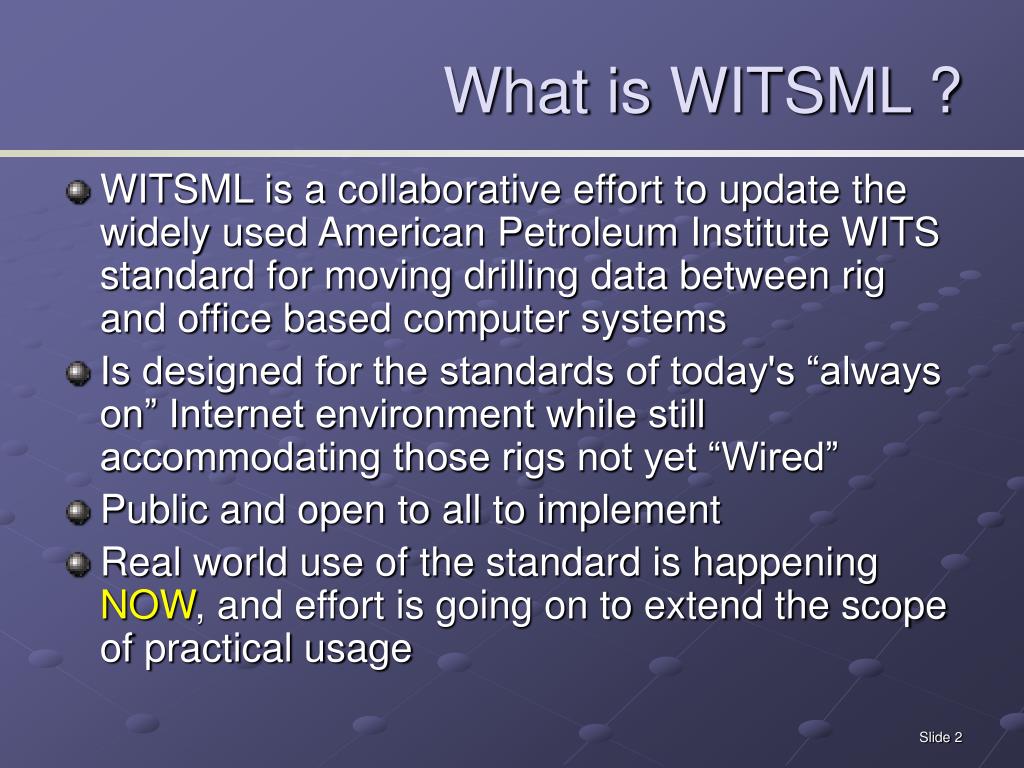

What is WITSML ?

  • WITSML is a collaborative effort to update the widely used American Petroleum Institute WITS standard for moving drilling data between rig and office based computer systems

  • Is designed for the standards of today's “always on” Internet environment while still accommodating those rigs not yet “Wired”

  • Public and open to all to implement

  • Real world use of the standard is happening NOW, and effort is going on to extend the scope of practical usage


History
History

  • Industry real time data centers in the 1980’s drove a standard, that became an API (American Petroleum Institute) recommended practice…

    • WITS (Wellsite Information Transfer Specification)

  • Designed in an era before networks and the Internet, though it stood the test of time, is now dated. Differing approaches to network implementations fragmenting interoperability

  • Statoil moved to develop DART (Drilling Automation Real Time) for their own needs

  • DART Evolved into a multi company effort to create a new standard, replacing WITS, based on evolving internet technology, with much improved functionality


Why is it a good thing

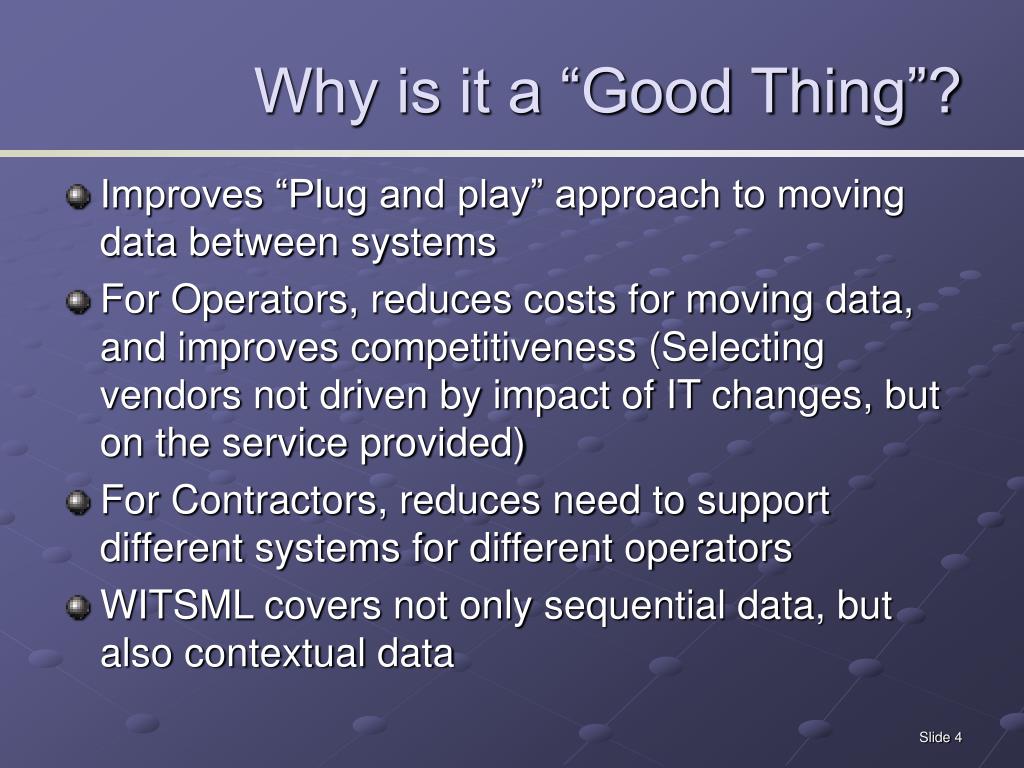

Why is it a “Good Thing”?

  • Improves “Plug and play” approach to moving data between systems

  • For Operators, reduces costs for moving data, and improves competitiveness (Selecting vendors not driven by impact of IT changes, but on the service provided)

  • For Contractors, reduces need to support different systems for different operators

  • WITSML covers not only sequential data, but also contextual data


Who participates

Operators

Statoil

Shell

Norsk Hydro

ExxonMobil

BP

Authorities

UK DTI

Contractors

Schlumberger

Sense Technology

SDC Geologix

NPSi

Petrolink

Paradigm

Open Spirit

Landmark

INT

IMS

Halliburton

Baker Hughes

Who participates?

POSC special interest group open to all interested parties


What is witsml technology

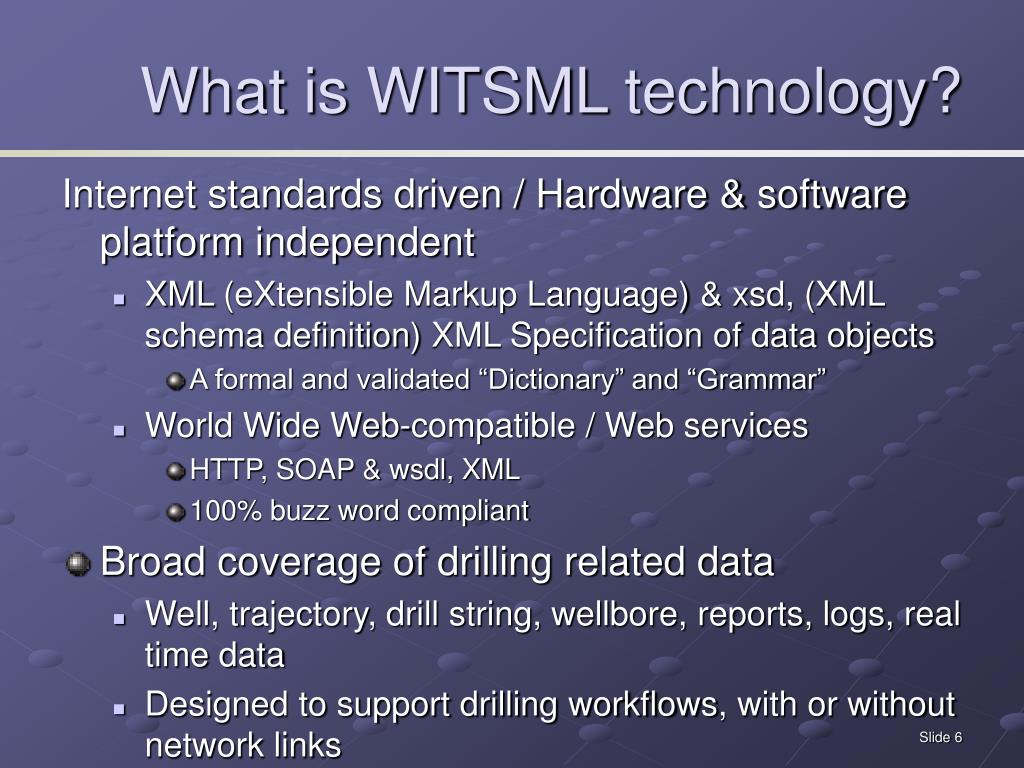

What is WITSML technology?

Internet standards driven / Hardware & software platform independent

  • XML (eXtensible Markup Language) & xsd, (XML schema definition) XML Specification of data objects

    • A formal and validated “Dictionary” and “Grammar”

  • World Wide Web-compatible / Web services

    • HTTP, SOAP & wsdl, XML

    • 100% buzz word compliant

  • Broad coverage of drilling related data

    • Well, trajectory, drill string, wellbore, reports, logs, real time data

    • Designed to support drilling workflows, with or without network links


  • Implementations

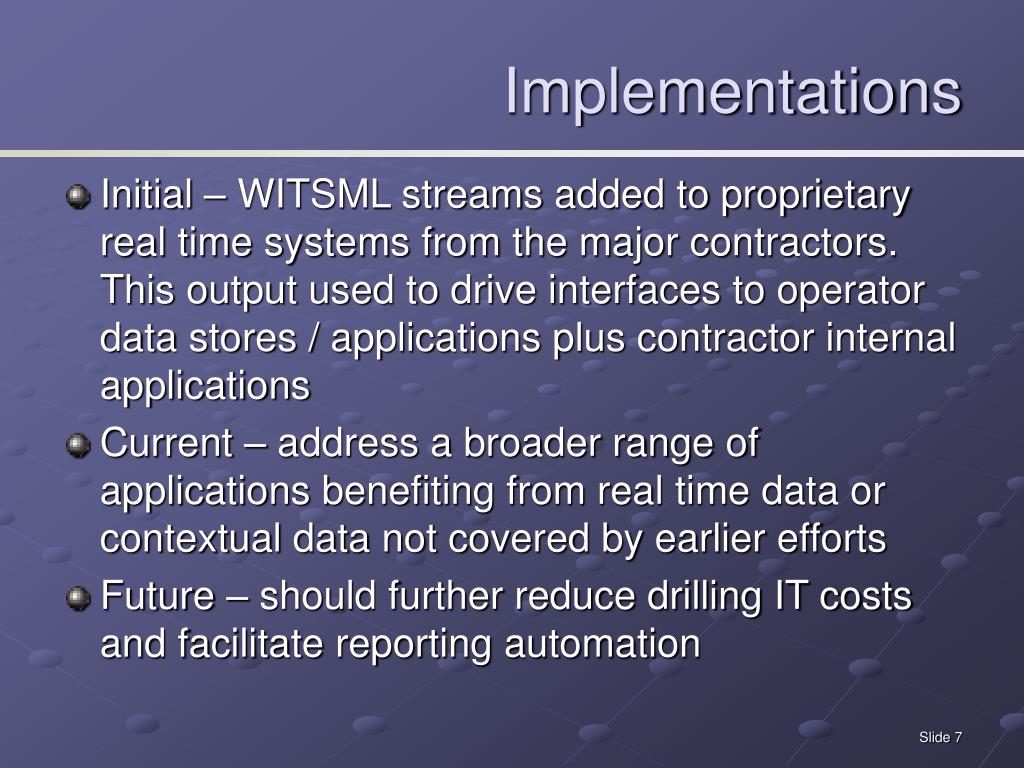

    Implementations

    • Initial – WITSML streams added to proprietary real time systems from the major contractors. This output used to drive interfaces to operator data stores / applications plus contractor internal applications

    • Current – address a broader range of applications benefiting from real time data or contextual data not covered by earlier efforts

    • Future – should further reduce drilling IT costs and facilitate reporting automation

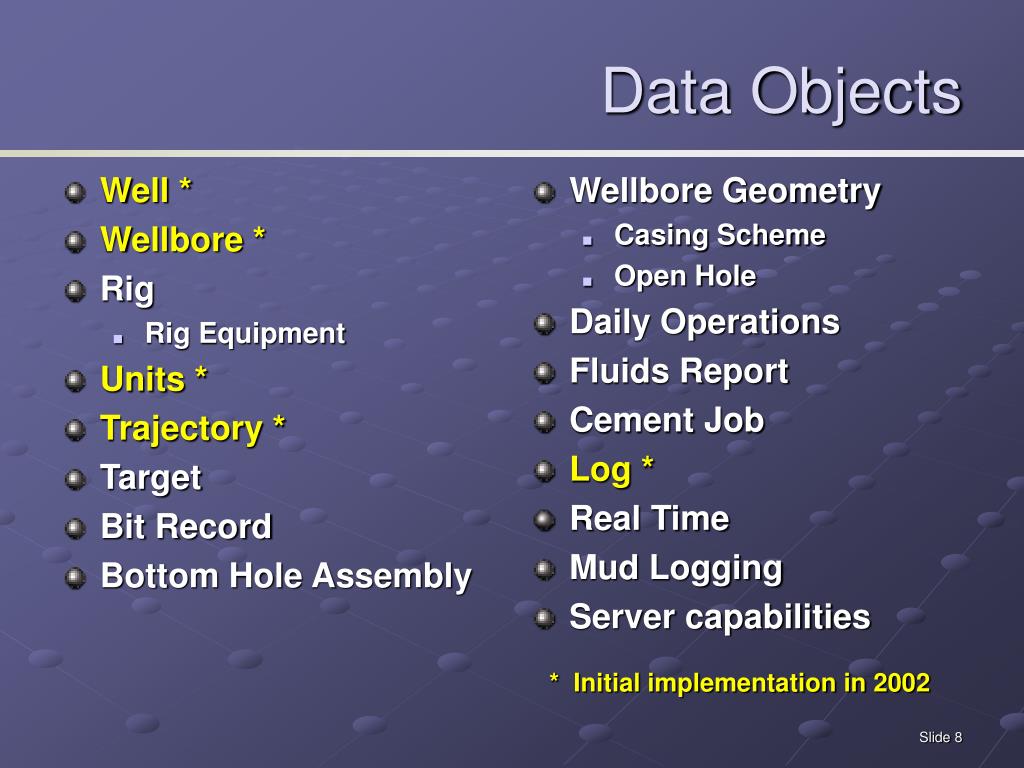

    Data objects

    Well *

    Wellbore *

    Rig

    Rig Equipment

    Units *

    Trajectory *

    Target

    Bit Record

    Bottom Hole Assembly

    Wellbore Geometry

    Casing Scheme

    Open Hole

    Daily Operations

    Fluids Report

    Cement Job

    Log *

    Real Time

    Mud Logging

    Server capabilities

    Data Objects

    • * Initial implementation in 2002


    Witsml documents
    WITSML Documents

    <?xml version="1.0" encoding="UTF-8"?>

    <trajectorys ... version="1.2.0">

    <trajectory uidWell="W-12" uidWellbore="B-01" uidTraj="pe84e">

    <nameWell>6507/7-A-42</nameWell>

    <nameWellbore>A-42</nameWellbore>

    <nameTraj>Plan #2</nameTraj>

    <uidTrajParent>pe84d</uidTrajParent>

    <nameTrajParent>Plan #1</nameTrajParent

    <mdMn uom="ft">0</mdMn>

    <mdMx uom="ft">14089.3</mdMx>

    <definitive>true</definitive>

    <memory>true</memory>

    <finalTraj>true</finalTraj>

    <aziRef>Grid north</aziRef>

    <trajectoryStation uidWell="W-12" ....

    • Generic structure

      • Data (not well) aggregation

      • Object container root

      • Object identity

      • Object details

    • Units of measure

      • Follow POSC ‘UOM’ recommendations

      • witsmlDict.xml for v1.2


    Witsml documents1

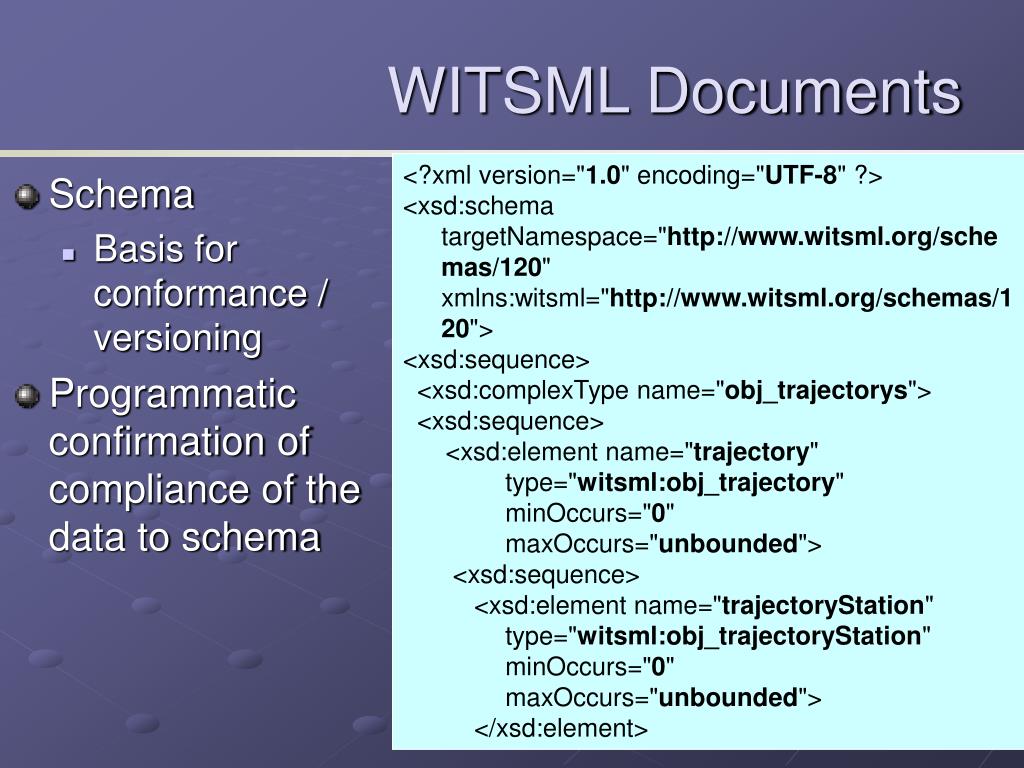

    WITSML Documents

    <?xml version="1.0" encoding="UTF-8" ?>

    <xsd:schema targetNamespace="http://www.witsml.org/schemas/120" xmlns:witsml="http://www.witsml.org/schemas/120">

    <xsd:sequence>

    <xsd:complexType name="obj_trajectorys">

    <xsd:sequence>

    <xsd:element name="trajectory" type="witsml:obj_trajectory" minOccurs="0" maxOccurs="unbounded">

    <xsd:sequence>

    <xsd:element name="trajectoryStation" type="witsml:obj_trajectoryStation" minOccurs="0" maxOccurs="unbounded">

    </xsd:element>

    • Schema

      • Basis for conformance / versioning

    • Programmatic confirmation of compliance of the data to schema


    Witsml documents2
    WITSML Documents

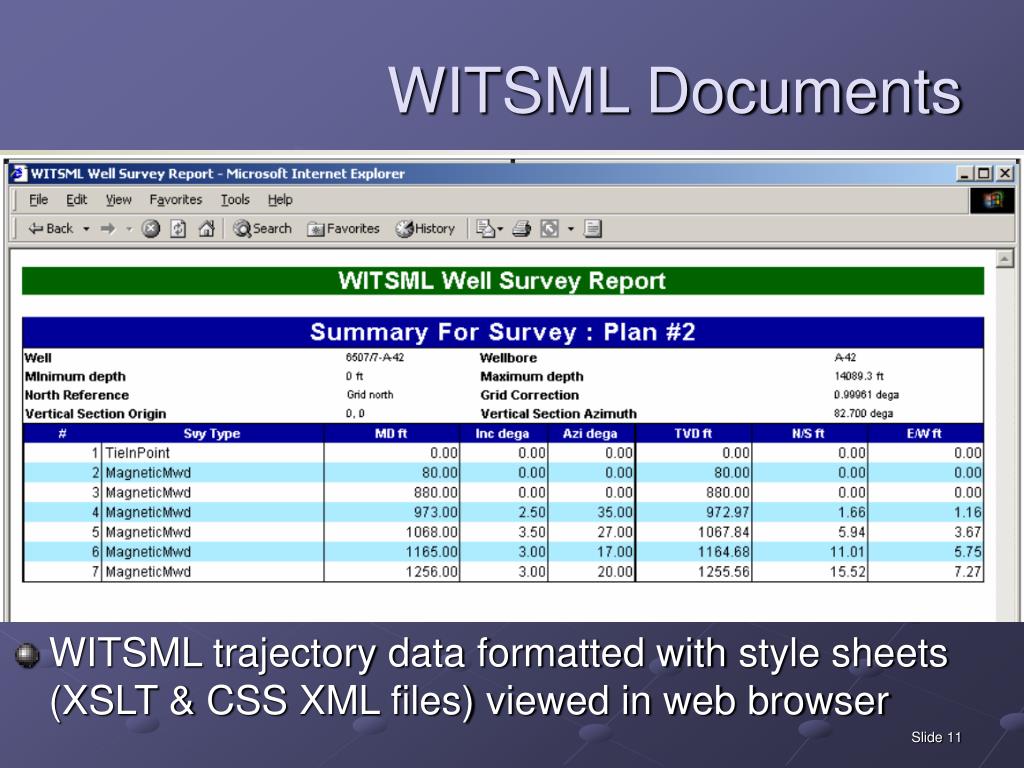

    • WITSML trajectory data formatted with style sheets (XSLT & CSS XML files) viewed in web browser

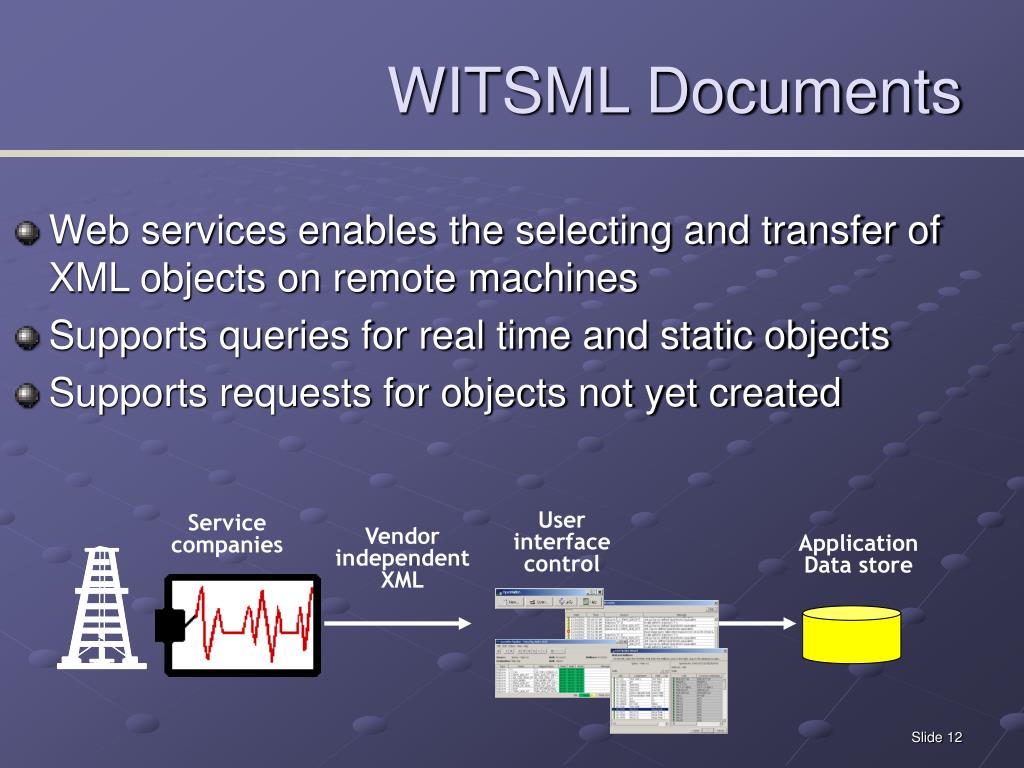

    Witsml documents3

    User interface control

    Service companies

    Vendor independent XML

    Application

    Data store

    WITSML Documents

    • Web services enables the selecting and transfer of XML objects on remote machines

    • Supports queries for real time and static objects

    • Supports requests for objects not yet created


    Security

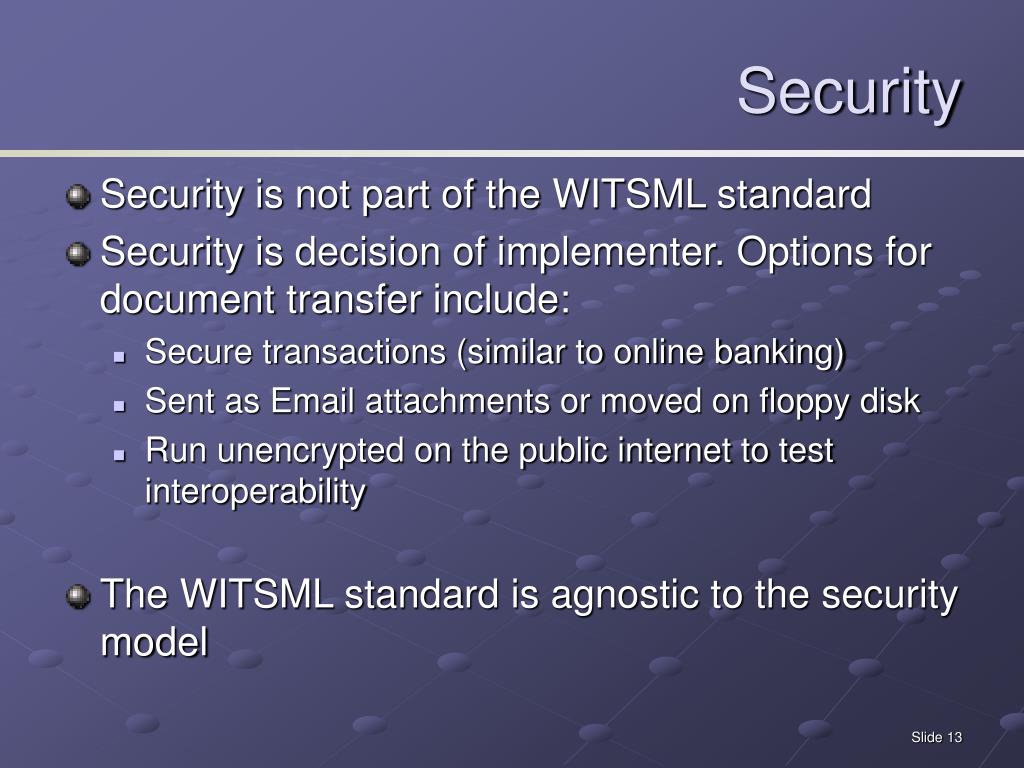

    Security

    • Security is not part of the WITSML standard

    • Security is decision of implementer. Options for document transfer include:

      • Secure transactions (similar to online banking)

      • Sent as Email attachments or moved on floppy disk

      • Run unencrypted on the public internet to test interoperability

    • The WITSML standard is agnostic to the security model


    Data workflows

    Server

    Client

    • On Demand, via Web Services API

      • Client-server model

      • SOAP Store Interface (GetFromStore method)

    Request

    Response

    • Accumulate and Propagate

      • Receive data from providers in near real-time

      • Support Subscribe via SOAP

      • Publish via HTTP POST

    Data workflows

    • Informal, Discrete

      • Floppy disk file transfer of XML data files

      • E-Mail file transfer


    Practical workflows
    Practical workflows

    • Service Contractor to Service Contractor

    • Service / DrillingContractor to Operator

    • Application to Application

    • Operator to Operator

    • Operator to Government

      *In use today


    Service Contractor to Service Contractor

    • Example: Sharing a BHA description at the rig between different service vendors

    • Usage: Reduce inefficient duplicate entry of data. Improve quality of stored data


    Drilling service contractor to operator

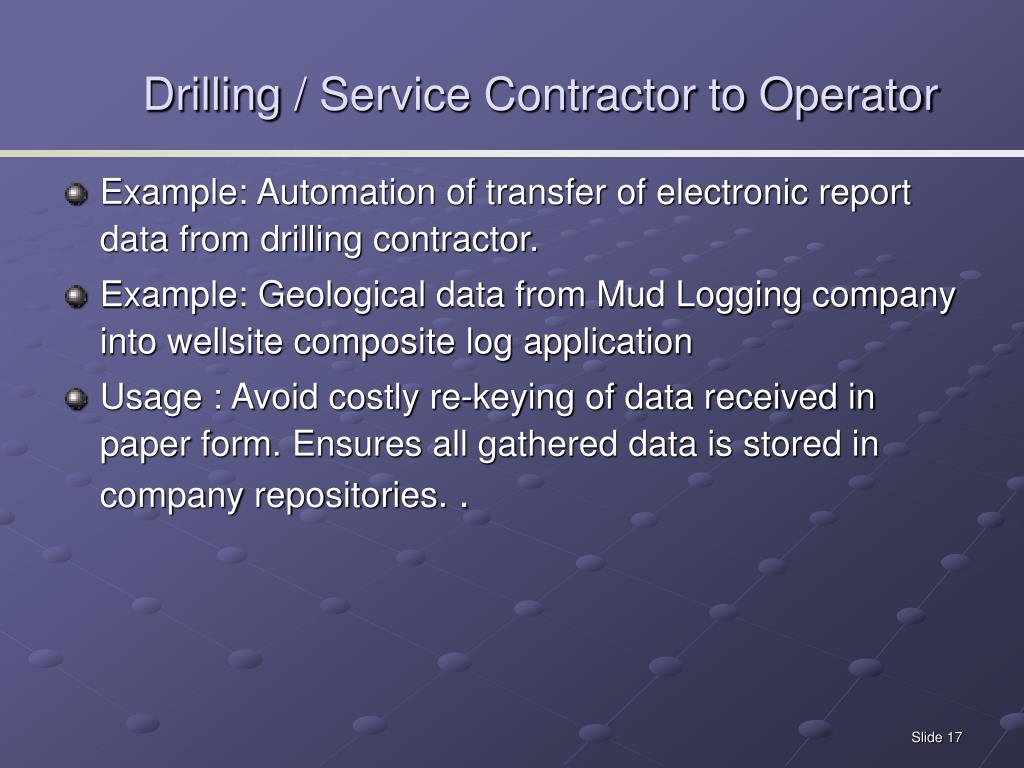

    Drilling/ Service Contractor to Operator

    • Example: Automation of transfer of electronic report data from drilling contractor.

    • Example: Geological data from Mud Logging company into wellsite composite log application

    • Usage : Avoid costly re-keying of data received in paper form. Ensures all gathered data is stored in company repositories..


    Application to application

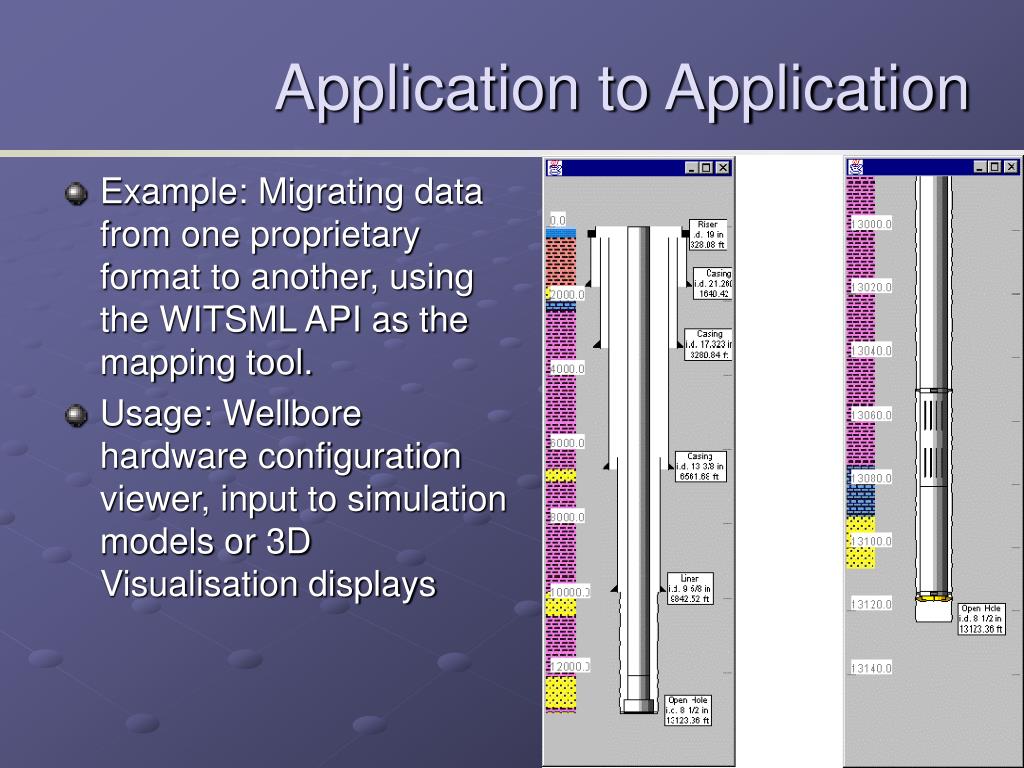

    Application to Application

    • Example: Migrating data from one proprietary format to another, using the WITSML API as the mapping tool.

    • Usage: Wellbore hardware configuration viewer, input to simulation models or 3D Visualisationdisplays


    Operator to operator
    Operator to Operator

    • Example: Operator Daily drilling report object to a partner

    • Useage: Current partner reports do not allow loading of data into company database. Access to data allows viewing in a format users are comfortable with, and retaining the data for benchmarking


    Operator to government
    Operator to Government

    • Example: Filing of statutory documents relating to the well permitting process. UK DTI, Norway’s NPD, US MMS, BLM etc.

    • Usage : Automate statutory reporting, reduced custom keying of data


    Current status
    Current status

    • A successful implementation, focussed around LWD data, evolving from the principle of the way WITS data was used

    • The challenge is to deepen the usage to include the static contextual data - far easier to handle with WITSML than with WITS..

    • Where do we want to be?

      • Instigating technical changes that will make the flow of data more automated

      • Saving cost through removing duplication of data entry.


    Future
    Future

    • Data standard owned by an oilfield standards organisation, POSC, the Petrotechnical Open Standards Consortium

      • Now has its own web presence

      • Seeking alignment with other XML efforts in our industry

      • Operator encouragement for broader implementations to improve existing workflows

      • Original companies plus others using the POSC SIG Model

      • New versions driven by the POSC WITSML Special Interest Group (SIG)

      • Releases staggered to match pace of use, minor eg 1.2.1 and major eg 1.3


    What made witsml a success
    What made WITSML a success?

    • A small core group of Operators and Contractors defined the vision and built a limited implementation to achieve a simple initial goal

    • A steering committee provided financial support for professional documentation of the work done by a dedicated technical group

    • “Volunteerism” was then formalised by transferring custodianship to a standards body (POSC), as the standard was opened up to input from any interested party


    Further information
    Further Information

    • Web Sites: www.witsml.org&www.posc.org

      • Full details of object schemas

      • Catalogs and definitions

      • Examples

      • Sample style sheets

      • Documentation

      • Contacts for participating companies
