Team icarusFinal Project Presentation

AJ Knapp, Kyle Marek-Spartz,

Lucas Chowen, Max Sjöberg, Mike Hill

AEM 1905 – Nov. 24th 2009



Mission overview3 l.jpg

Mission Overview

Optical Experiment

Ballooning as a cost effective alternative for Day-time astronomy

Video camera + shots to compare from the ground

Block cameras direct view of sun to attempt capture of coronal features

Inertial Measurement Unit

IMU

Borrowed from Augsburg

Measures movement and rotational inertia

Test flight for the engineering of the unit


Mission overview cont l.jpg
Mission Overview (cont.)

  • Predictions

    • Optics

      • Attempt to show that ballooning is a cost effective alternative

      • Able to get good quality images of the sun

    • Magnetometer

      • Altitude has a lot/a little/no substantial impact on the magnetic field

      • Tracking and analyzing those, if any, changes



Team organization aj knapp l.jpg
Team Organization: AJ Knapp

  • Writing

    • Introduction, Payload Design

  • Oral Presentation

    • Flight Readiness Review

  • Payload Build

    • Box Build

    • Camera Experiment

  • Launch Day

    • Photographer


Team organization kyle marek spartz l.jpg

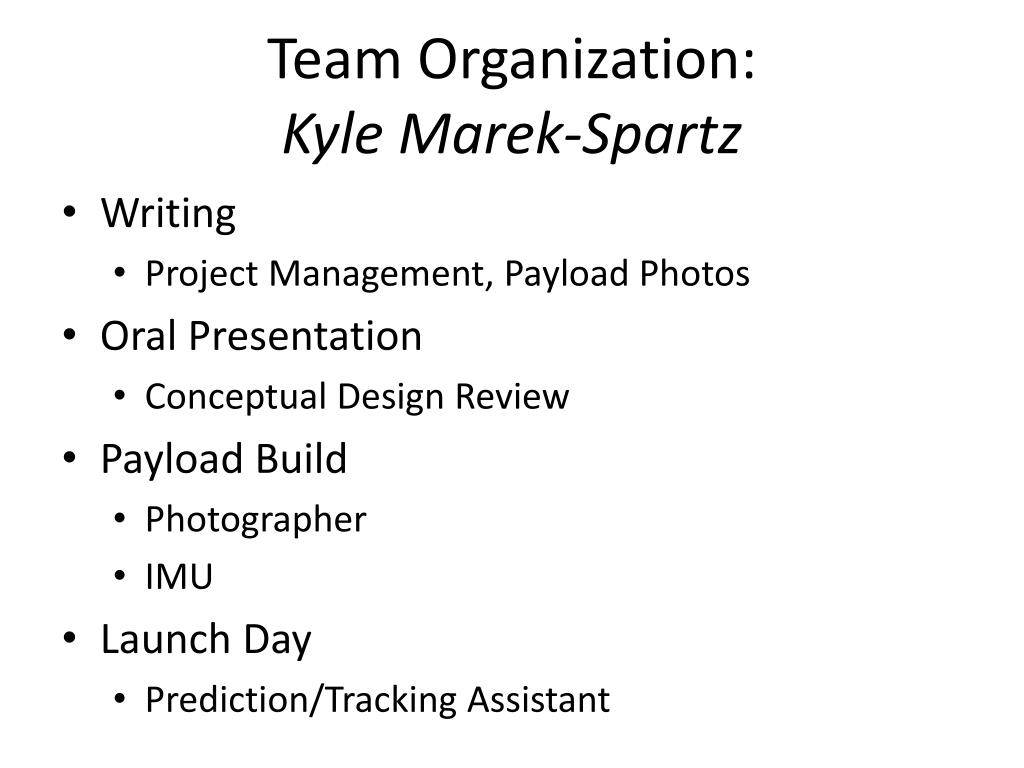

Team Organization: Kyle Marek-Spartz

  • Writing

    • Project Management, Payload Photos

  • Oral Presentation

    • Conceptual Design Review

  • Payload Build

    • Photographer

    • IMU

  • Launch Day

    • Prediction/Tracking Assistant


Team organization lucas chowen l.jpg
Team Organization:Lucas Chowen

  • Writing

    • Mission Overview, Expected Science Results

  • Payload Build

    • Weather Station Build

    • HOBO (Payload “Health” Monitoring)

  • Launch Day

    • Balloon Filling and Release assistant


Team organization mike hill l.jpg

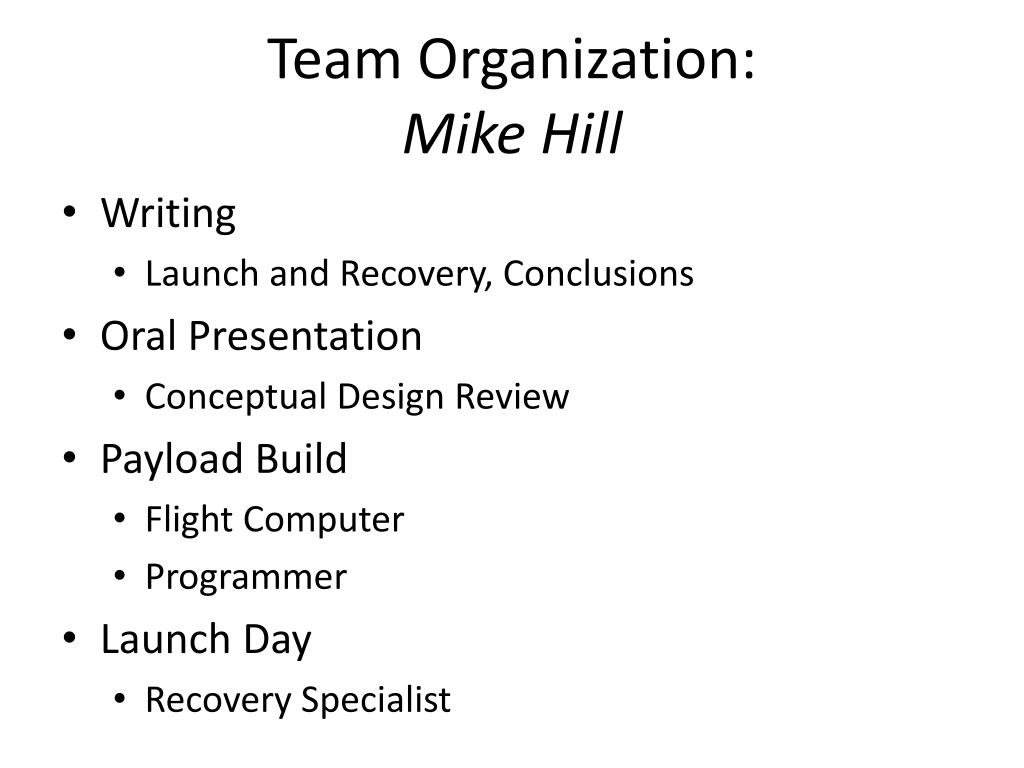

Team Organization:Mike Hill

  • Writing

    • Launch and Recovery, Conclusions

  • Oral Presentation

    • Conceptual Design Review

  • Payload Build

    • Flight Computer

    • Programmer

  • Launch Day

    • Recovery Specialist


Team organization max sj berg l.jpg
Team Organization:Max Sjöberg

  • Writing

    • Project Budgets, Test Plan and Results

  • Oral Presentations

    • Flight Readiness Review

  • Payload Build

    • Team Lead

  • Launch Day

    • Payload/Stack Handling Specialist



Design overview material l.jpg

Design Overview: Material

White Foam Core w/ Black Foam cushion

Flip Video Camera

Inertial Measurement Unit

Includes magnetometer

Strapping Tape

Hinge

Epoxy and Hot glue

Heater circuit

Power Supplies

HOBO

Flight computer

Weather Station


Design overview layout l.jpg
Design Overview: Layout

ORIGINAL DESIGN LAYOUT

A: Flight Computer

B: Heater

C: Camera

(changed to FLIP Video)

D: Batteries

E: Battery

F: HOBO

G: Magnetometer (changed to IMU)


Design overview conceptual diagram l.jpg

Structure

Temperature Sensor

Design Overview: Conceptual Diagram

Flight Computer

Weather Station

Flip HD Video

Power

HOBO

Heater

Power

Power

Power

Inertial Measurement Unit

Data Logger

Accelerometers + Gyrometers

Power


Design overview construction l.jpg
Design Overview: Construction

Finished Box w/ no components


Design overview construction16 l.jpg
Design Overview: Construction

Components inside payload

Attachment of Camera and Heater

Heater activation switch


Design overview construction17 l.jpg
Design Overview: Construction


Design overview programming l.jpg

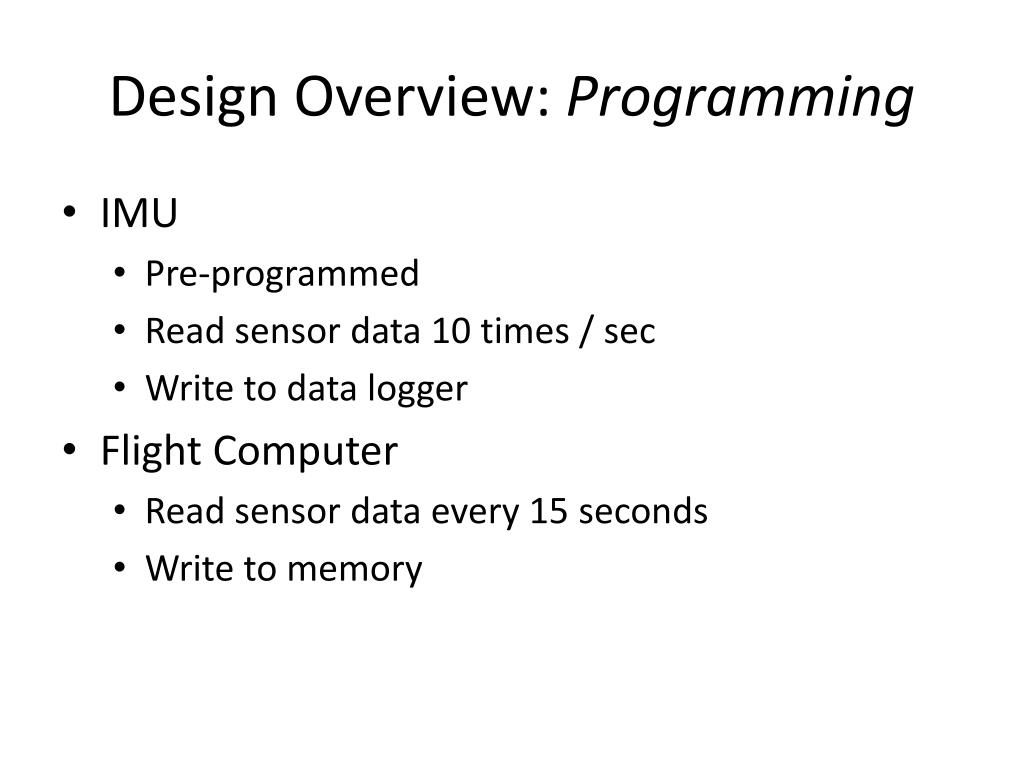

Design Overview: Programming

  • IMU

    • Pre-programmed

    • Read sensor data 10 times / sec

    • Write to data logger

  • Flight Computer

    • Read sensor data every 15 seconds

    • Write to memory


Design overview budgets l.jpg

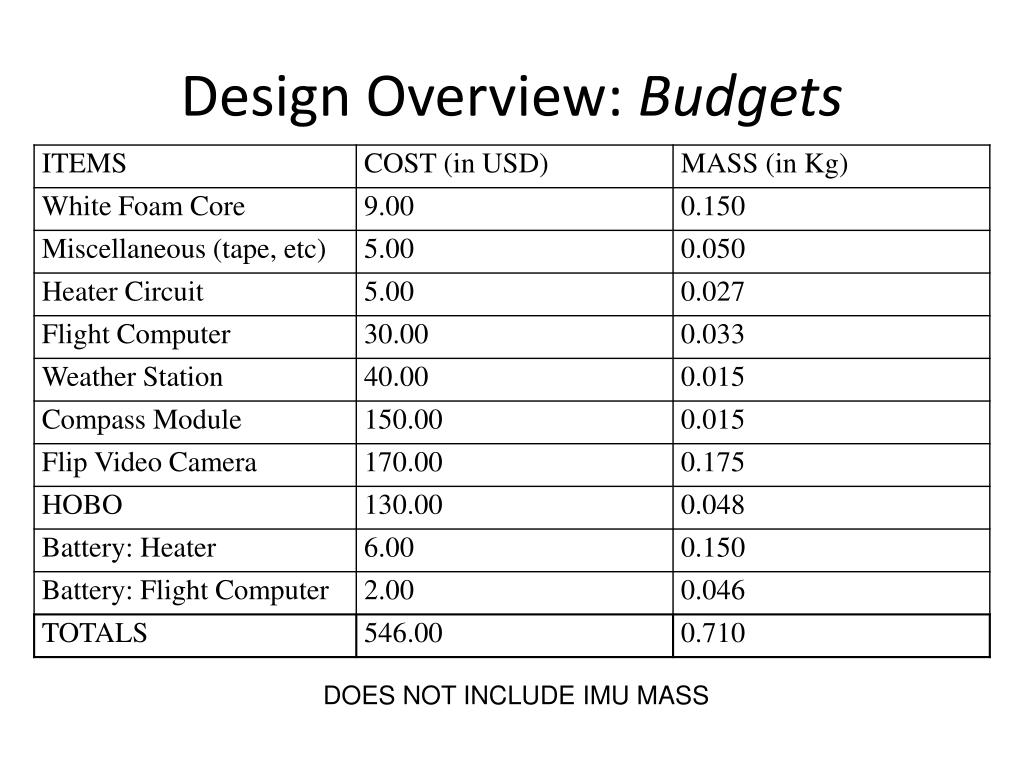

Design Overview: Budgets

DOES NOT INCLUDE IMU MASS




Testing l.jpg

Testing

Drop Box

Results were good

Sturdy construction

Circuit tests

Connections were good, except one

That connection was fixed by Dr. Flaten

Heater Test

Functions

Camera Test

Operational

IMU

Tested data recording capabilities

Passed


Additional testing l.jpg
Additional Testing

  • Cold soak test

    • Made sure that payload can handle extreme temperature

    • Passed

  • Day-in-the-life Weather test

    • Attempt to alter weather station data to test function

    • Passed

  • Yank Test

    • Make sure that the box stays together

    • Passed


Results of testing l.jpg

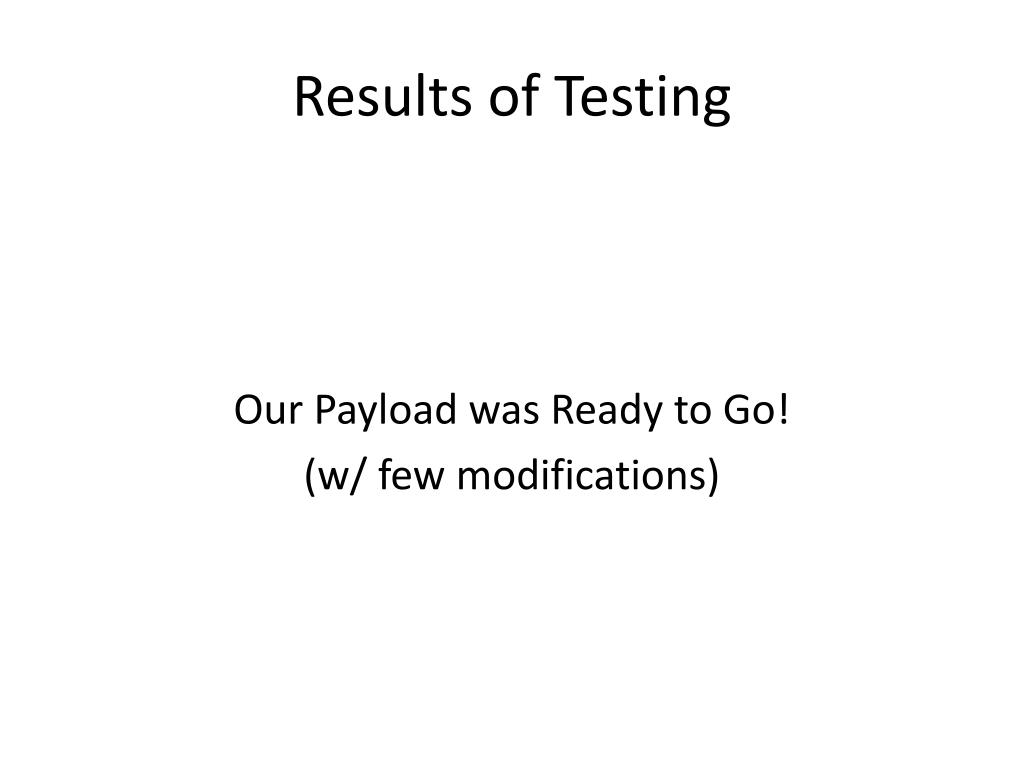

Results of Testing

Our Payload was Ready to Go!

(w/ few modifications)


Escape of the zombicarus or flight day l.jpg

Escape of the Zombicarus:… or Flight Day





Flight day l.jpg

Flight Day

Status of the payload after the recovery was basically the same. Minor scratches from the tree landing. Landed roughly 25-30 feet in the air in a tree. Retrieved with bolo.

Payload was still securely sealed and all the instruments seemed to be working inside.

Disconnected all batteries and turned off IMU



Expected science results l.jpg
Expected Science Results

  • HOBO + Weather Station (WS)

    • Sensors:

      • Internal temperature (HOBO)

      • External temperature (HOBO + WS)

      • Relative Humidity (HOBO)

      • Pressure (WS)

    • These sensors will record data similar to Paul Verhage’s



Expected science results33 l.jpg

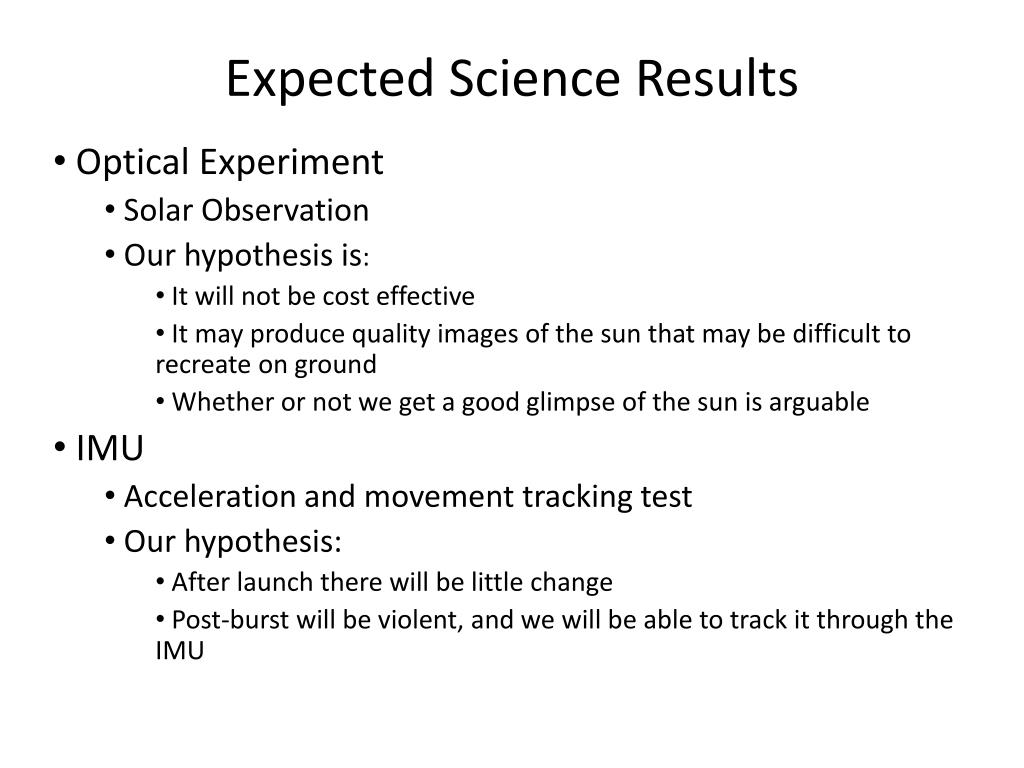

Expected Science Results

Optical Experiment

Solar Observation

Our hypothesis is:

It will not be cost effective

It may produce quality images of the sun that may be difficult to recreate on ground

Whether or not we get a good glimpse of the sun is arguable

IMU

Acceleration and movement tracking test

Our hypothesis:

After launch there will be little change

Post-burst will be violent, and we will be able to track it through the IMU



Conclusions l.jpg
Conclusions

  • External Temperature vs. Time

    Temperature dropped to about -50 degrees Celsius until about the 50 minute mark, then the payload entered part of the atmosphere where it started heating up to about -15 degrees Celsius, which at that point was close to burst, and following the burst the temperature rapidly fell to the lowest of the flight of -55 degrees Celsius.


Conclusions47 l.jpg
Conclusions

  • Relative Humidity vs. Altitude

    According the graph, as altitude increased, humidity decreased, to as low at 5% around the 80,000 foot mark.

  • Pressure vs. Altitude

    As altitude increases the pressure decreases

  • Solar Observation: Did not exactly work, need a better way of blocking out the sun.

  • IMU results will come later


Conclusions48 l.jpg

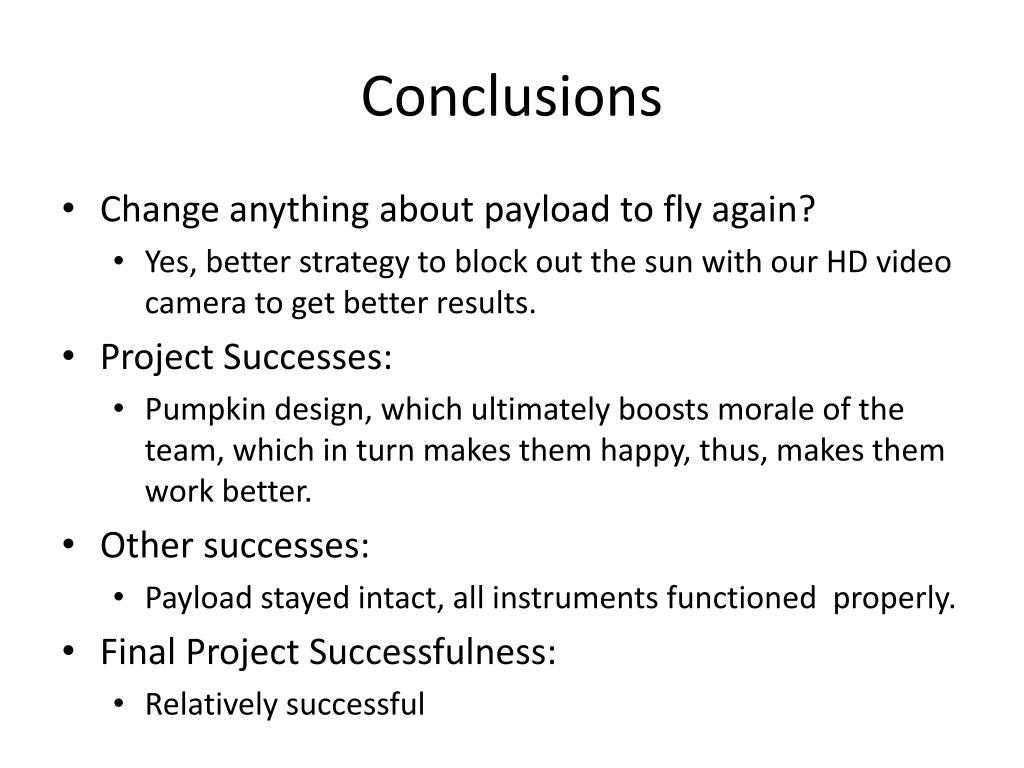

Conclusions

  • Change anything about payload to fly again?

    • Yes, better strategy to block out the sun with our HD video camera to get better results.

  • Project Successes:

    • Pumpkin design, which ultimately boosts morale of the team, which in turn makes them happy, thus, makes them work better.

  • Other successes:

    • Payload stayed intact, all instruments functioned properly.

  • Final Project Successfulness:

    • Relatively successful


Words of wisdom l.jpg
Words of Wisdom

  • Don’t drink too much water on the chase, you never know when you are going to stop.

  • Think BIG

  • If you assume, you make an a** out of “u” and “me”

  • If you think it might be cold, then it probably will be


Thank you to the following l.jpg
Thank You to the Following

  • Thanks to the rest of our class for providing a forum for bouncing around ideas

  • Thanks to our TAs, Amy and Phillip for assisting the construction

  • Thanks to Chris from Augsburg for helping with the IMU

  • Thanks to Professor Flaten for guiding us during these past few months
