how is sound produced

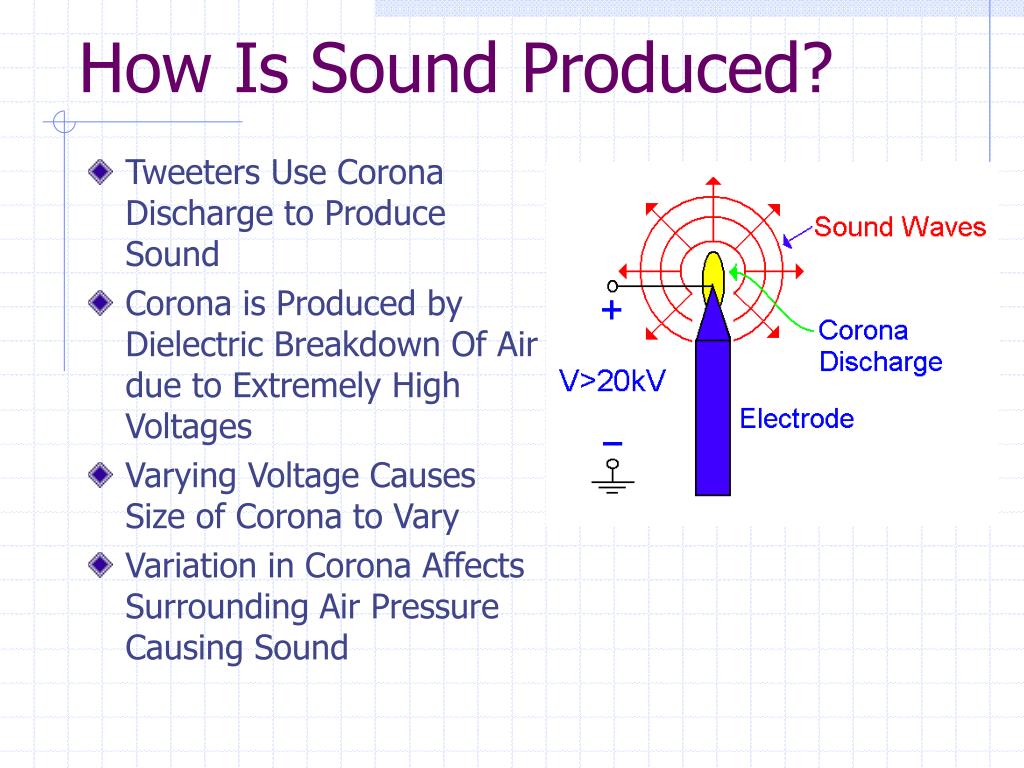

How Is Sound Produced?
  • Tweeters Use Corona Discharge to Produce Sound
  • Corona is Produced by Dielectric Breakdown Of Air due to Extremely High Voltages
  • Varying Voltage Causes Size of Corona to Vary
  • Variation in Corona Affects Surrounding Air Pressure Causing Sound
enhancements
Enhancements
  • More efficient use of power due to use of modern semiconductors instead of vacuum tubes.
  • Wider Frequency response Expected from a higher power Efficiency
  • Smaller physical size of system.
  • Less heat radiated by components.
coil research
Coil Research
  • Forms resonant circuit due to winding self-capacitance
  • Coil wound with thick wire to minimize resistive loss.
  • Uses air-core coil for minimal hysteresis.
why use ion tweeters

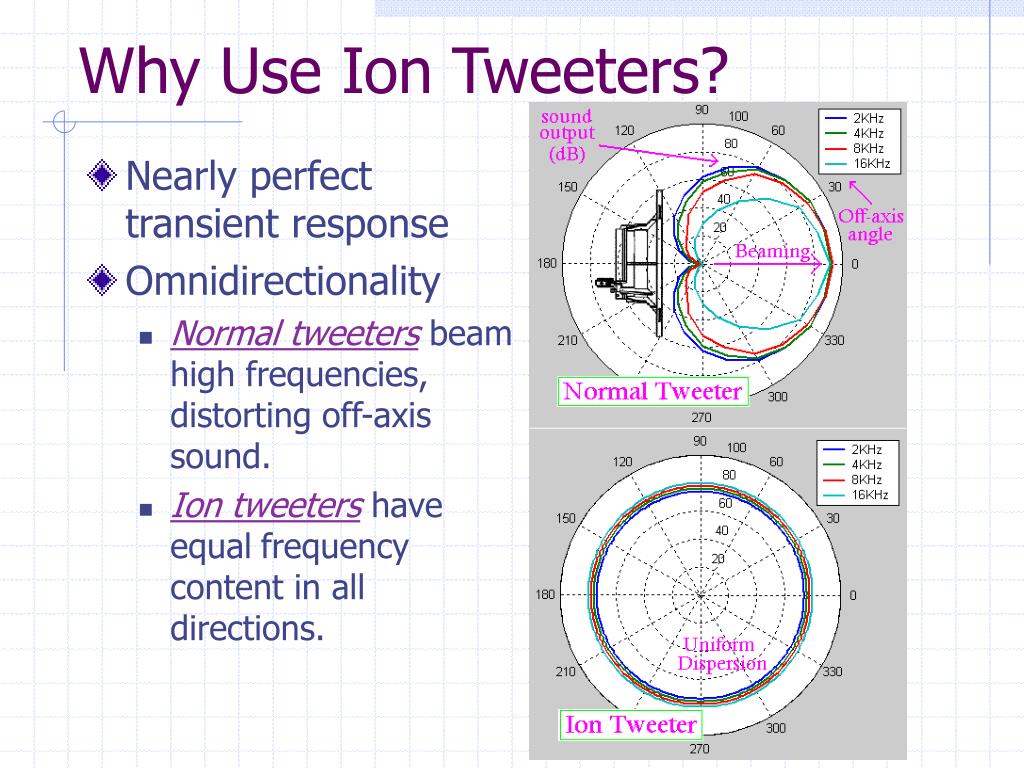

Why Use Ion Tweeters?
  • Nearly perfect transient response
  • Omnidirectionality
    • Normal tweeters beam high frequencies, distorting off-axis sound.
    • Ion tweeters have equalfrequency content in all directions.
specifications
Specifications
  • Resonant high voltage oscillator operates at ~9.1MHz.
  • Output voltage to sustain corona discharge must be greater than 20,000 volts. 1 millimeter of corona forms for every 2,000 volts above this reference.
  • Power consumption to be less than 200watts.
oscillator theory

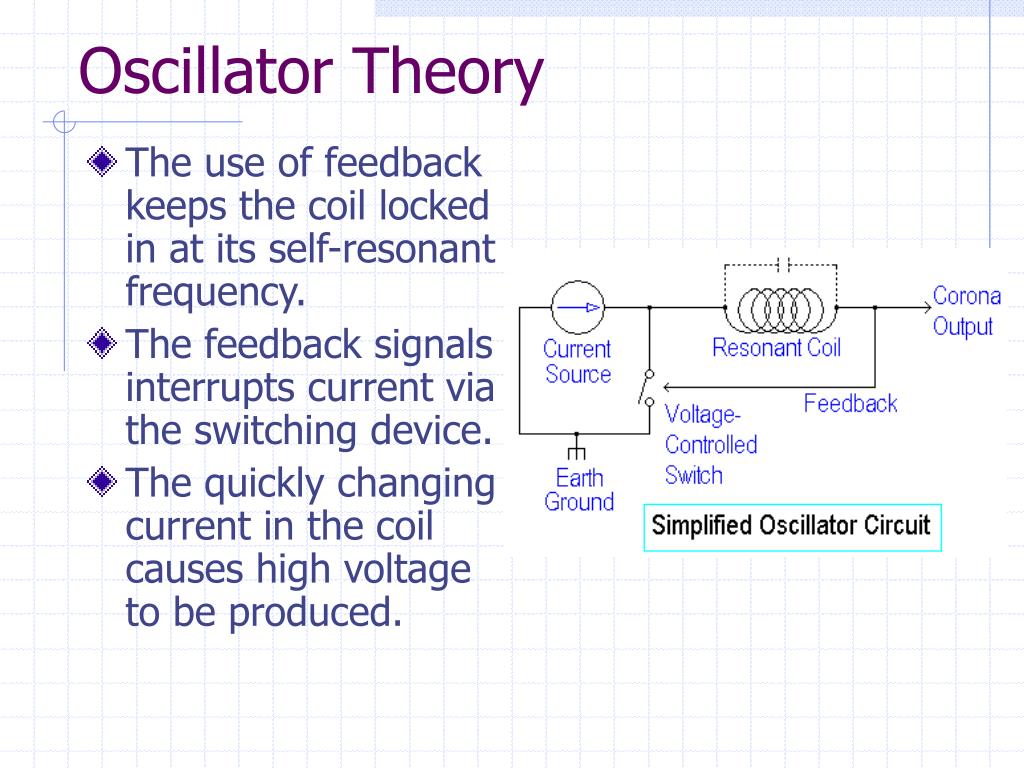

Oscillator Theory
  • The use of feedback keeps the coil locked in at its self-resonant frequency.
  • The feedback signals interrupts current via the switching device.
  • The quickly changing current in the coil causes high voltage to be produced.
team members
Team Members

Group 21

Rob Alejnikov

Mark Blattner

Colin Joye

specifications frequency response
Specifications & Frequency Response
  • Gain
    • Variable from zero to 60
  • High Pass Filter
    • Cutoff at 2 kHz, 12 dB/octave
  • Low Pass Filter
    • Cutoff at 40 kHz, 12 dB/octave
  • Low Power Consumption
    • Consumes 0.36 Watts
  • High quality op-amps
    • LF356 audio op-amps
advisors
Advisors
  • Academia
      • Dr. Robert Caverly
      • Dr. Joseph Kozikowski
      • Dr. Pritpal Singh
  • Industry
      • Mr. Joseph Fell
