design manufacturing of materials
Design & Manufacturing of Materials

6 Lectures, Trinity Term 2003

2nd year Materials: Engineering Applications of Materials

Dr Ian Stone (5 lectures) & Dr Paul Butler (1 lecture)

Synopsis

product development
Product Development

Product Development Team

Marketing Provides market assessment

Identifies market opportunities

Manufacturing Assesses production process

Assesses manufacturing costs and quality

Design Defines product form and function

Engineering Design

Industrial Design

ProductDevelopmentType

Developmenttime 1-10 years depending on product

Developmentcost $100k-$5B depending on product

Developmenttype Generic/Market pull

Technology push

Technology platform

Process limited

Customised

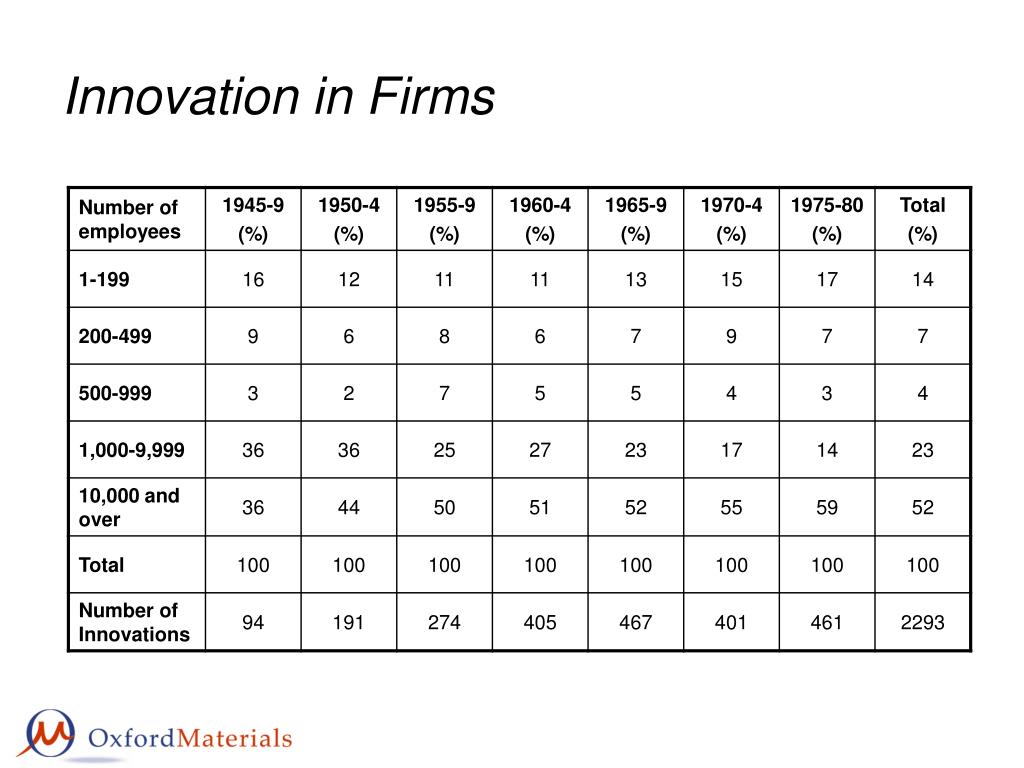

Company Innovation

Large companies vs SMEs (small and medium size enterprises)

product development team
Product Development Team

Manufacturing

Engineer

Marketing

Professional

Purchasing

Specialist

Finance

TEAM

LEADER

Sales

Legal

Industrial

Designer

Electronics

Designer

Mechanical

Designer

Extended Team

(including suppliers)

total design
Total Design

Market Assessment

  • is a systematic activity:
  • Identification of the market need → sale of product to meet that need.
  • Product, Process, People, Organization, etc.
  • Design Core
    • Market Analysis
    • Specification
    • Concept Design
    • Detailed Design
    • Manufacturing
    • Sales
  • Product Design Specification (PDS)
    • Envelopes all stages of the design core

Specification

Concept Design

Detail Design

Manufacture

Sell

THE DESIGN CORE

the design core
The Design Core

Market Assessment

Specification

MARKET

ASSESSMENT

Interviews, Questionnaires, Focus Groups

Intellectual Property and Literature Searches

Competitive Benchmarking

parametric analysis, needs matrix

Concept Design

Detail Design

Manufacture

Sell

market analysis example 1
Market Analysis: Example 1

Tristar 333

A rough terrain telescopic handler with parallel lift

market analysis example 2

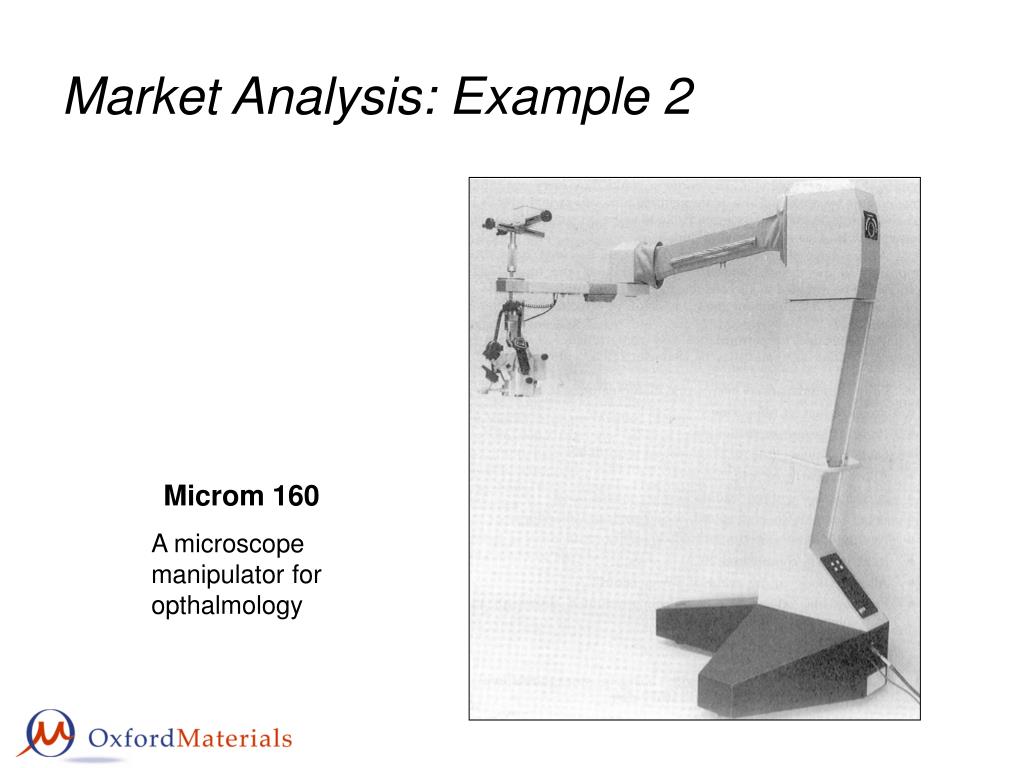

Market Analysis: Example 2

Microm 160

A microscope manipulator for opthalmology

the design core1
The Design Core

Market Assessment

  • SPECIFICATION
  • Product Design Specification (PDS)
  • Develop Specification (8 stages)
  • Construct customer needs matrix
  • Develop performance measures
  • Cross correlate (needs-measures matrix)
  • Construct competitive benchmark chart to assess market position (based on customer needs and performance measures)
  • Define an initial set of target specifications
  • Carry out engineering design analysis to assess technical feasibility
  • Develop a bill of materials for initial cost assessment
  • Redefine the set of specifications

Specification

Concept Design

Detail Design

Manufacture

Sell

product design specification pds
Product Design Specification (PDS)

Patents

Environment

Shelf life

Packing

Testing

Competition

Safety

Weight

Legal

Maintenance

Quantity

Materials

Politics

Ergonomics

Plant

Disposal

Aesthetics

DESIGN CORE

Installation

Shipping

Size

Service life

Standards

Processes

Customer

Performance

Quality assurance

Storage

Timescale

partial pds

Element to be considered:

In

Out

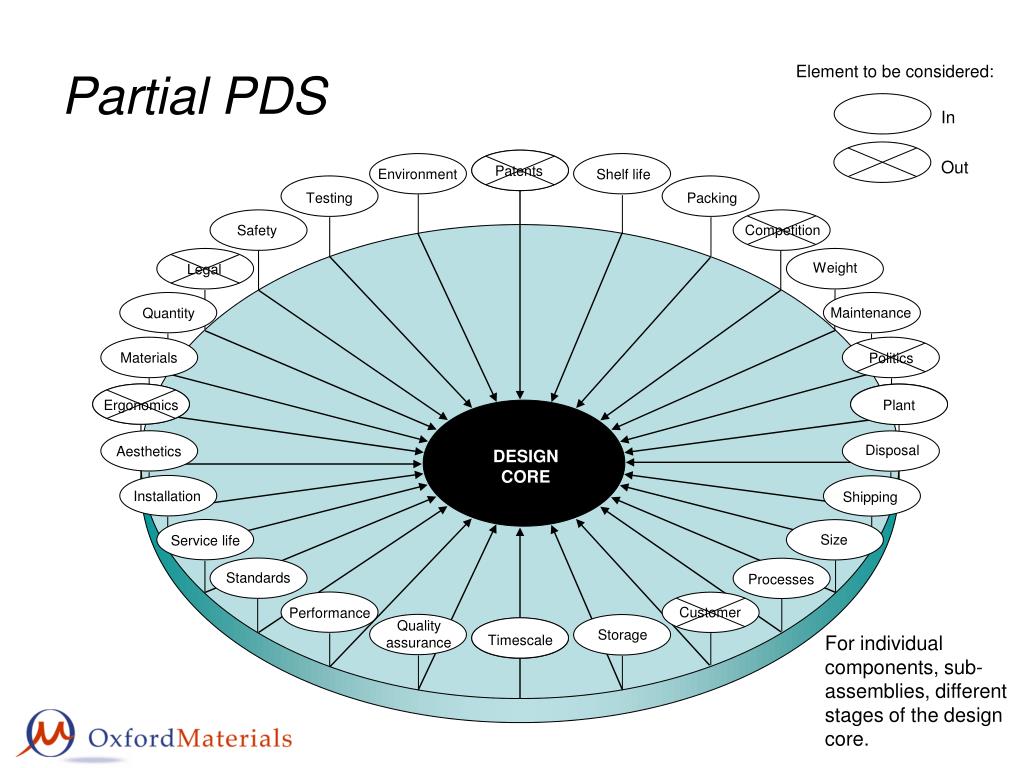

Partial PDS

Patents

Environment

Shelf life

Packing

Testing

Competition

Safety

Weight

Legal

Maintenance

Quantity

Materials

Politics

Ergonomics

Plant

Disposal

Aesthetics

DESIGN CORE

Installation

Shipping

Size

Service life

Standards

Processes

Customer

Performance

Quality assurance

Storage

For individual components, sub-assemblies, different stages of the design core.

Timescale

design specification stage 1
Design Specification: Stage 1

Stage 1: Customer needs matrix

design specification stage 2
Design Specification: Stage 2

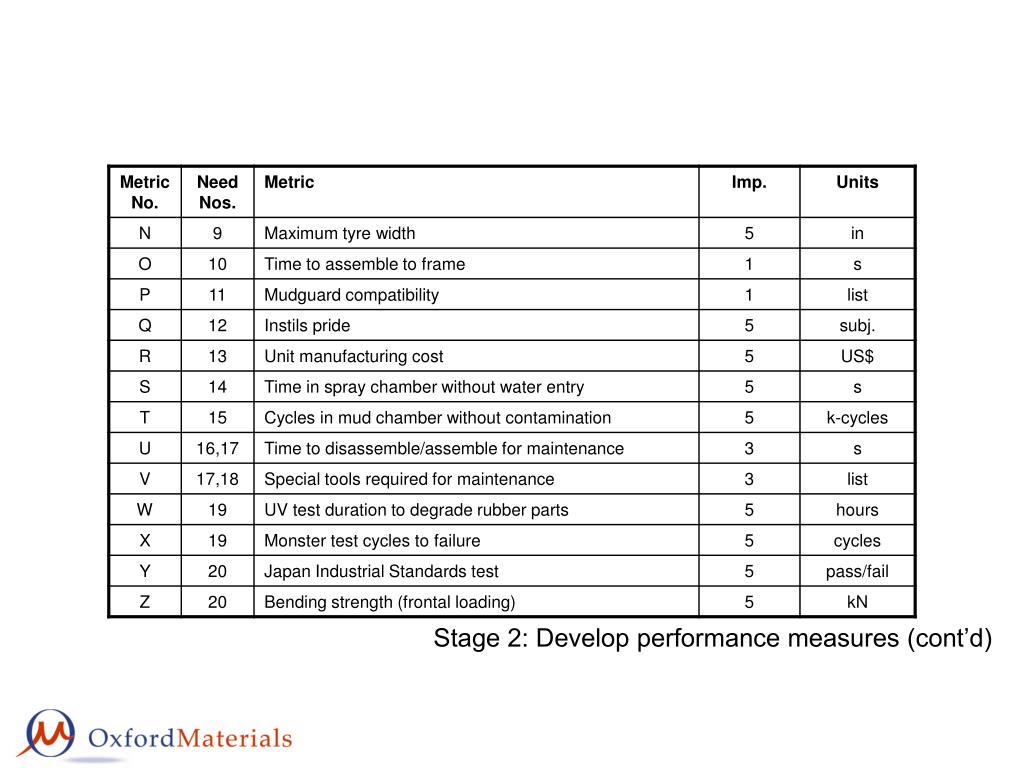

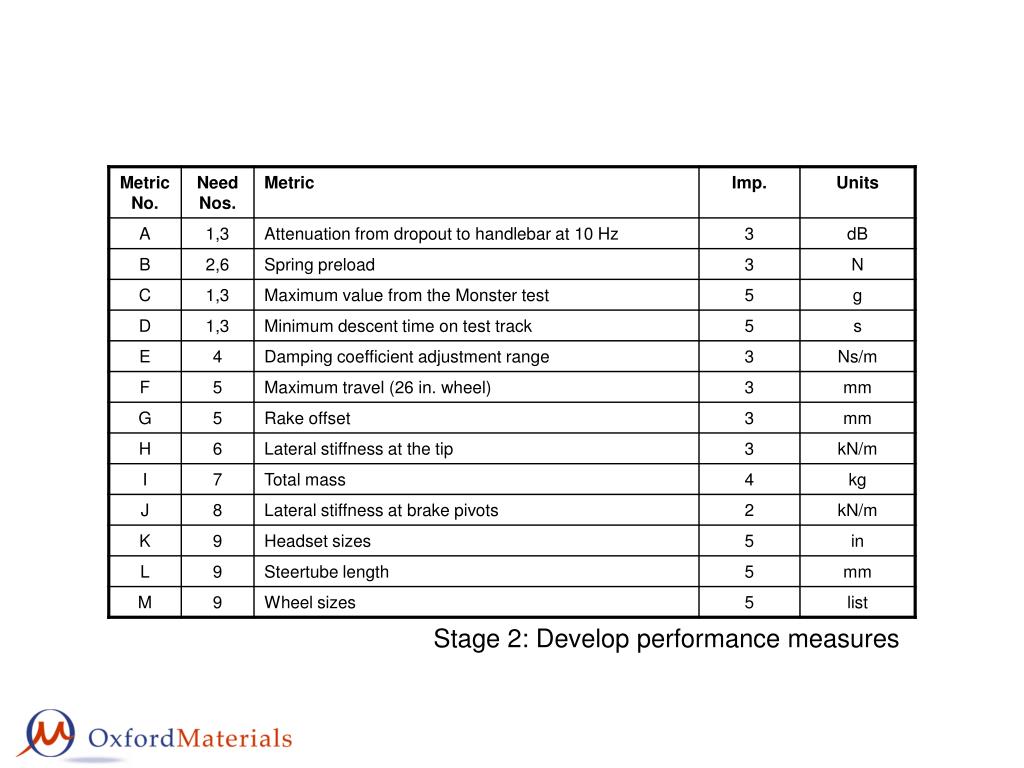

Stage 2: Develop performance measures

design specification stage 3
Design Specification: Stage 3

Stage 3: Cross correlate (needs-measures matrix)

design specification stage 4
Design Specification: Stage 4

Stage 4: Construct competitive benchmark chart to assess market position (based on customer needs)

design specification stage 4 cont d
Design Specification: Stage 4 cont’d

Stage 4: Construct competitive benchmark chart to assess market position (based on performance measures)

design specification stage 5
Design Specification: Stage 5

Stage 5: Initial set of target specifications

design specification stage 6

Geometry

Materials Properties

Fastening Methods

Surface finish

Fatigue Model

Cycles to Failure

DESIGN MODELS

(Model Inputs)

METRICS

(Model Outputs)

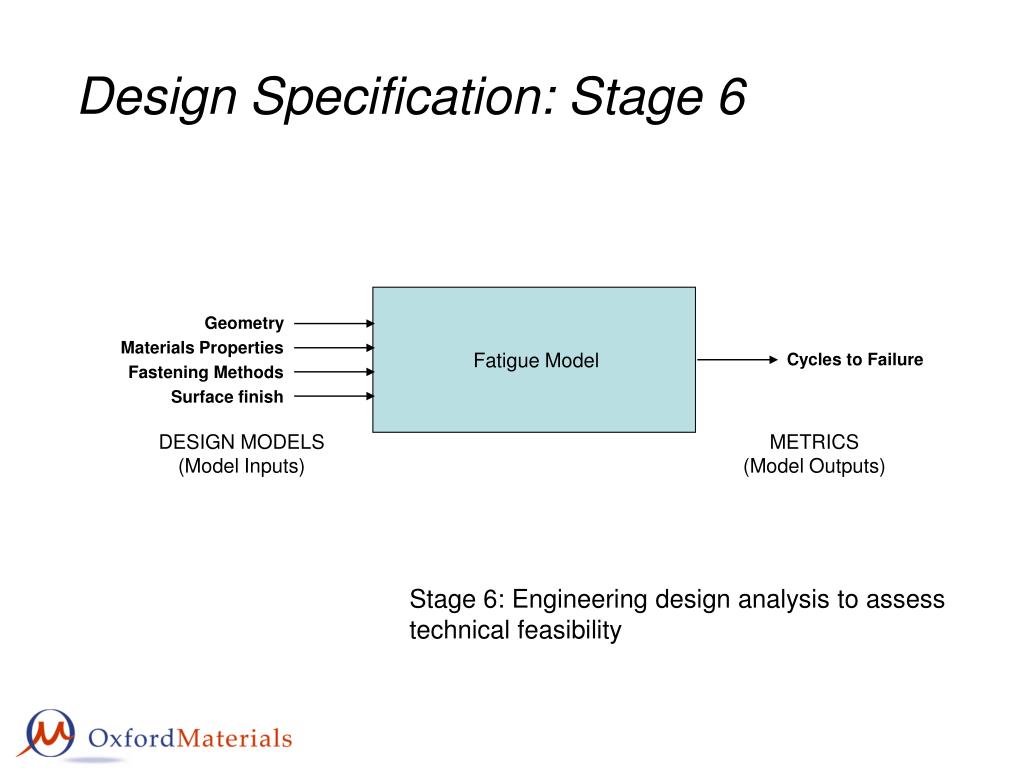

Design Specification: Stage 6

Stage 6: Engineering design analysis to assess technical feasibility

design specification stage 7

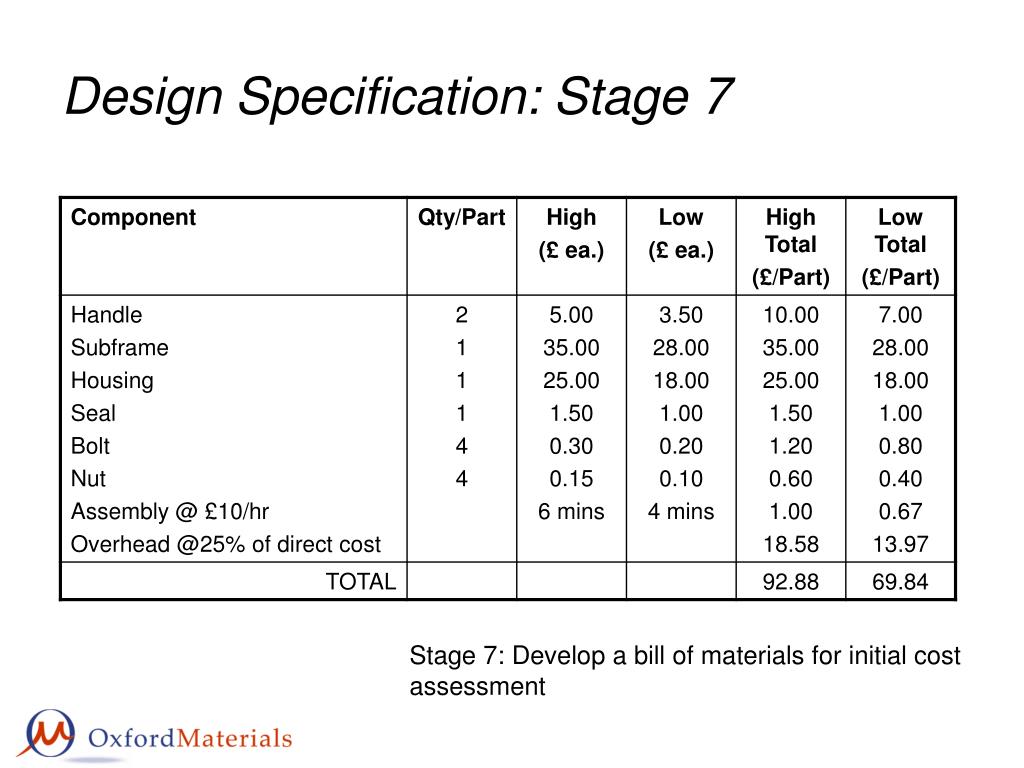

Design Specification: Stage 7

Stage 7: Develop a bill of materials for initial cost assessment

design specification stage 8
Design Specification: Stage 8

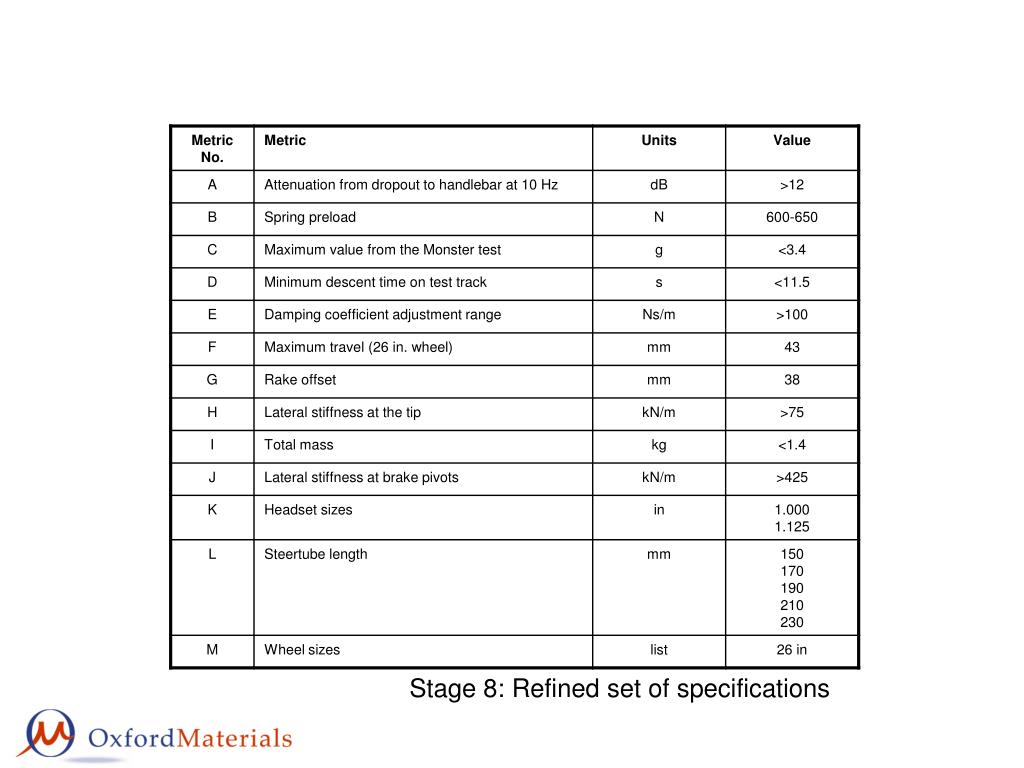

Stage 8: Refined set of specifications

example
Example

A Mountain Bike Suspension Fork

Stage 1: Customer needs matrix

slide31

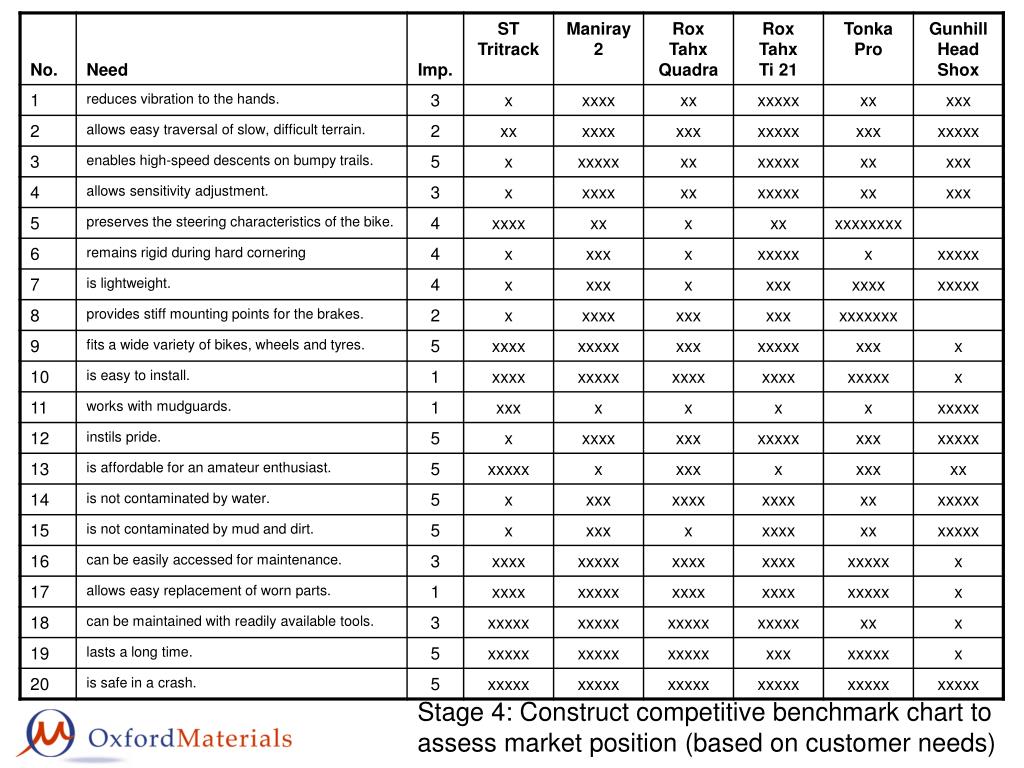

Stage 4: Construct competitive benchmark chart to assess market position (based on customer needs)

specification a mountain bike suspension fork

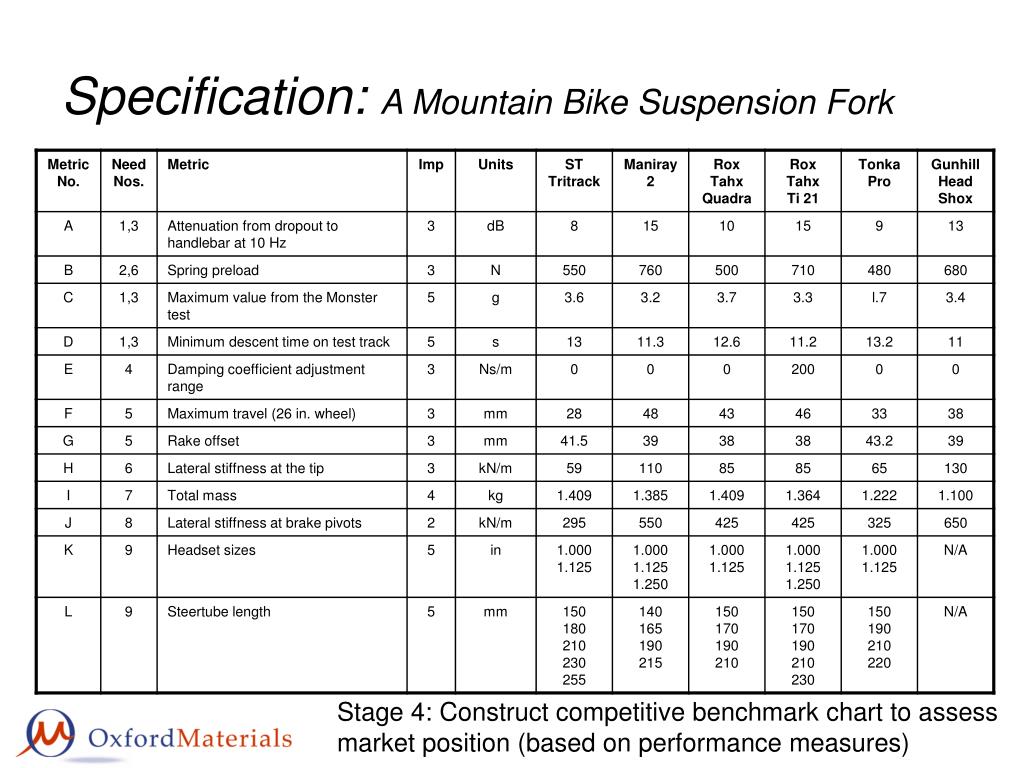

Specification: A Mountain Bike Suspension Fork

Stage 4: Construct competitive benchmark chart to assess market position (based on performance measures)

slide33

Stage 4: Construct competitive benchmark chart to assess market position (based on performance measures) (cont’d)

assess technical feasibility

Suspended Mass

Unsprung Mass

Orifice Diameter

Spring Constant

Oil Viscosity

Attentuation at 10 Hz

Estimated Monster g’s

Dynamic Model of

Suspension Performance

(Analytical)

Support Geometry

Materials Properties

Tube Geometry

Mounting Points

Lateral Stiffness

Static Model of

Brake Mounting Stiffness

(Analytical)

Fork Geometry

Materials Properties

Fastening Methods

Suspension Geometry

Cycles to Failure

Fatigue Model of

Suspension Durability

(Physical)

Assess Technical Feasibility

DESIGN MODELS

(Model Inputs)

METRICS

(Model Outputs)

Stage 6: Engineering design analysis to assess technical feasibility

the design core2
The Design Core

Market Assessment

CONCEPT DESIGN

Concept Generation

Clarify problem analyse into sub-problems

determine basic requirements

External search interview users, consult experts,

patent search

Internal search brainstorming, analogy, inversion,

staff consultation

Combination

Concept Analysis

Controlled convergence

Rating & weighting method

Specification

Concept Design

Detail Design

Manufacture

Sell

concept design evaluation generation
Concept Design: Evaluation/Generation

Initial number of concepts based on PDS

Apply controlled convergence (CC)

Initial number reduced

Apply concept generation (CC)

New ones added

CC

Further reduction (FR)

CG

Further addition (FA)

CC

FR

CG

FA

CC

CONCEPT SELECTED

concept design rating weighting
Concept Design: Rating & Weighting

Example: Design of a machine to make bottle brushes

the design core3

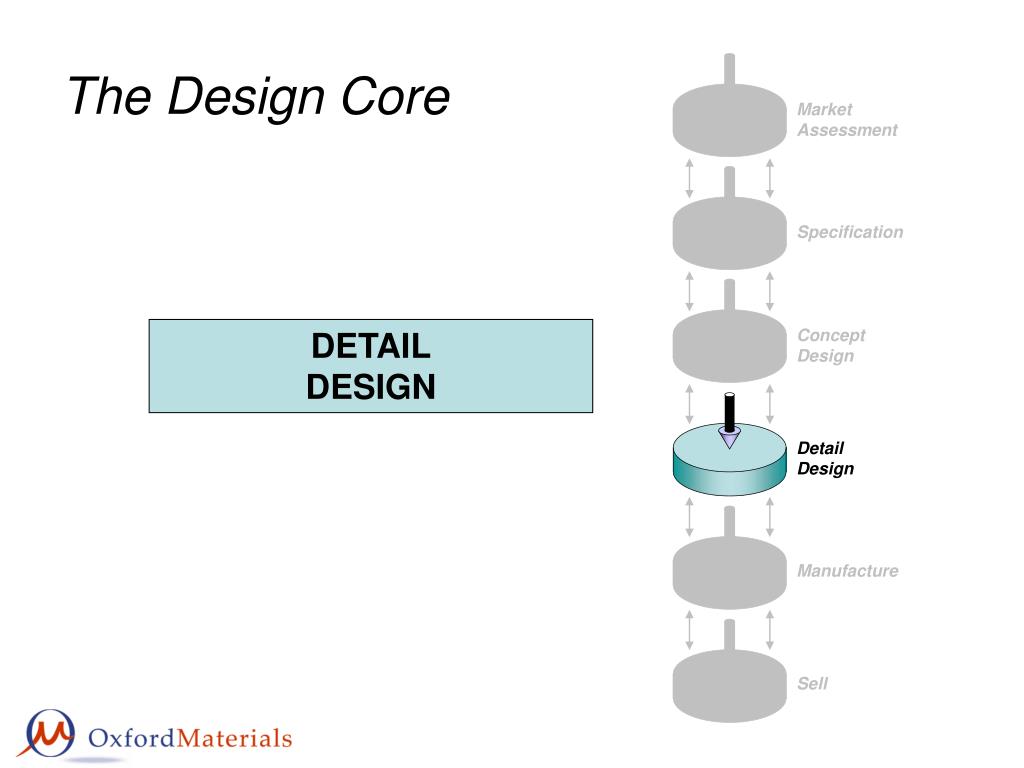

The Design Core

Market Assessment

Specification

DETAIL

DESIGN

Concept Design

Detail Design

Manufacture

Sell
