cis division nato c3 agency

The NATO Post-2000Narrow Band Voice Coder: Test and Selection of STANAG 4591

Technical Presentation-001

CIS Division, NATO C3 Agency

Voice@nc3a.info

slide2

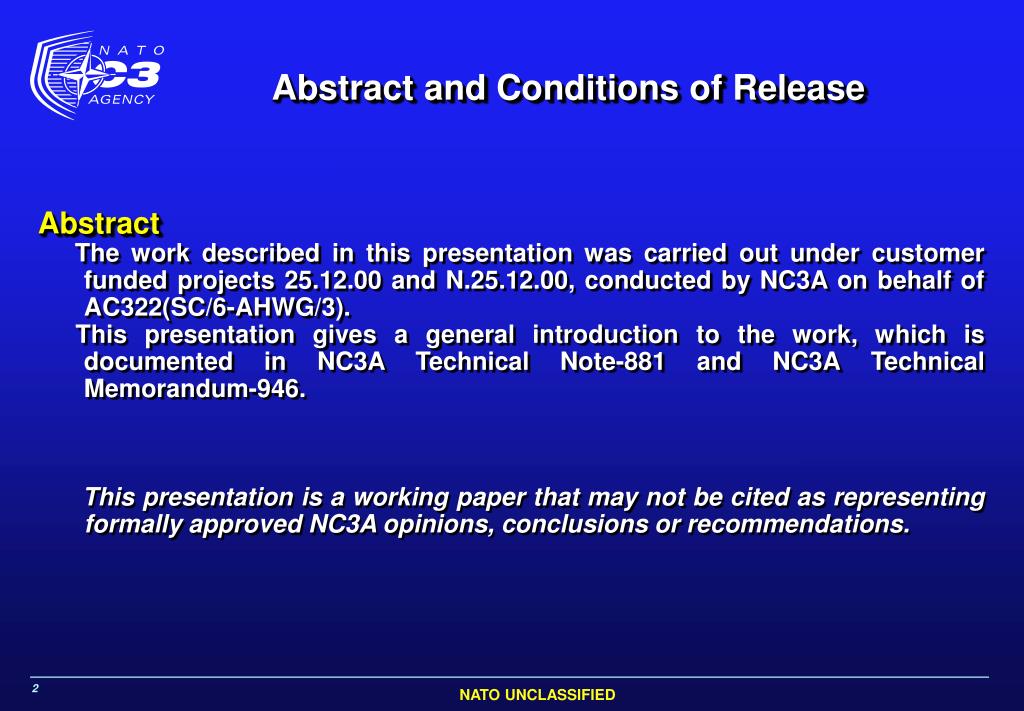

Abstract and Conditions of Release

Abstract

The work described in this presentation was carried out under customer funded projects 25.12.00 and N.25.12.00, conducted by NC3A on behalf of AC322(SC/6-AHWG/3).

This presentation gives a general introduction to the work, which is documented in NC3A Technical Note-881 and NC3A Technical Memorandum-946.

This presentation is a working paper that may not be cited as representing formally approved NC3A opinions, conclusions or recommendations.

nbvc and nc3a

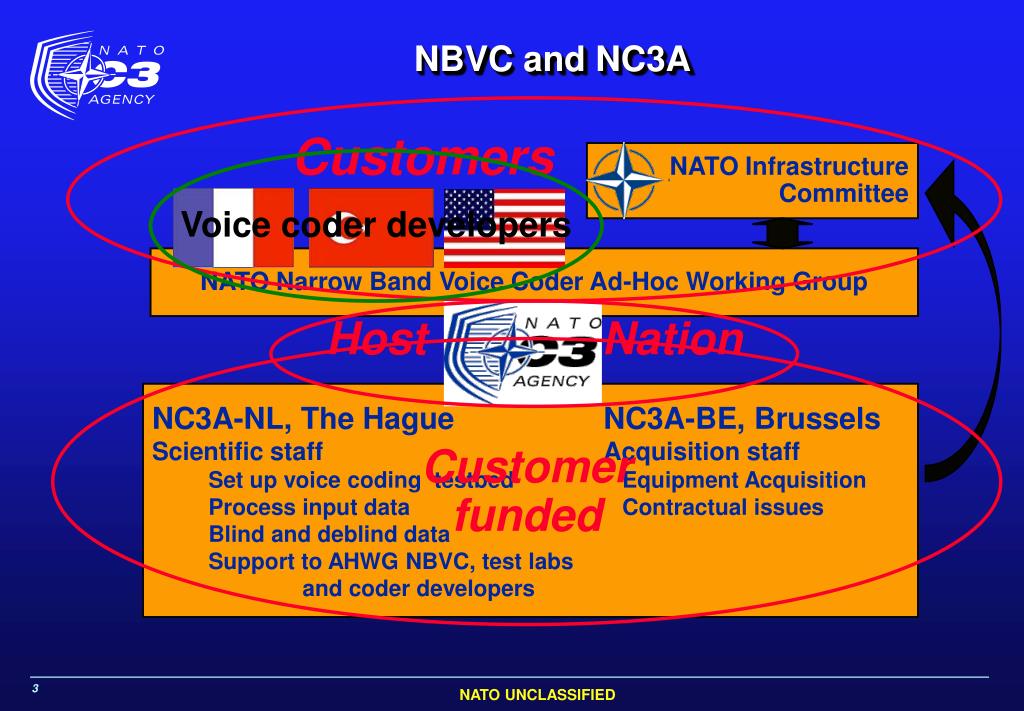

NBVC and NC3A

Customers

NATO Infrastructure

Committee

Voice coder developers

NATO Narrow Band Voice Coder Ad-Hoc Working Group

Host Nation

Customer

funded

  • NC3A-NL, The Hague NC3A-BE, Brussels
  • Scientific staff Acquisition staff
    • Set up voice coding testbed Equipment Acquisition
    • Process input data Contractual issues
    • Blind and deblind data
    • Support to AHWG NBVC, test labs
    • and coder developers
background
Background
  • Voice Coding technology is constantly improving
    • driven by mobile telephony
      • narrow band
      • wireless channels
    • new coders outperform existing NATO voice coders
  • STANAG 4198 - LPC10e
    • + low rate (2.4k)
    • - low speech quality
    • - low resilience to noise
  • STANAG 4209 - CVSD
    • + good resilience to noise
    • - poor speech quality in no noise
    • - high rate (16 k)
  • AHWG NBVC tasked by NATO to select a future Narrow Band Voice Coder for NATO use at 1.2kbps and 2.4kbps
voice coders tested

France

  • HSX (Harmonic Stochastic eXcitation)
  • Turkey
  • SB-PLC (Split-Band Linear Predictive Coding)
  • USA
  • MELP (Mixed Excitation Linear Prediction)

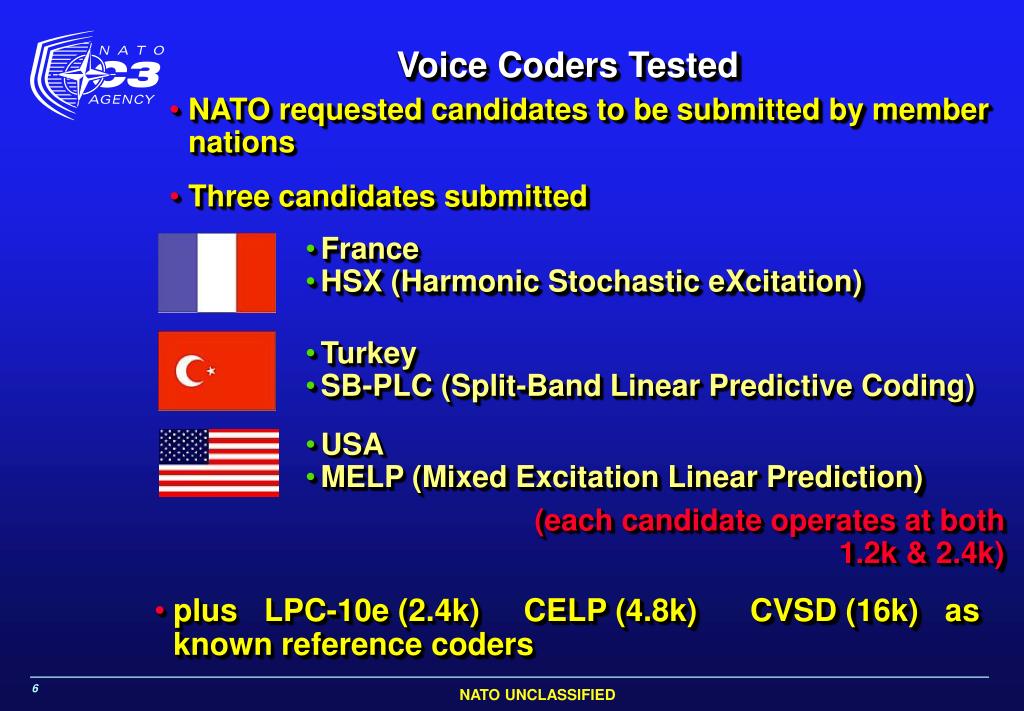

Voice Coders Tested
  • NATO requested candidates to be submitted by member nations
  • Three candidates submitted

(each candidate operates at both 1.2k & 2.4k)

  • plus LPC-10e (2.4k) CELP (4.8k) CVSD (16k) as known reference coders
test resources and responsibilities

The TNO test laboratory at Soesterberg, NL

NATO data being analysed at TNO

Test Resources and Responsibilities
  • Project was ‘customer funded’ by NATO Infrastructure Committee and nations submitting coders
  • NC3A host nation, but worked with specialist speech processing labs
  • NC3A ran raw audio data through coders and ‘blinded’ all output
  • National test labs analysed raw audio from NC3A. Test labs were:
    • TNO, NL
    • CELAR, FR
    • Arcon, US
  • NC3A impartially collated results
nato nbvc tests phase 1

A typical test booth where subjects listen to speech for analysis

NATO NBVC testsPhase 1
  • Floating Point vocoder implementations
  • Performance
    • Intelligibility
    • Quality
  • Noise Conditions
    • Quiet
    • Modern office
    • Acoustic noise, (6 dB, 12 dB)
  • 5488 Mb of processed audio in 5848 files
processing by nc3a

LPC10e

LPC10e

CVSD

CVSD

BITSTREAM

CELP

CELP

FR1200

FR1200

FR2400

FR2400

TU1200

TU1200

TU2400

TU2400

US1200

US1200

US2400

US2400

Processing by NC3A

Encode

Decode

LPC10e

LPC10e

CVSD

CVSD

3

4

5

6

7

8

9

2

1

Nine raw

audio output files

Sent to test labs for analysis

CELP

CELP

FR1200

FR1200

Raw audio file

8kHz sample rate,

16 bit samples

FR2400

FR2400

TU1200

TU1200

TU2400

TU2400

US1200

US1200

US2400

US2400

double blinding process
Double blinding process

Decoded output files

Single blinded files

Double blinded files

LPC10e

LPC10e

Coder1

Vocoder1

CVSD

Coder2

Vocoder2

CELP

Coder3

Vocoder3

B

L

I

N

D

B

L

I

N

D

Nine audio output files

To test lab

FR1200

Coder4

Vocoder4

FR2400

Coder5

Vocoder5

TU1200

Coder6

Vocoder6

TU2400

Coder7

Coder7

Vocoder7

US1200

Coder8

Vocoder8

US2400

Coder9

Vocoder9

Vocoder9

Blinded by NC3A

Blinded by DSTL

modulated noise reference unit

MNRU 5db

MNRU 10dB

MNRU 15dB

MNRU 20dB

MNRU 25dB

MNRU 30dB

MNRU 35dB

MNRU 40dB

Modulated Noise Reference Unit
  • MNRU is a standard method to apply known levels of noise. It provides known references against which listeners can compare vocoder outputs

BITSTREAM

Nine raw audio output files

LPC10e

LPC10e

CVSD

CVSD

CELP

CELP

FR1200

FR1200

FR2400

FR2400

TU1200

TU1200

TU2400

TU2400

US1200

US1200

US2400

US2400

MNRU 5db

10

17

16

14

15

12

17

11

13

17 raw audio output files.

MNRU files to test labs as references for analysing speech quality

MNRU 10dB

One raw audio file

MNRU 15dB

MNRU 20dB

MNRU 25dB

MNRU 30dB

MNRU 35dB

MNRU 40dB

nato nbvc tests phase ii
Fixed point implementation

C plus ETSI libraries

Performance Measurements

Intelligibility, Quality

Speaker recognition

Language dependency

English, French, German, Dutch, Polish, Turkish

10 acoustic noise environments

Transmission channel

1% BER

Tandem

16 kbps CVSD - vocoder

Whispered speech

NATO NBVC testsPhase II
phase 2 additional test conditions
Phase 2 additional test conditions

1% random bit errors

Audio output file

Coder n

Bitstream

Decoder n

Audio input file

Test configuration: 1% Bit error rate

Audio

B i t s

B i t s

Audio output file

CVSD

Coder

CVSD

Decoder

Coder n

Decoder n

Audio input file

Test configuration: Voice coder tandem

nato nbvc tests phase 2 noise conditions phase 1 plus

HMMWV

Bradley Fighting Vehicle

Le Clerc Tank

Blackhawk helicopter

Mirage 2000

F-15

NATO NBVC tests - Phase 2Noise ConditionsPhase 1 plus ……..

MCE field shelter

Volvo (staff car)

nato nbvc phase 2

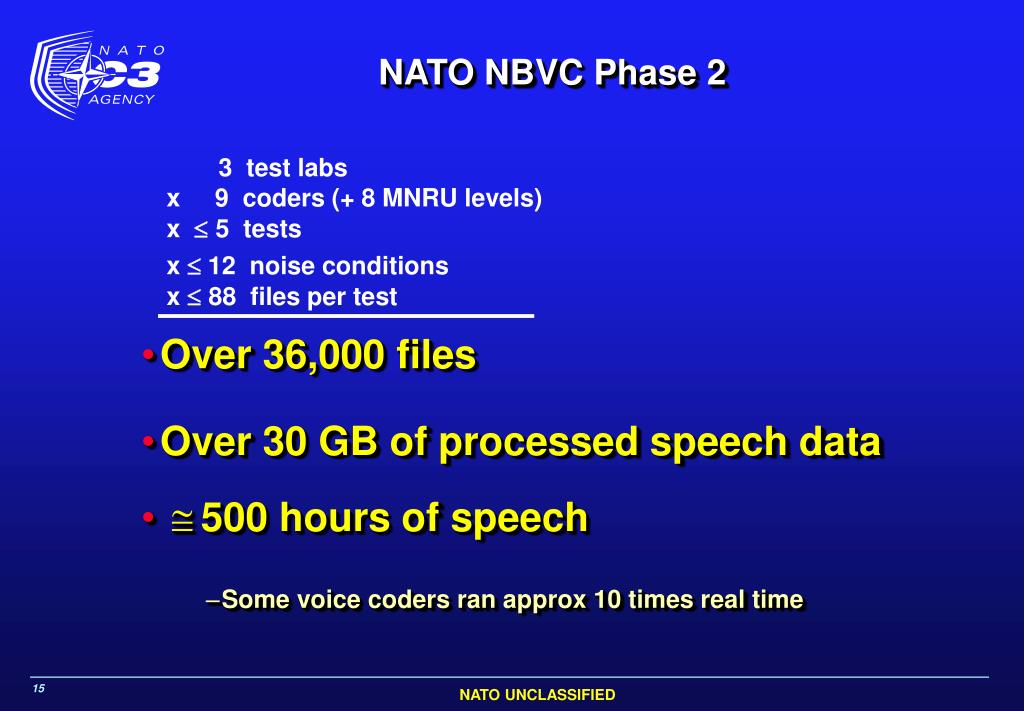

NATO NBVC Phase 2

3 test labs

x 9 coders (+ 8 MNRU levels)

x £5 tests

  • Over 36,000 files
  • Over 30 GB of processed speech data
  • @500 hours of speech
      • Some voice coders ran approx 10 times real time

x £ 12 noise conditions

x £88 files per test

need for precision weighted ranking
Need for Precision Weighted Ranking
  • Graphs show variation between intelligibility tests performed by the 3 test labs
    • General trends are the same
    • Absolute scores vary
  • Need to combine all results accurately and fairly
    • Simple scaling is not sufficient

US24 CELP FR24 CVSD TU24 US12 LPC TU12 FR12

US24 CELP FR24 CVSD TU24 US12 LPC TU12 FR12

precision weighted ranking

Range of test results divided into segments or bins

Confidence

interval

of test

Confidence

interval

of test

  • The resolution (or 95% confidence interval) of the test determines bin size

Bin 1

Bin 3

Bin 4

Bin 5

Bin 7

Score = 7

Score = 1

Precision Weighted Ranking
  • Coders in subsequent intervals score bin number
  • Coder scores are determined by which bin their test result falls into
  • Worst coder always scores 1. In this test Vocoder 7 came last
  • Scores for vocoders 6, 8 and 9 were 4 - 5 confidence intervals above that of V7. They all score 5
phase 2 combined performance index
Phase 2 Combined Performance Index

US

FR

TU

  • Selection made on combined scores at 2400 and 1200 bps
    • 60% - 2400 bps score
    • 40% - 1200 bps score
phase 2 combined performance index1
Phase 2 Combined Performance Index

US2400

CELP

FR2400

CVSD

TU2400

US1200

FR1200

TU1200

LPC10

specific results intelligibility

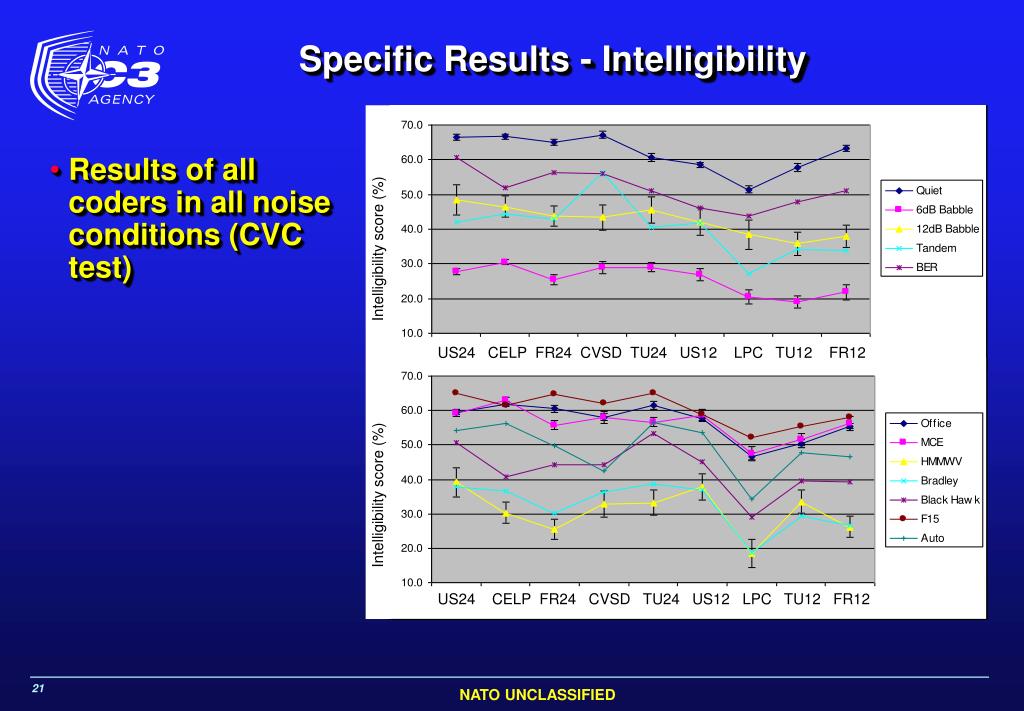

Specific Results - Intelligibility
  • Results of all coders in all noise conditions (CVC test)

US24 CELP FR24 CVSD TU24 US12 LPC TU12 FR12

Intelligibility score (%) Intelligibility score (%)

US24 CELP FR24 CVSD TU24 US12 LPC TU12 FR12

specific results speech quality
Specific Results - Speech Quality
  • Range of Mean Opinion Score test
    • 1 (Bad)
    • 2 (Poor)
    • 3 (Fair)
    • 4 (Good)
    • 5 (Excellent)
  • Results of all coders in all noise conditions (MOS test)

Mean Opinion Score

US24 CELP FR24 CVSD TU24 US12 LPC TU12 FR12

Mean Opinion Score

US24 CELP FR24 CVSD TU24 US12 LPC TU12 FR12

specific results language dependency
Specific Results - Language Dependency
  • Language dependency of all tested coders
  • The closer a point lies to the x=y diagonal, the less language dependant the voice coder
current position

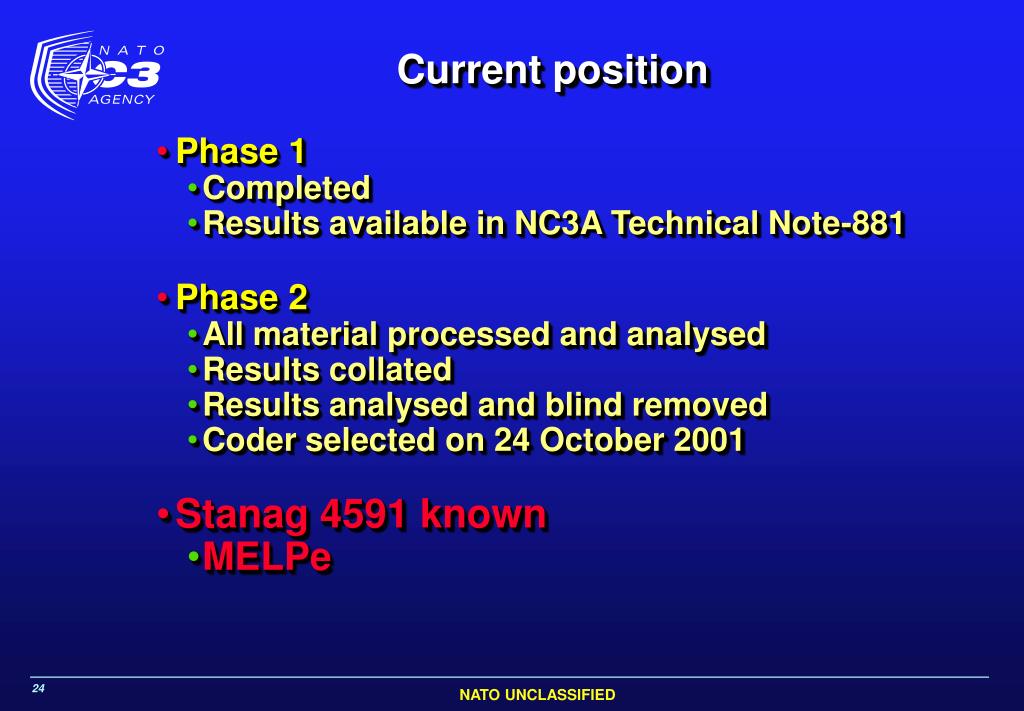

Current position
  • Phase 1
    • Completed
    • Results available in NC3A Technical Note-881
  • Phase 2
    • All material processed and analysed
    • Results collated
    • Results analysed and blind removed
    • Coder selected on 24 October 2001
  • Stanag 4591 known
    • MELPe
nc3a current activity

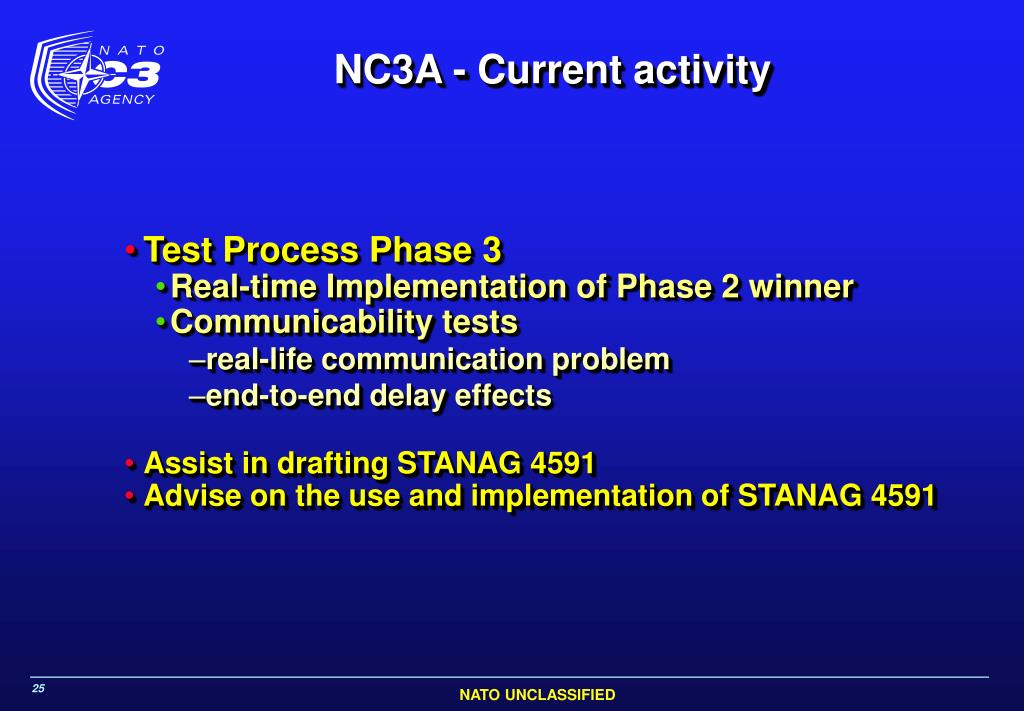

NC3A - Current activity
  • Test Process Phase 3
    • Real-time Implementation of Phase 2 winner
    • Communicability tests
      • real-life communication problem
      • end-to-end delay effects
  • Assist in drafting STANAG 4591
  • Advise on the use and implementation of STANAG 4591
stanag 4591 vs cots voice coders

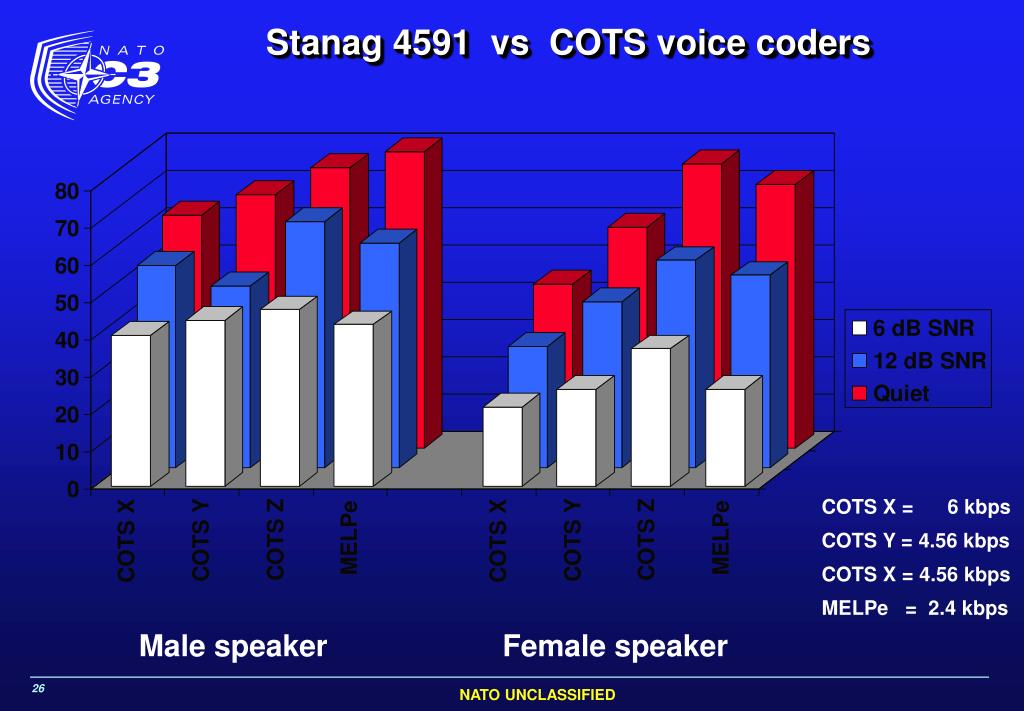

Stanag 4591 vs COTS voice coders

COTS X = 6 kbps

COTS Y = 4.56 kbps

COTS X = 4.56 kbps

MELPe = 2.4 kbps

Male speaker Female speaker

conclusion

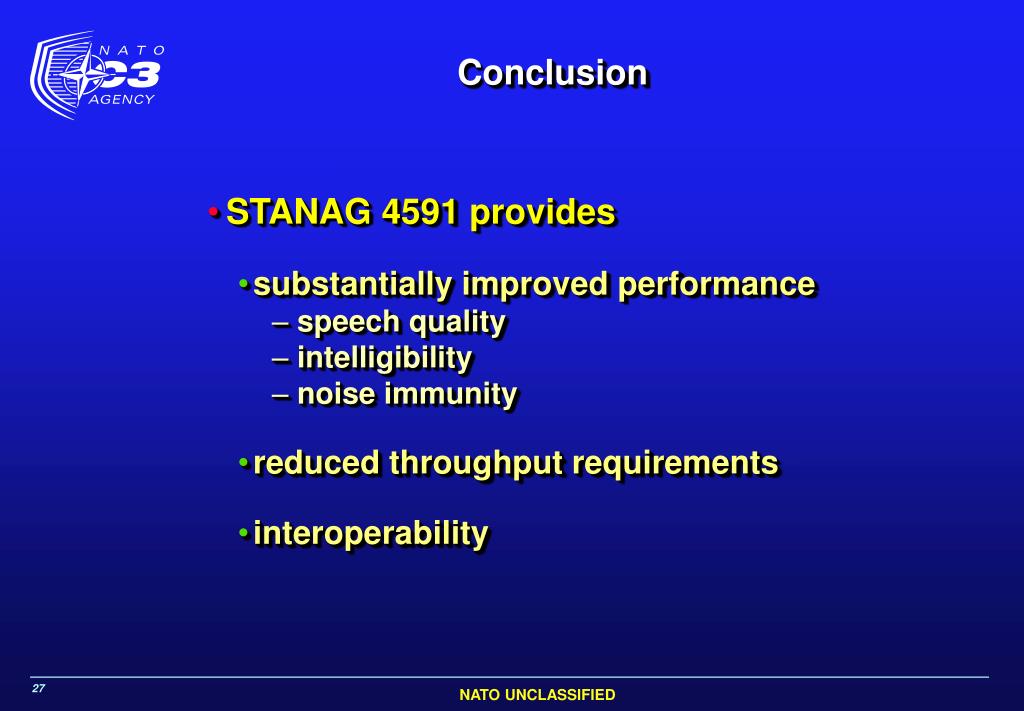

Conclusion
  • STANAG 4591 provides
    • substantially improved performance
      • speech quality
      • intelligibility
      • noise immunity
    • reduced throughput requirements
    • interoperability
further information
Further information

Stanag 4591 test and selection process

Street MD, “Future NATO narrow band voice coder selection: Stanag 4591”, NC3A Technical Note 881, The Hague, December 2001

http://nc3a.info/Voice

Street MD and Collura JS, “Interoperable Voice Communications: test and selection of STANAG 4591”, RTA IST Symposium - NATO Research and Technology Agency (Information Systems and Technology panel) Tactical Military Communications symposium, Warsaw, October 2001

http://www.rta.nato.int/IST.htm

Street MD and Collura JS, “The test and selection of the future NATO narrow band voice coder”, RCMCIS - NATO Regional Conference on Military CIS, Warsaw, Zegrze, October 2001.

http://www.wil.waw.pl/ses3.htm

MELPe: the selected voice coder

Collura JS and Rahikka DJ, “Interoperable secure voice communications in tactical systems, IEE coll. on Speech coding algorithms for radio channels, London, February 2000.

An overview of the MELP voice coder and its use in military environments

http://www.iee.org/OnComms/pn/communications

Collura JS, Rahikka DJ, Fuja TE, Sridhara D and Fazel T, “Error coding strategies for MELP vocoder in wireless and ATM environments”, IEE coll. on Speech coding algorithms for radio channels, London, February 2000.

Performance of MELP with a variety of different error correction mechanisms

http://www.iee.org/OnComms/pn/communications

information and source code available from
Information and Source Code available from:
