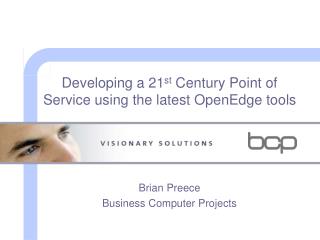

Developing a 21st Century Point of Service using the latest OpenEdge tools

Brian Preece

Business Computer Projects

session objectives
Session Objectives
  • To describe how we used OpenEdge features both old and new to create an Operationally Responsive Point of Service

Developing a 21st Century Point of Service using the latest OpenEdge tools

who are bcp
Who are BCP?
  • Major supplier in Europe of Food Wholesale, Retail and Cash and Carry systems
  • Users: Spar, NISA, Pets at Home, BWG, Musgrave, ADM, Morrisons, etc…
  • Area: currently UK and EU, keen to expand!
  • 1st “Extranet” - Late 1970s Telspar
  • 1st Scanning in convenience stores in UK
  • Early adopter of SonicMQ with our AIMS wholesale/ retail messaging hub
  • Continuous innovators

Developing a 21st Century Point of Service using the latest OpenEdge tools

agenda
Agenda
  • Business Acceleration and Operational Responsiveness
  • The PoS Dilemma
  • Solving the dilemma using the latest OpenEdge tools
  • Demo
  • A closer look at the tools
  • Moving to an Object Oriented world
  • Conclusions

Developing a 21st Century Point of Service using the latest OpenEdge tools

agenda5
Agenda
  • Business Acceleration and Operational Responsiveness
  • The PoS Dilemma
  • Solving the dilemma using the latest OpenEdge tools
  • Demo
  • A closer look at the tools
  • Moving to an Object Oriented world
  • Conclusions

Developing a 21st Century Point of Service using the latest OpenEdge tools

business velocity is increasing
Business velocity is increasing

same-day service

Automated share trading

100 ms

20 ms

Airline operations

20 min

30 sec

Track financial position

1 day

5 min

1 day

Supply chain updates

15 min

Phone activation

3 days

1 min

Refresh data warehouse

1 week

0.5 hour

Source: Gartner, Inc.

mail express fax e-mail real time Business Process

Trade settlement

5 days

2 hrs.

Typical Business SLAs106 105 104 103 100 10 1 0Seconds

Developing a 21st Century Point of Service using the latest OpenEdge tools

supply chain operational responsiveness
Supply Chain Operational Responsiveness

Developing a 21st Century Point of Service using the latest OpenEdge tools

agenda8
Agenda
  • Business Acceleration and Operational Responsiveness
  • The PoS Dilemma
  • Solving the dilemma using the latest OpenEdge tools
  • Demo
  • A closer look at the tools
  • Moving to an Object Oriented world
  • Conclusions

Developing a 21st Century Point of Service using the latest OpenEdge tools

the retail challenge
The Retail Challenge
  • Many stores and no IT expertise in the stores
  • Fixes and new features need to be rolled out as fast as possible
  • But visiting each store is very expensive
  • This implies a thin client solution

BUT

  • MUST BE RESILIENT - the store must continue to trade as long as one till still works
    • Even if: no back office

no AppServer™

no comms

Developing a 21st Century Point of Service using the latest OpenEdge tools

changes to business model
Changes to Business Model
  • Independent stores coalescing into chains
  • Wholesalers buying retail stores and running as multiple chain
  • Hence desire for
    • Centralised control
    • Centralised data management
    • Centralised data analysis

Developing a 21st Century Point of Service using the latest OpenEdge tools

agenda11
Agenda
  • Business Acceleration and Operational Responsiveness
  • The PoS Dilemma
  • Solving the dilemma using the latest OpenEdge tools
  • Demo
  • A closer look at the tools
  • Moving to an Object Oriented world
  • Conclusions

Developing a 21st Century Point of Service using the latest OpenEdge tools

classic webclient architecture
“Classic” WebClient Architecture

Developing a 21st Century Point of Service using the latest OpenEdge tools

semi disconnected architecture
Semi-disconnected Architecture

Developing a 21st Century Point of Service using the latest OpenEdge tools

tools we used
Tools we used
  • 9.0 WebClient
  • 10.1 Sonic Integration features
  • 10.1 XML features
  • 10.2 GUI for .NET
  • 10.1/ 10.2 OO ABL

Developing a 21st Century Point of Service using the latest OpenEdge tools

agenda15
Agenda
  • Business Acceleration and Operational Responsiveness
  • The PoS Dilemma
  • Solving the dilemma using the latest OpenEdge tools
  • Demo
  • A closer look at the tools
  • Moving to an Object Oriented world
  • Conclusions

Developing a 21st Century Point of Service using the latest OpenEdge tools

slide16
Demo

Developing a 21st Century Point of Service using the latest OpenEdge tools

demo setup
Demo setup

Host laptop

Software Download Site

“PoS” laptop

Central

Management

VM

Back

Office

VM

CM

DB

BO

DB

Sonic

Broker

Sonic

Broker

LAN

Developing a 21st Century Point of Service using the latest OpenEdge tools

agenda18
Agenda
  • Business Acceleration and Operational Responsiveness
  • The PoS Dilemma
  • Solving the dilemma using the latest OpenEdge tools
  • Demo
  • A closer look at the tools
  • Moving to an Object Oriented world
  • Conclusions

Developing a 21st Century Point of Service using the latest OpenEdge tools

the basics
The Basics
  • WebClient for easy deployment
    • Use temp-tables to store product/ price data, deals, etc.
  • Sonic for real time messaging
    • Transactions are sent to the AppServer in real time
  • Sonic Local Persistence to handle disconnection
    • Connection/ Disconnection handled in the background
  • XML to ProDataSet/ Temp-table
    • Very fast transformation to and fro
    • Also give loose coupling between PoS and Back Office

Developing a 21st Century Point of Service using the latest OpenEdge tools

old pos
Old PoS

Developing a 21st Century Point of Service using the latest OpenEdge tools

gui for net transformation
GUI for .NET Transformation

Much cleaner overall look

Bitmap embedded within button object

Object Oriented GUI

Style sheets

Dynamically coloured buttons

Gradient fill spans across group of objects

DEV-32: Using the Advanced GUI, Structured Error Handling and SonicMQ to build a Semi-Disconnected Point of Sale

Developing a 21st Century Point of Service using the latest OpenEdge tools

oo abl
OO ABL
  • Can use UML to design
  • More robust since more checking is done at compile time
  • Easier to unit test because of small objects with well defined interfaces
  • Easier to customise
  • Defined API
  • Facilitates continuous integration and other Agile techniques

Developing a 21st Century Point of Service using the latest OpenEdge tools

agenda23
Agenda
  • Business Acceleration and Operational Responsiveness
  • The PoS Dilemma
  • Solving the dilemma using the latest OpenEdge tools
  • Demo
  • A closer look at the tools
  • Moving to an Object Oriented world
  • Conclusions

Developing a 21st Century Point of Service using the latest OpenEdge tools

three approaches
Three approaches
  • Total rewrite from the ground up
  • Thin OO wrapper round existing procedural code
  • In between solution

We chose the latter on a case by case basis

  • Only possible because Progress allow mixing of OO and procedural code!

Developing a 21st Century Point of Service using the latest OpenEdge tools

oo redesign
OO Redesign
  • Essential where code interacts with GUI for .NET
  • Highly desirable for main program structure
  • Highly desirable for code that has either been badly written or much amended
  • New code needs to be audited against the original code
  • Our example: Scanning
    • Core part of the system
    • Existing logic must be reused in business entities

Developing a 21st Century Point of Service using the latest OpenEdge tools

scanning starting point
Scanning – Starting Point
  • LibPoSService.p
    • Structured procedure
    • Reads and Writes to the database
    • Contains code for locating product information, creating transaction records, adding items to a transaction, etc

Developing a 21st Century Point of Service using the latest OpenEdge tools

scanning class model
Scanning – Class Model
  • First, the domain level classes are identified

Developing a 21st Century Point of Service using the latest OpenEdge tools

scanning code refactoring
Scanning – Code Refactoring
  • Next, internal procedures that can be moved to the domain level classes are selected
  • In LibPoSService.p we have:
    • GetItemDetails:
      • Finds a product based on a scanned code
      • Outputs product details as a temp-table parameter
    • AddItemToBasket:
      • Receives product details as a temp-table parameter
      • Adds scanned product details to the current basket

Developing a 21st Century Point of Service using the latest OpenEdge tools

scanning code refactoring29
Scanning – Code Refactoring
  • Procedural code is changed to:
    • run from temp-tables instead of database tables
    • use data access objects to read / write data within the functional code
  • Procedures are transformed into class methods in associated domain level classes

Developing a 21st Century Point of Service using the latest OpenEdge tools

scanning code refactoring30
Scanning – Code Refactoring

=

Developing a 21st Century Point of Service using the latest OpenEdge tools

scanning plugging it together
Scanning – Plugging it together
  • Finally, any remaining “control” code is translated to use the domain level objects.
  • As our PoS uses MVC, scanning control code was added to the controller for the main scanning screen

Developing a 21st Century Point of Service using the latest OpenEdge tools

scanning plugging it together32
Scanning – Plugging it together

Developing a 21st Century Point of Service using the latest OpenEdge tools

scanning plugging it together33
Scanning – Plugging it together

Developing a 21st Century Point of Service using the latest OpenEdge tools

scanning code auditing
Scanning – Code Auditing
  • Performed after recoding is complete
  • Each line of the old code is checked to ensure that it has been represented in the new code or is definitely not required

Developing a 21st Century Point of Service using the latest OpenEdge tools

scanning code auditing35
Scanning – Code Auditing

Harvested for reuse in Product class

a

...

run GetItemDetails in hLibPoSService

(input dProductID, output table ttItemDetails).

...

run AddItemToBasket in hLibPoSService

(input table ttItemDetails, input iQuantity).

...

/* Refresh transaction display */

{&OPEN-QUERY-br_saleline}

apply“ENTRY”to code-entry inframe f-main.

apply “END” tobrowse br_saleline.

...

/* Recalculate total due and number of items */

dTotal = 0.

iNumItems = 0.

for each saleline where saleline.trans-id=iTransID no-lock:

dTotal = dTotal + saleline.sales-value.

iNumItems = iNumItems + saleline.quantity.

end.

for each b-tendtran where b-tendtran.trans-id = iTransID no-lock:

dTotal = dTotal - b-tendtran.amount.

end.

Harvested for reuse in Transaction class

a

Functional equivalent exists as a method in the ScanningForm class

a

These global variables are now properties of the Transaction class.

a

Developing a 21st Century Point of Service using the latest OpenEdge tools

re using procedural code
Re-using Procedural code
  • Requires well-structured code
  • Relies on interworking between OO and procedural code
  • Normally achieved by wrapping procedural code within an OO wrapper
  • Our example: Deals engine
    • Self-contained
    • Stateless
    • Well defined interface

Developing a 21st Century Point of Service using the latest OpenEdge tools

deals engine the problem
Deals Engine – The problem
  • 720 possible combinations! – which is best?
    • 4 Cokes for £1
    • 4 Soft drinks for £1.25
    • Meal deal: drink, sandwich and snack for £2.50
    • World Cup deal: 4 beers and 4 crisps for £3
    • Bulk buy beer deal: 4 beers for £2.50, 8 beers for £4.50, 16 beers for £8.50
    • Customer buys 4 Cokes, 2 Fantas, 6 packets of crisps, 2 sandwiches and 12 beers
  • 5000 lines of stateless ABL code!
  • Must recalculate in real time when an item is scanned!
  • Development cost £200k 2 years ago

Developing a 21st Century Point of Service using the latest OpenEdge tools

deals engine starting point
Deals Engine – Starting Point
  • DealsEngine.p
    • Structured procedure with a single entry point
    • Reads “static” data from the database
      • e.g. the items that make up each deal
    • Does not write to the database
  • No functional changes required
  • But the PoS has no database access

Developing a 21st Century Point of Service using the latest OpenEdge tools

deals engine code changes
Deals Engine – Code Changes

/*------------------------------------------------------------------------

File : DealsEngine.p

Purpose : Deals Procedure Library

Syntax :

Description :

Author(s) : BCP

Created : 15/12/2006

Notes :

---------------------------------------------------------------------*/

/* This .W file was created with the Progress AppBuilder. */

/*----------------------------------------------------------------------*/

{dsParameters.i}

{dsDeal.i}

define buffer stparamforttParameters.

define buffer DealLiveMainforttDealLiveMain.

define buffer DealLiveListforttDealLiveList.

define buffer DealLiveItemforttDealLiveItem.

define buffer LinkedDealsforttLinkedDeals.

DAParameters:Instance:FetchWhere("", output dataset dsParameters).

DADeal:Instance:FetchWhere("", output dataset dsDeal).

...

Define the temp-tables and datasets that will be used in place of the database tables

These buffers have the same name as the database tables in the old procedure

Data access objects are used to populate the temp-tables

Developing a 21st Century Point of Service using the latest OpenEdge tools

deals engine ooabl wrapper
Deals Engine – OOABL Wrapper

classDealsEngine final:

defineprivatevariablehDealsEngine ashandleno-undo.

constructorpublic DealsEngine ():

super ().

runDealsEngine.ppersistentsethDealsEngine.

endconstructor.

destructorpublicDealsEngine ( ):

if valid-handle(hDealsEngine)then

deleteprocedurehDealsEngine.

enddestructor.

methodpubliccharacterApplyDealsToBasket(input-outputtabletBasket,

inputiLineNumberasinteger):

runApplyDealsToBasketinhDealsEngine(input-outputtabletBasket,

inputiLineNumberasinteger).

endmethod.

endclass.

Private handle for referencing the structured procedure

Constructor loads the procedure persistenly

Destructor deletes the procedure instance

Methods expose entry points to the structured procedure

Developing a 21st Century Point of Service using the latest OpenEdge tools

agenda41
Agenda
  • Business Acceleration and Operational Responsiveness
  • The PoS Dilemma
  • Solving the dilemma using the latest OpenEdge tools
  • Demo
  • A closer look at the tools
  • Moving to an Object Oriented world
  • Conclusions

Developing a 21st Century Point of Service using the latest OpenEdge tools

conclusions
Conclusions
  • Business logic is very hard-won – don’t throw it away
  • By allowing OO and procedural code to co-exist, Progress have given us choices denied by other vendors when they introduced OO
  • Strike a balance between retaining code and rewriting in OO
  • Audit the code you rewrite

Developing a 21st Century Point of Service using the latest OpenEdge tools

questions
Questions

Developing a 21st Century Point of Service using the latest OpenEdge tools

thank you for your time
Thank you for your time!

brian@bcpsoftware.com

www.bcpsoftware.com

See our Expo booth!

Developing a 21st Century Point of Service using the latest OpenEdge tools
