  1. PRODUCT CATALOGUE hvhyu +91 9810319823 www.Packsound.in Sales@packsound.in A -719 T3, NX ONE Gr. Noida 201306 UP

  2. IGI Airport, India BUILDING & INDUSTRY NOISE CHALLENGE Controlling impact sound in modern buildings is a difficult task made easy with PackSound™. It can be applied to the floor, walls and ceiling for best results. it is cost effective and have long life as compared to other soundproofing products. 01. PACKSOUND™ is a high-density, highly flexible synthetic soundproofing membrane that provides excellent sound attenuation in conventional constructions without compromising thickness. It is highly flexible and easily stretchable, which means it can be moulded to fit any shape or surface and easily handle intricate joints and corners. PACKSOUND™ stands out for its fire resistance and meets the "O" fire rating. This means it does not spread flames, is self- extinguishing, does not drip and does not emit molten particles. Available in different weights, in specific sizes for plasterboard or in combination with absorbent felt, PACKSOUND™ offers PackSound™ can be used with various types of building materials such as gypsum and bison boards to meet sound insulation and attenuation requirements. it is fire retardant, making it an ideal construction material for buildings and industry. 02. PRODUCT CATALOGUE +91 9810319823 www.Packsound.in PackSound™ can be used in industry to effectively dampen noise and vibration from machinery. It is resistant to high temperatures, making it suitable for industrial use. It is the best noise barrier to protect employees from high noise levels. 03. Sales@packsound.in A -719 T3, NX ONE, Gr. Noida 201306 UP Discover The Harmony of Peace We are changing the definition of soundproofing for buildings and industry. We make it easier and more convenient through our effective product and its types, which are available in different variations to meet your soundproofing needs. Hotline : 123-456-7890 solutions for any type of building system and also for industrial applications. PACKSOUND.IN

  3. PACKSOUND™ Our experienced specialists have been offering high-quality products for sound insulation for more than 25 years We have always wondered why soundproofing products are expensive and difficult to install? We have made these disadvantages our vision and, relying on our technological practices, we have carried out more than 100 experiments and tests to make PACKSOUND™ an inert product for modern soundproofing requirements in residential, commercial and industrial environments. We have molded our best result in a final soundproofing product which is very easy to install and cost effective. PACKSOUND™ APPLICATIONS COST EFFECTIVE BEST QUALITY FAST DELIVERY LONG LIFE PRODUCT Hotel School Hospital Auditorium Airport Factory Mall Stadium Home Office Commerce Parking

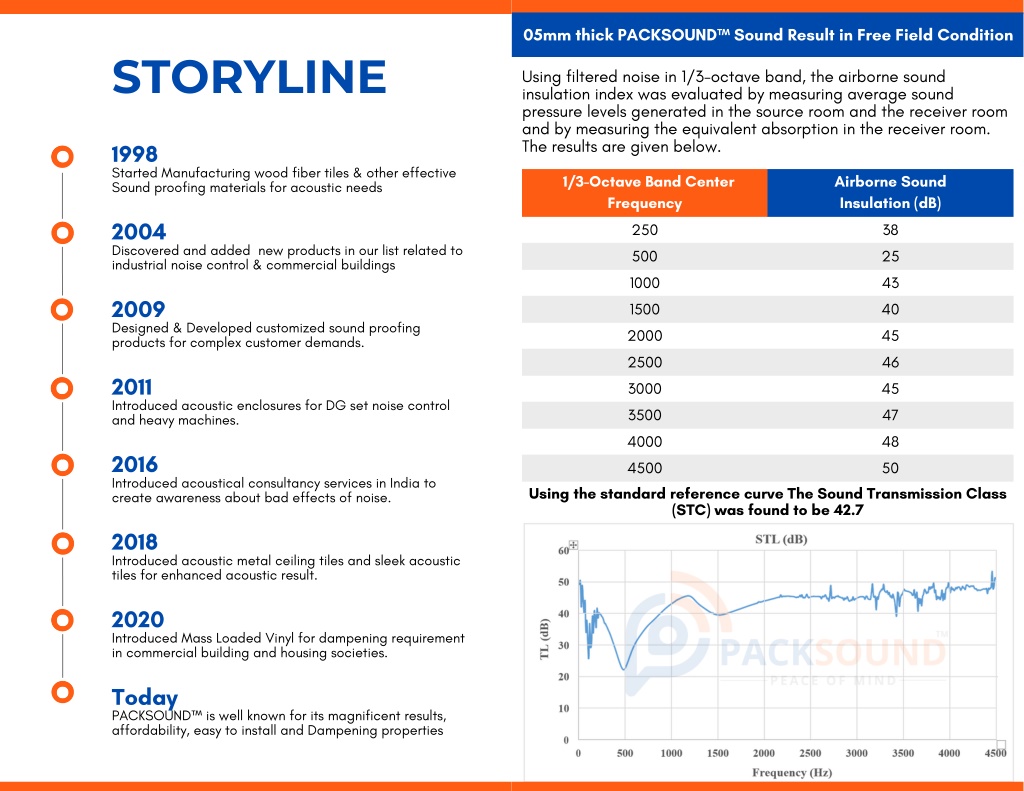

  4. 05mm thick PACKSOUND™ Sound Result in Free Field Condition STORYLINE Using filtered noise in 1/3-octave band, the airborne sound insulation index was evaluated by measuring average sound pressure levels generated in the source room and the receiver room and by measuring the equivalent absorption in the receiver room. The results are given below. 1998 Started Manufacturing wood fiber tiles & other effective Sound proofing materials for acoustic needs 1/3-Octave Band Center Frequency Airborne Sound Insulation (dB) 2004 Discovered and added new products in our list related to industrial noise control & commercial buildings 250 38 500 25 1000 43 2009 Designed & Developed customized sound proofing products for complex customer demands. 1500 40 2000 45 2500 46 2011 Introduced acoustic enclosures for DG set noise control and heavy machines. 3000 45 3500 47 4000 48 2016 Introduced acoustical consultancy services in India to create awareness about bad effects of noise. 4500 50 Using the standard reference curve The Sound Transmission Class (STC) was found to be 42.7 2018 Introduced acoustic metal ceiling tiles and sleek acoustic tiles for enhanced acoustic result. 2020 Introduced Mass Loaded Vinyl for dampening requirement in commercial building and housing societies. Today PACKSOUND™ is well known for its magnificent results, affordability, easy to install and Dampening properties

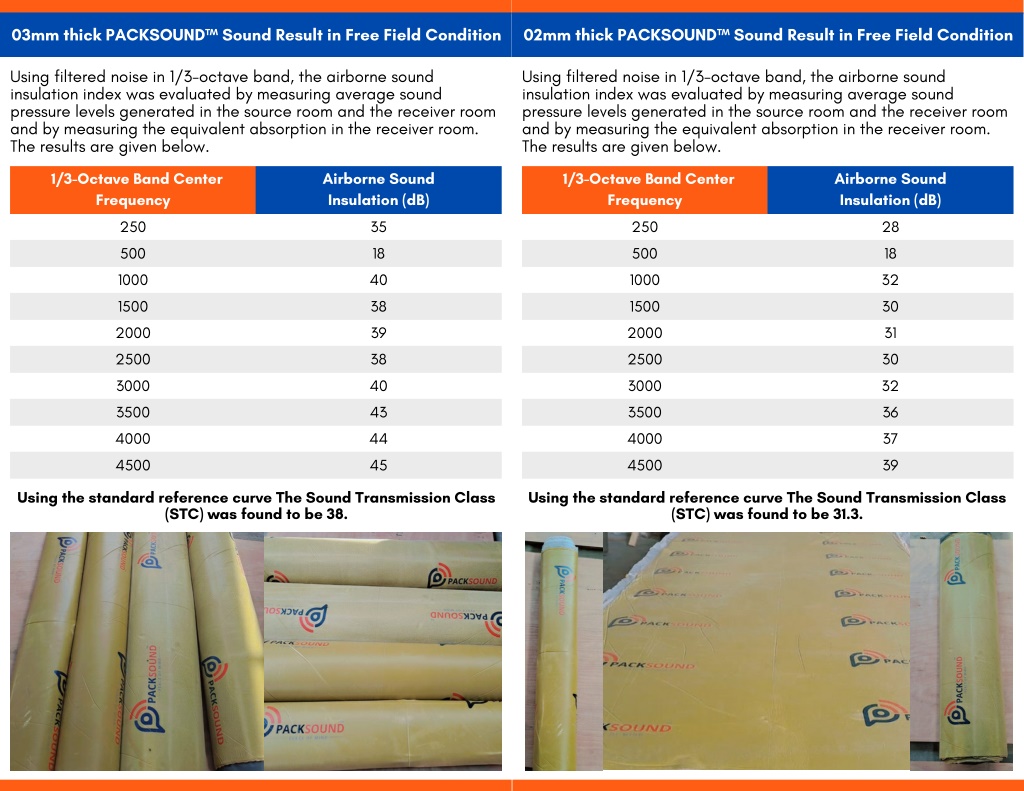

  5. 03mm thick PACKSOUND™ Sound Result in Free Field Condition 02mm thick PACKSOUND™ Sound Result in Free Field Condition Using filtered noise in 1/3-octave band, the airborne sound insulation index was evaluated by measuring average sound pressure levels generated in the source room and the receiver room and by measuring the equivalent absorption in the receiver room. The results are given below. Using filtered noise in 1/3-octave band, the airborne sound insulation index was evaluated by measuring average sound pressure levels generated in the source room and the receiver room and by measuring the equivalent absorption in the receiver room. The results are given below. 1/3-Octave Band Center Frequency Airborne Sound Insulation (dB) 1/3-Octave Band Center Frequency Airborne Sound Insulation (dB) 250 35 250 28 500 18 500 18 1000 40 1000 32 1500 38 1500 30 2000 39 2000 31 2500 38 2500 30 3000 40 3000 32 3500 43 3500 36 4000 44 4000 37 4500 45 4500 39 Using the standard reference curve The Sound Transmission Class (STC) was found to be 38. Using the standard reference curve The Sound Transmission Class (STC) was found to be 31.3.

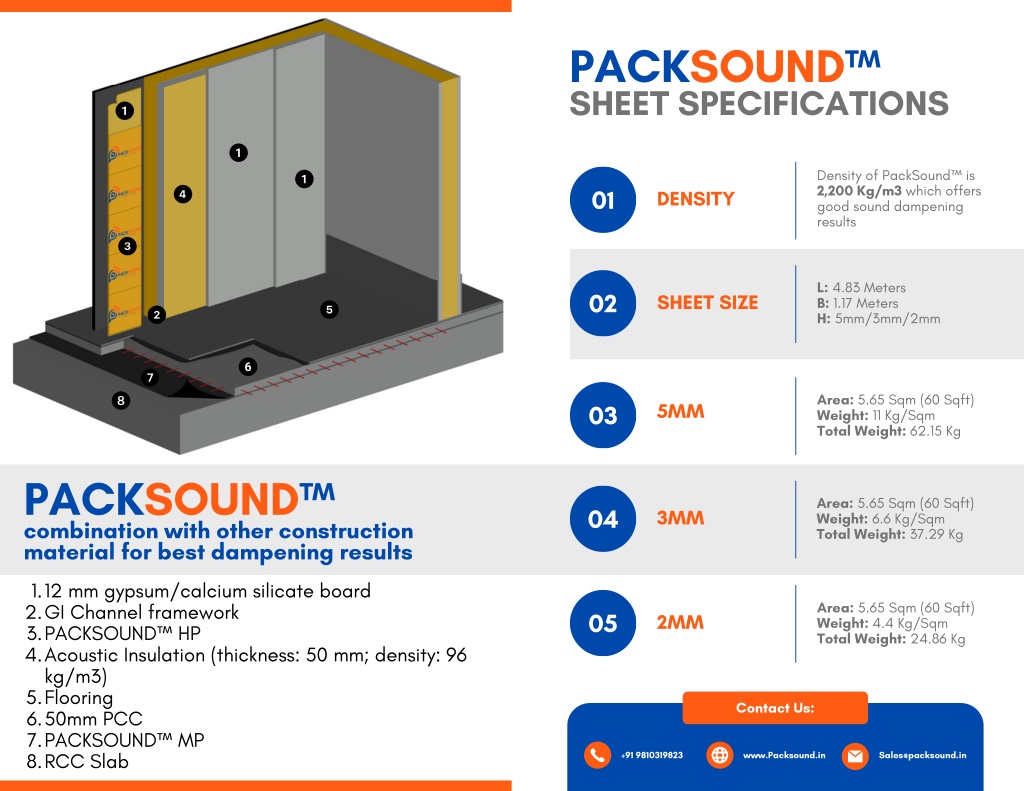

  6. PACKSOUND™ SHEET SPECIFICATIONS Density of PackSound™ is 2,200 Kg/m3 which offers good sound dampening results 01 DENSITY L: 4.83 Meters B: 1.17 Meters H: 5mm/3mm/2mm 02 SHEET SIZE Area: 5.65 Sqm (60 Sqft) Weight: 11 Kg/Sqm Total Weight: 62.15 Kg 5MM 03 PACKSOUND™ combination with other construction material for best dampening results Area: 5.65 Sqm (60 Sqft) Weight: 6.6 Kg/Sqm Total Weight: 37.29 Kg 04 3MM 1. 12 mm gypsum/calcium silicate board GI Channel framework PACKSOUND™ HP Acoustic Insulation (thickness: 50 mm; density: 96 kg/m3) Flooring 50mm PCC PACKSOUND™ MP RCC Slab Area: 5.65 Sqm (60 Sqft) Weight: 4.4 Kg/Sqm Total Weight: 24.86 Kg 2. 3. 4. 05 2MM 5. 6. 7. 8. Contact Us: +91 9810319823 www.Packsound.in Sales@packsound.in
