Presentation Transcript
slide2

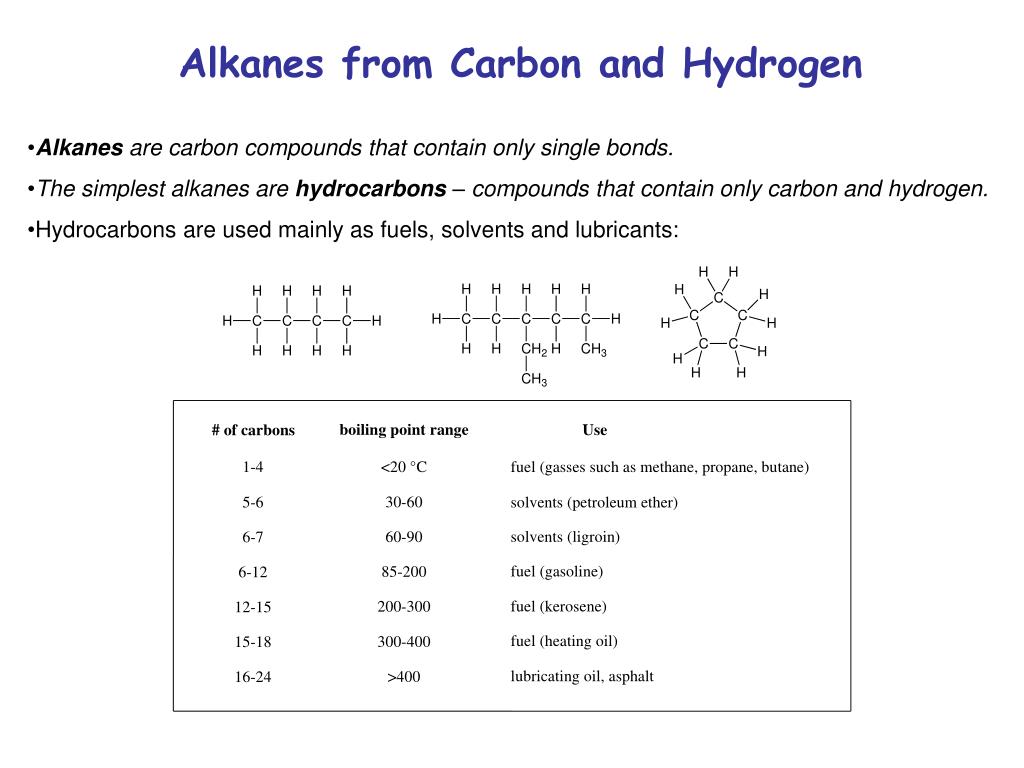

Alkanes from Carbon and Hydrogen

  • Alkanes are carbon compounds that contain only single bonds.
  • The simplest alkanes are hydrocarbons – compounds that contain only carbon and hydrogen.
  • Hydrocarbons are used mainly as fuels, solvents and lubricants:
slide12

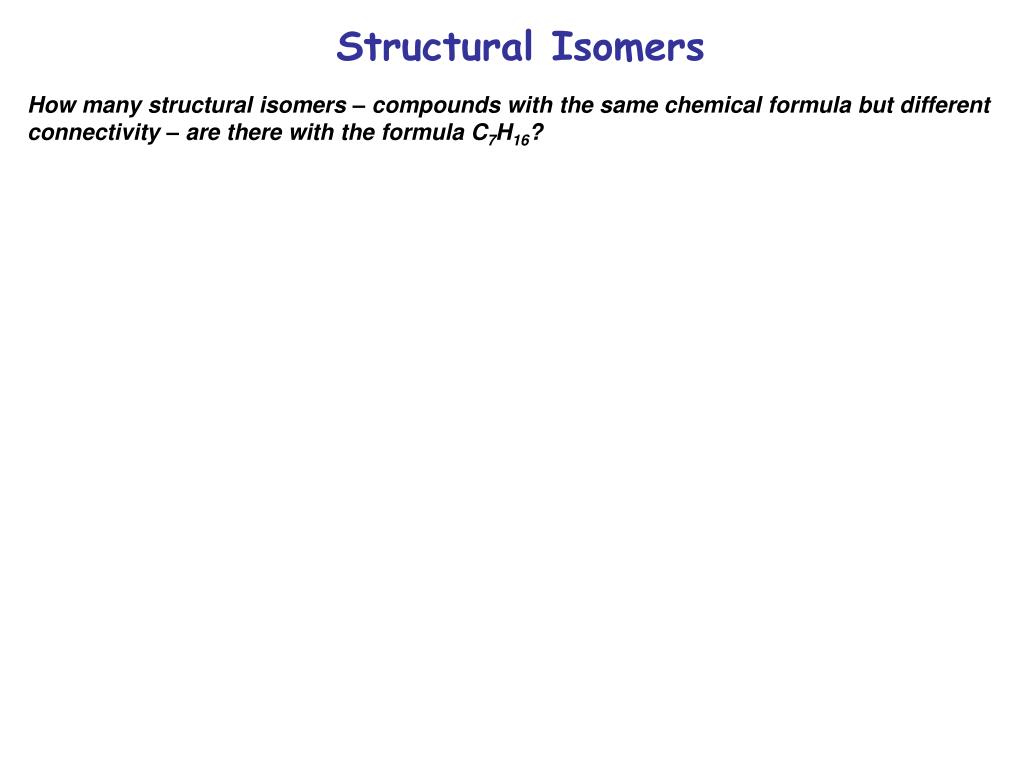

Structural Isomers

How many structural isomers – compounds with the same chemical formula but different connectivity – are there with the formula C7H16?

slide13

Structural Isomers

How many structural isomers – compounds with the same chemical formula but different connectivity – are there with the formula C7H16?

slide17

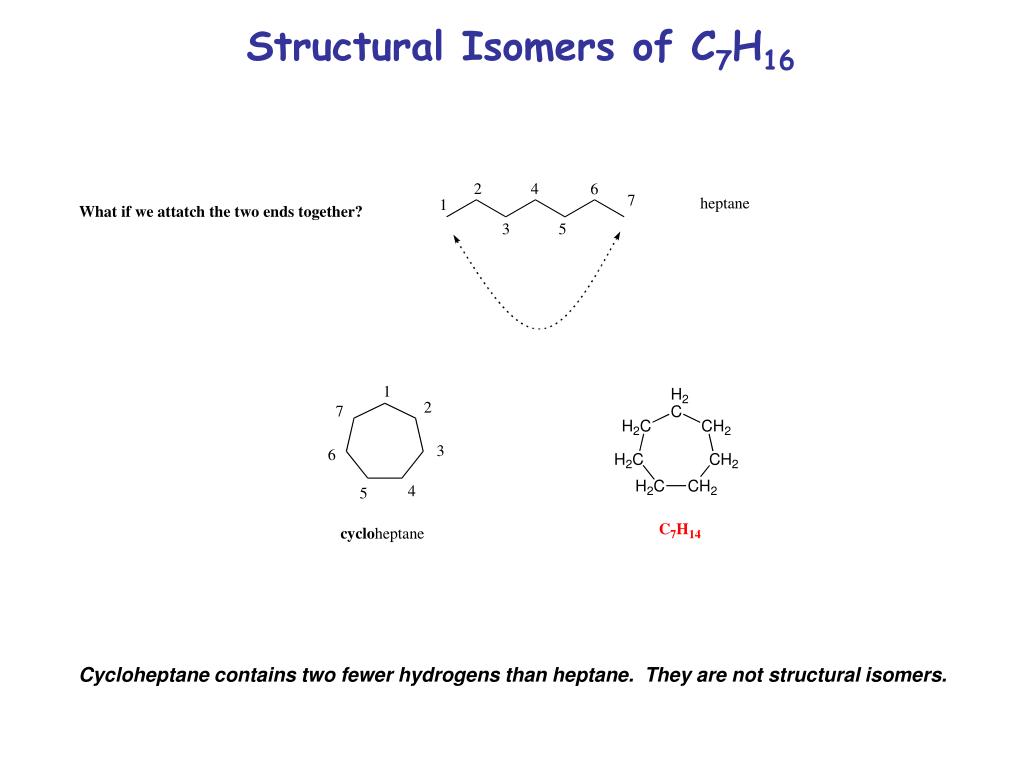

Structural Isomers of C7H16

Cycloheptane contains two fewer hydrogens than heptane. They are not structural isomers.

slide19

Naming Cycloalkanes

Unlike "floppy" chains, rings have an additional consideration for multiple substitutions:

The above compounds are not structural isomers. Their connectivity is identical. They are stereoisomers– compounds that differ in how substituents are arranged in space

slide25

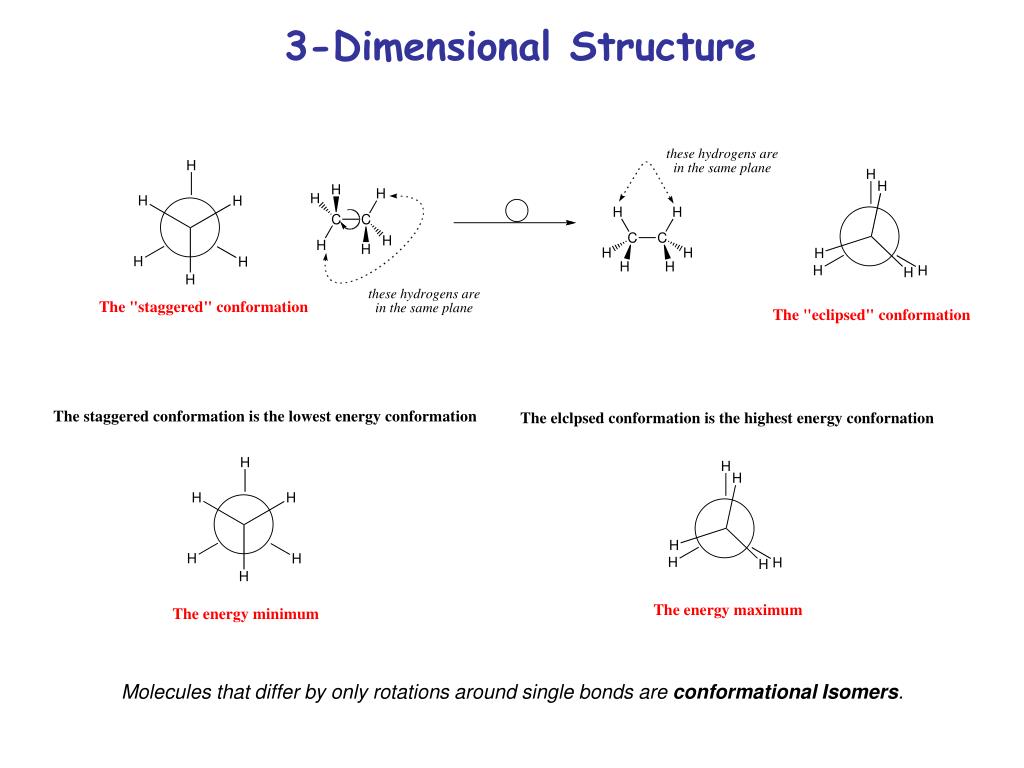

3-Dimensional Structure

Molecules that differ by only rotations around single bonds are conformational Isomers.

slide26

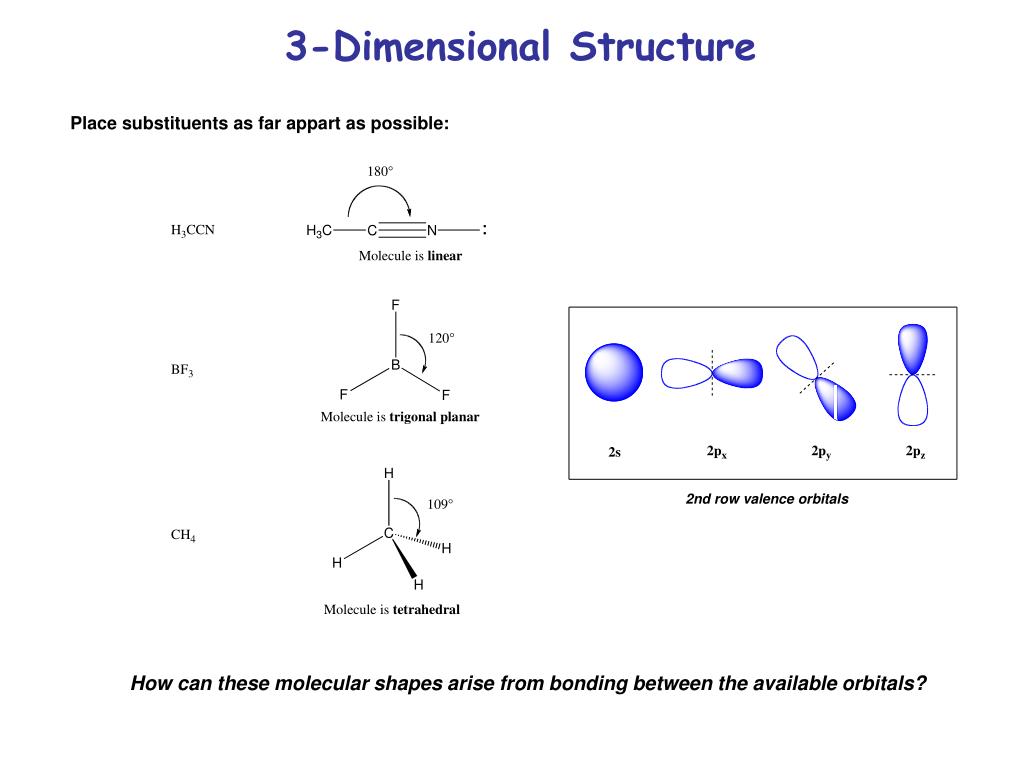

3-Dimensional Structure

How can these molecular shapes arise from bonding between the available orbitals?
