CUREe-Caltech Woodframe Project, Element 1 - Research Meeting, January 13, 2001

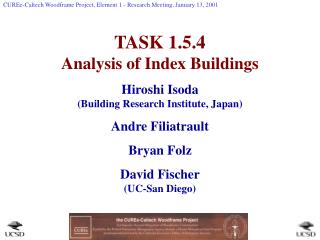

TASK 1.5.4

Analysis of Index Buildings

Hiroshi Isoda

(Building Research Institute, Japan)

Andre Filiatrault

Bryan Folz

David Fischer

(UC-San Diego)

overview

CUREe-Caltech Woodframe Project, Element 1 - Research Meeting, January 13, 2001

Overview
  • Task Objectives
  • Analysis Methodology
  • Description of Index Buildings
  • Model of Index Building No. 1: Small House
task objectives

CUREe-Caltech Woodframe Project, Element 1 - Research Meeting, January 13, 2001

Task Objectives
  • Perform deterministic non-linear (time-history and/or push-over) analyses of four index buildings under various earthquake ground motions.
  • Coordinate with and submit work to the Subcontractor of Task 4.1: Improving Loss Estimation for Woodframe Buildings.
methodology for analysis

CUREe-Caltech Woodframe Project, Element 1 - Research Meeting, January 13, 2001

Methodology for Analysis
  • Non-linear pushover and time history dynamic analysis of the four index buildings will be performed using the specialized software being developed under Task 1.5.1: Development of Seismic Analysis Software for Woodframe Construction.
slide5

CUREe-Caltech Woodframe Project, Element 1 - Research Meeting, January 13, 2001

(RUAUMOKO Program)

Flowchart for Pushover and Time History Analysis of Woodframe Buildings

slide6

CUREe-Caltech Woodframe Project, Element 1 - Research Meeting, January 13, 2001

Description of Index Buildings

  • Four Index Buildings
  • Three Variants of Each Index Building
    • Superior Quality
    • Typical Quality
    • Poor Quality
  • Retrofit Schemes for Each Index Building
slide7

CUREe-Caltech Woodframe Project, Element 1 - Research Meeting, January 13, 2001

Description of Index Buildings

  • Small House: 1 story, 2 bedrooms, 1 bath, 1200 sq. ft. on a level lot; built before 1970. Two variations: with and without cripple walls.
  • Large House: 2 story, 3 bedrooms, 3 baths, 3 car garage, L-shaped; slab on grade and spread footings; recently constructed.
slide8

CUREe-Caltech Woodframe Project, Element 1 - Research Meeting, January 13, 2001

Description of Index Buildings

  • Small Townhouse: two story 1500-1800 sq. ft. unit with common wall; on a level lot; recently constructed and engineered design.
  • Apartment Building: 3 story with ten 800 sq. ft. units; all wood construction; parking on ground floor; constructed prior to 1970 and minimal engineering.
model of index building no 1 small house

CUREe-Caltech Woodframe Project, Element 1 - Research Meeting, January 13, 2001

30 ft

40 ft

30 ft

Model of Index Building No.1: Small House
  • Built circa 1950
  • Roof:
    • Composite shingle felt
    • Solid 1x6 straight sheathing boards
  • Floor:
    • Joists 2x6 @ 16 in
    • Solid 1x6 diagonal sheathing boards
  • Ceiling:
    • Gypsum board
  • Exterior Walls:
    • 3-coat 7/8 in exterior stucco
    • Gypsum board interior
  • Interior Walls:
    • Gypsum board
slide10

CUREe-Caltech Woodframe Project, Element 1 - Research Meeting, January 13, 2001

Variants of Small House

modeling assumptions for small house

CUREe-Caltech Woodframe Project, Element 1 - Research Meeting, January 13, 2001

Cripple Wall

Modeling Assumptions For Small House
  • Roof:
    • Only in-plane stiffness of ceiling considered
    • Gt = 8 kips/in (FEMA 273)
  • Floor:
    • Gt = 500 kips/in (FEMA 273)
  • Exterior, Interior, and Cripple Walls:
    • Wayne Stewart Hysteretic Model
    • Parameters for Stucco and Gypsum Wall Board Based on UC-Irvine Tests for City Of Los Angeles (COLA)
    • Parameters for Cripple Walls based on UC-Davis Tests for CUREE-Caltech Woodframe Project
slide12

Hysteretic Model & Parameters

CUREe-Caltech Woodframe Project, Element 1 - Research Meeting, January 13, 2001

UC-Irvine Gypsum Board Tests

UC-Davis 2-ft Level Cripple Wall Tests

Wayne Stewart Hysteretic Model

UC-Irvine Stucco Tests

slide13

CUREe-Caltech Woodframe Project, Element 1 - Research Meeting, January 13, 2001

Analysis Example

slide14

CUREe-Caltech Woodframe Project, Element 1 - Research Meeting, January 13, 2001

Analysis Results

Floor Displacements

Ceiling Displacements

slide15

Hysteresis Loops: Foundation Walls

CUREe-Caltech Woodframe Project, Element 1 - Research Meeting, January 13, 2001

Poor-Quality (Stucco Cripple Wall)

Typical-Quality (Stucco Cripple Wall)

Superior-Quality (Concrete Stem Wall)

slide16

CUREe-Caltech Woodframe Project, Element 1 - Research Meeting, January 13, 2001

Schedule for Task 1.5.4
