  1. Connecting a Ventilator to a Philips Cardiac Monitor

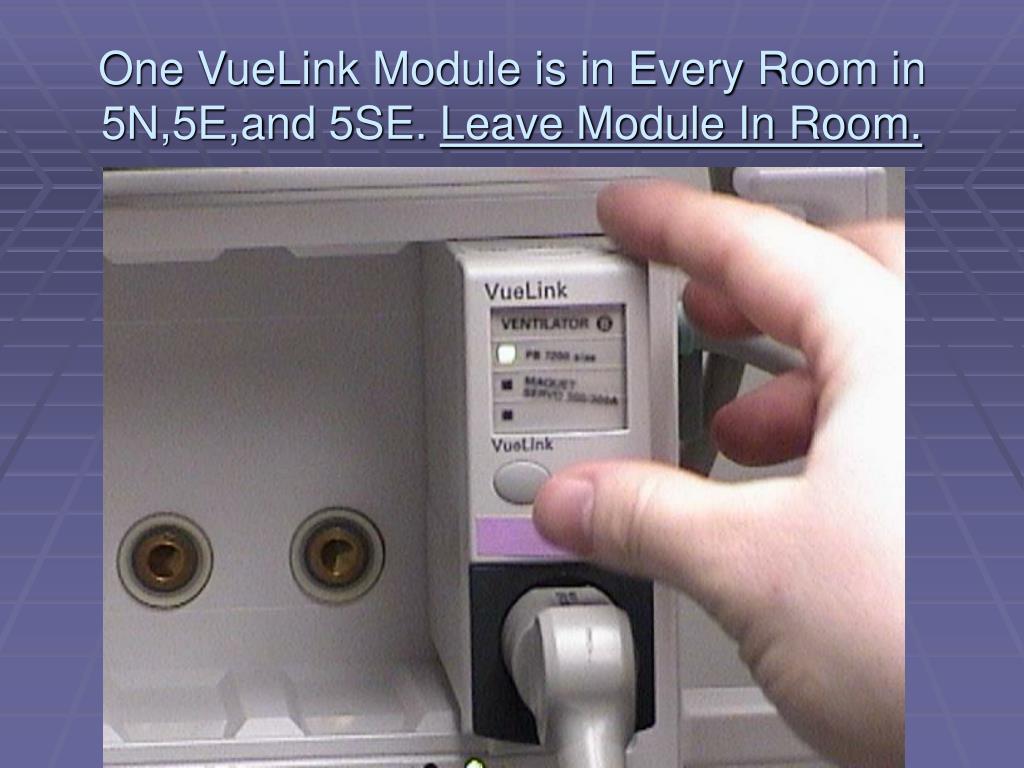

  2. One VueLink Module is in Every Room in 5N,5E,and 5SE. Leave Module In Room.

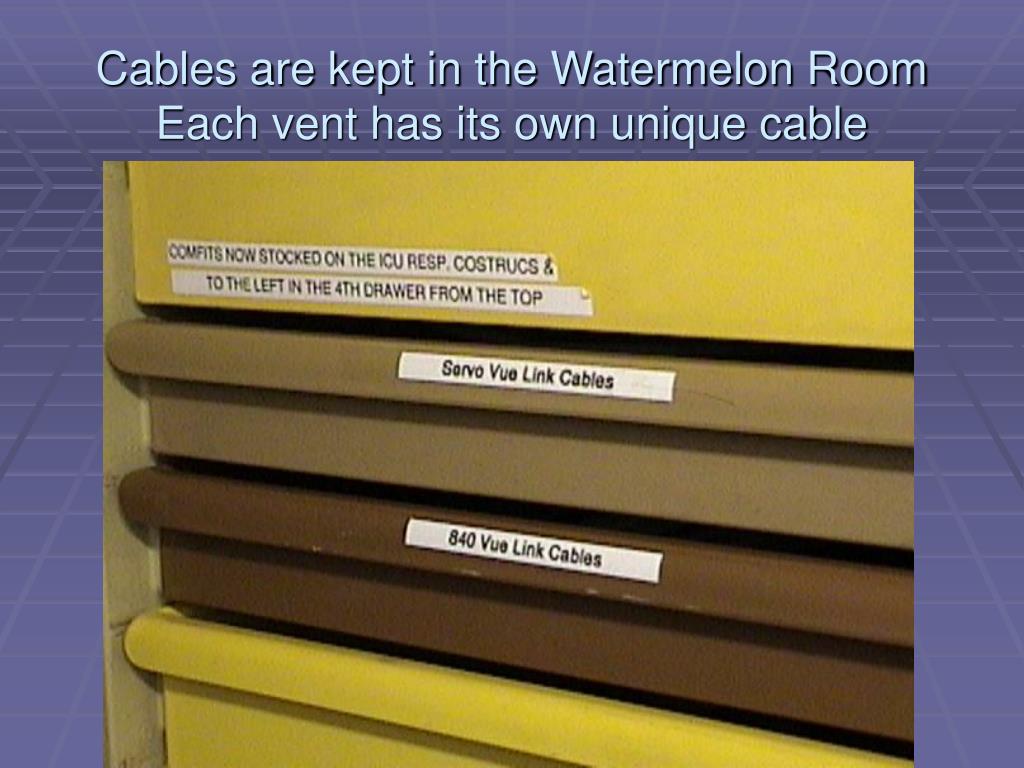

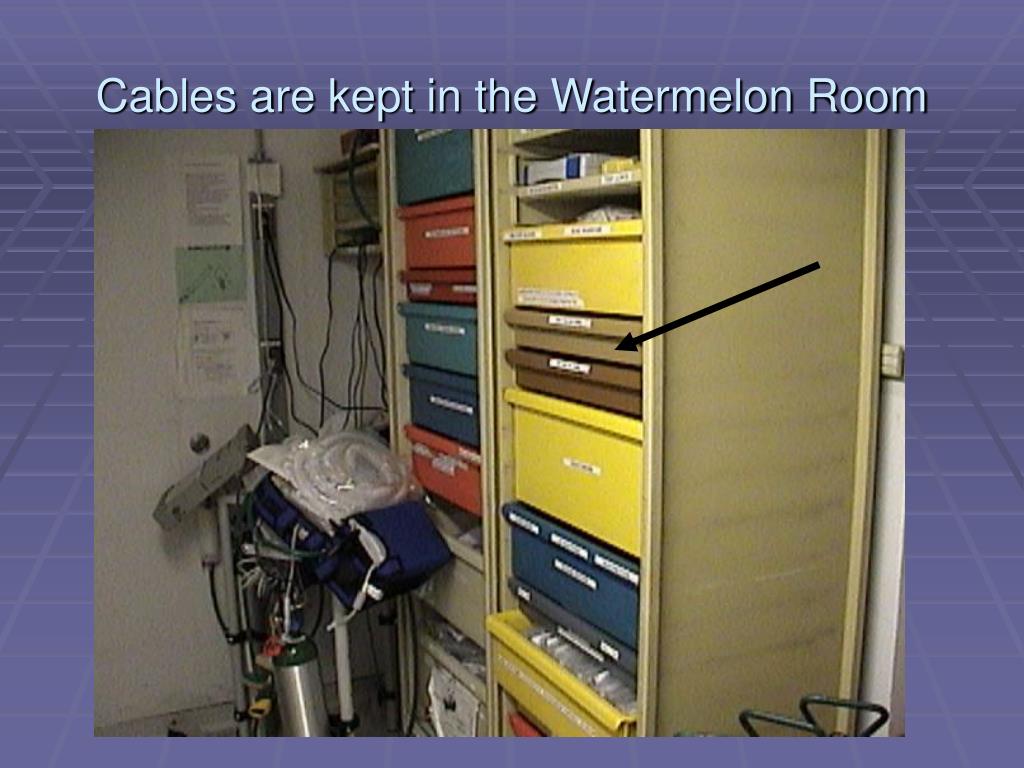

  3. Cables are kept in the Watermelon Room

  4. Cables are kept in the Watermelon RoomEach vent has its own unique cable

  5. Each vent has its own unique cable Servo Cable

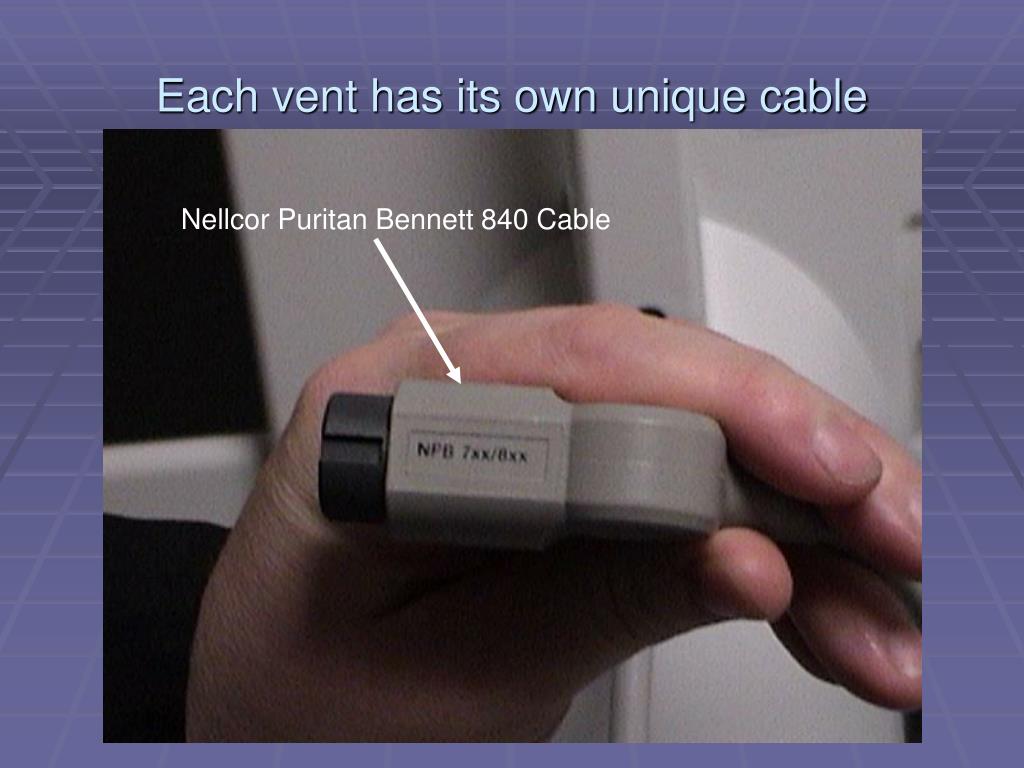

  6. Each vent has its own unique cable Nellcor Puritan Bennett 840 Cable

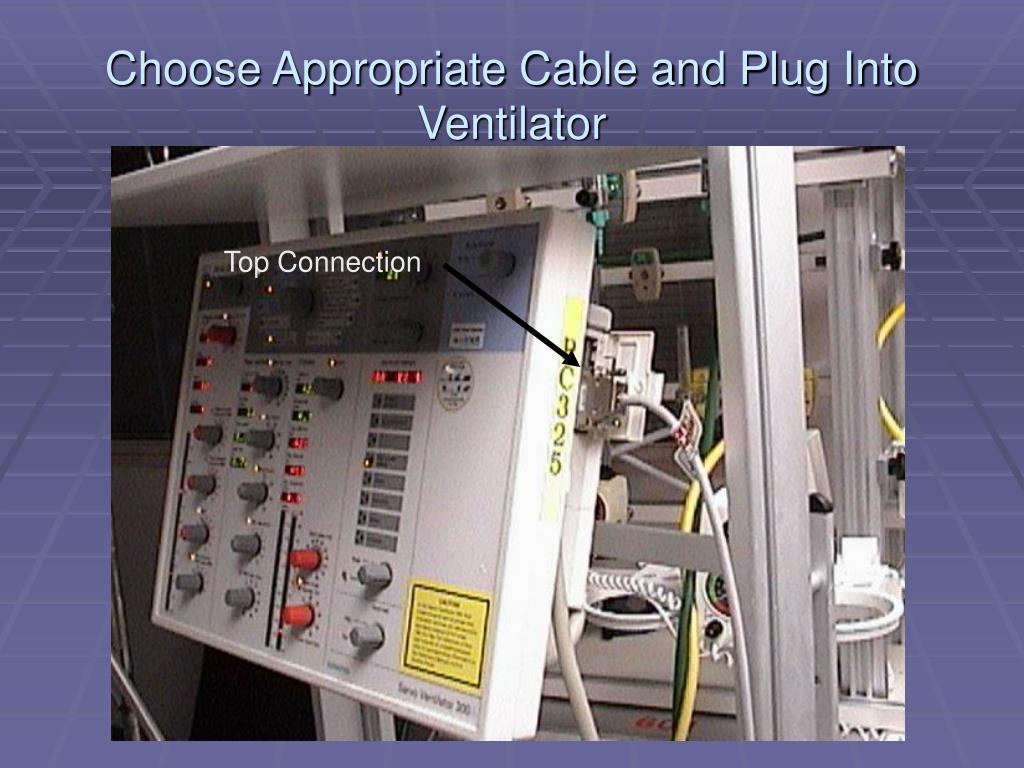

  7. Choose Appropriate Cable and Plug Into Ventilator Top Connection

  8. Choose Appropriate Cable and Plug Into Ventilator Top Left Connection

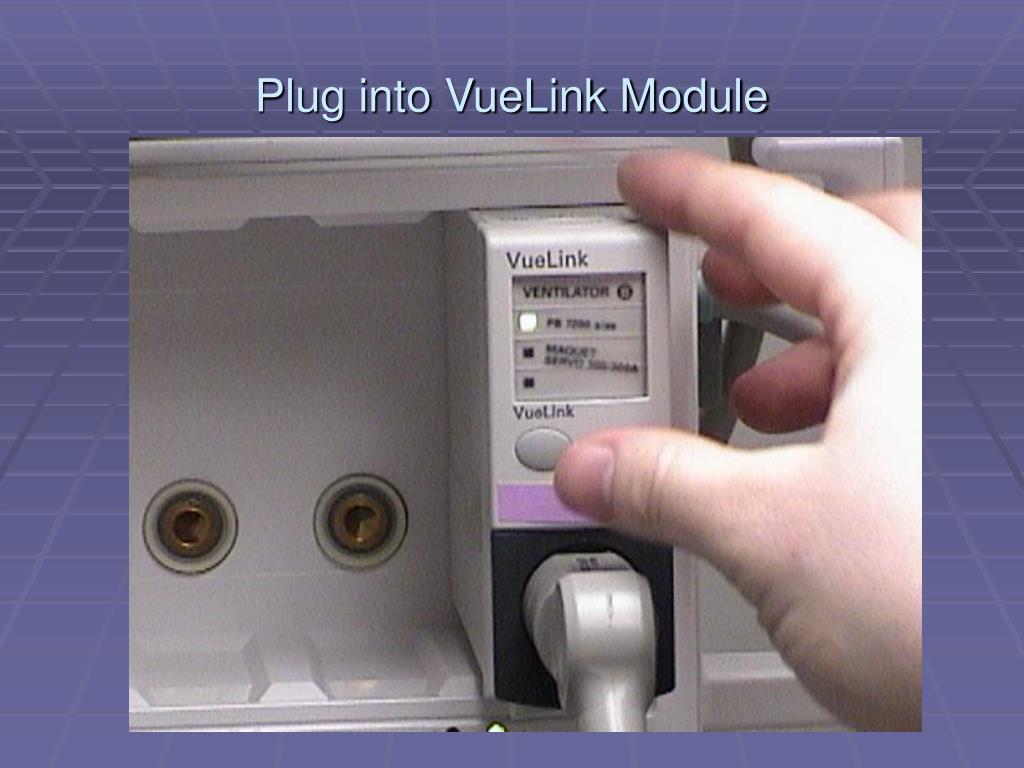

  9. Plug into VueLink Module

  10. Press VueLink Button On Module

  11. Ventilator Set-up Box Will Appear

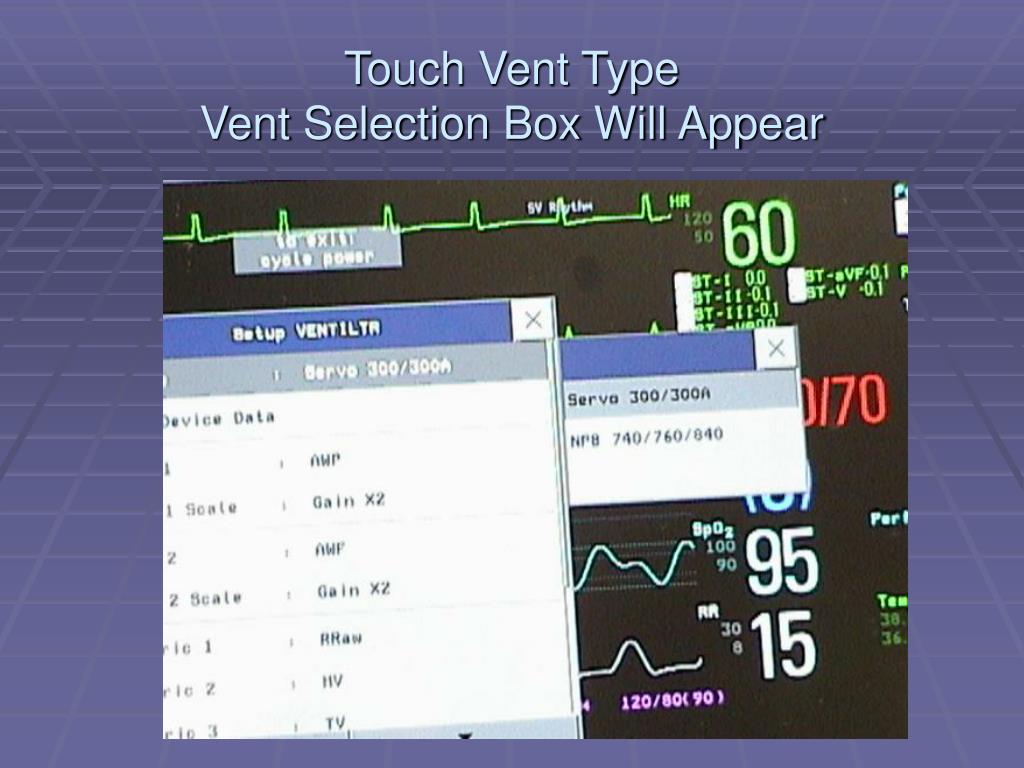

  12. Touch Vent TypeVent Selection Box Will Appear

  13. Select Correct Ventilator

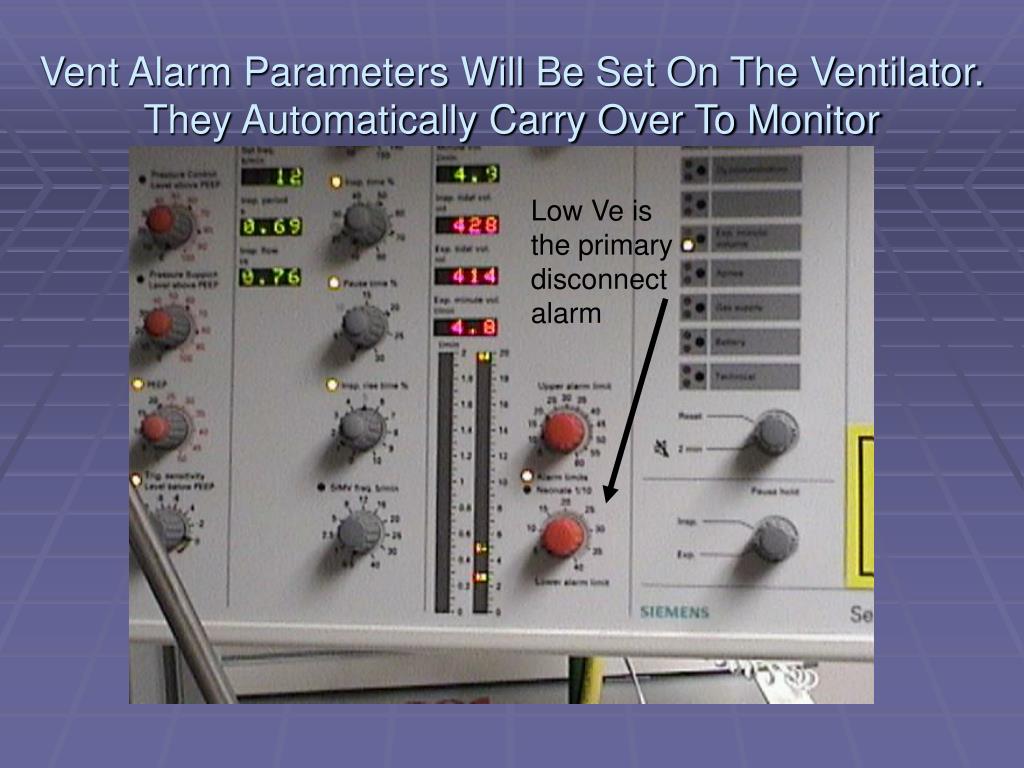

  14. Vent Alarm Parameters Will Be Set On The Ventilator. They Automatically Carry Over To Monitor Low Ve is the primary disconnect alarm

  15. Press Main Set-up on Monitor

  16. Press Calculations

  17. Try The Calculations Page

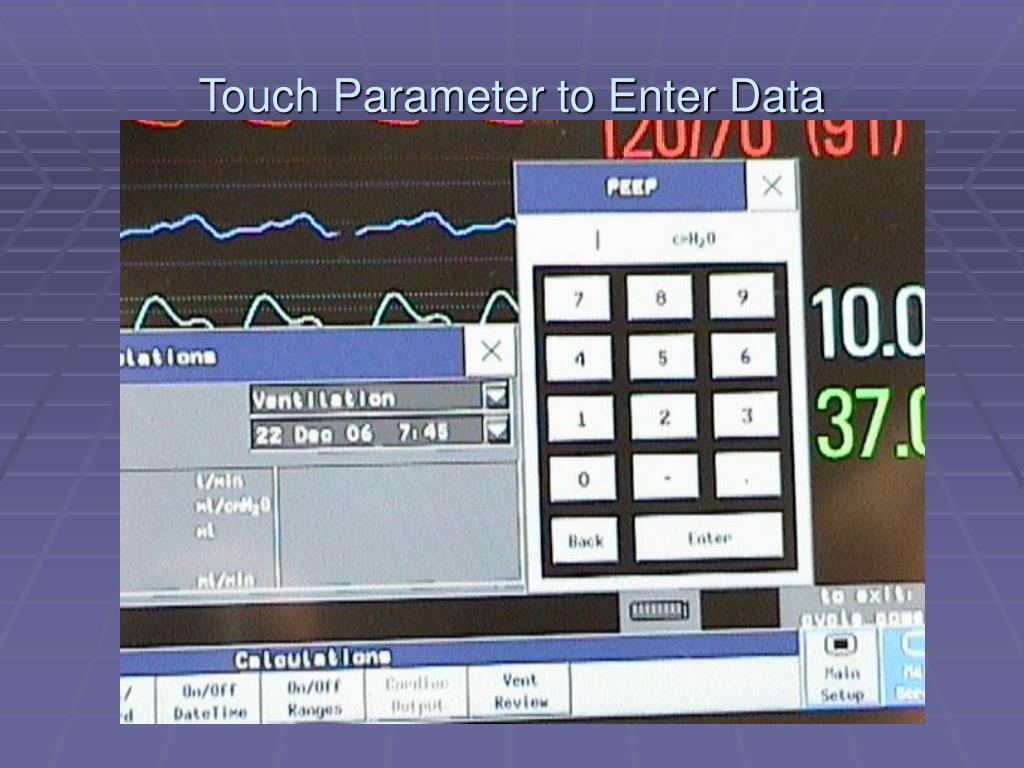

  18. Touch Parameter to Enter Data

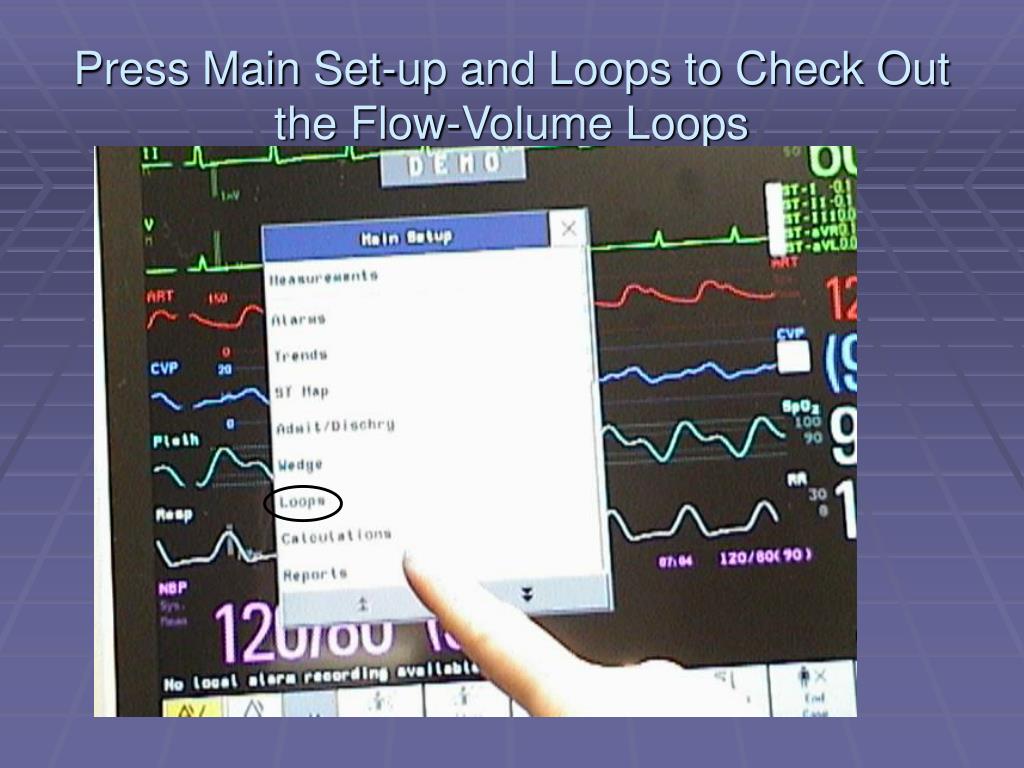

  19. Press Main Set-up and Loops to Check Out the Flow-Volume Loops

  20. Loops and Waveforms Display

  21. Be Sure to Disconnect Cable When Discontinuing Ventilator or Cables May Be Destroyed!!!

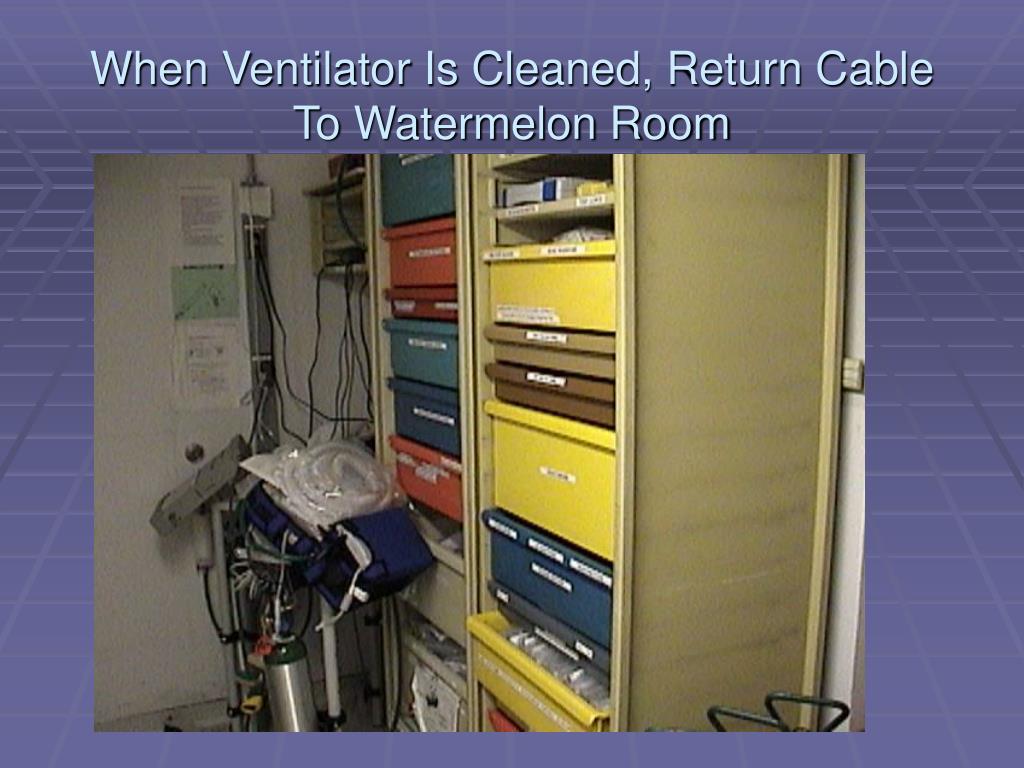

  22. When Ventilator Is Cleaned, Return Cable To Watermelon Room

  23. Now Relax and Have a Cool One!
