Design and Layout Considerations for 8-Channel LVDS E-Board by David Nelson

This document outlines the current status and considerations for the design and layout of the 8-channel LVDS E-Board. Key points include the arrangement of wires on the board, decision on wire gauges, and the possibility of increasing the E-Board length to 67 mm. Both B-layer and Layer 1&2 schematics are identical, and a review of deliverables is necessary. Cooling requirements and the need for custom-made wires are also addressed, along with the preference to utilize specific connectors for optimal performance.

osias
Download Presentation

Design and Layout Considerations for 8-Channel LVDS E-Board by David Nelson

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Pixel nSQPE-board Presented by David Nelson djn@slac.stanford.edu

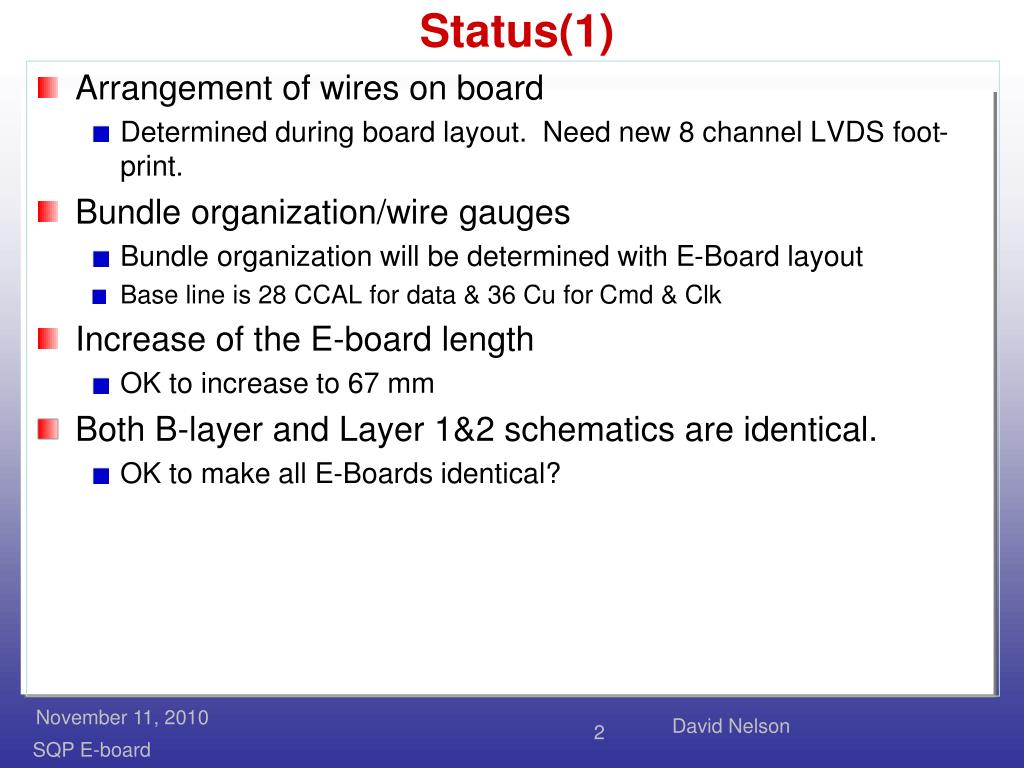

  2. Status(1) • Arrangement of wires on board • Determined during board layout. Need new 8 channel LVDS foot-print. • Bundle organization/wire gauges • Bundle organization will be determined with E-Board layout • Base line is 28 CCAL for data & 36 Cu for Cmd & Clk • Increase of the E-board length • OK to increase to 67 mm • Both B-layer and Layer 1&2 schematics are identical. • OK to make all E-Boards identical?

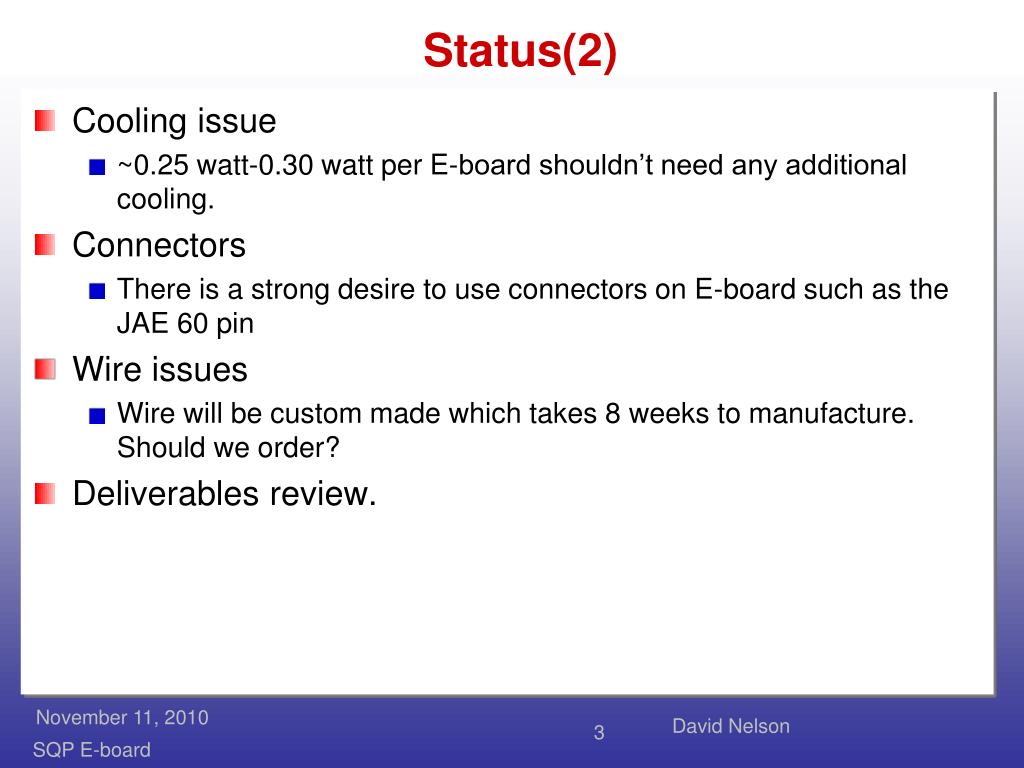

  3. Status(2) • Cooling issue • ~0.25 watt-0.30 watt per E-board shouldn’t need any additional cooling. • Connectors • There is a strong desire to use connectors on E-board such as the JAE 60 pin • Wire issues • Wire will be custom made which takes 8 weeks to manufacture. Should we order? • Deliverables review.
