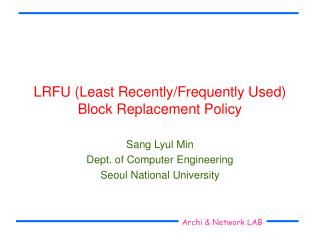

LRFU (Least Recently/Frequently Used)Block Replacement Policy

Sang Lyul Min

Dept. of Computer Engineering

Seoul National University

why file cache
Why file cache?

Processor - Disk Speed Gap

1950’s

1990’s

  • Processor - IBM 701
    • 17,000 ins/sec
  • Disk - IBM 305 RAMAC
    • Density - 0.002 Mbits/sq. in
    • Average seek time - 500 ms
  • Processor - IBM PowerPC 603e
    • 350,000,000 ins/sec
  • Disk - IBM Deskstar 5
    • Density - 1,319 Mbits/sq. in
    • Average seek time - 10 ms

x 20,000

x 600,000

x 50

file cache
File Cache

processor

main memory

disk controller

disks

file cache or buffer cache

disk cache

operating system 101
LRU Replacement

LFU Replacement

LRU Block

LFU Block

New reference

New reference

heap

MRU Block

MFU Block

Operating System 101

O(1) complexity

O(log n) complexity

O(n) complexity

operating system 1015
LRU

Advantage

High Adaptability

Disadvantage

Short sighted

LFU

Advantage

Long sighted

Disadvantage

Cache pollution

Operating System 101
motivation
Motivation
  • Cache size = 20 blocks
observation
Observation
  • Both recency and frequency affect the likelihood of future references
  • The relative impact of each is largely determined by cache size
slide13
Goal

A replacement algorithm that allows a flexible trade-off between recency and frequency

results
Results

LRFU (Least Recently/Frequently Used) Replacement Algorithm that

(1) subsumes both the LRU and LFU algorithms

(2) subsumes their implementations

(3) yieldsbetter performance than them

crf combined recency and frequency value
CRF (Combined Recency and Frequency) Value

Current time tc

1

2

3

time

t1

t2

t3

Ctc(b) = F(1) + F(2) + F(3)

|| || ||

tc - t1 tc - t2 tc - t3

crf combined recency and frequency value16
CRF (Combined Recency and Frequency) Value
  • Estimate of how likely a block will be referenced in the future
  • Every reference to a block contributes to the CRF value of the block
  • A reference’s contribution is determined by weighing function F(x)
hints and constraints on f x
Hints and Constraints on F(x)
  • should be monotonically decreasing
  • should subsume LRU and LFU
  • should allow efficient implementation
conditions for lru and lfu
Conditions for LRU and LFU
  • LRU Condition
    • If F(x) satisfies the following condition, then the LRFU algorithm becomes the LRU algorithm
  • LFU Condition
    • If F(x) = c, then the LRFU algorithm becomes the LFU algorithm

current

time

i

blocka: x

blockb: x x x x x x x x

i+1

i+2

    

i+3

weighing function f x
Weighing function F(x)

F(x) = ()x

Meaning: a reference’s contribution to the target block’s CRF value is halved after every 1/

properties of f x x

F(x)

F(x) = 1 (LFU extreme)

1

Spectrum

(LRU/LFU)

F(x) = ()x (LRU extreme)

0

X

current time - reference time

Properties of F(x) = ()x
  • Property 1
    • When  = 0, (i.e., F(x) = 1), then it becomes LFU
    • When  = 1, (i.e., F(x) = ()x ), then it becomes LRU
    • When 0 <  < 1, it is between LFU and LRU
results21
Results

LRFU (Least Recently/Frequently Used) Replacement Algorithm that

(1) subsumes both the LRU and LFU algorithms

(2) subsumes their implementations

(3) yieldsbetter performance than them

difficulties of naive implementation
Difficulties of Naive Implementation
  • Enormous space overheads
    • Information about the time of every reference to each block
  • Enormous time overheads
    • Computation of the CRF value of every block at each time
update of crf value over time

t1

t2

 1

 2

 3

time

= (t2 - t1)

Ct2(b) = F (1+) + F (2+) + F (3+)

= ()(1+ )+() (2+ )+() (3+ )

= (()1+()2+()3) ()

= Ct1(b)x F ()

Update of CRF value over time
properties of f x x24
Properties of F(x) = ()x
  • Property 2
    • With F(x) = ()x, Ctk(b) can be computed from Ctk-1(b) as follows

Ctk(b) = Ctk-1(b)F()+ F(0)

||

tk - tk-1

    • Implications: Only two variables are required for each block for maintaining the CRF value
      • One for the time of the last reference
      • The other for the CRF value at that time
difficulties of naive implementation25
Difficulties of Naive Implementation
  • Enormous space overheads
    • Information about the time of every reference to each block
  • Enormous time overheads
    • Computation of the CRF value of every block at each time
properties of f x x26
Properties of F(x) = ()x
  • Property 3
    • If Ct(a) > Ct(b) and neither a or b is referenced after t, then Ct'(a) > Ct'(b) for all t' > t
      • Why?

Ct'(a) = Ct(a) F() > Ct(b) F() = Ct'(b) (since F() > 0 )

  • Implications
    • Reordering of blocks is needed only upon a block reference
    • Heap data structure can be used to maintain the ordering of blocks with O(log n) time complexity
optimized implementation28

referenced

block

1. demoted

1. replaced

linked list

linked list

linked list

2. promoted

2. demoted

3. new block

heap

heap

heap

3. heap

restored

referenced block

4. heap restored

1. heap restored

Optimized Implementation

Reference to a new block

Reference to a block in the heap

Reference to a block in the linked list

slide29

Question

What is the maximum number of blocks that can potentially compete with a currently referenced block?

slide30

current

time

block a:x

blockb: x x x x x

dthreshold

dthreshold +1

• • •

dthreshold +2

time

• • • + F(d threshold +2) + F(d threshold +1) + F(d threshold ) < F(0)

properties of f x x31

dthreshold =

log (1- ())

log (1- ())

log (1- ())

When   0

When   1

= 

= 1

Properties of F(x) = ()x
  • Property 4 :

Archi & Network LAB

Seoul National University

optimized implementation cont d

linked list

linked list

linked list (null)

heap

heap

LRU

extreme

LFU extreme

heap

(single element)

O(log n)

O(1)

Optimized implementation (Cont’d)

Archi & Network LAB

Seoul National University

results33
Results

LRFU (Least Recently/Frequently Used) Replacement Algorithm that

(1) subsumes both the LRU and LFU algorithms

(2) subsumes their implementations

(3) yieldsbetter performance than them

correlated references
Correlated References

correlated references

correlated references

correlated references

lrfu with correlated references
LRFU with correlated references
  • Masking function Gc(x)
  • C'tk(b), CRF value when correlated references are considered, can be derived from C'tk-1(b)

C'tk(b) = F(tk - tk) + F(tk - ti )*Gc(ti+1 - ti )

= F( tk - tk-1) * [F(0) * Gc( tk - tk-1) +C'tk-1(b) - F(0)] + F(0)

Archi & Network LAB

Seoul National University

trace driven simulation
Trace-driven simulation
  • Sprite client trace
    • Collection of block references from a Sprite client
    • contains 203,808 references to 4,822 unique blocks
  • DB2 trace
    • Collection of block references from a DB2 installation
    • Contains 500,000 references to 75,514 unique blocks

Archi & Network LAB

Seoul National University

effects of on the performance

Hit Rate

Hit Rate

X

X

X

X

X

X

X

X

(a) Sprite client

(b) DB2

Effects of  on the performance

Archi & Network LAB

Seoul National University

combined effects of and correlated period

Hit Rate

Hit Rate

Correlated

Period

Correlated

Period

(b) DB2

(a) Sprite client

Combined effects of  and correlated period

Archi & Network LAB

Seoul National University

previous works
Previous works
  • FBR (Frequency-Based Replacement) algorithm
    • Introduces correlated reference concept
  • LRU-K algorithm
    • Replaces blocks based on time of the K’th-to-last non-correlated references
    • Discriminates well the frequently and infrequently used blocks
    • Problems
      • Ignores the K-1 references
      • linear space complexity to keep the last K reference times
  • 2Q and sLRU algorithms
    • Use two queues or two segments
    • Move only the hot blocks to the main part of the disk cache
    • Work very well for “used-only-once” blocks

Archi & Network LAB

Seoul National University

comparison of the lrfu policy with other policies

Hit Rate

Hit Rate

Cache Size (# of blocks)

Cache Size (# of blocks)

(a) Sprite client

(b) DB2

Comparison of the LRFU policy with other policies

Archi & Network LAB

Seoul National University

implementation of the lrfu algorithm
Implementation of the LRFU algorithm
  • Buffer cache of the FreeBSD 3.0 operating system
  • Benchmark: SPEC SDET benchmark
    • Simulates a multi-programming environment
    • consists of concurrent shell scripts each with about 150 UNIX commands
    • gives results in scripts / hour

Archi & Network LAB

Seoul National University

sdet benchmark results
SDET benchmark results

Hit rate

SDET Throughput

(scripts/ hour)

Hit Rate

Archi & Network LAB

Seoul National University

conclusions
Conclusions

LRFU (Least Recently/Frequently Used) Replacement Algorithm that

(1) subsumes both the LRU and LFU algorithms

(2) subsumes their implementations

(3) yieldsbetter performance than them

future research
Future Research
  • Dynamic version of the LRFU algorithm
  • LRFU algorithm for heterogeneous workloads
    • File requests vs. VM requests
    • Disk block requests vs. Parity block requests (RAID)
    • Requests to different files (index files, data files)
people
REAL PEOPLE

(Graduate students)

Lee, Donghee

Choi, Jongmoo

Kim, Jong-Hun

Guides

(Professors)

Noh, Sam H.

Min, Sang Lyul

Cho, Yookun

Kim, Chong Sang

People

http://archi.snu.ac.kr/symin/

adaptive lrfu policy
Adaptive LRFU policy
  • Adjust periodically depending on the evolution of workload
  • Use the LRU policy as the reference model to quantify how good (or bad) the locality of the workload has been
  • Algorithm of the Adaptive LRFU policy
    • if ( > )

 value for period i+1 is updated in the same direction

    • else

the direction is reversed

Archi & Network LAB

Seoul National University

results of the adaptive lrfu
Results of the Adaptive LRFU

Client Workstation 54

DB2
