  1. Reverse Furthest Neighbors in Spatial Databases Bin Yao, Feifei Li, Piyush Kumar Florida State University, USA

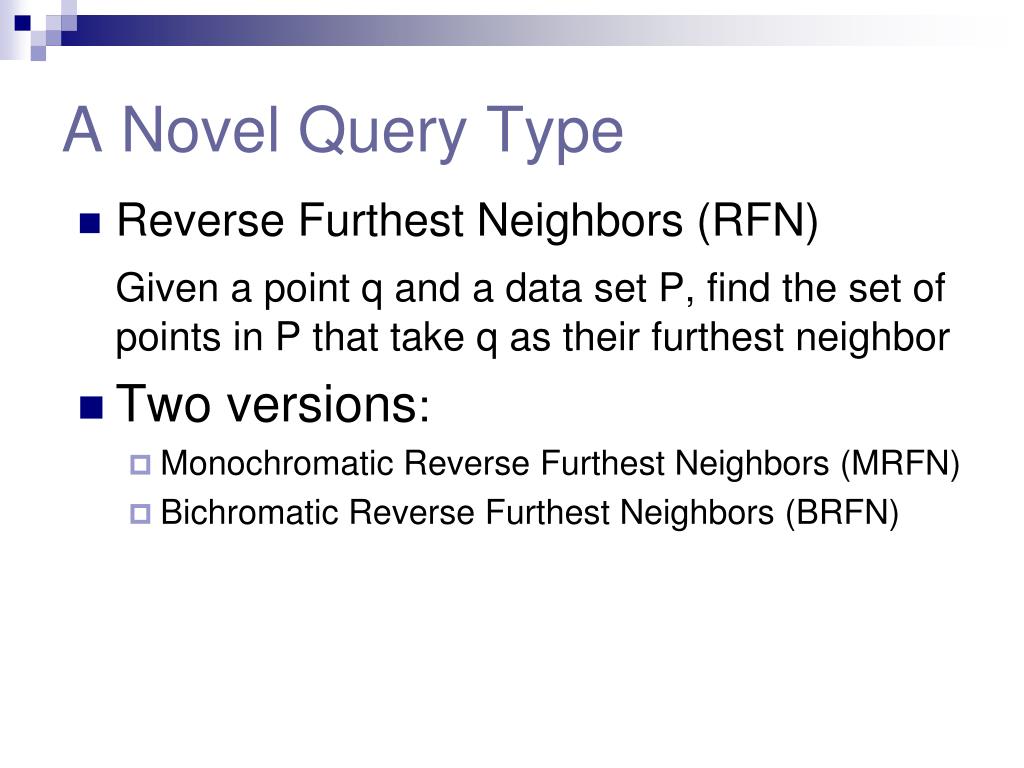

  2. A Novel Query Type • Reverse Furthest Neighbors (RFN) Given a point q and a data set P, find the set of points in P that take q as their furthest neighbor • Two versions: • Monochromatic Reverse Furthest Neighbors (MRFN) • Bichromatic Reverse Furthest Neighbors (BRFN)

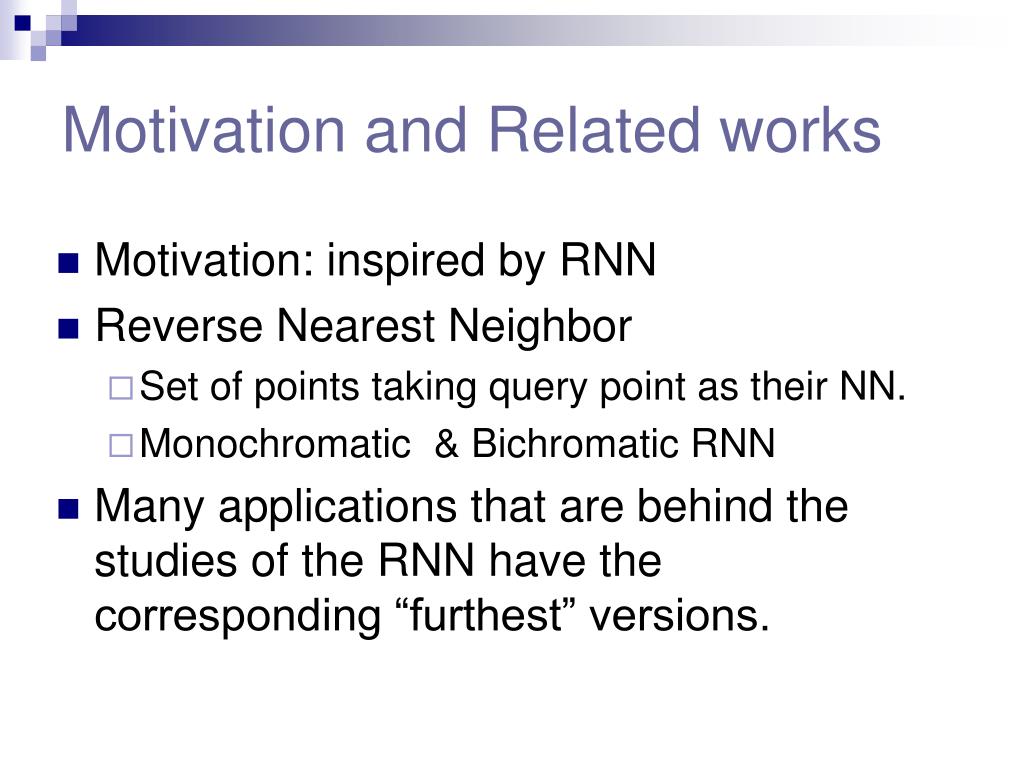

  3. Motivation and Related works • Motivation: inspired by RNN • Reverse Nearest Neighbor • Set of points taking query point as their NN. • Monochromatic & Bichromatic RNN • Many applications that are behind the studies of the RNN have the corresponding “furthest” versions.

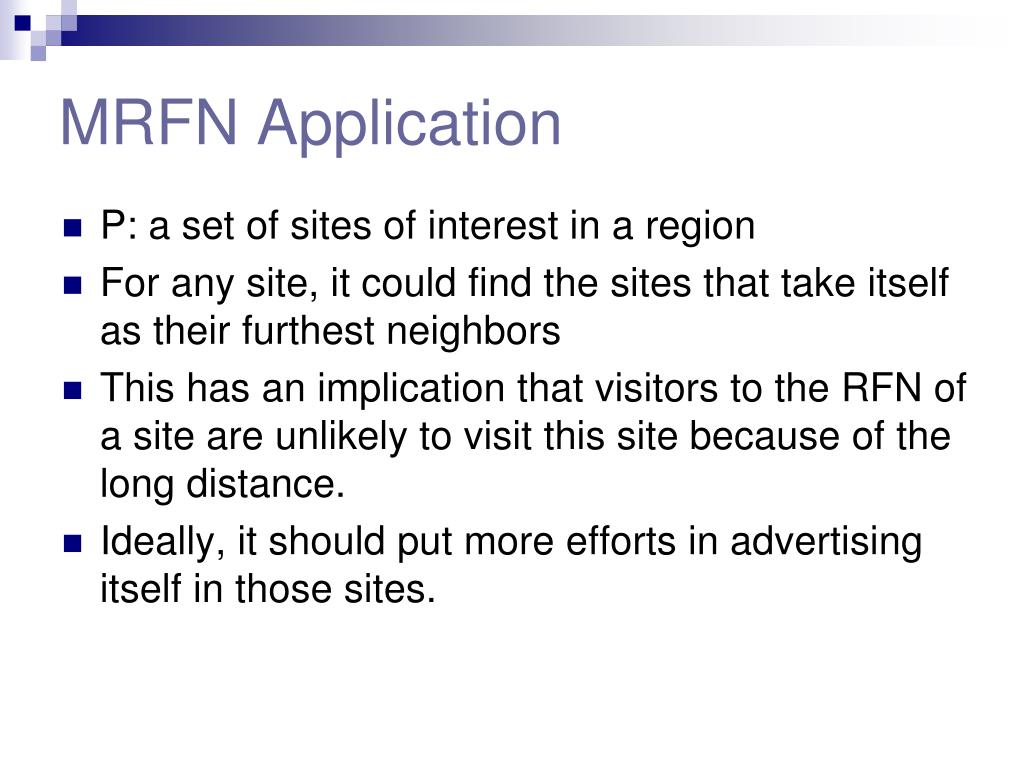

  4. MRFN Application P: a set of sites of interest in a region For any site, it could find the sites that take itself as their furthest neighbors This has an implication that visitors to the RFN of a site are unlikely to visit this site because of the long distance. Ideally, it should put more efforts in advertising itself in those sites.

  5. BRFN Application P: a set of customers Q: a set of business competitors offering similar products A distance measure reflecting the rating of customer(p) to competitor(q)’s product. A larger distance indicates a lower preference. For any competitor in Q, an interesting query is to discover the customers that dislike his product the most among all competing products in the market.

  6. BRFN Example : customer : product

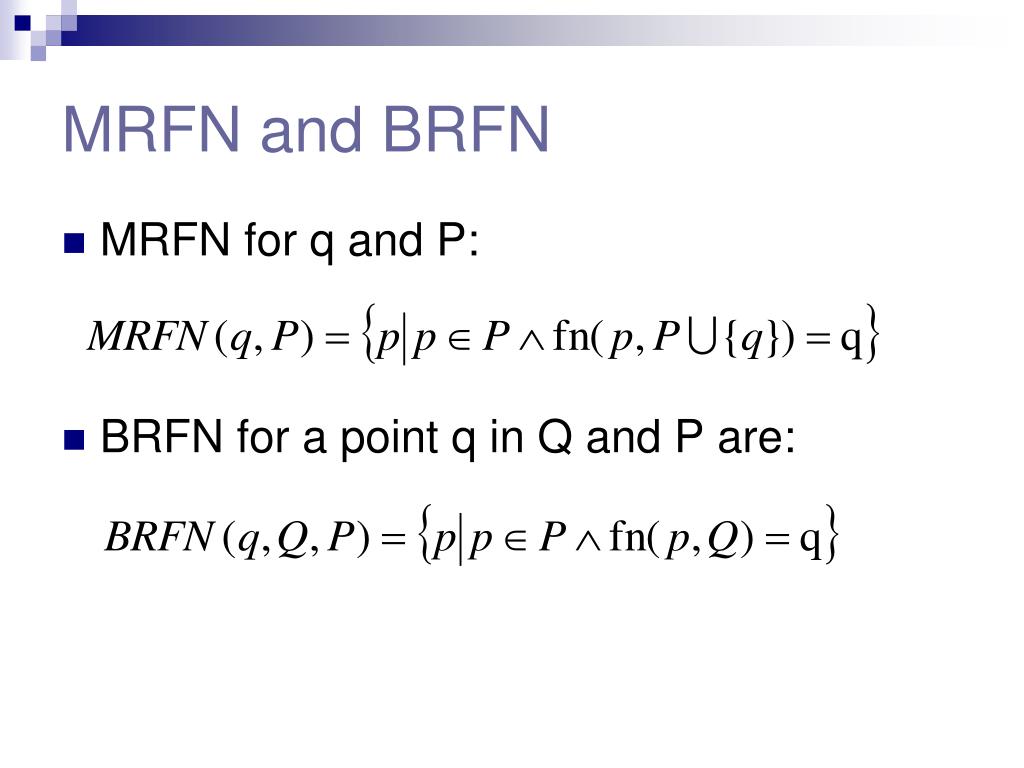

  7. MRFN and BRFN • MRFN for q and P: • BRFN for a point q in Q and P are:

  8. Outline • MRFN • Progressive Furthest Cell Algorithm • Convex Hull Furthest Cell Algorithm • Dynamically updating to dataset • BRFN

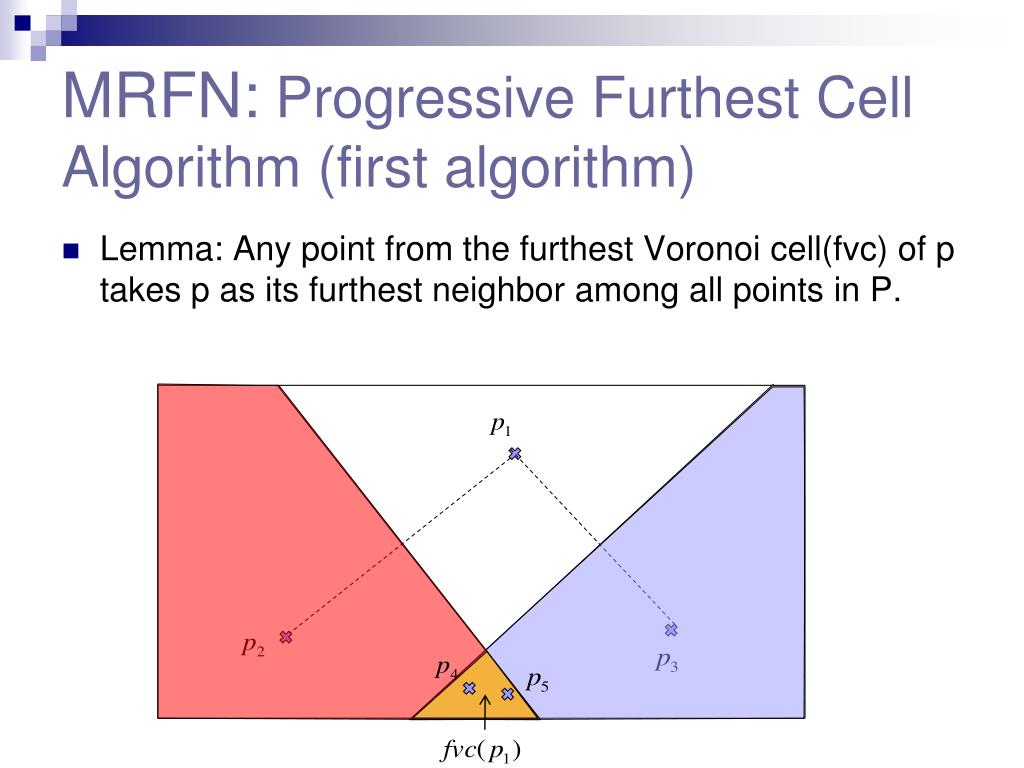

  9. MRFN: Progressive Furthest Cell Algorithm (first algorithm) Lemma: Any point from the furthest Voronoi cell(fvc) of p takes p as its furthest neighbor among all points in P.

  10. Progressive Furthest Cell Algorithm (PFC)PFC(Query q; R-tree T) • Update fvc(q) using points contained by entries in ; • Filter points in using fvc(q); • Initialize two empty vectors and ; priority queue L with T’s root node; fvc(q)=S; • While L is not empty do • Pop the head entry e of L • If e is a point then, update the fvc(q) • If fvc(q) is empty, return; • If e is in fvc(q), then Push e into ; • else • If e fvc(q) is empty then push e to ; • Else for every child u of node e • If u fvc(q) is empty, insert u into ; • Else insert u into L ;

  11. Outline • MRFN • Progressive Furthest Cell Algorithm • Convex Hull Furthest Cell Algorithm • Dynamically updating to dataset • BRFN

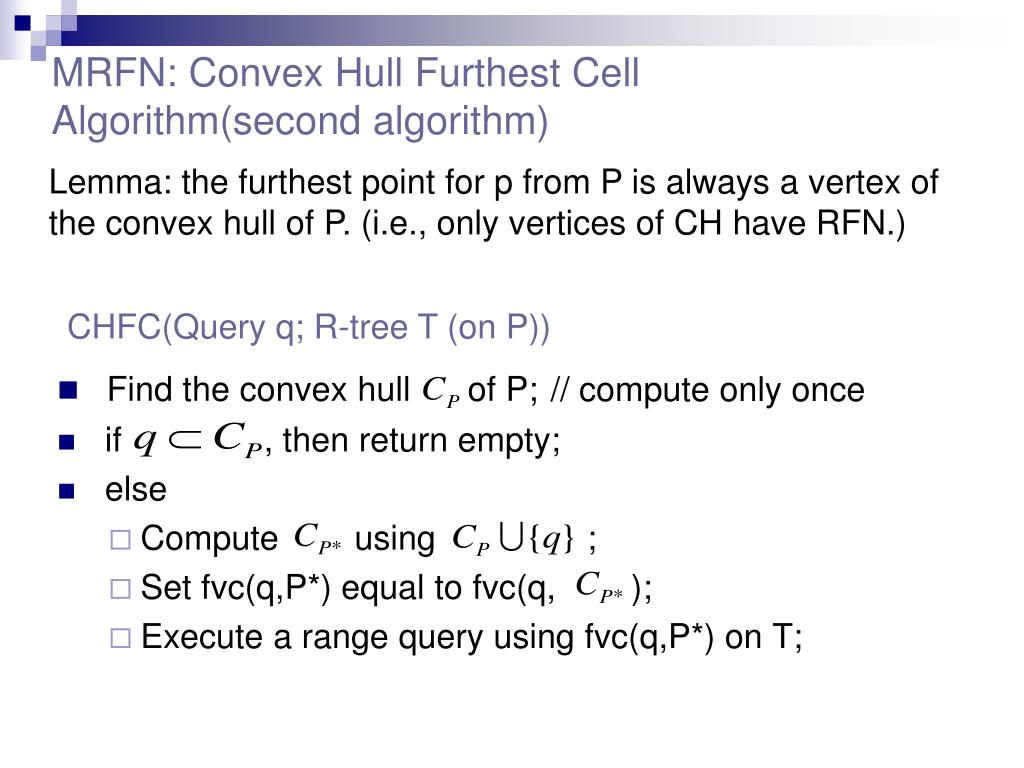

  12. MRFN: Convex Hull Furthest Cell Algorithm(second algorithm) Lemma: the furthest point for p from P is always a vertex of the convex hull of P. (i.e., only vertices of CH have RFN.) CHFC(Query q; R-tree T (on P)) // compute only once • Find the convex hull of P; • if , then return empty; • else • Compute using ; • Set fvc(q,P*) equal to fvc(q, ); • Execute a range query using fvc(q,P*) on T;

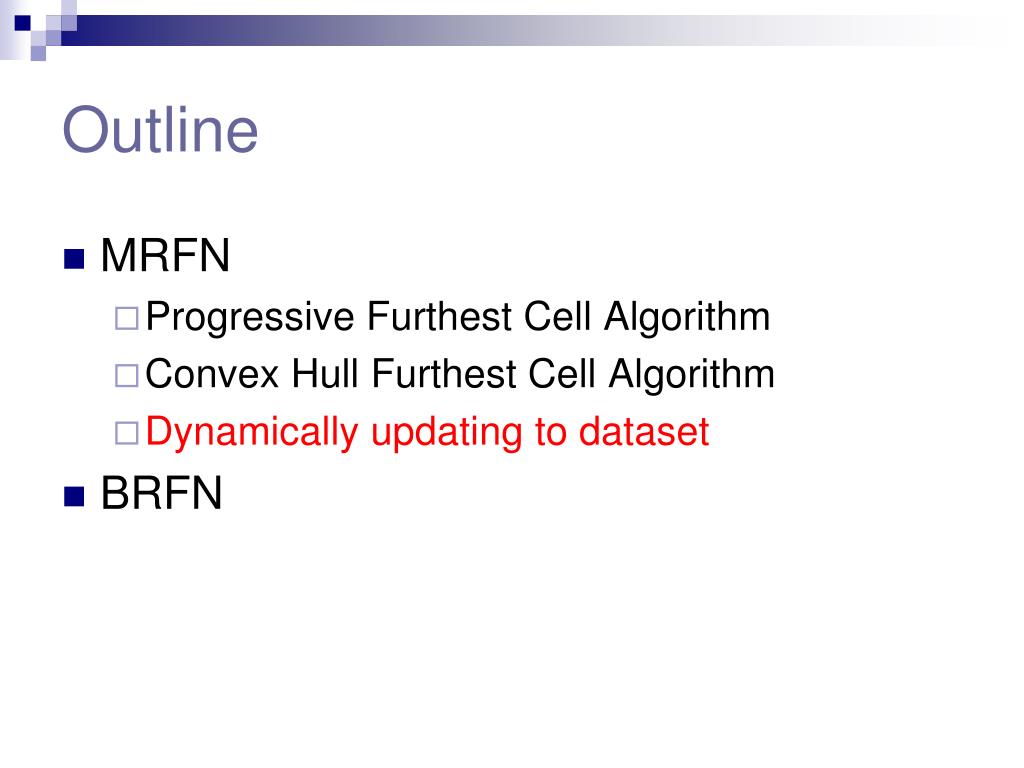

  13. Outline • MRFN • Progressive Furthest Cell Algorithm • Convex Hull Furthest Cell Algorithm • Dynamically updating to dataset • BRFN

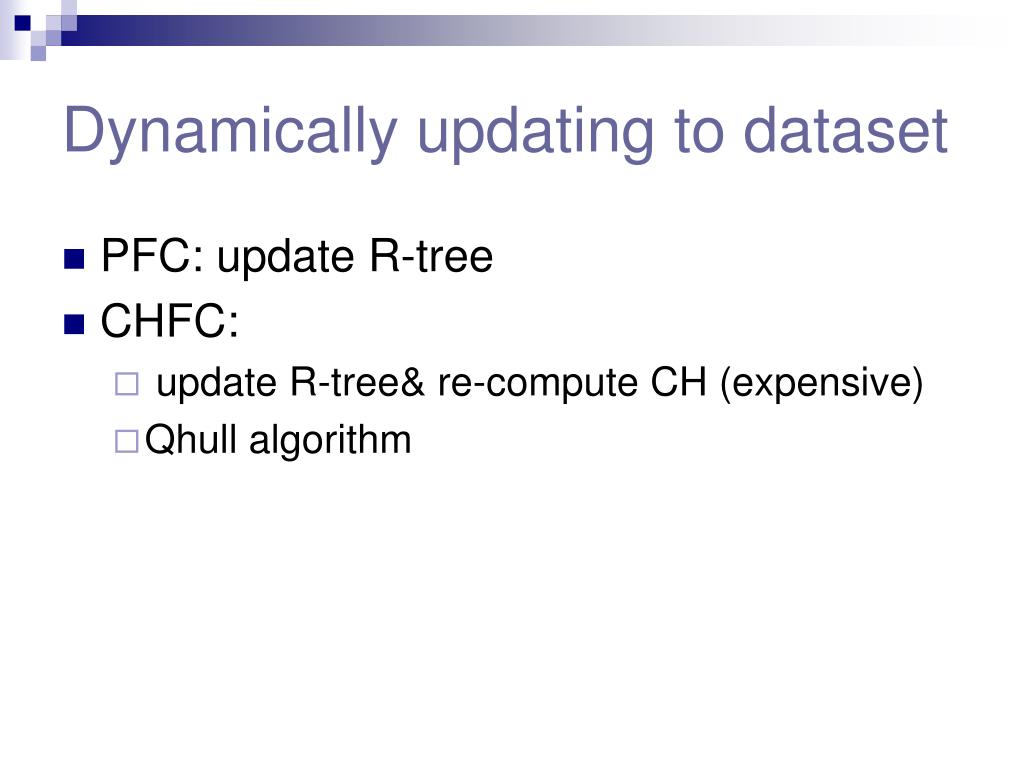

  14. Dynamically updating to dataset • PFC: update R-tree • CHFC: • update R-tree& re-compute CH (expensive) • Qhull algorithm

  15. Dynamically Maintaining CH: insertion

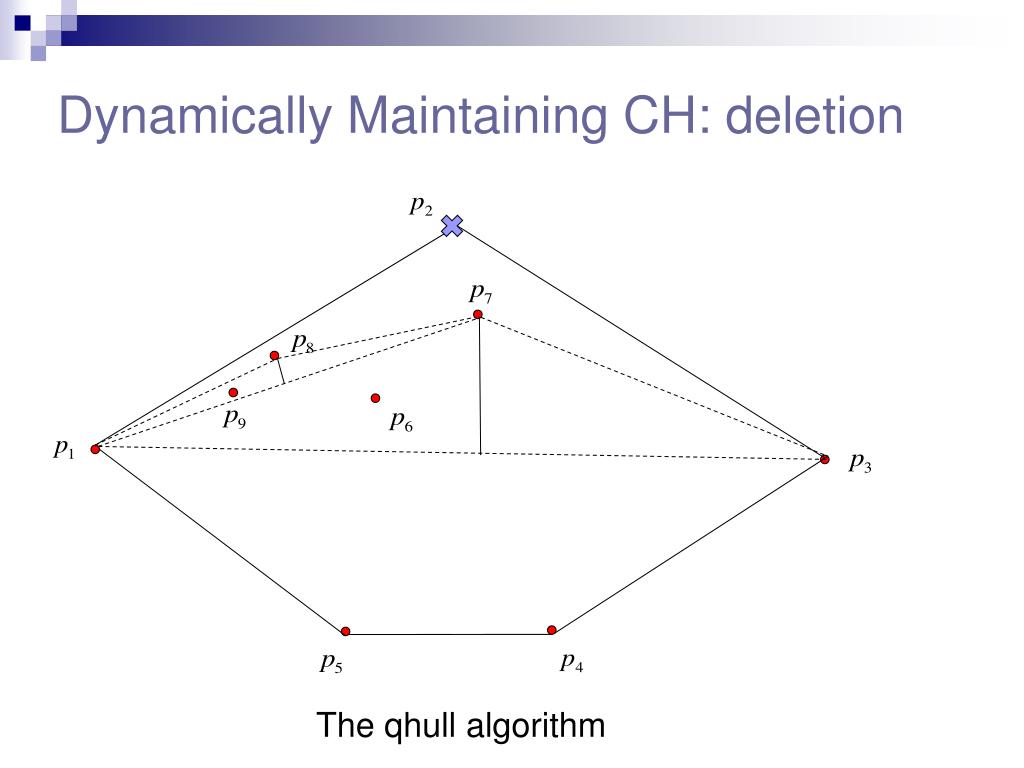

  16. Dynamically Maintaining CH: deletion The qhull algorithm

  17. Dynamically Maintaining CH Adapt qhull to R-tree

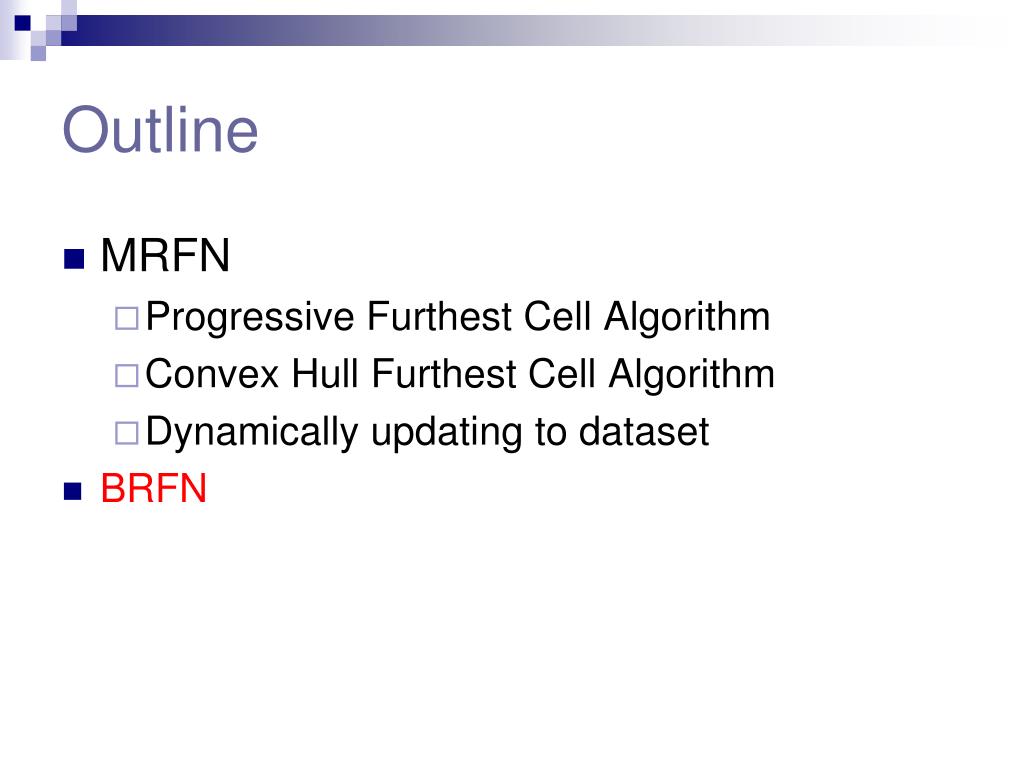

  18. Outline • MRFN • Progressive Furthest Cell Algorithm • Convex Hull Furthest Cell Algorithm • Dynamically updating to dataset • BRFN

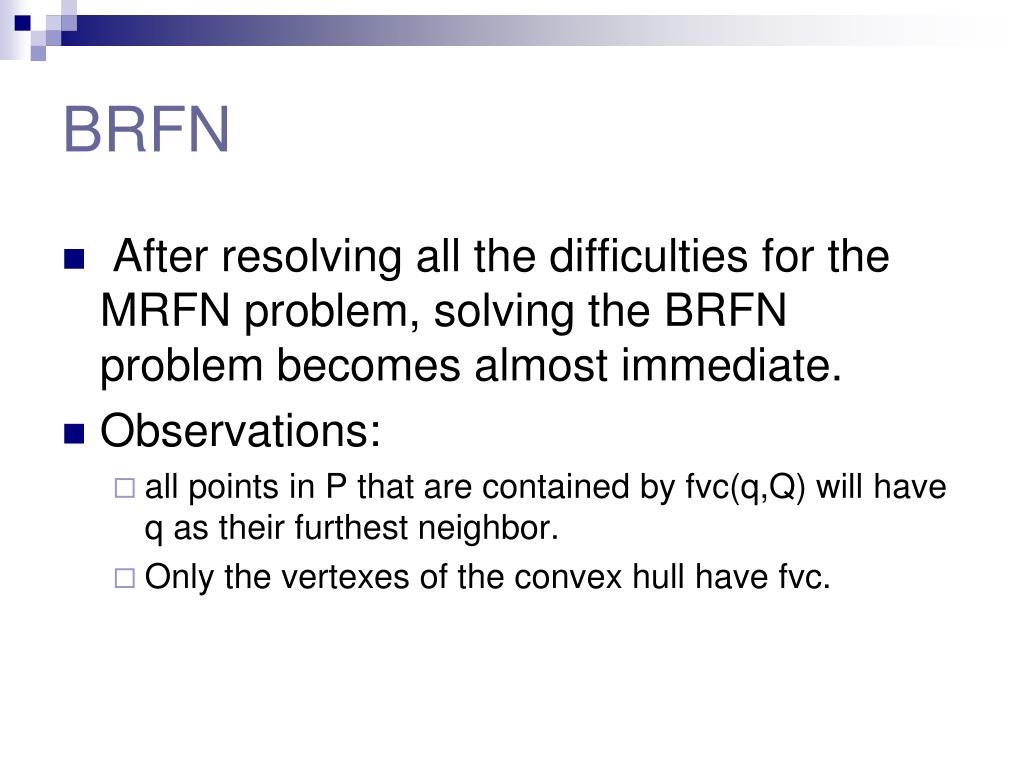

  19. BRFN • After resolving all the difficulties for the MRFN problem, solving the BRFN problem becomes almost immediate. • Observations: • all points in P that are contained by fvc(q,Q) will have q as their furthest neighbor. • Only the vertexes of the convex hull have fvc.

  20. BRFN algorithm • BRFN(Query q, Q; R-tree T) • Compute the convex hull of Q; • If then return empty; • Else • Compute fvc(q, ); • Execute a range query using fvc(q, ) on T;

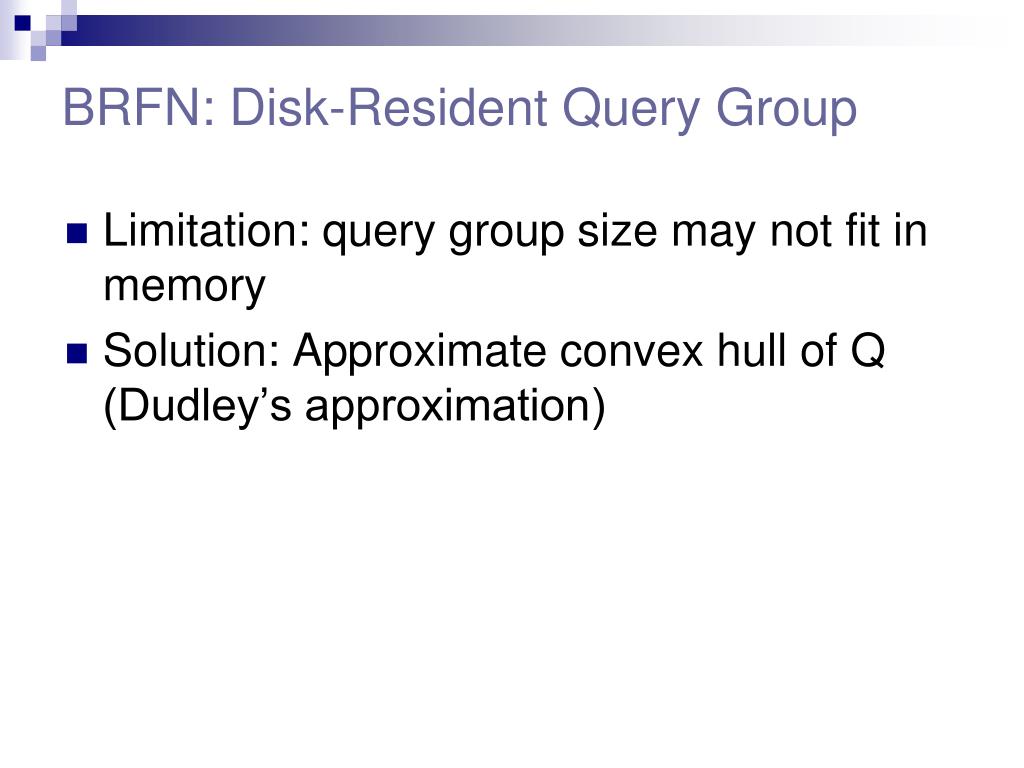

  21. BRFN: Disk-Resident Query Group Limitation: query group size may not fit in memory Solution: Approximate convex hull of Q (Dudley’s approximation)

  22. Experiment Setup • Dataset: • Real dataset (Map: USA, CA, SF) • Synthetic dataset (UN, CB, R-Cluster) • Measurement • Computation time • Number of IOs • Average of 1000 queries

  23. MRFN algorithm CPU computation Number of IOs

  24. BRFN algorithms CPU: vary A, Q=1000 IOs: vary A, Q=1000

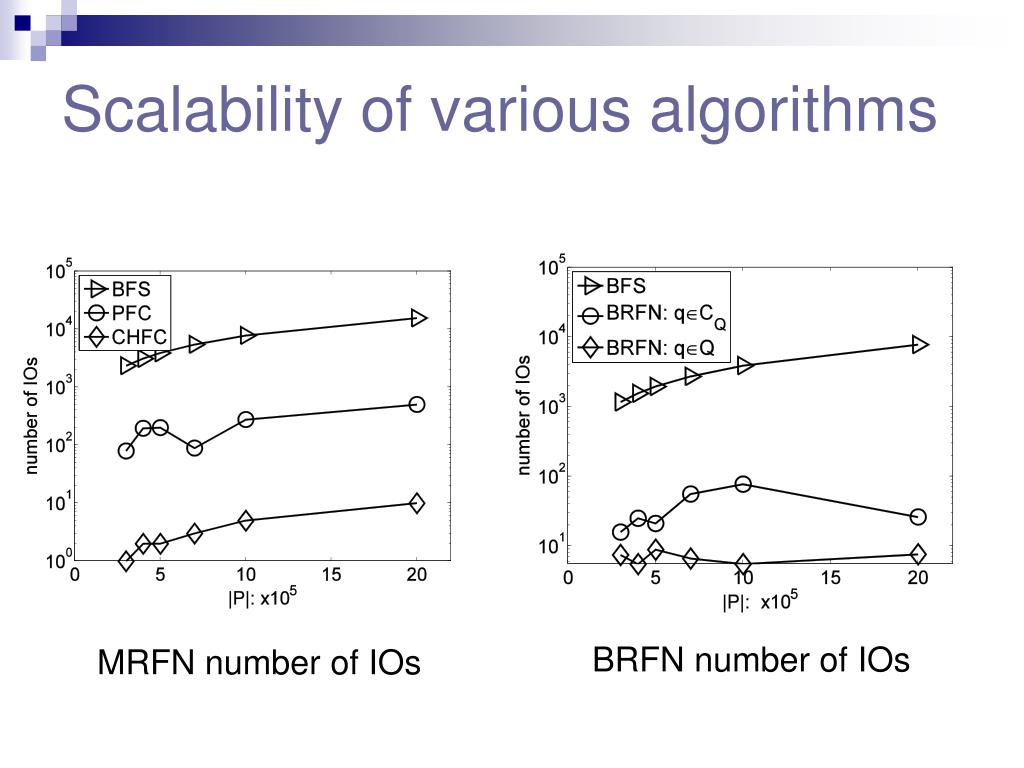

  25. Scalability of various algorithms BRFN number of IOs MRFN number of IOs

  26. Conclusion • Introduced a novel query (RFN) for spatial databases. • Presented R-tree based algorithms for both versions of RFN that feature excellent pruning capability. • Conducted a comprehensive experimental evaluation.

  27. Thank you!Questions?

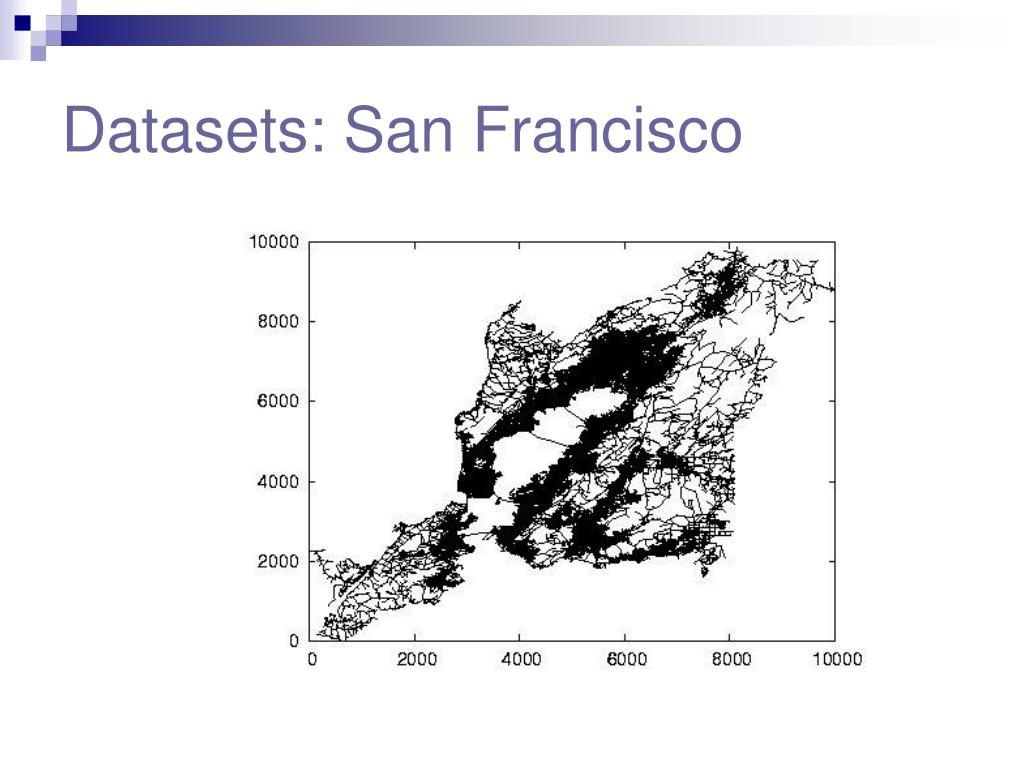

  28. Datasets: San Francisco

  29. Datasets: California

  30. Datasets: North America

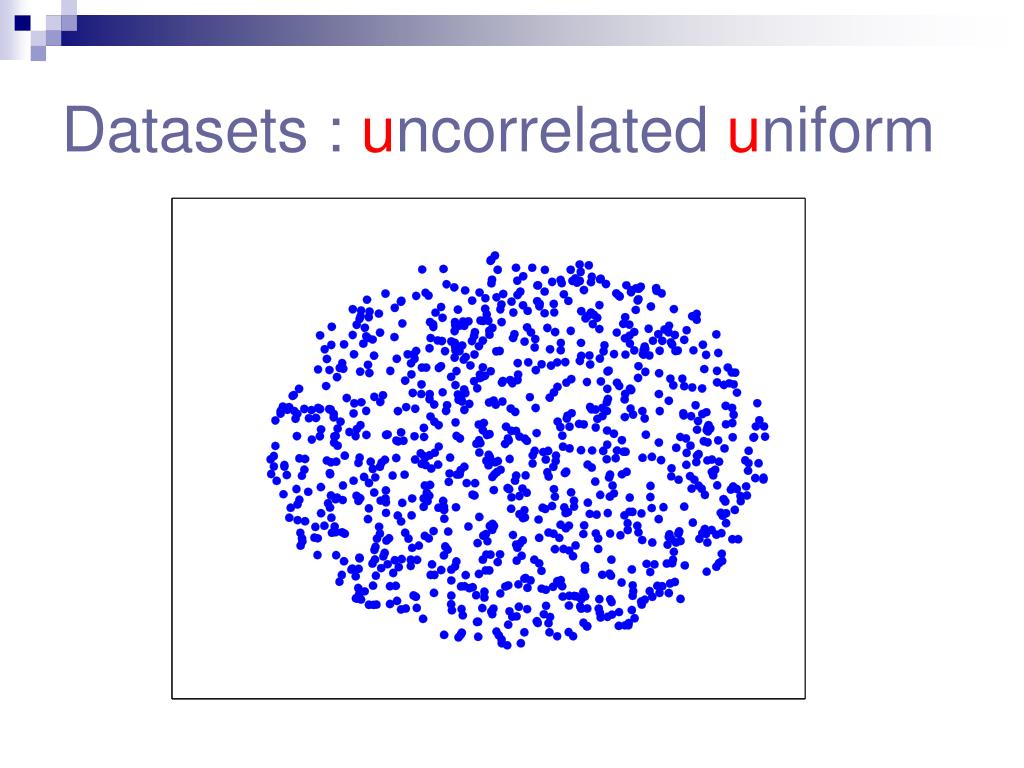

  31. Datasets : uncorrelated uniform

  32. Datasets : correlated bivariate

  33. Datasets : random clusters
