    1. RockOn and RockSat Payload Canister... A Sounding Rocket Payload Workshop and The Next Step In Low Cost Student Access To Space Colorado & Virginia Space Grant Consortium RockSat Presentation 23 June 2009

    2. 1.0 History “The story of RocketSat and its evolution to the Next How-To Workshop and Low Cost Student Access to Space and BEYOND!” 2.0 RockOn! “Where it all begins…” 3.0 RockSat-C “You’ve built our standard payload, come back and build a payload of your own… with some guidance and restrictions of course…” 4.0 RockSat-X “Is RockSat-C too easy? Too limited? How about full access to space? 0.0 Presentation Overview

    3. A Brief History

    4. 1.0 History - The workshop kit or RocketSat has been under development and testing since January 2006 - RocketSat was developed by undergraduate students from the University of Colorado at Boulder - RocketSat has flown four times in different configurations - RocketSat I September 2006 - RocketSat II April 2007 - RocketSat III June 2007 - RocketSat D March 2008 (moved to June/July 2008) - RocketSat IV June 24, 2008

    5. 1.1 History: RocketSat I Objectives: 1. Easily reproducible payload design (COTS) 2. Qualitative data description of flight environment with altitude 3. Science Package: - Geiger Counter - Microwave Detector - Temperature sensor - Accelerometers - Pressure sensor

    6. 1.1 History: RocketSat I… Before

    7. 1.2 History: RocketSat II Objectives: 1. Easily reproducible payload design (COTS) 2. Record detailed flight data: - Video Camera 3. Environmental sensors: - Temperature - Pressure - Humidity - Three-axis accelerometers - Strain gauges - Faculty GPS experiment

    8. 1.2 History: RocketSat II Stacked Configuration

    9. 1.2 History: RocketSat II Stacked Configuration

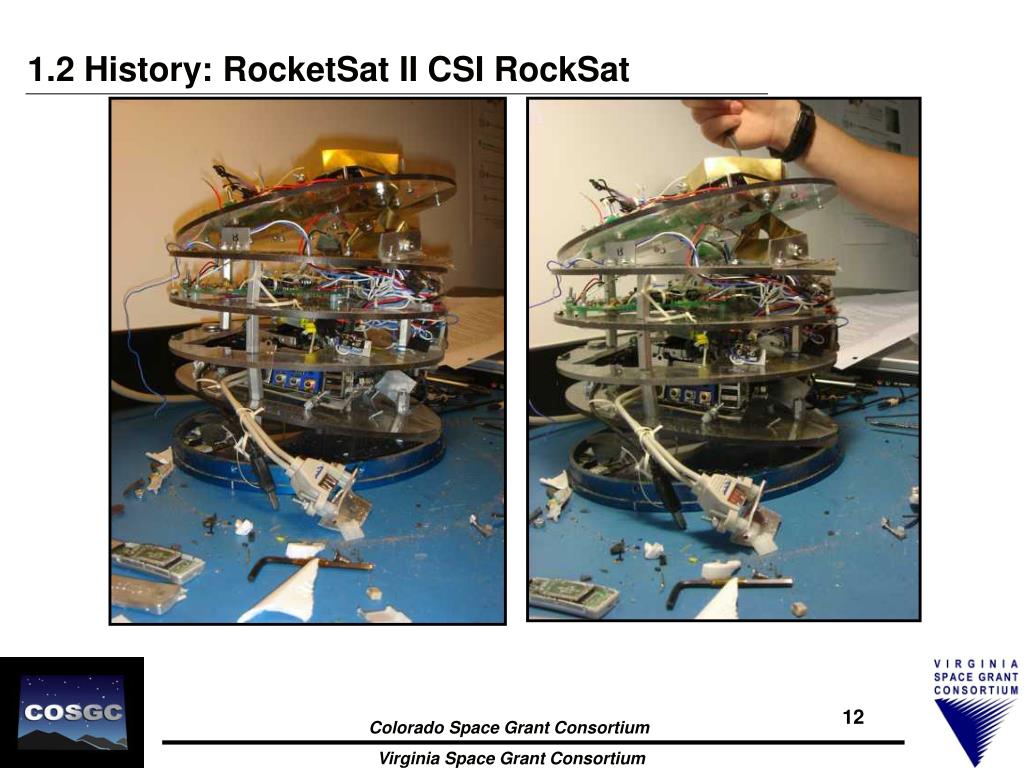

    10. 1.2 History: RocketSat II CSI RockSat

    11. 1.3 History: RocketSat III The Third Time’s A Charm Objectives: 1. Re-fly all hardware from RS I except microwave sensor and Geiger counter 2. New Sensors: - Silicon pressure sensor - New Geiger counter - New microwave sensor

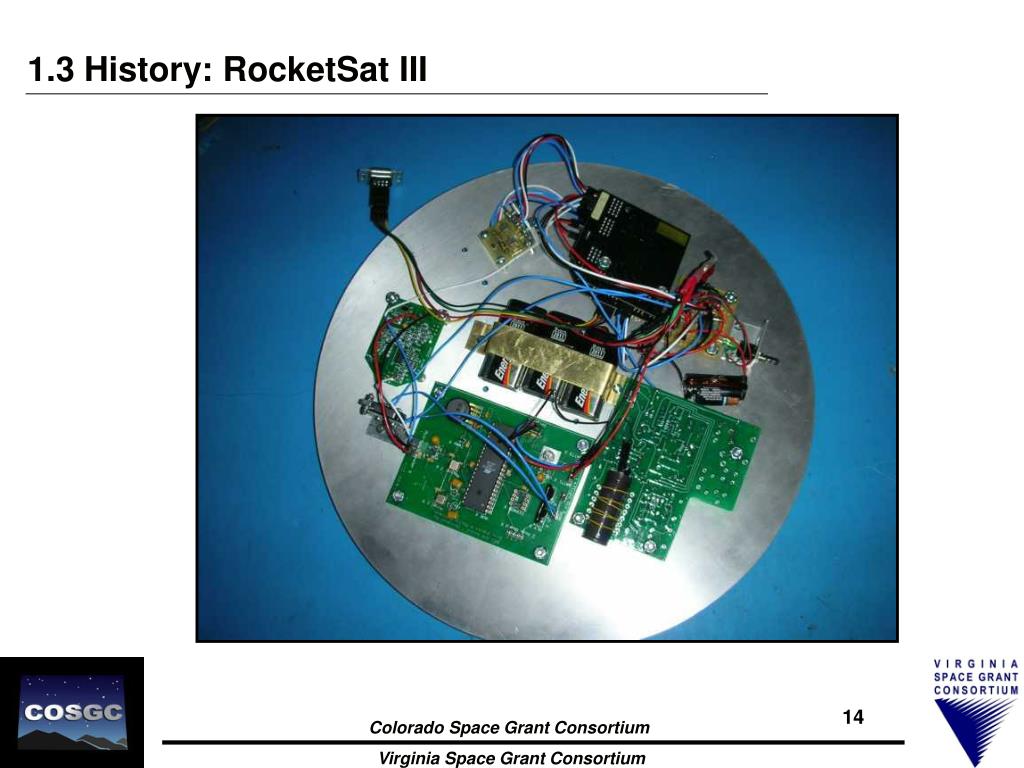

    12. 1.3 History: RocketSat III

    13. 1.4 History: RocketSat-D Sanity Check RocketSat D (for Donut) Objectives 1. Sanity check for RockOn workshop kit

    14. RockOn! The Next How-To Workshop

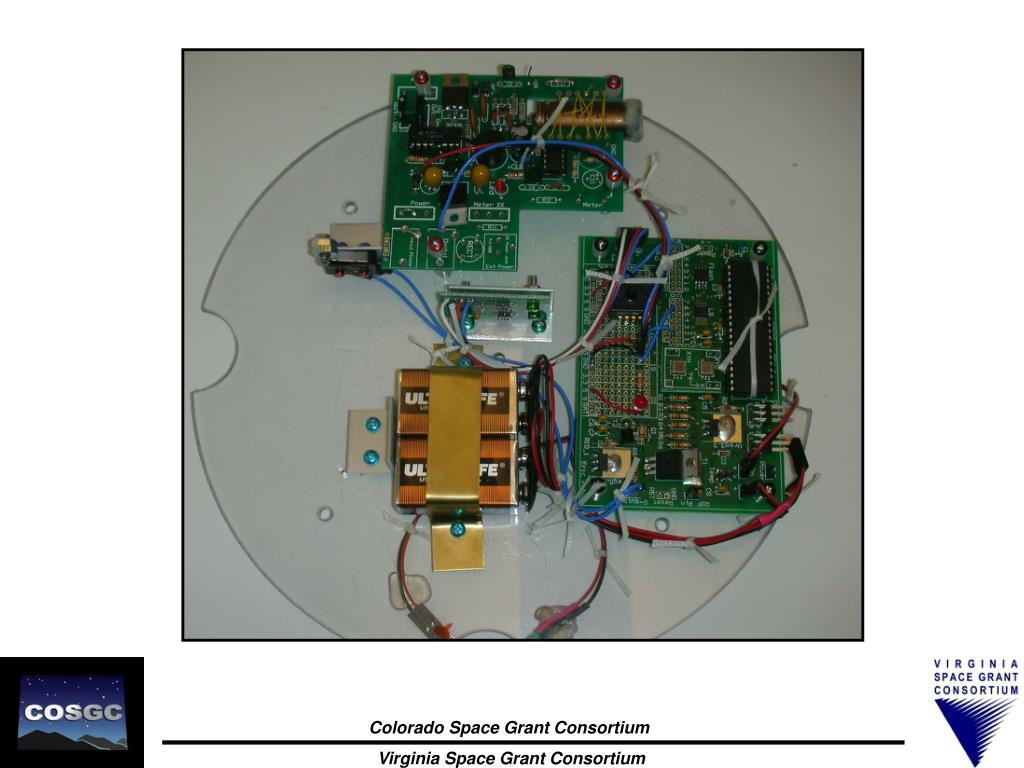

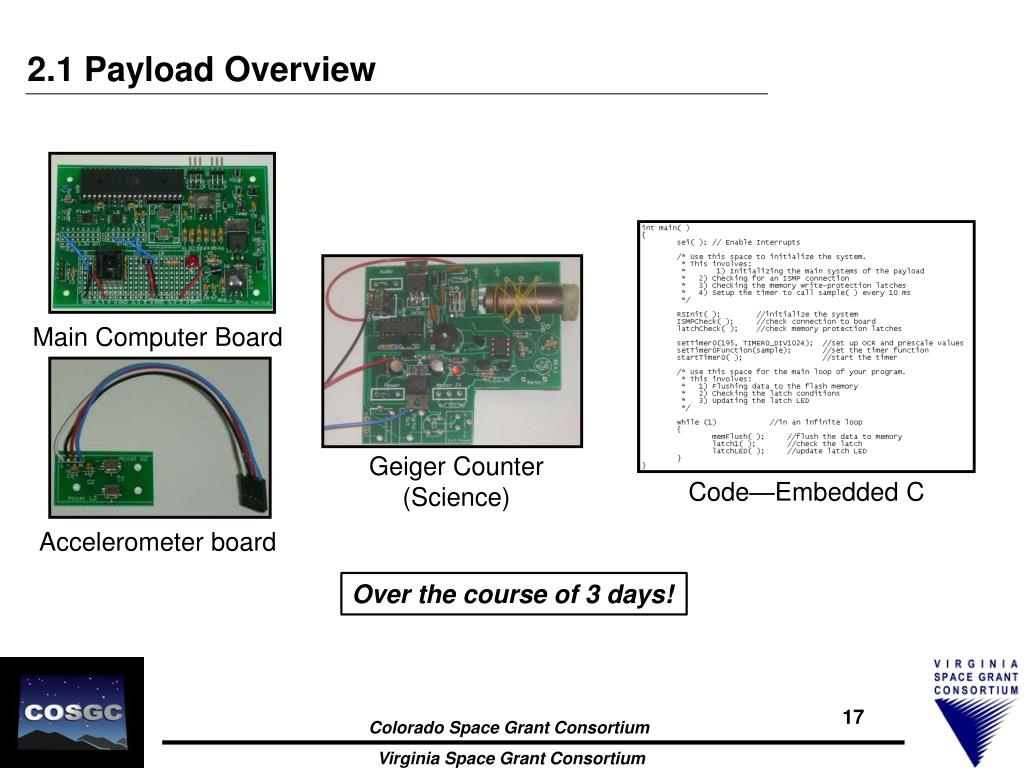

    15. 2.1 Payload Overview Main Computer Board Geiger Counter (Science) Code—Embedded C Accelerometer board Over the course of 3 days! 17

    16. 2.1 Payload Overview Mount, Stack, and Enclose! Plate Integration Canister Integration 5 Teams Stacked 18

    17. The Concept:

    18. 2.2 RockOn 2008 RockOn 2008: June 23 – 27: - 19 teams of 3-4 participants per team, 57 participants - Launched June 27, 2008 on Improved Orion 100 % Success Rate! 20

    19. 3.2.1 RockOn 2008: Who Came? 57 People 3 1 3 3 2 2 1 1 3 2 1 1 3 1 8 8 4 4 4 1 2 57 Participants! 21

    20. What we told them…

    21. Workshop Goals:

    22. Then another something else amazing happened…

    23. Workshop Goals: RockOn 2008

    24. 2.3 RockOn 2009 RockOn 2009: June 21 – 26: - 15 teams of 3-4 participants per team, 45 participants - Launched June 26, 2009 on Terrier-Improved Orion 100 % Success Rate! 26

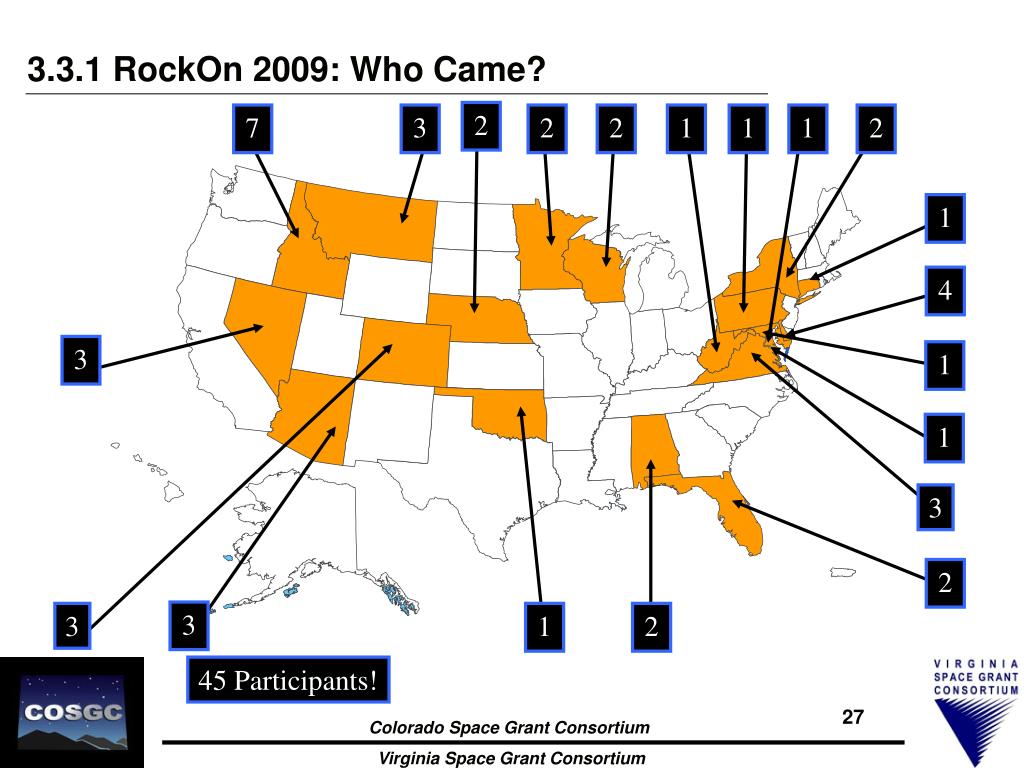

    25. 3.3.1 RockOn 2009: Who Came? 2 - And YOU! 7 3 2 2 1 1 1 2 1 4 3 1 1 3 1 2 3 3 1 2 45 Participants! 27

    26. RockOn 2008 and 2009:

    27. RockOn 2008 and 2009:

    28. RockOn 2009:

    29. RockOn 2008 and 2009:

    30. RockOn 2009: RockOn 2009

    31. RockSat-C The Next Step In Low-Cost Student Access to Space

    32. 3.1 RockSat Payload Canister Established RockOn led to the development of the RockSat Payload Canister Standard Interface to Wallops Flight Facility’s Sub-SEM ring assembly. • RockSat-W Standard: • (March 2008) • Mass Standard • MOI Standard • Streamline Integration • Vibe/MOI not required Proven concept: RockOn 2008/2009 RockSat 2009 34

    33. Highlights: • Each shall weight < 20* lbs with payloads and hardware • Sixteen (16) 8-32 Cap Head screw around split barrel • Five (5) 8-32 Cap Head screws on both top and bottom bulk heads, ten total. • CG shall lie within a 1X1X1” envelope centered on the geometric centroid of the canister. • WFF Interface: • - Wire-way to pass RBF/Command wires to Wallops Flight Facility 3.2 RockSat Payload Canister Structural * RockSat Requirement, Workshop Canisters are a standard established in spring of 2008

    34. Highlights: • Cans designed to be easily integrated onto Wallops Flight Facility’s Sub-SEM ring assembly • Integration of five cans (left) to Sub-SEM ring assembly successful during RockOn 2008/2009 and RockSat 2009 • WFF Interface: • Twelve (12) 8-32 Cap Head screws attach canister to Sub-SEM rings. • Bolt circle:  = 10.8” • 8-32 socket cap head screws 3.3 RockSat Paylod Canister Integration

    35. Activation Types: • RockOn Style (Latching) • Command Line (Early Activation) • Two Key Requirements: • 0.SYS.1 All payloads shall be designed such that Wallops will always know its status as active or inactive (current flowing/not flowing).   1.SYS.1 Payloads wishing to activate early shall be designed such that Wallops can activate and deactivate the payload or subsections of the payload via a single    set of RBF wires.   1.SYS.2 Payloads wishing to activate at launch shall be designed with two opens in the system such that activation occurs if and only if Wallops has closed the RBF connection and the G switch has been depressed. 3.4 RockSat Payload Canister Electrical

    36. Metropolitan State College University of North Dakota Colorado State University 10 Universities from across the United States sent payloads to just over 72 miles on June 26, 2009! PL1 PL2 PL3 PL4 PL5 PL6 PL7 PL8 PL9 3.5 Who Flew in 2009?

    37. PL1 PL2 PL3 PL4 PL5 PL6 PL7 PL8 PL9 3.6 Who Will You Hear From Today? CSU Conceptual Payload Design University of Minnesota Conceptual Payload Design

    38. Schedule--2010

    39. 3.7 Schedule * Different than RockOn 2008 and 2009

    40. Pushing the RockSat Concept to New Extremes Colorado Space Grant Consortium

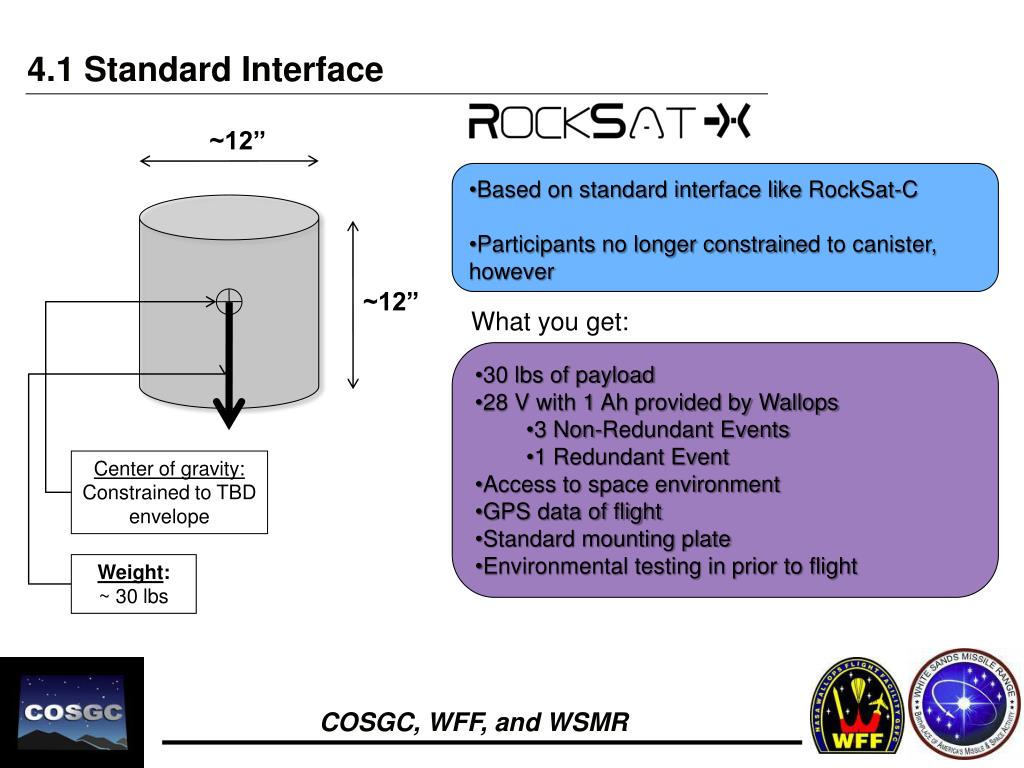

    41. ~12’’ • Based on standard interface like RockSat-C • Participants no longer constrained to canister, however ~12” What you get: • 30 lbs of payload • 28 V with 1 Ah provided by Wallops • 3 Non-Redundant Events • 1 Redundant Event • Access to space environment • GPS data of flight • Standard mounting plate • Environmental testing in prior to flight 4.1 Standard Interface Center of gravity: Constrained to TBD envelope Weight: ~ 30 lbs

    42. CONOPS: 1. Launch Telemetry/GPS begins 2. Launch to Apogee Telemetry/GPS continues 3. Apogee Nose cone separation Skin separation De-spin to TBD rate Telemetry/GPS continues 4. Descent Telemetry/GPS continues 5. Chute Deploy Telemetry/GPS continues 6. Landing Telemetry/GPS terminates Payloads recovered 3 4 5 2 4.2 Concept of Operations 1 6 Wallops Ground Station

    43. Payload Interfaces

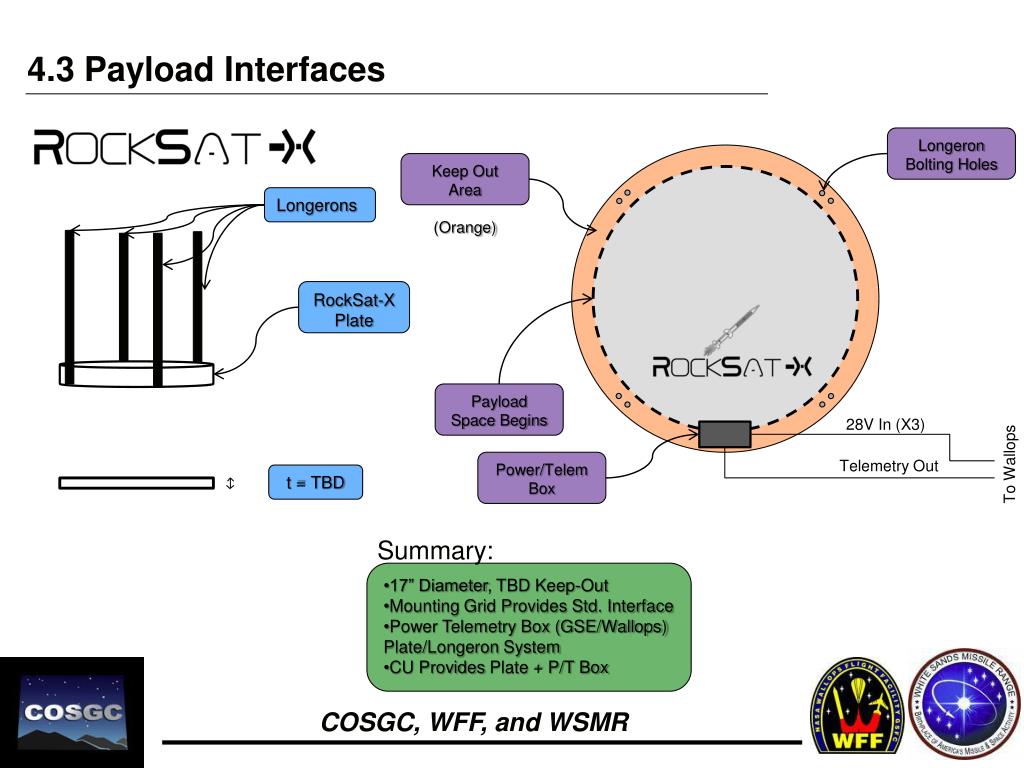

    44. Longeron Bolting Holes Keep Out Area (Orange) Longerons RockSat-X Plate Payload Space Begins 28V In (X3) 4.3 Payload Interfaces Telemetry Out Power/Telem Box To Wallops t = TBD Summary: • 17” Diameter, TBD Keep-Out • Mounting Grid Provides Std. Interface • Power Telemetry Box (GSE/Wallops)Plate/LongeronSystem • CU Provides Plate + P/T Box

    45. RockSat-X1 (12 Months) RockSat-X2 (15 Months) RockSat-X3 (15 Months) 2010 2011 2012 January Selections Made February March RockSat-X3 Announced RockSat-X2 Announced April May June Envr.Testing NOI Due Envr.Testing NOI Due RS-X1 Announced July Draft User’s Guide Complete 4.4 RockSat-X Schedule Design Reviews CoDR(MIC),PDR(RDM),CDR(DR) Design Reviews CoDR(MIC),PDR(RDM),CDR(DR) Deposits Due Deposits Due August RS-X1 Launch RS-X2 Launch September Notice of Intent DUE October Design Reviews CoDR(MIC),PDR(RDM),CDR(DR) Deposits DUE November Selections Made Selections Made December

    46. RockOn and RockSat Payload Canister... Further Questions and/or Comments
