  1. Quadratic Theory Higher Maths

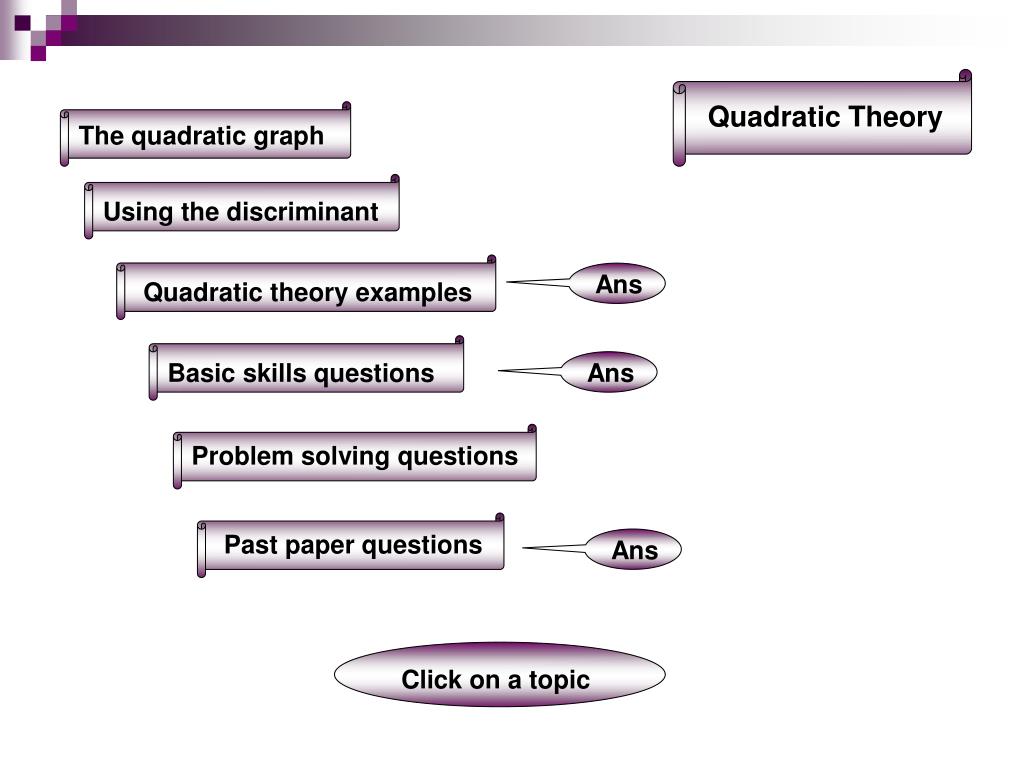

  2. Quadratic Theory The quadratic graph Using the discriminant Quadratic theory examples Basic skills questions Problem solving questions Ans Ans Ans Past paper questions Click on a topic

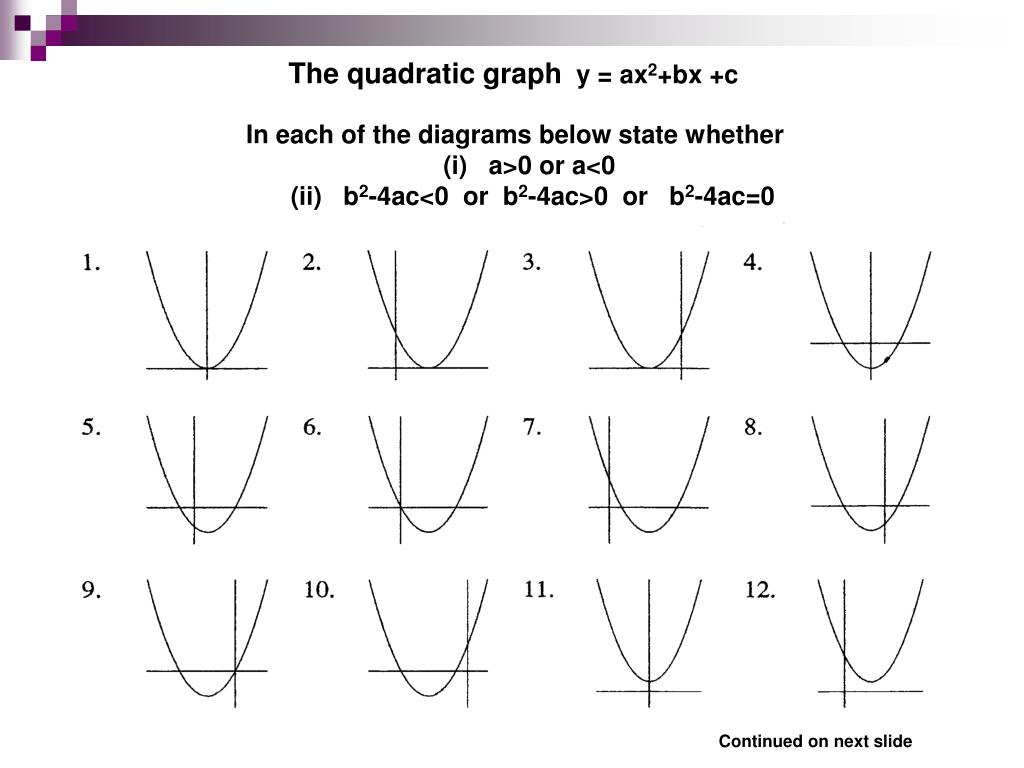

  3. The quadratic graph y = ax2+bx +c In each of the diagrams below state whether (i) a>0 or a<0 (ii) b2-4ac<0or b2-4ac>0 orb2-4ac=0 Continued on next slide

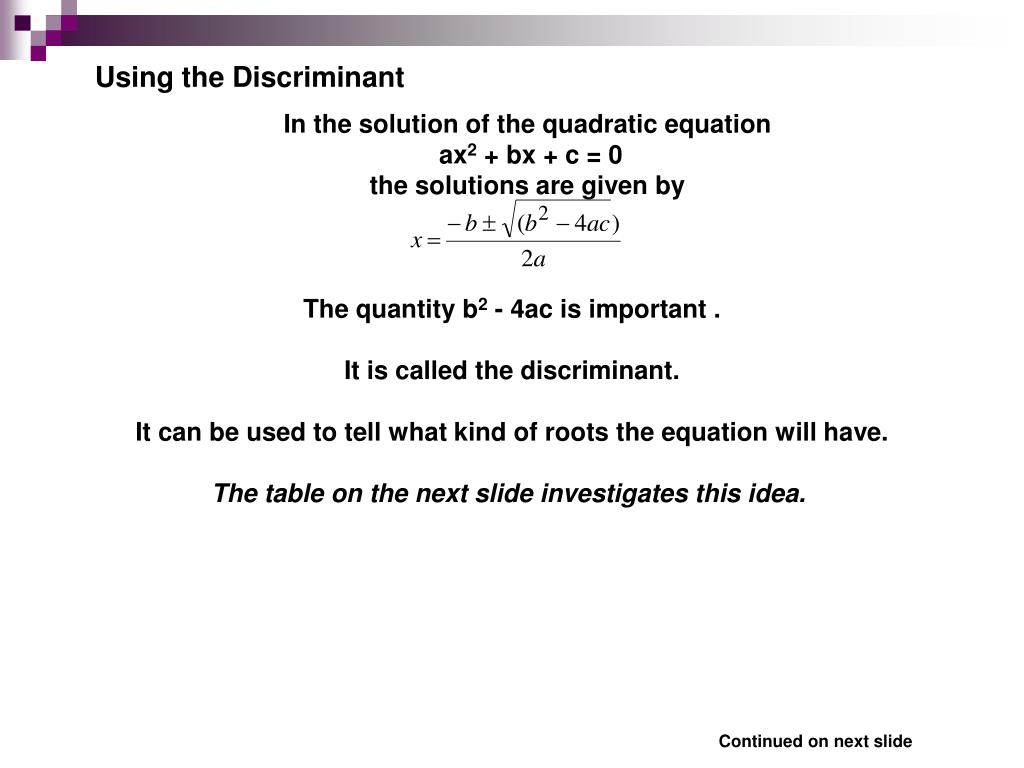

  4. Using the Discriminant In the solution of the quadratic equation ax2 + bx + c = 0 the solutions are given by The quantity b2 - 4ac is important . It is called the discriminant. It can be used to tell what kind of roots the equation will have. The table on the next slide investigates this idea. Continued on next slide

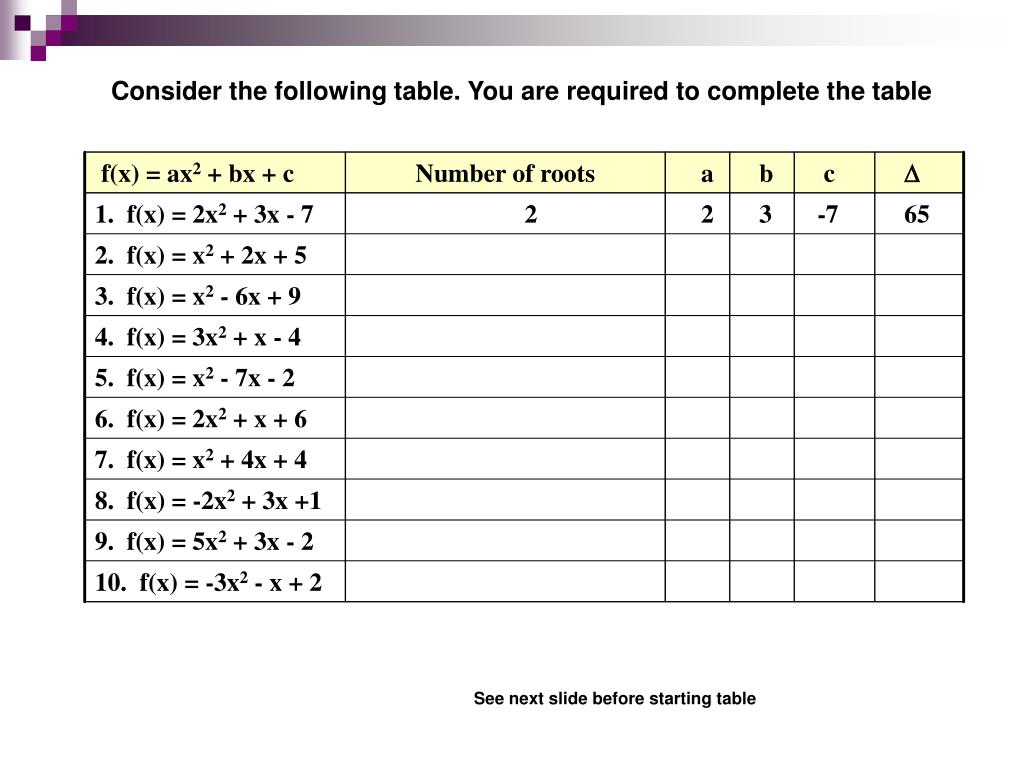

  5. Consider the following table. You are required to complete the table f(x) = ax2 + bx + c Number of roots a b c D 1. f(x) = 2x2 + 3x - 7 2 2 3 -7 65 2. f(x) = x2 + 2x + 5 3. f(x) = x2 - 6x + 9 4. f(x) = 3x2 + x - 4 5. f(x) = x2 - 7x - 2 6. f(x) = 2x2 + x + 6 7. f(x) = x2 + 4x + 4 8. f(x) = -2x2 + 3x +1 9. f(x) = 5x2 + 3x - 2 10. f(x) = -3x2 - x + 2 See next slide before starting table

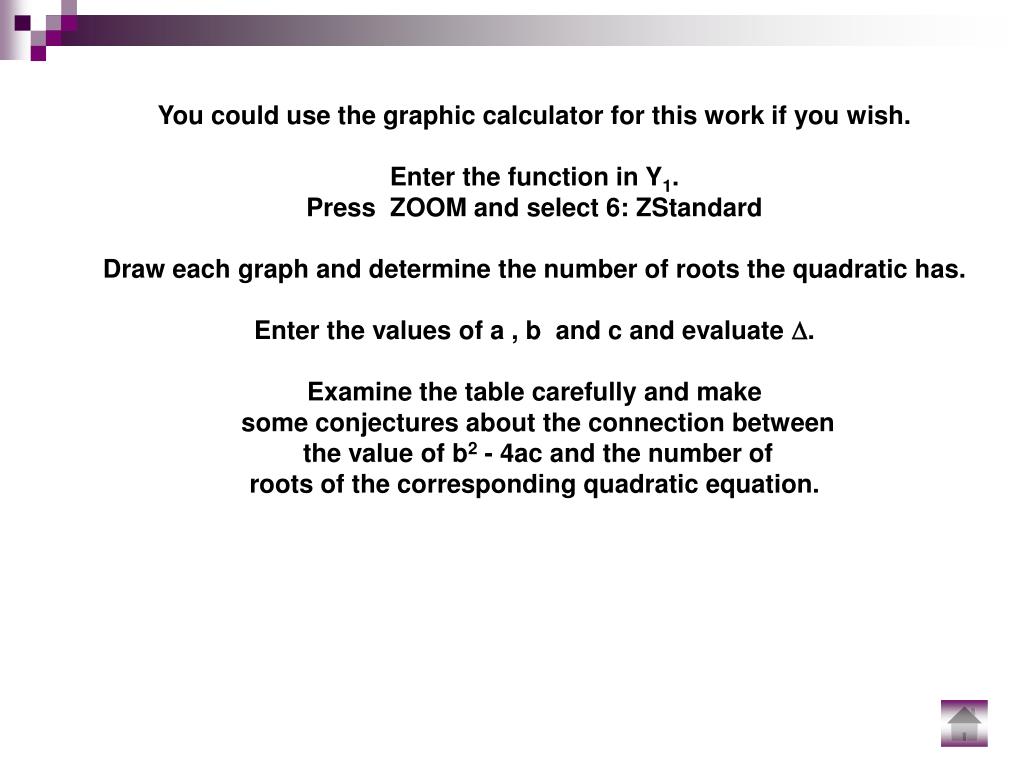

  6. You could use the graphic calculator for this work if you wish. Enter the function in Y1. Press ZOOM and select 6: ZStandard Draw each graph and determine the number of roots the quadratic has. Enter the values of a , b and c and evaluate D. Examine the table carefully and make some conjectures about the connection between the value of b2 - 4ac and the number of roots of the corresponding quadratic equation.

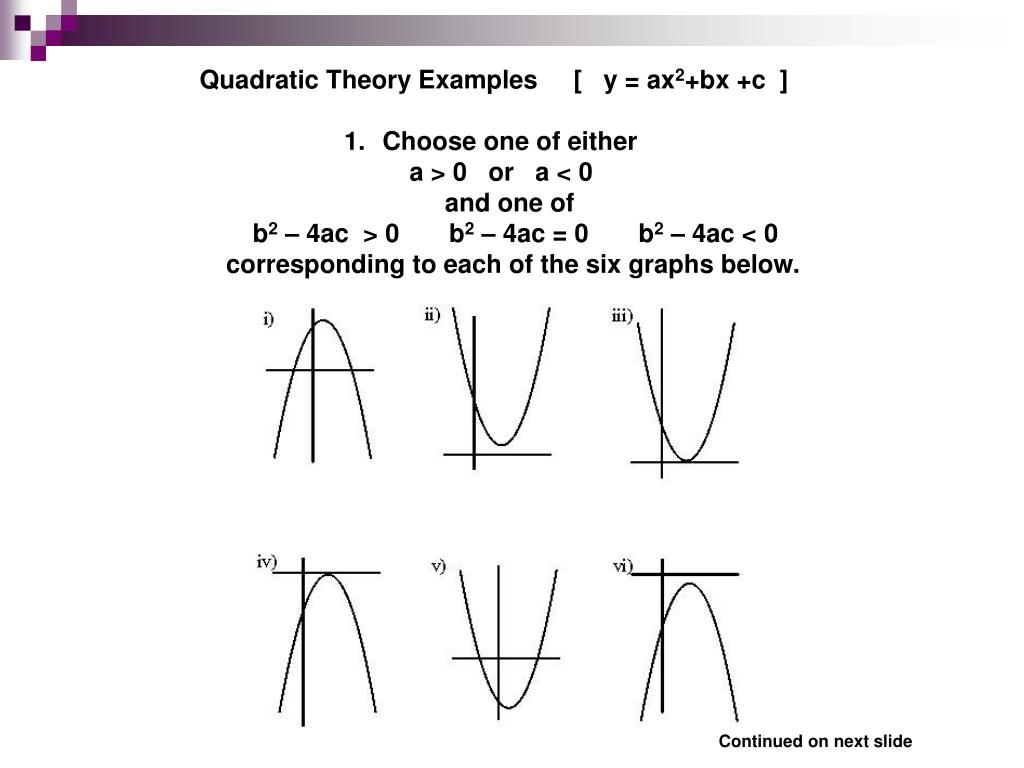

  7. Quadratic Theory Examples [ y = ax2+bx +c ] • Choose one of either • a > 0 or a < 0 • and one of • b2 – 4ac > 0 b2 – 4ac = 0 b2 – 4ac < 0 • corresponding to each of the six graphs below. Continued on next slide

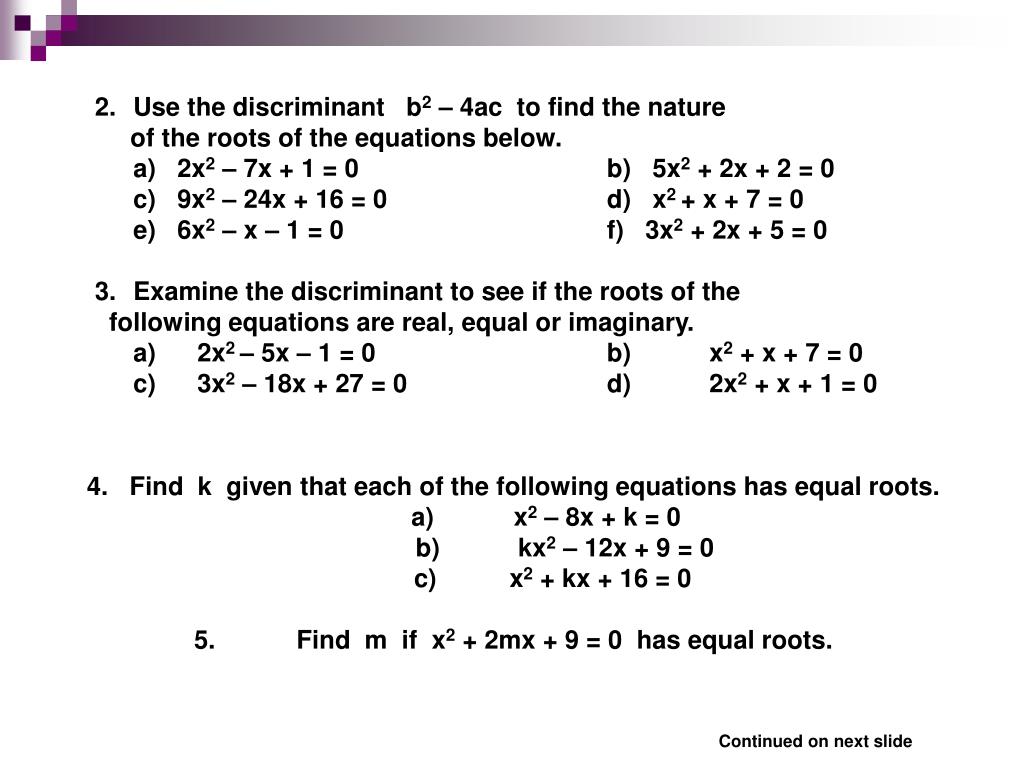

  8. Use the discriminant b2 – 4ac to find the nature • of the roots of the equations below. • a) 2x2 – 7x + 1 = 0 b) 5x2 + 2x + 2 = 0 • c) 9x2 – 24x + 16 = 0 d) x2 + x + 7 = 0 • e) 6x2 – x – 1 = 0 f) 3x2 + 2x + 5 = 0 • Examine the discriminant to see if the roots of the • following equations are real, equal or imaginary. • a) 2x2 – 5x – 1 = 0 b) x2 + x + 7 = 0 • c) 3x2 – 18x + 27 = 0 d) 2x2 + x + 1 = 0 4. Find k given that each of the following equations has equal roots. a) x2 – 8x + k = 0 b) kx2 – 12x + 9 = 0 c) x2 + kx + 16 = 0 5. Find m if x2 + 2mx + 9 = 0 has equal roots. Continued on next slide

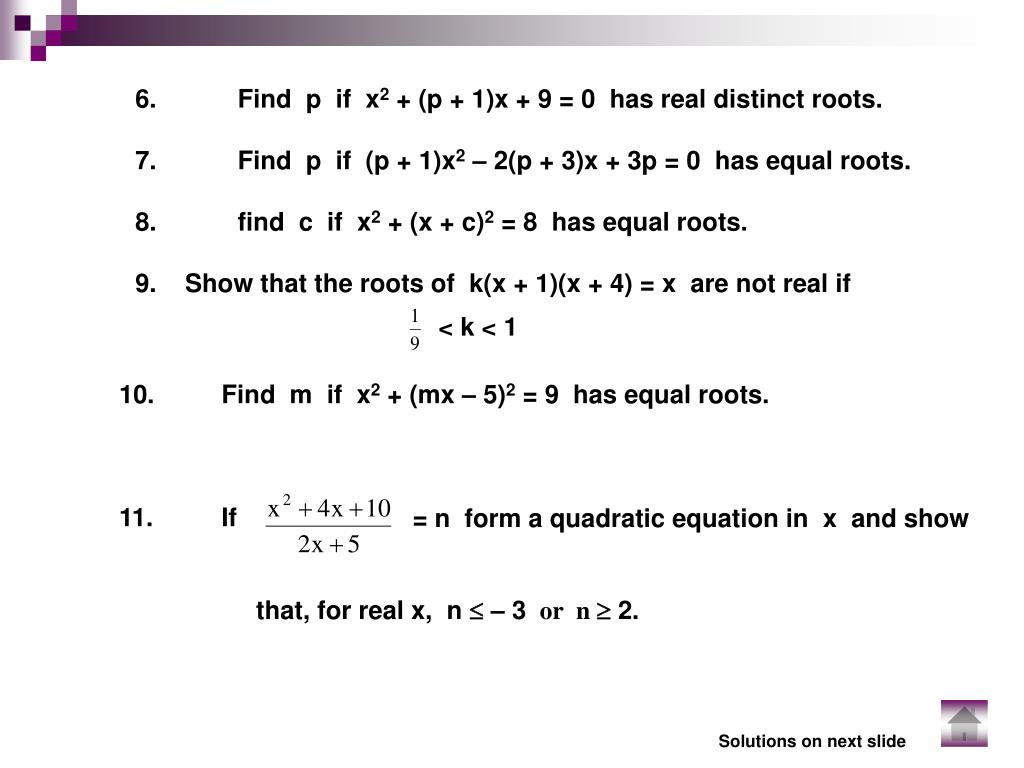

  9. 6. Find p if x2 + (p + 1)x + 9 = 0 has real distinct roots. 7. Find p if (p + 1)x2 – 2(p + 3)x + 3p = 0 has equal roots. 8. find c if x2 + (x + c)2 = 8 has equal roots. 9. Show that the roots of k(x + 1)(x + 4) = x are not real if < k < 1 10. Find m if x2 + (mx – 5)2 = 9 has equal roots. 11. If = n form a quadratic equation in x and show that, for real x, n  – 3 or n  2. Solutions on next slide

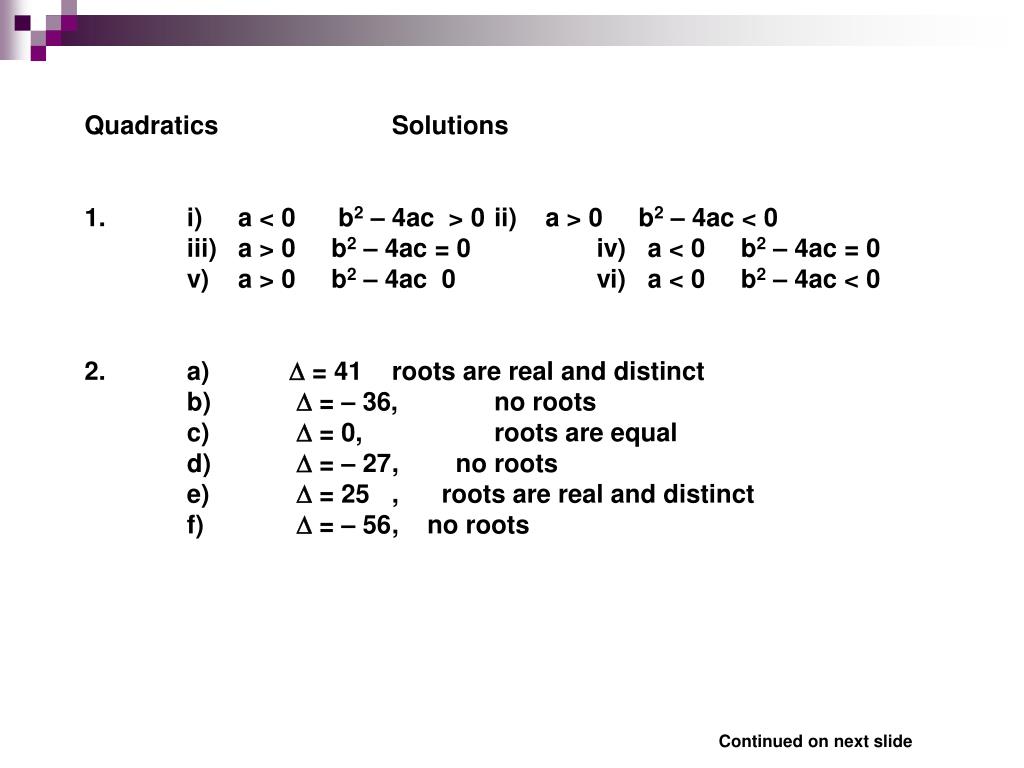

  10. Quadratics Solutions 1. i) a < 0 b2 – 4ac > 0 ii) a > 0 b2 – 4ac < 0 iii) a > 0 b2 – 4ac = 0 iv) a < 0 b2 – 4ac = 0 v) a > 0 b2 – 4ac 0 vi) a < 0 b2 – 4ac < 0 2. a) D = 41 roots are real and distinct b) D = – 36, no roots c) D = 0, roots are equal d) D = – 27 , no roots e) D = 25 , roots are real and distinct f) D = – 56 , no roots Continued on next slide

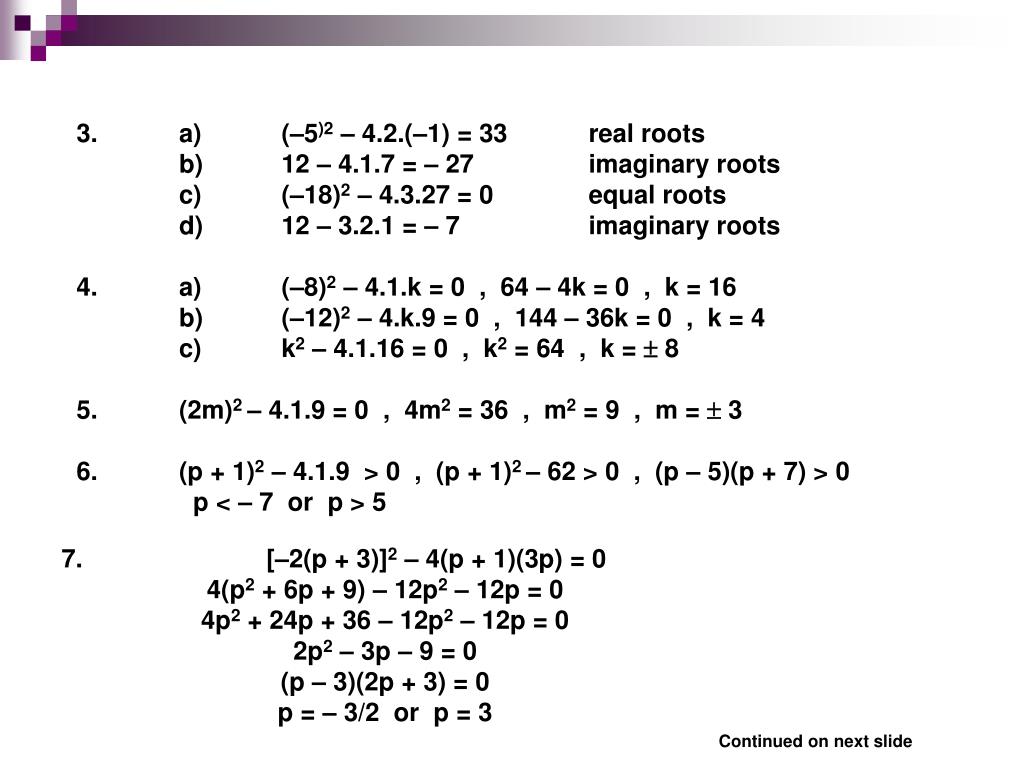

  11. 3. a) (–5)2 – 4.2.(–1) = 33 real roots b) 12 – 4.1.7 = – 27 imaginary roots c) (–18)2 – 4.3.27 = 0 equal roots d) 12 – 3.2.1 = – 7 imaginary roots 4. a) (–8)2 – 4.1.k = 0 , 64 – 4k = 0 , k = 16 b) (–12)2 – 4.k.9 = 0 , 144 – 36k = 0 , k = 4 c) k2 – 4.1.16 = 0 , k2 = 64 , k =  8 5. (2m)2 – 4.1.9 = 0 , 4m2 = 36 , m2 = 9 , m =  3 6. (p + 1)2 – 4.1.9 > 0 , (p + 1)2 – 62 > 0 , (p – 5)(p + 7) > 0 p < – 7 or p > 5 7. [–2(p + 3)]2 – 4(p + 1)(3p) = 0 4(p2 + 6p + 9) – 12p2 – 12p = 0 4p2 + 24p + 36 – 12p2 – 12p = 0 2p2 – 3p – 9 = 0 (p – 3)(2p + 3) = 0 p = – 3/2 or p = 3 Continued on next slide

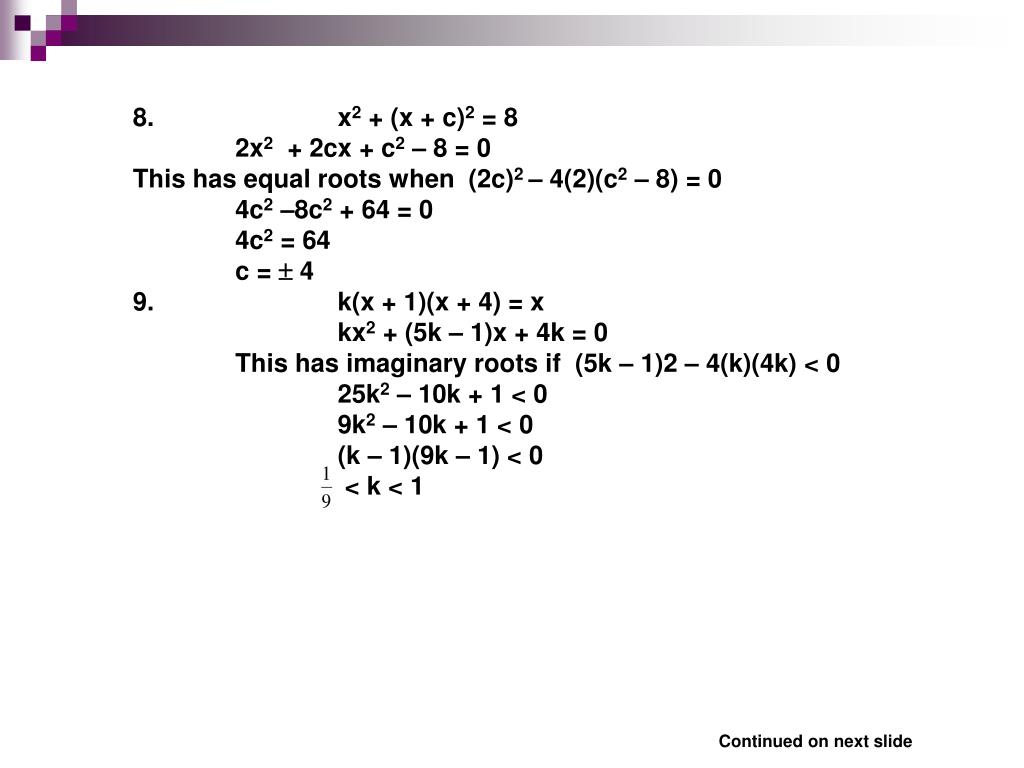

  12. 8. x2 + (x + c)2 = 8 2x2 + 2cx + c2 – 8 = 0 This has equal roots when (2c)2 – 4(2)(c2 – 8) = 0 4c2 –8c2 + 64 = 0 4c2 = 64 c =  4 9. k(x + 1)(x + 4) = x kx2 + (5k – 1)x + 4k = 0 This has imaginary roots if (5k – 1)2 – 4(k)(4k) < 0 25k2 – 10k + 1 < 0 9k2 – 10k + 1 < 0 (k – 1)(9k – 1) < 0 < k < 1 Continued on next slide

  13. 10. x2 + (mx – 5)2 = 9 (m2 + 1) – 10mx + 16 = 0 This has equal roots when (–10m)2 – 4(m2 + 1)(16) = 0 100m2 – 64m2 – 64 = 0 36m2 – 64 = 0 9m2 = 16 m =  4/3 11. x2 + 4x + 10 = n(2x + 5) x2 + (4 –2n)x + 10 – 5n = 0 This has real roots when (4 – 2n)2 – 4(1)(10 – 5n)  0 16 – 16n + 4n2 – 40 + 20n  o 4n2 + 4n – 24  o n2 + n – 6  0 (n + 3)(n – 2)  0 n  – 3 or n  2

  14. Quadratic theory - Basic skills questions

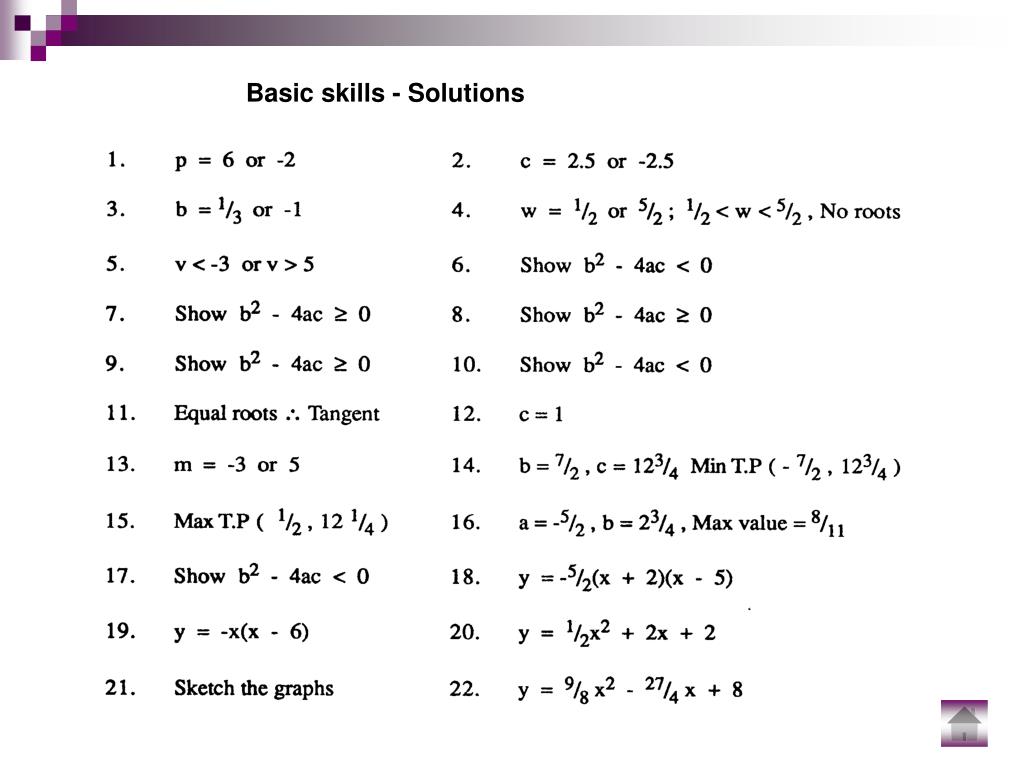

  15. Basic skills - Solutions

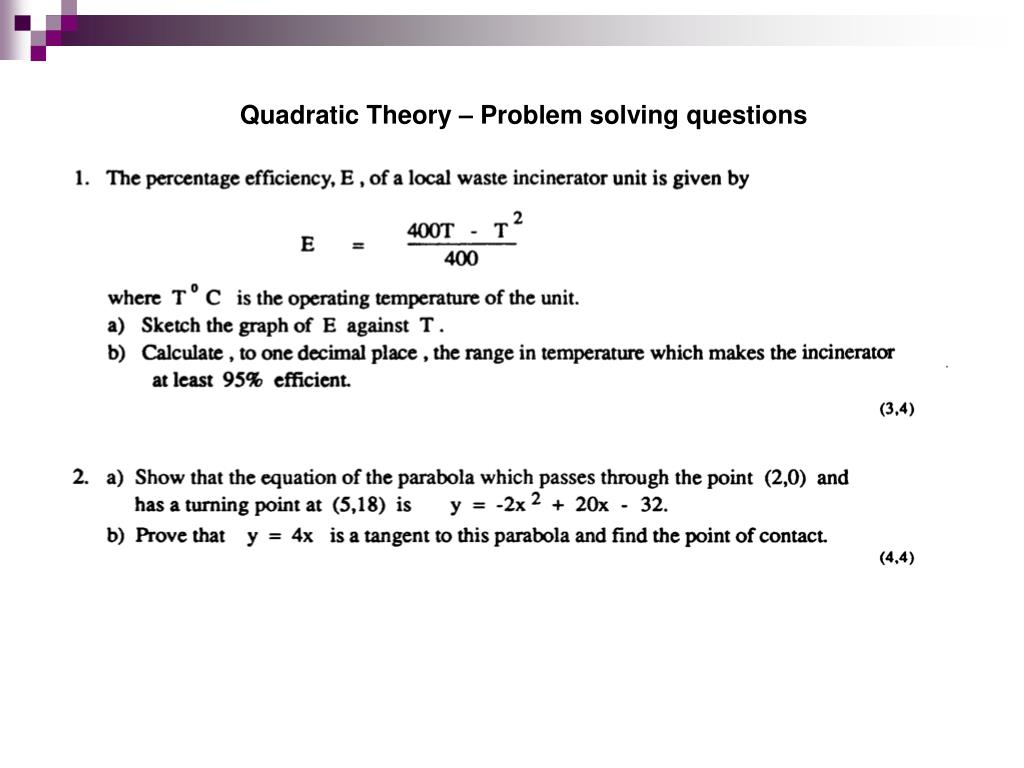

  16. Quadratic Theory – Problem solving questions

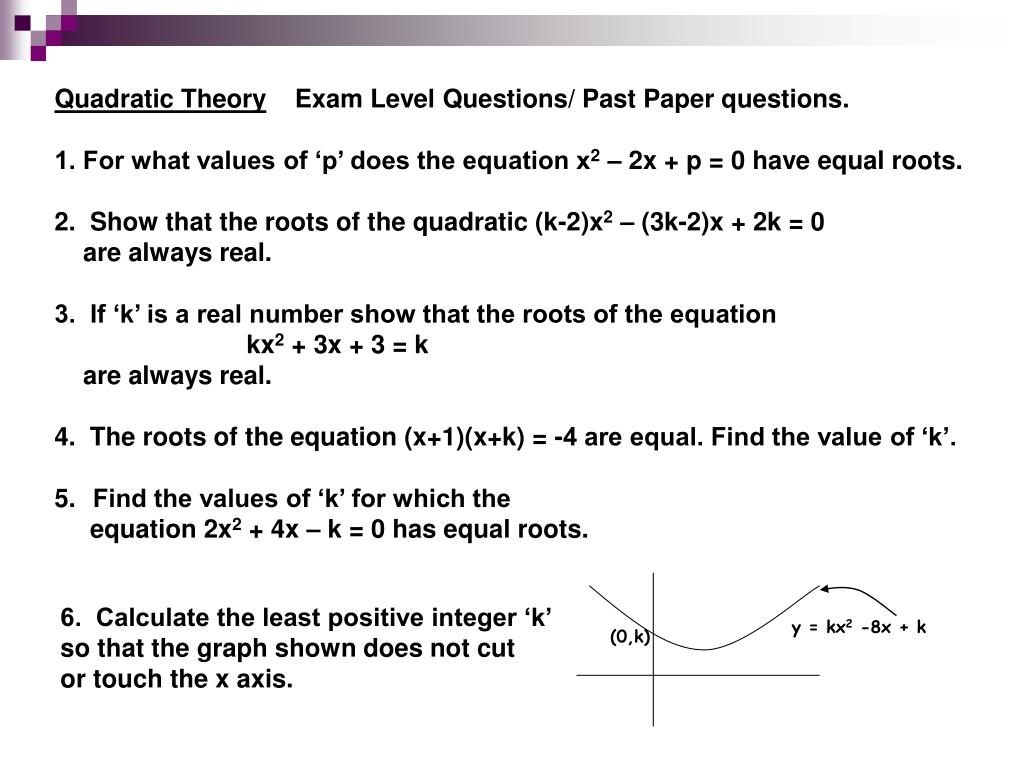

  17. Quadratic Theory Exam Level Questions/ Past Paper questions. • 1. For what values of ‘p’ does the equation x2 – 2x + p = 0 have equal roots. • 2. Show that the roots of the quadratic (k-2)x2 – (3k-2)x + 2k = 0 • are always real. • 3. If ‘k’ is a real number show that the roots of the equation • kx2 + 3x + 3 = k • are always real. • 4. The roots of the equation (x+1)(x+k) = -4 are equal. Find the value of ‘k’. • Find the values of ‘k’ for which the • equation 2x2 + 4x – k = 0 has equal roots. 6. Calculate the least positive integer ‘k’ so that the graph shown does not cut or touch the x axis. y = kx2 -8x + k (0,k)

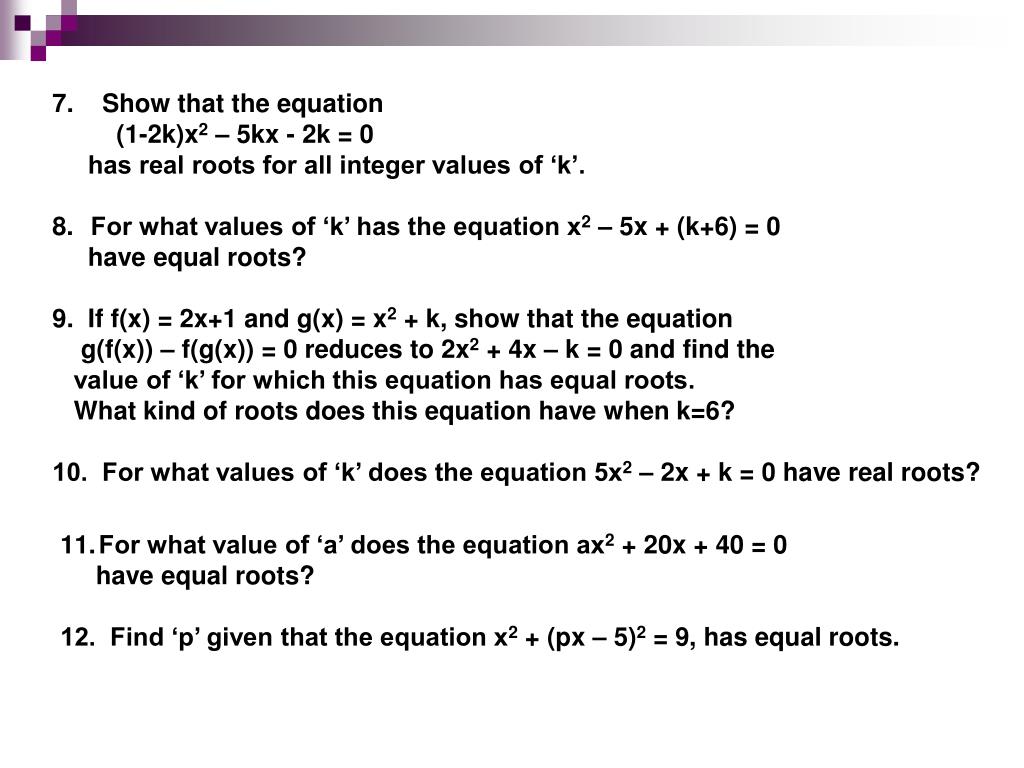

  18. 7. Show that the equation • (1-2k)x2 – 5kx - 2k = 0 • has real roots for all integer values of ‘k’. • For what values of ‘k’ has the equation x2 – 5x + (k+6) = 0 • have equal roots? • 9. If f(x) = 2x+1 and g(x) = x2 + k, show that the equation • g(f(x)) – f(g(x)) = 0 reduces to 2x2 + 4x – k = 0 and find the • value of ‘k’ for which this equation has equal roots. • What kind of roots does this equation have when k=6? • 10. For what values of ‘k’ does the equation 5x2 – 2x + k = 0 have real roots? • For what value of ‘a’ does the equation ax2 + 20x + 40 = 0 • have equal roots? • 12. Find ‘p’ given that the equation x2 + (px – 5)2 = 9, has equal roots.

  19. Given that , form a quadratic equation in x • and hence show that if or then the roots • of the equation are real. • Find ‘m’ if the equation (2m-1)x2 + (m+1)x + 1 = 0 has equal roots. • If m lies between these values find the nature of the roots. • Show that the roots of the equation k(x+1)(x+4) = x are not realif <k<1. 16. Find ‘k’ given that the equation kx2 + (2k+1)x + k = 0 has equal roots. 17. If ‘k’ is a real number, show that the roots of the equation , are always real.

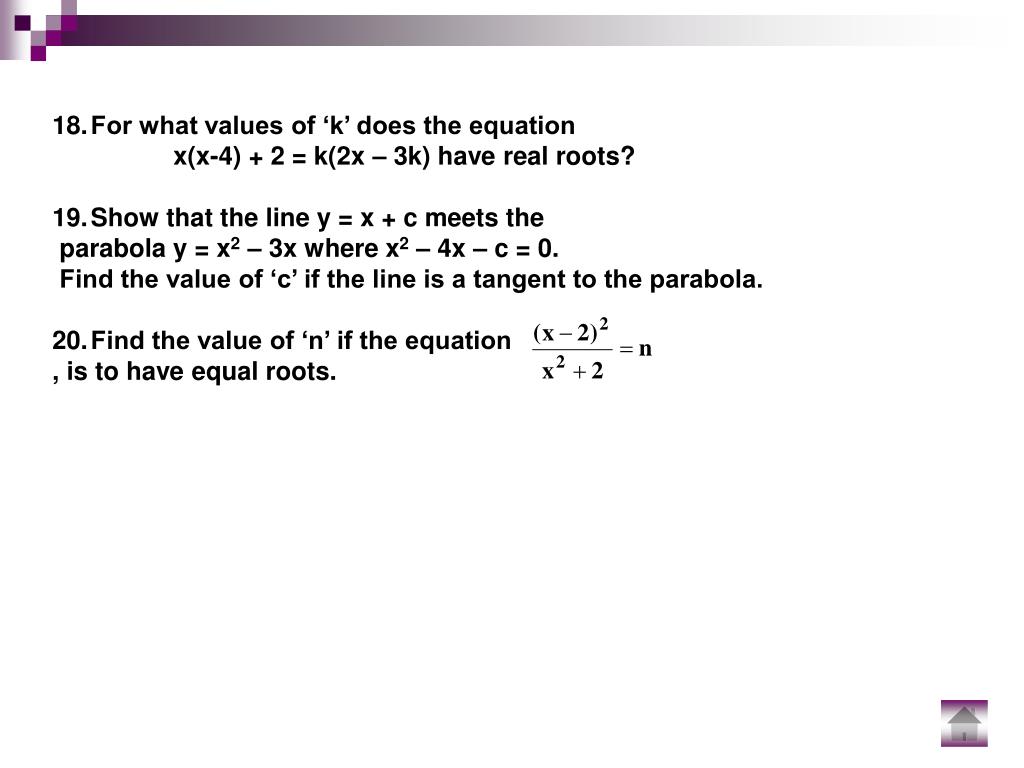

  20. For what values of ‘k’ does the equation • x(x-4) + 2 = k(2x – 3k) have real roots? • Show that the line y = x + c meets the • parabola y = x2 – 3x where x2 – 4x – c = 0. • Find the value of ‘c’ if the line is a tangent to the parabola. • Find the value of ‘n’ if the equation • , is to have equal roots.

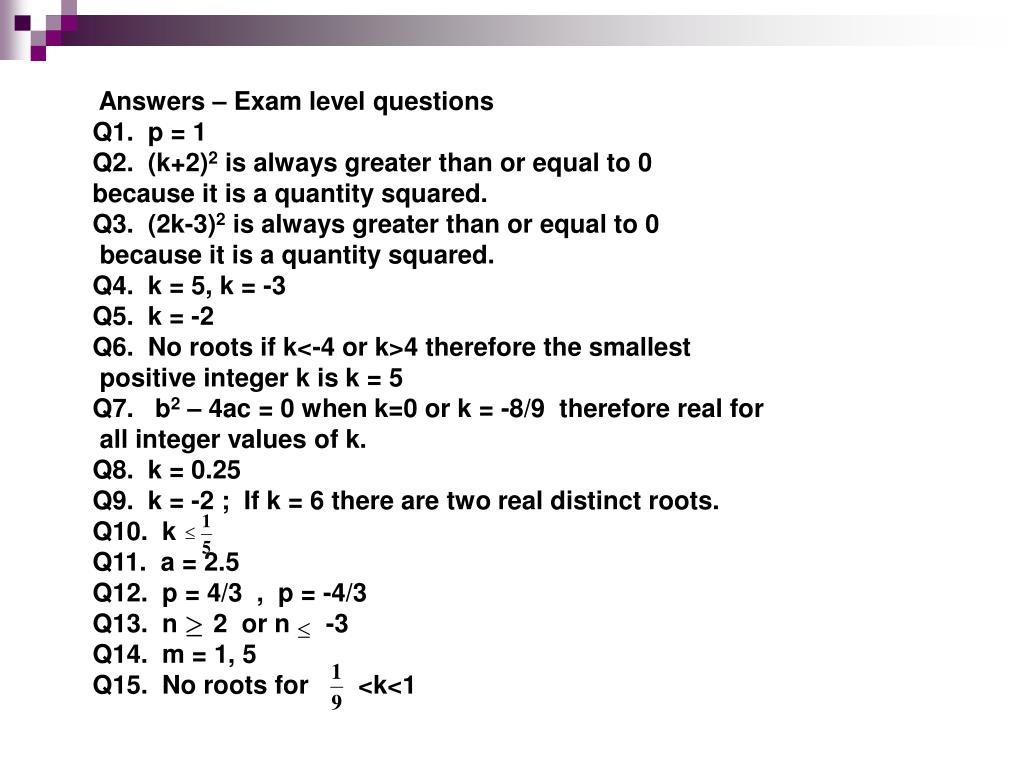

  21. Answers – Exam level questions Q1. p = 1 Q2. (k+2)2 is always greater than or equal to 0 because it is a quantity squared. Q3. (2k-3)2 is always greater than or equal to 0 because it is a quantity squared. Q4. k = 5, k = -3 Q5. k = -2 Q6. No roots if k<-4 or k>4 therefore the smallest positive integer k is k = 5 Q7. b2 – 4ac = 0 when k=0 or k = -8/9 therefore real for all integer values of k. Q8. k = 0.25 Q9. k = -2 ; If k = 6 there are two real distinct roots. Q10. k Q11. a = 2.5 Q12. p = 4/3 , p = -4/3 Q13. n 2 or n -3 Q14. m = 1, 5 Q15. No roots for <k<1

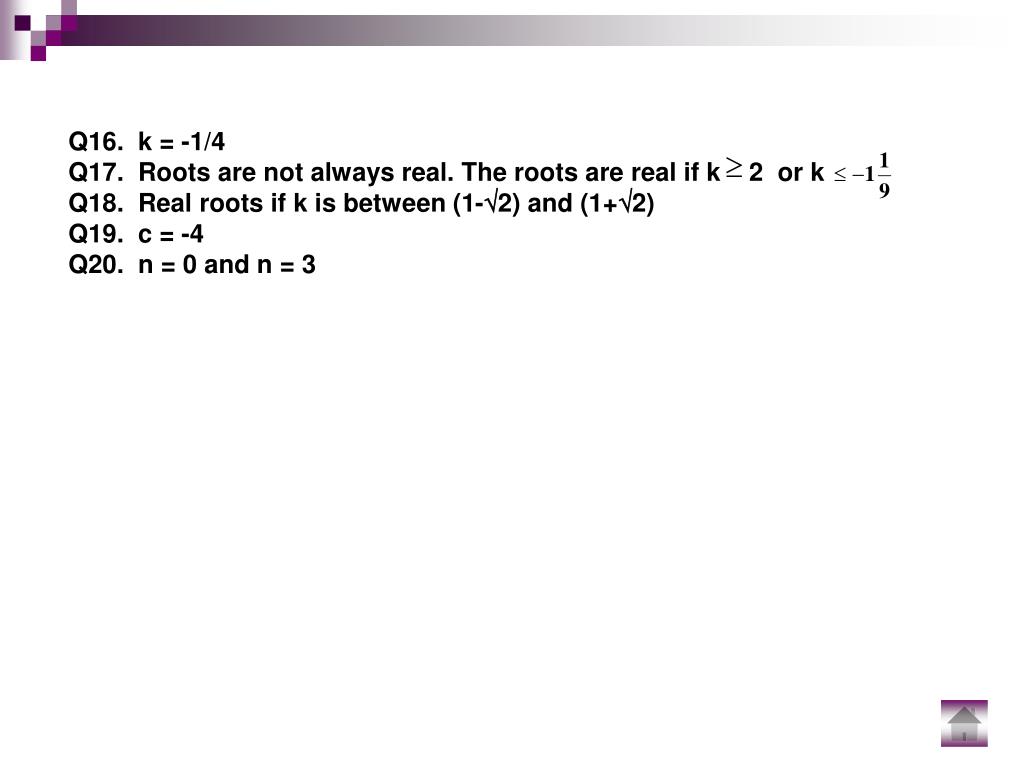

  22. Q16. k = -1/4 Q17. Roots are not always real. The roots are real if k 2 or k Q18. Real roots if k is between (1-2) and (1+2) Q19. c = -4 Q20. n = 0 and n = 3
