  1. Ultrasonic FlowmetersM-Flow Series

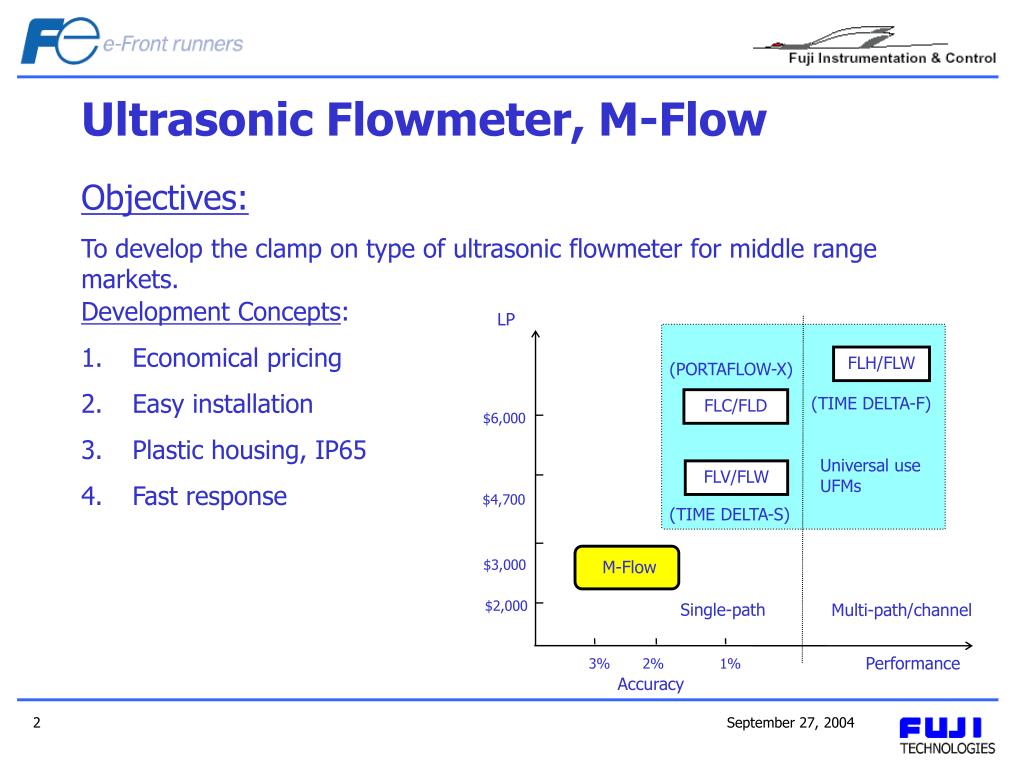

  2. Objectives: To develop the clamp on type of ultrasonic flowmeter for middle range markets. • Development Concepts: • Economical pricing • Easy installation • Plastic housing, IP65 • Fast response LP FLH/FLW (PORTAFLOW-X) FLC/FLD (TIME DELTA-F) $6,000 Universal use UFMs FLV/FLW $4,700 (TIME DELTA-S) $3,000 M-Flow $2,000 Single-path Multi-path/channel Performance 3% 2% 1% Accuracy Ultrasonic Flowmeter, M-Flow

  3. Easy to use Clamp-On, no trouble for piping work Compact and light weight Adopting of LSI technology & plastic housing Superior temperature effect Sound velocity measurement system Quick response System response is 0.2 seconds Multilingual English, Japanese, French, German & Spanish Features

  4. Applicable Pipe Ø Plastic pipe: 25~225mm (1~9 inches) Metal pipe: 50~225mm (2~9inches) Pipe Material Plastics such as PVC, PVDF, PEEK, PP, etc. and Metals Velocity Range 0 to 0.3~10m/s Accuracy 2% of rate (more than 2m/s), 0.04m/s (less than 2m/s) Response Time Dead time 0.2s or less & damping 0.1s Fluid Temperature -20 to +100 C Thermal Stability +140 C, 30minutes Ambient Temperature -20 to +50 C for converter & -20 to +50 C for detector Analog Output 4to 20mA, 1Point (Maximum Load Resistance 600Ω) Digital Output Relay & transistor, each 1 point (Scaled Pulse, Alarm, etc.) Scaled pulse: 1pulse/day to 100pps for transistor output 1pulse/day to 1pps for relay output Communication RS-232C/RS-485 Display LCD with 2 lines of 16 characters and backlight Keyboard 4 Keys 0f escape, down, shift and entry Power Supply 20 to 30Vdc, 100 to 120Vac or 200 to 240Vac, 50/60Hz Enclosure Plastic housing, IP65 M-Flow Technical Specifications

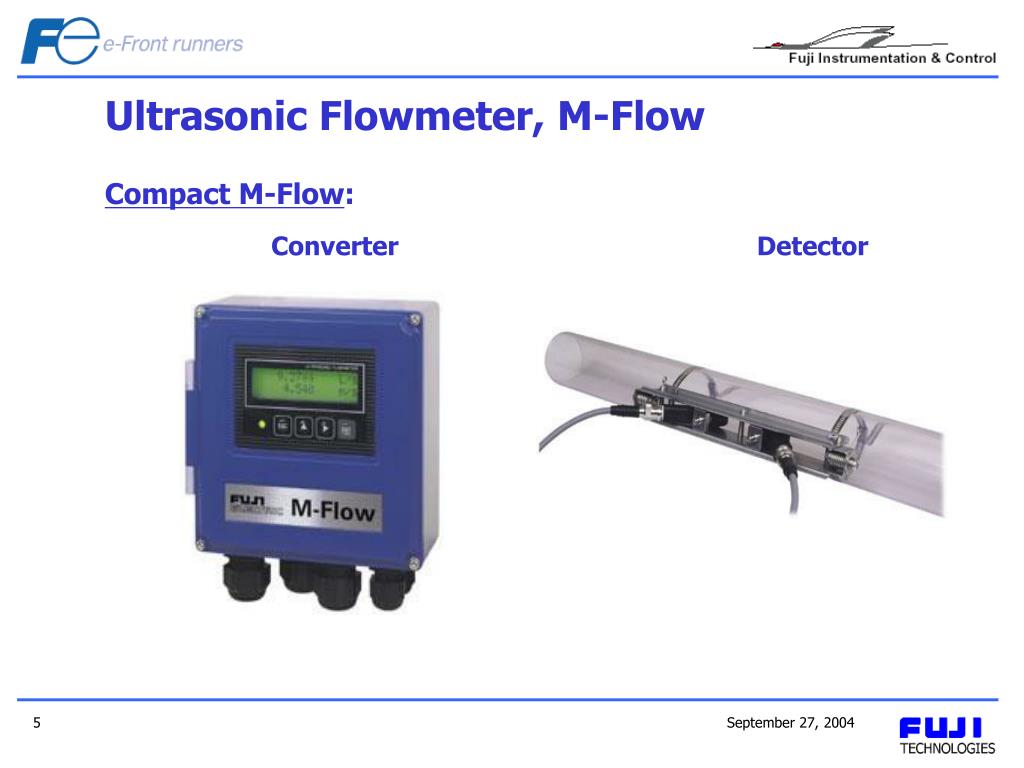

  5. Ultrasonic Flowmeter, M-Flow Compact M-Flow: Converter Detector

  6. The End
