slide1

MP Series

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Quality & Simplicity in Flow Measurement

Innovative Technologies, Creative Solutions

slide2

Multipulse PositiveDisplacement Flowmeters

MP

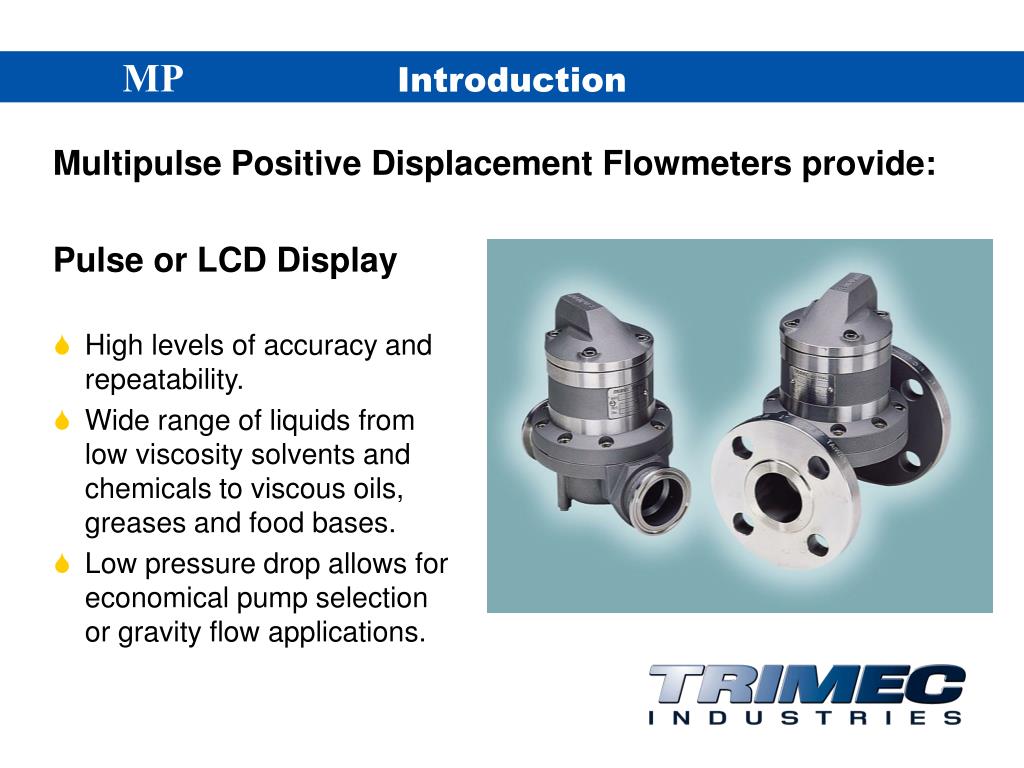

Introduction

Multipulse Positive Displacement Flowmeters provide:

  • Pulse or LCD Display
  • High levels of accuracy and repeatability.
  • Wide range of liquids from low viscosity solvents and chemicals to viscous oils, greases and food bases.
  • Low pressure drop allows for economical pump selection or gravity flow applications.
slide3

Multipulse PositiveDisplacement Flowmeters

MP

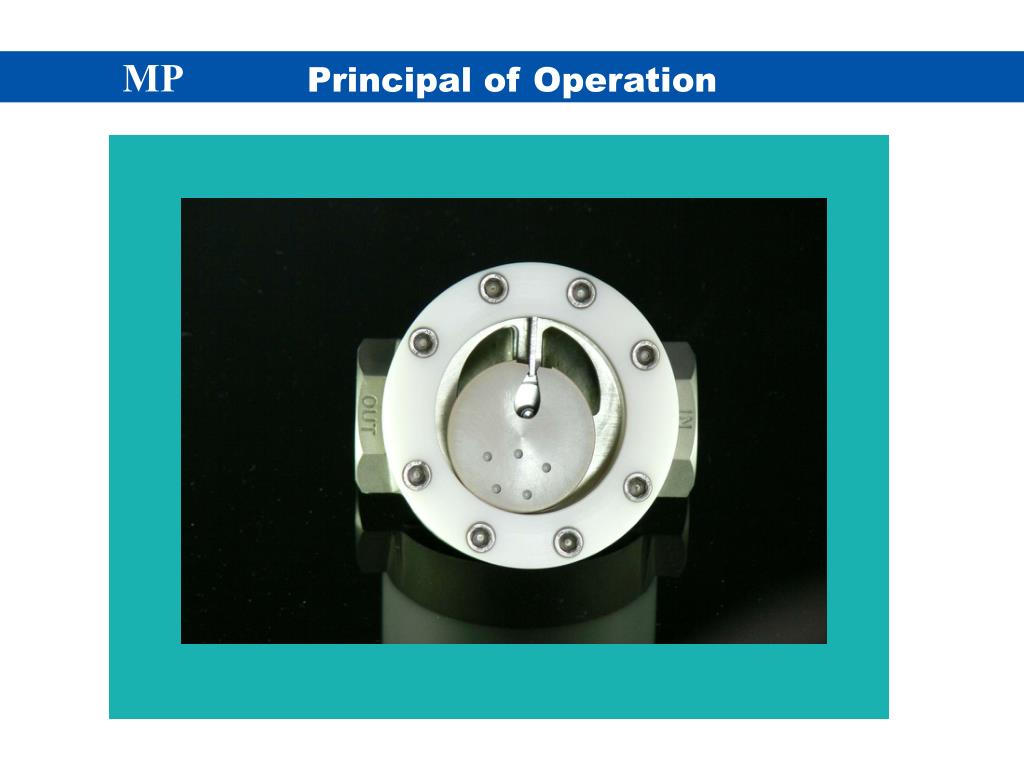

Principal of Operation

Principal of Operation

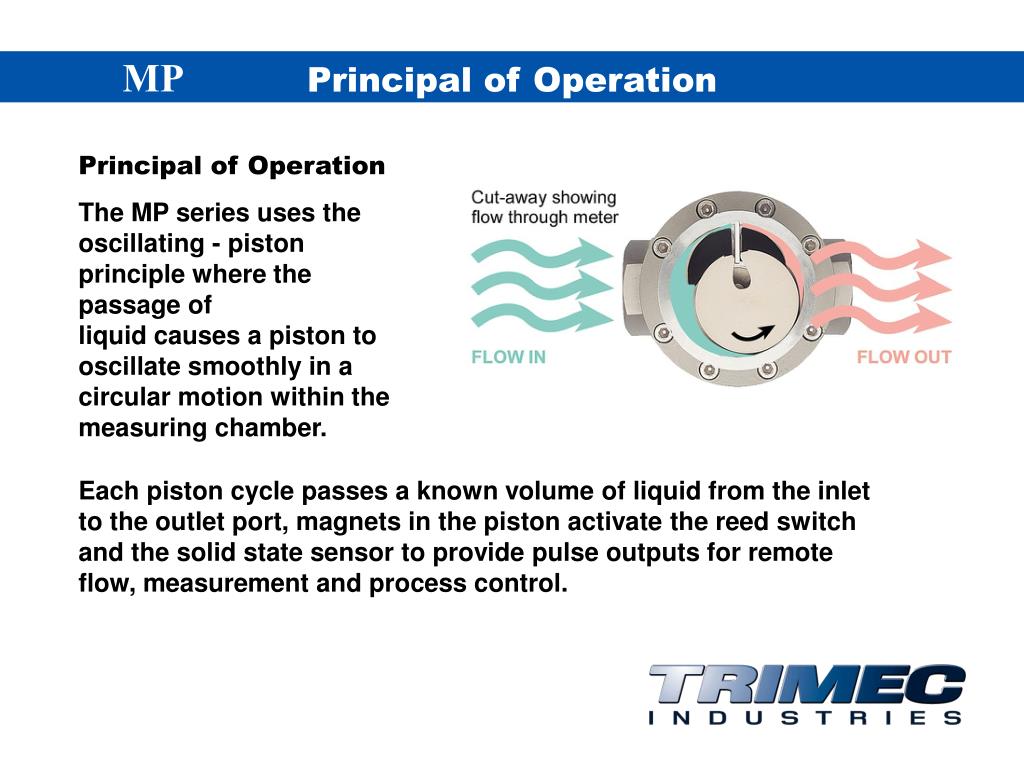

The MP series uses the oscillating - piston principle where the passage ofliquid causes a piston to oscillate smoothly in a circular motion within the measuring chamber.

Each piston cycle passes a known volume of liquid from the inlet to the outlet port, magnets in the piston activate the reed switch and the solid state sensor to provide pulse outputs for remote flow, measurement and process control.

slide4

Multipulse PositiveDisplacement Flowmeters

MP

Principal of Operation

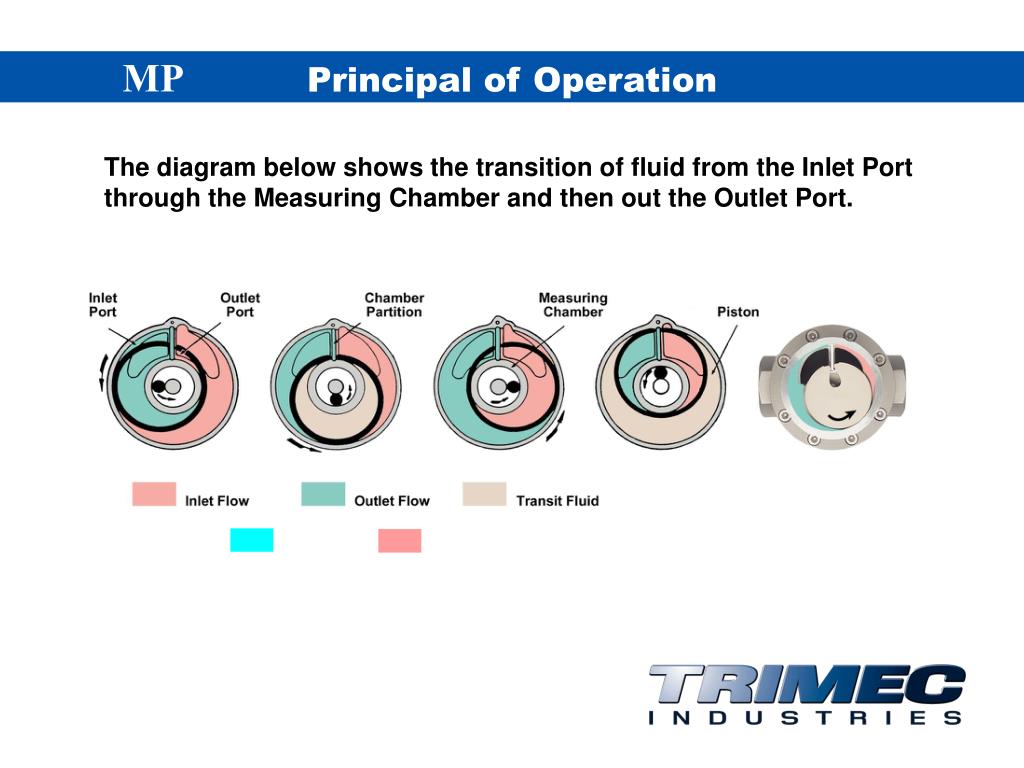

The diagram below shows the transition of fluid from the Inlet Port through the Measuring Chamber and then out the Outlet Port.

slide5

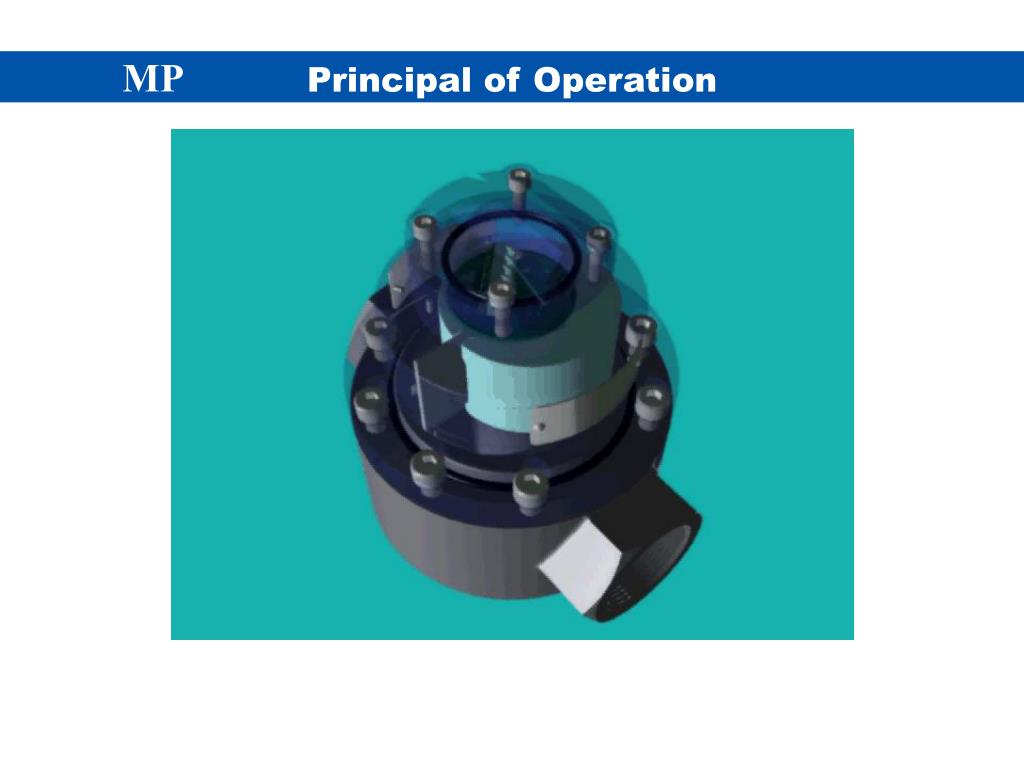

MP

Principal of Operation

slide6

MP

Principal of Operation

slide7

Multipulse PositiveDisplacement Flowmeters

MP

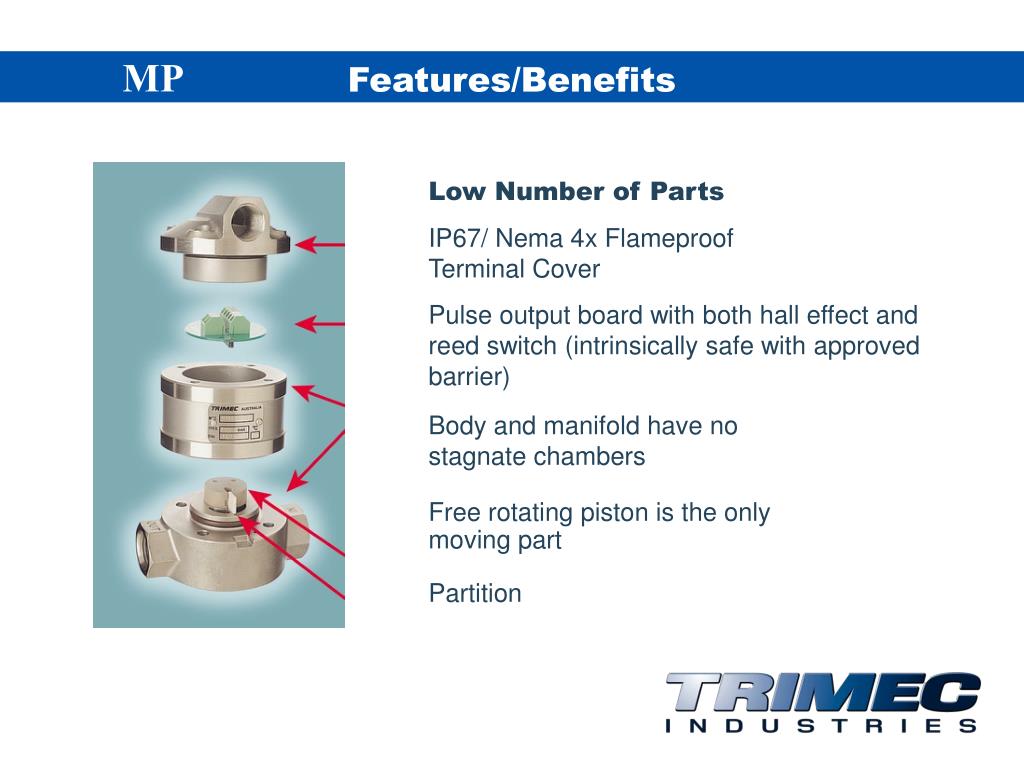

Features/Benefits

Low Number of Parts

IP67/ Nema 4x FlameproofTerminal Cover

Pulse output board with both hall effect and reed switch (intrinsically safe with approved barrier)

Body and manifold have nostagnate chambers

Free rotating piston is the only

moving part

Partition

slide8

Multipulse PositiveDisplacement Flowmeters

MP

Outputs

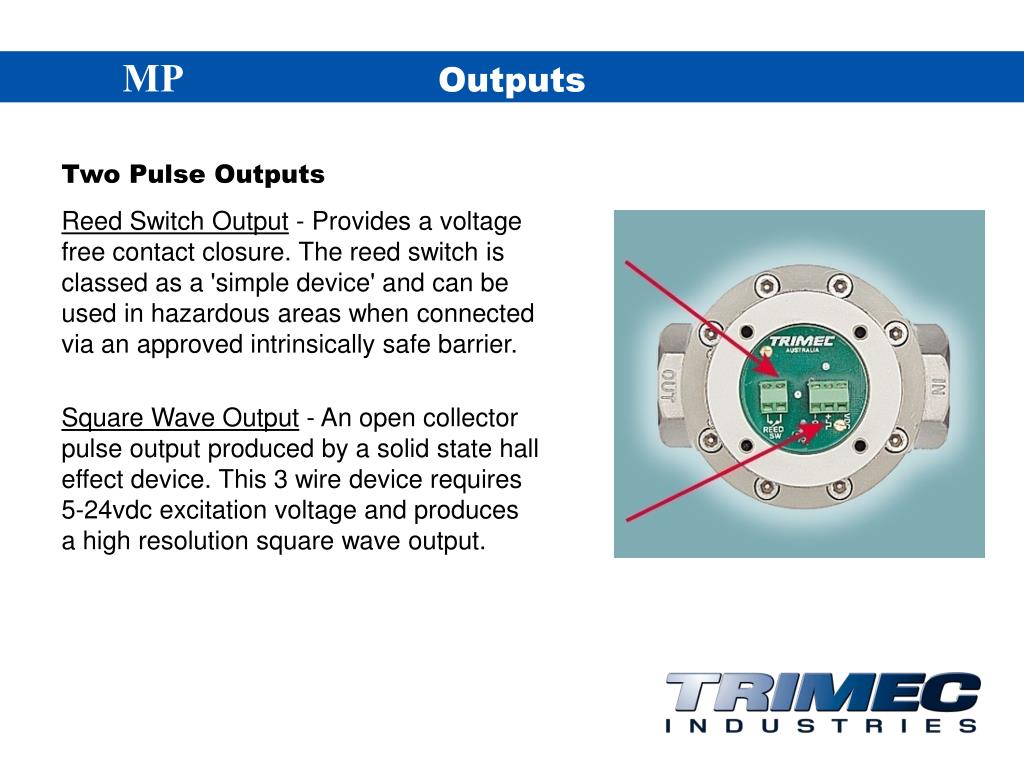

Two Pulse Outputs

Reed Switch Output - Provides a voltage free contact closure. The reed switch is classed as a 'simple device' and can be used in hazardous areas when connected via an approved intrinsically safe barrier.

Square Wave Output - An open collector pulse output produced by a solid state hall effect device. This 3 wire device requires5-24vdc excitation voltage and producesa high resolution square wave output.

slide9

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

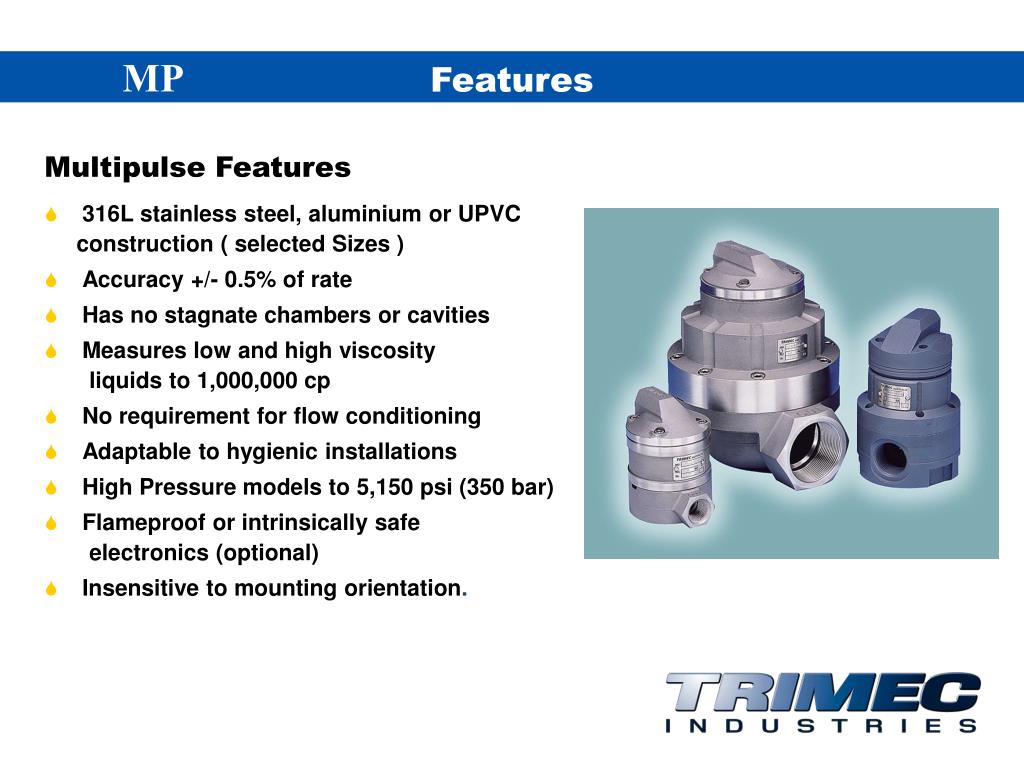

Features

  • Multipulse Features
  • 316L stainless steel, aluminium or UPVC construction ( selected Sizes )
  • Accuracy +/- 0.5% of rate
  • Has no stagnate chambers or cavities
  • Measures low and high viscosity liquids to 1,000,000 cp
  • No requirement for flow conditioning
  • Adaptable to hygienic installations
  • High Pressure models to 5,150 psi (350 bar)
  • Flameproof or intrinsically safe electronics (optional)
  • Insensitive to mounting orientation.
slide10

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

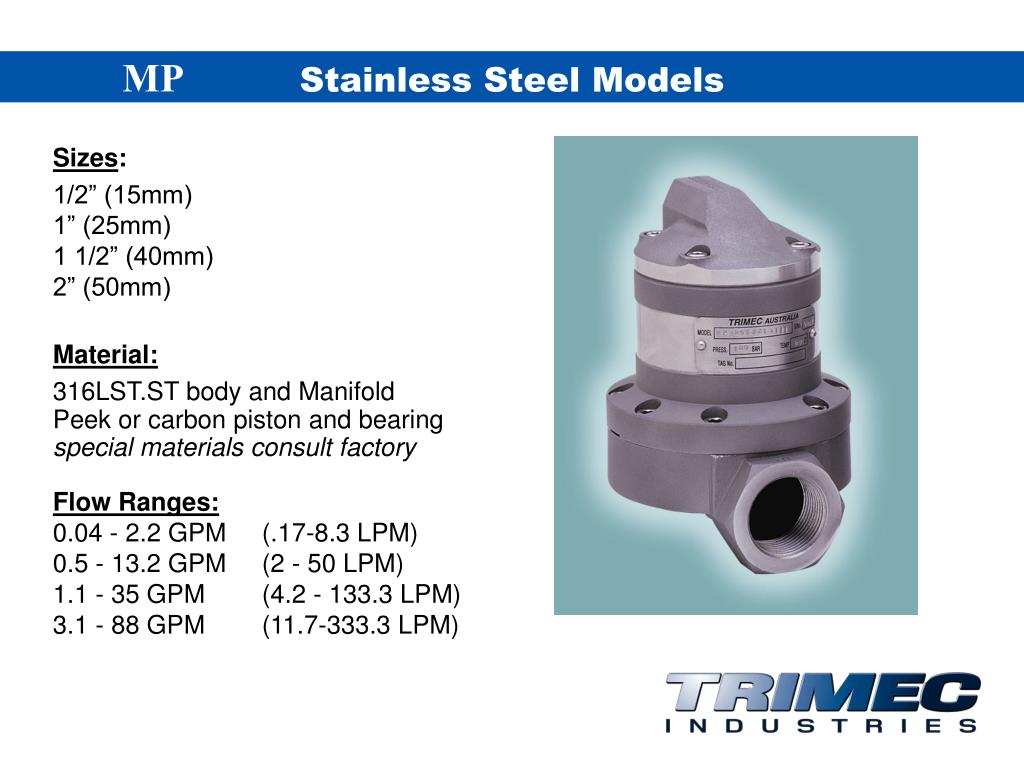

Stainless Steel Models

Sizes:

1/2” (15mm)

1” (25mm)

1 1/2” (40mm)

2” (50mm)

Material:

316LST.ST body and Manifold

Peek or carbon piston and bearing

special materials consult factory

Flow Ranges:

0.04 - 2.2 GPM (.17-8.3 LPM)

0.5 - 13.2 GPM (2 - 50 LPM)

1.1 - 35 GPM (4.2 - 133.3 LPM)

3.1 - 88 GPM (11.7-333.3 LPM)

slide11

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

Stainless Steel Models

Process Connections:

Threaded BSPP/NPT female thread flanged, ANSI/DIN standards

Pressure Rating:

740 - 5,150 psi

(50-350 Bar)

Temperature Rating:

-40ºF to +300ºF

(-40ºC to +150ºC)

for higher temperaturecontact factory

Multipulse Outputs:

Reed switch, NPN openCollector output standard

slide12

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

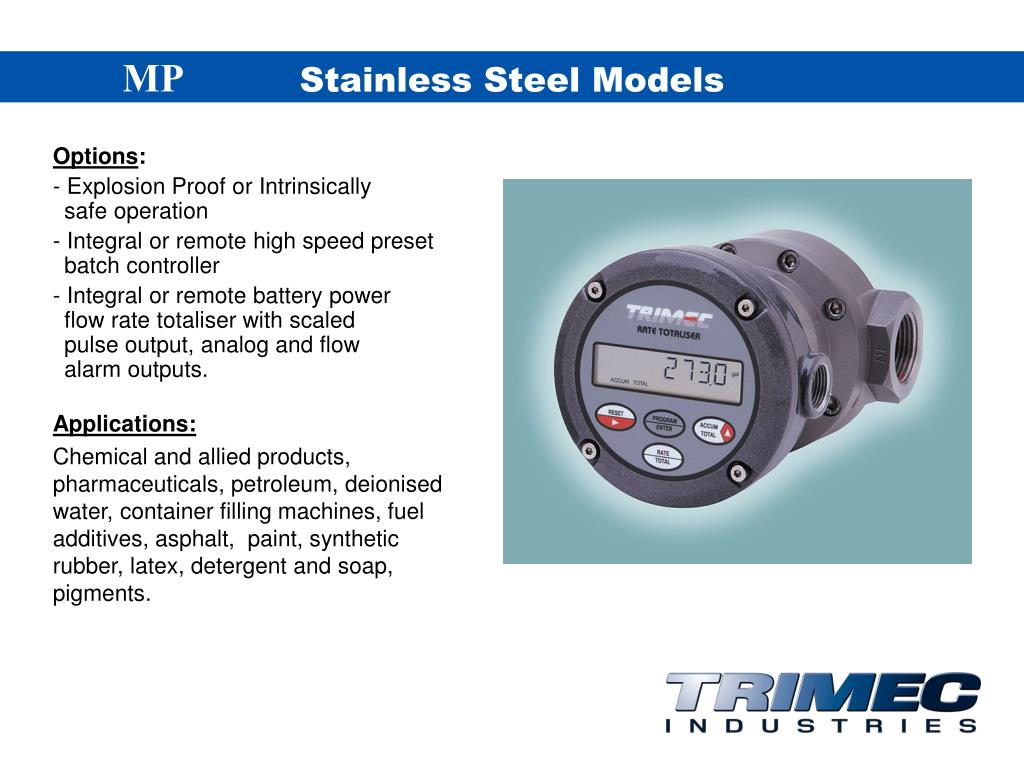

Stainless Steel Models

Options:

- Explosion Proof or Intrinsically safe operation

- Integral or remote high speed preset batch controller

- Integral or remote battery power flow rate totaliser with scaled pulse output, analog and flow alarm outputs.

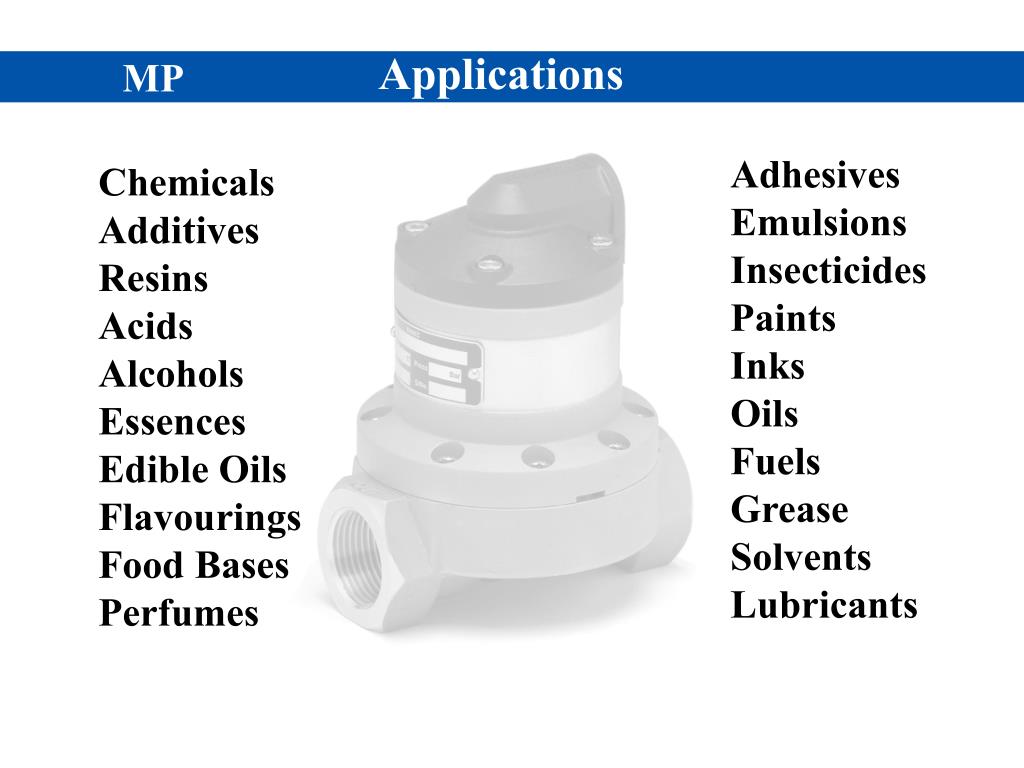

Applications:

Chemical and allied products, pharmaceuticals, petroleum, deionised water, container filling machines, fuel additives, asphalt, paint, synthetic rubber, latex, detergent and soap, pigments.

slide13

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

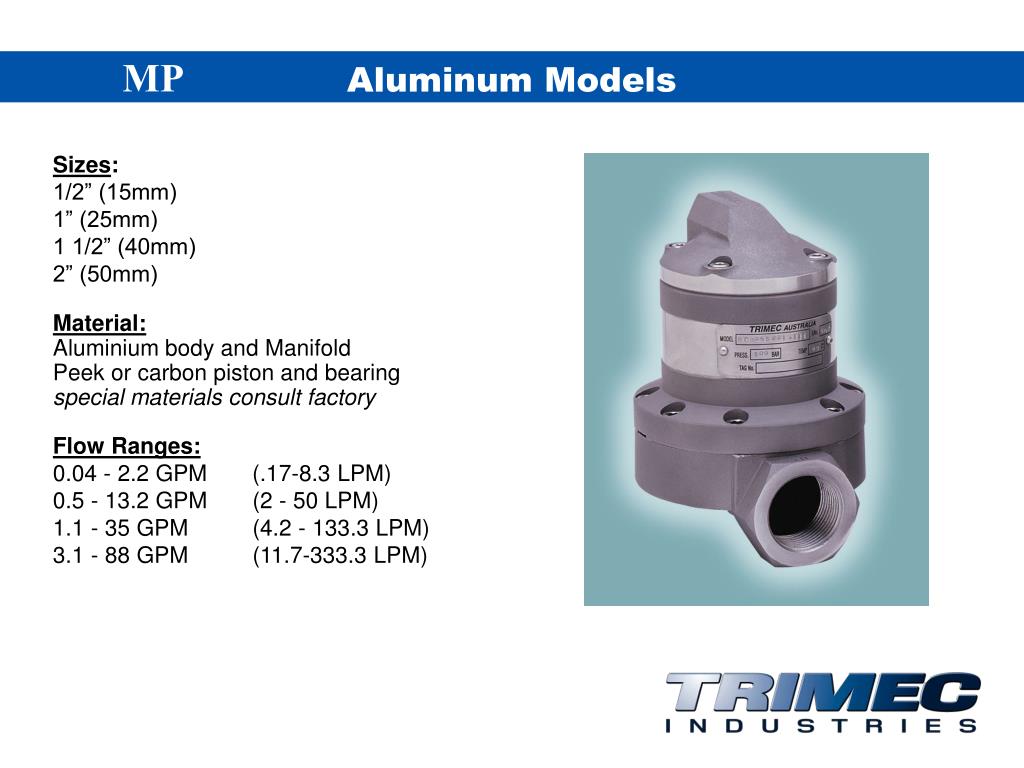

Aluminum Models

Sizes:

1/2” (15mm)

1” (25mm)

1 1/2” (40mm)

2” (50mm)

Material:

Aluminium body and Manifold

Peek or carbon piston and bearing

special materials consult factory

Flow Ranges:

0.04 - 2.2 GPM (.17-8.3 LPM)

0.5 - 13.2 GPM (2 - 50 LPM)

1.1 - 35 GPM (4.2 - 133.3 LPM)

3.1 - 88 GPM (11.7-333.3 LPM)

slide14

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

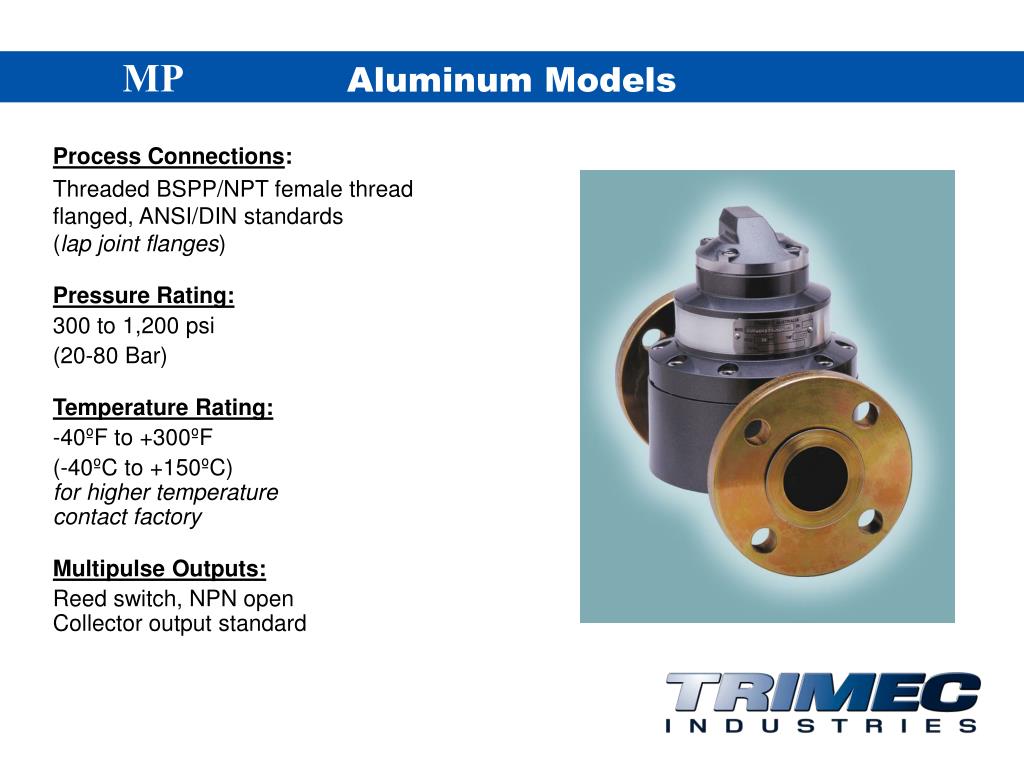

Aluminum Models

Process Connections:

Threaded BSPP/NPT female thread flanged, ANSI/DIN standards(lap joint flanges)

Pressure Rating:

300 to 1,200 psi

(20-80 Bar)

Temperature Rating:

-40ºF to +300ºF

(-40ºC to +150ºC)for higher temperaturecontact factory

Multipulse Outputs:

Reed switch, NPN openCollector output standard

slide15

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

Aluminum Models

Options:

- Explosion Proof or Intrinsically safe operation

- Integral / remote RT rate totalizer.

- Integral or remote battery power flow rate totaliser with scaled pulse output, analog and flow alarm outputs.

Applications:

Metering petroleum products, diesel, fuel oil, hydraulic oil, kerosene, LPG, gasoline, alcohol, solvents, lacquers and selected chemicals.

slide16

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

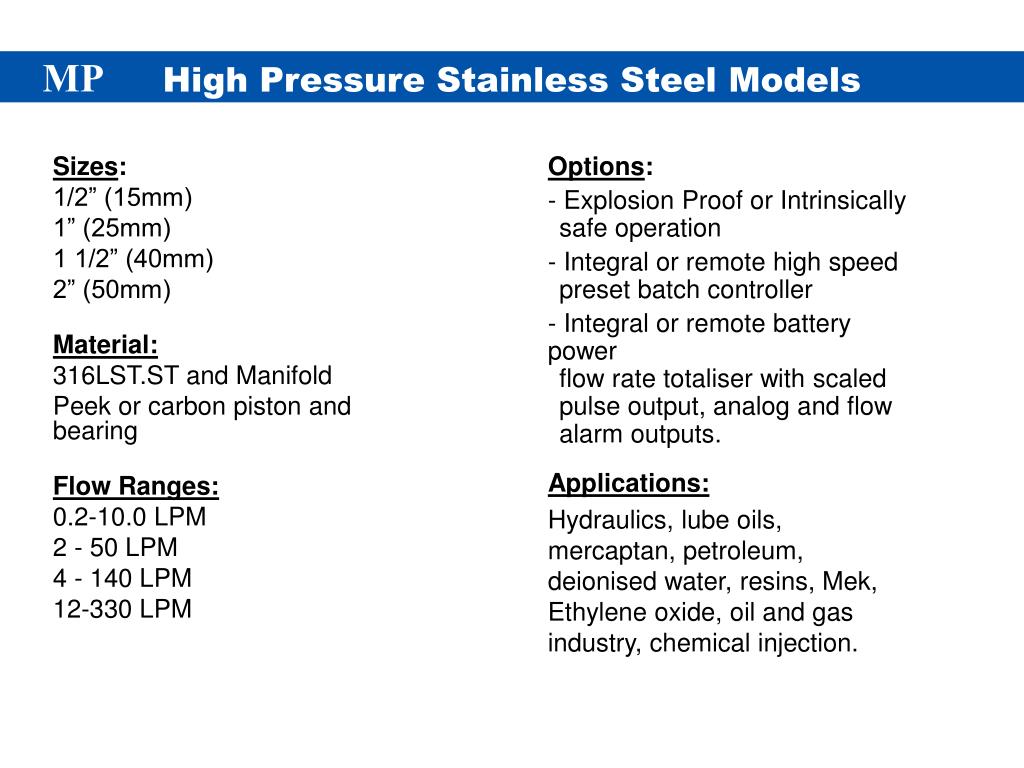

High Pressure Stainless Steel Models

Process Connections:

Threaded BSPP/NPT female thread flanged, ANSI/DIN standardsspecials consult factory

Pressure Rating:

Up to 5,150 psi maximum (350 bar)

Temperature Rating:

-40ºF to +250ºF

(-40ºC to +120ºC) for higher temperaturecontact factory

Multipulse Outputs:

Reed switch, NPN openCollector output standard

slide17

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

High Pressure Stainless Steel Models

Sizes:

1/2” (15mm)

1” (25mm)

1 1/2” (40mm)

2” (50mm)

Material:

316LST.ST and Manifold

Peek or carbon piston and bearing

Flow Ranges:

0.2-10.0 LPM

2 - 50 LPM

4 - 140 LPM

12-330 LPM

Options:

- Explosion Proof or Intrinsically safe operation

- Integral or remote high speed preset batch controller

- Integral or remote battery power flow rate totaliser with scaled pulse output, analog and flow alarm outputs.

Applications:

Hydraulics, lube oils, mercaptan, petroleum, deionised water, resins, Mek, Ethylene oxide, oil and gas industry, chemical injection.

slide18

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

SAP Models

Size:

20mm

Material:

UPVC body and Manifold

Carbon filled teflon piston and bearing

(uv stabilised PVC)

special material consult factory

Flow Ranges:

2.0 - 50.0 LPM

Process Connections:

Threaded BSPP/NPTfemale thread

Pressure Rating:

60 psi (4 bar)

Temperature Rating:

60 deg C

Multipulse Outputs:

Reed switch, NPN openCollector output standard

Options:

- Intrinsically safe operation

- Remote high speed preset batch controller

- Remote battery power flow rate totaliser with scaled pulse output, analog and flow alarm outputs.

slide19

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

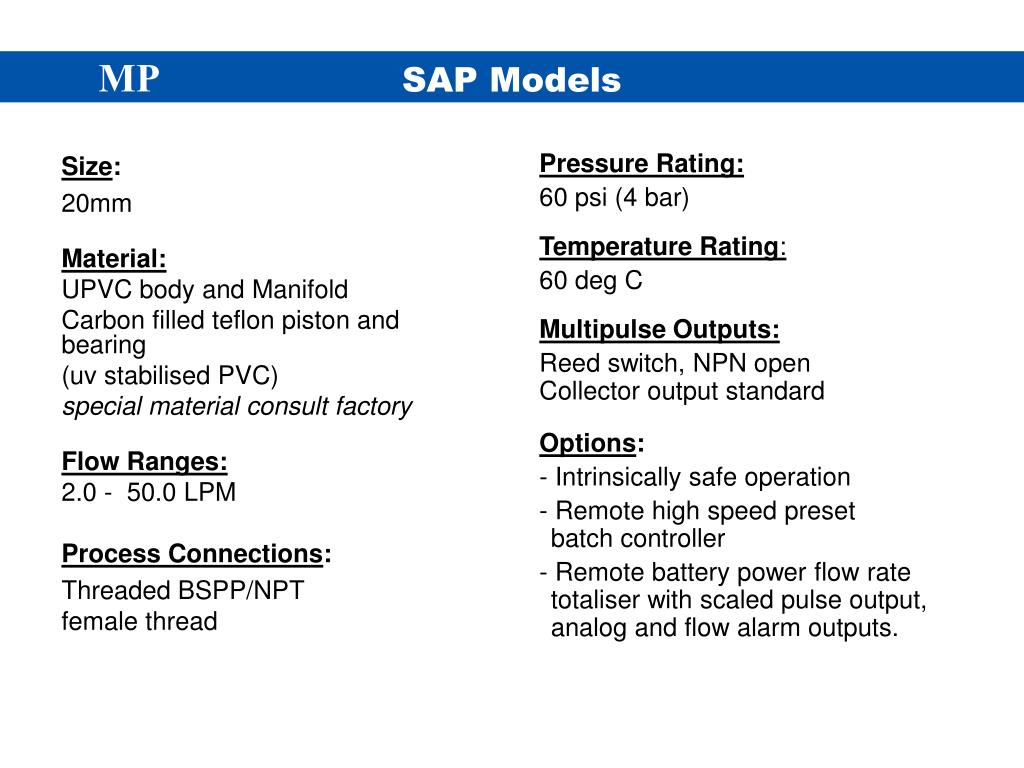

SAP Models

Applications:

MP020P flow meter manufactured from UV stabilized PVC (UPVC) is ideally suited for special applications associated with corrosive fluid such as sodium hypochlorite, acids, photographic solutions or any chemical compatible with UPVC.

The MP020P has flow range of 2 – 50 LPM and provides and economical solution for those difficult fluids compared to more expensive magnetic flow meters or Coriollis mass flow meters manufactured from more exotic materials.

slide20

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

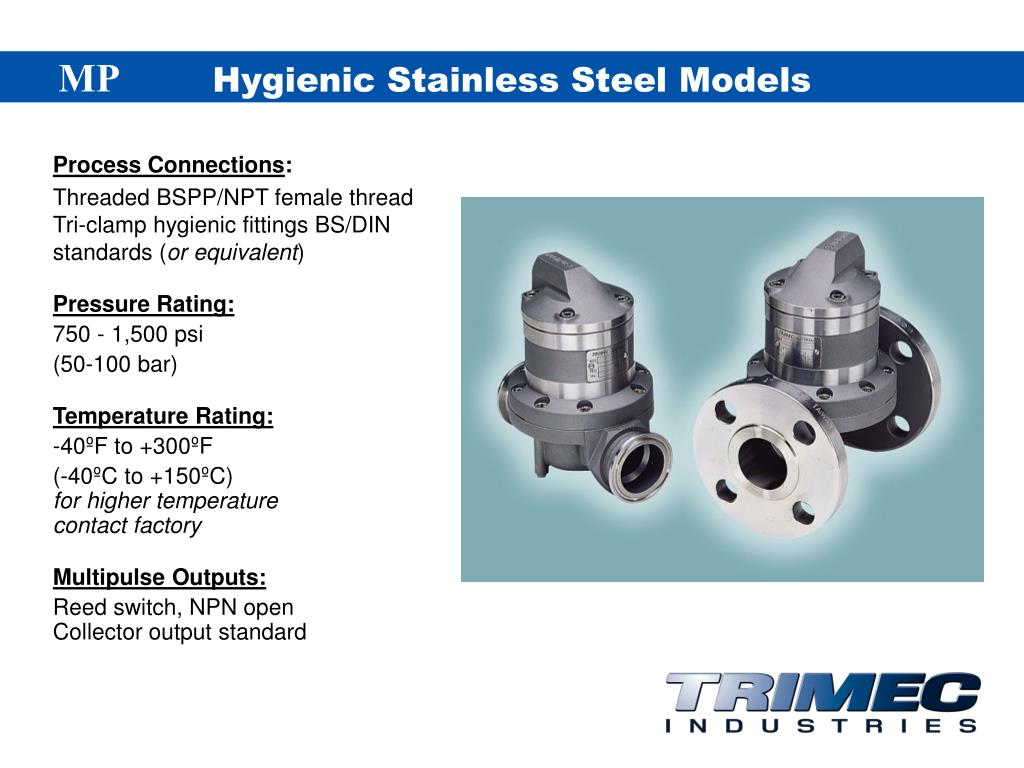

Hygienic Stainless Steel Models

Process Connections:

Threaded BSPP/NPT female thread Tri-clamp hygienic fittings BS/DIN standards (or equivalent)

Pressure Rating:

750 - 1,500 psi

(50-100 bar)

Temperature Rating:

-40ºF to +300ºF

(-40ºC to +150ºC) for higher temperaturecontact factory

Multipulse Outputs:

Reed switch, NPN openCollector output standard

slide21

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

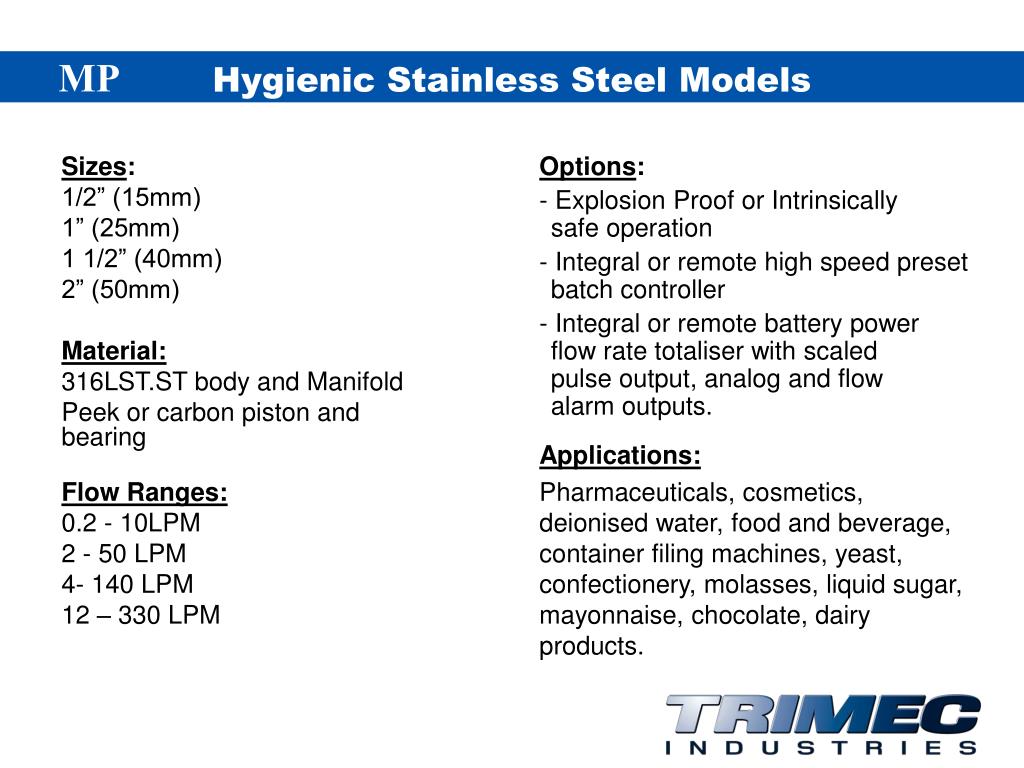

Hygienic Stainless Steel Models

Sizes:

1/2” (15mm)

1” (25mm)

1 1/2” (40mm)

2” (50mm)

Material:

316LST.ST body and Manifold

Peek or carbon piston and bearing

Flow Ranges:

0.2 - 10LPM

2 - 50 LPM

4- 140 LPM

12 – 330 LPM

Options:

- Explosion Proof or Intrinsically safe operation

- Integral or remote high speed preset batch controller

- Integral or remote battery power flow rate totaliser with scaled pulse output, analog and flow alarm outputs.

Applications:

Pharmaceuticals, cosmetics, deionised water, food and beverage, container filing machines, yeast, confectionery, molasses, liquid sugar, mayonnaise, chocolate, dairy products.

slide22

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

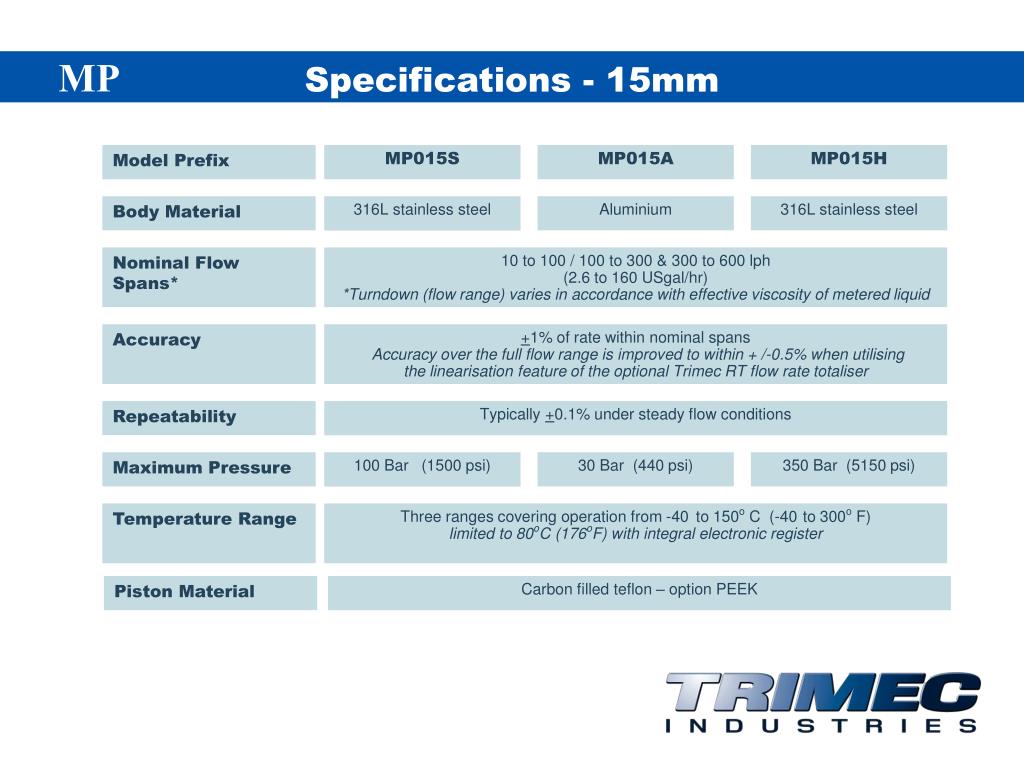

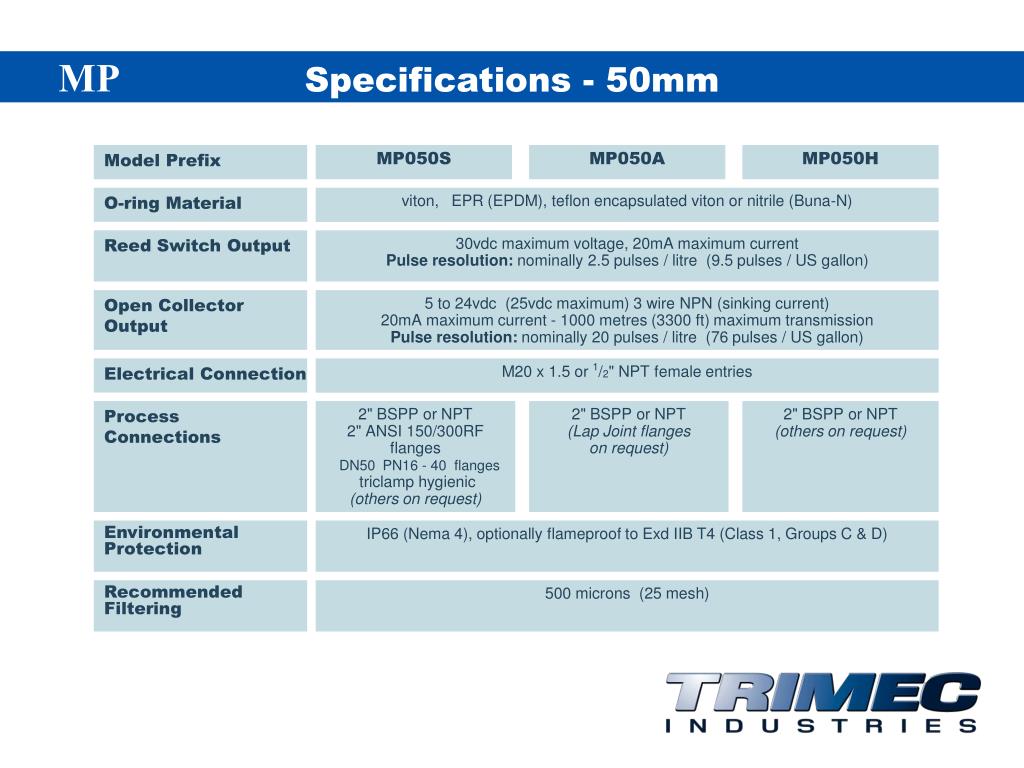

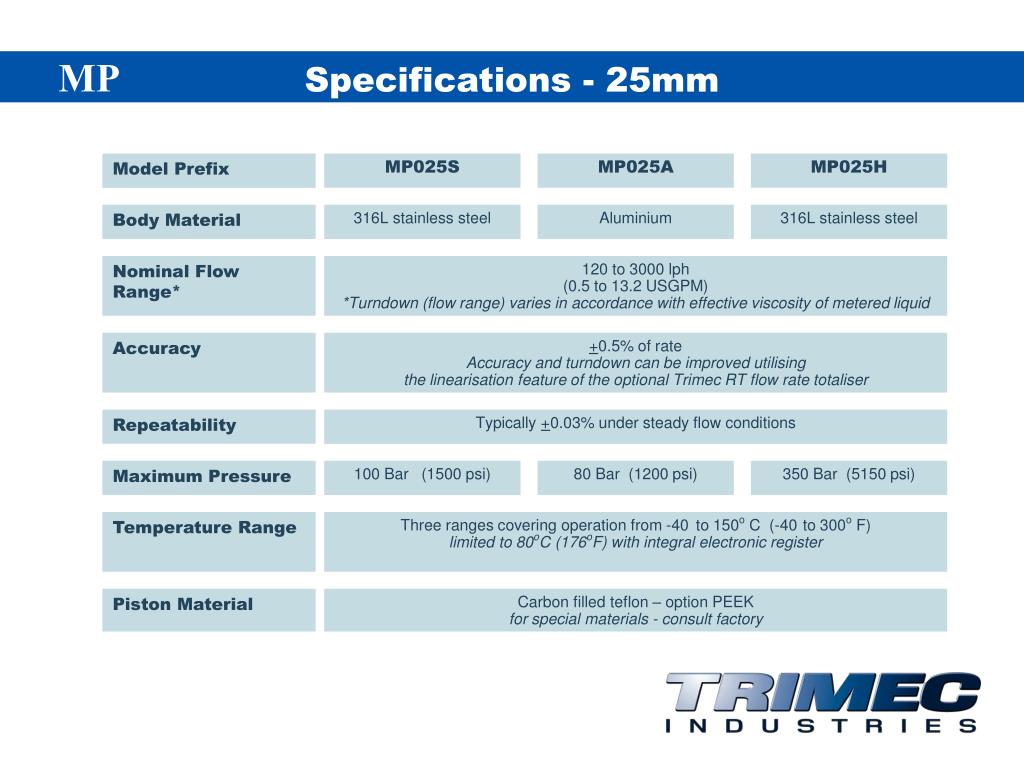

Specifications - 15mm

Model Prefix

MP015S

MP015A

MP015H

Body Material

316L stainless steel

Aluminium

316L stainless steel

Nominal Flow Spans*

10 to 100 / 100 to 300 & 300 to 600 lph (2.6 to 160 USgal/hr)*Turndown (flow range) varies in accordance with effective viscosity of metered liquid

Accuracy

+1% of rate within nominal spansAccuracy over the full flow range is improved to within + /-0.5% when utilisingthe linearisation feature of the optional Trimec RT flow rate totaliser

Repeatability

Typically +0.1% under steady flow conditions

Maximum Pressure

100 Bar (1500 psi)

30 Bar (440 psi)

350 Bar (5150 psi)

Temperature Range

Three ranges covering operation from -40 to 150o C (-40to 300o F)limited to 80oC (176oF) with integral electronic register

Piston Material

Carbon filled teflon – option PEEK

slide23

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

Specifications - 15mm

Model Prefix

MP015S

MP015A

MP015H

O-ring Material

viton, EPR (EPDM), teflon encapsulated viton or nitrile (Buna-N)

Reed Switch Output

30vdc maximum voltage, 20mA maximum current Pulse resolution: 200 pulses / litre (760 pulses / US gallon)

Open Collector Output

5 to 24vdc (25vdc maximum) 3 wire NPN (sinking current)20mA maximum current - 1000 metres (3300 ft) maximum transmissionPulse resolution: nominally 400 pulses / litre (1520 pulses / US gallon)

Electrical Connection

M20 x 1.5 or 1/2" NPT female entries

Process Connections

1/2" BSPP or NPT1/2" ANSI 150/300RFflangesDN15 PN16 - 40 flangestriclamp hygienic(others on request)

1/2" BSPP or NPT(Lap Joint flanges on request)

1/2" BSPP or NPT(others on request)

Environmental Protection

IP66 (Nema 4), optionally flameproof to Exd IIB T4 (Class 1, Groups C & D)

Recommended Filtering

150 microns (100 mesh)

slide24

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

Specifications - 25mm

Model Prefix

MP025S

MP025A

MP025H

Body Material

316L stainless steel

Aluminium

316L stainless steel

Nominal Flow Range*

120 to 3000 lph (0.5 to 13.2 USGPM)*Turndown (flow range) varies in accordance with effective viscosity of metered liquid

Accuracy

+0.5% of rate Accuracy and turndown can be improved utilisingthe linearisation feature of the optional Trimec RT flow rate totaliser

Repeatability

Typically +0.03% under steady flow conditions

Maximum Pressure

100 Bar (1500 psi)

80 Bar (1200 psi)

350 Bar (5150 psi)

Temperature Range

Three ranges covering operation from -40 to 150o C (-40to 300o F)limited to 80oC (176oF) with integral electronic register

Piston Material

Carbon filled teflon – option PEEKfor special materials - consult factory

slide25

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

Specifications - 25mm

Model Prefix

MP025S

MP025A

MP025H

O-ring Material

viton, EPR (EPDM), teflon encapsulated viton or nitrile (Buna-N)

Reed Switch Output

30vdc maximum voltage, 20mA maximum current Pulse resolution: nominally 20 pulses / litre (76 pulses / US gallon)

Open Collector Output

5 to 24vdc (25vdc maximum) 3 wire NPN (sinking current)20mA maximum current - 1000 metres (3300 ft) maximum transmissionPulse resolution: nominally 100 pulses / litre (380 pulses / US gallon)

Electrical Connection

M20 x 1.5 or 1/2" NPT female entries

Process Connections

1" BSPP or NPT 1" ANSI 150/300RFflangesDN25 PN16 - 40 flanges triclamp hygienic(others on request)

1" BSPP or NPT(Lap Joint flanges on request)

1" BSPP or NPT(others on request)

Environmental Protection

IP66 (Nema 4), optionally flameproof to Exd IIB T4 (Class 1, Groups C & D)

Recommended Filtering

250 microns (50 mesh)

slide26

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

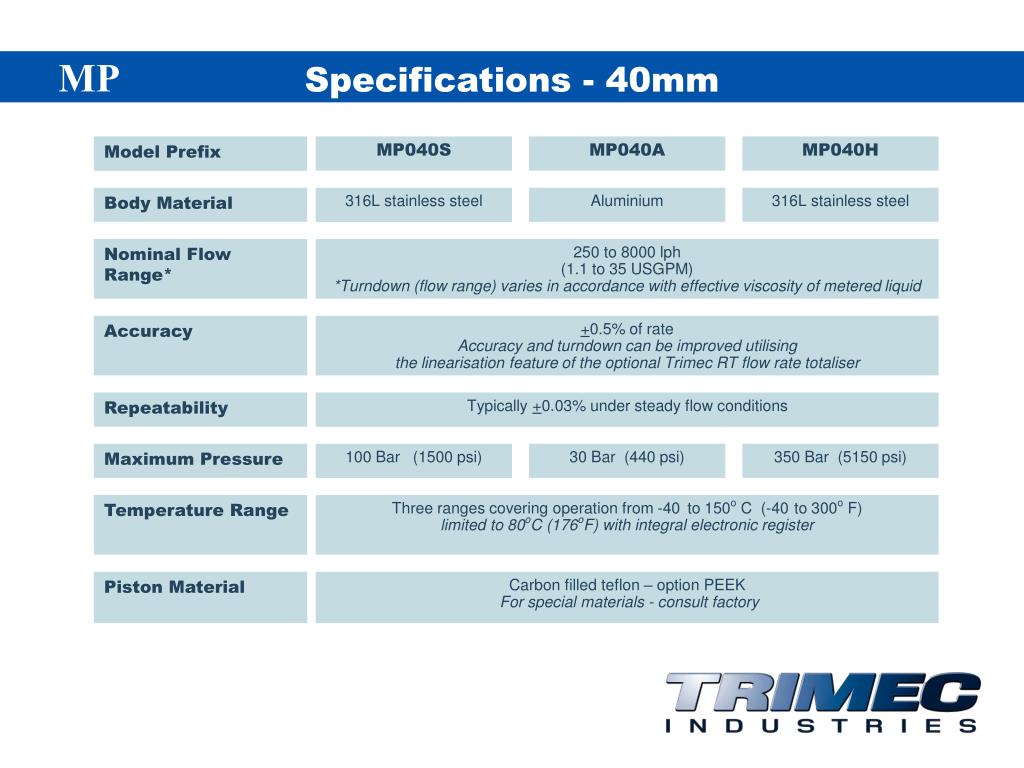

Specifications - 40mm

Model Prefix

MP040S

MP040A

MP040H

Body Material

316L stainless steel

Aluminium

316L stainless steel

Nominal Flow Range*

250 to 8000 lph (1.1 to 35 USGPM)*Turndown (flow range) varies in accordance with effective viscosity of metered liquid

Accuracy

+0.5% of rate Accuracy and turndown can be improved utilisingthe linearisation feature of the optional Trimec RT flow rate totaliser

Repeatability

Typically +0.03% under steady flow conditions

Maximum Pressure

100 Bar (1500 psi)

30 Bar (440 psi)

350 Bar (5150 psi)

Temperature Range

Three ranges covering operation from -40 to 150o C (-40to 300o F)limited to 80oC (176oF) with integral electronic register

Piston Material

Carbon filled teflon – option PEEKFor special materials - consult factory

slide27

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

Specifications - 40mm

Model Prefix

MP040S

MP040A

MP040H

O-ring Material

viton, EPR (EPDM), teflon encapsulated viton or nitrile (Buna-N)

Reed Switch Output

30vdc maximum voltage, 20mA maximum current Pulse resolution: nominally 7.3 pulses / litre (28 pulses / US gallon)

Open Collector Output

5 to 24vdc (25vdc maximum) 3 wire NPN (sinking current)20mA maximum current - 1000 metres (3300 ft) maximum transmissionPulse resolution: nominally 44 pulses / litre (167 pulses / US gallon)

Electrical Connection

M20 x 1.5 or 1/2" NPT female entries

Process Connections

11/2" BSPP or NPT 11/2" ANSI 150/300RFflangesDN40 PN16 - 40 flangestriclamp hygienic(others on request)

11/2" BSPP or NPT(Lap Joint flanges on request)

11/2" BSPP or NPT(others on request)

Environmental Protection

IP66 (Nema 4), optionally flameproof to Exd IIB T4 (Class 1, Groups C & D)

Recommended Filtering

250 microns (50 mesh)

slide28

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

Specifications - 50mm

Model Prefix

MP050S

MP050A

MP050H

Body Material

316L stainless steel

Aluminium

316L stainless steel

Nominal Flow Range*

700 to 20,000 lph (3 to 88 USGPM)*Turndown (flow range) varies in accordance with effective viscosity of metered liquid

Accuracy

+0.5% of rate Accuracy and turndown can be improved utilising the linearisation feature of the Trimec RT flow rate totaliser

Repeatability

Typically +0.03% under steady flow conditions

Maximum Pressure

38 Bar (560 psi)

20 Bar (300 psi)

100 Bar (1500 psi)

Temperature Range

Three ranges covering operations from -40 to 150o C (-40to 300o F)limited to 80oC (176oF) with integral electronic register

Piston Material

carbon filled teflon – option PEEKFor special materials - consult factory

slide29

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

Specifications - 50mm

Model Prefix

MP050S

MP050A

MP050H

O-ring Material

viton, EPR (EPDM), teflon encapsulated viton or nitrile (Buna-N)

Reed Switch Output

30vdc maximum voltage, 20mA maximum current Pulse resolution: nominally 2.5 pulses / litre (9.5 pulses / US gallon)

Open Collector Output

5 to 24vdc (25vdc maximum) 3 wire NPN (sinking current)20mA maximum current - 1000 metres (3300 ft) maximum transmissionPulse resolution: nominally 20 pulses / litre (76 pulses / US gallon)

Electrical Connection

M20 x 1.5 or 1/2" NPT female entries

Process Connections

2" BSPP or NPT2" ANSI 150/300RFflangesDN50 PN16 - 40 flanges triclamp hygienic(others on request)

2" BSPP or NPT(Lap Joint flanges on request)

2" BSPP or NPT(others on request)

Environmental Protection

IP66 (Nema 4), optionally flameproof to Exd IIB T4 (Class 1, Groups C & D)

Recommended Filtering

500 microns (25 mesh)

slide30

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

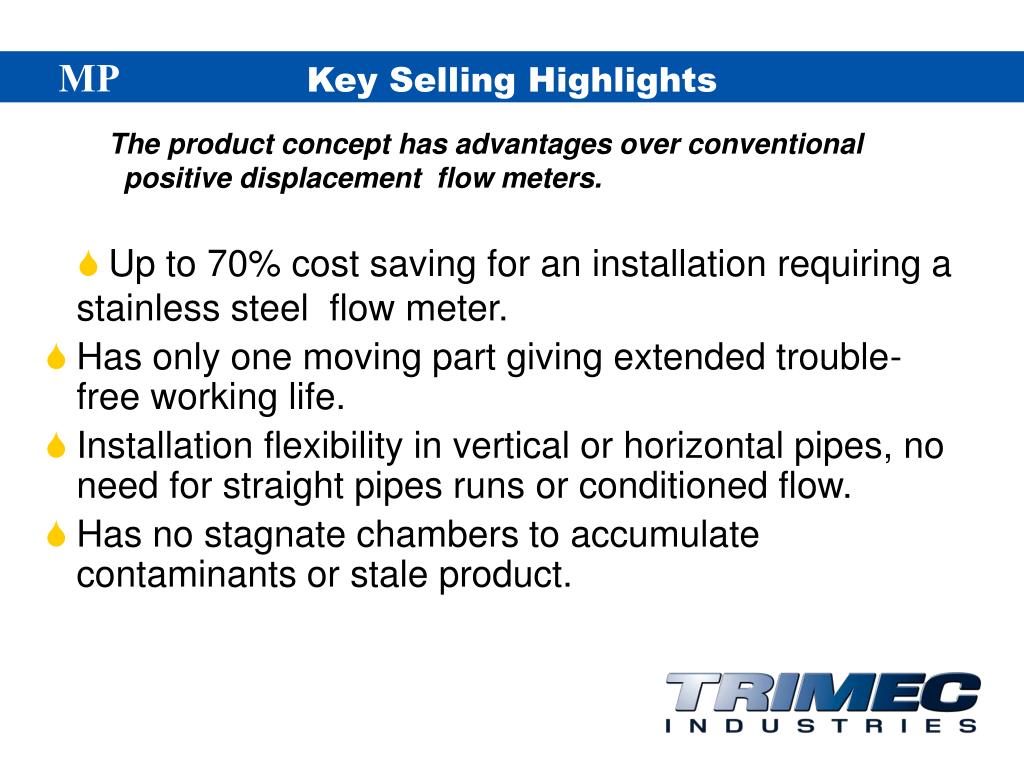

Key Selling Highlights

  • The product concept has advantages over conventional positive displacement flow meters.
  • Up to 70% cost saving for an installation requiring a stainless steel flow meter.
  • Has only one moving part giving extended trouble-free working life.
  • Installation flexibility in vertical or horizontal pipes, no need for straight pipes runs or conditioned flow.
  • Has no stagnate chambers to accumulate contaminants or stale product.
slide31

MP

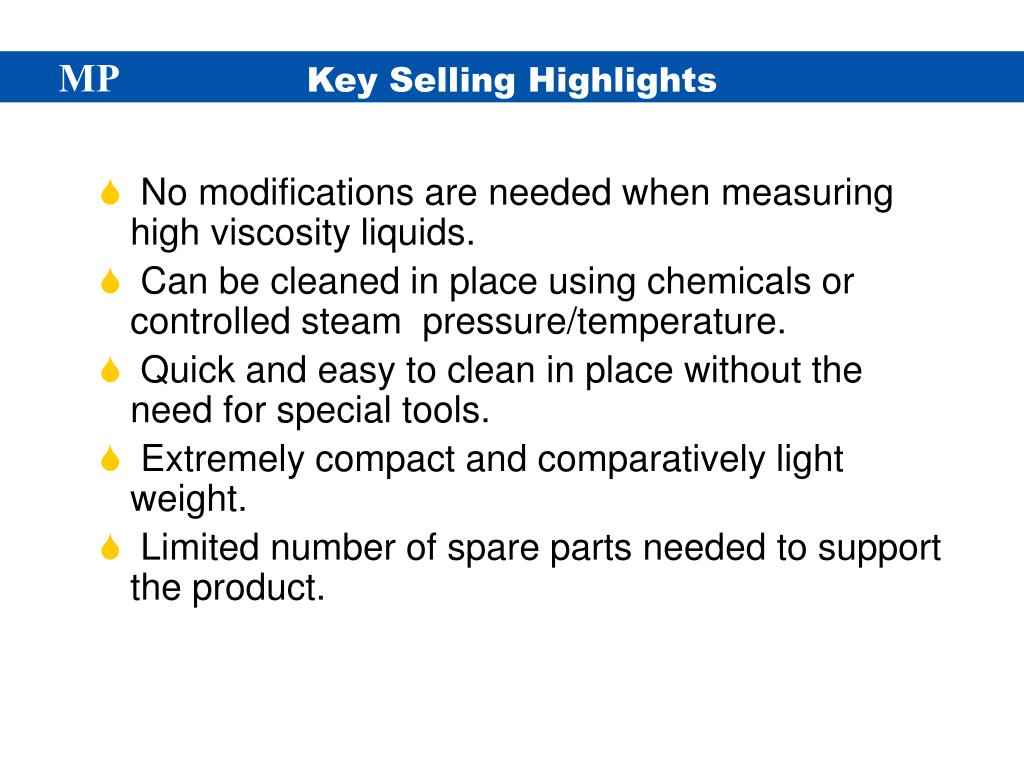

Key Selling Highlights

  • No modifications are needed when measuring high viscosity liquids.
  • Can be cleaned in place using chemicals or controlled steam pressure/temperature.
  • Quick and easy to clean in place without the need for special tools.
  • Extremely compact and comparatively light weight.
  • Limited number of spare parts needed to support the product.
slide32

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

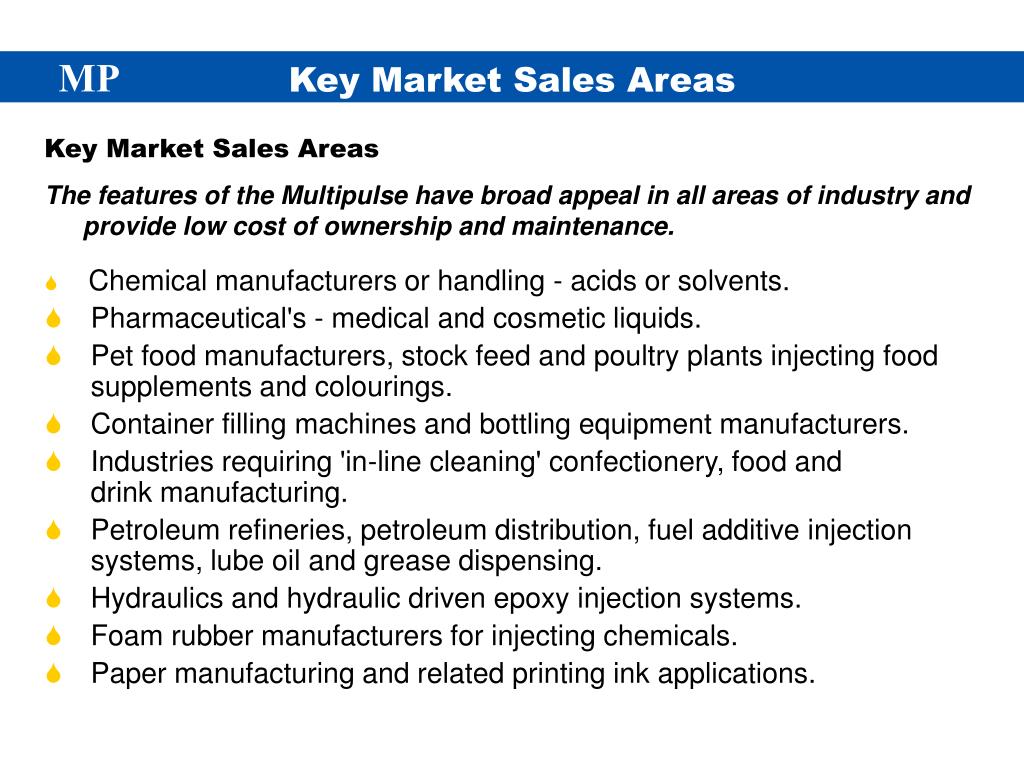

Key Market Sales Areas

  • Key Market Sales Areas
  • The features of the Multipulse have broad appeal in all areas of industry and provide low cost of ownership and maintenance.
  • Chemical manufacturers or handling - acids or solvents.
  • Pharmaceutical's - medical and cosmetic liquids.
  • Pet food manufacturers, stock feed and poultry plants injecting food supplements and colourings.
  • Container filling machines and bottling equipment manufacturers.
  • Industries requiring 'in-line cleaning' confectionery, food and drink manufacturing.
  • Petroleum refineries, petroleum distribution, fuel additive injection systems, lube oil and grease dispensing.
  • Hydraulics and hydraulic driven epoxy injection systems.
  • Foam rubber manufacturers for injecting chemicals.
  • Paper manufacturing and related printing ink applications.
slide33

Applications

MP

Adhesives

Emulsions

Insecticides

Paints

Inks

Oils

Fuels

Grease

Solvents

Lubricants

Chemicals

Additives

Resins

Acids

Alcohols

Essences

Edible Oils

Flavourings

Food Bases

Perfumes

slide34

Multipulse PositiveDisplacement Flowmeters

Application

MP

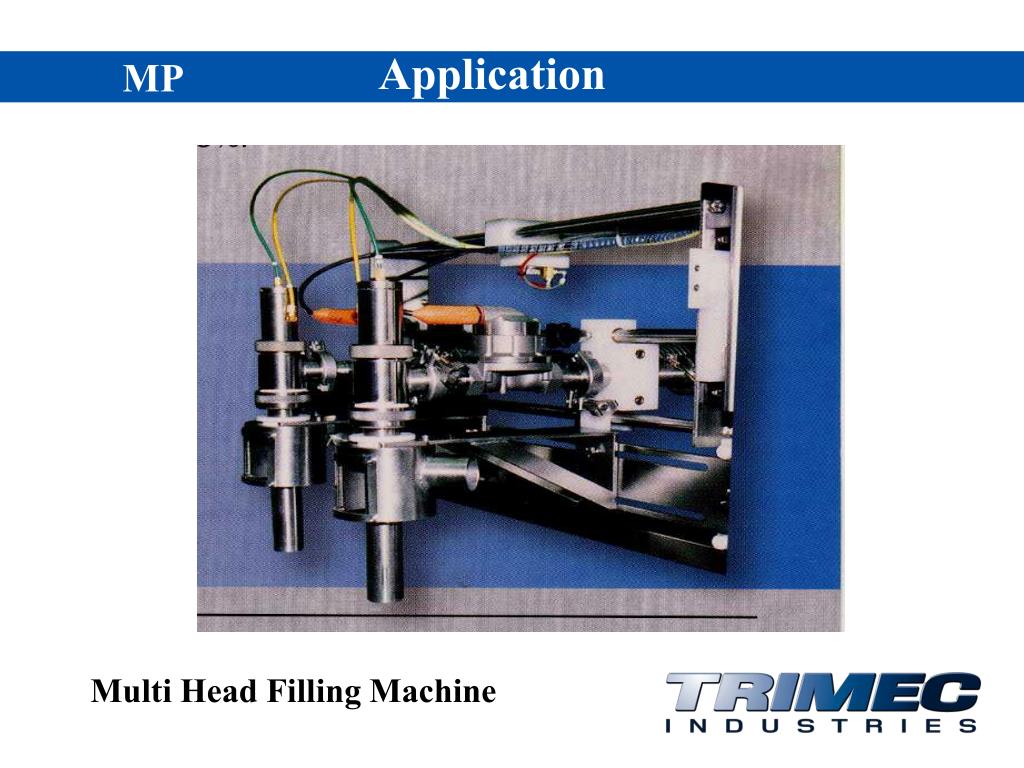

Multi Head Filling Machine

slide35

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

Multipulse PositiveDisplacement Flowmeters

MP

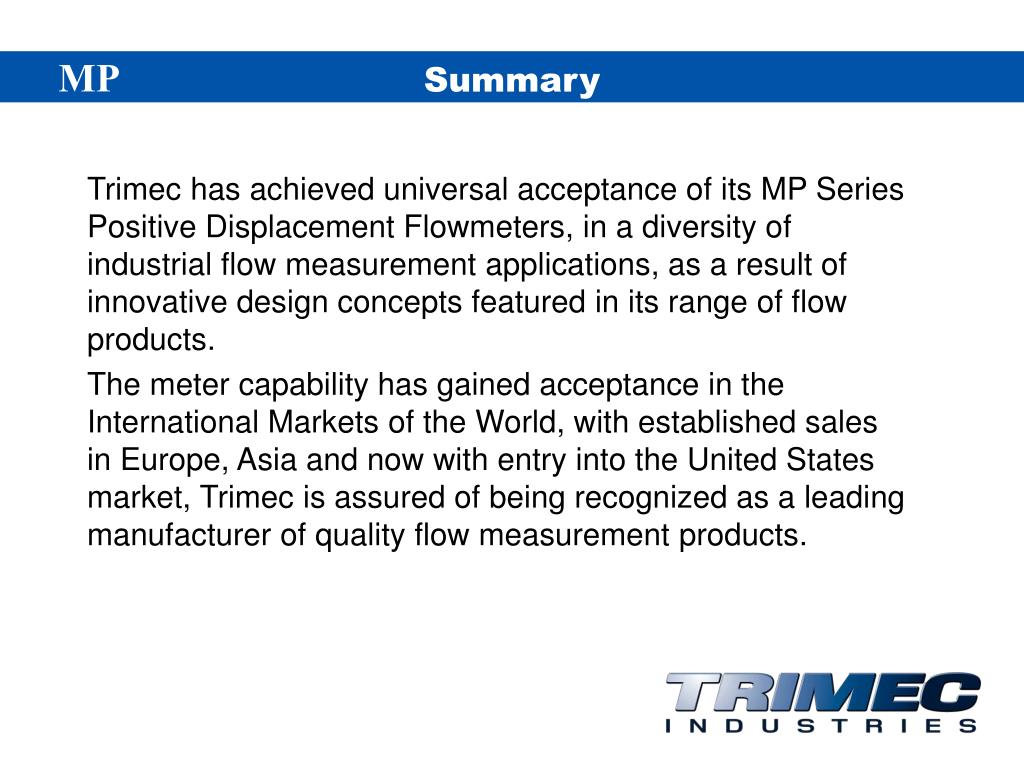

Summary

Trimec has achieved universal acceptance of its MP Series Positive Displacement Flowmeters, in a diversity of industrial flow measurement applications, as a result of innovative design concepts featured in its range of flow products.

The meter capability has gained acceptance in the International Markets of the World, with established sales in Europe, Asia and now with entry into the United States market, Trimec is assured of being recognized as a leading manufacturer of quality flow measurement products.
