  1. welcome TO A CompanySellingTechnologyand not just a Product

  2. WIRELESS COMMUNICATION A CompanySellingTechnologyand not just a Product

  3. What is Wireless Communication ? • Wireless communication is the transfer of information between two or more points that are not connected by wires or cables. • This is a broad term that incorporates all procedures and forms of connecting and communicating between two or more devices using a wireless signal through wireless communication technologies and devices. • Wireless operations permit services, such as long-range communications, that are impossible or impractical to implement with the use of wires.  • Wireless networking is used to meet many needs. Perhaps the most common use is to connect laptop users who travel from location to location. Another common use is for mobile networks that connect via satellite. A wireless transmission method is a logical choice to network a LAN segment that must frequently change locations. A CompanySellingTechnologyand not just a Product

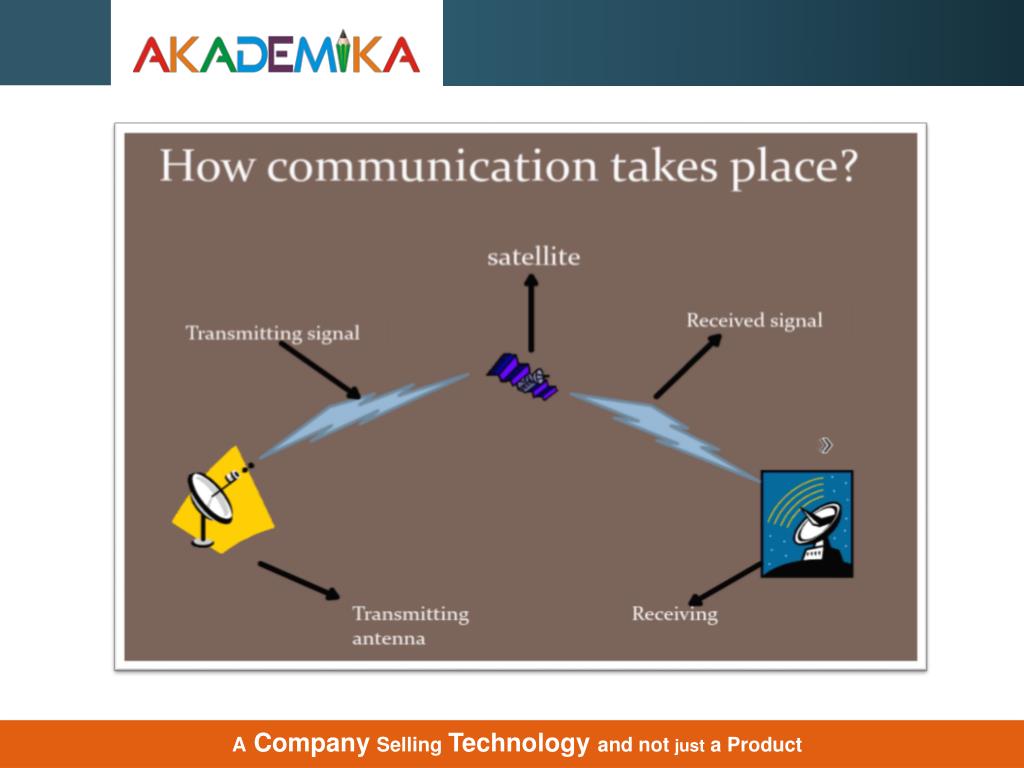

  4. A CompanySellingTechnologyand not just a Product

  5. Products offered by Akademika • WL-GPS : GPS Application Trainer • WL-MHT : GSM Mobile Handset Trainer • WL- Bluetooth : Bluetooth Technology Trainer • WL ZigBee : ZigBee Trainer • WL-RFID : RFID Application Trainer • WL-CDMA : CDMA Mobile Communication Trainer • WL-GPRS : GPRS Trainer Kit • WL-Wi-Fi : Wi-Fi Trainer Kit A CompanySellingTechnologyand not just a Product

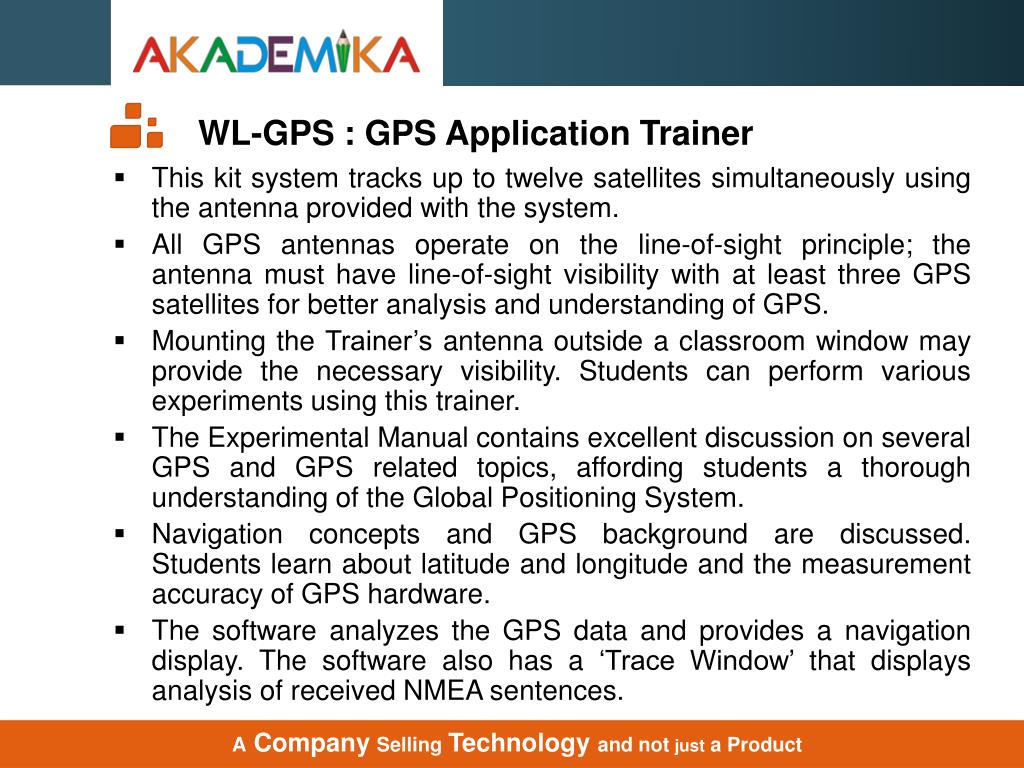

  6. WL-GPS : GPS Application Trainer • This kit system tracks up to twelve satellites simultaneously using the antenna provided with the system. • All GPS antennas operate on the line-of-sight principle; the antenna must have line-of-sight visibility with at least three GPS satellites for better analysis and understanding of GPS. • Mounting the Trainer’s antenna outside a classroom window may provide the necessary visibility. Students can perform various experiments using this trainer. • The Experimental Manual contains excellent discussion on several GPS and GPS related topics, affording students a thorough understanding of the Global Positioning System. • Navigation concepts and GPS background are discussed. Students learn about latitude and longitude and the measurement accuracy of GPS hardware. • The software analyzes the GPS data and provides a navigation display. The software also has a ‘Trace Window’ that displays analysis of received NMEA sentences. A CompanySellingTechnologyand not just a Product

  7. What is GPS? • The Global Positioning System (GPS) is a satellite-based navigation system made up of a network of 24 satellites placed into or bit by the U.S. Department of Defense. • GPS was originally intended for military applications, but in the 1980s, the government made the system available for civilian use. GPS works in any weather conditions, anywhere in the world, 24 hours a day. • There are no subscription fees or setup charges to use GPS. A CompanySellingTechnologyand not just a Product

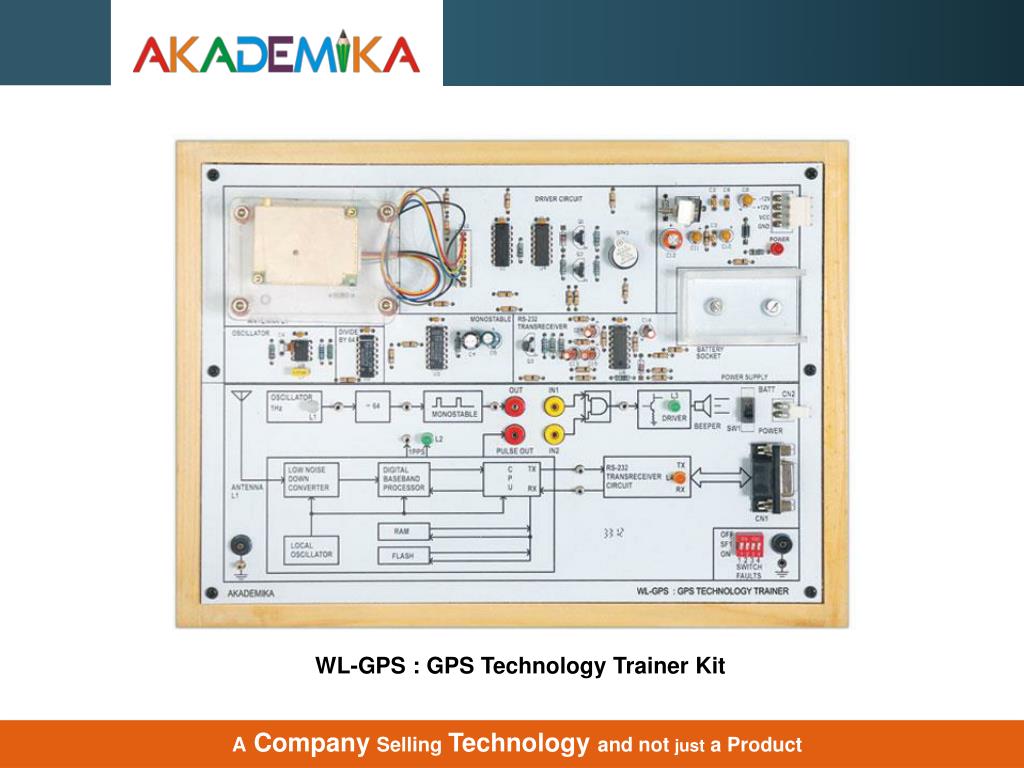

  8. WL-GPS : GPS Technology Trainer Kit A CompanySellingTechnologyand not just a Product

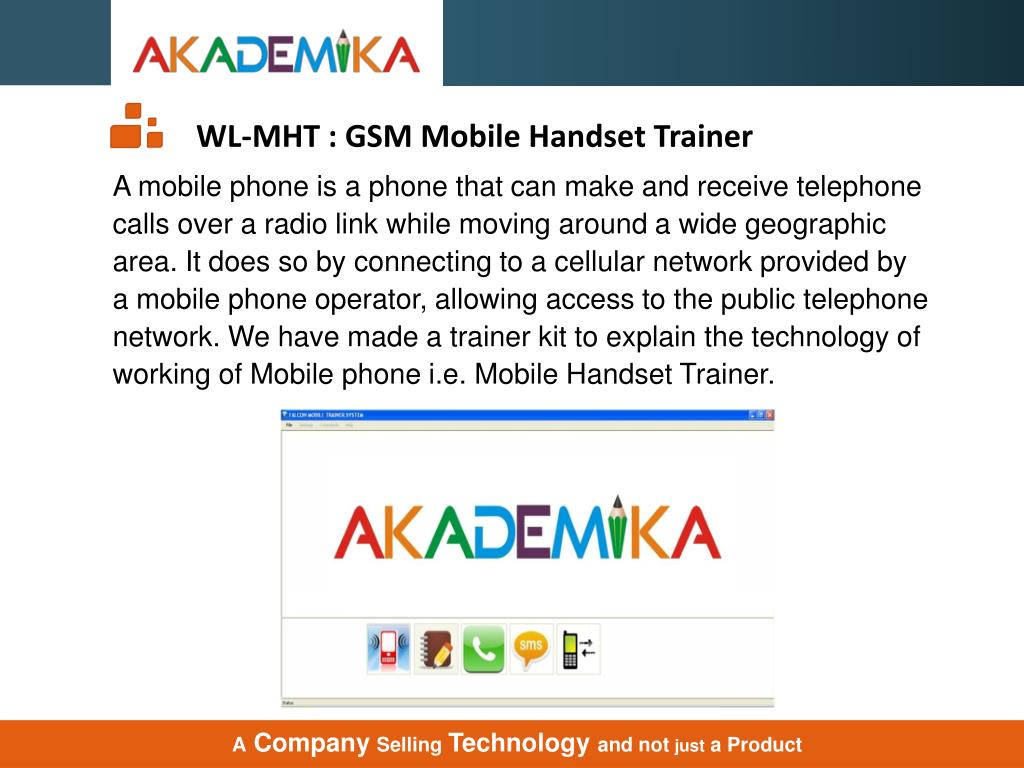

  9. WL-MHT : GSM Mobile Handset Trainer A mobile phone is a phone that can make and receive telephone calls over a radio link while moving around a wide geographic area. It does so by connecting to a cellular network provided by a mobile phone operator, allowing access to the public telephone network. We have made a trainer kit to explain the technology of working of Mobile phone i.e. Mobile Handset Trainer. A CompanySellingTechnologyand not just a Product

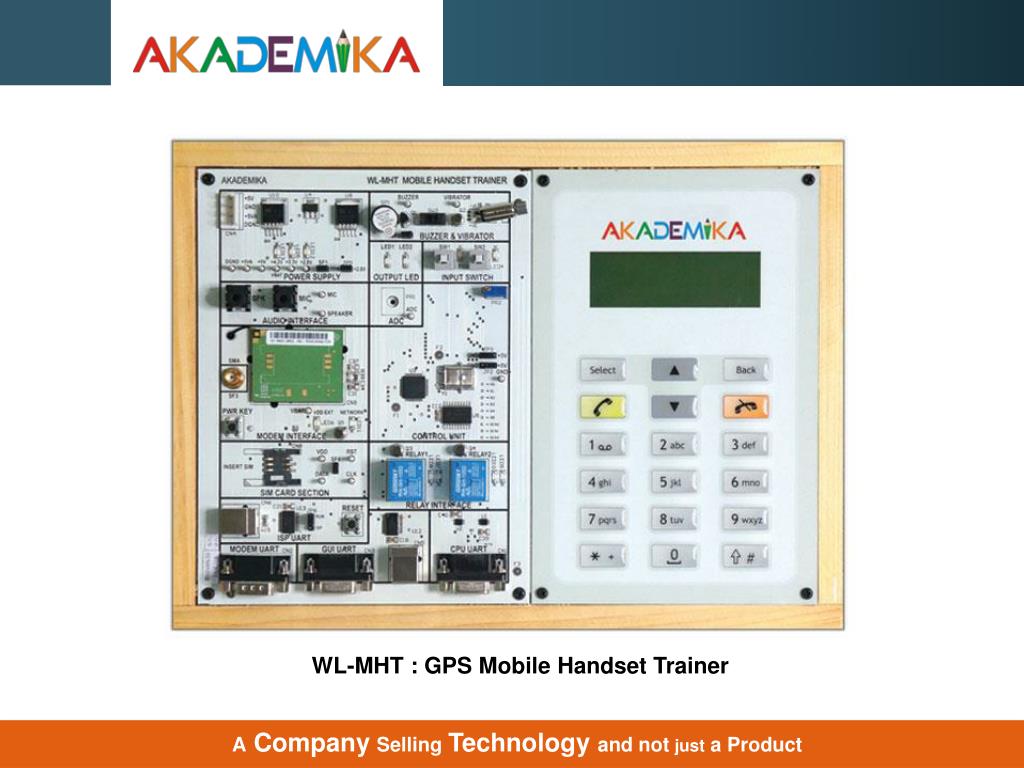

  10. WL-MHT : GPS Mobile Handset Trainer A CompanySellingTechnologyand not just a Product

  11. POWER SUPPLY SECTION : Two isolated 5V power supply for modem and controller. • AUDIO INTERFACE : MIC and headphone jacks for audio communication. • MODEM INTERFACE : It includes SIM900B modem with SMA antenna connector, PWR KEY to power on/off modem, VDD EXT to indicate power on/off status of modem and network LED for indication of network status. • ISP SECTION Master reset for control unit. • MODEM UART : This is the modem UART that can be interface to GUI or control unit. • GUI UART : It is USB to serial convertor, when modems is operated by WL-MHT GUI then connect Modem UART to GUI UART using given serial cable & connect given USB cable to PC. A CompanySellingTechnologyand not just a Product

  12. KEYPAD It is 6*3 multifunctional keypad. • RELAY INTERFACE Operation of RELAY is control by MODEM. • CPU SECTION This is the LPC2148 ARM7 controller used for control MODEM and automation units. • ADC SECTION This is the 10 bit ADC used as a sensor application. • SIM CARD SECTION 6 pin SIM card holder with VDD, RST, DATA, CLK signal test points. • CPU UART : When modem is controlled by CPU then connect MODEM UART to CPU UART using given serial cable. A CompanySellingTechnologyand not just a Product

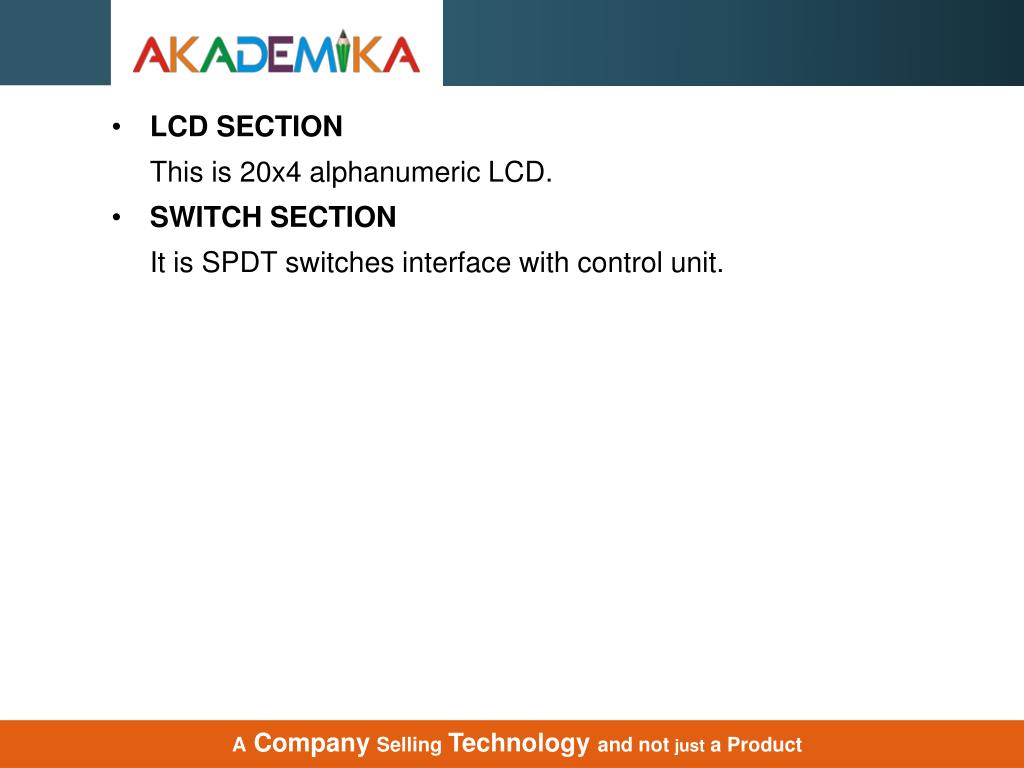

  13. LCD SECTION • This is 20x4 alphanumeric LCD. • SWITCH SECTION • It is SPDT switches interface with control unit.  A CompanySellingTechnologyand not just a Product

  14. WL- Bluetooth : Bluetooth Trainer Kit • Bluetooth is a proprietary open wireless technology standard for exchanging data over short distances (using short wavelength radio transmissions) from fixed and mobile devices, creating personal area networks (PANs) with high levels of security. • Bluetooth is a packet-based protocol with a master-slave structure. One master may communicate with up to 7 slaves in a piconet ; all devices share the master's clock. • Bluetooth provides a secure way to connect and exchange information between devices such as faxes, mobile phones, telephones, laptops, personal computers, printers, Global Positioning System (GPS) receivers, digital cameras, and video game consoles. • Bluetooth is a standard wire-replacement communications protocol primarily designed for low power consumption, with a short range (power-class-dependent, but effective ranges vary in practice; see table below) based on low-cost transceiver microchips in each device. A CompanySellingTechnologyand not just a Product

  15. WL-Bluetooth : Bluetooth Trainer Kit A CompanySellingTechnologyand not just a Product

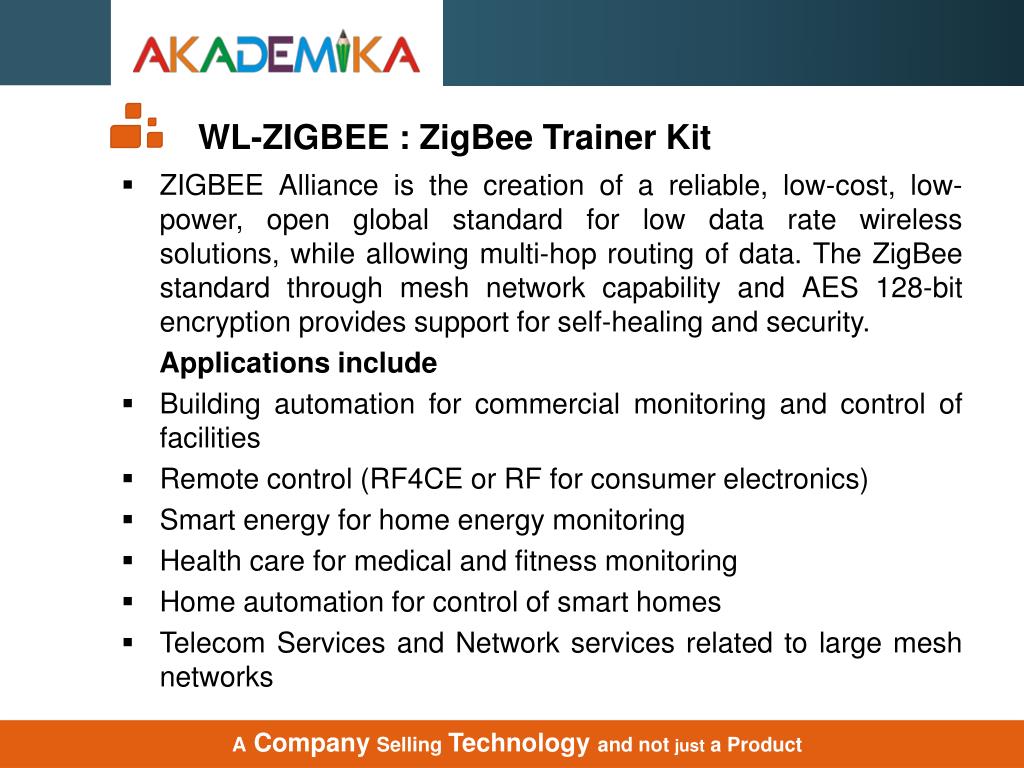

  16. WL-ZIGBEE : ZigBee Trainer Kit • ZIGBEE Alliance is the creation of a reliable, low-cost, low-power, open global standard for low data rate wireless solutions, while allowing multi-hop routing of data. The ZigBee standard through mesh network capability and AES 128-bit encryption provides support for self-healing and security.  Applications include • Building automation for commercial monitoring and control of facilities • Remote control (RF4CE or RF for consumer electronics) • Smart energy for home energy monitoring • Health care for medical and fitness monitoring • Home automation for control of smart homes • Telecom Services and Network services related to large mesh networks  A CompanySellingTechnologyand not just a Product

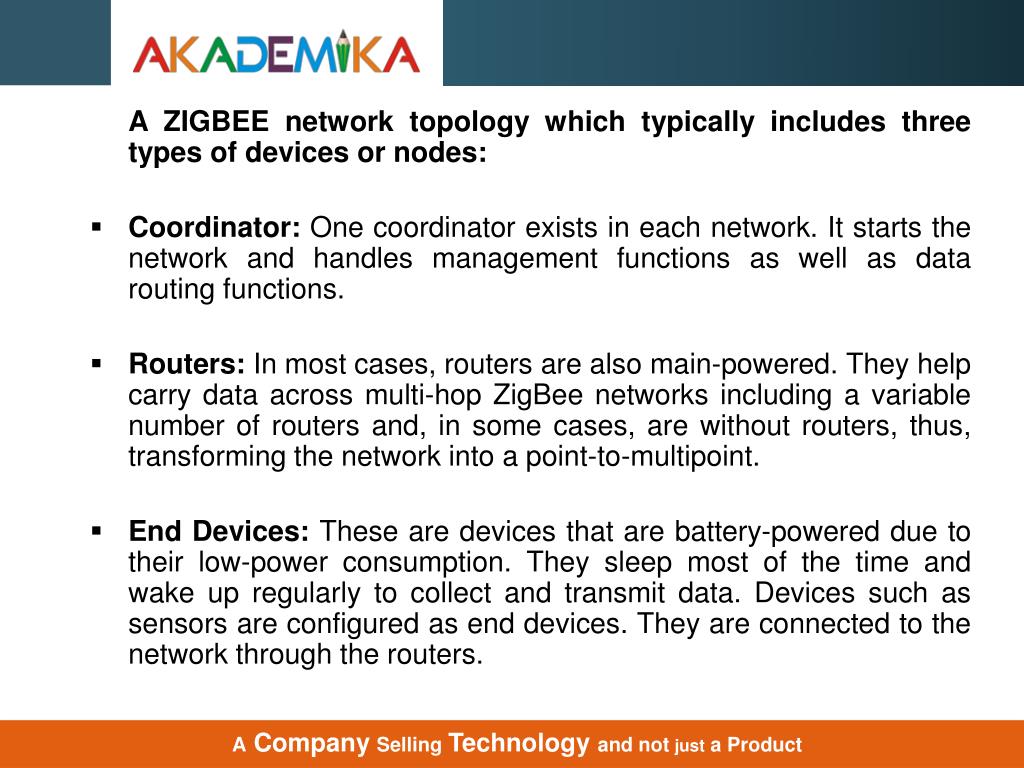

  17. A ZIGBEE network topology which typically includes three types of devices or nodes: • Coordinator: One coordinator exists in each network. It starts the network and handles management functions as well as data routing functions. • Routers: In most cases, routers are also main-powered. They help carry data across multi-hop ZigBee networks including a variable number of routers and, in some cases, are without routers, thus, transforming the network into a point-to-multipoint. • End Devices: These are devices that are battery-powered due to their low-power consumption. They sleep most of the time and wake up regularly to collect and transmit data. Devices such as sensors are configured as end devices. They are connected to the network through the routers. A CompanySellingTechnologyand not just a Product

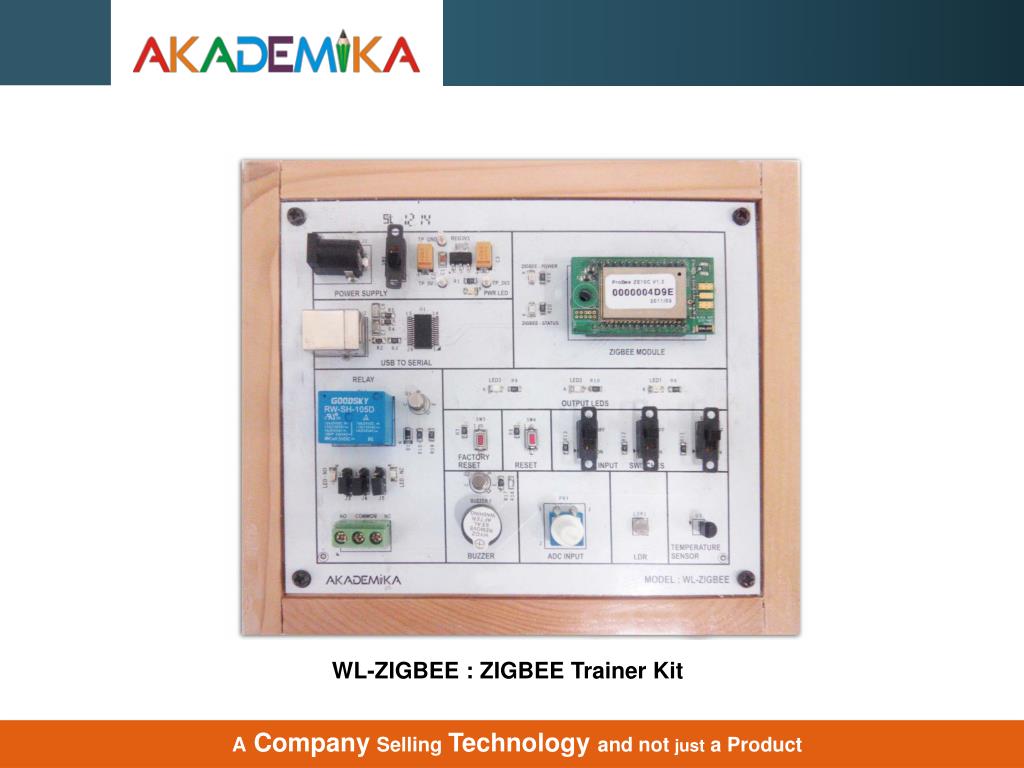

  18. WL-ZIGBEE : ZIGBEE Trainer Kit A CompanySellingTechnologyand not just a Product

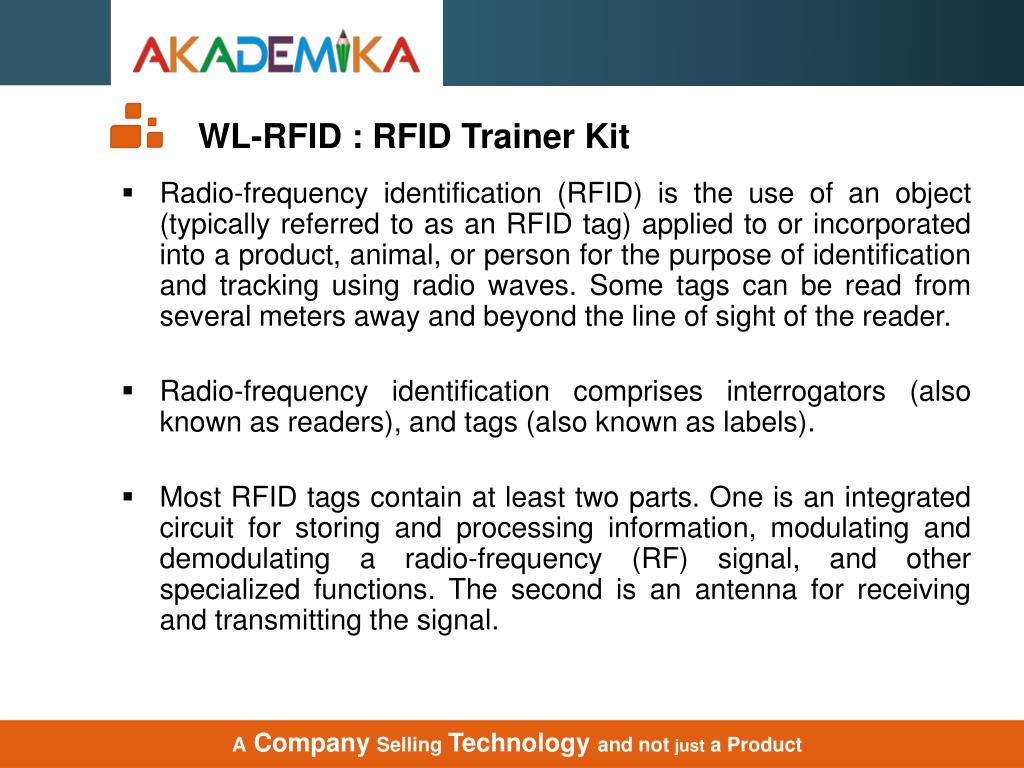

  19. WL-RFID : RFID Trainer Kit • Radio-frequency identification (RFID) is the use of an object (typically referred to as an RFID tag) applied to or incorporated into a product, animal, or person for the purpose of identification and tracking using radio waves. Some tags can be read from several meters away and beyond the line of sight of the reader. • Radio-frequency identification comprises interrogators (also known as readers), and tags (also known as labels). • Most RFID tags contain at least two parts. One is an integrated circuit for storing and processing information, modulating and demodulating a radio-frequency (RF) signal, and other specialized functions. The second is an antenna for receiving and transmitting the signal. A CompanySellingTechnologyand not just a Product

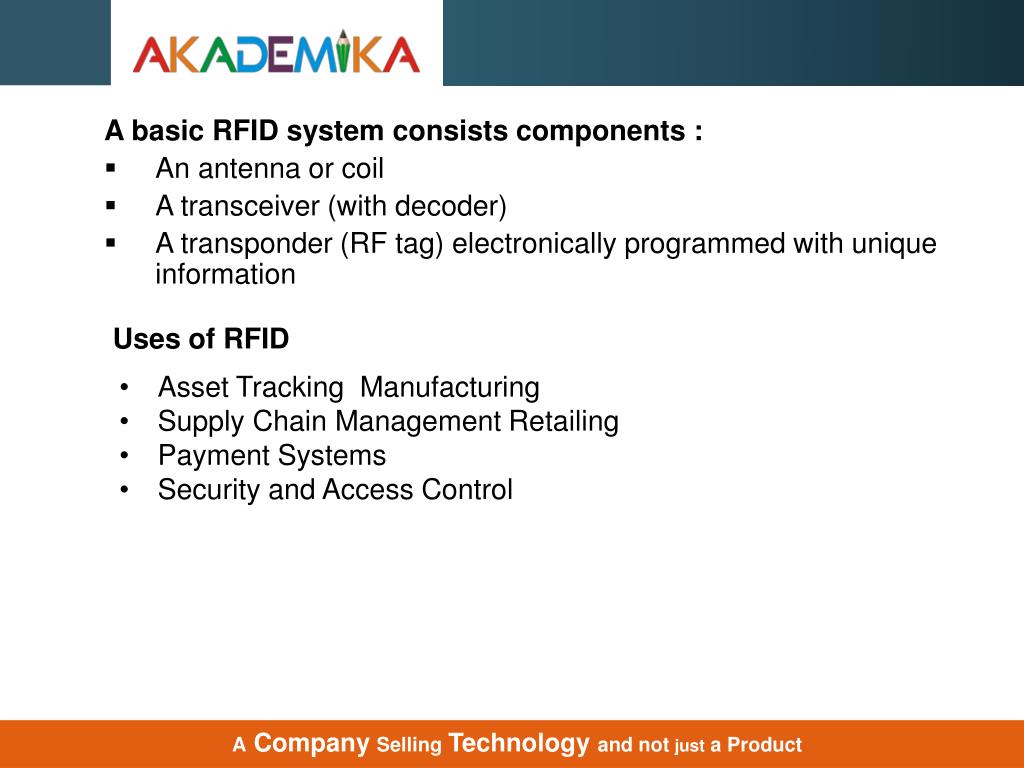

  20. A basic RFID system consists components : • An antenna or coil • A transceiver (with decoder) • A transponder (RF tag) electronically programmed with unique information Uses of RFID • Asset Tracking Manufacturing • Supply Chain Management Retailing • Payment Systems • Security and Access Control A CompanySellingTechnologyand not just a Product

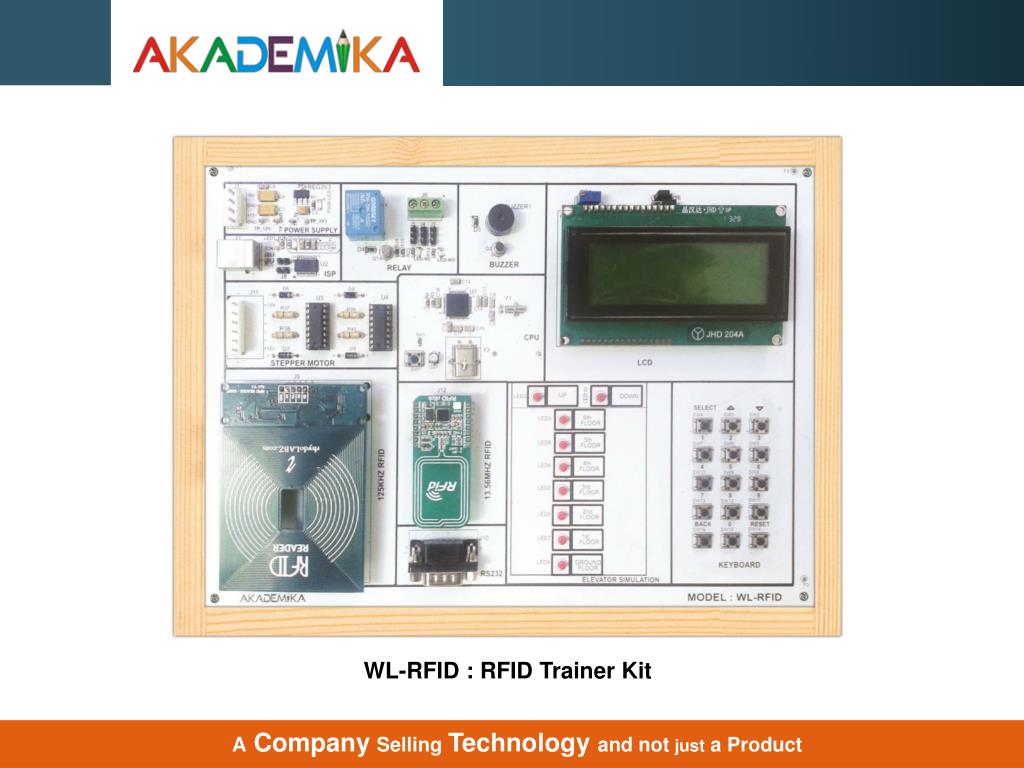

  21. WL-RFID : RFID Trainer Kit A CompanySellingTechnologyand not just a Product

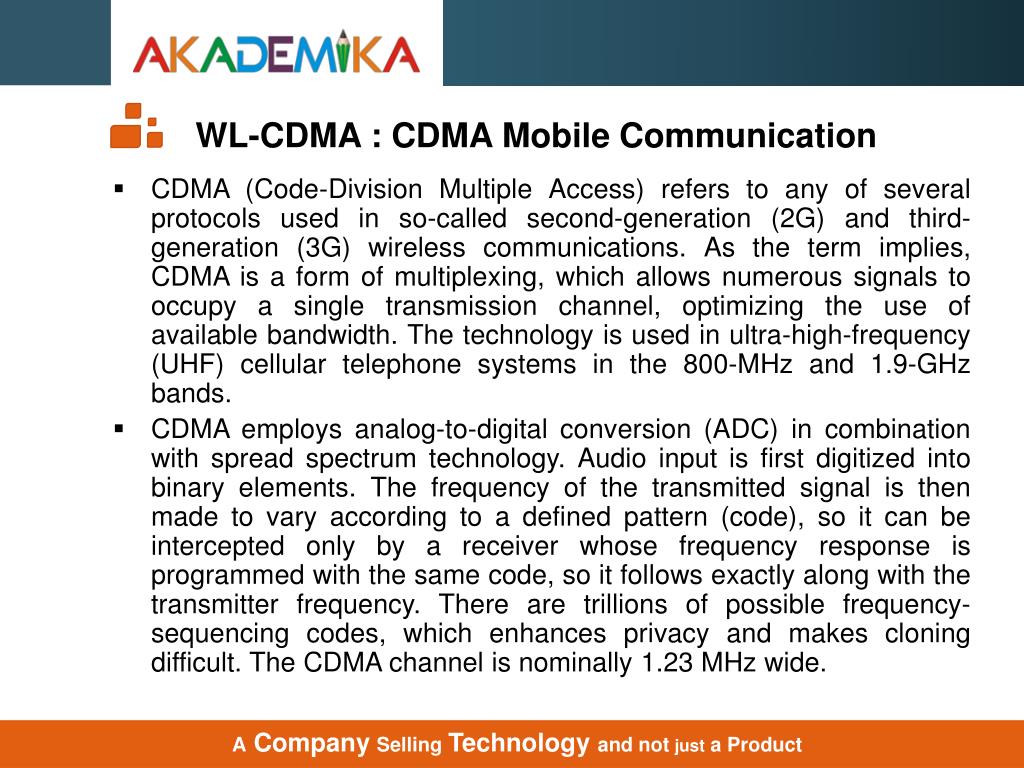

  22. WL-CDMA : CDMA Mobile Communication • CDMA (Code-Division Multiple Access) refers to any of several protocols used in so-called second-generation (2G) and third-generation (3G) wireless communications. As the term implies, CDMA is a form of multiplexing, which allows numerous signals to occupy a single transmission channel, optimizing the use of available bandwidth. The technology is used in ultra-high-frequency (UHF) cellular telephonesystems in the 800-MHz and 1.9-GHz bands. • CDMA employs analog-to-digital conversion (ADC) in combination with spread spectrumtechnology. Audio input is first digitized into binary elements. The frequency of the transmitted signal is then made to vary according to a defined pattern (code), so it can be intercepted only by a receiver whose frequency response is programmed with the same code, so it follows exactly along with the transmitter frequency. There are trillions of possible frequency-sequencing codes, which enhances privacy and makes cloning difficult. The CDMA channel is nominally 1.23 MHz wide.  A CompanySellingTechnologyand not just a Product

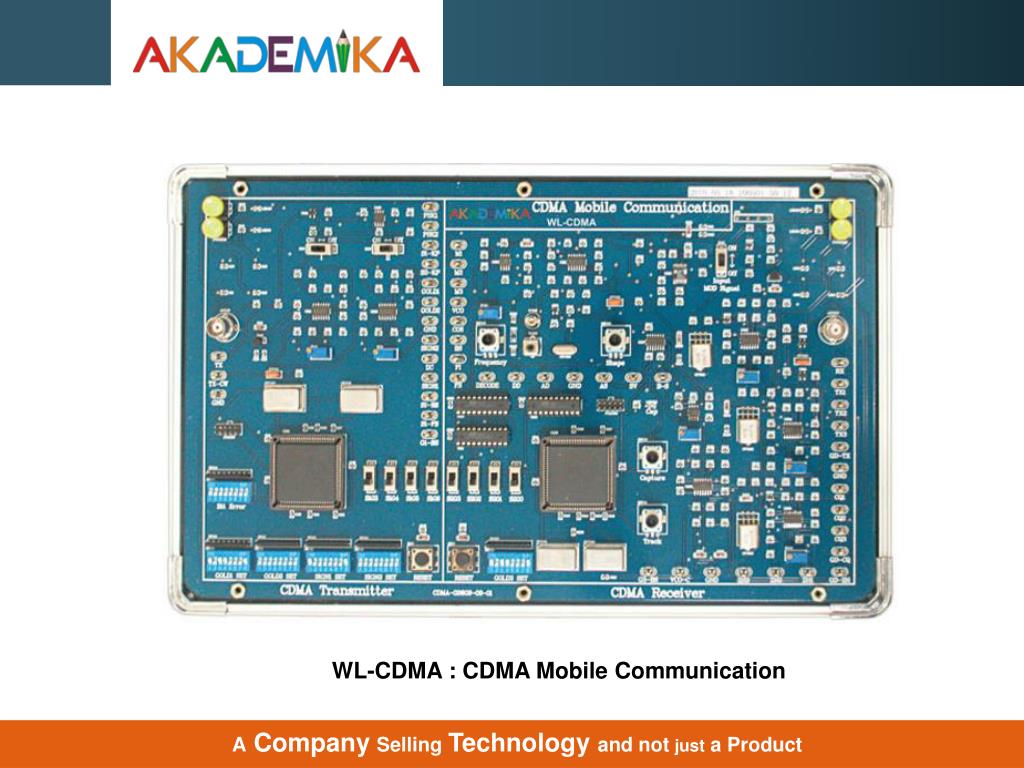

  23. WL-CDMA : CDMA Mobile Communication A CompanySellingTechnologyand not just a Product

  24. WL-GPRS : GPRS Trainer Kit • The GPRS Module fixed on the Mother Board is a miniature module featuring GPRS quad band (850/900/1800/1900MHz) connectivity and several interfaces to the ‘real world’. • This module integrates a powerful 16 bit processor which runs custom applications and a GPRS transceiver which handles the connectivity. • This Trainer provides the embedded world with a powerful ‘mobile internet network engine’, communicates between the microcontroller and the GPRS transceiver sending all the required AT commands, parsing responses and managing asynchronous messages using the API. • 16 Bit Processor PIC24FJ256GB206-256K Flash-96K Ram-16 Mips • Digital I/O up to 32 remappable at Runtime Analog in 10 channels -10bits ADC-Voltage ref onboard 2,048V • Antenna : uFl Connector for external antenna A CompanySellingTechnologyand not just a Product

  25. WL-GPRS : GPRS Trainer Kit A CompanySellingTechnologyand not just a Product

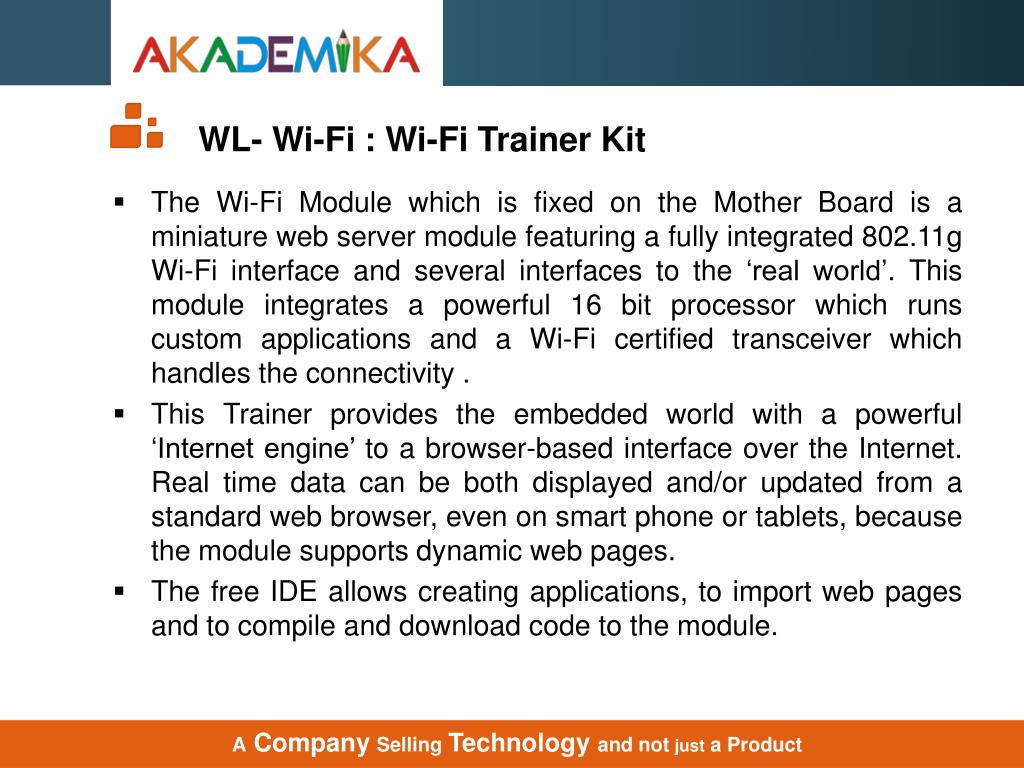

  26. WL- Wi-Fi : Wi-Fi Trainer Kit • The Wi-Fi Module which is fixed on the Mother Board is a miniature web server module featuring a fully integrated 802.11g Wi-Fi interface and several interfaces to the ‘real world’. This module integrates a powerful 16 bit processor which runs custom applications and a Wi-Fi certified transceiver which handles the connectivity . • This Trainer provides the embedded world with a powerful ‘Internet engine’ to a browser-based interface over the Internet. Real time data can be both displayed and/or updated from a standard web browser, even on smart phone or tablets, because the module supports dynamic web pages. • The free IDE allows creating applications, to import web pages and to compile and download code to the module. A CompanySellingTechnologyand not just a Product

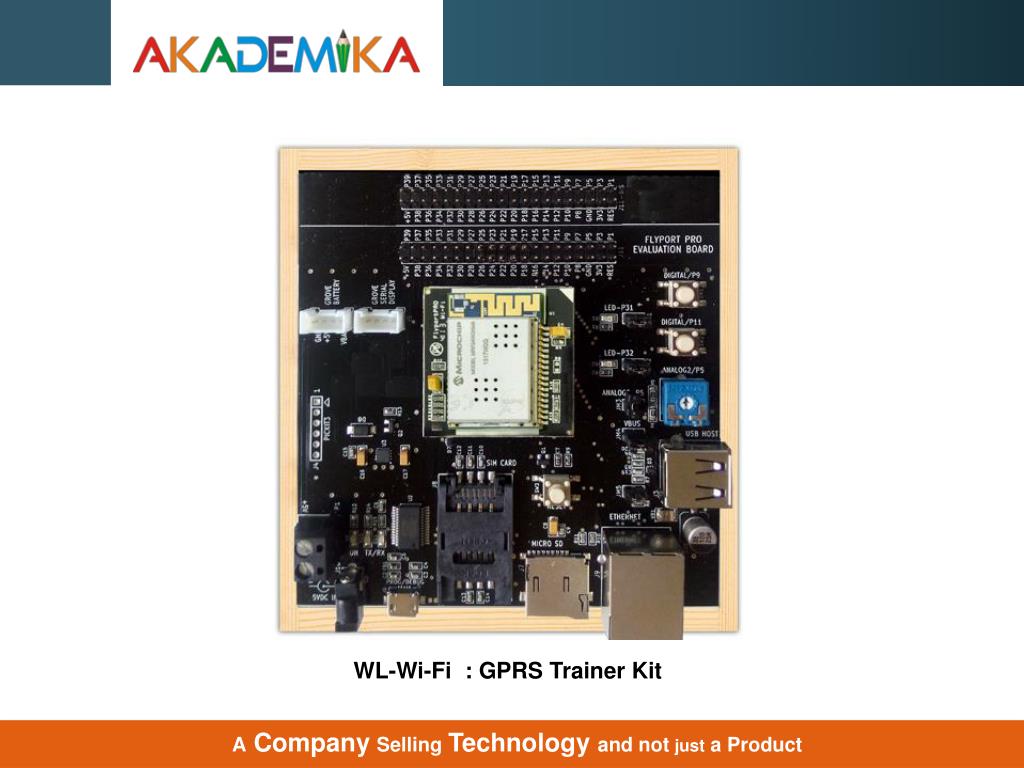

  27. WL-Wi-Fi : GPRS Trainer Kit A CompanySellingTechnologyand not just a Product

  28. AKADEMIKA LAB SOLUTIONS • EL-107, MIDC,T.T.C. Electronic Zone, Mahape, Navi Mumbai - 400710. • Tel. : +91 22 27670581/82/83 Fax : +91 22 27670583 • E-mail : lab@akademika.in, Website : www.akademika.in A CompanySellingTechnologyand not just a Product
