  1. Circuiti per ilcontrollodisistemi Radar DEIS- Microelectronics and Microsystems Laboratory

  2. WP2.3 Stato di avanzamento

  3. Controllo del sistema SDR basatosu NI-USRP292x

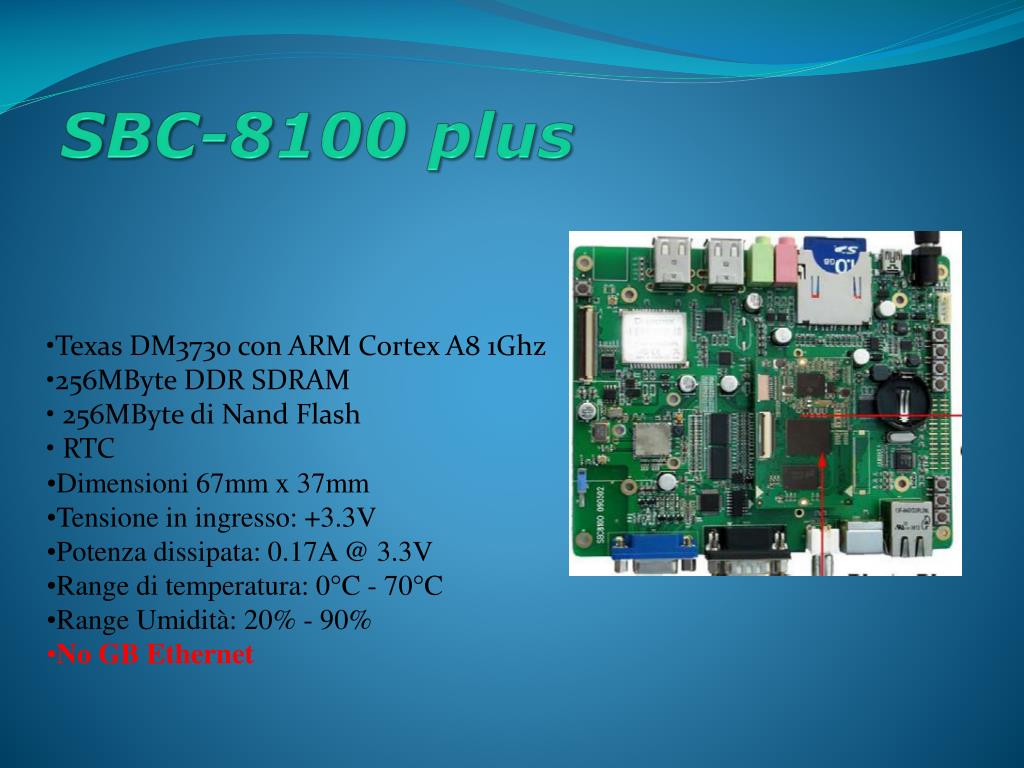

  4. SBC-8100 plus • Texas DM3730 con ARM Cortex A8 1Ghz • 256MByte DDR SDRAM • 256MByte di Nand Flash • RTC • Dimensioni 67mm x 37mm • Tensione in ingresso: +3.3V • Potenza dissipata: 0.17A @ 3.3V • Range di temperatura: 0°C - 70°C • Range Umidità: 20% - 90% • No GB Ethernet

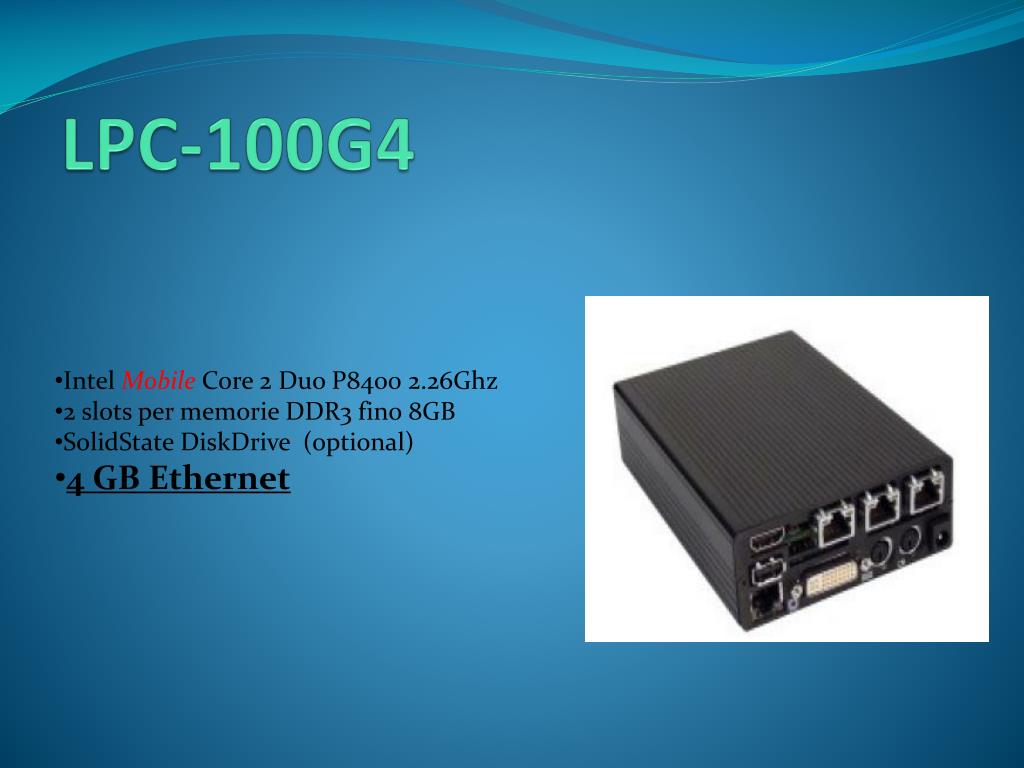

  5. LPC-100G4 • Intel Mobile Core 2 Duo P8400 2.26Ghz • 2 slots per memorie DDR3 fino 8GB • SolidState DiskDrive (optional) • 4 GB Ethernet

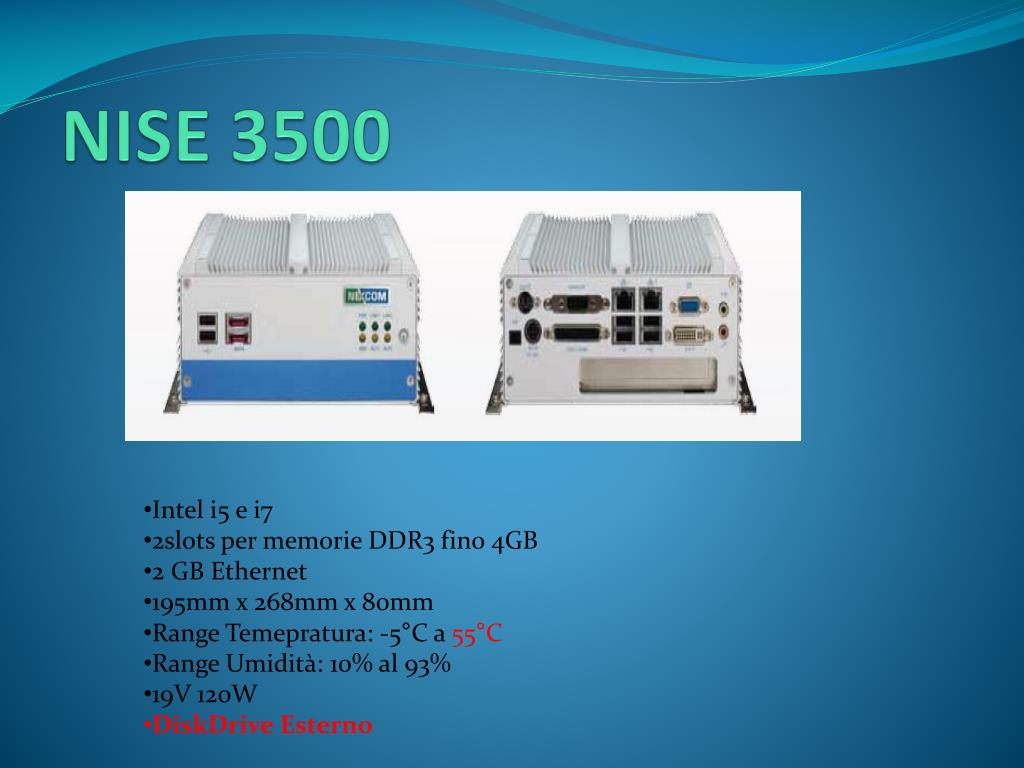

  6. NISE 3500 • Intel i5 e i7 • 2slots per memorie DDR3 fino 4GB • 2 GB Ethernet • 195mm x 268mm x 80mm • Range Temepratura: -5°C a 55°C • Range Umidità: 10% al 93% • 19V 120W • DiskDrive Esterno

  7. MXE-5303 • Intel Core i3, i5 o i7 • Range Temperatura: -20°C / 70°C • 4 GB Ethernet • 4GB RAM DDR3 • 230mm x 205mm x 75mm • 8 GPIO Rispetta tutte le specifiche per il controllo delle NI-USRP 2920/21 SDR

  8. Diagramma a blocchi del controllo del Radar P
