  1. VONTEL Configuration Peng Wei-Chiang, Liao Jian-Zhi wchpeng@itri.org.tw, jjliaw@itri.org.tw

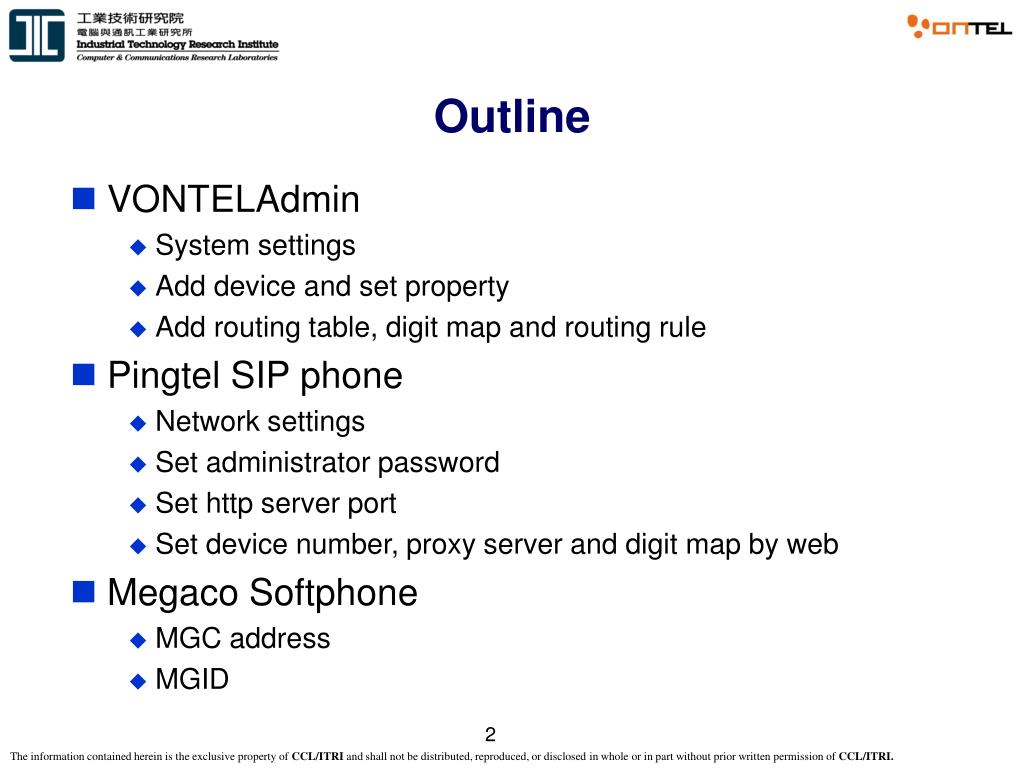

  2. Outline • VONTELAdmin • System settings • Add device and set property • Add routing table, digit map and routing rule • Pingtel SIP phone • Network settings • Set administrator password • Set http server port • Set device number, proxy server and digit map by web • Megaco Softphone • MGC address • MGID

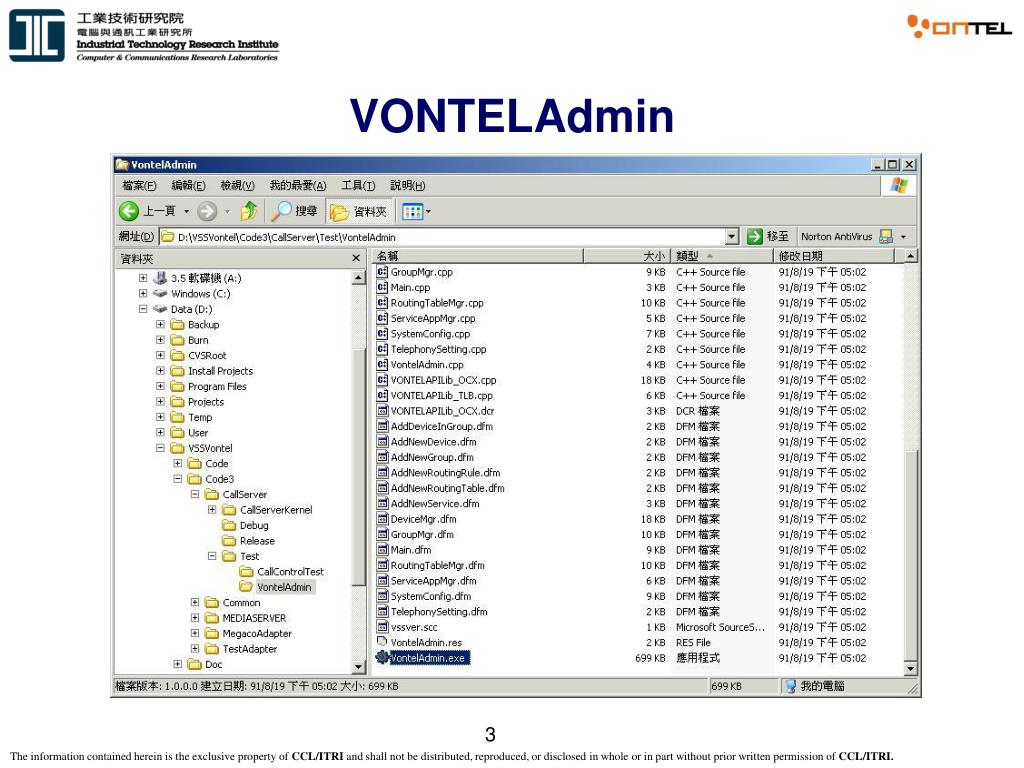

  3. VONTELAdmin

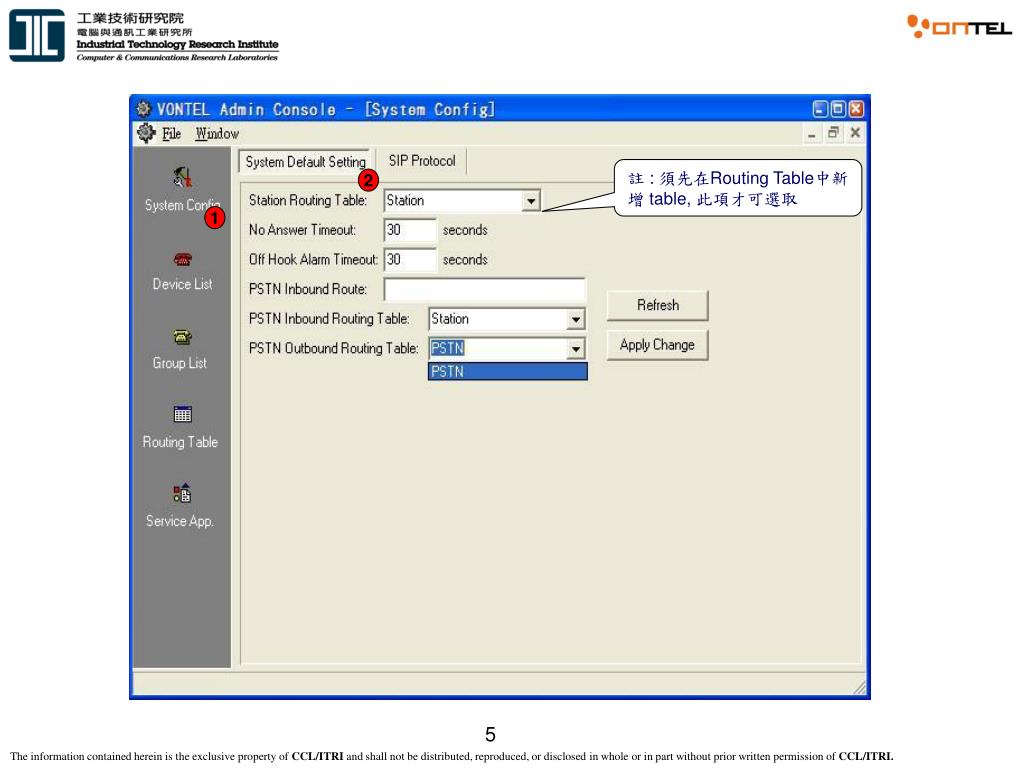

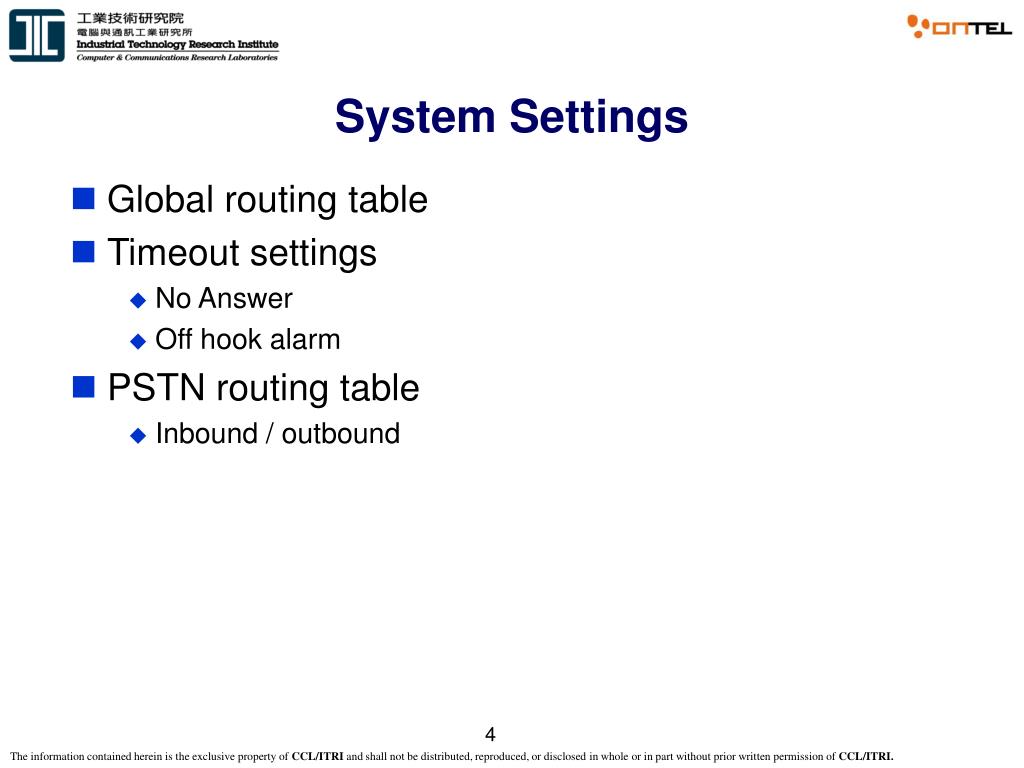

  4. System Settings • Global routing table • Timeout settings • No Answer • Off hook alarm • PSTN routing table • Inbound / outbound

  5. 註 : 須先在Routing Table中新增 table, 此項才可選取 2 1

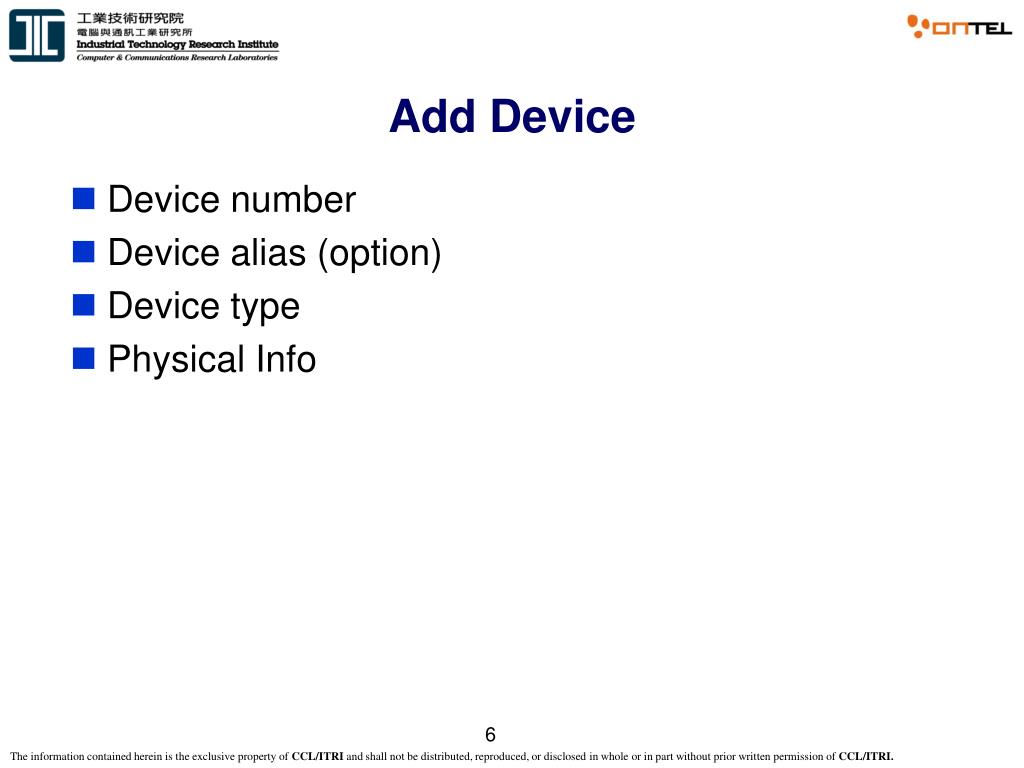

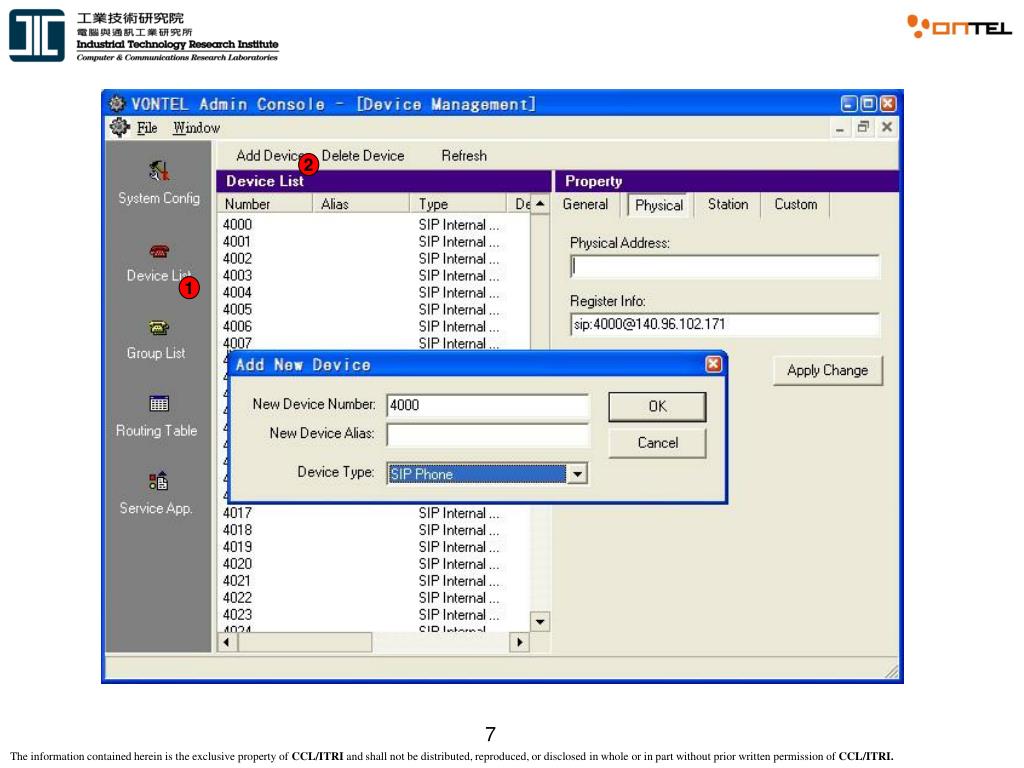

  6. Add Device • Device number • Device alias (option) • Device type • Physical Info

  7. 2 1

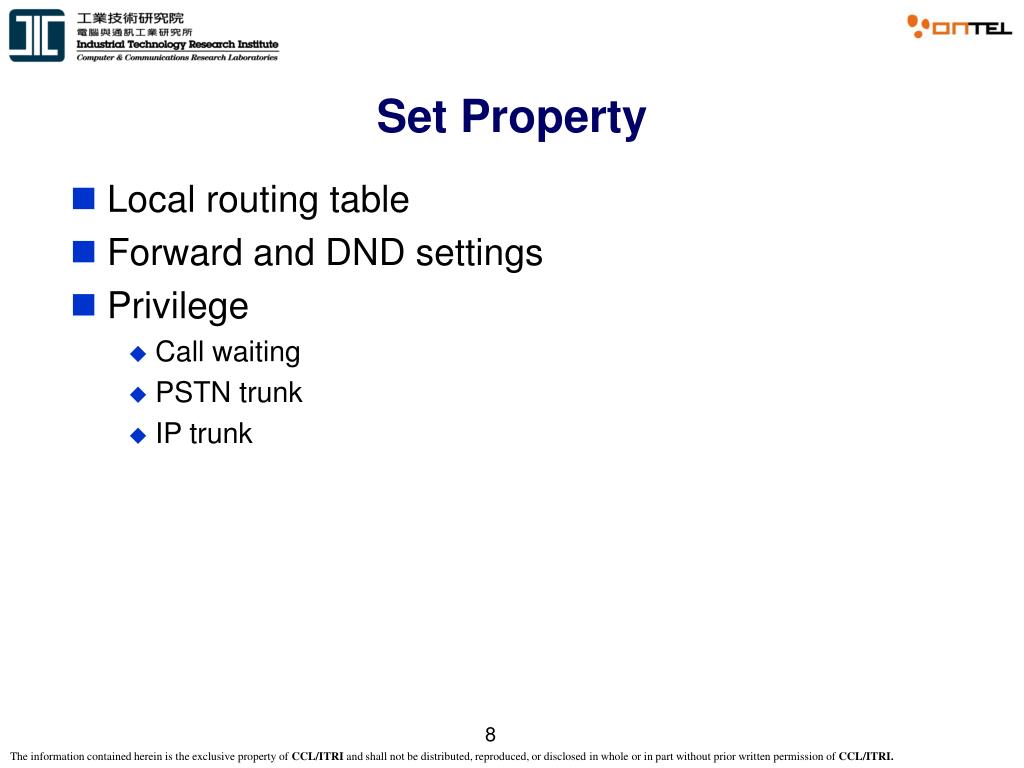

  8. Set Property • Local routing table • Forward and DND settings • Privilege • Call waiting • PSTN trunk • IP trunk

  9. 2 1

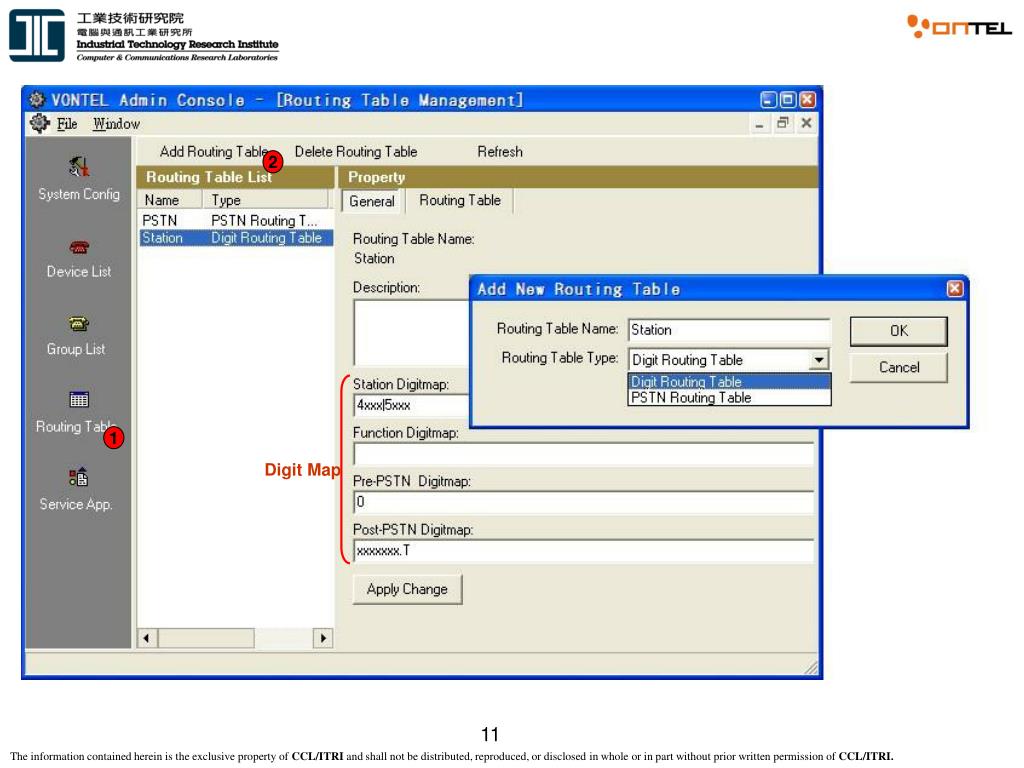

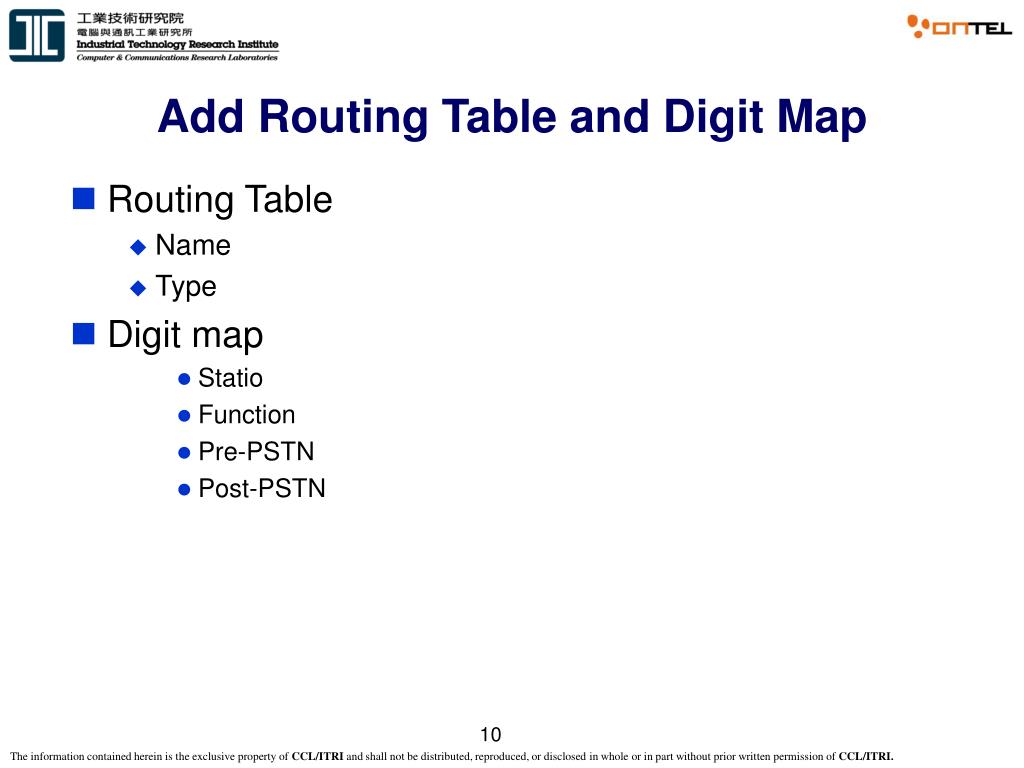

  10. Add Routing Table and Digit Map • Routing Table • Name • Type • Digit map • Statio • Function • Pre-PSTN • Post-PSTN

  11. 2 Digit Map 1

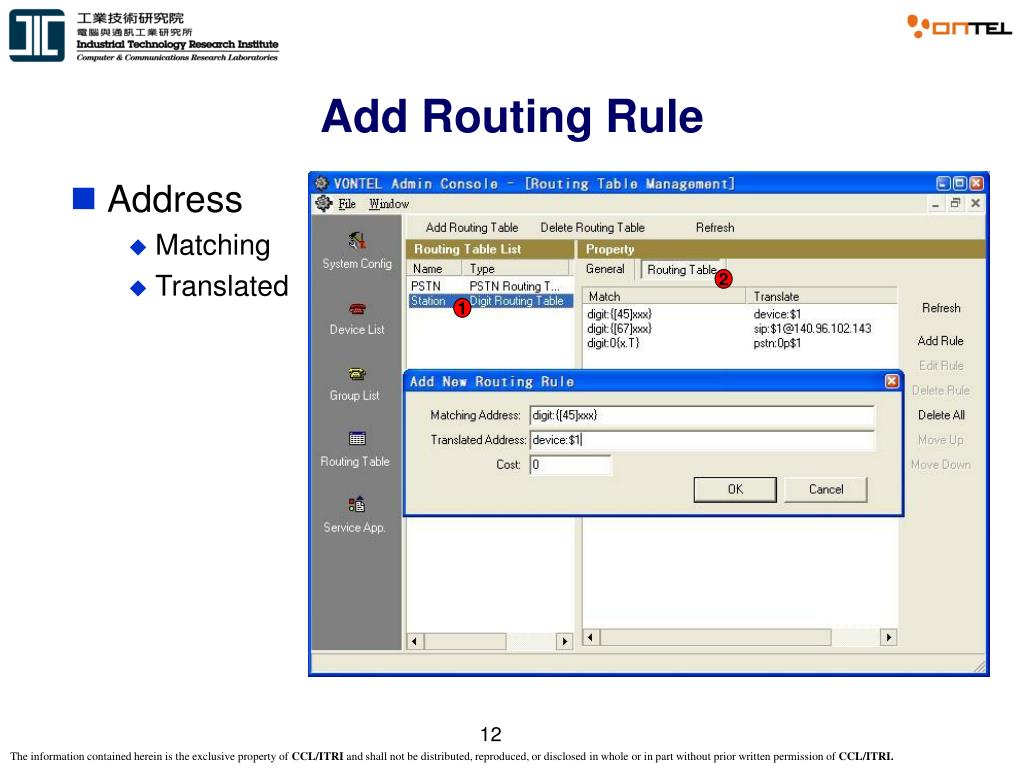

  12. 2 1 Add Routing Rule • Address • Matching • Translated

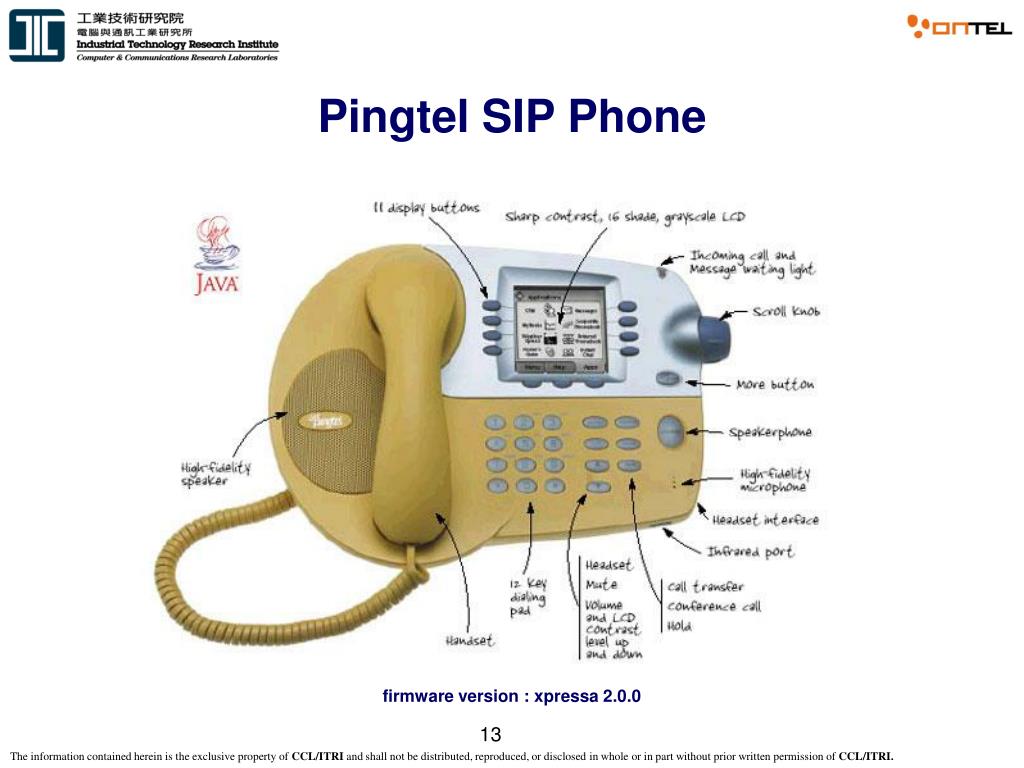

  13. Pingtel SIP Phone firmware version : xpressa 2.0.0

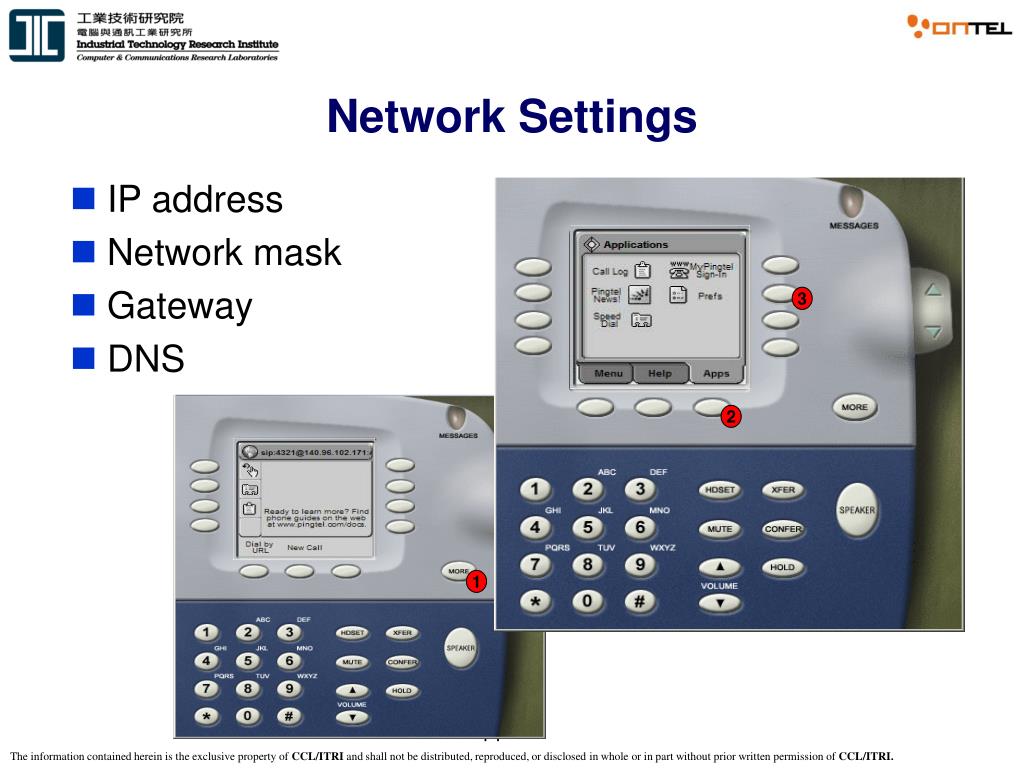

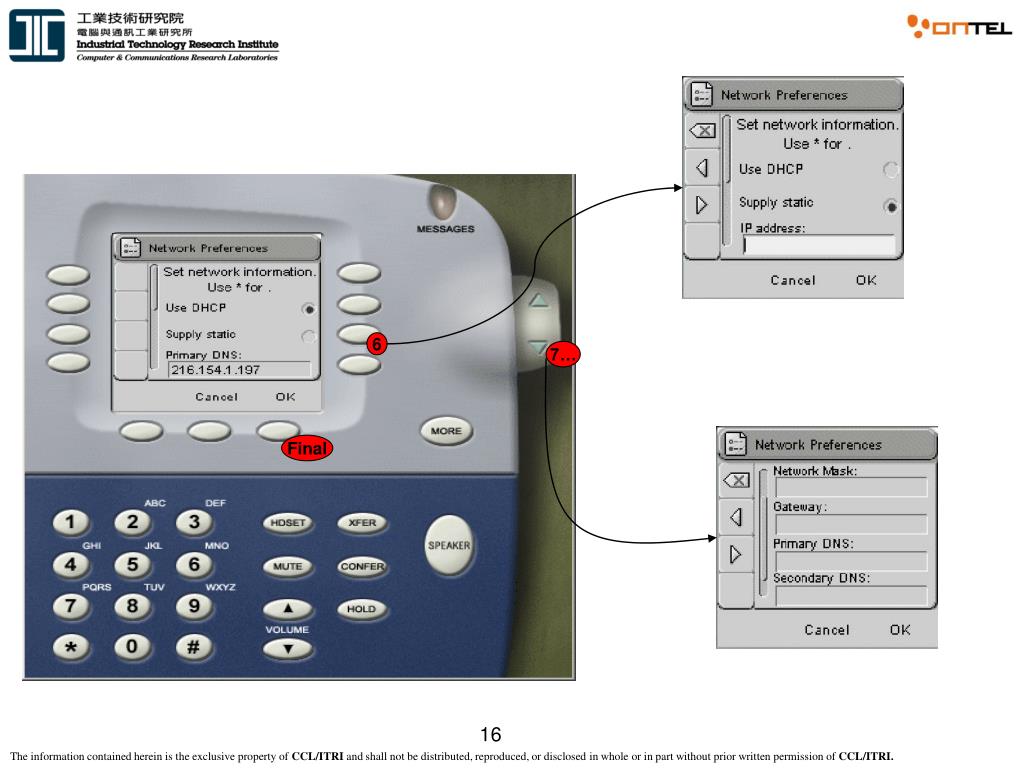

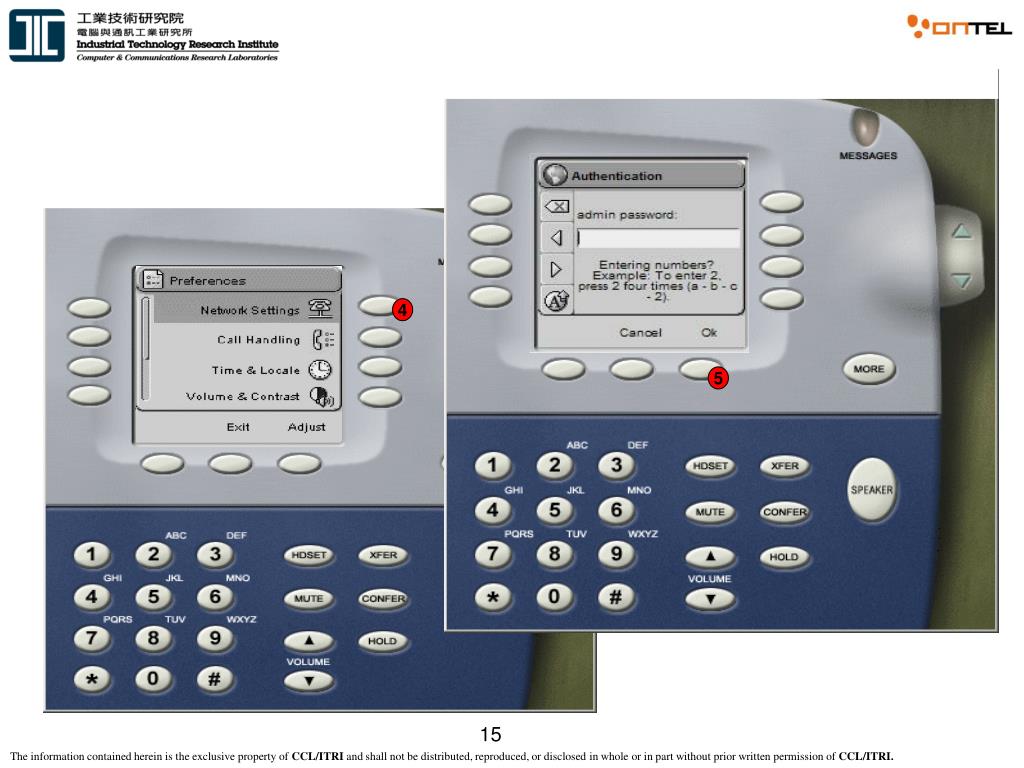

  14. Network Settings • IP address • Network mask • Gateway • DNS 3 2 1

  15. 4 5

  16. 6 7… Final

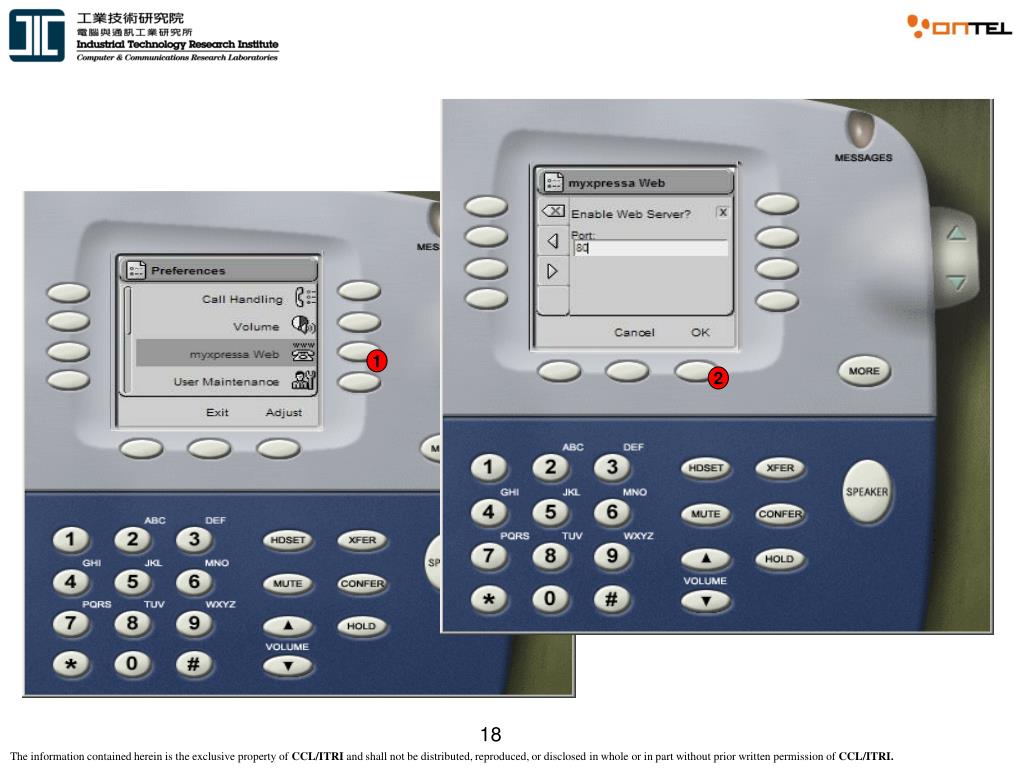

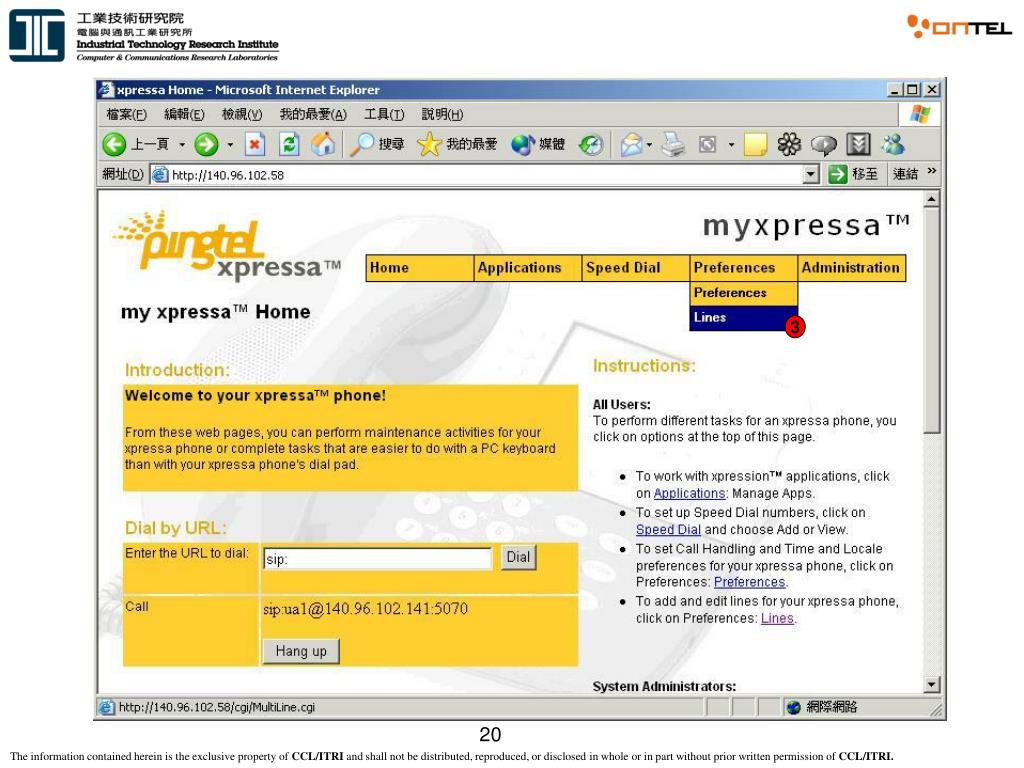

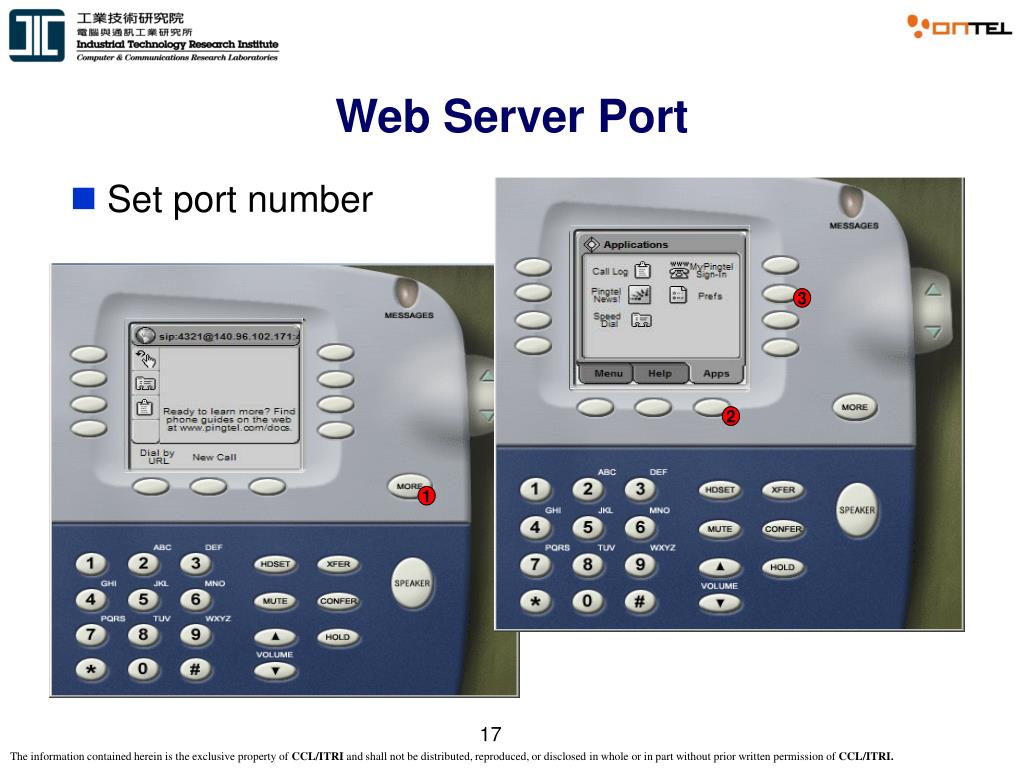

  17. Web Server Port • Set port number 3 2 1

  18. 1 2

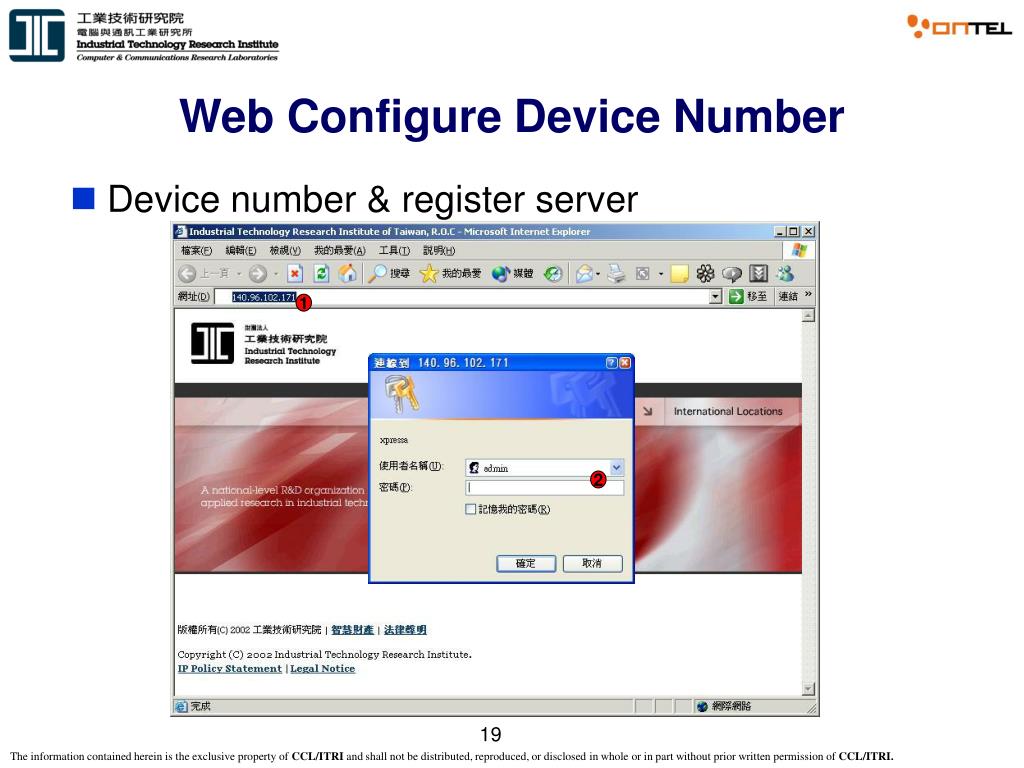

  19. 1 2 Web Configure Device Number • Device number & register server

  20. 3

  21. 4

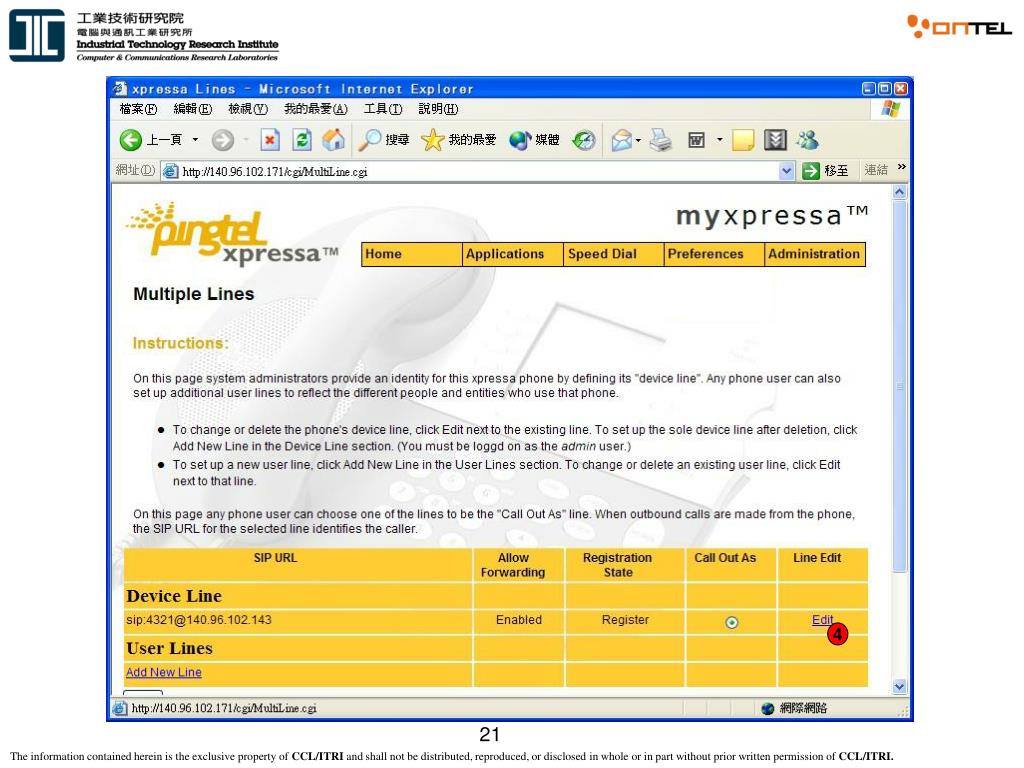

  22. sip:<DeviceNumber>@<RegisterServer> 5

  23. Web Configure Digit Map • Digit Map • Proxy Server 1

  24. Megaco Softphone

  25. MGC IP & Local MGID • MGC IP address • MGID 1 2

  26. Q & A • Any Question ?
