FPSO Experience Database JIP

FPSO Experience Database JIP. FPSO Research Forum 16 October 2002 Santiago de Compostela, Spain. Presented by:. Robert Spong ABS Consulting. Presentation Outline. Brief Background ABS/ABS Consulting Motivation for Experience Database JIP Objectives of JIP Description of Tasks

Download Presentation

FPSO Experience Database JIP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.


Presentation Transcript

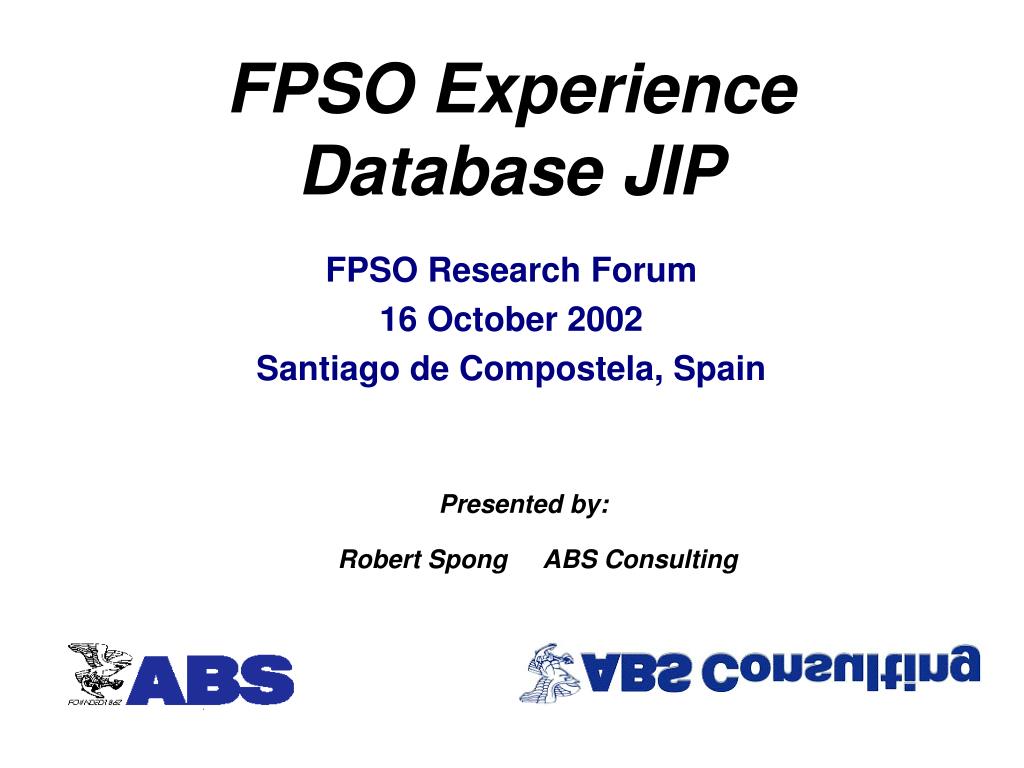

  1. FPSO Experience Database JIP FPSO Research Forum 16 October 2002 Santiago de Compostela, Spain Presented by: Robert Spong ABS Consulting

  2. Presentation Outline • Brief Background ABS/ABS Consulting • Motivation for Experience Database JIP • Objectives of JIP • Description of Tasks • Cost & Schedule • JIP Contact Information

  3. ABS Bureau & ABS Consulting • Classification Society • 2,500 employees in 300 offices in 70 countries • Extensive marine & offshore experience • Approximately 1/2 market share of worldwide FPS’ • Approximately 1/4 market share of tankers • Marine & Offshore Consulting • 1,200 staff in 50 offices worldwide • Numerous support services • Risk assessments (RBIs, QRAs, HAZOPs, etc.) • Advanced engineering • Blast modeling & testing • Special studies (JIPs, RPs, etc.)

  4. Recent Projects Related to Proposed JIP • In-service inspection planning • Risk based plans • FPSOs (P-35, Zafiro Producer) • Semis (Thunder Horse) • Fixed platform fleets (BP West Java, Unocal Thailand) • Prescriptive plans (Holstein Spar, Neptune Spar) • Risk studies • Hull configuration risk (Su Tu Den FPSO) • Mooring configuration risk & reliability study (P-37, P-43/48 FPSOs) • HAZID, HAZOPS & Reliability studies (CNG Carriers and LNG & GTL FPSO concepts)

  5. Motivation for Experience Database JIP • Limited operating experience to draw upon when making decisions regarding FPSO hull integrity • Typically draw upon tanker operating experience for • Corrosion rate estimates • Construction detail performance • Coating performance • FPSOs are not tankers • No dry docking • Cargo content vary • Offloading frequencies are higher • Site specific

  6. Motivation for Experience Database JIP • Continued growth of FPSO fleet increases need for a more complete set of experience based operational data (across company lines) • Past efforts to collect FPSO data generated general information but not quantity or detail required to • Assess current design and maintenance practices • Develop firm foundation for implementation of RBI or other inspection techniques Central Theme: “Need for more FPSO specific operating experience.”

  7. Objectives of Experience Database JIP • Aggressively collect experienced based operating data to evaluate influence of FPSO/FSO specific operations on hull integrity and determine implications on design and while on site • Evaluation of influence of FPSO specific operations on structural integrity to enhance decision making process related to FPSOs • Design • Maintenance and inspection • Operations

  8. Objectives of Experience Database JIP • Provide Guidance and Application Tools • Lessons learned • Assessment tools • In-service inspection tools

  9. ABS & Other Society Survey Archives Information Flow Diagram ... Operator 2 Operator N Operator 1 Task 5 -Documentation Task 4 -Evaluation Task 2 & 3 - Data Collection • Lessons learned • Applicability of industry practices • Tools and guidance on risk based inspection applications Experience Data Set Literature Review ABS Tanker Database

  10. Data Collection • ABS internal data • Survey data (FPSO/FSO & tankers) • Condition assessment data • Technology studies • JIP participant internal data • Inspection data • Cargo composition • Operational profile • Corrosion protection • FPSO features • Repair history

  11. Data Collection & Data Recording • Collection methods • Participant interviews • Response to written queries • Interface with participant FPSO data owners • Main groups • Operating units • Clean up data • Remove relationship between data and vessel/operator (i.e., ensure operator anonymity) • Organize and categorize data • Identify erroneous and missing data

  12. Evaluation & Deliverables • General Data Set Evaluation - “Lessons learned” • Trends • Alternative approaches used by different operators for integrity management • Risk mitigation alternatives • Influence of operating conditions on hull integrity • Numerical Data Set Evaluation (inspection guidance) • Spatial zoning of corrosion • Confidence level for probabilistic corrosion rates • Effect of inspection on corrosion rate estimates

  13. Evaluation & Deliverables • Identify areas where additional data collection is warranted and provide recommendations on collection methods and procedures • Develop foundation for future application and guidance on alternative inspection planning techniques Example Rule-Based Inspection Plan

  14. Schedule & Cost Proposal Sent Out August 2002 Commitment Deadline 31 Dec 02 JIP Completion Jan 04 Meet with Interested Participants JIP Kick-off 31 Jan 03 1st Quarter 2004 3rd Quarter 2002 4th Quarter 2002 1st Quarter 2003 • Approximately one year duration • Cost: US$39,000 per participant • Minimum number participants: 7

  15. JIP Contact Information Primary Contact: Robert Spong Ph: 1-281-480-3800 email: rspong@absconsulting.com Bret Montaruli Manager, Offshore Engineering email: bmontaruli@eagle.org Europe Contact: James Phipps Ph: 44(0)1925 287344 email: jphipps@absconsulting.com Other contacts: Frank Puskar Vice President email: fpuskar@absconsulting.com
