  1. Schedule • Today: • Query Processing overview Holliday - COEN 178

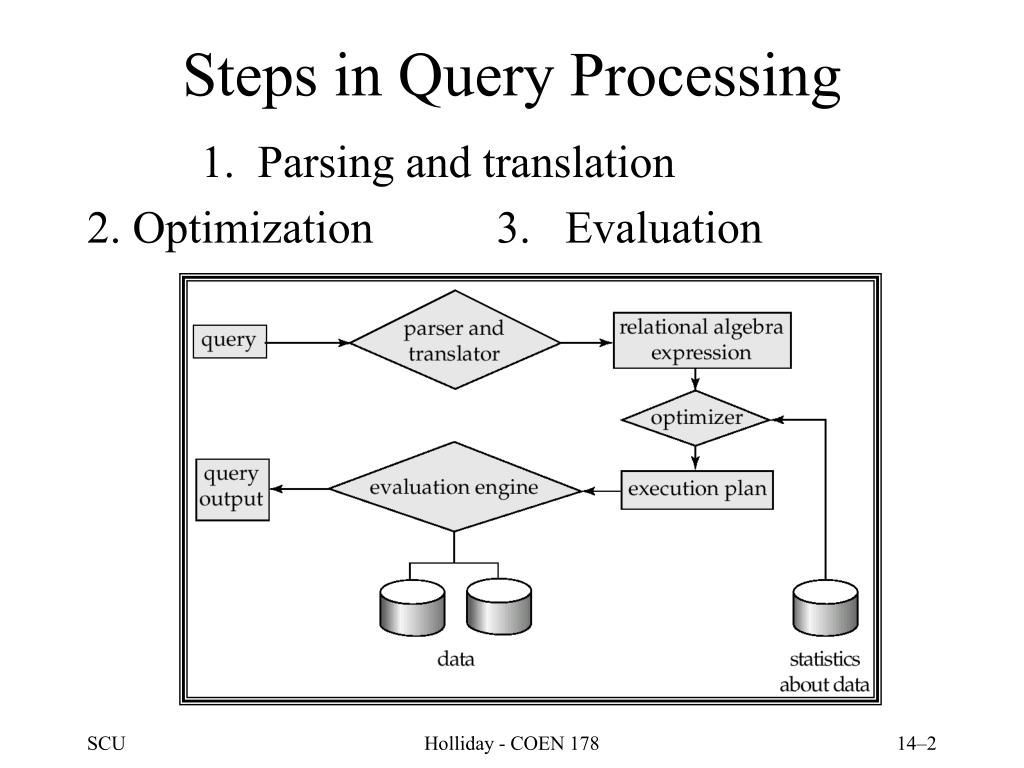

  2. Steps in Query Processing 1. Parsing and translation 2. Optimization 3. Evaluation Holliday - COEN 178

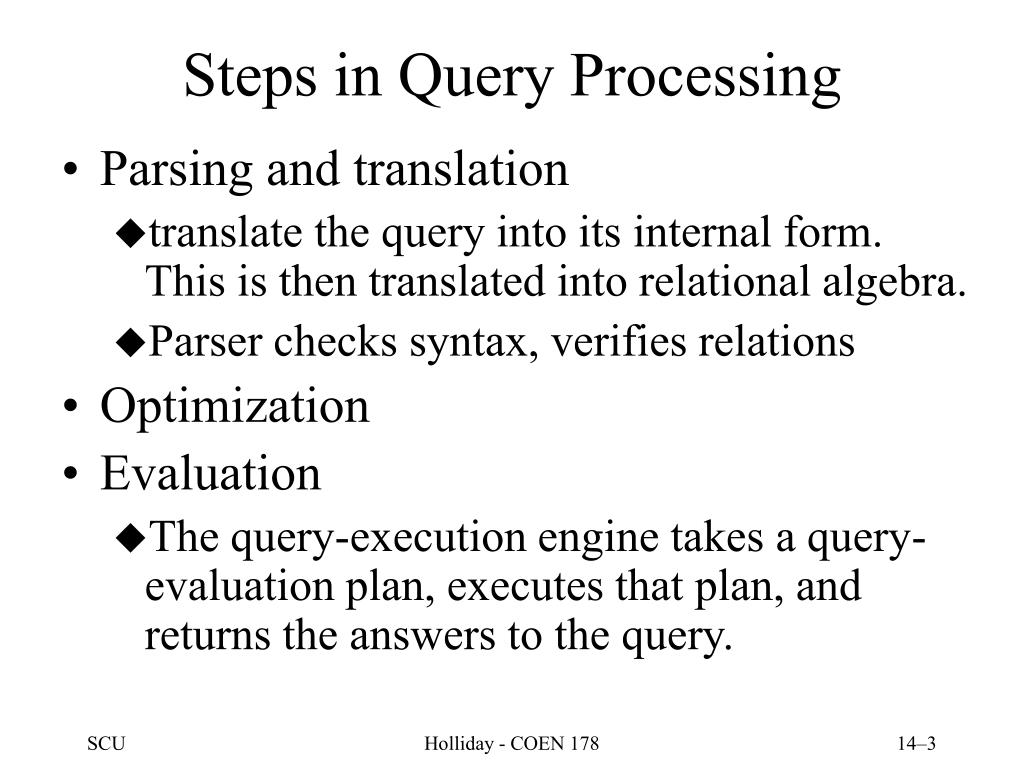

  3. Steps in Query Processing • Parsing and translation • translate the query into its internal form. This is then translated into relational algebra. • Parser checks syntax, verifies relations • Optimization • Evaluation • The query-execution engine takes a query-evaluation plan, executes that plan, and returns the answers to the query. Holliday - COEN 178

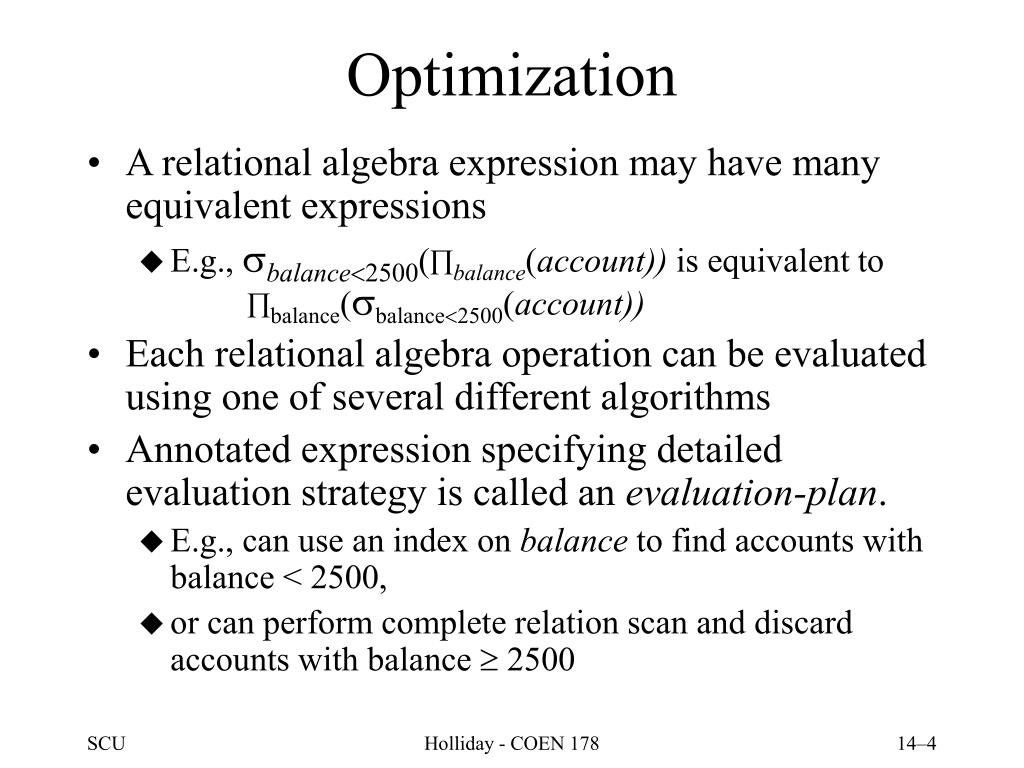

  4. Optimization • A relational algebra expression may have many equivalent expressions • E.g., balance2500(balance(account)) is equivalent to balance(balance2500(account)) • Each relational algebra operation can be evaluated using one of several different algorithms • Annotated expression specifying detailed evaluation strategy is called an evaluation-plan. • E.g., can use an index on balance to find accounts with balance < 2500, • or can perform complete relation scan and discard accounts with balance  2500 Holliday - COEN 178

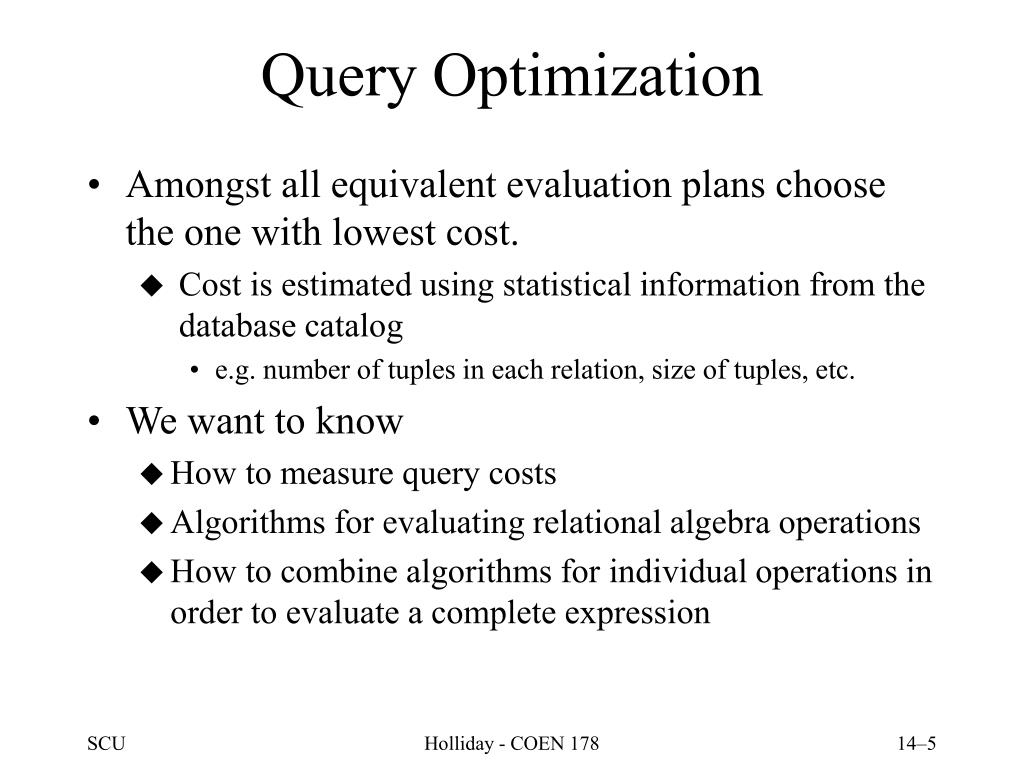

  5. Query Optimization • Amongst all equivalent evaluation plans choose the one with lowest cost. • Cost is estimated using statistical information from the database catalog • e.g. number of tuples in each relation, size of tuples, etc. • We want to know • How to measure query costs • Algorithms for evaluating relational algebra operations • How to combine algorithms for individual operations in order to evaluate a complete expression Holliday - COEN 178

  6. Measures of Query Cost • Cost is generally measured as total elapsed time for answering query • Many factors contribute to time cost • disk accesses, CPU, or even network communication • Typically disk access is the predominant cost, and is also relatively easy to estimate. Measured by taking into account • Number of seeks * average-seek-cost • Number of blocks read * average-block-read-cost • Number of blocks written * average-block-write-cost • Cost to write a block is greater than cost to read a block • data is read back after being written to ensure that the write was successful Holliday - COEN 178

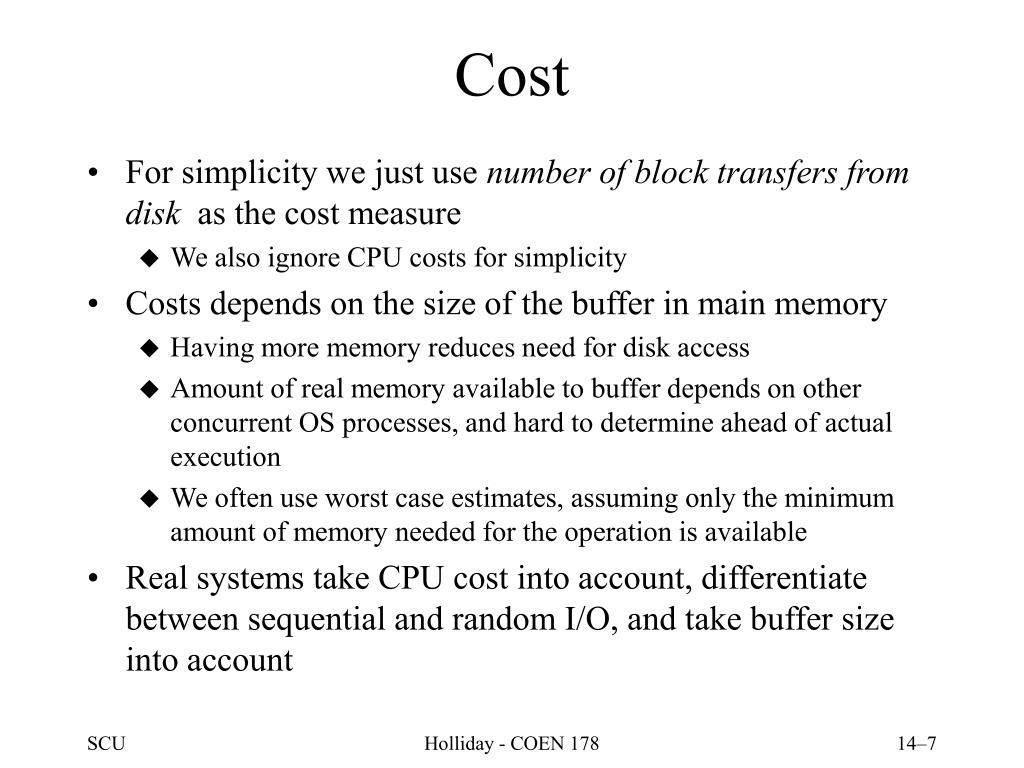

  7. Cost • For simplicity we just use number of block transfers from disk as the cost measure • We also ignore CPU costs for simplicity • Costs depends on the size of the buffer in main memory • Having more memory reduces need for disk access • Amount of real memory available to buffer depends on other concurrent OS processes, and hard to determine ahead of actual execution • We often use worst case estimates, assuming only the minimum amount of memory needed for the operation is available • Real systems take CPU cost into account, differentiate between sequential and random I/O, and take buffer size into account Holliday - COEN 178

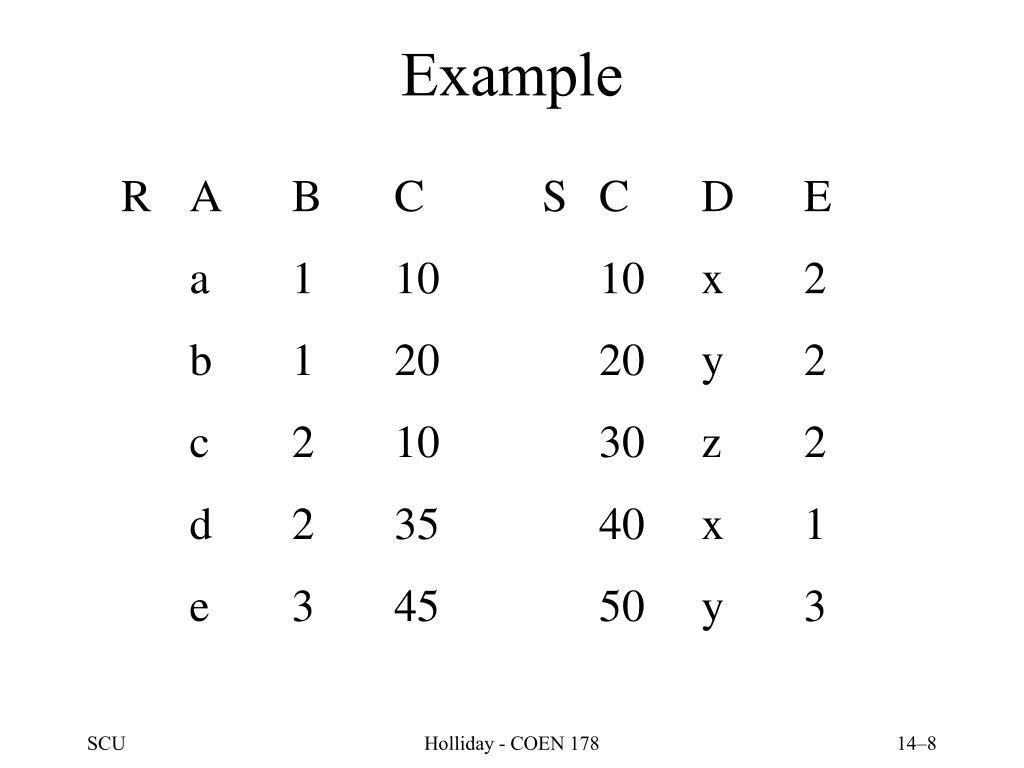

  8. Example R A B C S C D E a 1 10 10 x 2 b 1 20 20 y 2 c 2 10 30 z 2 d 2 35 40 x 1 e 3 45 50 y 3 Holliday - COEN 178

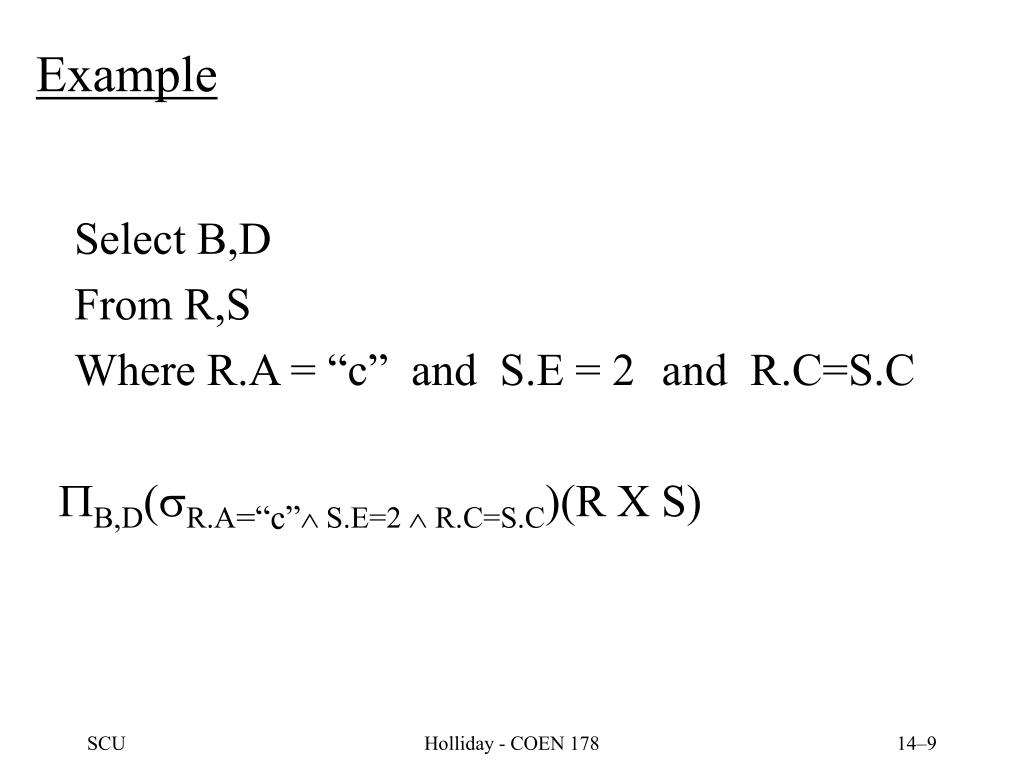

  9. Example Select B,D From R,S Where R.A = “c” and S.E = 2 and R.C=S.C B,D(sR.A=“c” S.E=2  R.C=S.C)(R X S) Holliday - COEN 178

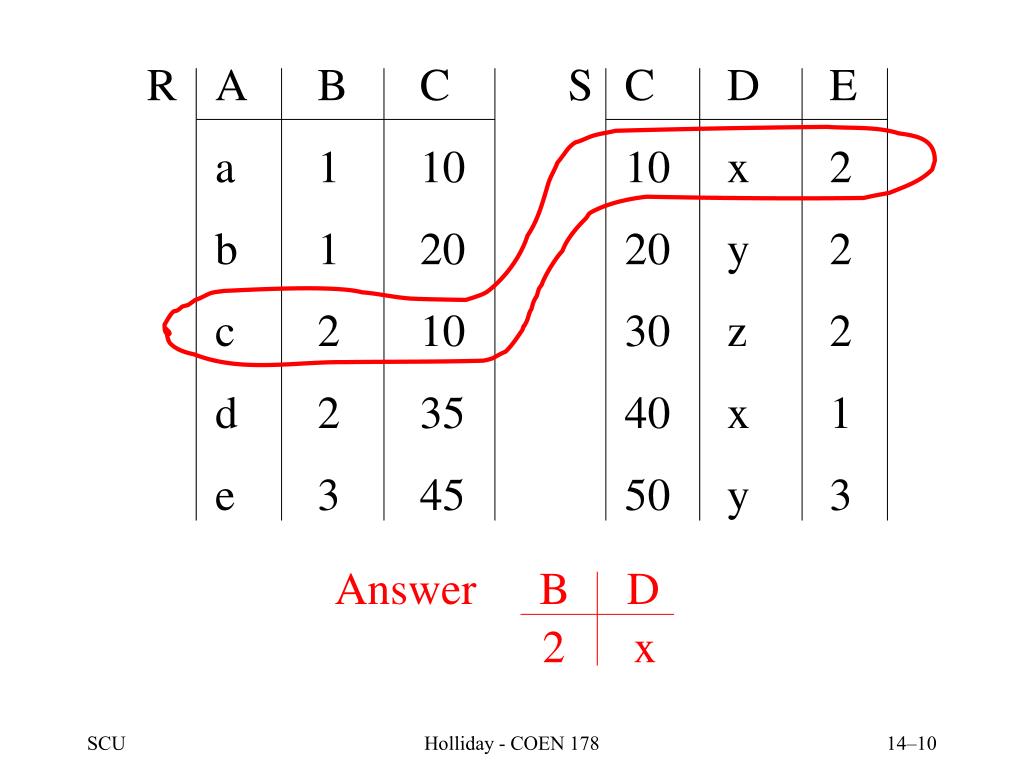

  10. Answer B D 2 x R A B C S C D E a 1 10 10 x 2 b 1 20 20 y 2 c 2 10 30 z 2 d 2 35 40 x 1 e 3 45 50 y 3 Holliday - COEN 178

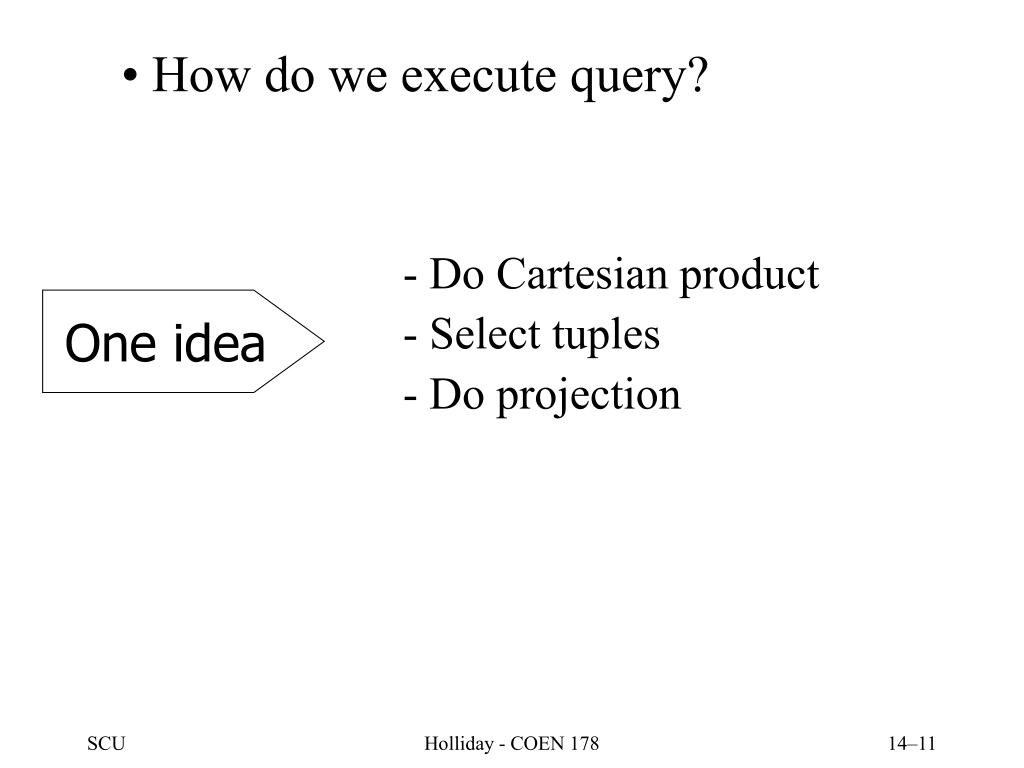

  11. How do we execute query? - Do Cartesian product - Select tuples - Do projection One idea Holliday - COEN 178

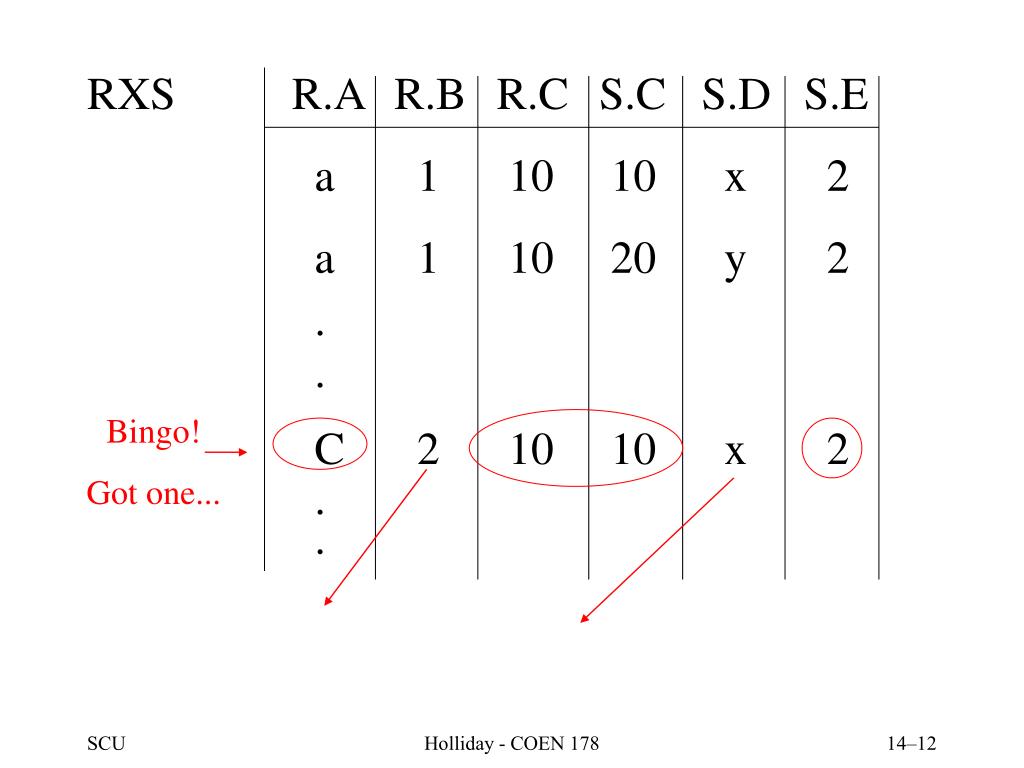

  12. Bingo! Got one... RXS R.A R.B R.C S.C S.D S.E a 1 10 10 x 2 a 1 10 20 y 2 . . C 2 10 10 x 2 . . Holliday - COEN 178

  13. Relational Algebra - can be used to describe plans... Ex: Plan I B,D sR.A=“c” S.E=2  R.C=S.C X R S OR: B,D [sR.A=“c” S.E=2  R.C = S.C (RXS)] Holliday - COEN 178

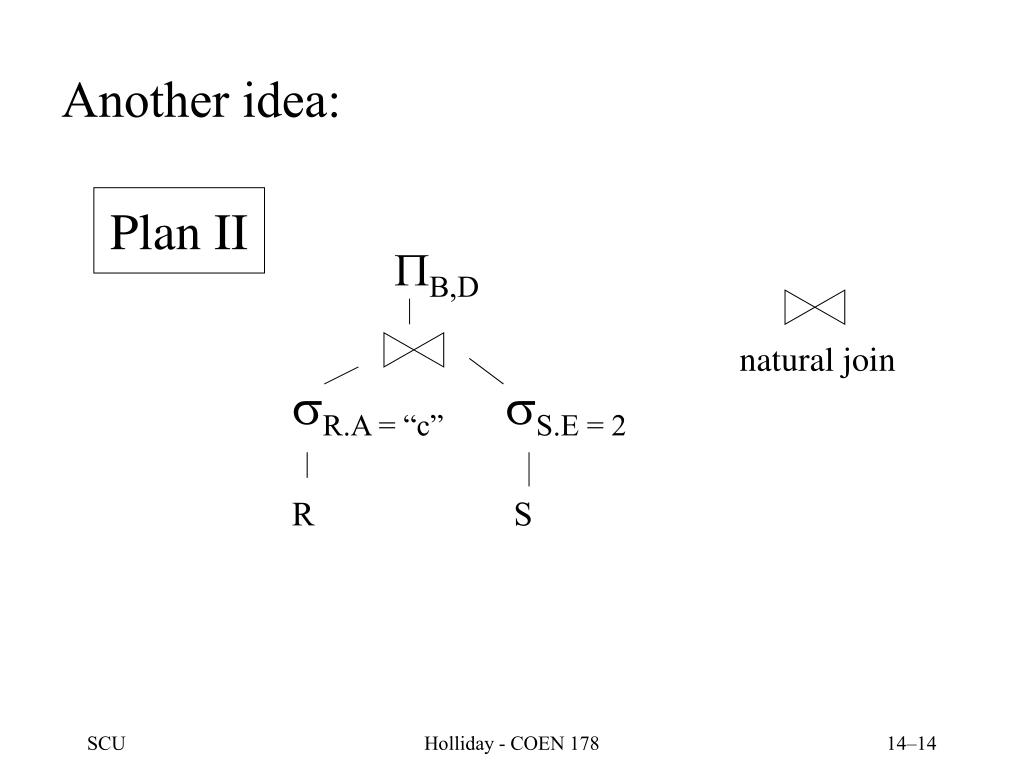

  14. Another idea: B,D sR.A = “c”sS.E = 2 R S Plan II natural join Holliday - COEN 178

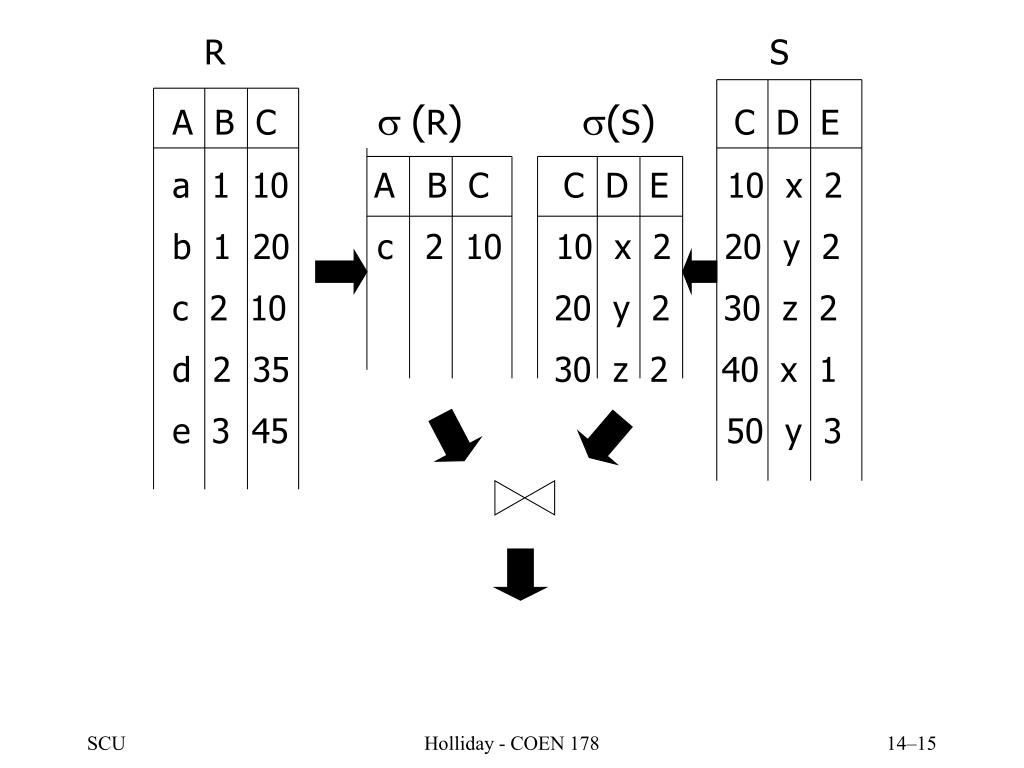

  15. R S A B C s (R) s(S) C D E a 1 10 A B C C D E 10 x 2 b 1 20 c 2 10 10 x 2 20 y 2 c 2 10 20 y 2 30 z 2 d 2 35 30 z 2 40 x 1 e 3 45 50 y 3 Holliday - COEN 178

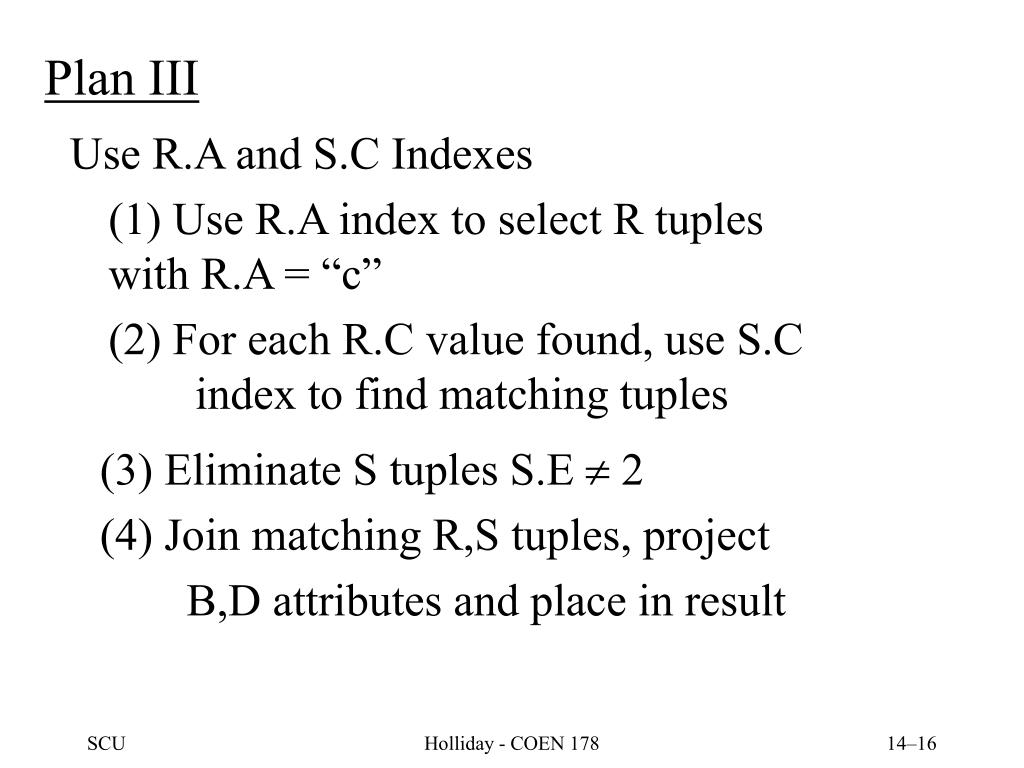

  16. Plan III Use R.A and S.C Indexes (1) Use R.A index to select R tuples with R.A = “c” (2) For each R.C value found, use S.C index to find matching tuples (3) Eliminate S tuples S.E  2 (4) Join matching R,S tuples, project B,D attributes and place in result Holliday - COEN 178

  17. =“c” <c,2,10> <10,x,2> check=2? output: <2,x> next tuple: <c,7,15> R S A B C C D E a 1 10 10 x 2 b 1 20 20 y 2 c 2 10 30 z 2 d 2 35 40 x 1 e 3 45 50 y 3 A C I1 I2 Holliday - COEN 178

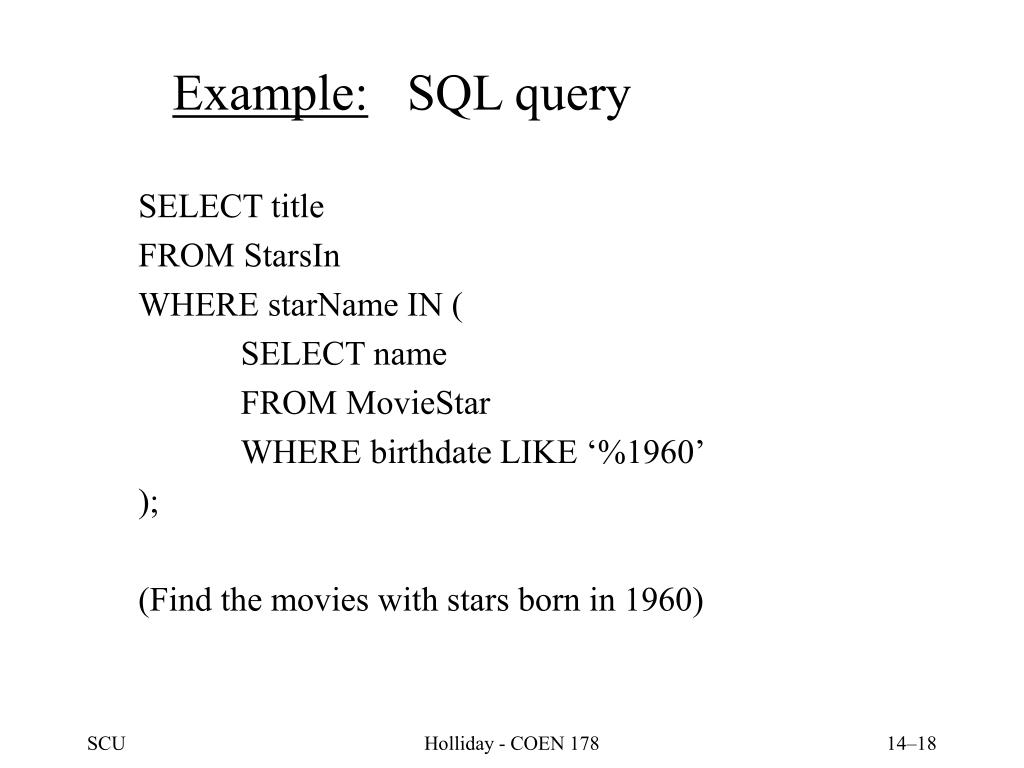

  18. Example: SQL query SELECT title FROM StarsIn WHERE starName IN ( SELECT name FROM MovieStar WHERE birthdate LIKE ‘%1960’ ); (Find the movies with stars born in 1960) Holliday - COEN 178

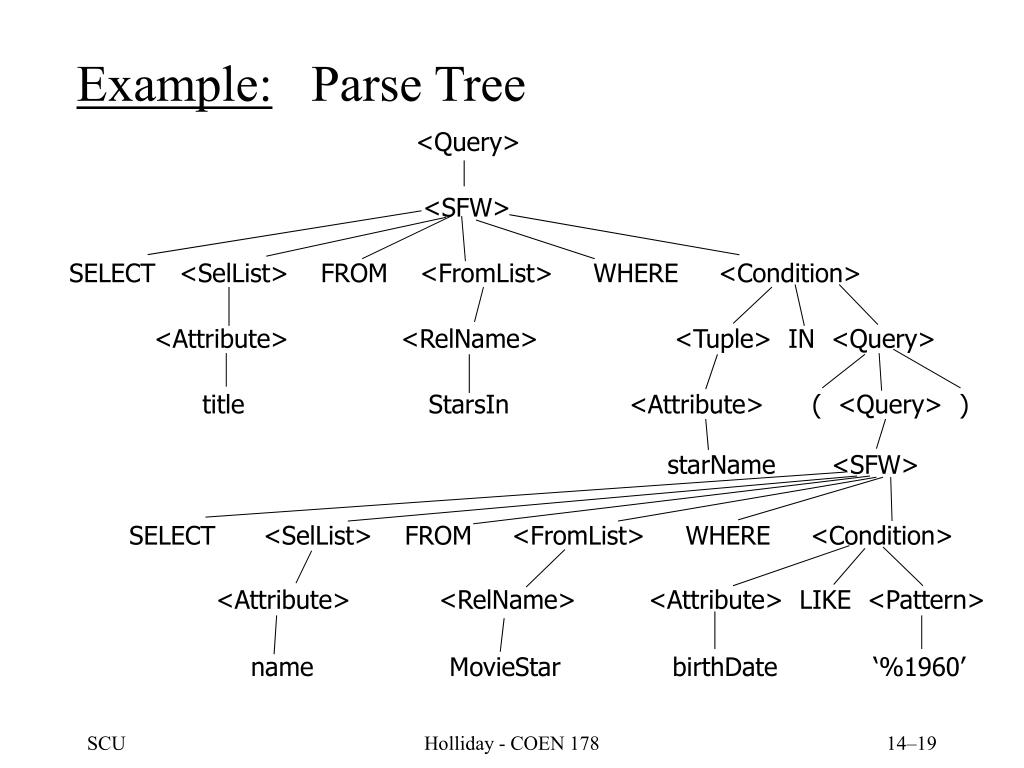

  19. Example: Parse Tree <Query> <SFW> SELECT <SelList> FROM <FromList> WHERE <Condition> <Attribute> <RelName> <Tuple> IN <Query> title StarsIn <Attribute> ( <Query> ) starName <SFW> SELECT <SelList> FROM <FromList> WHERE <Condition> <Attribute> <RelName> <Attribute> LIKE <Pattern> name MovieStar birthDate ‘%1960’ Holliday - COEN 178

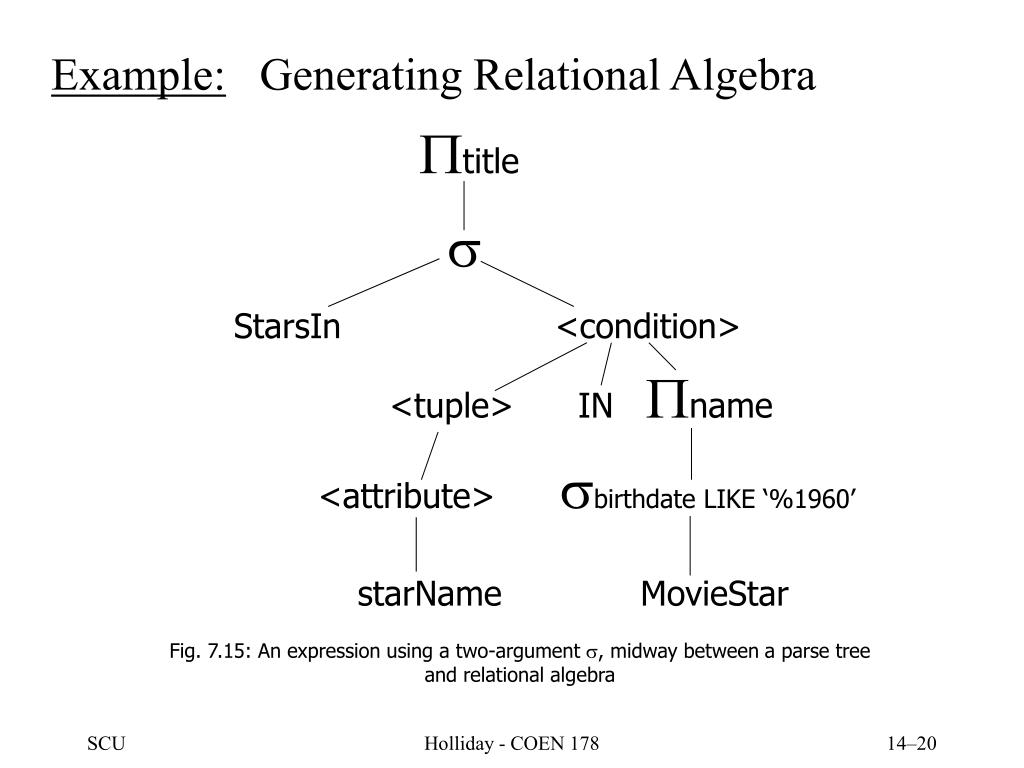

  20. Example: Generating Relational Algebra title  StarsIn <condition> <tuple> IN name <attribute> birthdate LIKE ‘%1960’ starName MovieStar Fig. 7.15: An expression using a two-argument , midway between a parse tree and relational algebra Holliday - COEN 178

  21. Example: Logical Query Plan title starName=name  StarsIn name birthdate LIKE ‘%1960’ MovieStar Fig. 7.18: Applying the rule for IN conditions Holliday - COEN 178

  22. Example: Improved Logical Query Plan title Question: Push project to StarsIn? starName=name StarsIn name birthdate LIKE ‘%1960’ MovieStar Fig. 7.20: An improvement on fig. 7.18. Holliday - COEN 178

  23. Example: Estimate Result Sizes Need expected size StarsIn MovieStar P s Holliday - COEN 178

  24. Selection Operation • File scan – search algorithms that locate and retrieve records that fulfill a selection condition. • Algorithm A1 (linear search). Scan each file block and test all records to see whether they satisfy the selection condition. • Cost estimate (number of disk blocks scanned) = br • If selection is on a key attribute, cost = (br /2) • stop on finding record • Linear search can be applied regardless of • selection condition or • ordering of records in the file, or • availability of indices Holliday - COEN 178

  25. Selection continued • A2 (binary search). Applicable if selection is an equality comparison on the attribute on which file is ordered. • Assume that the blocks of a relation are stored contiguously • Cost estimate (number of disk blocks to be scanned): • log2(br) — cost of locating the first tuple by a binary search on the blocks • Plus number of blocks containing records that satisfy selection condition Holliday - COEN 178

  26. Selection with Index Scan • A3 (primary index on candidate key, equality). Retrieve a single record that satisfies the corresponding equality condition • A4 (primary index on nonkey, equality) Retrieve multiple records. • Records will be on consecutive blocks • A5 (equality on search-key of secondary index). • Retrieve a single record if the search-key is a candidate key • Retrieve multiple records if search-key is not a candidate key • Can be very expensive! • each record may be on a different block • one block access for each retrieved record Holliday - COEN 178

  27. Cross Product and Join • We want a way to estimate the size of the results of joins and cross products. • The cross product r  s contains nr * ns tuples and each tuple occupies br + bs bytes • If R  S =, then r s is the same as r  s Holliday - COEN 178

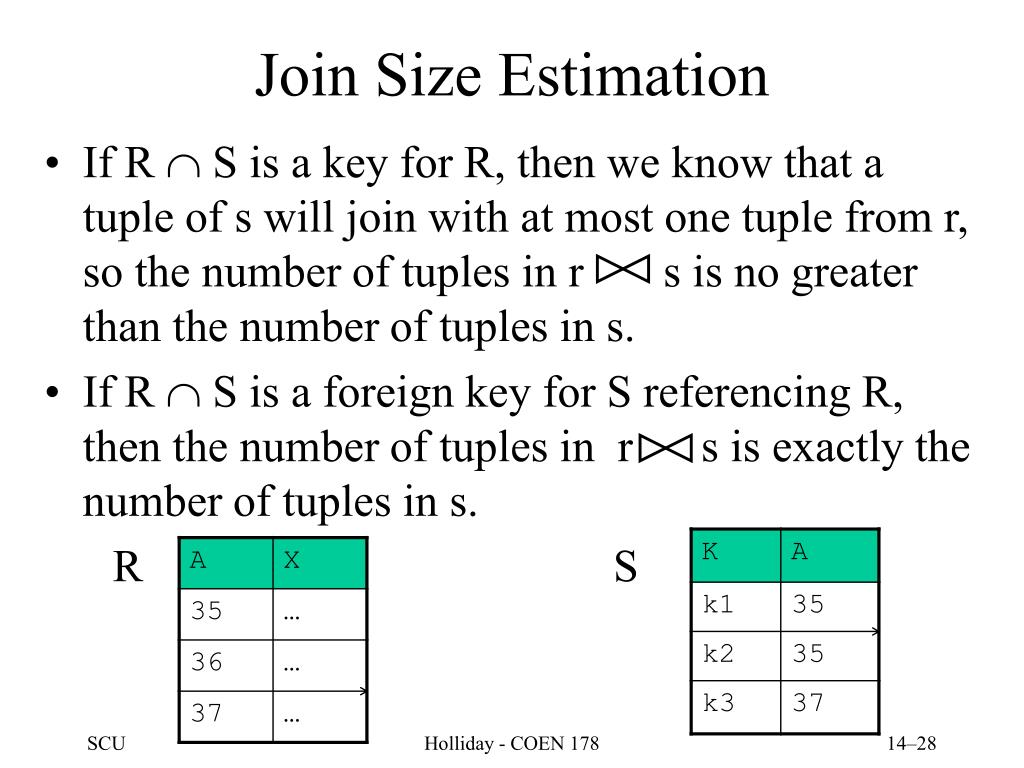

  28. Join Size Estimation • If R  S is a key for R, then we know that a tuple of s will join with at most one tuple from r, so the number of tuples in r s is no greater than the number of tuples in s. • If R  S is a foreign key for S referencing R, then the number of tuples in r s is exactly the number of tuples in s. R S Holliday - COEN 178

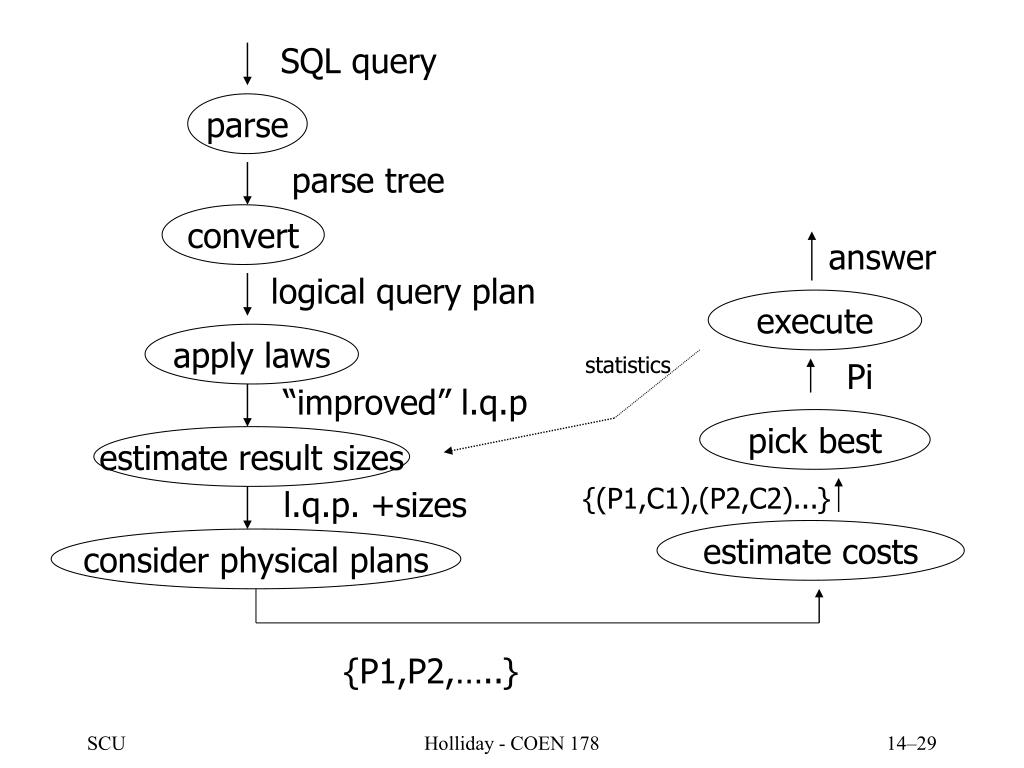

  29. SQL query parse parse tree convert answer logical query plan execute apply laws statistics Pi “improved” l.q.p pick best estimate result sizes {(P1,C1),(P2,C2)...} l.q.p. +sizes estimate costs consider physical plans {P1,P2,…..} Holliday - COEN 178
