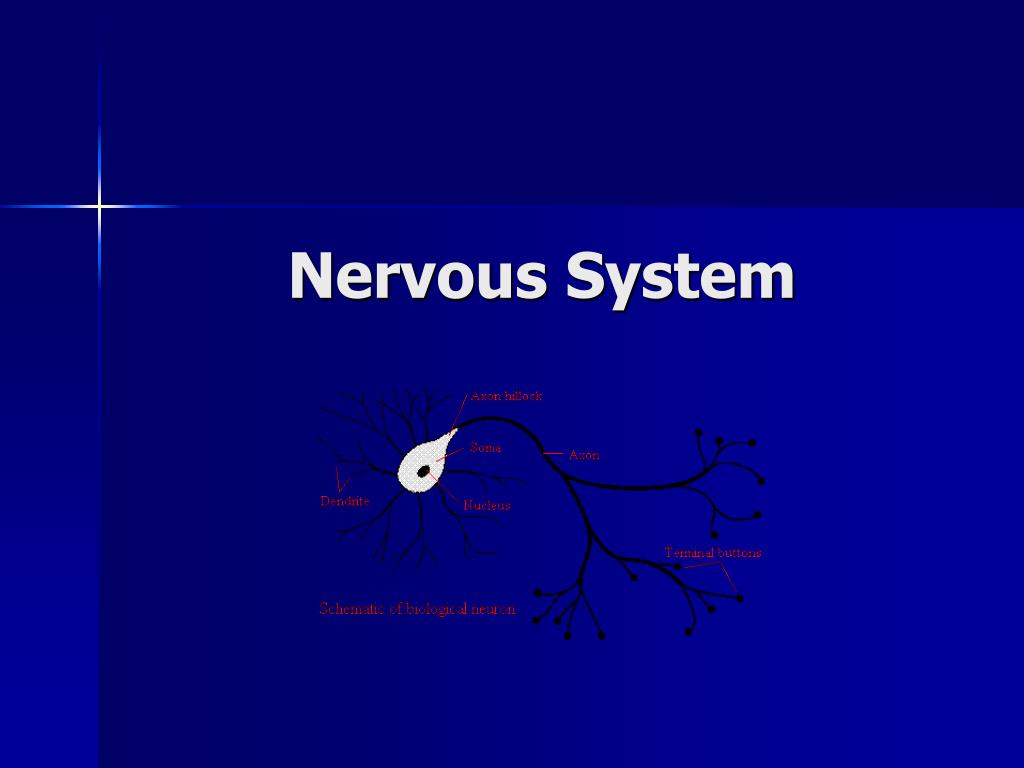

  1. Nervous System

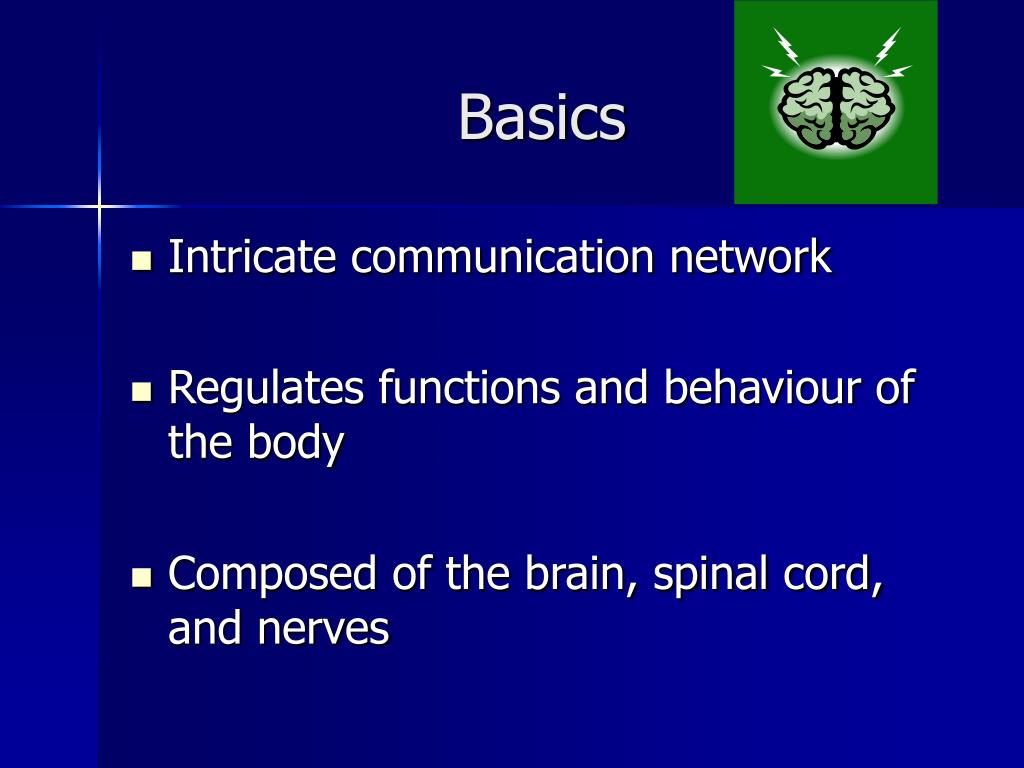

  2. Basics • Intricate communication network • Regulates functions and behaviour of the body • Composed of the brain, spinal cord, and nerves

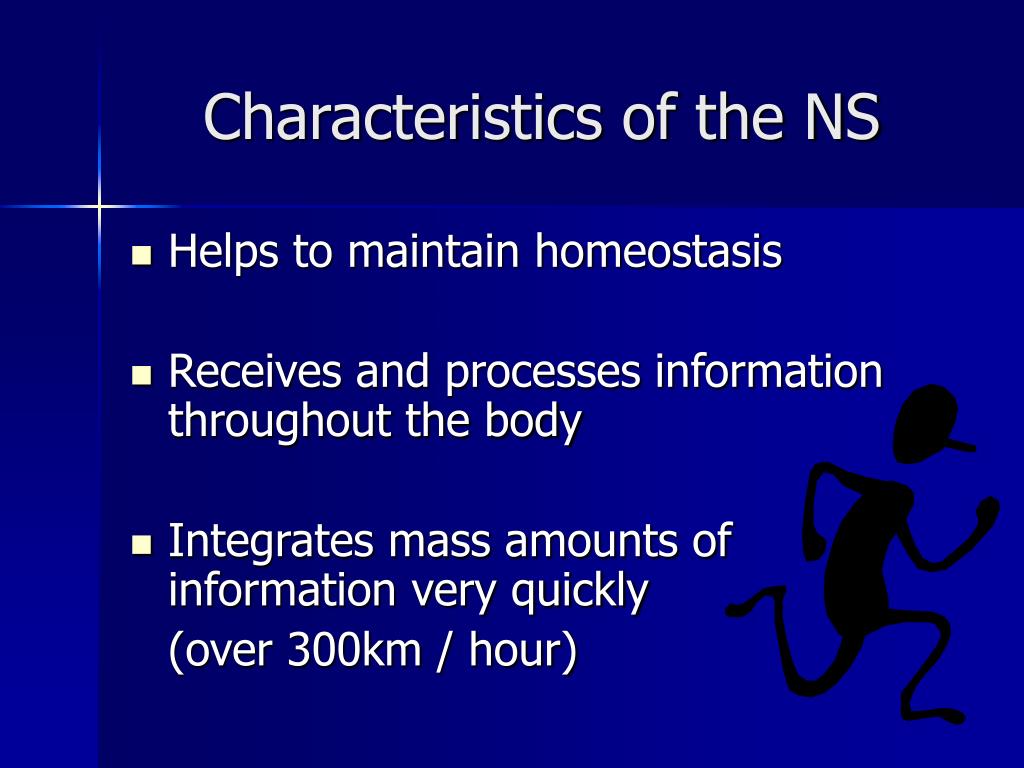

  3. Characteristics of the NS • Helps to maintain homeostasis • Receives and processes information throughout the body • Integrates mass amounts of information very quickly (over 300km / hour)

  4. How it works • Receives information from a stimulus • Responds with the body • Examples??? • Stimulus – Reception – Response

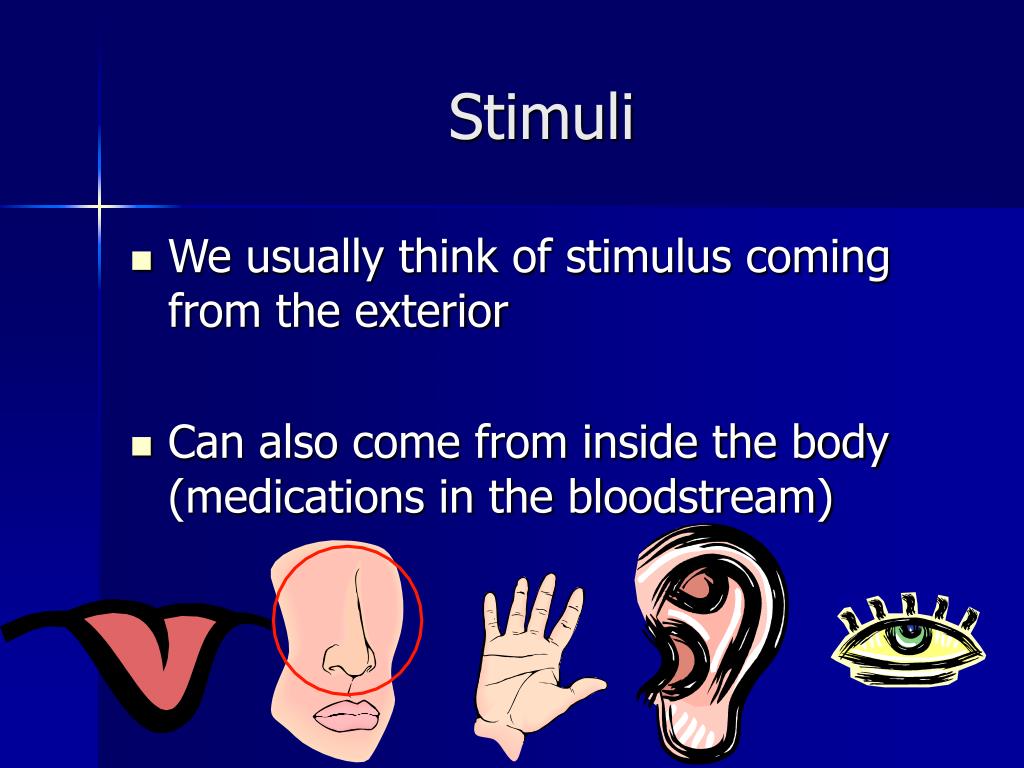

  5. Stimuli • We usually think of stimulus coming from the exterior • Can also come from inside the body (medications in the bloodstream)

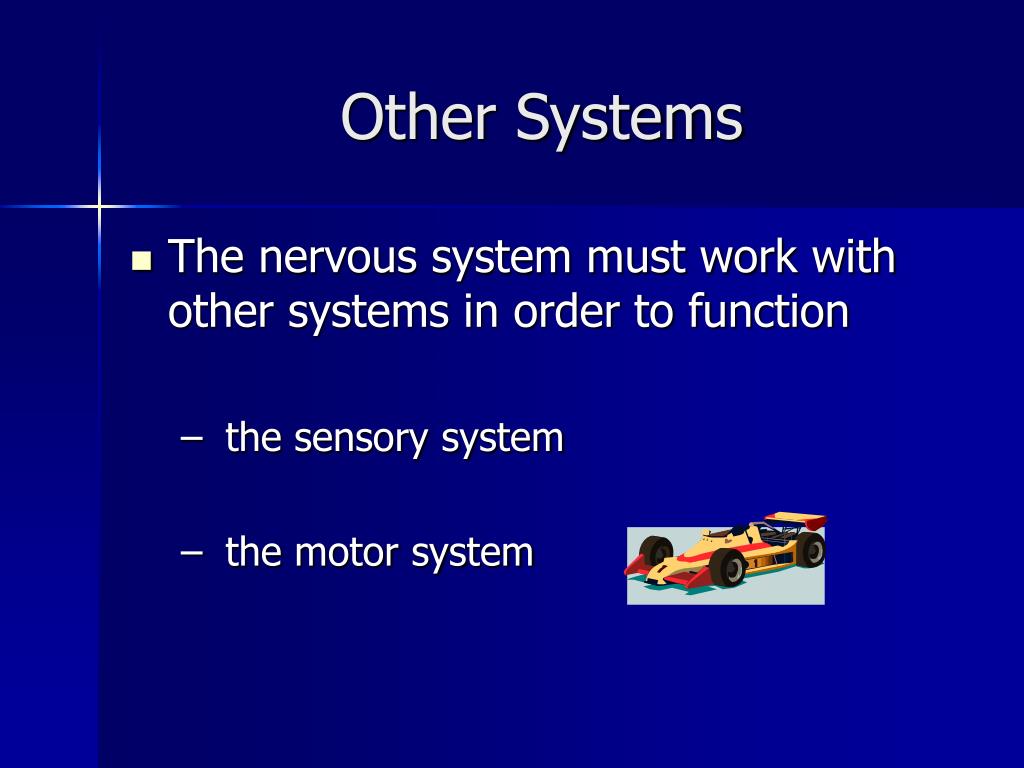

  6. Other Systems • The nervous system must work with other systems in order to function • the sensory system • the motor system

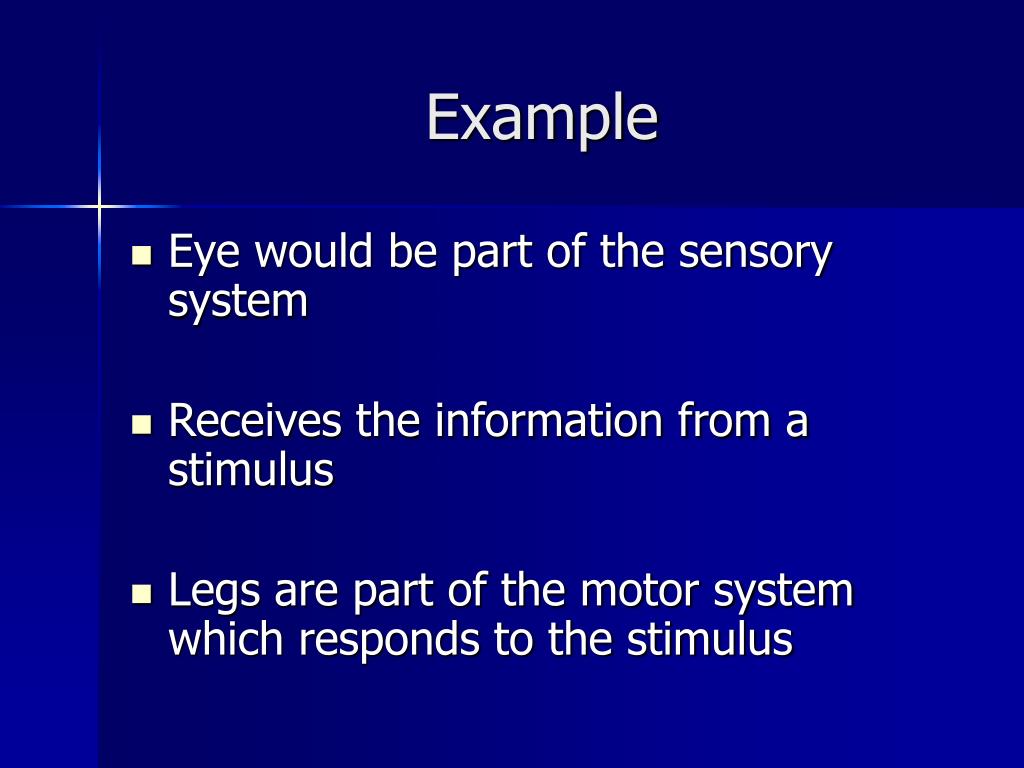

  7. Example • Eye would be part of the sensory system • Receives the information from a stimulus • Legs are part of the motor system which responds to the stimulus

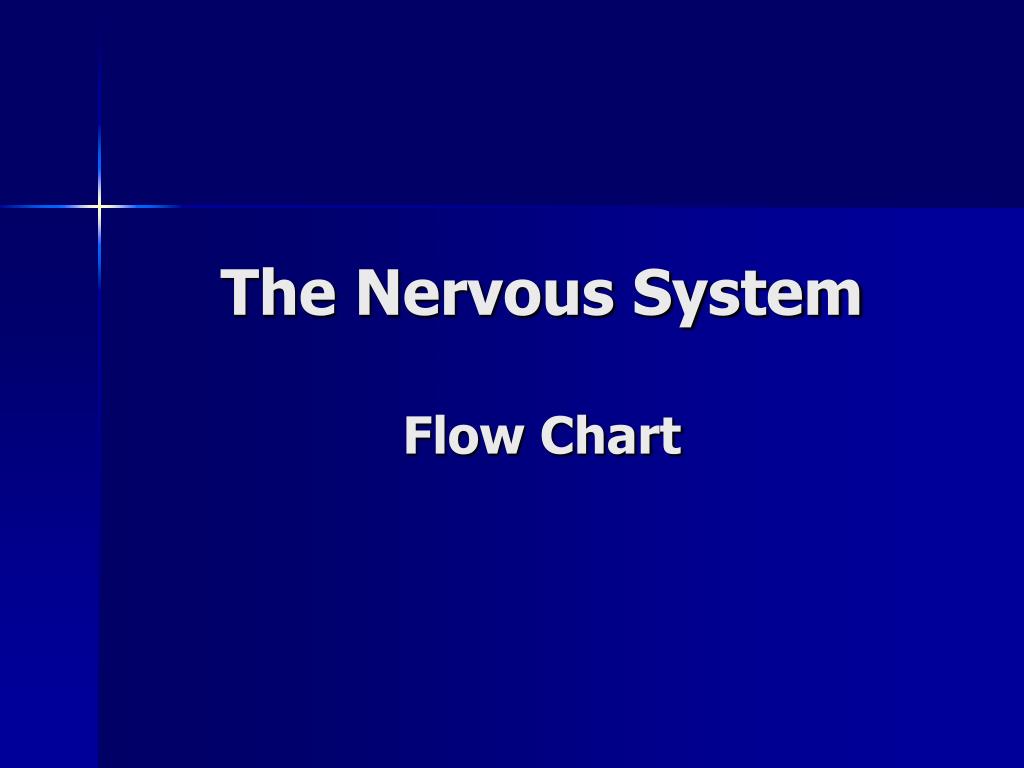

  8. The Nervous SystemFlow Chart

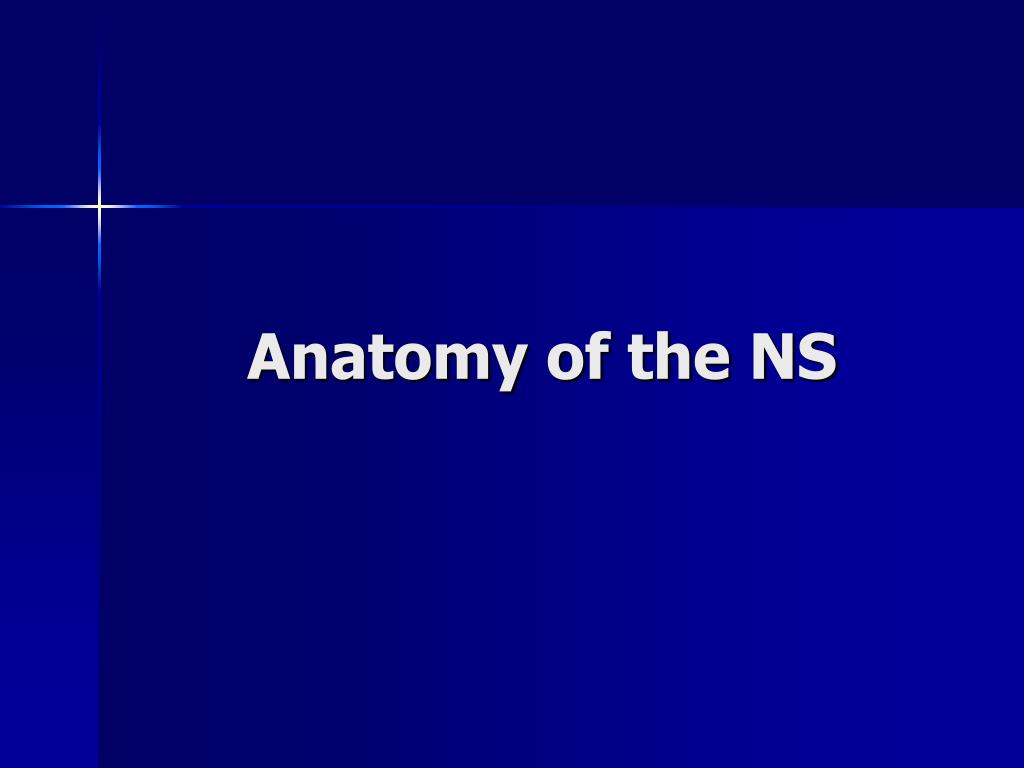

  9. Anatomy of the NS

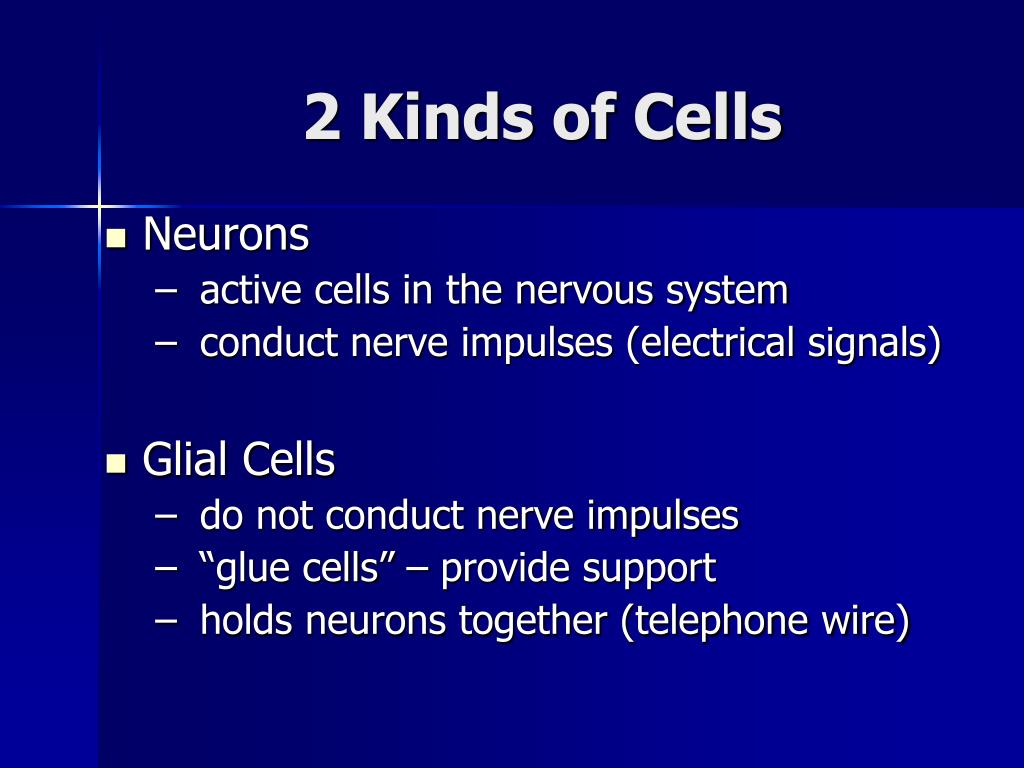

  10. 2 Kinds of Cells • Neurons • active cells in the nervous system • conduct nerve impulses (electrical signals) • Glial Cells • do not conduct nerve impulses • “glue cells” – provide support • holds neurons together (telephone wire)

  11. Nerve Anatomy

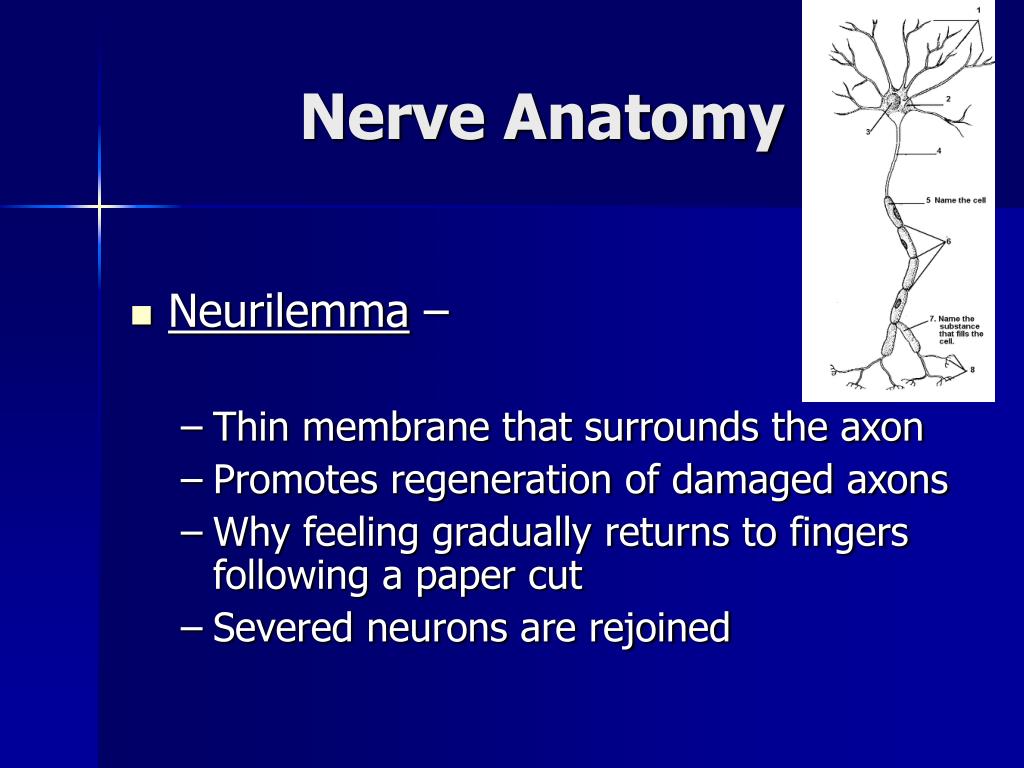

  12. Nerve Anatomy • Neurilemma – • Thin membrane that surrounds the axon • Promotes regeneration of damaged axons • Why feeling gradually returns to fingers following a paper cut • Severed neurons are rejoined

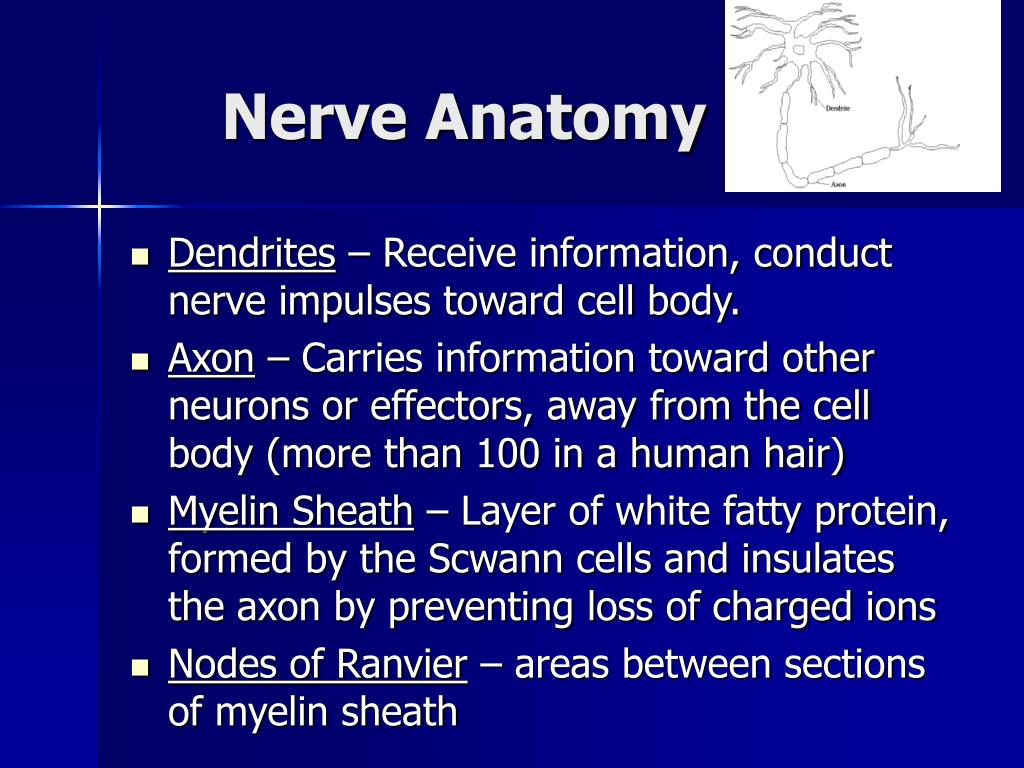

  13. Nerve Anatomy • Dendrites – Receive information, conduct nerve impulses toward cell body. • Axon – Carries information toward other neurons or effectors, away from the cell body (more than 100 in a human hair) • Myelin Sheath – Layer of white fatty protein, formed by the Scwann cells and insulates the axon by preventing loss of charged ions • Nodes of Ranvier – areas between sections of myelin sheath

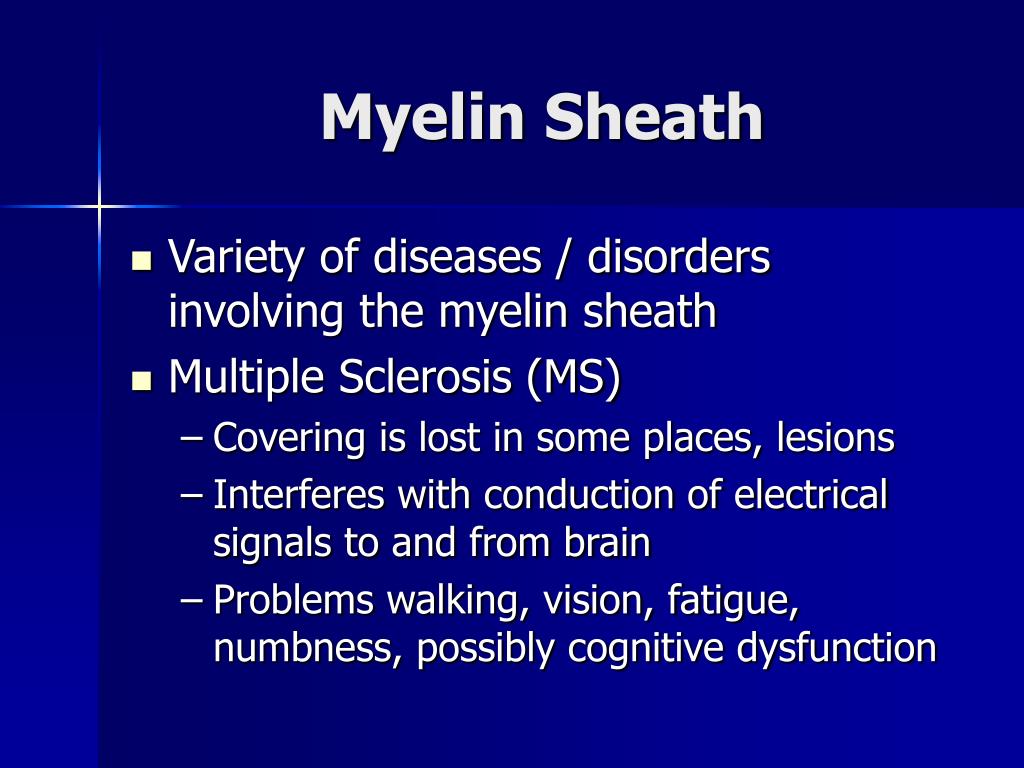

  14. Myelin Sheath • Variety of diseases / disorders involving the myelin sheath • Multiple Sclerosis (MS) • Covering is lost in some places, lesions • Interferes with conduction of electrical signals to and from brain • Problems walking, vision, fatigue, numbness, possibly cognitive dysfunction

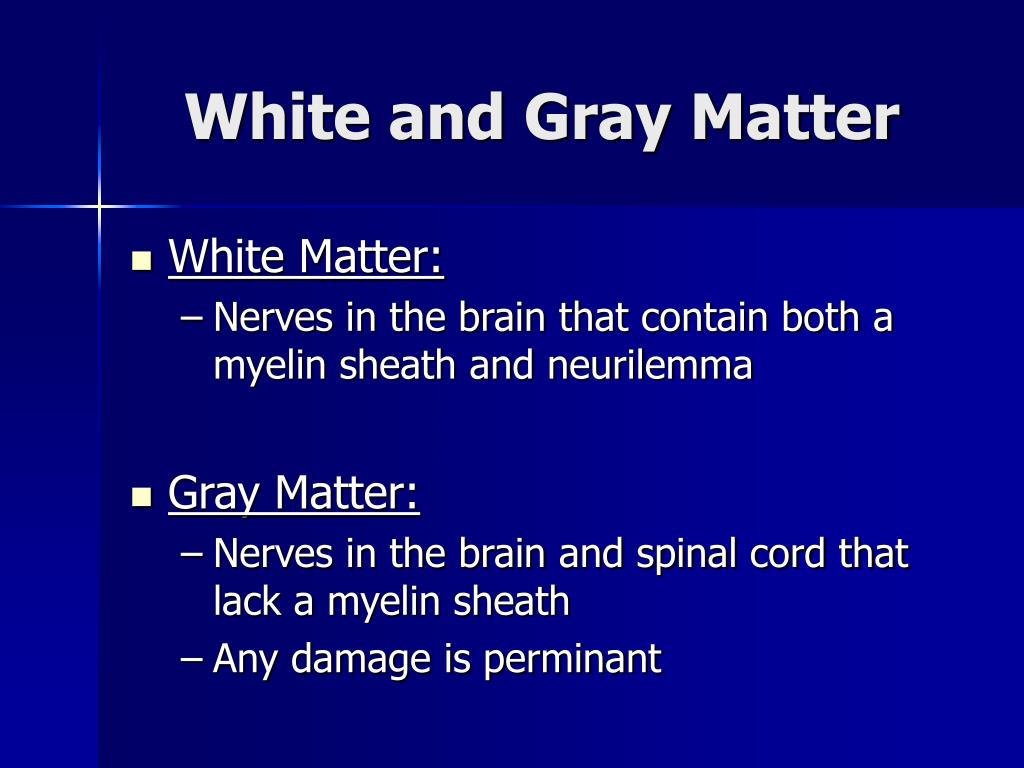

  15. White and Gray Matter • White Matter: • Nerves in the brain that contain both a myelin sheath and neurilemma • Gray Matter: • Nerves in the brain and spinal cord that lack a myelin sheath • Any damage is perminant

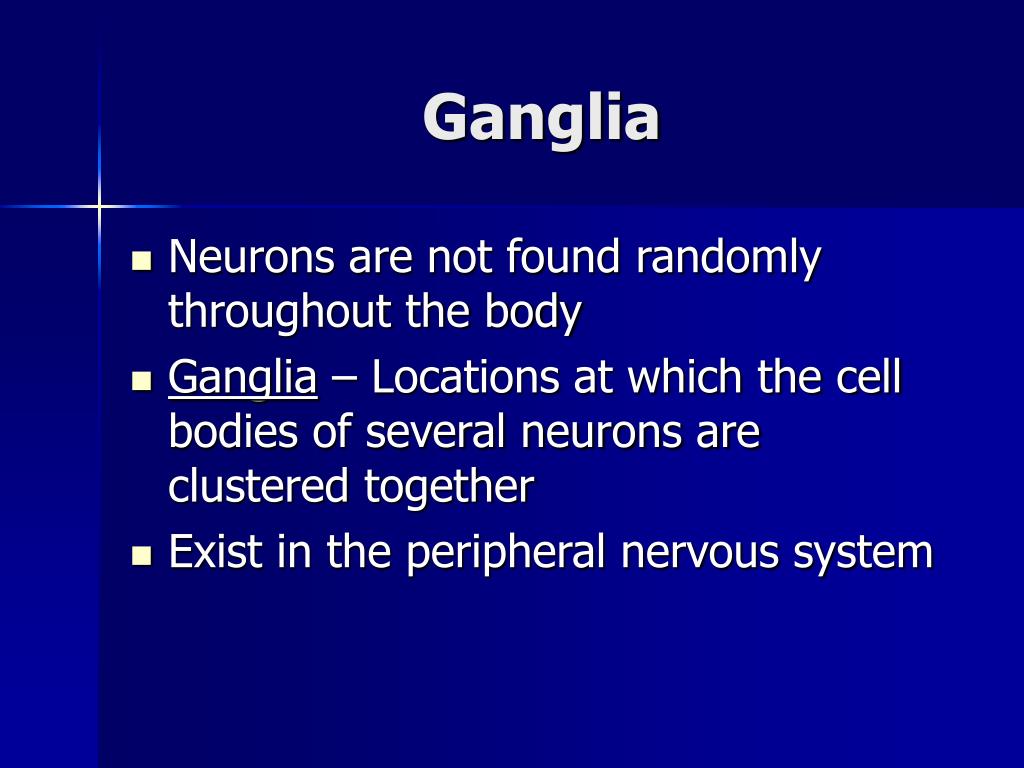

  16. Ganglia • Neurons are not found randomly throughout the body • Ganglia – Locations at which the cell bodies of several neurons are clustered together • Exist in the peripheral nervous system

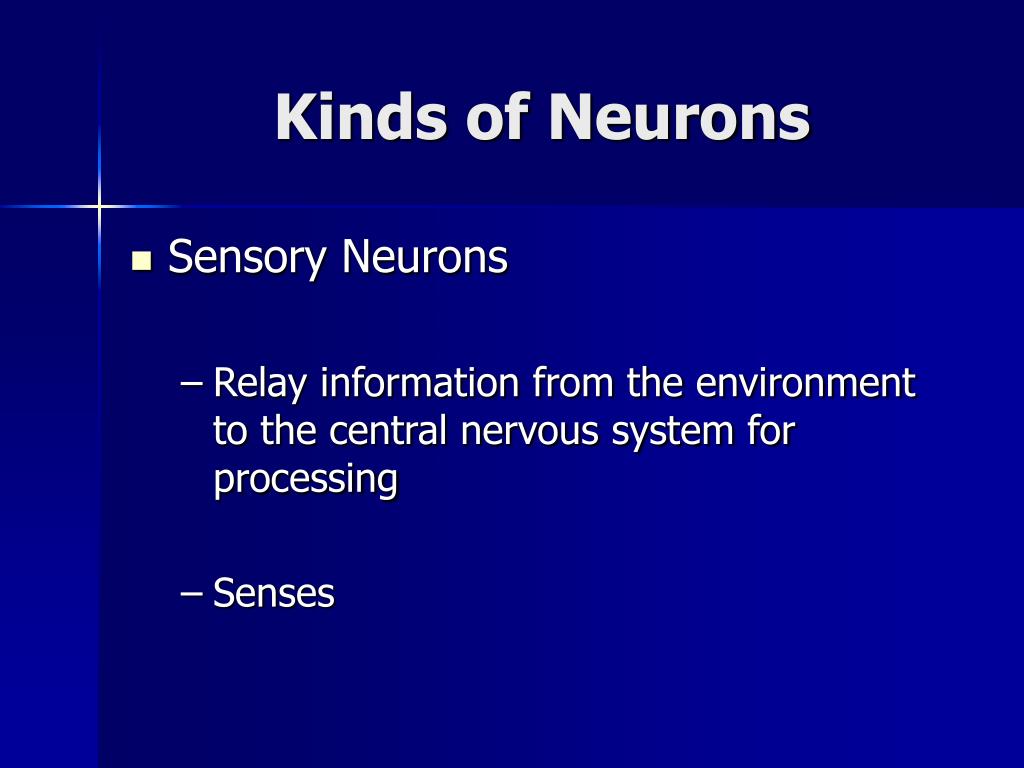

  17. Kinds of Neurons • Sensory Neurons • Relay information from the environment to the central nervous system for processing • Senses

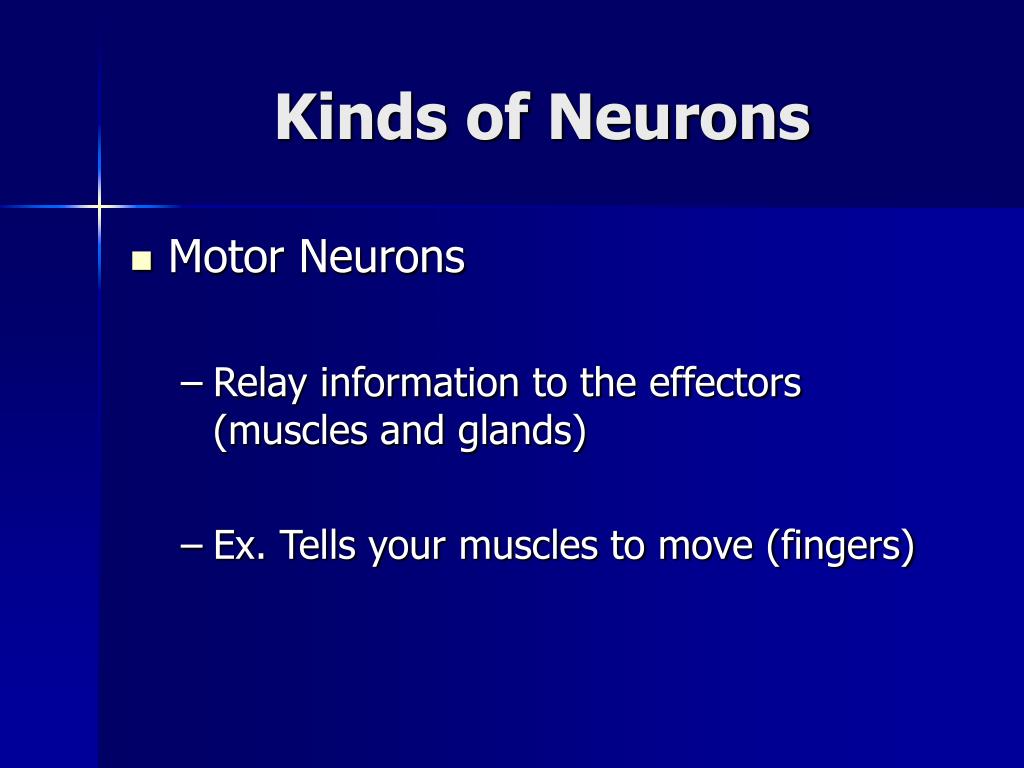

  18. Kinds of Neurons • Motor Neurons • Relay information to the effectors (muscles and glands) • Ex. Tells your muscles to move (fingers)

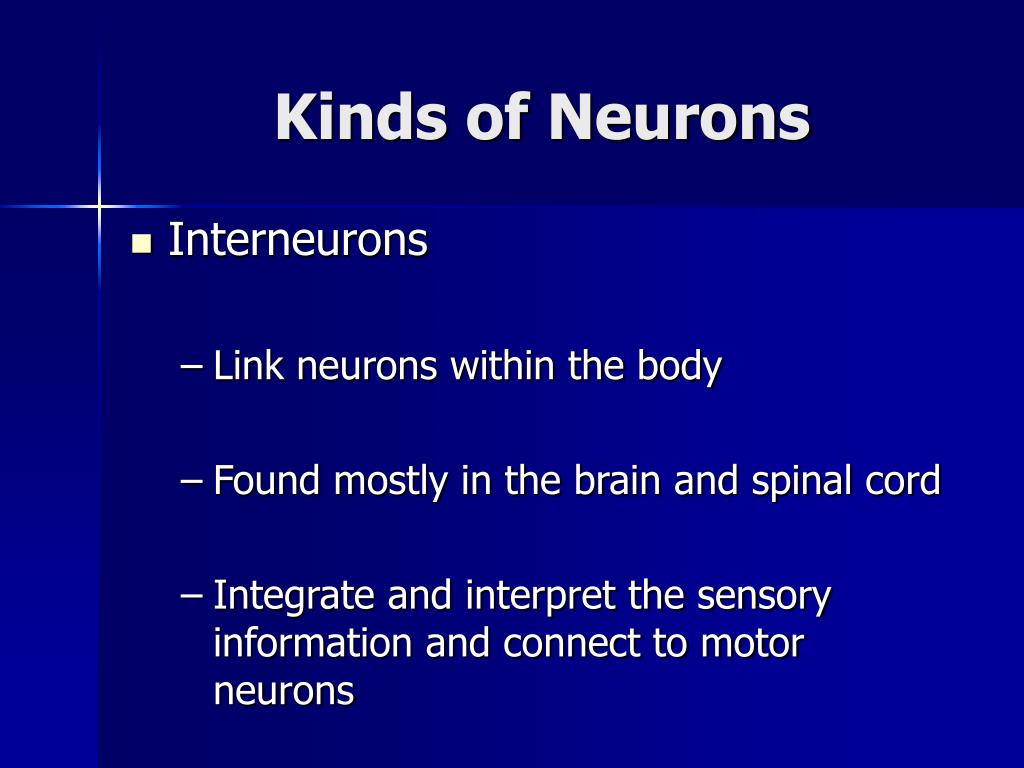

  19. Kinds of Neurons • Interneurons • Link neurons within the body • Found mostly in the brain and spinal cord • Integrate and interpret the sensory information and connect to motor neurons
