Presentation Transcript
overview

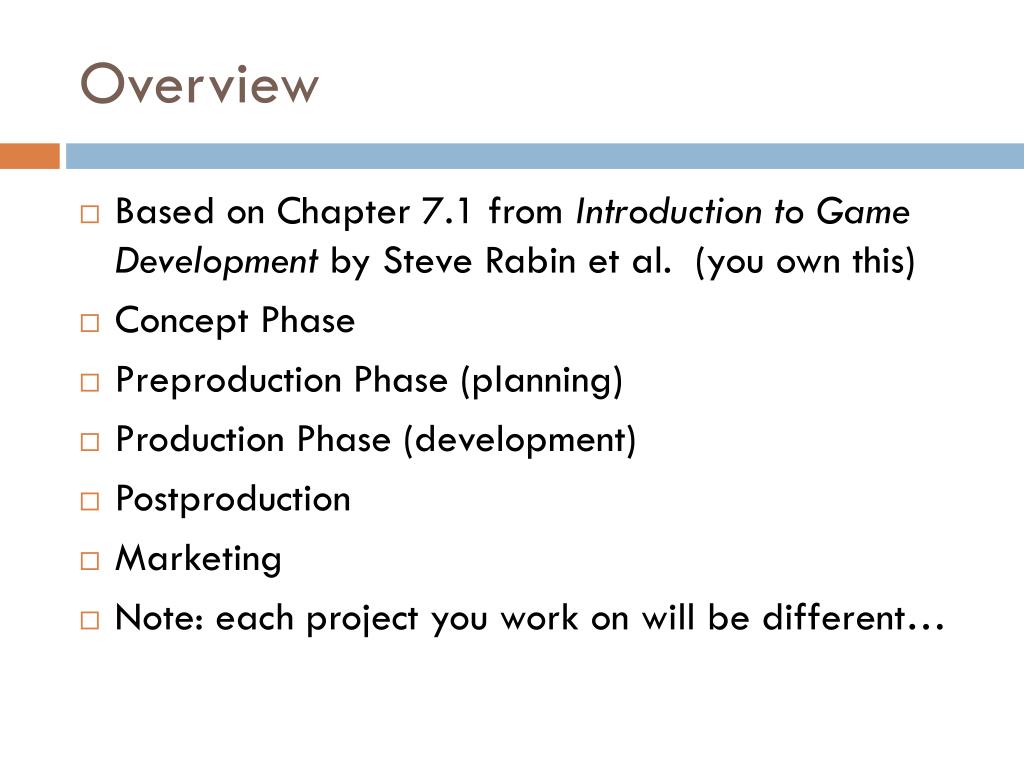

Overview
  • Based on Chapter 7.1 from Introduction to Game Development by Steve Rabin et al. (you own this)
  • Concept Phase
  • Preproduction Phase (planning)
  • Production Phase (development)
  • Postproduction
  • Marketing
  • Note: each project you work on will be different…
meet the producer
Meet the Producer
  • A.k.a. “the Director” or “Project Manager”
  • Manage the development process
    • Work for the publisher
    • Work for the game developers**
  • Typically, they are the first person hired
concept phase
Concept Phase
  • Game concepts:
    • Are typically not the idea of a game designer
    • Are based on some previous IP (Intellectual Property)
    • i.e. - it’s a business decision!!
  • Constraints are given by management
    • Genre
    • Look and feel of characters
    • Mechanics
  • At this point, the producer creates a concept design document
concept document

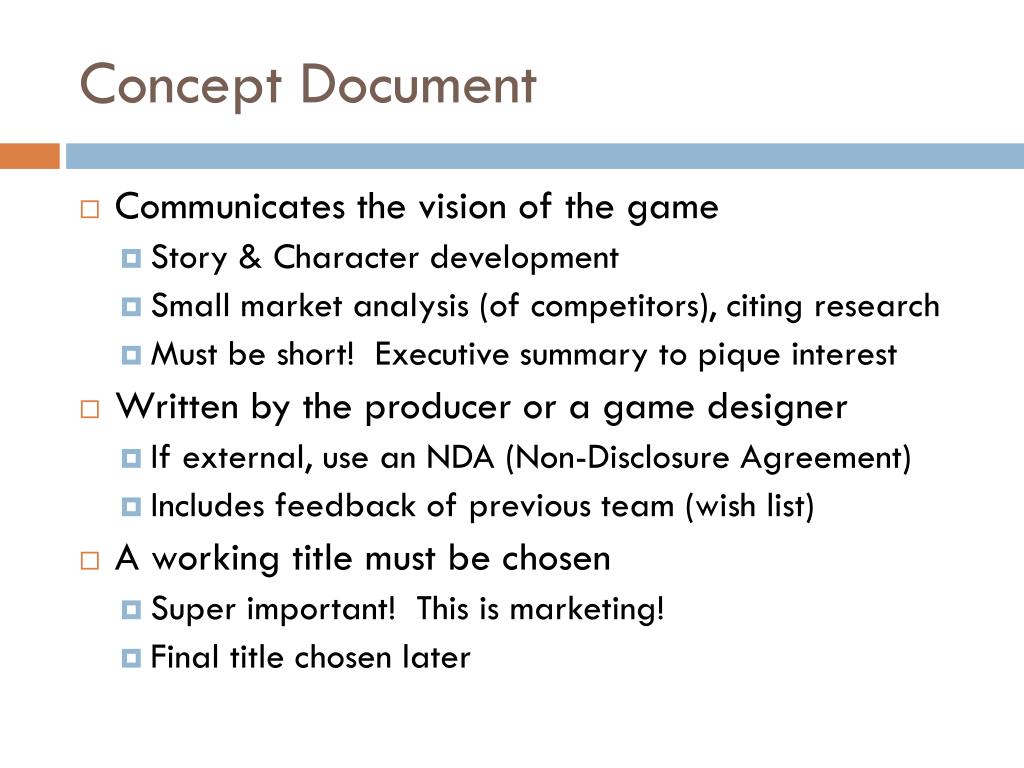

Concept Document
  • Communicates the vision of the game
    • Story & Character development
    • Small market analysis (of competitors), citing research
    • Must be short! Executive summary to pique interest
  • Written by the producer or a game designer
    • If external, use an NDA (Non-Disclosure Agreement)
    • Includes feedback of previous team (wish list)
  • A working title must be chosen
    • Super important! This is marketing!
    • Final title chosen later
concept document1
Concept Document
  • A game concept should include the following features:
    • Introduction
    • Background (optional)
    • Description
    • Key features
    • Genre
    • Platform(s)
    • Concept art (optional)

Anatomy of a Design Document, by Tim Ryan, Gamasutra, October 19, 1999

what remains
What remains…
  • After a “greenlight” meeting…
    • Preproduction: planning and team building
    • Production: the game is created
    • Postproduction: Debugging**, optimization**, game manual, packaging

** Technically, these should occur throughout all phases

preproduction
Preproduction
  • The (full-blown) Game Design Document is created
    • Usually developed by a game designer
    • Either internally or externally
  • Team selection
    • Must create a staffing plan
    • Internally – decide which employees will work
    • Externally – a bid package must be created
preproduction1
Preproduction
  • Internal Staffing
    • Must create a job description
      • Duties
      • Salary/pay ranges
    • Use existing employees or hire new ones?
      • Programmers finish at different times
      • Pull from other departments?
      • Hiring new employees takes time
preproduction2
Preproduction
  • External staffing
    • Use your network to find developers
    • Typically want the whole GDD to make a bid
    • NDAs are signed
  • For the bid package, the developer needs:
    • Genre, platform, audience, competition
    • Shipping date
    • Number of levels, characters, assets
    • Demo?
    • Producer collects all questions and creates a common bid package
preproduction3
Preproduction
  • The Development Agreement
    • A contract, usually developed by the publisher
    • States the responsibilities of the developer
      • Create a game that adheres to the design doc
      • Provide assets
      • Provide source
    • States payment within a timeframe of delivery
    • Intellectual Property (and lawsuits)
      • Publisher says it owns the IP
      • Developer says they own patents on the technology
    • Circumstances of termination of contract
preproduction4
Preproduction
  • The Development Agreement
    • Milestones
      • Money is typically dispensed periodically
      • Neither party can just wait around
      • Developers usually submit a clearly-defined deliverable
    • Milestone Approvals
      • Developer must pay the employees
      • Payment not released until milestone is accepted (not delivered)
      • Publisher often has time limit on whether to accept or reject
preproduction5
Preproduction
  • Technical Design Document (TDD)
    • Usually the first milestone
    • How the work will be performed
      • Which technologies will be used
      • Identify technical challenges
      • What equipment is needed
      • Personnel
      • Task list
preproduction6
Preproduction
  • Scheduling
    • Milestones
    • Visual and audio assets (models, cinematics, sounds…)
    • Demo version
    • Market materials
    • Package, manual, strategy guides
    • License approvals, platform approvals
    • Meetings
    • Vacations, holidays, sick time
preproduction7
Preproduction
  • Critical path is in red
  • Slack is in black (amount of time that can be delayed without causing delay to further tasks)

http://en.wikipedia.org/wiki/Gantt_chart

preproduction8
Preproduction
  • Scheduling
    • Start from target date and work backwards
      • Shipping takes time
      • Producing the product takes time
      • Publisher testing takes time
    • The “Golden Spike”
preproduction9
Preproduction
  • Reducing Time
    • The “Mythical Man-Month”
    • Programming takes the longest
    • Programmers shouldn’t make placeholder assets
    • Still problems? Cut features…
  • Note: asking for more time is asking for more $$
preproduction10
Preproduction
  • Budgets
    • Salary of each employee (plus benefits)
    • Equipment, rental
    • Software/license
    • Supplies
    • Travel
  • Have an “executive summary”
  • P&L (Profit and Loss analysis) – a.k.a. ROI
  • One last “Green Light” meeting…
production
Production
  • Milestones means payments
  • However, nothing to show for the first few months!
    • Start with art. It’s fast.
  • Art lists
    • Includes every art asset
    • Models, textures, cinematics, UI…
    • Must describe
      • File name and descriptive name
      • File type
      • Where it’s used and a brief description
production1
Production
  • Naming conventions
    • The poor programmer! Dashes? Underscores?
    • Decide the convention up-front
    • If the filename is incorrect, reject it!
    • Helps during debugging (printing out filename)
    • Date?
production2
Production
  • Asset tracking
    • Assets must be approved
    • If rejected, why?
    • Need an entire history/log of each asset

Courtesy DassaultSystémes

production3
Production
  • Asset Delivery Formats
    • For animation, does your engine support:
      • IKs?
      • How many bones?
      • Hierarchical meshes?
      • Baked meshes?
    • What else?
      • Texture formats
      • Audio formats
    • My recommendation: create “stick man” assets and test animation before serious modeling
production4
Production
  • Team Dynamics
    • Programmers are “cold”
    • Artists are “warm”
    • Each need to understand what the others do
    • Worsens with distance (book says differently)
    • Lots of jealousy within groups
    • This isn’t just in the game industry…
production5
Production
  • Other potential problems:
    • Personnel Issues (the slackers)
    • Design Problems (game should be fun ASAP)
    • Money Problems (publishers delay payments)
    • Technical Glitches (especially in new technology)
    • Change Requests (aka “feature creep”)
      • Expect this
      • Usually causes delay in schedule and more $$
      • Amend the contract
    • Schedule Delays (because of all of the above)
production6
Production
  • Audio
    • Usually done in parallel with art
    • Sound list of every sound in the game (for every action)
    • Music (genre, mood, length, looping)
    • Text (as separate files)
    • Voice overs
      • written as a radio script
      • Usually with the Screen Actors Guild (a union)
      • May have to audition
production7
Production

http://web.utk.edu/~rhovland/adv350radiosample.html

production8
Production
  • Audio
    • Sound Effects
      • Original or sound effects library
      • Must be approved and in the correct format
    • Music
      • Low budget? Hire a freelance musician
      • Hire an established popular artist (royalties)
      • Hire an entire orchestra!
production9
Production
  • First playable demo:
    • Must have the major “hype” elements
    • Show to each executive individually
    • Show to the licensor of the IP
    • Show to the platform holders (Nintendo, Microsoft)
    • Show to the entire team and get feedback
    • This is not the time to take it easy…
  • Alternatively, iterate on a prototype
production10
Production
  • Production can be broken down into:
    • Early production: the phase up to the demo
    • Mid-production:
      • assets and levels being added
      • Delays here are hard to recover from
      • New ideas/features begin to emerge
    • Late production:
      • All assets completed, but not coding
      • QA is testing
      • Marketing is ramping up – title change!
production11
Production
  • In late production:
    • Marketing needs screenshots
      • Hi-res
      • Shots that aren’t possible in-game (several assets)
      • “Pretty” developers
    • E3 demo (whether you like it or not)
      • Hard deadline (make sure it’s in the schedule)
      • Demos take time and will likely never ship
    • Magazines with demos (submit early)
    • Red flags at this point? Uh oh…
post production
Post-production
  • Post-production: all features and assets have been implemented
    • Artists long gone
    • QA is in full swing
    • Developers still working
    • Audio engineer still working
    • People begin to transition to the next project
      • Performance reviews happen here
postproduction
Postproduction
  • Localization
    • It is not just the translation of language (“bring it!”)
    • It’s more the translation of a culture
      • Animated blood not allowed in some countries
      • Swastikas frowned upon in Germany
      • Need an artful writer for each culture
      • Different languages use differentspace
    • Try for a “sim-ship”
postproduction1
Postproduction
  • Other things:
    • ESRB rating – may have to downgrade violence
    • Box & Docs
      • ESRB rating, developer logo?, in-game snapshot(s), platforms, description, features, hardware reqs
      • Have multiple comps and let team/focus group decide
      • Critical! Bad box == no $$
      • Instruction manual: paper, or plastic?
    • Strategy guide is extra revenue
      • Done by game designer
postproduction2
Postproduction
  • QA
    • Testers clearly describe how to recreate the bug and why it’s a problem
    • Submit a ticket using bug-tracking software
      • DevTrack, TRAC, Mantis, TestTrack
      • Bugs can be new, open, and closed
      • Bugs have priority
    • Test against the GDD and TDD
postproduction3
Postproduction
  • QA folks are people too!
    • Usually an entry level job (less $$)
    • Test the same level, over and over and over…
    • Viewed as an adversarial?
    • Frustration from bug reports:
      • WNF – Will Not Fix
      • CNR – Cannot Replicate
      • WAD – Works As Designed
      • NAB – Not A Bug
postproduction4
Postproduction
  • Operations
    • Console games are produced by the platform
    • PC games by the publisher
    • How many should you produce?
    • Printed materials take longer than DVDs
      • Registration card
      • Poster
      • Insert
    • DVD manufactures crunch to hit Christmas sales as well!
  • OEMs (Original Equipment Manufacturer)
postproduction5
Postproduction
  • The Post-Mortem
    • Finally!
    • What went right
    • What went wrong
    • What we can learn from the experience

http://gamasutra.com/category/production/
