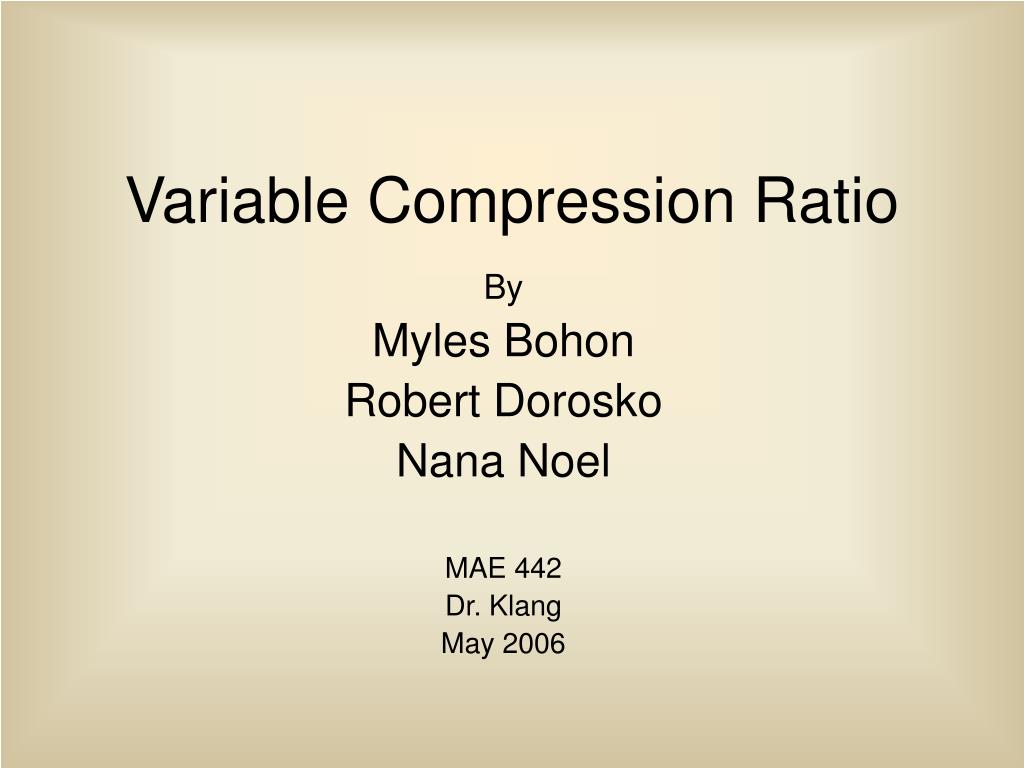

  1. Variable Compression Ratio By Myles Bohon Robert Dorosko Nana Noel MAE 442 Dr. Klang May 2006

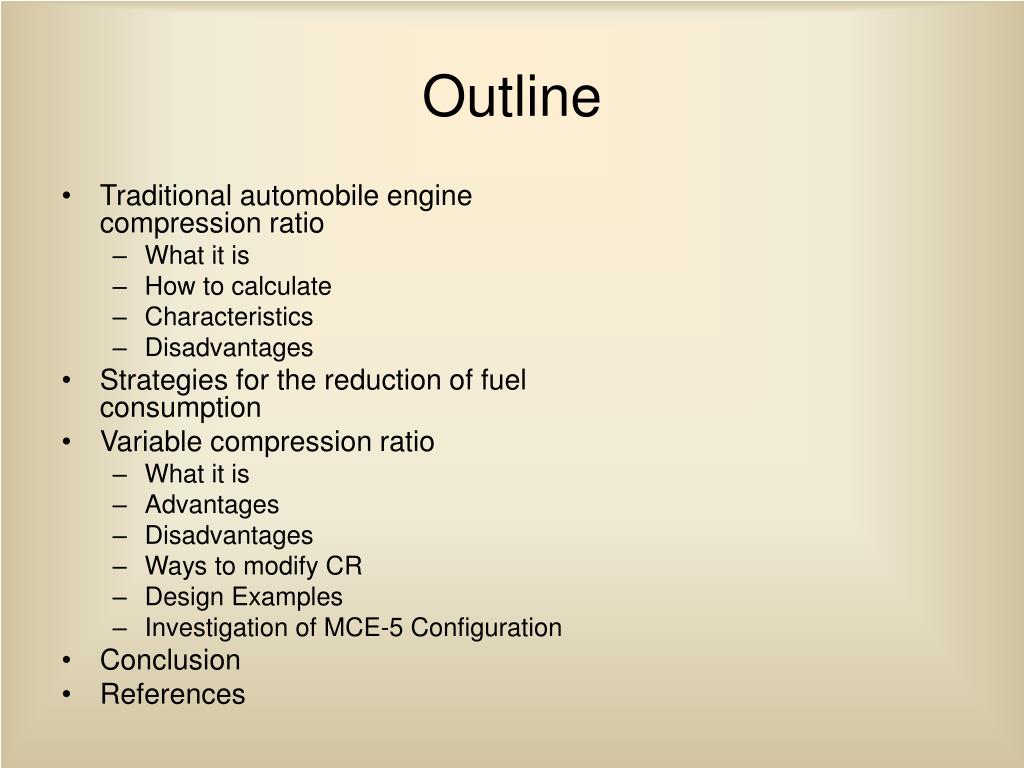

  2. Outline • Traditional automobile engine compression ratio • What it is • How to calculate • Characteristics • Disadvantages • Strategies for the reduction of fuel consumption • Variable compression ratio • What it is • Advantages • Disadvantages • Ways to modify CR • Design Examples • Investigation of MCE-5 Configuration • Conclusion • References

  3. Compression Ratio (CR) • What is it? • Is the ratio by which the fuel/air mixture is compressed before it is ignited. • Limited in conventional engines due to auto-ignition. • Determines how efficiently the engine can utilize the energy in the fuel.

  4. CR – How is it determined? CR = -or- Where b=cylinder bore (diameter) s = piston stroke length Vc = volume of the combustion chamber b s

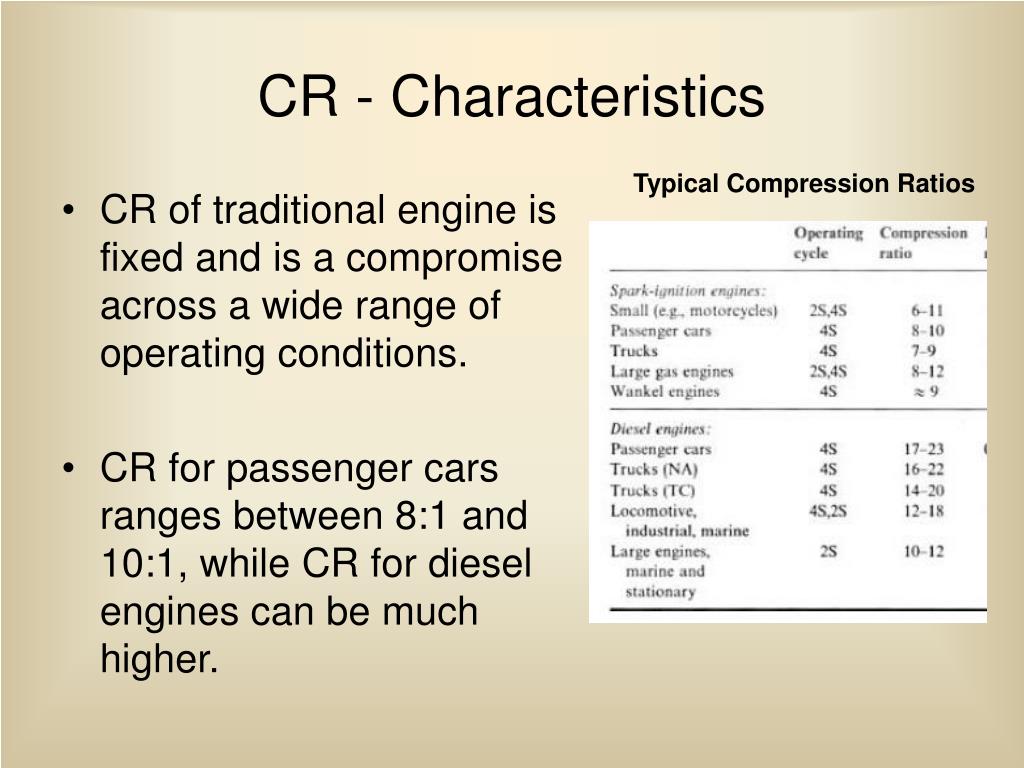

  5. CR - Characteristics Typical Compression Ratios • CR of traditional engine is fixed and is a compromise across a wide range of operating conditions. • CR for passenger cars ranges between 8:1 and 10:1, while CR for diesel engines can be much higher.

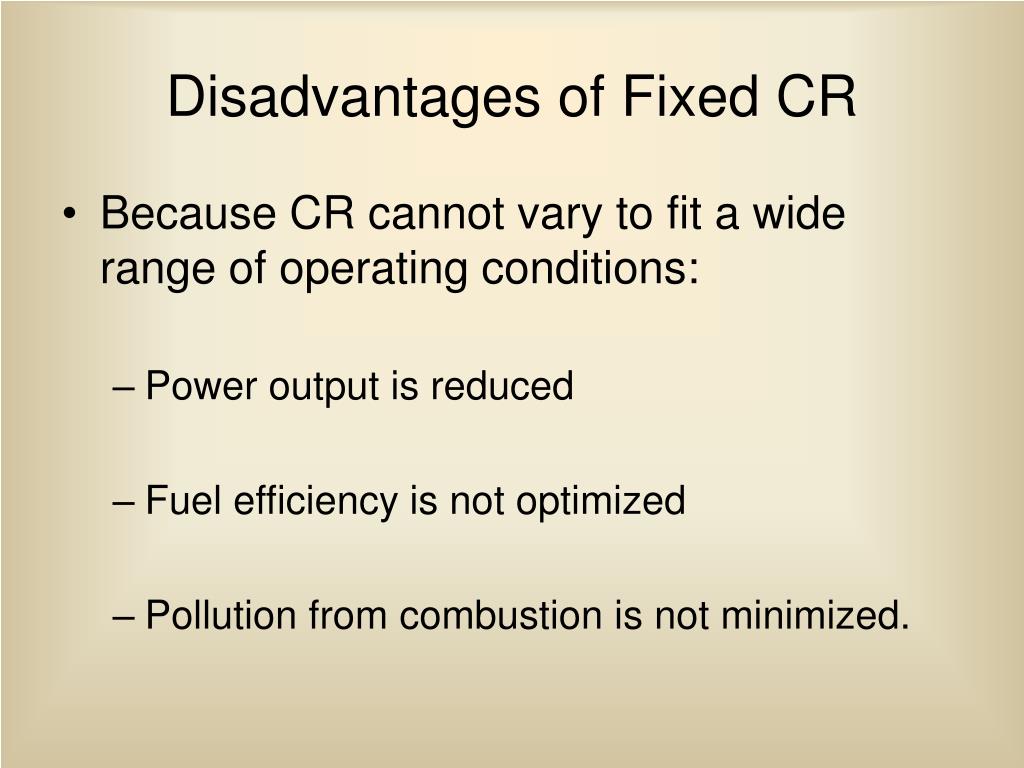

  6. Disadvantages of Fixed CR • Because CR cannot vary to fit a wide range of operating conditions: • Power output is reduced • Fuel efficiency is not optimized • Pollution from combustion is not minimized.

  7. A reduction in fuel consumption is achieved by increasing the work output and/or decreasing the frictional and pumping losses.

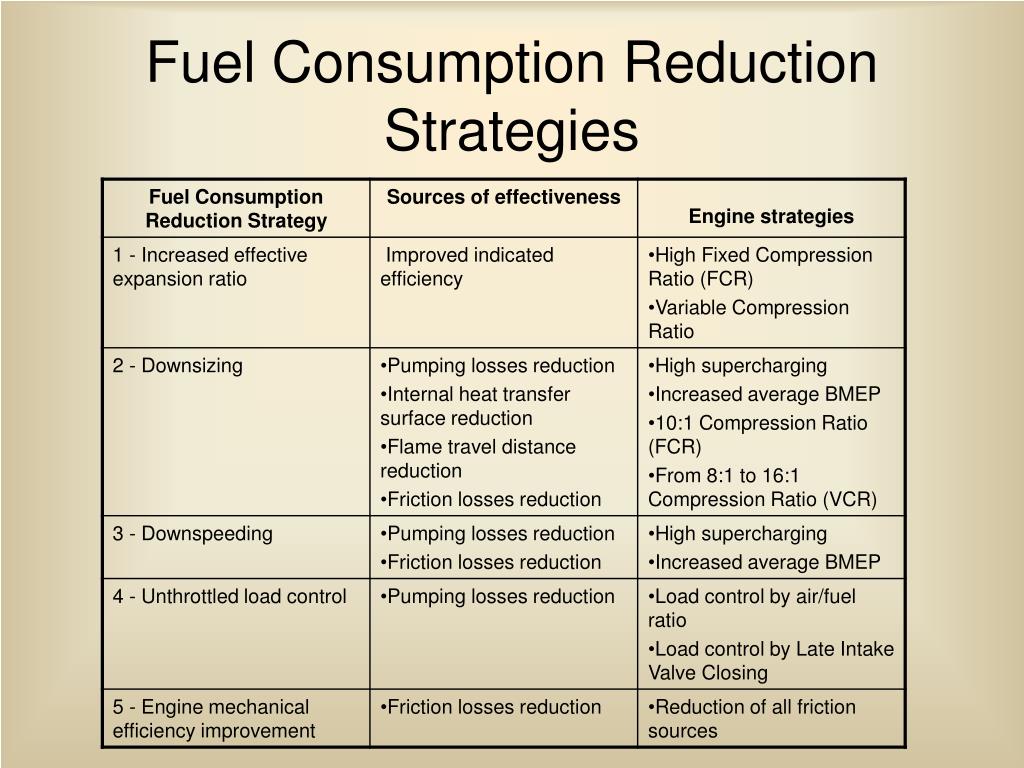

  8. Fuel Consumption Reduction Strategies

  9. Variable Compression Ratio (VCR) What is it? • The combustion chamber volume, Vc, is altered to meet the power needs to the vehicle. • At low power levels, high CR captures fuel efficiency benefits. • At high power levels, low CR prevents knock.

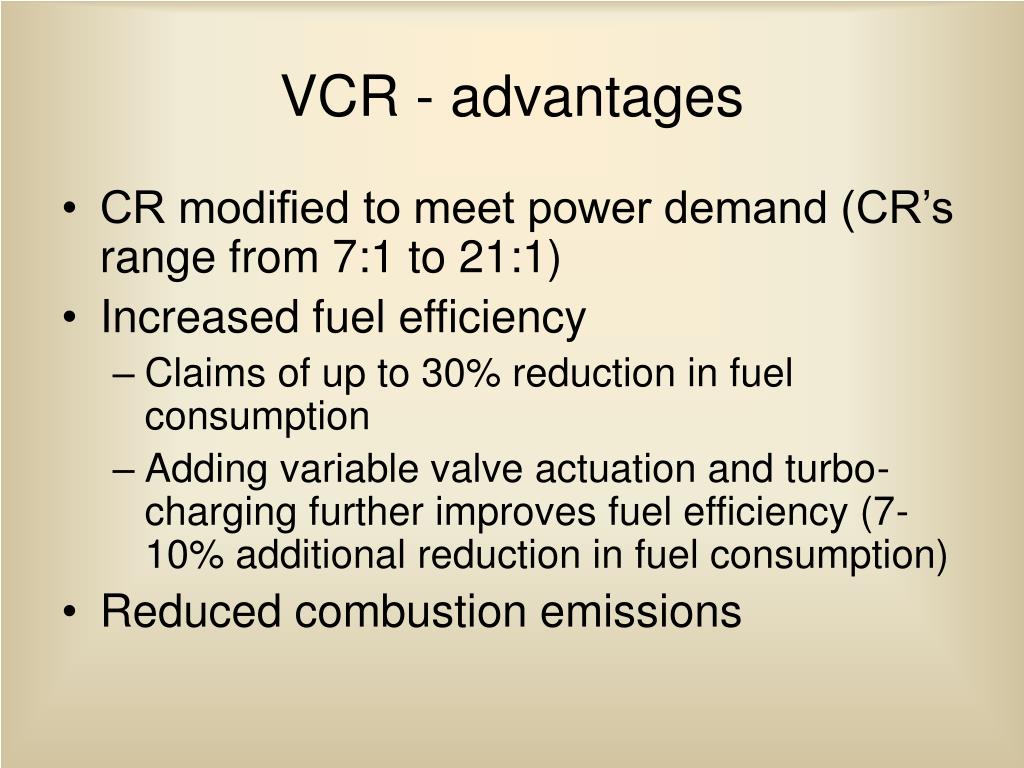

  10. VCR - advantages • CR modified to meet power demand (CR’s range from 7:1 to 21:1) • Increased fuel efficiency • Claims of up to 30% reduction in fuel consumption • Adding variable valve actuation and turbo-charging further improves fuel efficiency (7-10% additional reduction in fuel consumption) • Reduced combustion emissions

  11. Increased Efficiency and Pollution Reduction with VCR:

  12. VCR - Disadvantages • New technology results in high research and development and manufacturing costs. • Reliability is not proven. • Consumer reactions are unknown and unpredictable. • Repairs and maintenance initially may be difficult and costly.

  13. Ways to Modify CR • Moving the cylinder head. • Variation of combustion chamber volume. • Variation of piston deck height. • Modification of connecting rod geometry. • Moving the crankpin within the crankshaft (effectively varying the stroke). • Moving the crankshaft axis.

  14. Ways to Modify CR: A: articulated cylinder head B: hydraulic pistons C: eccentrics on bearings D: multilink rod-crank mechanisms E: additional piston in cylinder head F: gear-based mechanisms

  15. VCR – Design Examples • Saab Tilting Monohead Design • Articulated cylinder head • 2 part engine block allows cylinder head to be lowered closer to the crankshaft to dynamically alter Vc • CR varied by adjusting the slope of the monohead in relation to the engine block • Upper block is pivoted about the hinge point using a hydraulic actuator • Unfortunately, Saab shelved project due to cost.

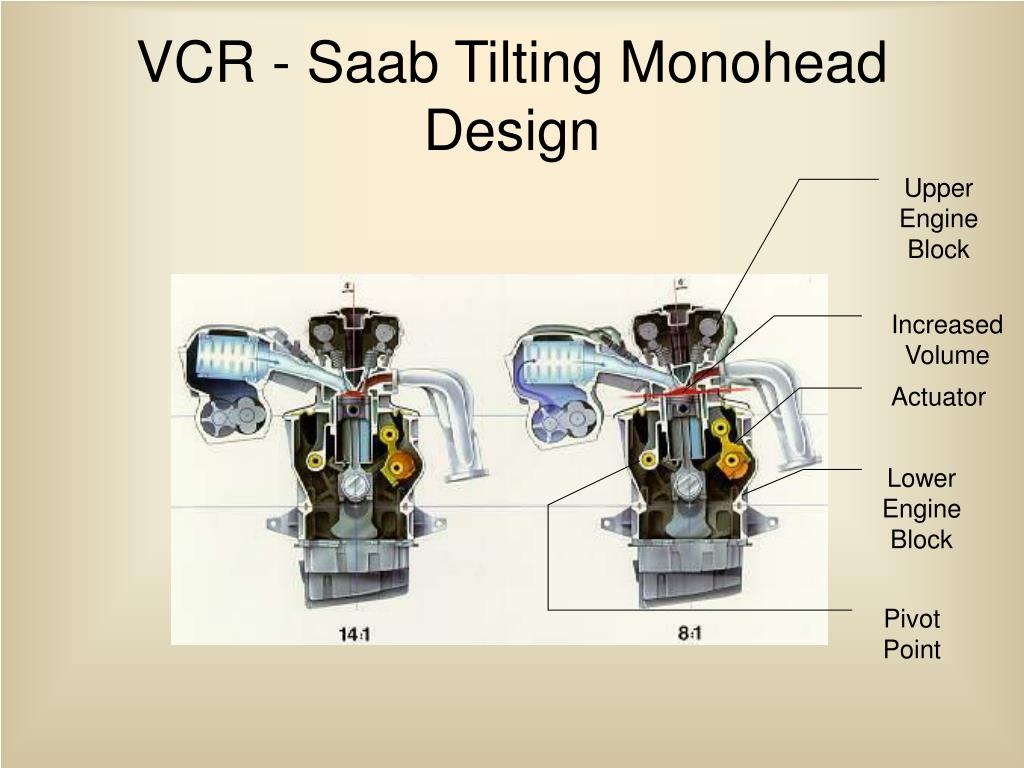

  16. VCR - Saab Tilting Monohead Design Upper Engine Block Increased Volume Actuator Lower Engine Block Pivot Point

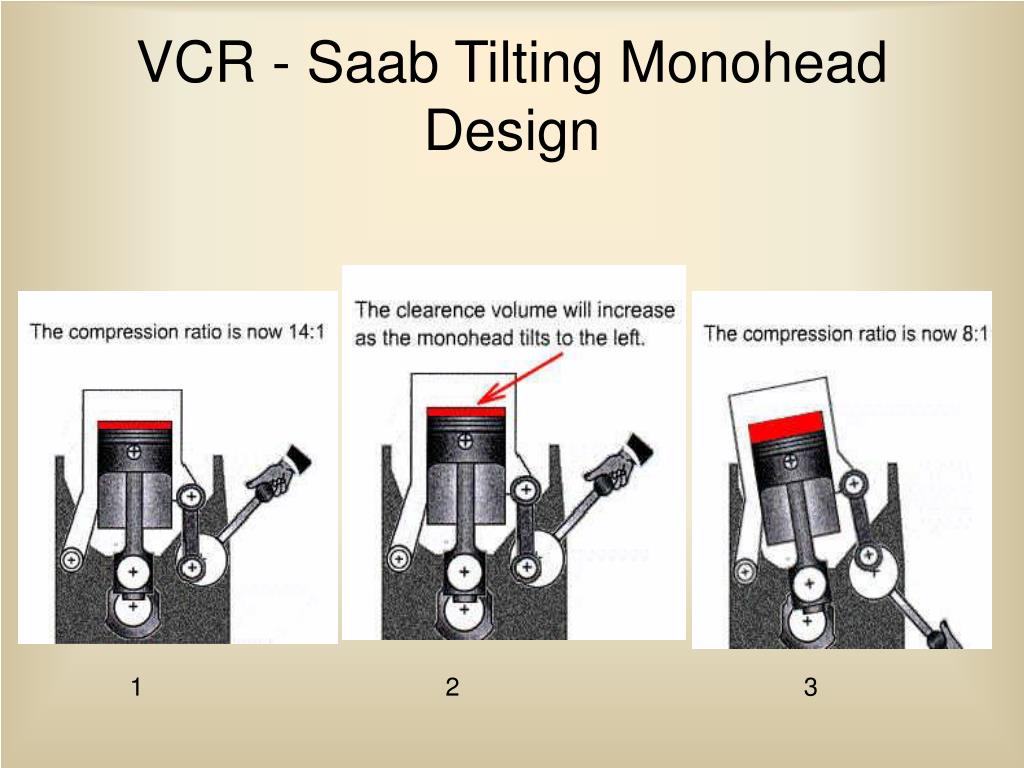

  17. VCR - Saab Tilting Monohead Design 1 2 3

  18. MCE-5 VCR Engine Block • The control jack is connected to a control rack. Between the control rack and the piston rack is a gear wheel, which has a fulcrum supported by the connecting rod. • Up/down movement of the control jack effectively changes the TDC placement, therefore increasing or decreasing the compression volume.

  19. MCE-5 VCR Piston Arrangement

  20. MCE-5 VCR in Action Control Jack: up and down movement results in the displacement of the control rack and ultimately a change in the volume of the combustion chamber. Control Rack

  21. MCE-5 VCR Gear and Piston Arrangement

  22. MCE-5 VCR Engine Block Pistons Control jack Control Rack Gear Wheel Crankshaft

  23. Piston Kinematics • With the MCE-5 configuration, kinematics never varies, regardless of CR. • Allows VCR to be easily implemented on future SI engines.

  24. Rotational Speed (MCE-5 configuration) • Rotational speed limit of crank is comparable to conventional SI engines. • Expected key speeds: • Max torque speed at ≤2,000 rpm • Max power speed at ≥5,500 rpm • Limit speed at ~ 7,000 rpm (not due to the load applied to gears, but to the tensile force applied to the connecting rod).

  25. MCE-5 CR Control • CR’s adjustable from 7:1 to 20:1. • Fast response (<100 ms to move from max CR to min CR) . • Electronically controlled sensors allow the engine to quickly tailor itself to the ideal operating conditions. • Control jacks function as hydraulic ratchets, moving piston TDC location (changing the compression volume and therefore the CR).

  26. Frictional Losses In Pistons • Conventional engines have losses due to contact with the piston skirt. • But the VCR (MCE-5 configuration) piston only moves up and down, greatly reducing the frictional losses by eliminating radial forces and moments.

  27. Reliability and Durability (MCE-5 configuration) • Due to the decreased radial forces between the piston and the skirt, stress and ultimately wear are greatly reduced. • Therefore, low piston wear and no “piston slap” lead to a better piston and ring durability.

  28. Overall size and vehicle integration (MCE-5 configuration) • Size is comparable to conventional engine blocks with less power and similar displacement, bore, and stroke. • Because MCE-5 requires no unique attachments and requires no new technologies for its integration into existing systems, it connects easily with pipes and peripherals.

  29. Conclusions • Variable Compression Ratio engines have great potential to increase engine power and fuel economy. • When coupled with technologies such as turbocharging, variable valve actuation, and direct fuel injection, the effectiveness of the system is further increased. • Once established, this technology will likely become commonplace due to increasing energy and environmental concerns and the ease of integration.

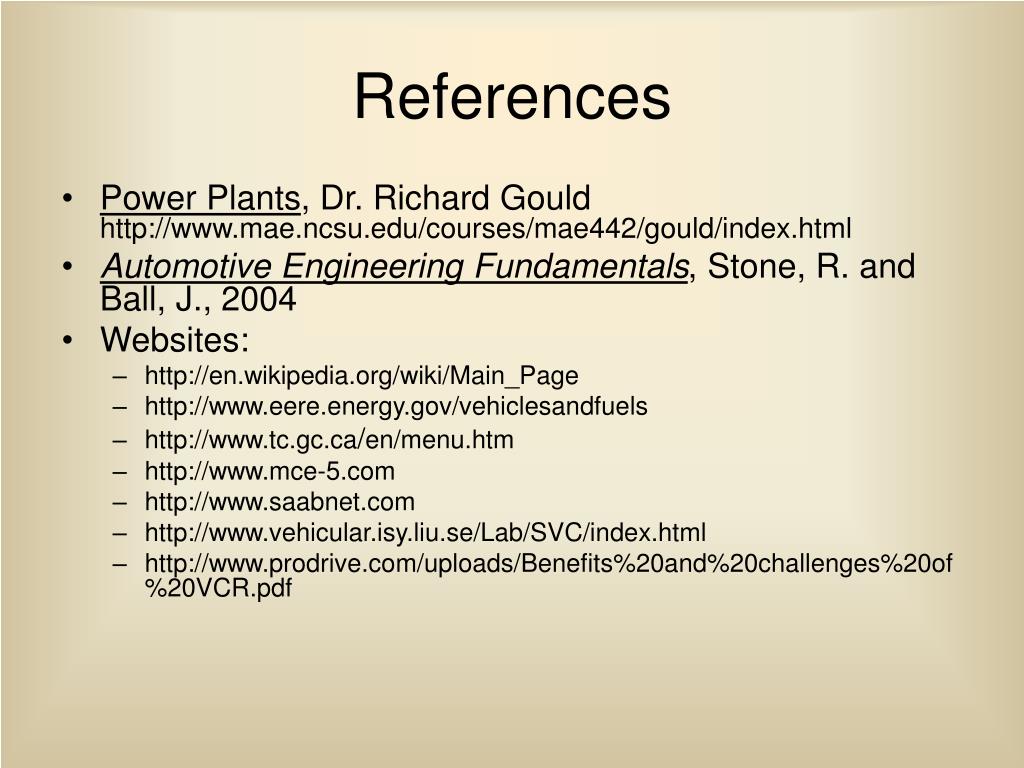

  30. References • Power Plants, Dr. Richard Gouldhttp://www.mae.ncsu.edu/courses/mae442/gould/index.html • Automotive Engineering Fundamentals, Stone, R. and Ball, J., 2004 • Websites: • http://en.wikipedia.org/wiki/Main_Page • http://www.eere.energy.gov/vehiclesandfuels • http://www.tc.gc.ca/en/menu.htm • http://www.mce-5.com • http://www.saabnet.com • http://www.vehicular.isy.liu.se/Lab/SVC/index.html • http://www.prodrive.com/uploads/Benefits%20and%20challenges%20of%20VCR.pdf
