slide1

Introduction to SIP

Alan Percy, Director of Business Development

Alan.percy@audiocodes.com

716-662-2769

agenda
Agenda
  • SIP Overview
  • SIP Messages
  • SIP Call Flows
  • SIP versus H323
  • Further Reading
what is sip

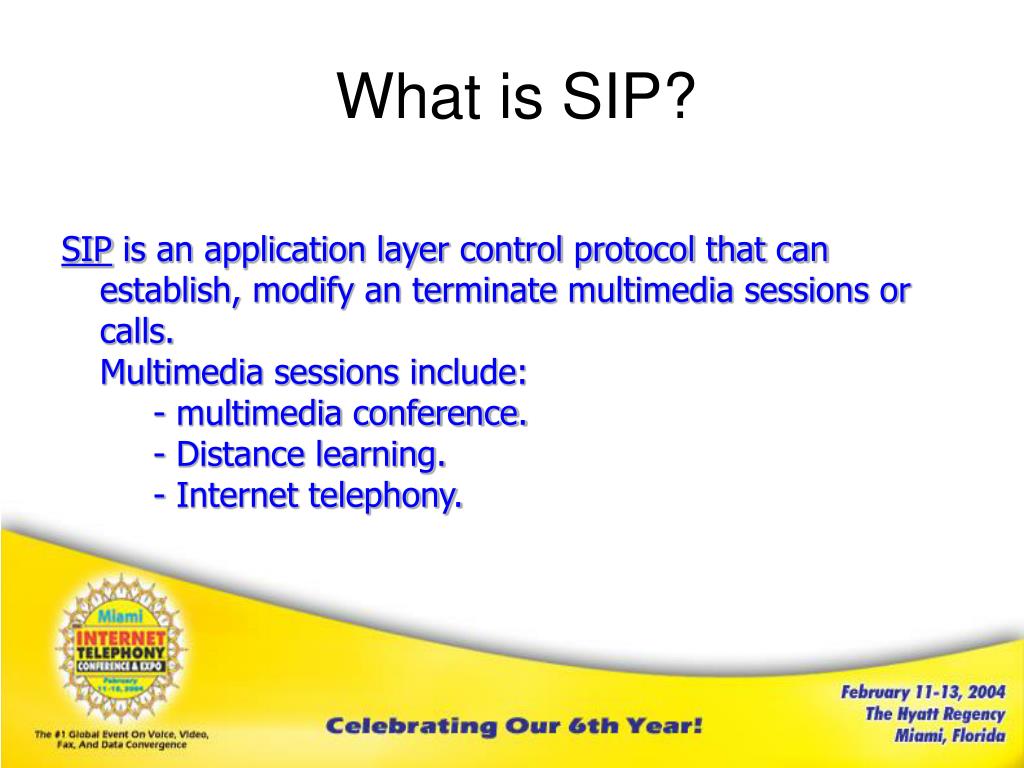

What is SIP?

SIP is an application layer control protocol that can establish, modify an terminate multimedia sessions or calls.Multimedia sessions include: - multimedia conference. - Distance learning. - Internet telephony.

what does sip do

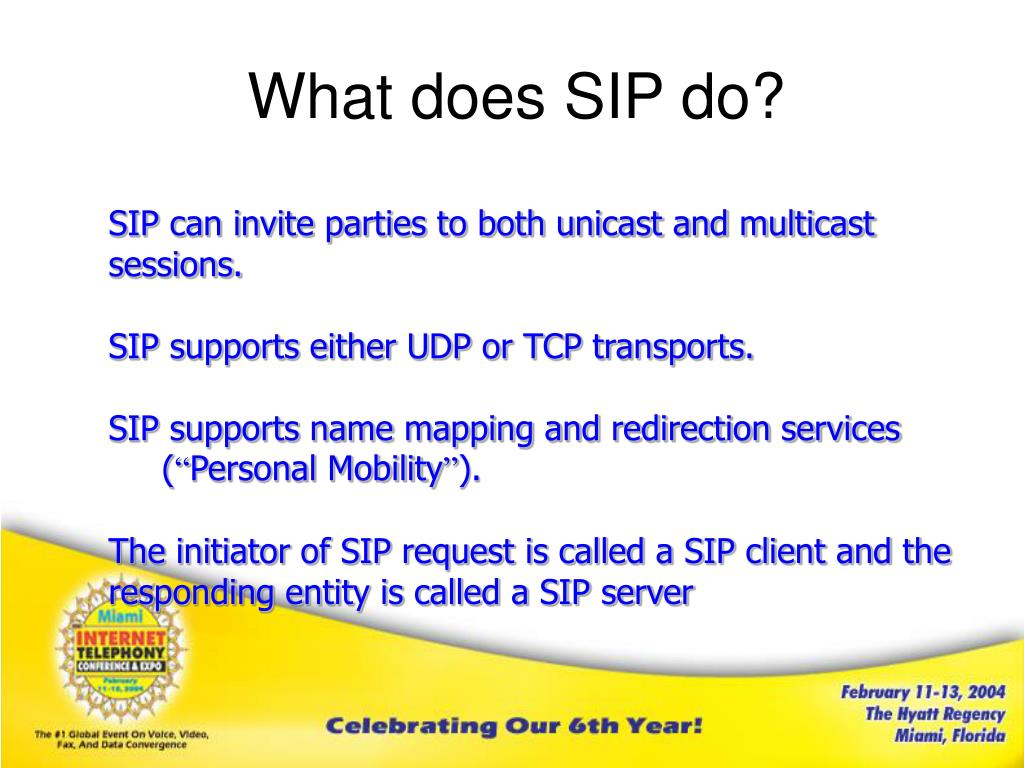

What does SIP do?

SIP can invite parties to both unicast and multicast sessions.SIP supports either UDP or TCP transports.SIP supports name mapping and redirection services (“Personal Mobility”). The initiator of SIP request is called a SIP client and the responding entity is called a SIP server

sample sip session

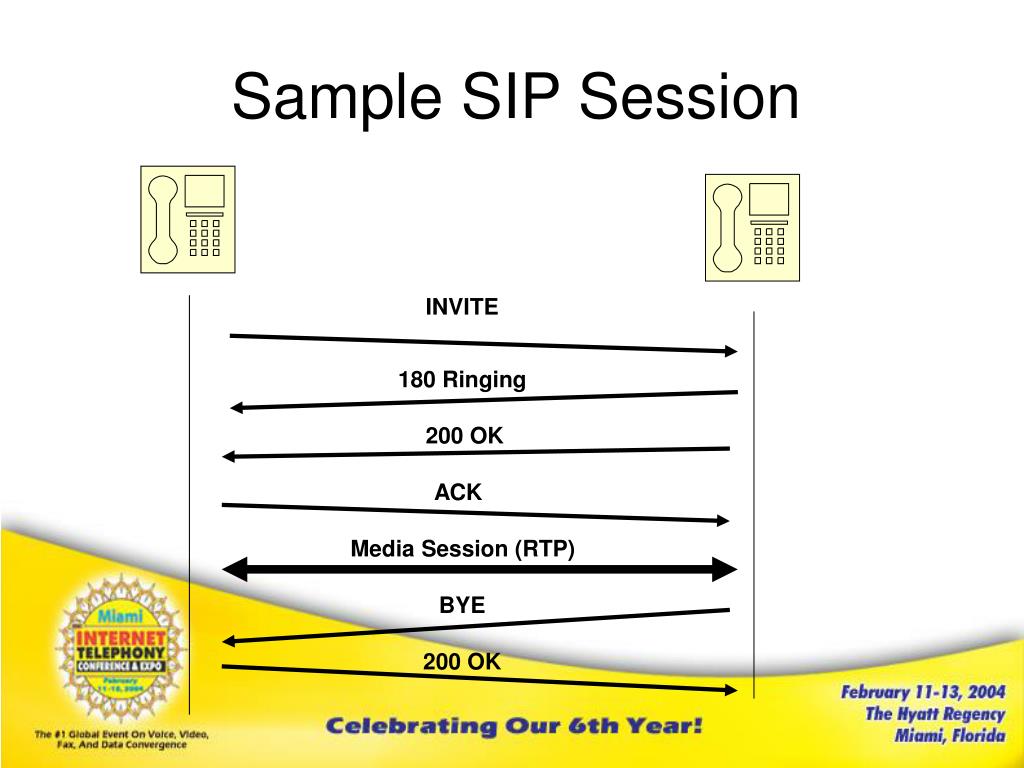

Sample SIP Session

INVITE

180 Ringing

200 OK

ACK

Media Session (RTP)

BYE

200 OK

sip addressing
SIP Addressing

Convention:user @ domain (SIP URL).

User can be : user name or TEL number.

Domain can be : domain name or numeric network address.

Sometimes the SIP URL can be guessed from the email address.

A SIP URL address can designate :

an individual ,

first available person from a group of individuals,

a whole group.

sip entities

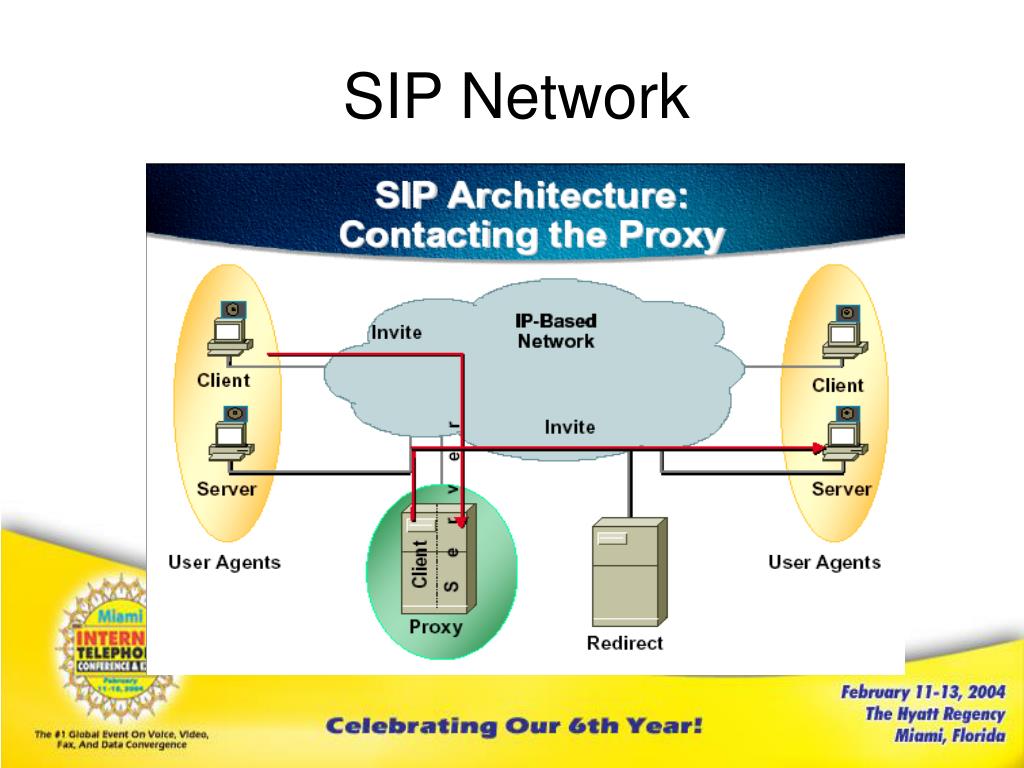

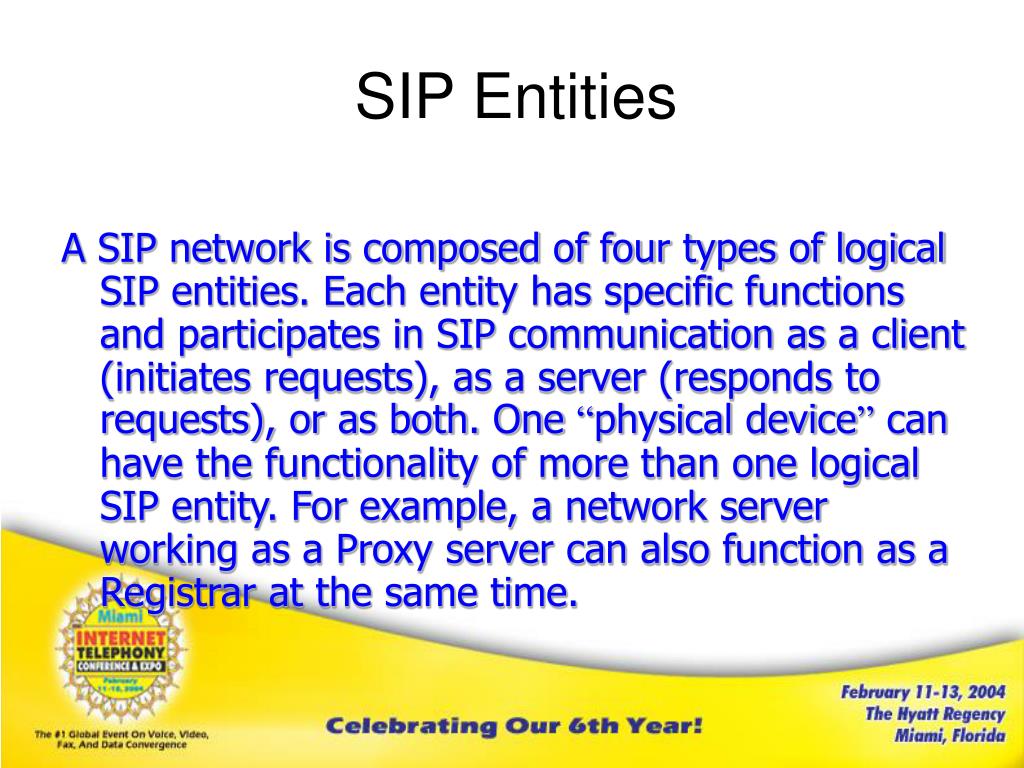

SIP Entities

A SIP network is composed of four types of logical SIP entities. Each entity has specific functions and participates in SIP communication as a client (initiates requests), as a server (responds to requests), or as both. One “physical device” can have the functionality of more than one logical SIP entity. For example, a network server working as a Proxy server can also function as a Registrar at the same time.

user agent

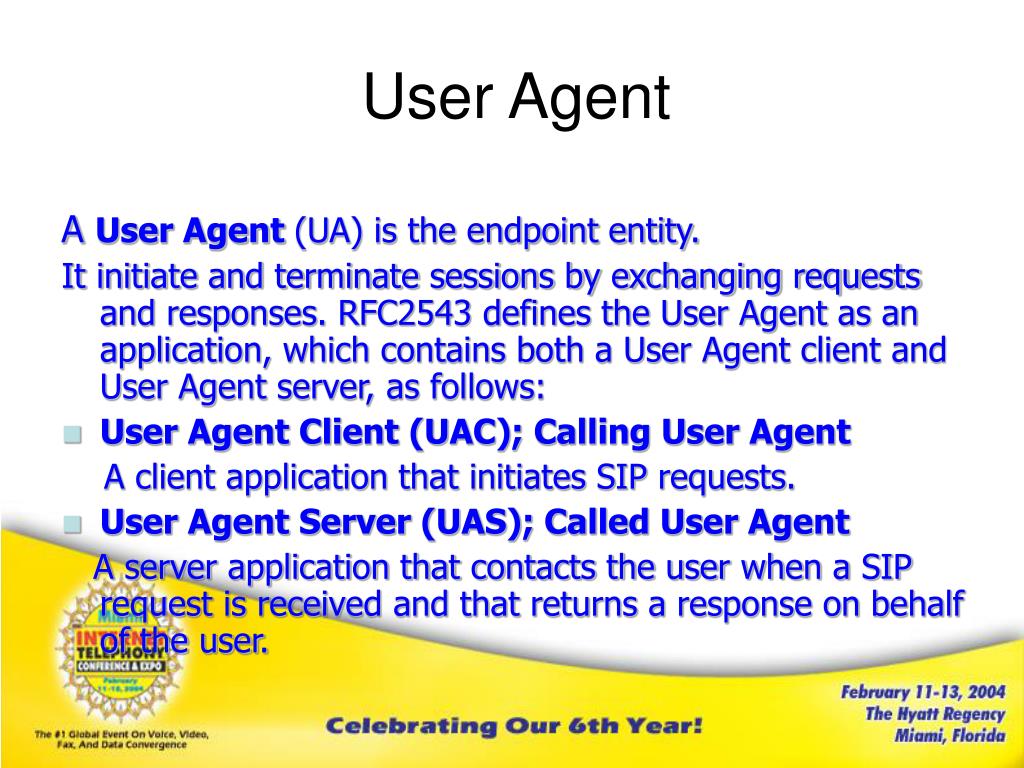

User Agent

A User Agent (UA) is the endpoint entity.

It initiate and terminate sessions by exchanging requests and responses. RFC2543 defines the User Agent as an application, which contains both a User Agent client and User Agent server, as follows:

  • User Agent Client (UAC); Calling User Agent

A client application that initiates SIP requests.

  • User Agent Server (UAS); Called User Agent

A server application that contacts the user when a SIP request is received and that returns a response on behalf of the user.

user agent1
User Agent

Devices that function as UA in a SIP network:

  • workstations
  • IP- phones
  • telephony gateways
  • call agents
  • automated answering services
proxy server

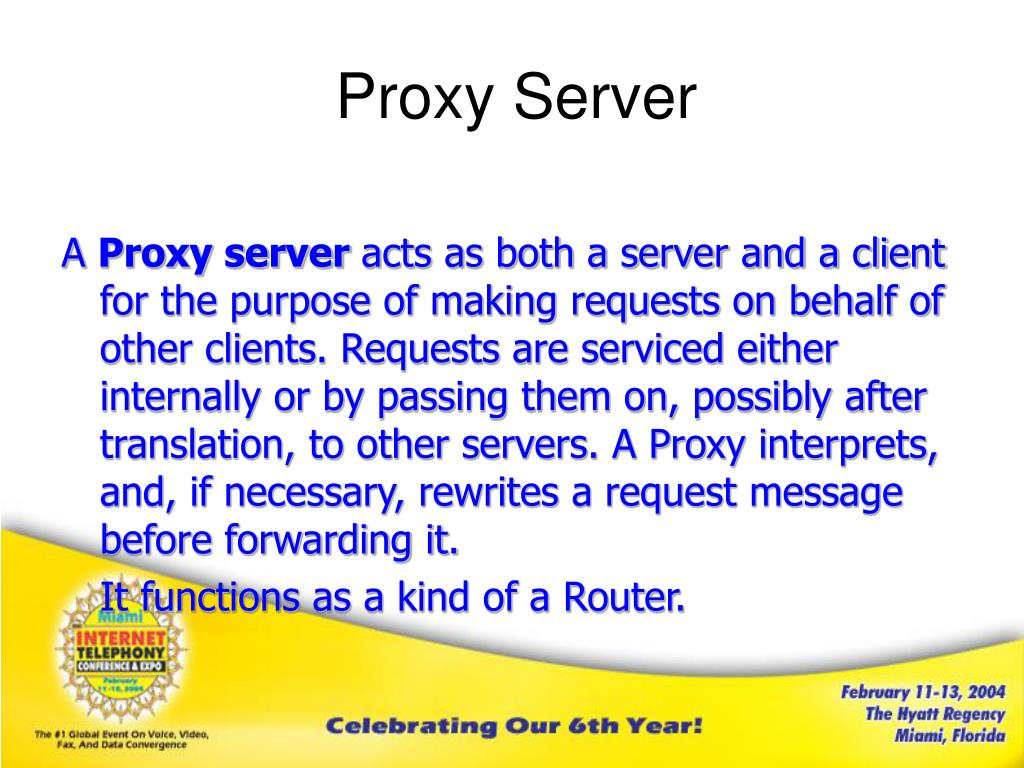

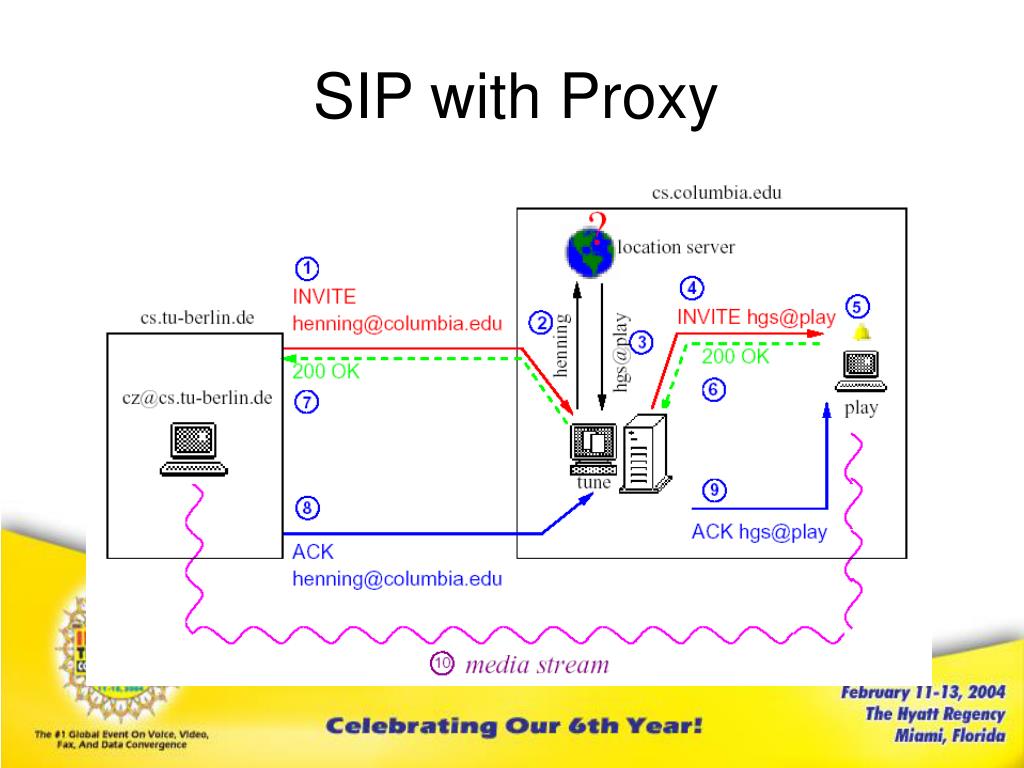

Proxy Server

A Proxy server acts as both a server and a client for the purpose of making requests on behalf of other clients. Requests are serviced either internally or by passing them on, possibly after translation, to other servers. A Proxy interprets, and, if necessary, rewrites a request message before forwarding it.

It functions as a kind of a Router.

redirect server

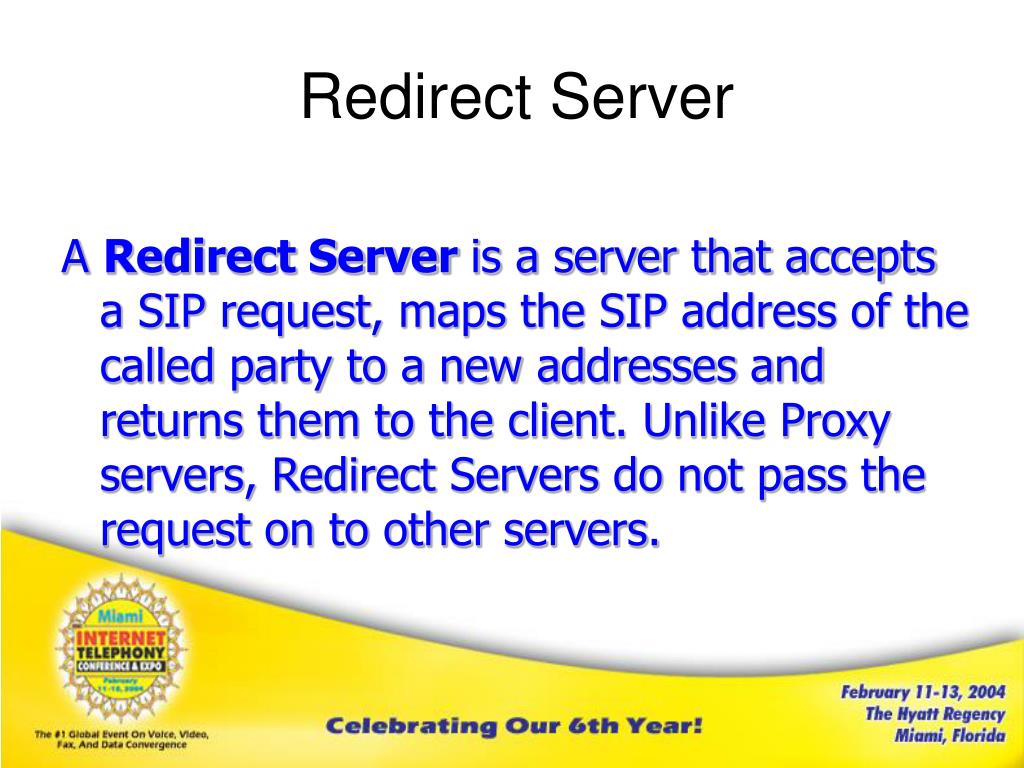

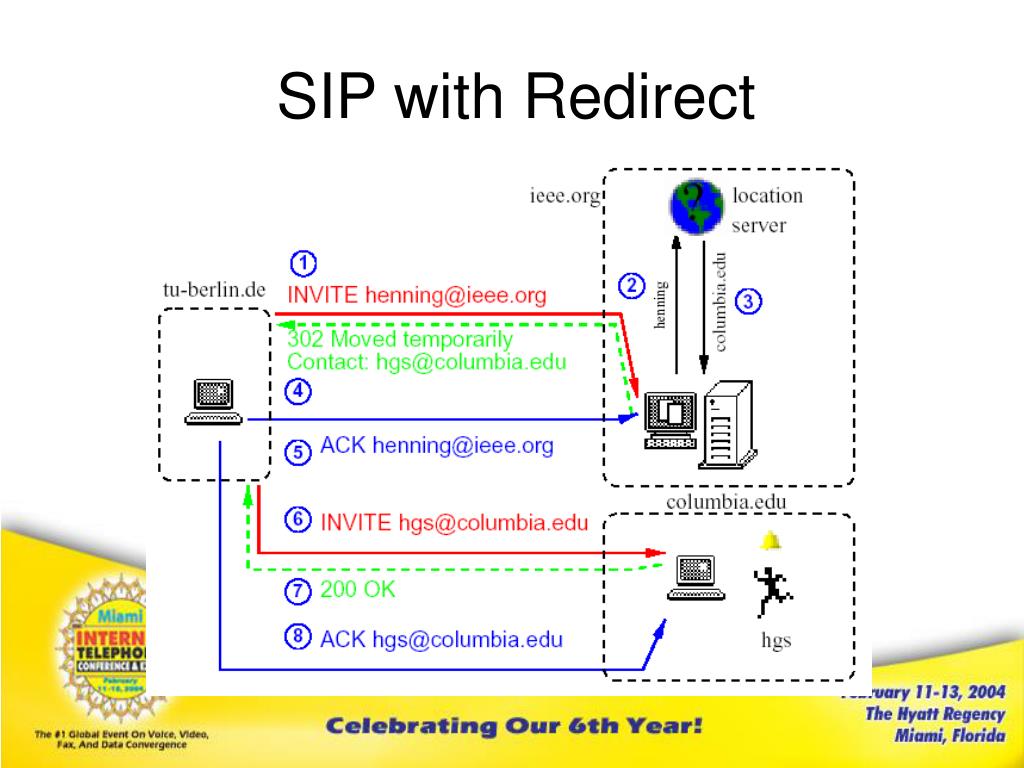

Redirect Server

A Redirect Server is a server that accepts a SIP request, maps the SIP address of the called party to a new addresses and returns them to the client. Unlike Proxy servers, Redirect Servers do not pass the request on to other servers.

registrar

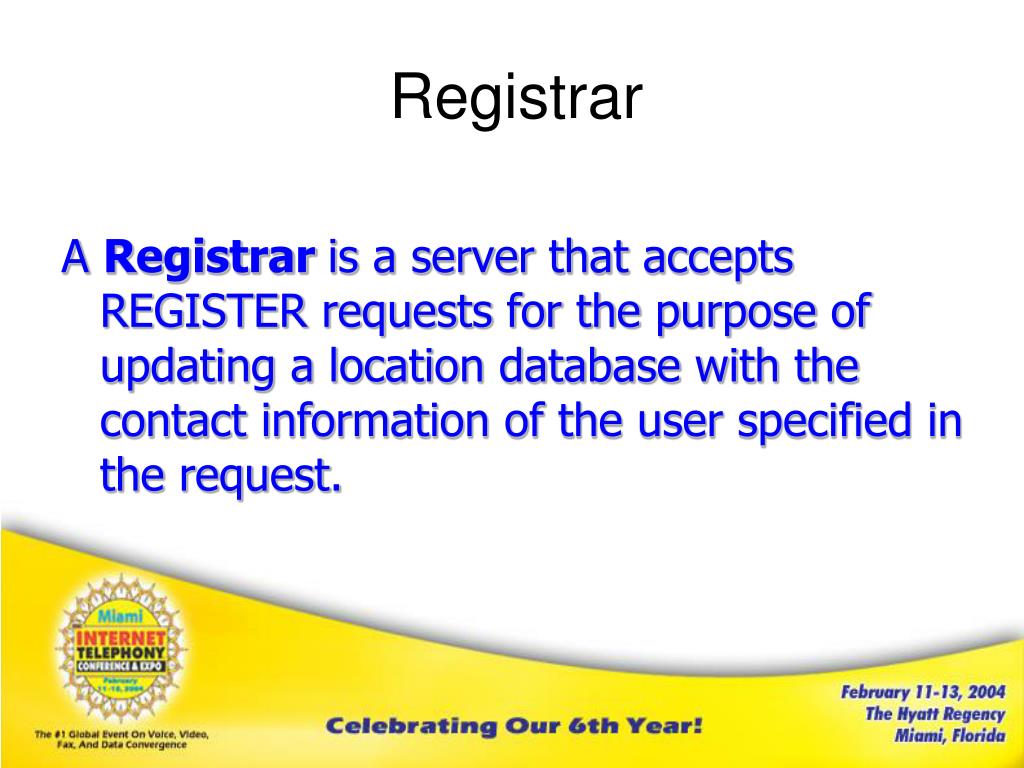

Registrar

A Registrar is a server that accepts REGISTER requests for the purpose of updating a location database with the contact information of the user specified in the request.

sip messages

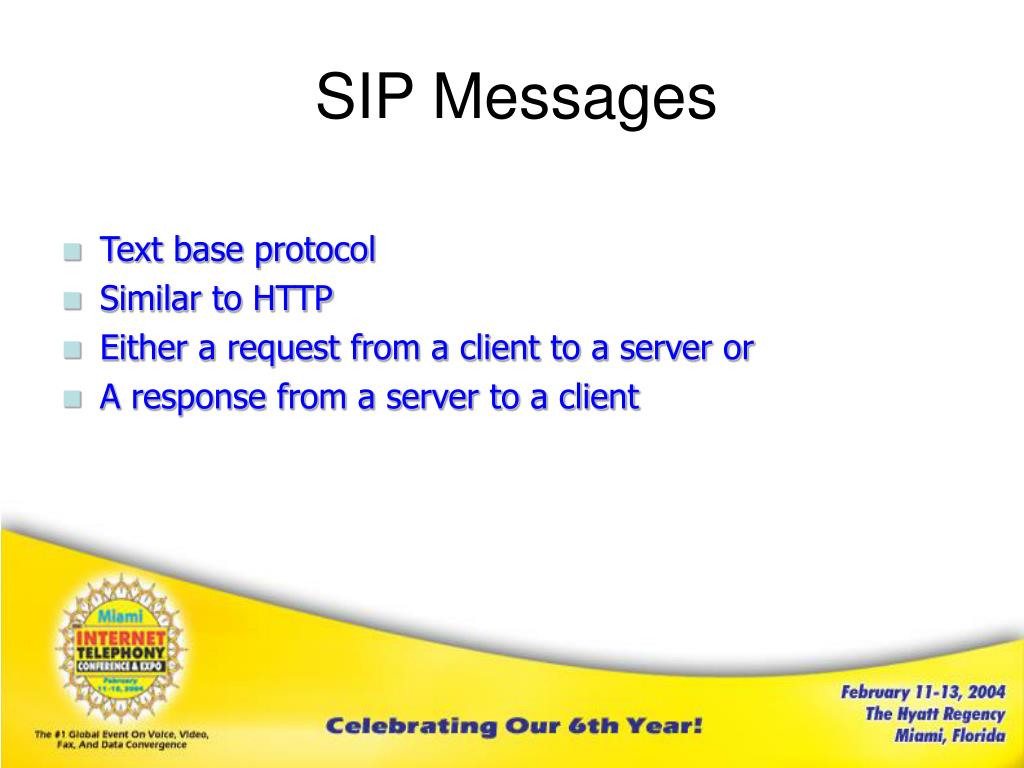

SIP Messages
  • Text base protocol
  • Similar to HTTP
  • Either a request from a client to a server or
  • A response from a server to a client
general header fields
General Header Fields

General basic fields:

  • CALL-ID
  • Cseq
  • To
  • From
call id

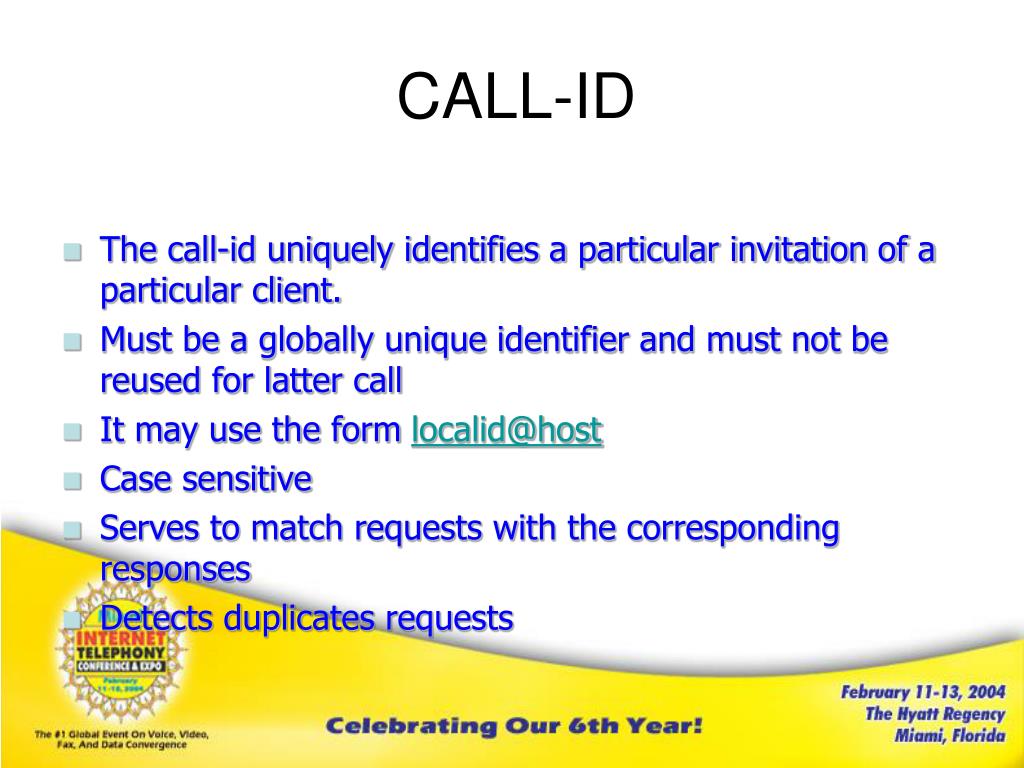

CALL-ID
  • The call-id uniquely identifies a particular invitation of a particular client.
  • Must be a globally unique identifier and must not be reused for latter call
  • It may use the form localid@host
  • Case sensitive
  • Serves to match requests with the corresponding responses
  • Detects duplicates requests
slide17

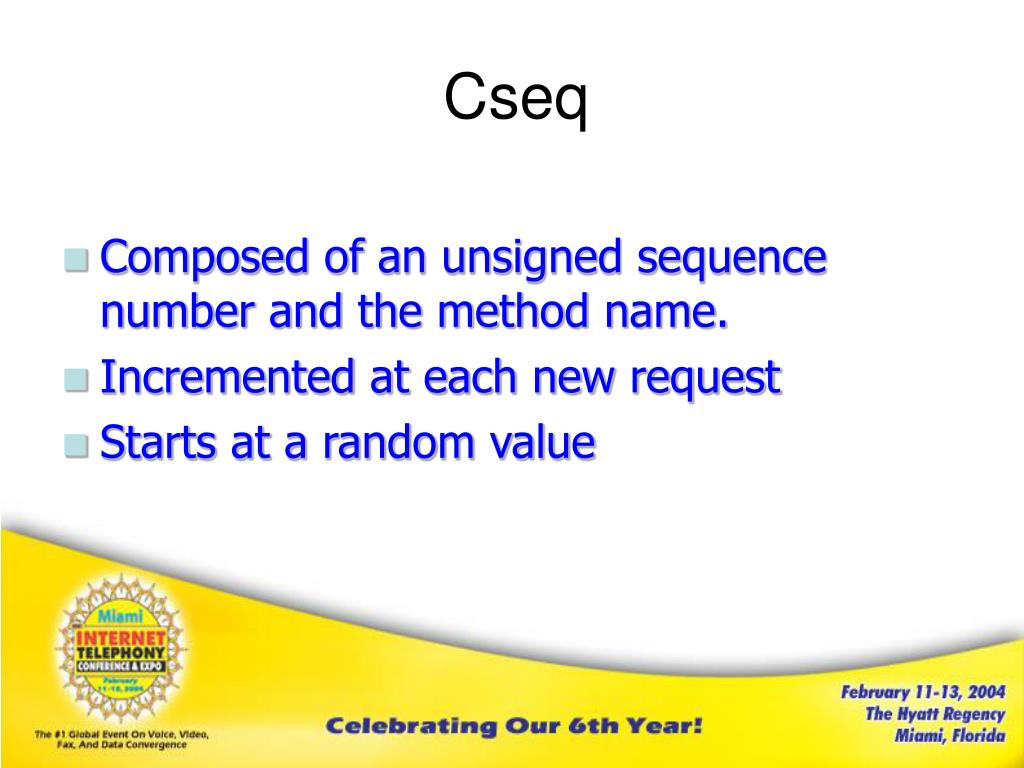

Cseq
  • Composed of an unsigned sequence number and the method name.
  • Incremented at each new request
  • Starts at a random value
slide18

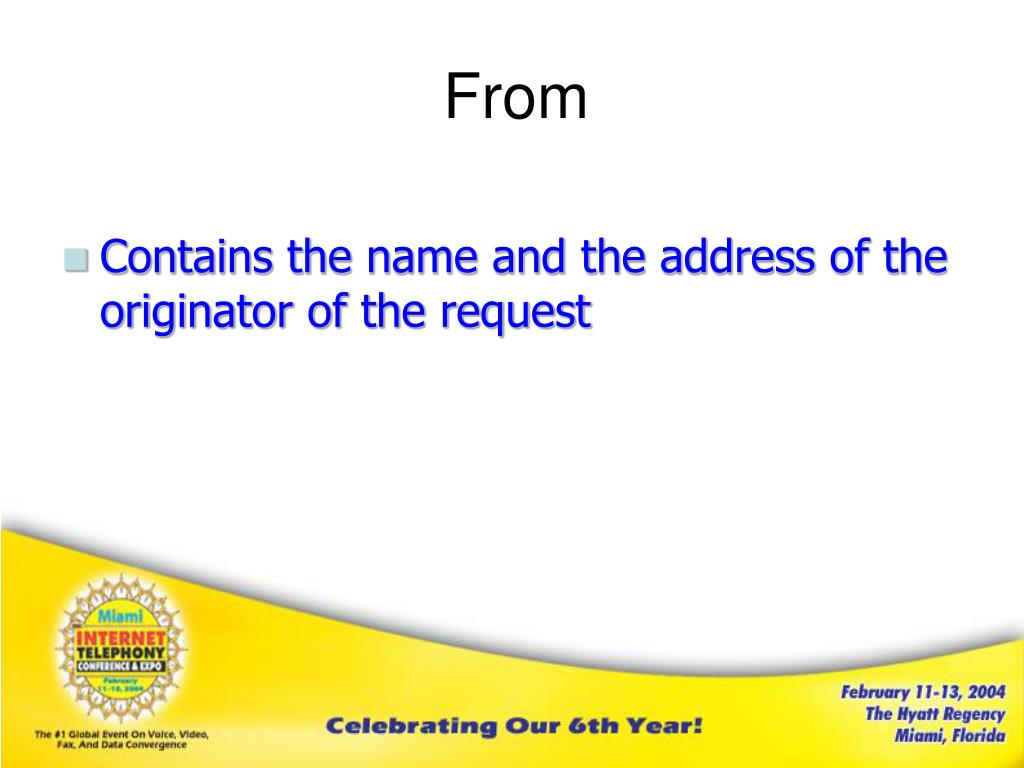

From
  • Contains the name and the address of the originator of the request
slide19

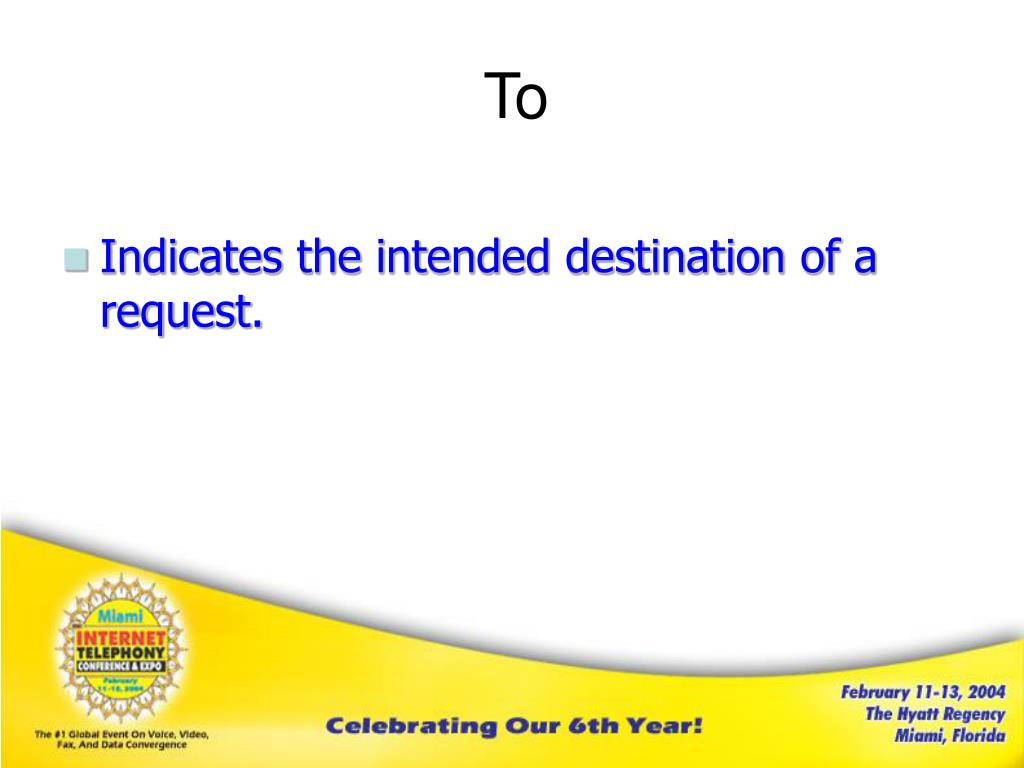

To
  • Indicates the intended destination of a request.
general message type

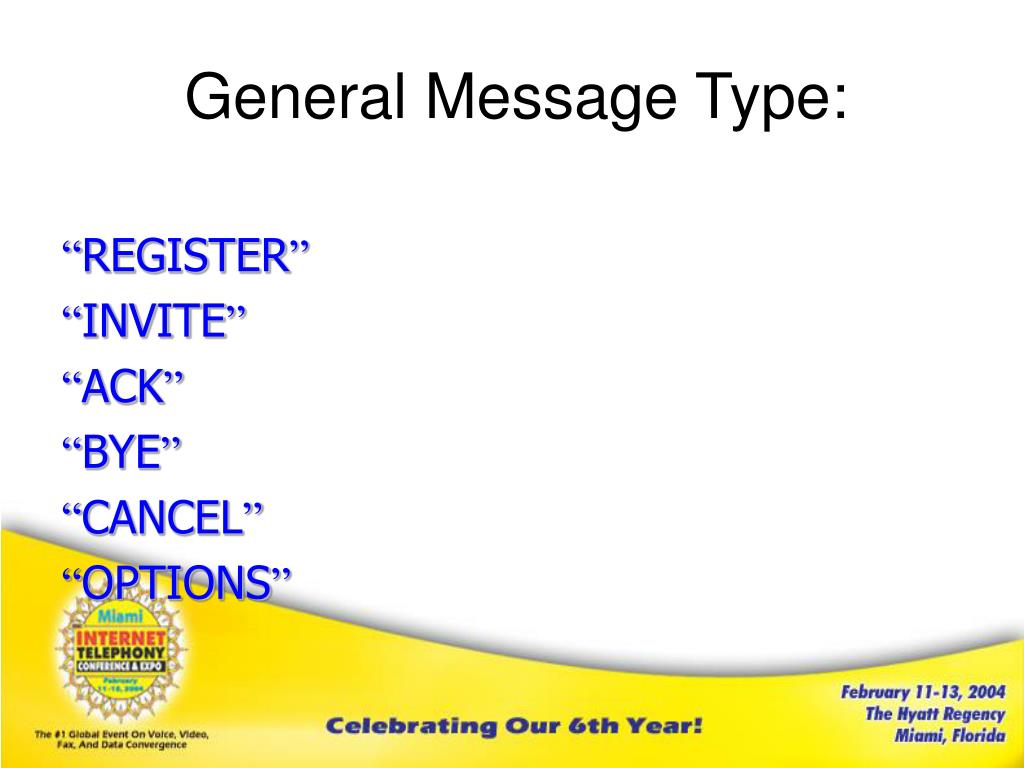

General Message Type:

“REGISTER”

“INVITE”

“ACK”

“BYE”

“CANCEL”

“OPTIONS”

register
REGISTER

Client uses the register method to register its address with the SIP server.

The client needs to register at startup and then periodically thereafter.

Recommended to register via multicast.

Multicast registration has a well known “all SIP servers” multicast address: “sip.mcast.net” (224.0.1.75)

invite

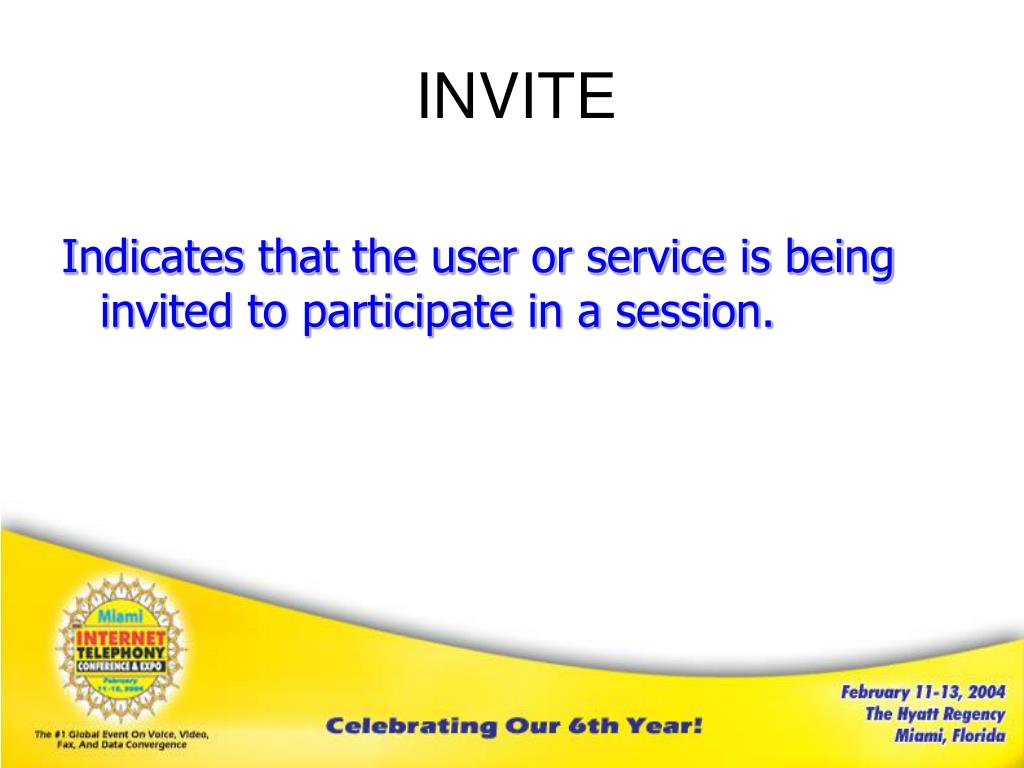

INVITE

Indicates that the user or service is being invited to participate in a session.

slide23

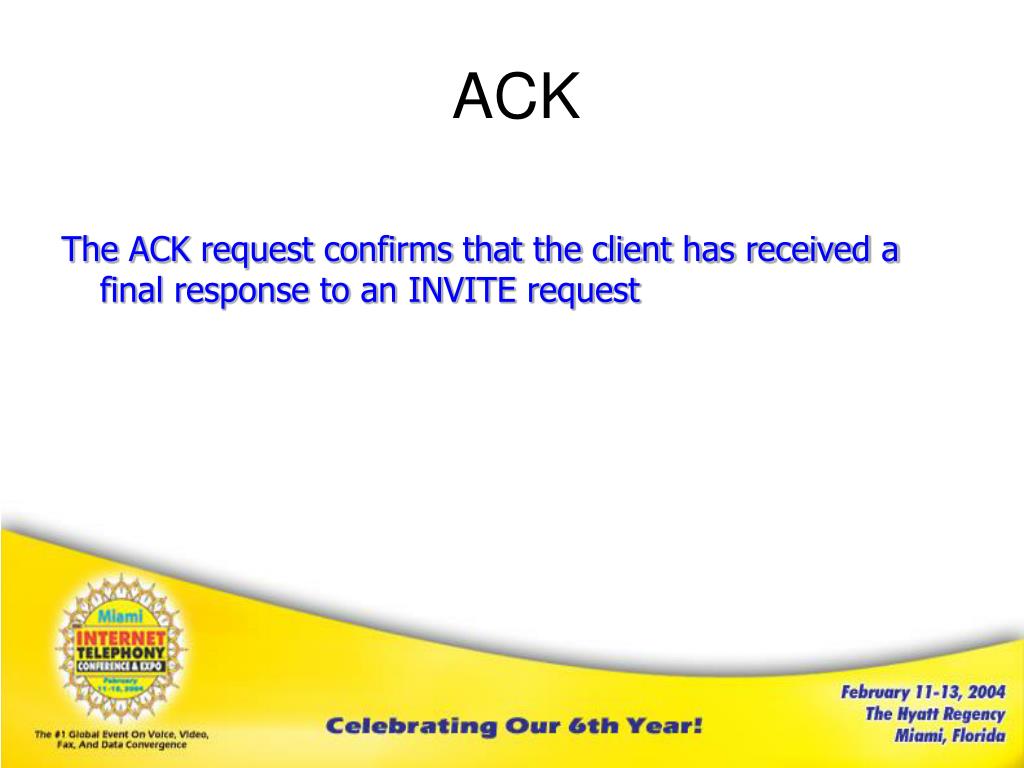

ACK

The ACK request confirms that the client has received a final response to an INVITE request

slide24
BYE

The client uses “BYE” to indicate to the server that it wishes to release the call.

A party to a call should send a BYE request before hanging up.

cancel

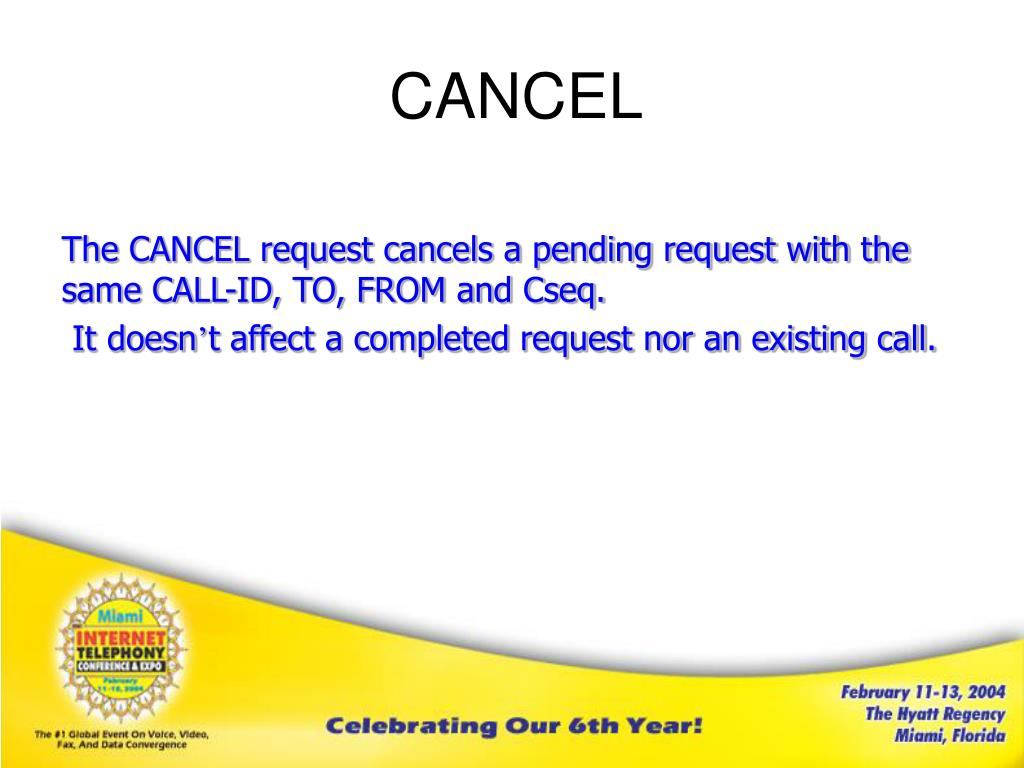

CANCEL

The CANCEL request cancels a pending request with the same CALL-ID, TO, FROM and Cseq.

It doesn’t affect a completed request nor an existing call.

options

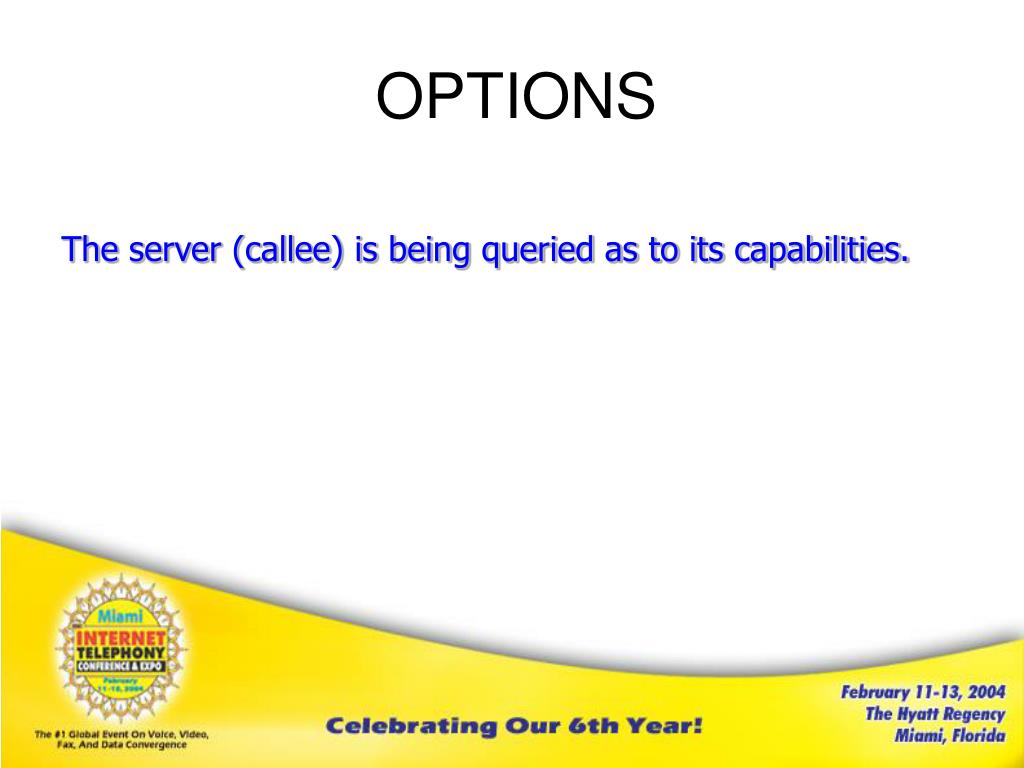

OPTIONS

The server (callee) is being queried as to its capabilities.

sip example

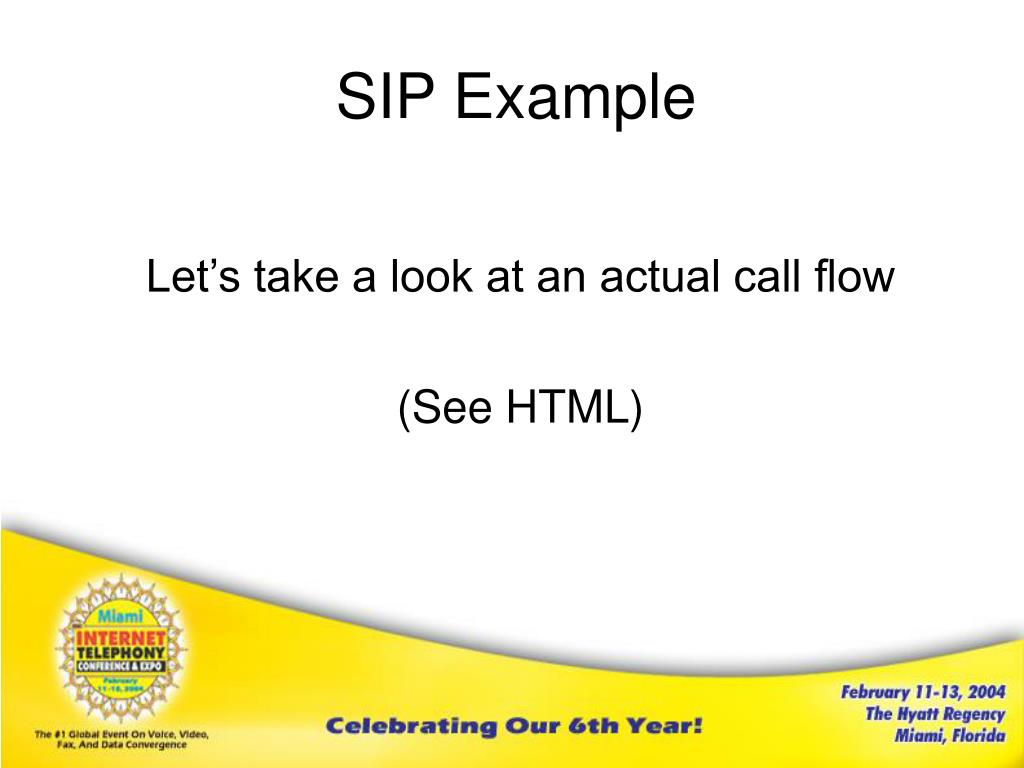

SIP Example

Let’s take a look at an actual call flow

(See HTML)

protocol comparison

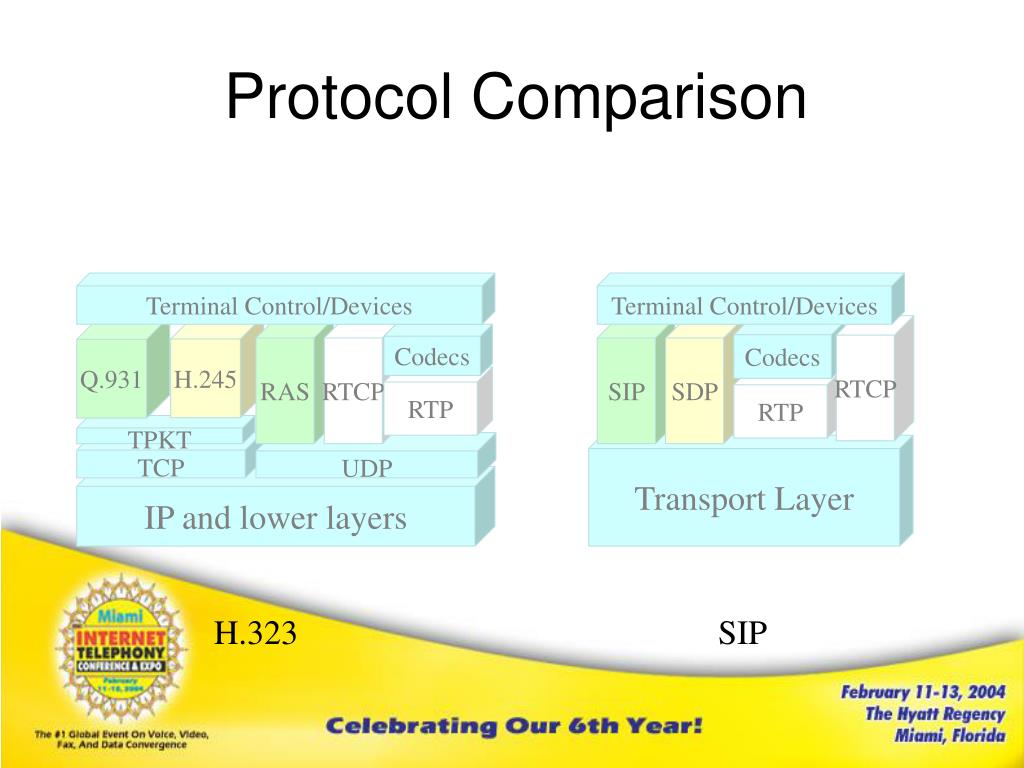

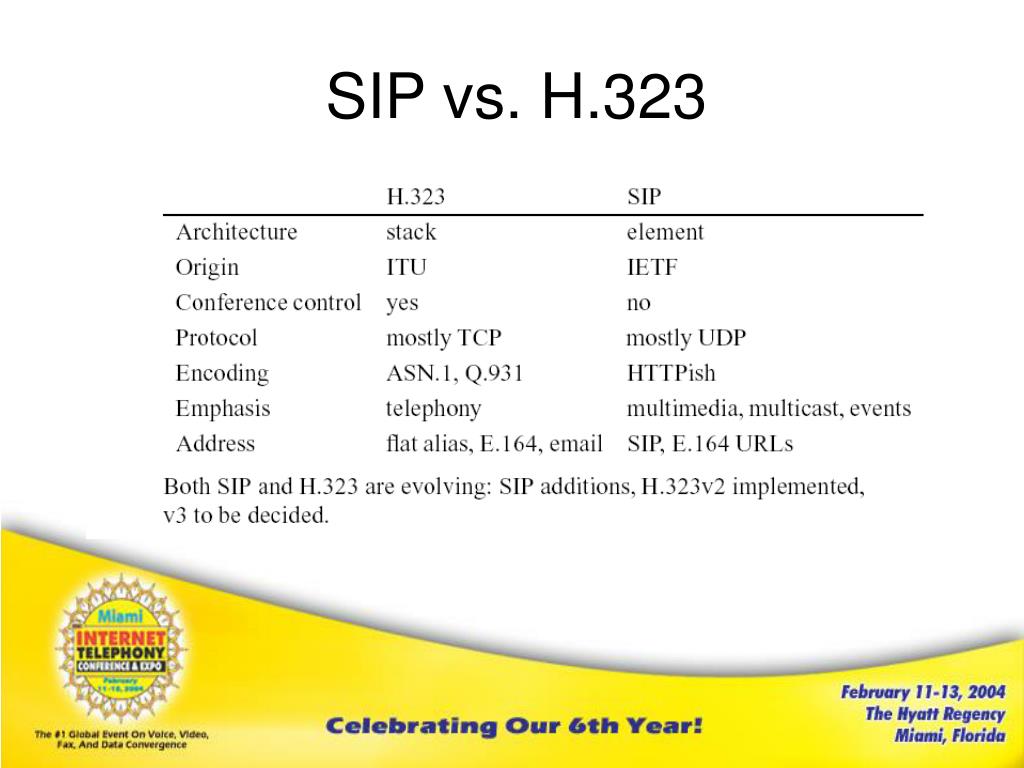

Protocol Comparison

Terminal Control/Devices

Terminal Control/Devices

H.245

RTCP

Q.931

RAS

RTCP

SIP

SDP

Codecs

Codecs

RTP

RTP

TPKT

TCP

UDP

Transport Layer

IP and lower layers

H.323

SIP

sip pros

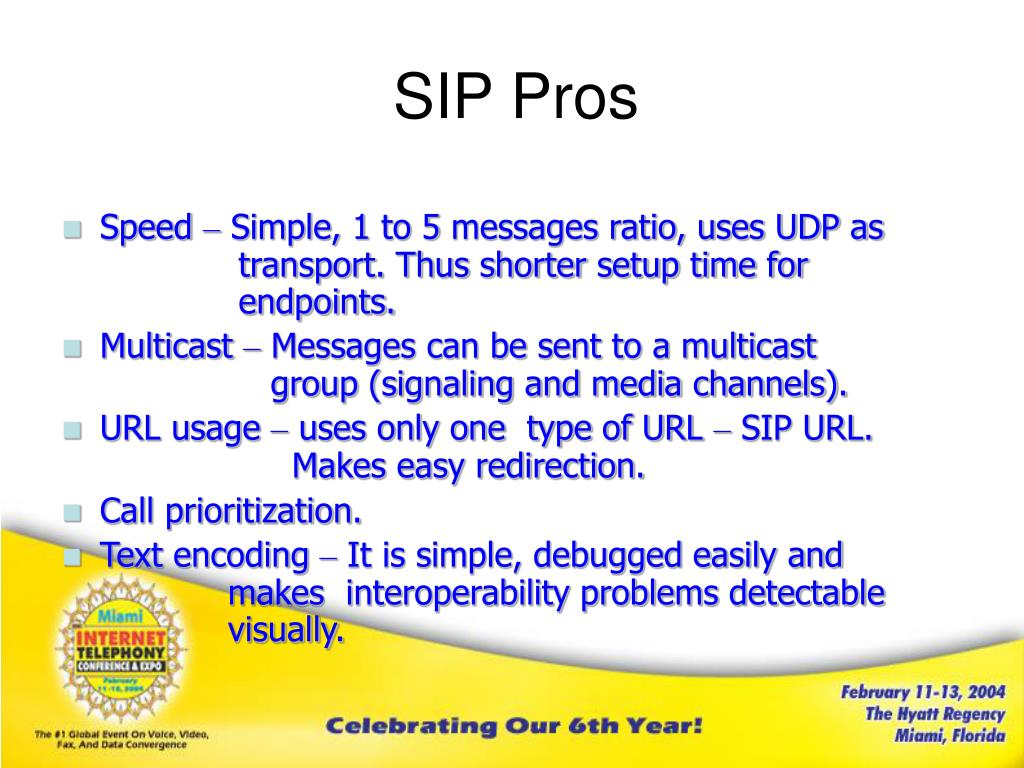

SIP Pros
  • Speed – Simple, 1 to 5 messages ratio, uses UDP as transport. Thus shorter setup time for endpoints.
  • Multicast – Messages can be sent to a multicast group (signaling and media channels).
  • URL usage – uses only one type of URL – SIP URL. Makes easy redirection.
  • Call prioritization.
  • Text encoding – It is simple, debugged easily and makes interoperability problems detectable visually.
h 323 pros

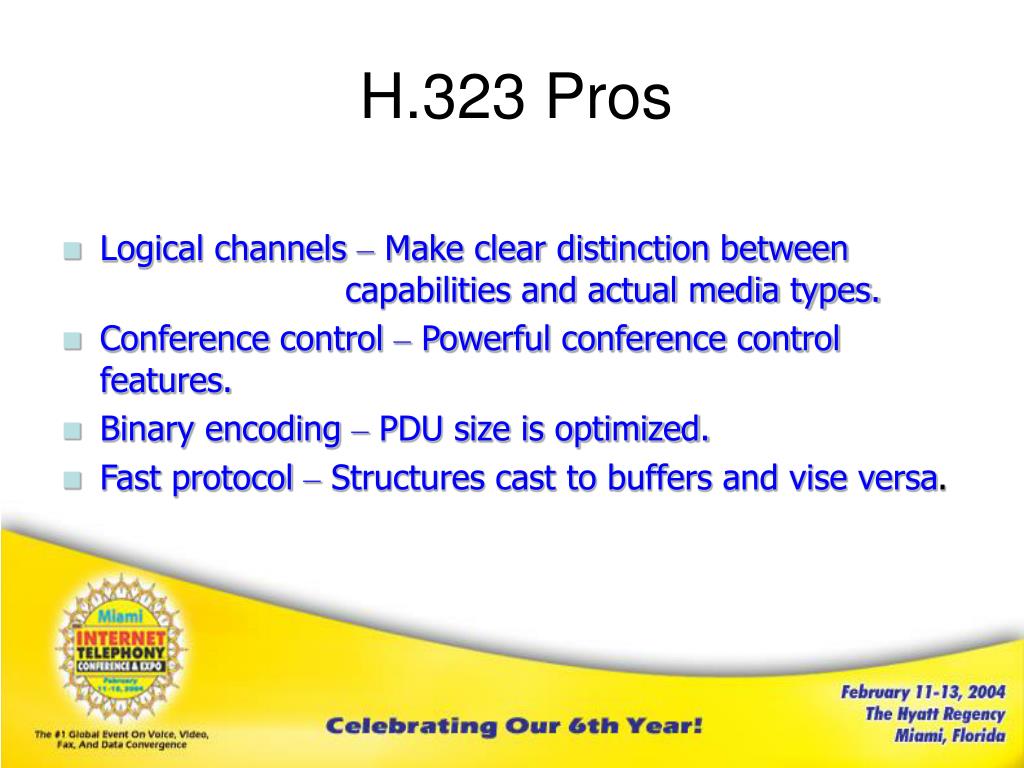

H.323 Pros
  • Logical channels – Make clear distinction between capabilities and actual media types.
  • Conference control – Powerful conference control features.
  • Binary encoding – PDU size is optimized.
  • Fast protocol – Structures cast to buffers and vise versa.
further reading

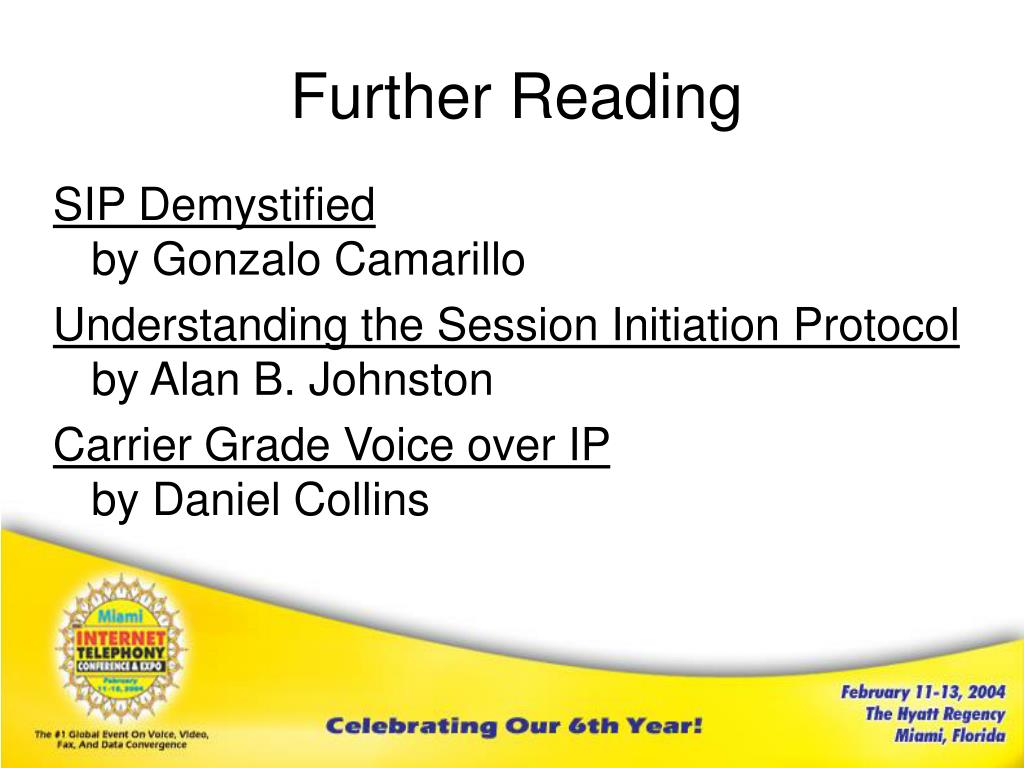

Further Reading

SIP Demystifiedby Gonzalo Camarillo

Understanding the Session Initiation Protocol by Alan B. Johnston

Carrier Grade Voice over IPby Daniel Collins
