  1. Control & Signalling Devices  22.5 Plastic Series • Salient characteristics / Approvals • Non-illuminated Switches • Illuminated Switches • Pilot Lights • Contact Elements

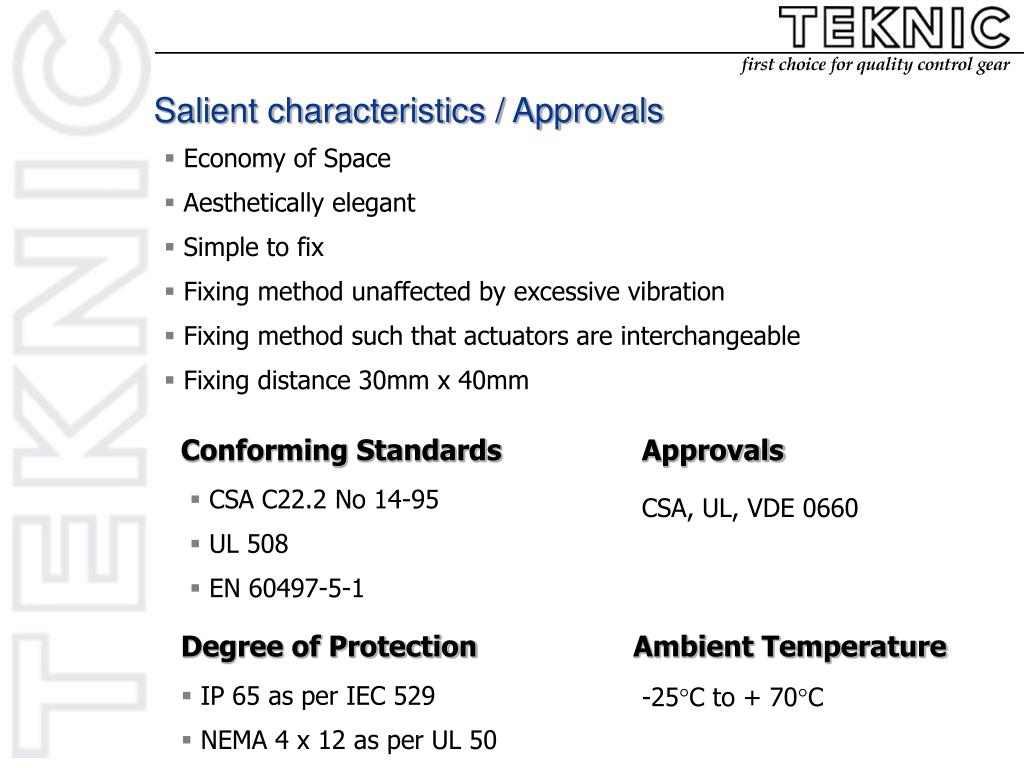

  2. Salient characteristics / Approvals • Economy of Space • Aesthetically elegant • Simple to fix • Fixing method unaffected by excessive vibration • Fixing method such that actuators are interchangeable • Fixing distance 30mm x 40mm Conforming Standards Approvals • CSA C22.2 No 14-95 • UL 508 • EN 60497-5-1 CSA, UL, VDE 0660 Degree of Protection Ambient Temperature • IP 65 as per IEC 529 • NEMA 4 x 12 as per UL 50 -25C to + 70C

  3. Non Illuminated Switches Types of Actuators: • Flush • Projecting • Booted • Relay Reset • Mushroom • Head  40 /  60 / 30 • Momentary • Latching • Push-pull • Key lockable • Trigger type

  4. Non Illuminated Switches Selectors • Maintained contact 2 pos. or 3 pos • Spring return 2 pos. or 3 pos • Standard knob / Extended knob Key Selectors • Maintained contact 2 pos. or 3 pos • Spring return 2 pos. or 3 pos • Key removable in different positions Twin Actuator

  5. Illuminated Switches Types of Actuators • Flush • Projecting • Selector • 2 pos. or 3 pos. maintained contact • 2 pos. or 3 pos. spring return • Twin illuminated Types of Lamp Holders for above Illuminated Actuators • Filament Bulb • Integral LED • LED Bulb

  6. Lamp holders for Illuminated Switches Filament Bulb • Direct connection up to 380V • With resistor suitable for 24V, 48V, 110V and 230V AC/DC • With resistor and diode suitable for 240V AC • Bulb BA9S, 2 - 2.6 watts

  7. Lamp holders for Illuminated Switches LED Lamp Holders Advantages of LED v/s Filament Bulb Filament LED • Normal life up to 2000 hrs • Power consumption varying between 2 – 5 watts • The body of the lamp holder gets heated up to 60º C above the ambient. • Long life up to 100,000 hrs • Very low power consumption 0.5 watts • Nominal change in temperature of the body above ambient

  8. Lamp holders for Illuminated Switches Integral LED lamp holders • LED’s fixed, cannot be replaced • LED’s available with different colours • Current consumption max. 20 mA • Short circuit protection with built in fuse (optional) • Voltage limits ± 20% of rated voltage • Low voltage glow protection up to 20 % of operating voltage • Available from 12V to 230V AC or DC, 415 V AC

  9. Lamp holders for Illuminated Switches LED Bulb Lamp Holders • BA9S LED bulbs / max. power consumption 1 watt • Different colours available • Current consumption 20 mA max • Voltage limits ± 20% of rated voltage • Available for 24V AC/DC, 110V AC/DC and 230V AC or 220V DC

  10. Pilot Lights Lamp Holders for Pilot Lights • Filament Bulbs • Integral LED • LED Bulbs • Universal LED • Transformer Universal LED Holders • Integral LED, non-replaceable • Wide band holder can be used from 24V AC/DC supply to 230V AC/DC supply • Different colours available

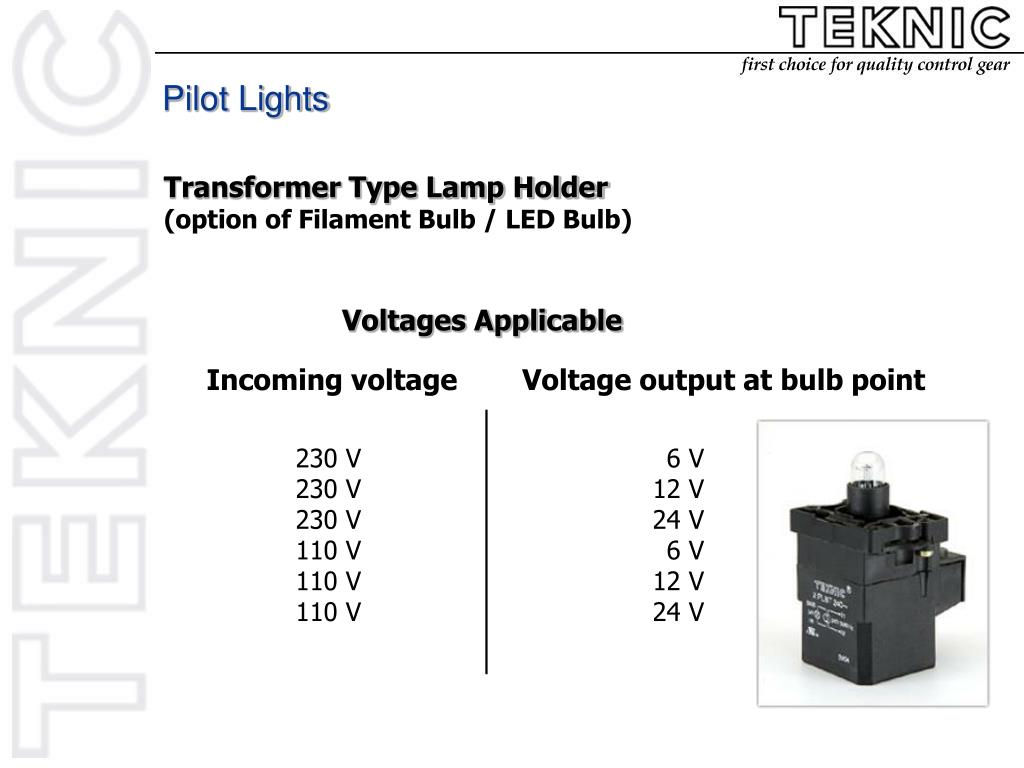

  11. Pilot Lights Transformer Type Lamp Holder (option of Filament Bulb / LED Bulb) Voltages Applicable Incoming voltage Voltage output at bulb point 230 V 230 V 230 V 110 V 110 V 110 V 06 V 12 V 24 V 06 V 12 V 24 V

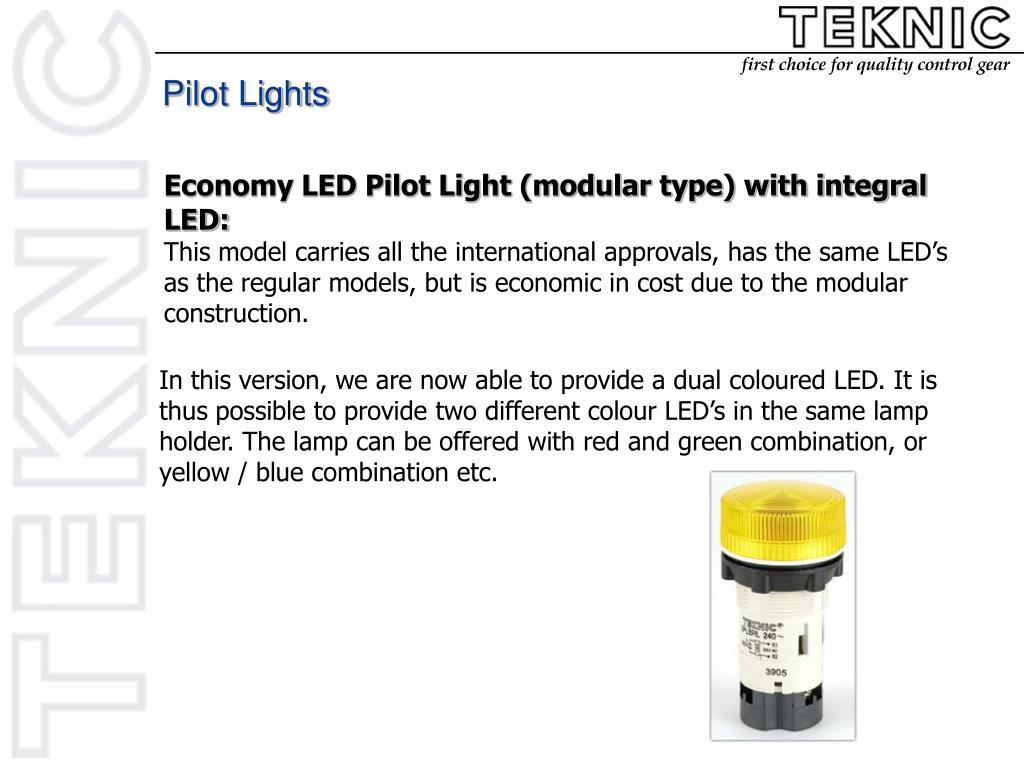

  12. Pilot Lights Economy LED Pilot Light (modular type) with integral LED: This model carries all the international approvals, has the same LED’s as the regular models, but is economic in cost due to the modular construction. In this version, we are now able to provide a dual coloured LED. It is thus possible to provide two different colour LED’s in the same lamp holder. The lamp can be offered with red and green combination, or yellow / blue combination etc.

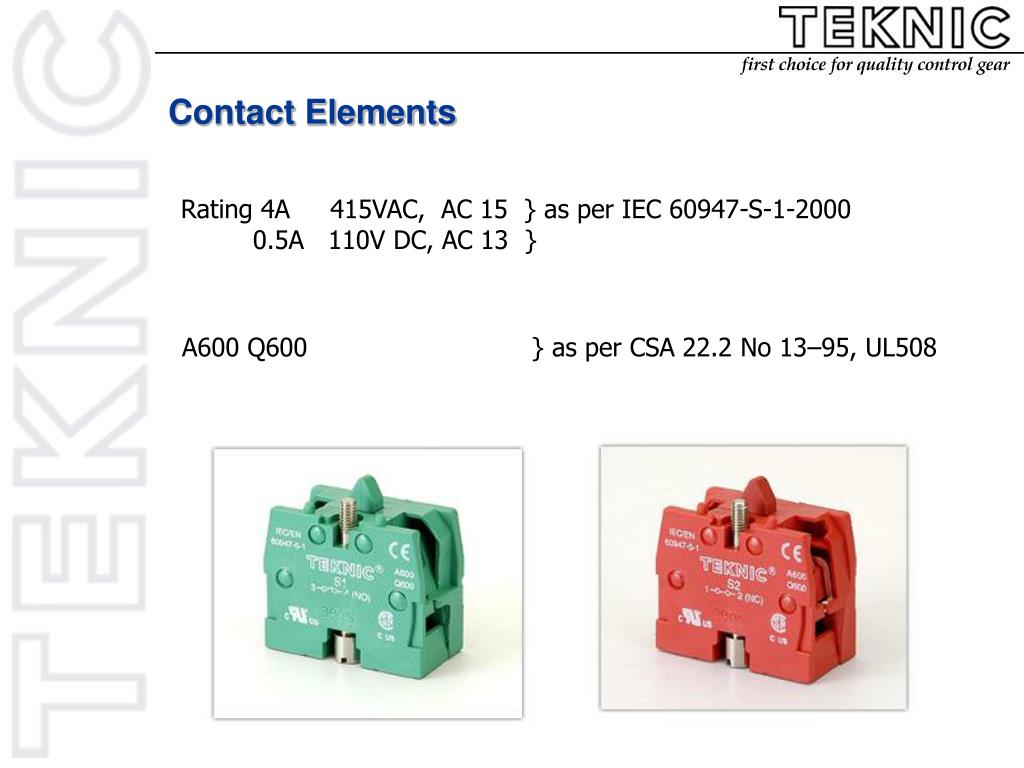

  13. Contact Elements Rating 4A 415VAC, AC 15 } as per IEC 60947-S-1-2000 0.5A 110V DC, AC 13 } A600 Q600 } as per CSA 22.2 No 13–95, UL508

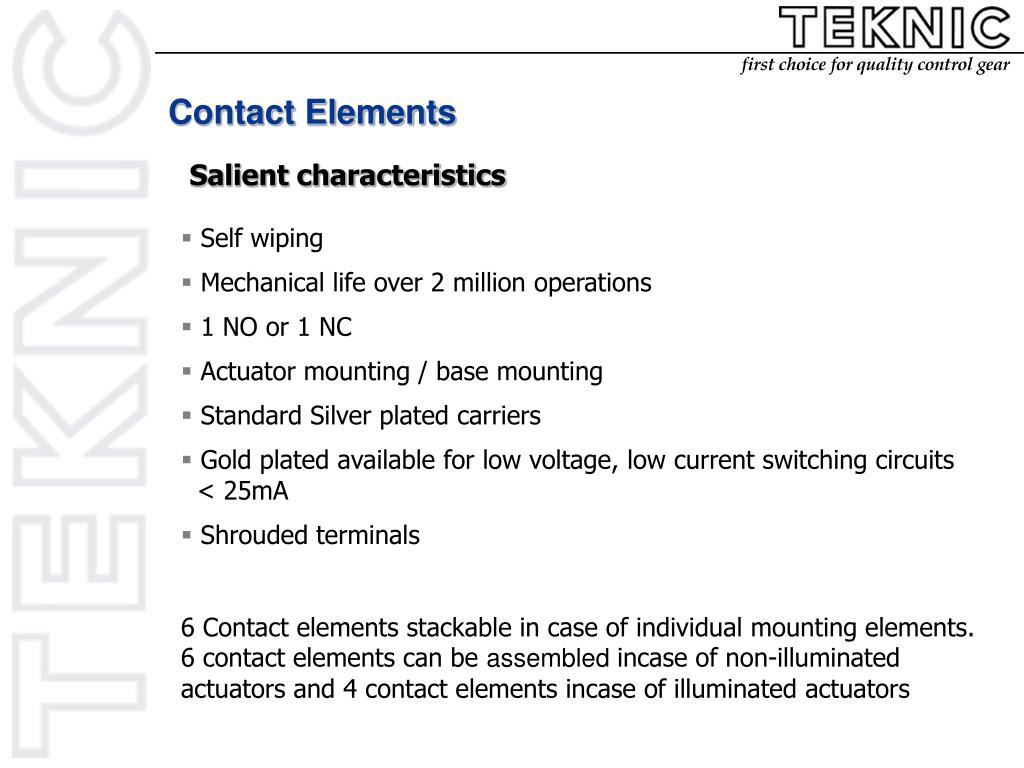

  14. Contact Elements Salient characteristics • Self wiping • Mechanical life over 2 million operations • 1 NO or 1 NC • Actuator mounting / base mounting • Standard Silver plated carriers • Gold plated available for low voltage, low current switching circuits < 25mA • Shrouded terminals 6 Contact elements stackable in case of individual mounting elements. 6 contact elements can be assembled incase of non-illuminated actuators and 4 contact elements incase of illuminated actuators
