Presentation Transcript
carecast physician education

CARECAST PHYSICIAN EDUCATION

TO INCLUDE OFFICE STAFF

accessing carecast
ACCESSING CARECAST

Open IE Internet Explorer

accessing citrix
ACCESSING CITRIX

Type http://wi.ihs.orgin the Address line then click Enter on the keyboard. Once added to your Favorites, select from Favorites

citrix logon screen
CITRIX LOGON SCREEN

NOTE:

Click on Favorites and Add to Favorites to eliminate typing the website each time

Type in User name and Password then click on Log In

accessing carecast5
ACCESSING CARECAST

Type in your Username and Password

Click on the Login button

OR

Select the appropriate pathway under the Options button

NOTE: Passwords in Carecast are case sensitive.If you forget your password, a call must beplaced to the Service Center where it will bereset. The Service Center will no longer beable to look up your current password

L7 users click on Login

L8 TQC users click on Login

L8 SL users click on Options then select LCJPML8A

L9 AMH users click on Login

L9 TRH users click on Options then select LCJPML9A

L9 SC users click on Options then select LCJPML9B

L9 FH users click on Options then select LCJPML9C

carecast base screen
CARECAST BASE SCREEN

The title bar will always say ‘IDX Web Framework – Microsoft Internet Explorer

  • Clear the screen to activate a different patient by:
  • Right click on a blank part of the screen and then select Clear screen then Enter on the keyboard twice
  • Ctrl/Shift/Home then Enter on the keyboard twice
  • Click on Select Patient in the upper left hand corner then click Clear
parts of the screen that are constant
PARTS OF THE SCREEN THAT ARE CONSTANT
  • The title bar is constant on all screens
  • TheTool Bar is new and is also constant on all screens. The following options have the samefunctionality as in LastWord:
  • Home
  • Back
  • Done
  • Tools options:
  • Settings-allows user to change password
  • Tear-off Screen-allows user to do a screen print
  • Debugging Tools-do not use
  • Keyboard Navigation Quick Reference (see next screen)
  • The Help option contains……..
  • The Lock option locks Carecast on the screenthe user is working on. The user must reentertheir password to resume
  • Logoff logs the user out of Carecast (F10 willno longer log a user out of the application)
keyboard navigation quick reference
KEYBOARD NAVIGATION QUICK REFERENCE

This quick reference contains generic keyboard alternatives only. It does not contain any specific to Carecast

** Additionallythere are F7 and F8 function keys that

‘page up’ and ‘page down’, these are not on this screen

parts of the screen that are constant9
PARTS OF THE SCREEN THAT ARE CONSTANT

The Chart tabs are basically the same as in LastWord.Hovering the mouse over a Chart tab will change the color.Clicking on a Chart Tab will either activate the commandor open a menu as displayed with the RSLTS Chart tab.An item proceeded by a + has a sub menu. Clicking onany of those items opens an additional list of commands.As long as Chart tabs are colored (not grayed out) theyare functional and can be used to navigate through theapplication

parts of the screen that are constant10
PARTS OF THE SCREEN THAT ARE CONSTANT
  • The Banner Bar contains:
  • MRN
  • DOB
  • Age
  • Room number, if applicable
  • Room extension, if applicable
  • Account number if command performed is account specific
  • Select Patient to:
  • Search for a different patient using the Current Active List
  • Clear the screen of the current active patient (Ctrl/Shift/Home then Enter twice will also clear screen. You may also right click in a nonfunctioning part of the screen and select Clear Screen followed by enter to clear the screen)
  • Activate a previously activated patient
parts of the screen that are constant11
PARTS OF THE SCREEN THAT ARE CONSTANT

The icon is the About Patient icon and displays the data below

parts of the screen that are constant12
PARTS OF THE SCREEN THAT ARE CONSTANT
  • The Advisory Line at the bottom of the screen displays, left to right:
  • User logged in
  • Pathway
  • Advisory message, if any
  • Name of screen
  • Facility
  • Terminal ID number
  • Note-Name of screen and terminal ID number are veryhelpful to the Service Center when user is having problems
prefset
PREFSET

Each CareCast user will need to set their preferences when they first logon to CareCast at go-live

  • Users will need to set their preferences when they first logon to Carecast:
  • Click the Personal Options button
  • Double click on the Misc folder
  • Select PREFSET-Maintain preferences for patient activation

Select PREFSET - Maintain preferences for patient

activation in the VT popup window.

  • Click the Prsnl Opt button
prefset14
PREFSET
  • Command Behavior:
  • Default - blank
  • Retain - Y
  • Automatic - blank
  • Patient Activation List Behavior:
  • P in the first position-required

Order Behavior:

Would not be used by Physicians at this time

  • Hot list Behavior:
  • Clear at logoff - N
  • Add every active - Y

Click ‘Save’, to save

changes entered on

this screen

Then click ‘Cancel’ to leave screen

patient lists
PATIENT LISTS

More options with lists in CareCast.Three radio buttons allow access to bothsystem controlled lists and manually created lists:

  • Freq - displays user defined frequent lists

Freq

  • Folders- displays user defined lists in folders
  • Avail - Lists that are available in the system

Once a list is displayed in the Patient List Directorywindow, double clicking on the list will either displayit in the Current Patient List window or a pop upwindow will display for you to select the list from agroup/folder

Folders

NOTE:

Different directories of lists will display depending on which

radio button in selected

Avail

lists creating group list
LISTS – Creating Group List
  • To set up ‘Group’ list:
  • Click on the Availableradio button
  • Double click on Group Census (Opens Group Census Selection window)

**Select Group from list (like Last Word)

**Type in the facility abbreviation –

IMMC. BCH, ILH

  • Group Census Selection Window
  • Choose your ‘Group’ from the Group list (Like Last Word)
  • Type in Facility (required)
  • Click on ‘Create Frequent List’ button
  • NOTE: will display list using the Frequent radio button
  • DO NOT change name of list
  • Click on ‘Create List’ button to store the list in user created list
  • Additional Comments:
  • Repeat steps above to create more freq lists
lists creating freq list

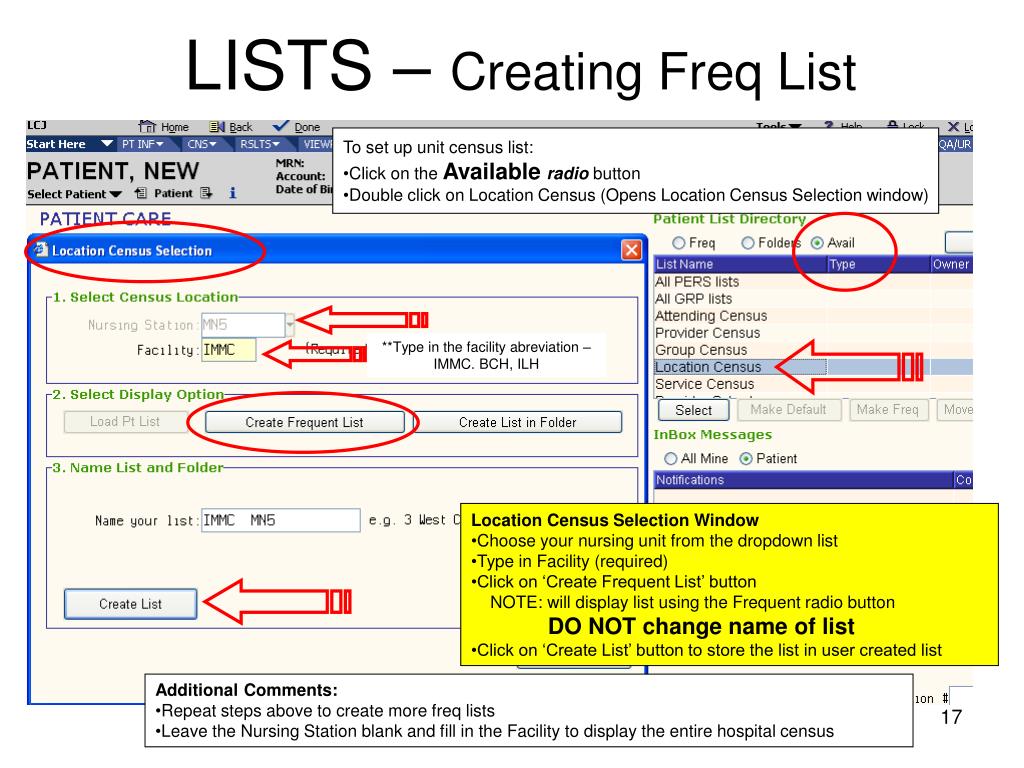

LISTS – Creating Freq List
  • To set up unit census list:
  • Click on the Availableradio button
  • Double click on Location Census (Opens Location Census Selection window)

**Type in the facility abreviation –

IMMC. BCH, ILH

  • Location Census Selection Window
  • Choose your nursing unit from the dropdown list
  • Type in Facility (required)
  • Click on ‘Create Frequent List’ button
  • NOTE: will display list using the Frequent radio button
  • DO NOT change name of list
  • Click on ‘Create List’ button to store the list in user created list
  • Additional Comments:
  • Repeat steps above to create more freq lists
  • Leave the Nursing Station blank and fill in the Facility to display the entire hospital census
lists default list
LISTS – Defaultlist

Click appropriate radio button to display list you want as your default

Highlight the list by clicking on it with mouse

Click on the ‘Make Default’ button.

Note: A red heart will display to the right of the default list

lists remove list
LISTS – remove list

‘User defined’ lists can be moved or removed:

Display the list to move or remove

Click on the list to Highlight

Click on the Move/Remove button

NOTE: This will open the Update Directory – Group Census List window

Click on the Remove button

clerical information
CLERICAL INFORMATION
  • The PT INF chart tab allows the user to review:
  • CLNR-Review Allergies
  • DEMR-Demographics
  • FINR-Insurance (will need to select an account)
  • MPI-Visit History
clerical information21
CLERICAL INFORMATION

The BILL chart tab contains the command CHRSUM which displays charges by account. F7 and F8 page up and page down on those screens

viewer
VIEWER

Click the VIEWR Chart tab then click on Viewer All Display.

** This will be the recommended method to review labs in a ‘trended’ format

viewer23
VIEWER

The Viewer displays without first showing the options for it.

To change options, either close the Viewer then click the Options button, OR move the viewer so the Options button can be clicked.

viewer24
VIEWER

Change the options for a different display, the eitherclick the Restore or Changebutton

viewer25
VIEWER
  • Change the options for a different display, then either click the Restore or Change button
  • Restore – ‘resets’ the parameters
  • Change – changes the parameters for this view.
  • Changes made on this screen are not ‘stored’ for subsequent views
rslts tab
RSLTS Tab

The RSLTS Chart tab allows the user to view many differenttypes of resulted data. Click on the RSLTS Chart tab thenclick on the appropriate Results to display

document display
DOCUMENT DISPLAY
  • Options:
  • Detail-Displays the data in a different format
  • Print-Choose a printer to print the displayed results
  • Options-Change how the screen displays information
  • Ribbon-Displays the data in a different format
  • Edit-NA with the data IHS is displaying
  • See Note-Would display a note if a heading had one
  • Forward-NA for IHS at this time
  • Inbox options-NA for IHS at this time
  • Next-Displays results of next heading
  • Prev-Displays results of previous heading
document display28
DOCUMENT DISPLAY

This screen displays data for a defined time

(default = 120 days) not from the beginning on the medical record as on some LastWord screens

The upper portion of the screen containsheadings of documented data.

The lower portion of the screen displays the detail. Highlighting a heading to change the display

carecast buttons
CARECAST BUTTONS

File folders contain additional commands. Double click on a folder to open it then a single click activates the command

The Personal Opt Button contains both folders and individual commands.

A single click activates a command
