UML as a Modeling Tool for Developing an Agent-basedAuction SystemArnold Aribowo(Department of Computer Engineering, Pelita Harapan University, Indonesia)Maria Indrawan(CSSE, Monash University, Australia)


Outline
Outline

  • Buying Model

  • Negotiation Types

  • UML Notations

  • UML Activity diagrams for Auction Protocol

  • Conclusion and future works


Buying model

negotiation

Product identification

Product selection

Buying Model

prepurchase

Product consummation

Payment authorization

Product delivery

Order placement

Post purchase

After sales services


Negotiation types
Negotiation Types

  • Distributive Negotiation (win-lose)

    • One issue is negotiated.

    • Parties involved have opposing interests.

    • Agreement does not need to satisfy joint gains for both parties.

  • Integrative Negotiation (win-win)

    • Multiple issues are negotiated.

    • Parties involved have different preferences towards these issues.

    • Agreement need to satisfy joint gains for both parties.



Type of auctions
Type of Auctions

  • English Auction

    • open cry auction

  • Sealed-bid Auction

    • single round or multiple rounds

  • Dutch Auction


What is agent
What is Agent?

  • Dictionary:

    • Latin ‘agans” -> to act

    • the producer of an effect, an active substance, a person or thing that performs an action, a representative, etc.

  • Common characteristics:

    • perform some task on our behalf (action)

    • has responsibility

    • access to some of our resources

    • proactive/reactive


Agent based auction systems

Agent-based Auction Systems

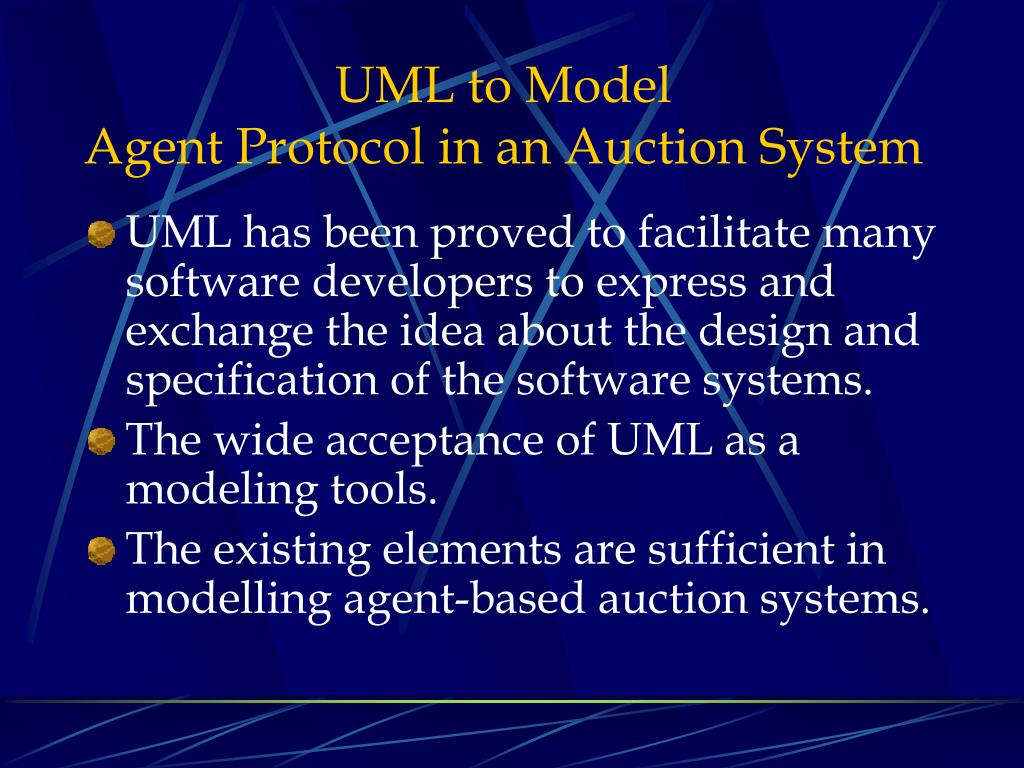

Uml to model agent protocol in an auction system
UML to Model Agent Protocol in an Auction System

  • UML has been proved to facilitate many software developers to express and exchange the idea about the design and specification of the software systems.

  • The wide acceptance of UML as a modeling tools.

  • The existing elements are sufficient in modelling agent-based auction systems.


Uml activity diagram notations 1
UML Activity Diagram Notations (1)

  • Initial and final states

  • Action state

  • Transition


Uml activity diagram notations 2
UML Activity Diagram Notations (2)

  • Decision

  • Fork and Join





Multiple r ound s ealed b id auction
Multiple Round Sealed Bid Auction


Dutch auction
Dutch Auction


Conclusion
Conclusion

  • UML has the ability on modelling agent interactions.

  • The interactions modelled:

    • the flow of messages during the auction process.

    • the expected actions in different states of the auctions.

  • Future works:

    • defining the message format

    • mapping the message into an existing Agent Communication Languages, such as FIPA ACL.
