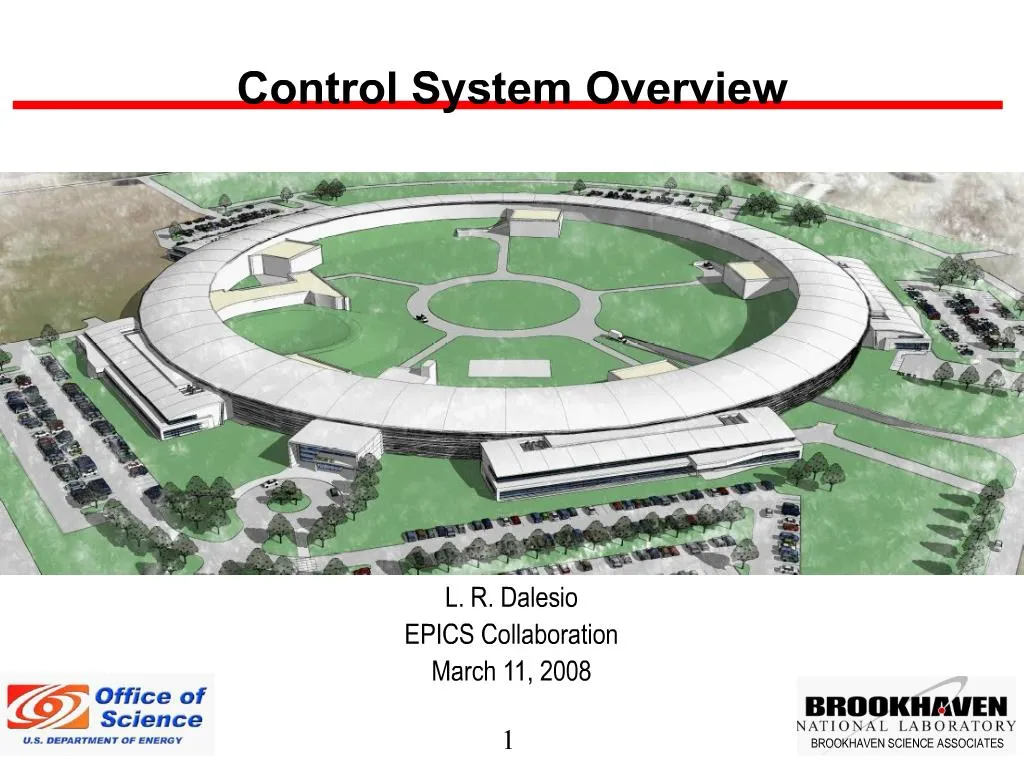

    1. Control System Overview

    2. Outline Requirements Standard Control System Components Development Opportunities Embedded Device Control Client/Server Architecture for High Level Applications Relational Database and tools for all configuration parameters Near Term Plans Scope of Work and Budget Concluding remarks

    3. Control System Requirements – 1 of 3 Bunch Length 1-40 psecs 2.6 usec ring revolution Top off every 1 minute Top off bunch train 140-300 nsec Top off damping time 10-50 msecs (no extraction) Synchronous reading/writing (latency?jitter?future settings?rate?) Manual control of orbit trims,  quadrupoles, sextupoles, and insertion devices are asynchronous ~10 Hz write/read is suitable for “turning knobs” for a power supply 5 Hz updates to operators of up to 1000 chosen parameters Archive up to 6000 parameters at a rate of 2 Hz continually What is done elsewhere? Must scale to support 150,000 physical I/O connections and 400,000 computed variables 99.99% availability 24/7

    4. Control System Requirements – 2 of 3 Transient Recording Take coherent turn by turn orbit data for up to 800 channels 1024 turns Latch the last 10 seconds of data from all parameters in the storage ring Others? Beam line needs 1 msec archiving over 1 minute for temperatures and positions Provide data for all control aspects 5 KHz RF Feedback on beam phase 10 kHz orbit feedback, (100 usec loop time) 300 BPMs (10 per cell) 2 * 120 Corrector PS in 90 I/O Controllers (IOC) 20 msec equipment protection mitigation (too long?) 1 Hz model based control 10 kHz power supply read backs triggered from timing sys 10’s of Hz Data Collection for RF loop correction. 80 psecs pulse to pulse timing jitter. During top off, some beamlines will need 1.1 - 1.8 psecs of timing jitter Machine physics thinks this number should be < 2 psecs Provide electron detector as event for beam line?

    5. Control System Requirements – 3 of 3 First need dates 2008/03 – vibration tests on girders done using stand alone software. Some vibration sensors will be used online. 2008/06 – support libera BPM evaluation Where do the rest of the diagnostics fit Where does the conventional facility demonstrator fit Where does the power supply test stand fit 2008/08 – X-9 upgrade for NSLS beam line 2008/09 – low level RF lab support 2009/06 – support water systems 2009/09 – support thermocouple measuring 2009/09 – support vacuum test stands 2010/03 – support high power RF Control Room Must be able to be relocated Control room in the LOB for commissioning Control room re-located with accelerator team for operation

    6. Nomenclature Standard Psy:PI-Ssy:SI-Tsy:TI<Dev:DI>Sg:SgI-SD

    8. Control System Architecture

    9. Control Hardware Standards for Test Stands Dell Linux development workstations PLC Solutions Allen Bradley Control Logix Allen Bradley FlexIO Building Automation ALS Needs fast Ethernet based interface board VME crates Rittan 4 slot VME64x-2U4S-PS300C-SM 4,395.00 Rittan 7 slot VME64x-4U7S-PS900C-SM 5,510.00 Weiner 9 slot VME195xPO 6,050.00 Weiner 21 slot VME6023/611_JL 7,271.00 CPU Boards Motorola MVME 5500 3,000.00 PP410 3,500.00 Motor Controllers Hytec 8601 with motor driver 32 axis ~1,000/axis Newport XPS Intelligent motion controllers

    11. Control Hardware For Beam Synchronous Applications

    12. Embedded Controllers - Per Cell

    13. Embedded Controllers - Approach Develop a prototype cell controller: Redundant 2 Gbit communication paths for peer to peer communication RF timing signals Verify communication and timing jitter meet requirements Develop the interface from the cell controller to a processor for integration into EPICS In parallel: Develop the inexpensive device controller with redundant 100 MBit controllers Develop the 100 Mbit receive and transmit circuits for the Cell Controllers Develop the EPICS interface to the Cell Controller

    14. Embedded Controllers - Status FY 08 Purchase order in place with LBL (Alex Ratti and Larry Doolittle) Develop a prototype cell controller: Redundant 2 Gbit communication paths for peer to peer communication RF timing signals Verify communication and timing jitter meet requirements Develop the interface from the cell controller to a processor for integration into EPICS FY 09 Develop the inexpensive device controller with redundant 100 MBit controllers Develop the 100 Mbit receive and transmit circuits for the Cell Controllers Begin integration of these device controllers Libera Power supply control LLRF control

    15. High Level Applications – Client/Sever

    16. High Level Applications - Approach Install an operational NSLS II simulation using Matlab Middle Layer Toolkit Define an interface library for physics applications to communicate to the configuration parameters, calibrations, model data, and measured data. Port some subset of the available packages (Matlab Middle Layer Toolkit, Elegant, XAL, Dimad, and SAD) onto the interface library one application at a time. Develop a client/server implementation of the interface library. Use an RDB to store configuration parameters and calibrations.

    17. Relational Database Support all configuration data Provide tools as they are needed throughout the project. Make the RDB the source of all configuration data and derive it from there for all uses.

    18. Relational Database - Approach Use the IRMIS database as the basis for our component and wiring database which is currently in use at APS, SNS, CLS, Diamond, and SLS. Extend the database to support Optics early through a contract with Tech-X in conjunction with our physicists and control group. This contract includes a name mapper and lattice input / report tool Develop tools through contracts, collaboration, and the hire of a second RDB expert. We are preparing SOWs for Naming Tool and Wiring Input Schedule the time and put in the project rigor to use the RDB and tools as new portions of the project are needed.

    19. WBS 1.03.05 Global Controls System

    20. Near Term Plan Start R&D Contact Nearly in place for development of open-source embedded device controllers with LBL team (Larry Doolittle and Alex Ratti) RDB server is purchased and we are ready to Install IRMIS Tech-X contract ready to go out the door to extend IRMIS to support Optics Position open for someone to Develop RDB tools for entry and reports Installed NSLS II Simulation through IOCs Installed Matlab Middle Layer Toolkit for Commissioning Two positions in place to Start Development of API for High Level Applications (one starts in May, the other position should be filled by March) Make Preliminary Hires RDB job ad is placed. A candidate has been indentified and could start by March 15th.. High Level Applications Engineers – Guobao Shen starts May 10, 2nd position starts by March 15th.. 2 positions are open for project engineers 1 position is open for an embedded systems expert Completed preliminary design Completed extensions to Visual DCT for Spreadsheet based input

    21. Concluding Remarks Global requirements are complete Equipment control S/W and H/W infra-structure is selected. A collaboration of LBL and SLS EEs along with NSLS II team are prepared to begin the open-source, embedded device controller development RDB tables and tools have begun building on the success of IRMIS. High Level Application environment is selected. The Diamond simulation running under EPICS is installed along with the Matlab Middle Layer Toolkit as a starting point at KEK by Guabao Shen. The API for High Level Applications is being developed in conjunction with MMLT, SDDS, and XAL authors. Staff Acquisition is a critical activity and we have made good progress.
