Presentation Transcript


  1. Parallelograms Rectangles Rhombi Squares Trapezoids 100 100 100 100 100 200 200 200 200 200 300 300 300 300 300 400 400 400 400 400 500 500 500 500 500

  2. B C E A D Parallelograms - $100 Use parallelogram ABCD to answer the following: • BE = 16 • ED = 2x + 4 • AE = 5x – 14 • FIND BD

  3. BD = 32

  4. Parallelograms - $200 Use parallelogram ABCD to answer the following: • AB = 4x – 2 • BC = 6x – 8 • CD = 5x – 8 • FIND x B C E A D

  5. X = 6

  6. B C E A D Parallelograms - $300 Use parallelogram ABCD to answer the following: • mBAD = 5x + 15 • mABC = 10y - 5 • mBCD = 7x - 5 • FIND mCDA

  7. mCDA = 115

  8. Parallelograms - $400 Determine if the following four points are the vertices of a parallelogram: A(-8,-2) B(-4,6) C(4,5) D(0,-2)

  9. No

  10. Parallelograms - $500 Determine the possible coordinates for the fourth vertex, if the following coordinates are three vertices of a parallelogram. (-5,2) (3,4) (1,-4) (3,4) (-5,2) (1,-4)

  11. (9,-2) (-7,-6) (-3,10)

  12. C E S T R If ET = 29, then CS = ?

  13. C E S T R If mRES = 3x + 2 and m CES = 7x - 12, then x = ?

  14. 10

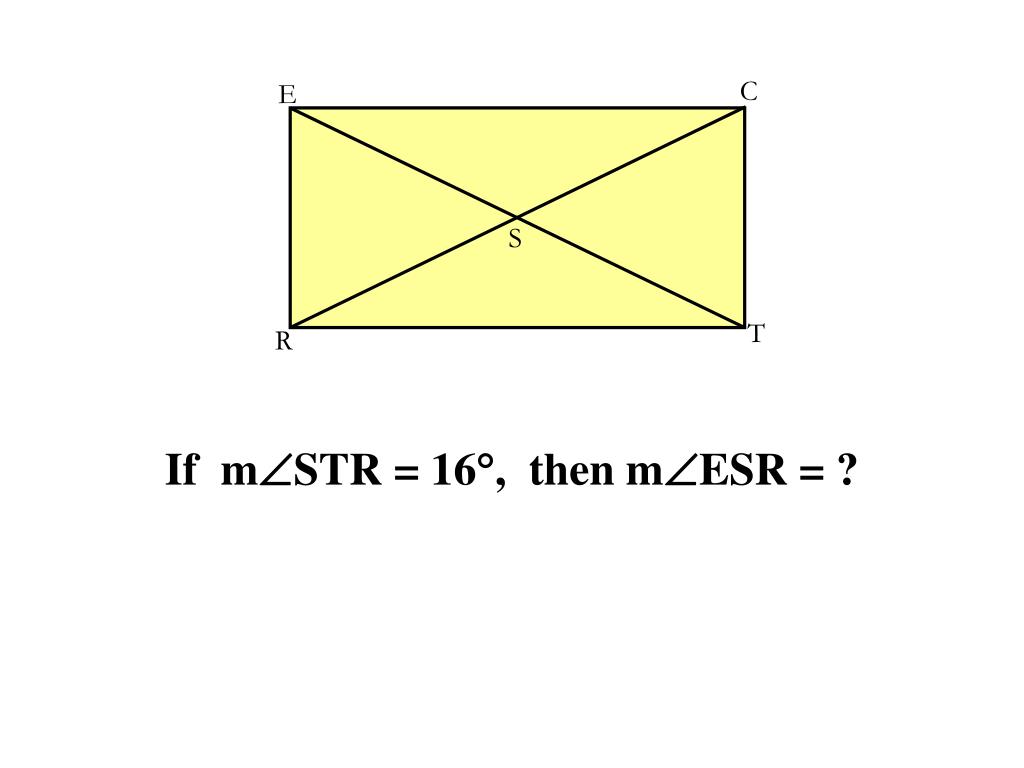

  15. C E S T R If mSTR = 16, then mESR = ?

  16. 32

  17. C E S T R If ST = x2 – 3x and ES = 2x + 6, then x = ?

  18. -1 and 6

  19. C E S T R If EC = 3x + 4y, RE = 5x + 3y, RT = 12, and CT = 31, then x and y = ?

  20. x = 8 and y = -3

  21. R H B O M If BO = 8.5, then RO = ?

  22. 17

  23. R H B O M If mRMB = 61, then m RHO = ?

  24. 122

  25. R H B O M If mBRH = 3x + 5 and m OHB = 4x - 13, then x = ?

  26. 14

  27. R H B O M If mHBR = x2 – 8x + 42, then x = ?

  28. -4 or 12

  29. R H B O M If mORM = 2x + 3y, mMRH = 54, MO = 9x – 2y, and RH = 13, then x and y = ?

  30. x = 3 and y = 7

  31. B C E A D Squares - $100 Use the square below to answer the following: mCBE = 5x Find x

  32. X = 9

  33. B C E A D Squares - $200 Use the square below to answer the following: • BE = 4x – 3 • CA = 5x + 12 Find BD

  34. BD = 42

  35. B C E A D Squares - $300 Use the square below to answer the following: • AB = x2 - 4x • BC = 8 – 2x Find x

  36. X = -2

  37. B C E A D Squares - $400 Use the square below to answer the following: • mBAD = 5x + 3y • AB = 2x – 8 • AD = y + 17 Find x and y

  38. X = 15y = 5

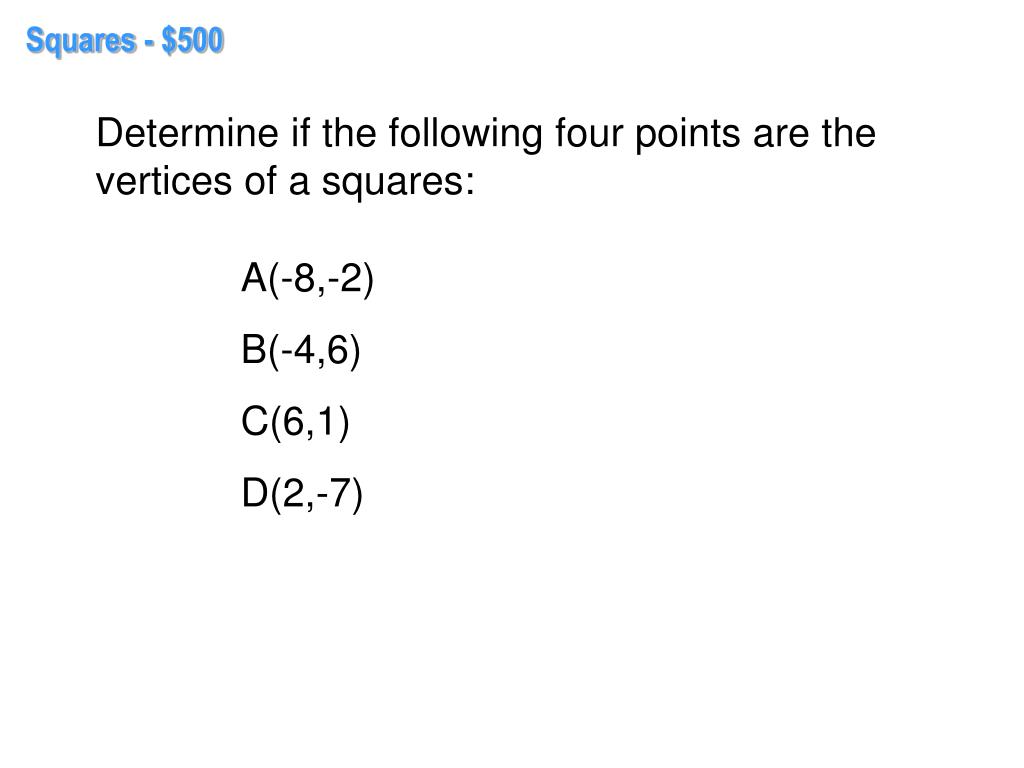

  39. Squares - $500 Determine if the following four points are the vertices of a squares: A(-8,-2) B(-4,6) C(6,1) D(2,-7)

  40. No

  41. A R D Z P T Trapezoids - $100 Use the trapezoid below to answer the following if ZD is the median RA = 4x – 8 ZD = 34 TP = 6x + 2 Find x

  42. X = 4

  43. A R D Z P T Trapezoids - $200 Use the trapezoid below to answer the following, ZD is the median. RA = 3y + 9 ZD = 5y - 3 TP = 34 Find y

  44. Y = 7

  45. A R D Z P T Trapezoids - $300 Use the trapezoid below to answer the following: mRTP = 9x + 8 mTZD = 6x + 52 Find mR

  46. mR = 100

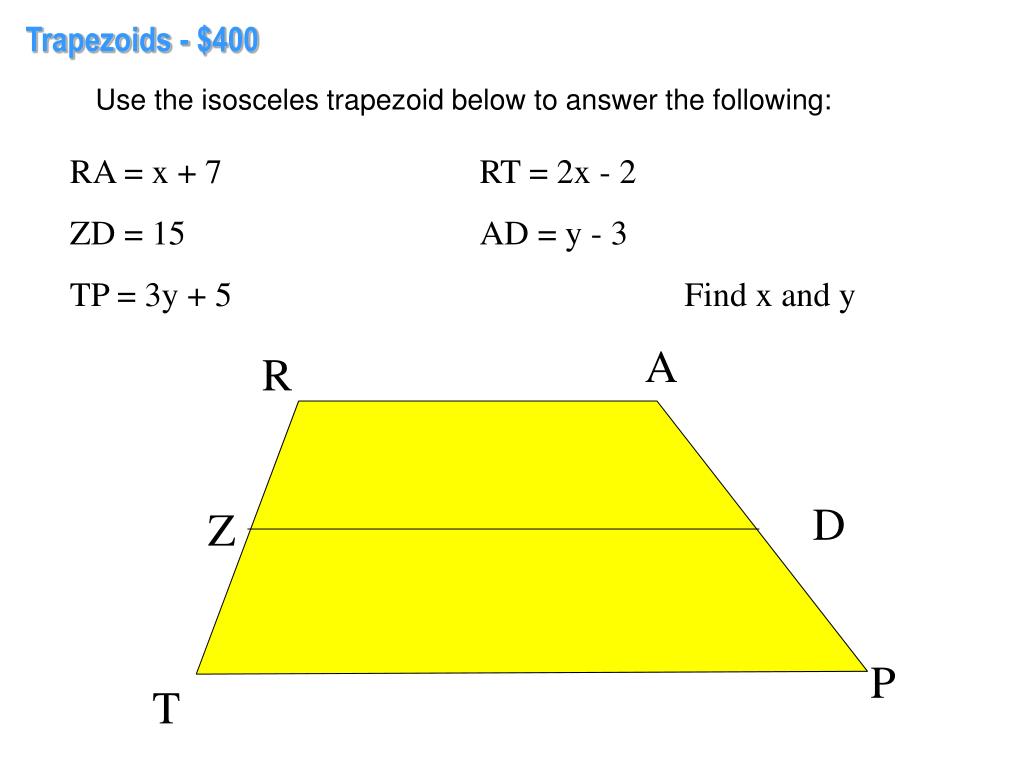

  47. A R D Z P T Trapezoids - $400 Use the isosceles trapezoid below to answer the following: RA = x + 7 RT = 2x - 2 ZD = 15 AD = y - 3 TP = 3y + 5 Find x and y

  48. X = 3y = 5

  49. Trapezoids - $500 Determine if the following are the vertices of a trapezoid and if so, is it an isosceles trapezoid? A(-4,6) B(-1,5) C(-2,-1) D(8,1)
