  1. Processes in the Planetary Boundary Layer Niels Woetmann Nielsen Danish Meteorological Institute

  2. Overview General remarks about the PBL The turbulent kinetic energy equation Buoyancy generation of turbulence Shear generation of turbulence Surface fluxes Temperature and wind profiles Heterogeneity Air pollution and turbulence Soundings/observations Exercise

  3. Turbulent kinetic energy equation in horizontally homogeneous turbulence ------------------------ --------- S B Mean turbulent kinetic energy Shear production of turbulent kinetic energy Buoyancy production of turbulent kinetic energy

  4. Buoyancy generation of turbulence

  5. Shear generation of turbulence

  6. Turbulent surface fluxes Surface momentum flux: Surface sensible heat flux: Surface latent heat flux:

  7. Temperature and wind profiles

  8. Friction in the Atmospheric/Planetary Boundary Layer

  9. Due to friction the wind veers with height in the Northern Hemisphere Atmospheric Boundary Layer (ABL). Cold and warm advection in the ABL contribute to backing and veering with height, respectively.

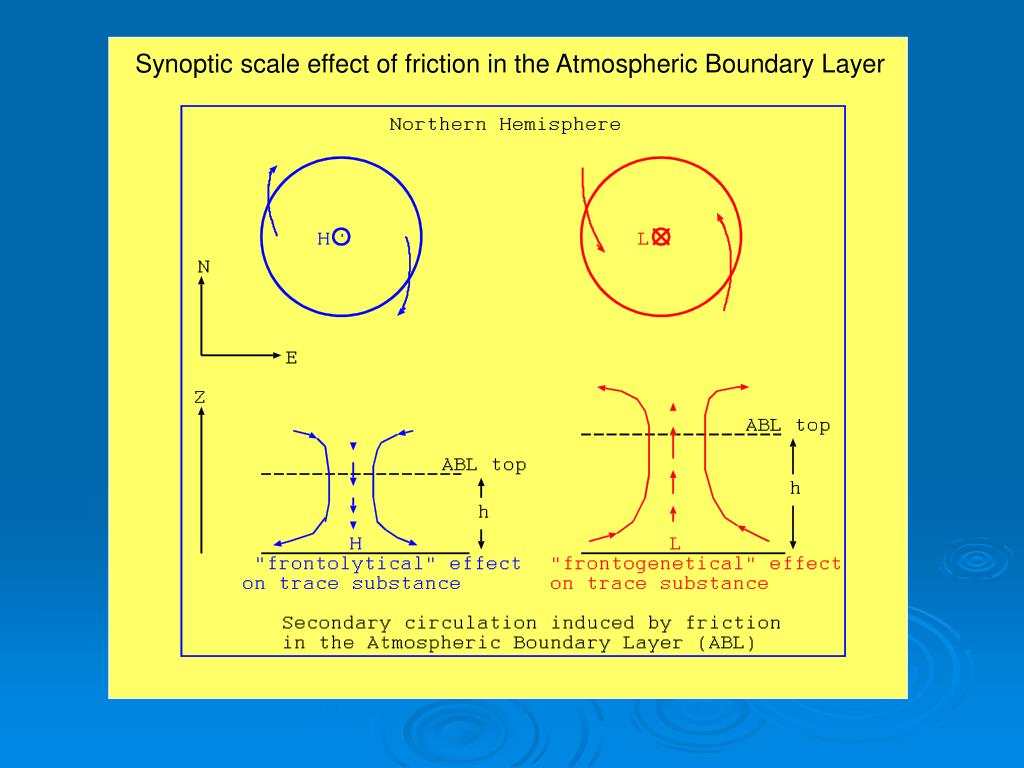

  10. Synoptic scale effect of friction in the Atmospheric Boundary Layer

  11. Heterogeneity

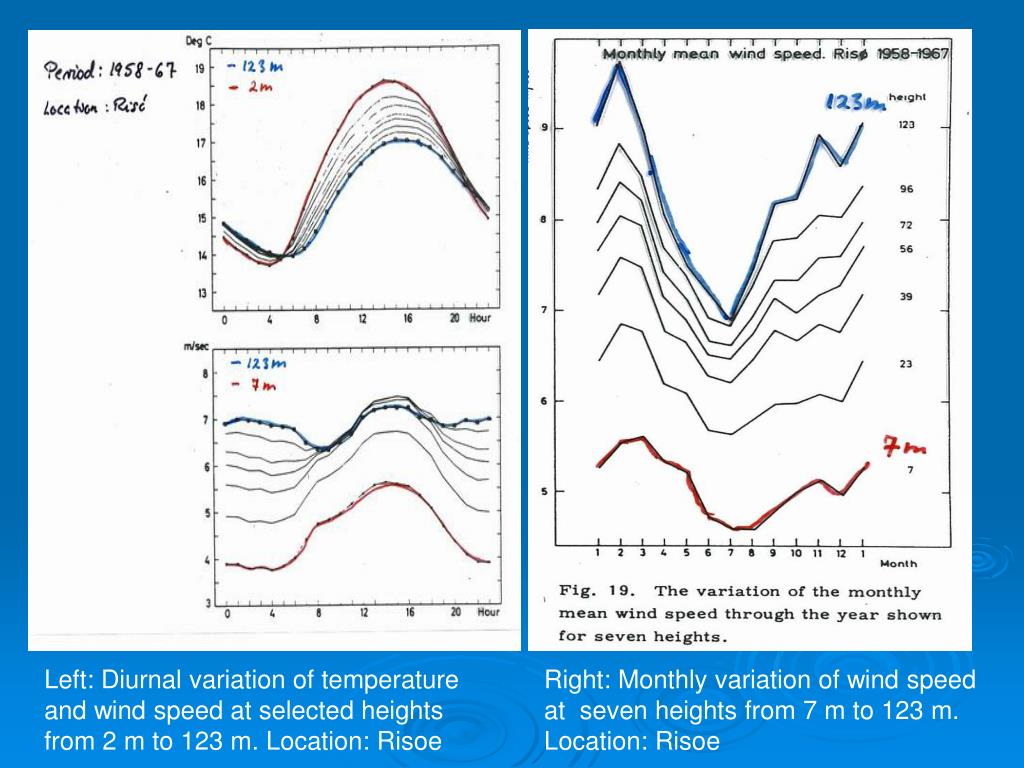

  12. Left: Diurnal variation of temperature and wind speed at selected heights from 2 m to 123 m. Location: Risoe Right: Monthly variation of wind speed at seven heights from 7 m to 123 m. Location: Risoe

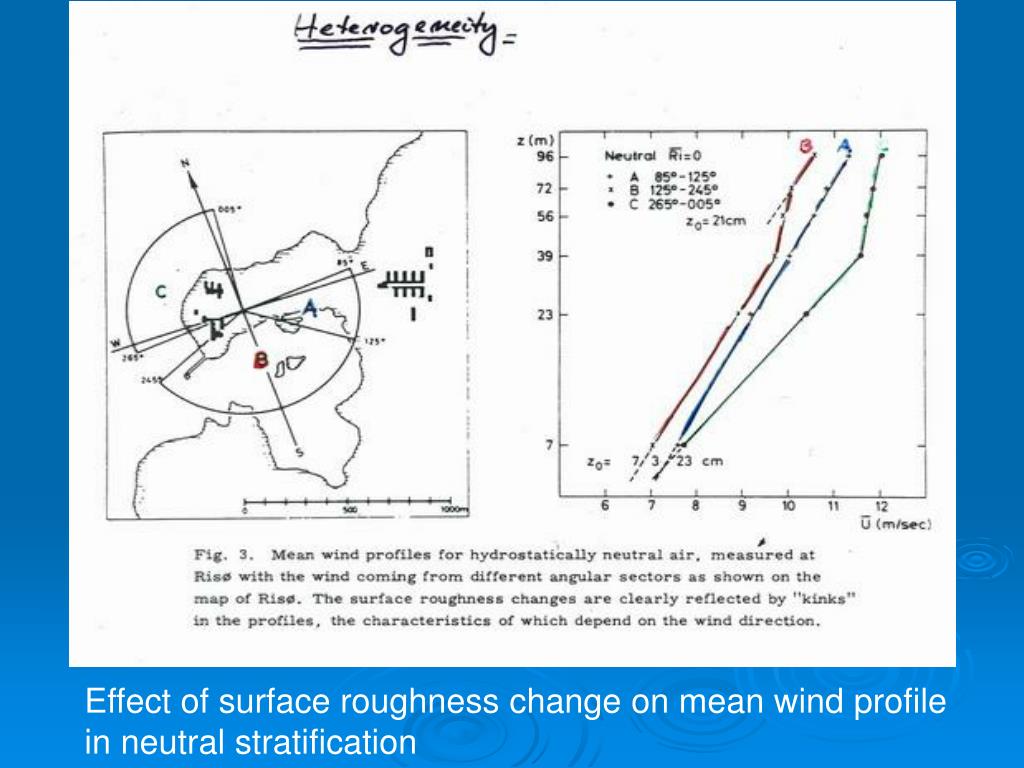

  13. Effect of surface roughness change on mean wind profile in neutral stratification

  14. Ventilation of the PBL by deep convection embedded in shallow convection with cloud tops near the top of the PBL

  15. Air pollution and turbulence

  16. After sunrise the convective PBL grows, reaches the plume with highly polluted air and turbulent eddies begin to mix polluted air down to the surface (fumigation)

  17. “Small-scale” stormon18 November 2009

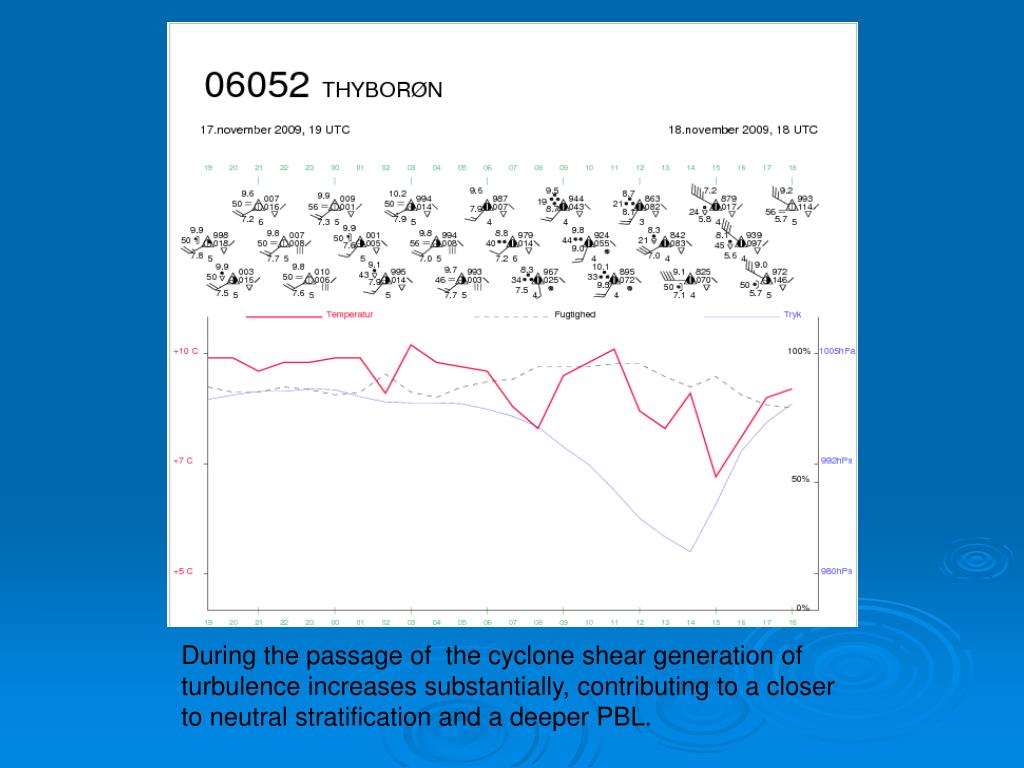

  18. During the passage of the cyclone shear generation of turbulence increases substantially, contributing to a closer to neutral stratification and a deeper PBL.

  19. Narssarsuaq (South Greenland) Karup (Jutland) 18 November 2009 11 UTC 18 November 2009 10 UTC

  20. Surface pressure tendency 15 UTC Surface pressure tendency 18 UTC and wind velocity at 10m and wind velocity at 10m

  21. Ship ldwr (Norwegian Sea) Ekofisk (North Sea) 18 November 2009 12 UTC 18 November 2009 12 UTC

  22. Exercise Discuss qualitatively how the PBL evolves downstream from central Jutland on 25 January 2010 (see next slide S1) – consider • PBL height, • static stability, • relative role of shear and buoyancy generated turbulence • sense (upward, downward) of turbulent fluxes of momentum, sensible and latent heat

  23. s1 s1 s1 Temperature (2m), wind (10m) and weather

  24. Ekofisk (North Sea) 12 UTC 25 January 2910 Karup (Jutland) 11 UTC 25 January 2010
