Fragmentation of molecules: Franck-Condon model

Photo double ionization of H 2 resp. of D 2 or the correlated motion of electrons in a two center coulomb potential. Fragmentation of molecules: Franck-Condon model Experimental technique: Imaging of the momentum space Dynamics of the electrons in a single and a two center potential.

neviah
Download Presentation

Fragmentation of molecules: Franck-Condon model

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

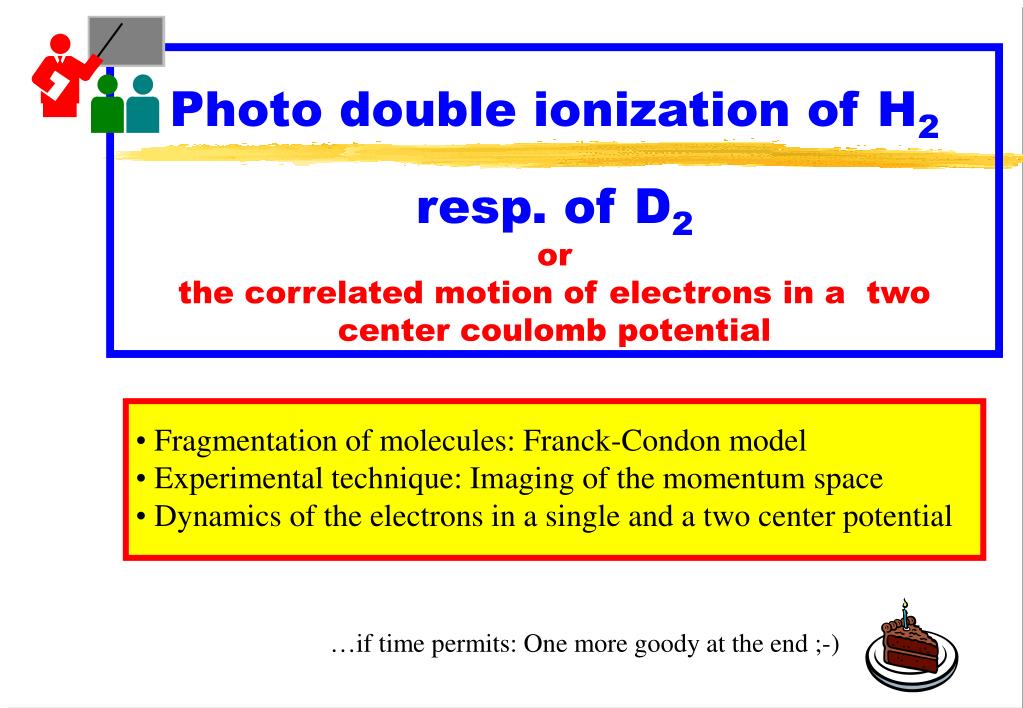

  1. Photo double ionization of H2 resp. of D2orthe correlated motion of electrons in a two center coulomb potential • Fragmentation of molecules: Franck-Condon model • Experimental technique: Imaging of the momentum space • Dynamics of the electrons in a single and a two center potential …if time permits: One more goody at the end ;-)

  2. Co-workers & friends: MICHIGAN: A. Landers FRANKFURT: Th. Weber R. Dörner V. Mergel A. Czasch O. Jagutzki M. Weckenbrock M. Hattaß H. Schmidt-Böcking KANSAS: L. Cocke T. Ossipov FREIBURG: M. Walter J. Briggs BERKELEY: M. Prior

  3. ... motivation- problem -principal task ... 80 eV hn + H2 2 e- + 2 H+ H+ Interaction / correlation e1 H+ e2

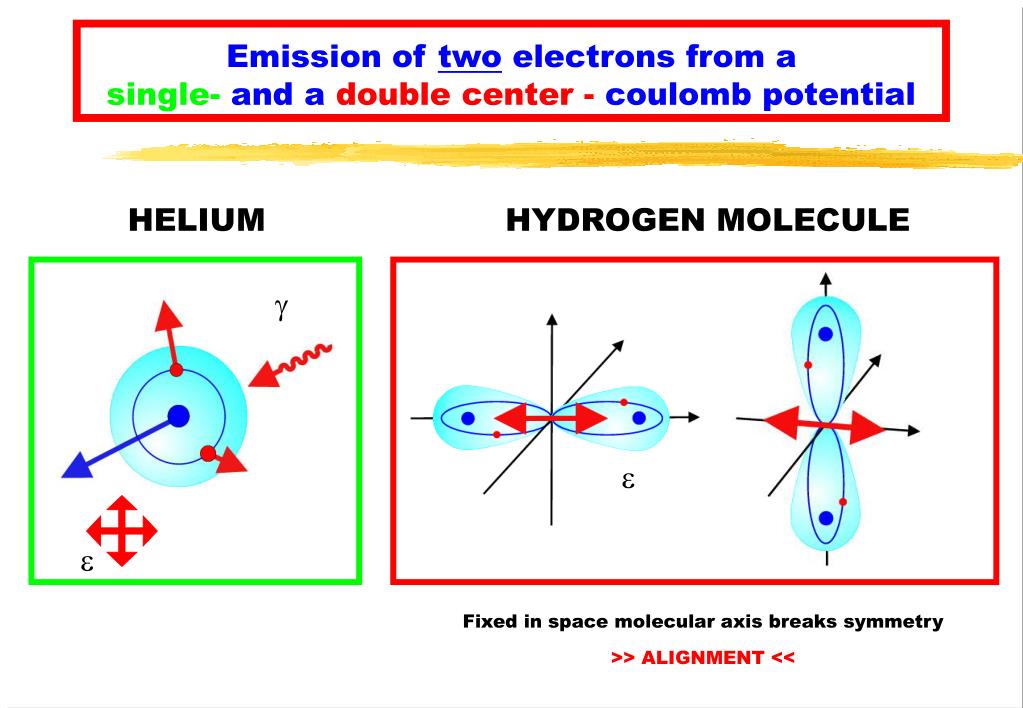

  4. Emission of two electrons from a single- and a double center - coulomb potential HELIUM HYDROGEN MOLECULE g e e Fixed in space molecular axis breaks symmetry >> ALIGNMENT <<

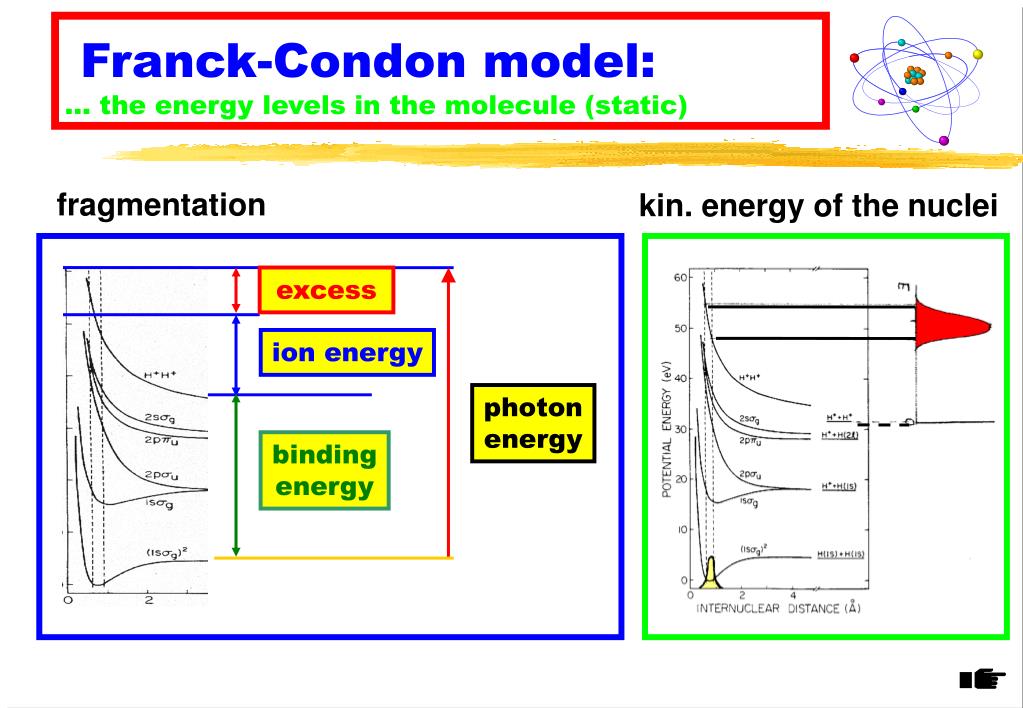

  5. Franck-Condon model:… the energy levels in the molecule (static) fragmentation kin. energy of the nuclei excess ion energy photon energy binding energy

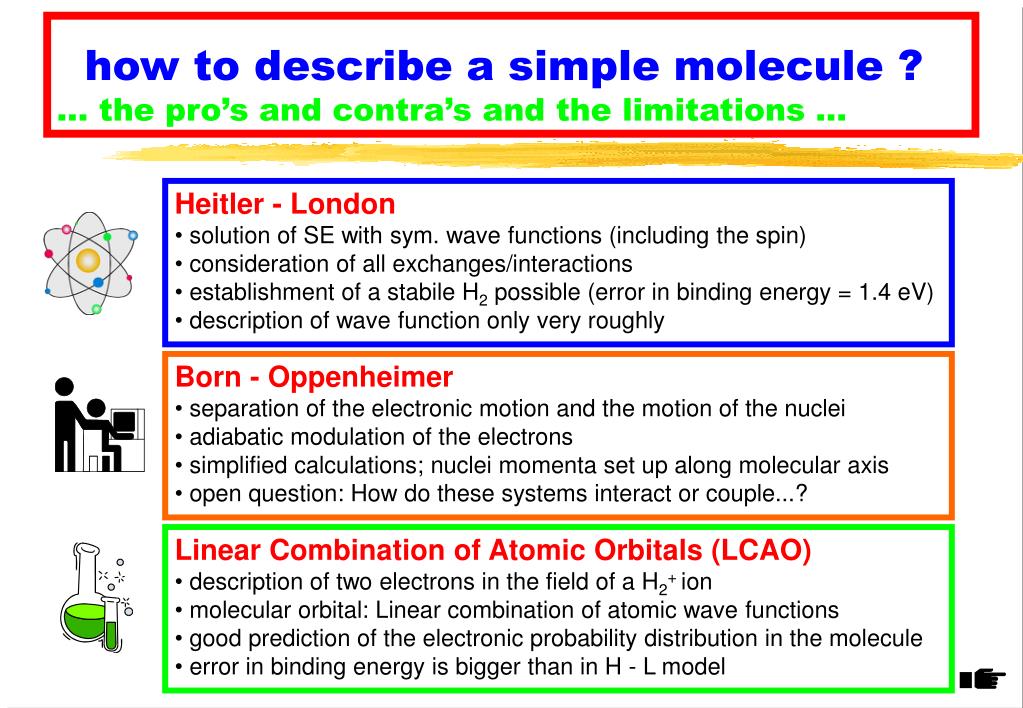

  6. how to describe a simple molecule ?... the pro’s and contra’s and the limitations ... • Heitler - London • solution of SE with sym. wave functions (including the spin) • consideration of all exchanges/interactions • establishment of a stabile H2 possible (error in binding energy = 1.4 eV) • description of wave function only very roughly • Born - Oppenheimer • separation of the electronic motion and the motion of the nuclei • adiabatic modulation of the electrons • simplified calculations; nuclei momenta set up along molecular axis • open question: How do these systems interact or couple...? • Linear Combination of Atomic Orbitals (LCAO) • description of two electrons in the field of a H2+ ion • molecular orbital: Linear combination of atomic wave functions • good prediction of the electronic probability distribution in the molecule • error in binding energy is bigger than in H - L model

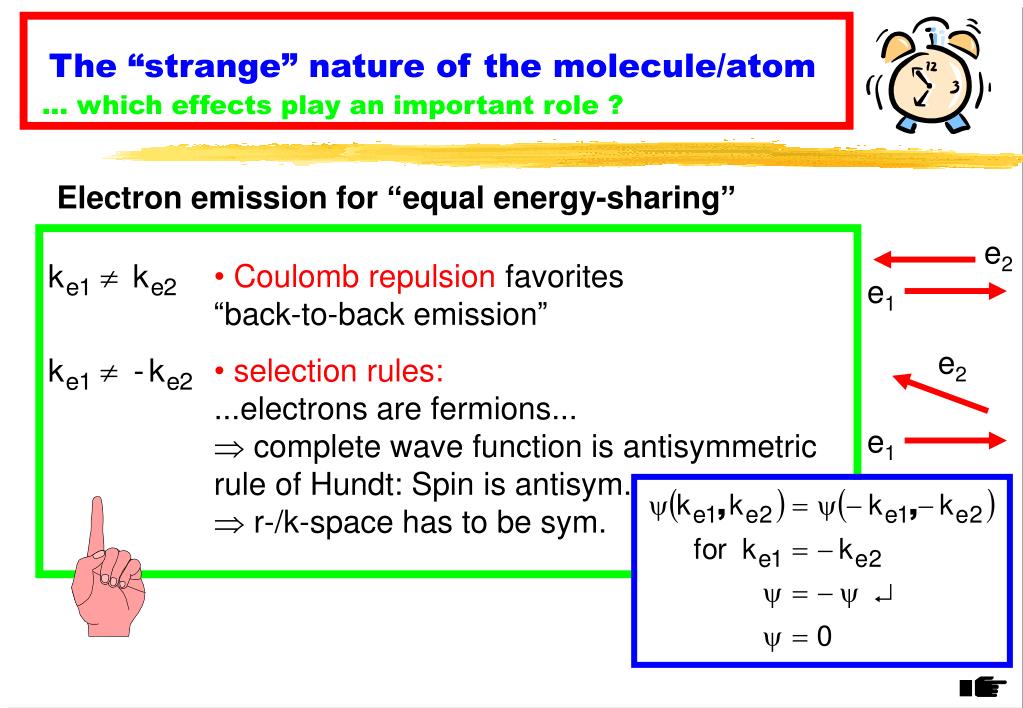

  7. The “strange” nature of the molecule/atom… which effects play an important role ? Electron emission for “equal energy-sharing” e2 • Coulomb repulsion favorites • “back-to-back emission” e1 e2 • selection rules: • ...electrons are fermions... •  complete wave function is antisymmetric • rule of Hundt: Spin is antisym. •  r-/k-space has to be sym. e1

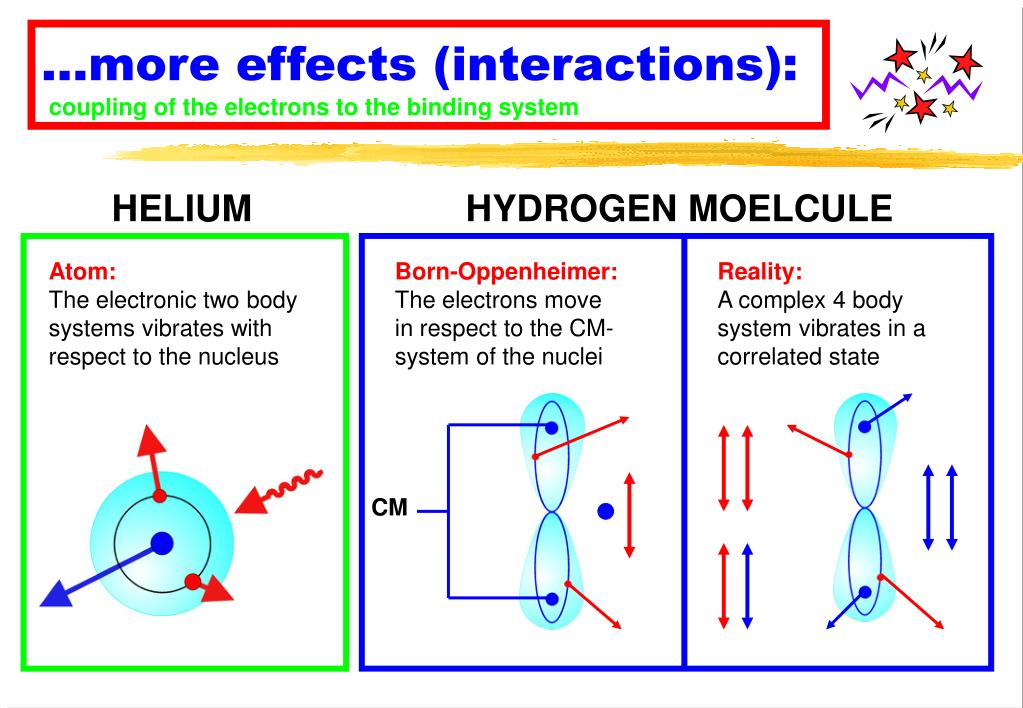

  8. …more effects (interactions):coupling of the electrons to the binding system HELIUM HYDROGEN MOELCULE Atom: The electronic two body systems vibrates with respect to the nucleus Born-Oppenheimer: The electrons move in respect to the CM- system of the nuclei Reality: A complex 4 body system vibrates in a correlated state CM

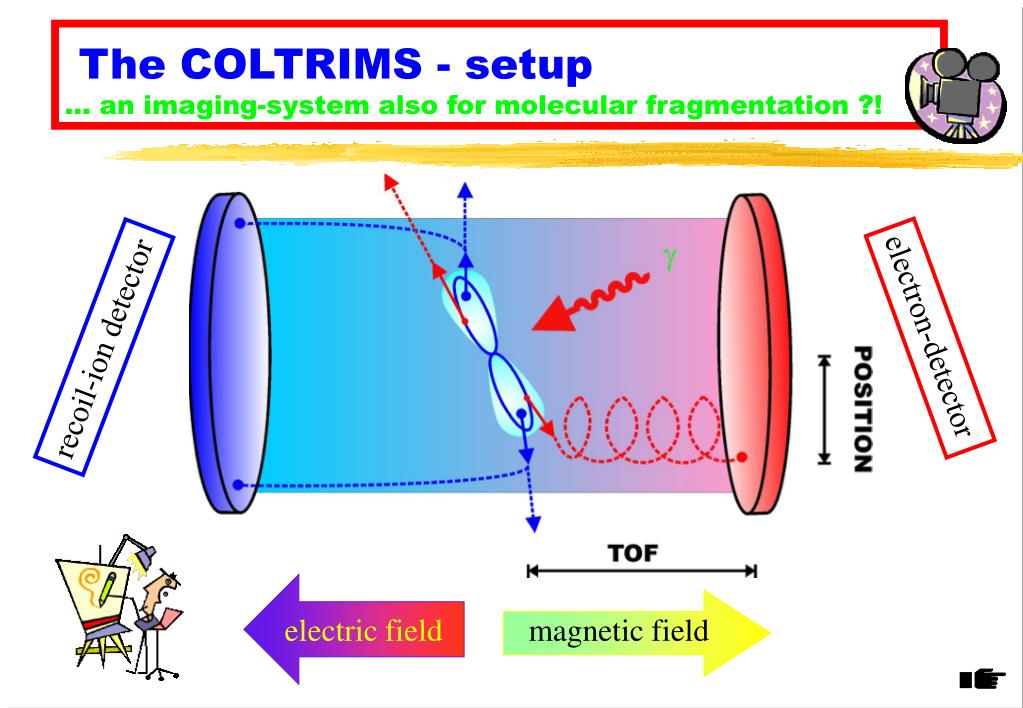

  9. The COLTRIMS - setup… an imaging-system also for molecular fragmentation ?! electron-detector recoil-ion detector electric field magnetic field

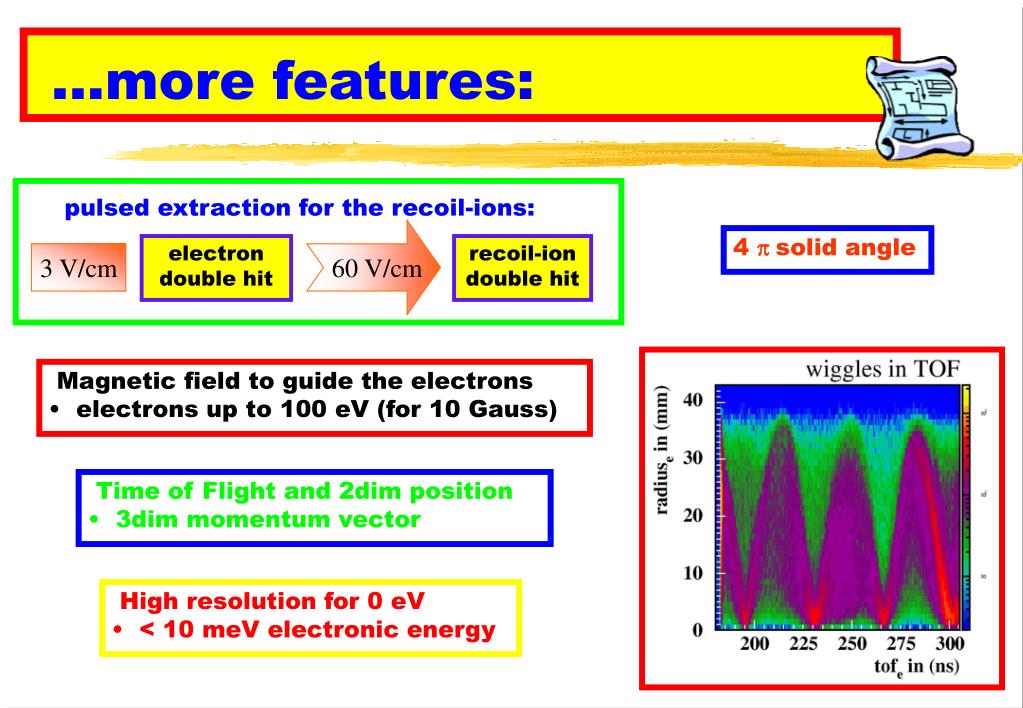

  10. ...more features: pulsed extraction for the recoil-ions: 60 V/cm 4 psolid angle electron double hit recoil-ion double hit 3 V/cm • Magnetic field to guide the electrons • electrons up to 100 eV (for 10 Gauss) • Time of Flight and 2dim position • 3dim momentum vector • High resolution for 0 eV • < 10 meV electronic energy

  11. Characteristics of the experiment… more facts : • Projectiles = Photons • 75 eV energy of the photons • linear polarized (99.5 %) experiment at the ALS • Target = Deuterium (instead of Hydrogen) • 31.68 eV (31.752 eV for D2) dissociation energy • 2 • 9.4 eV = 18.8 eV energy of the Coulomb explosion • 24.5 eV kin. sum energy of the electrons • Imaging system • multi hit • pulsed recoil-ion extraction • data acquisition in “list mode” • two 80 mm MCP-detectors with delay line anode powered by:

  12. The new detector:… multihit rulez …!? HITEC powered by AOC & ROENTDEK DL80anode: Dt < 100ns Dt < 8ns 5200 lines computer code !!! Dt < 5ns Dt < 10ns Hexanode:

  13. Coordinates/systems of reference… where does the action takes place ? internal scattering plane 2 2 laboratory frame 1

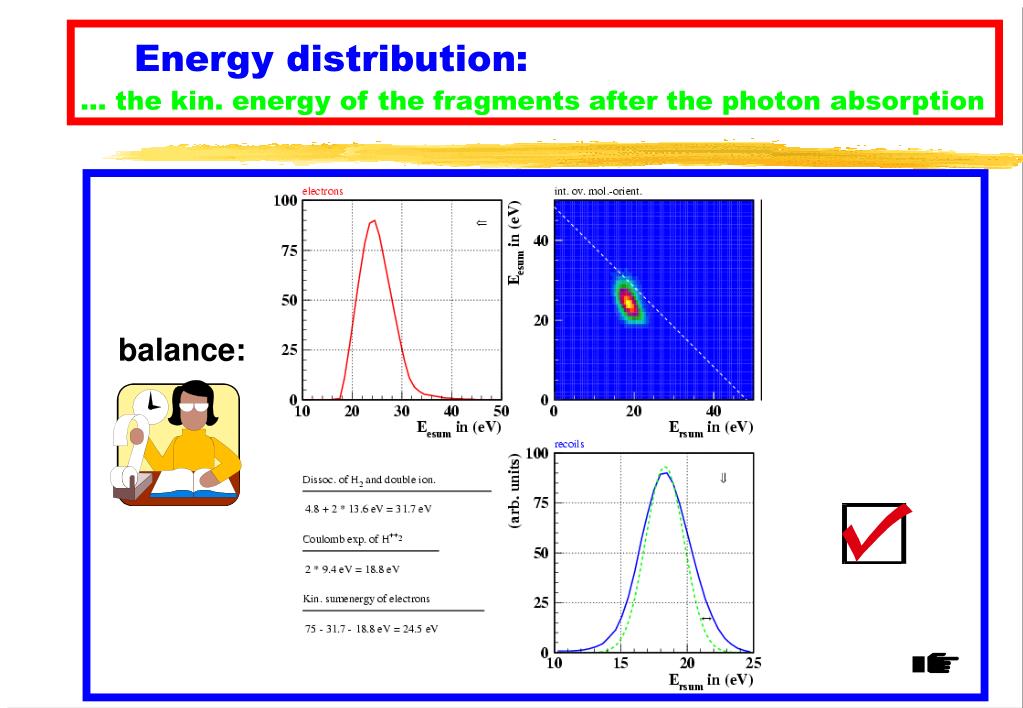

  14. Energy distribution:… the kin. energy of the fragments after the photon absorption balance:

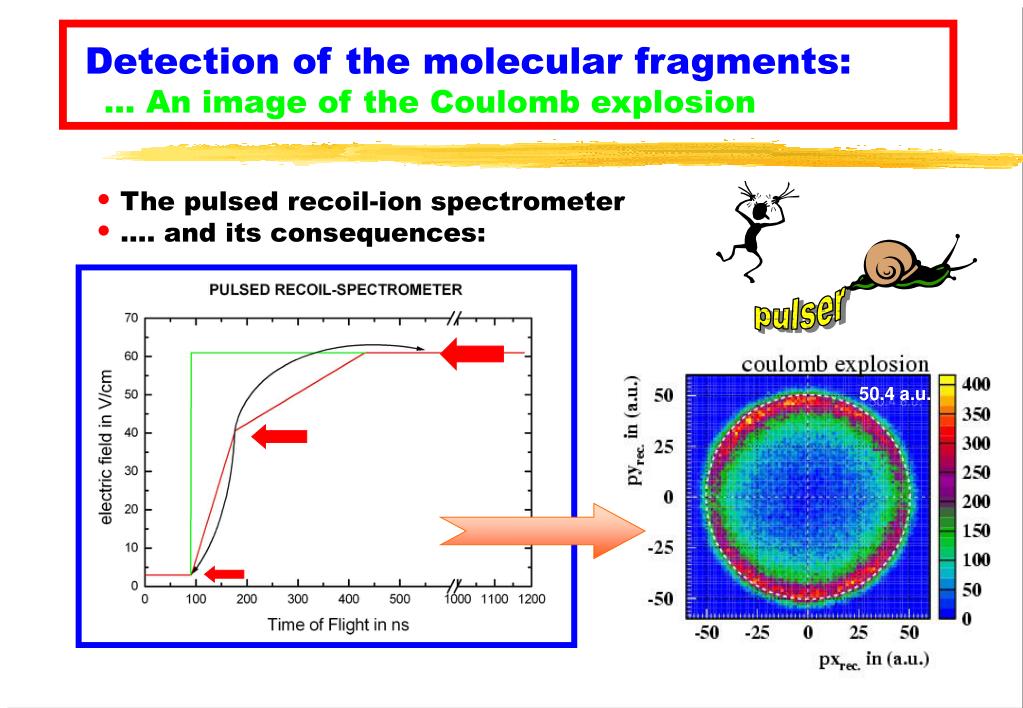

  15. Detection of the molecular fragments:… An image of the Coulomb explosion • The pulsed recoil-ion spectrometer • …. and its consequences: pulser 50.4 a.u. 50.4 a.u.

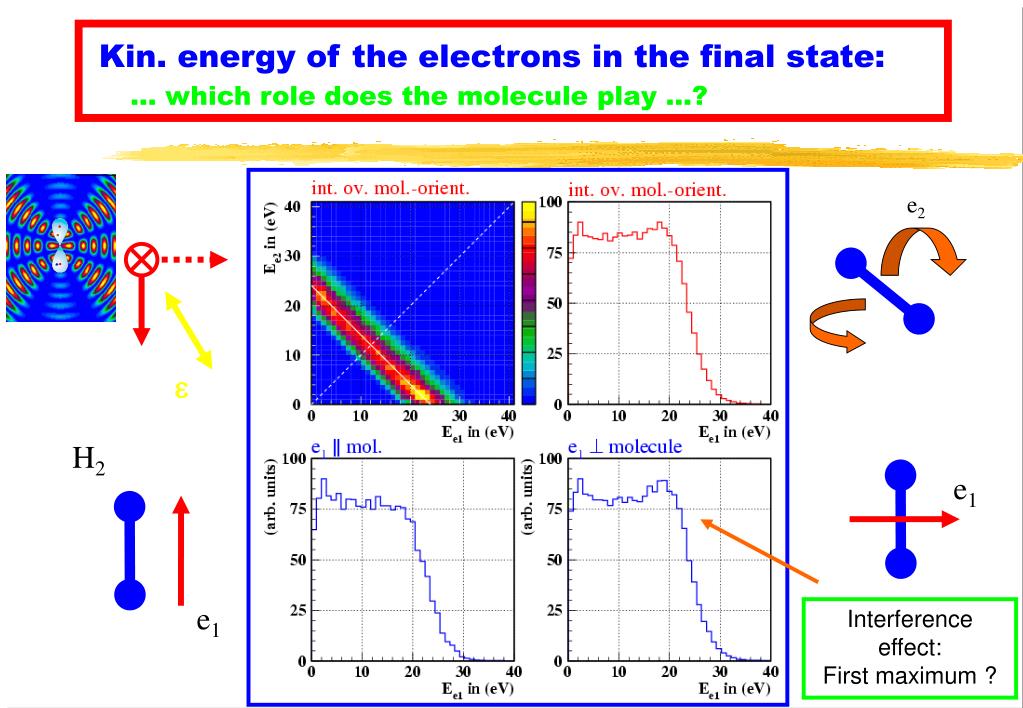

  16. Kin. energy of the electrons in the final state:… which role does the molecule play …? e2 e H2 e1 e1 Interference effect: First maximum ?

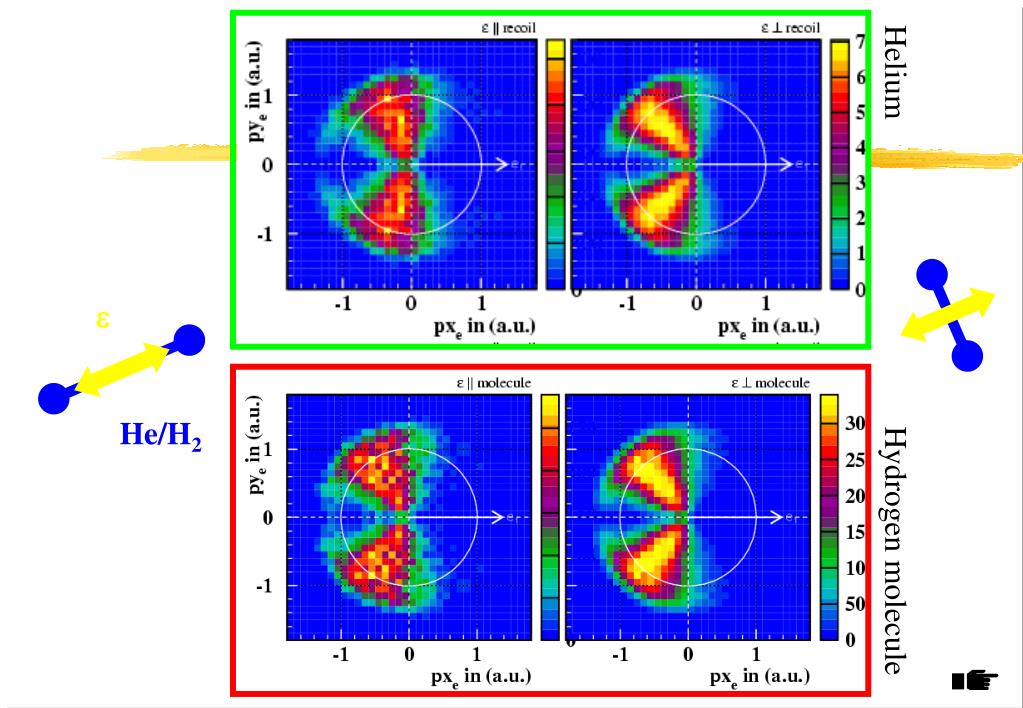

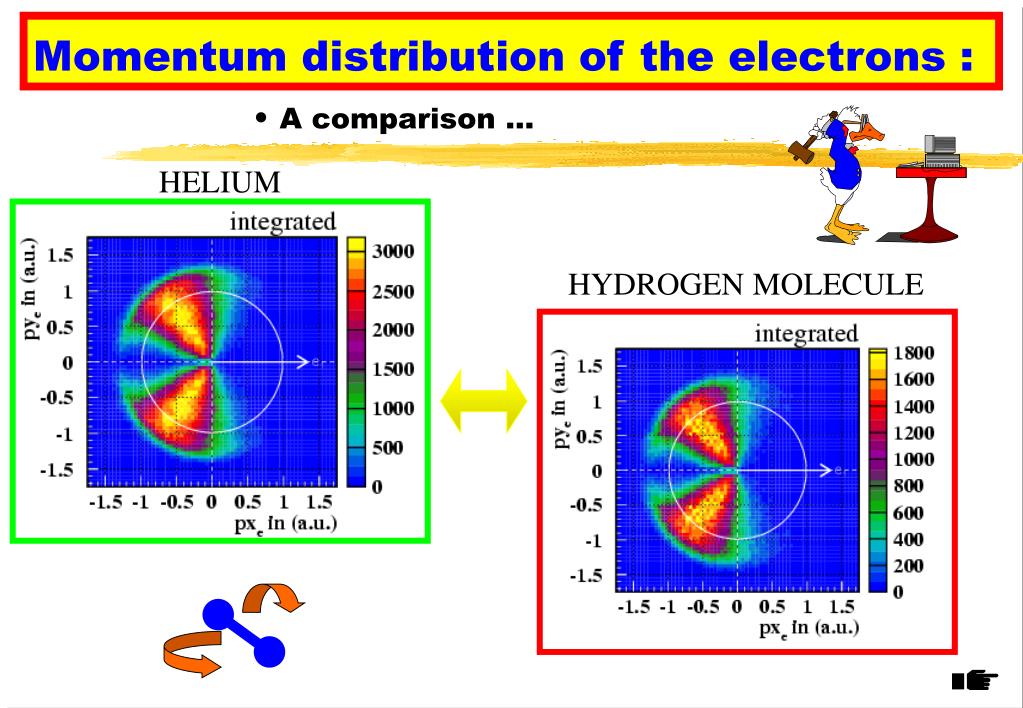

  17. Momentum distribution of the electrons : • A comparison ... HELIUM HYDROGEN MOLECULE

  18. Helium e He/H2 Hydrogen molecule

  19. Hydrogen molecule H2 e1 more details

  20. Azimuthal angle of the electrons:... the b - parameter P.S.: valid near photo double ionization threshold b as a function of the alignment of the molecule ?! Helium Hydrogen molecule

  21. And how about the recoil ions…? Let’s compare with the literature: H. Kossmann & V. Schmidt PRL (1989), 63, p. 2040-2043 b = - 0.685

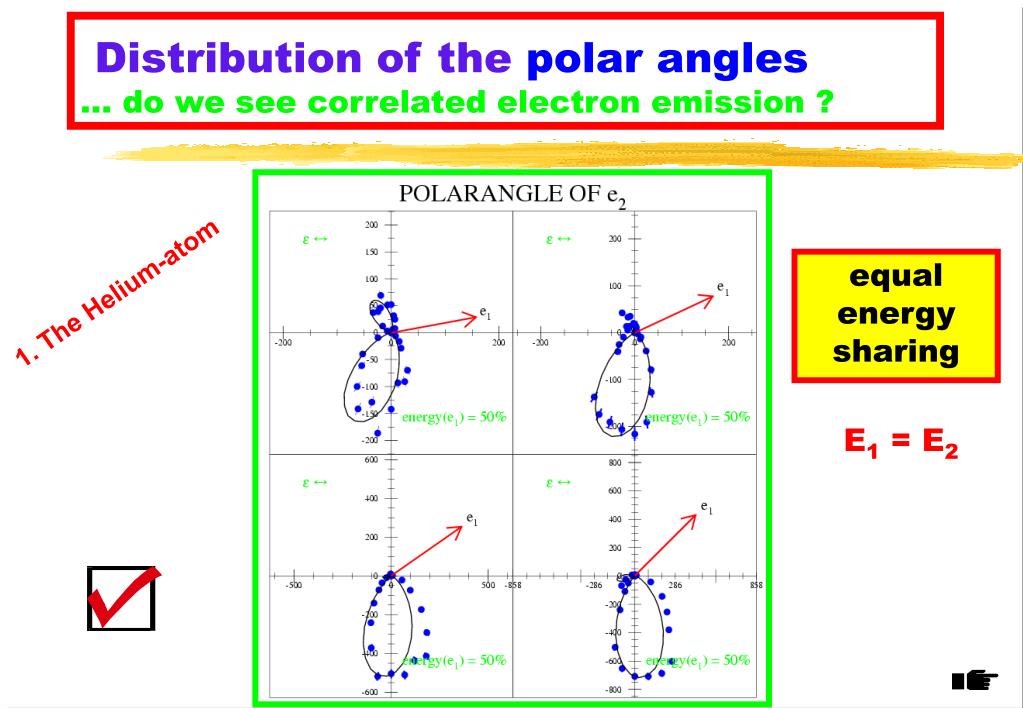

  22. Distribution of the polar angles... do we see correlated electron emission ? equal energy sharing 1. The Helium-atom E1 = E2

  23. unequal energy sharing HELIUM ow sl e1 fast e1

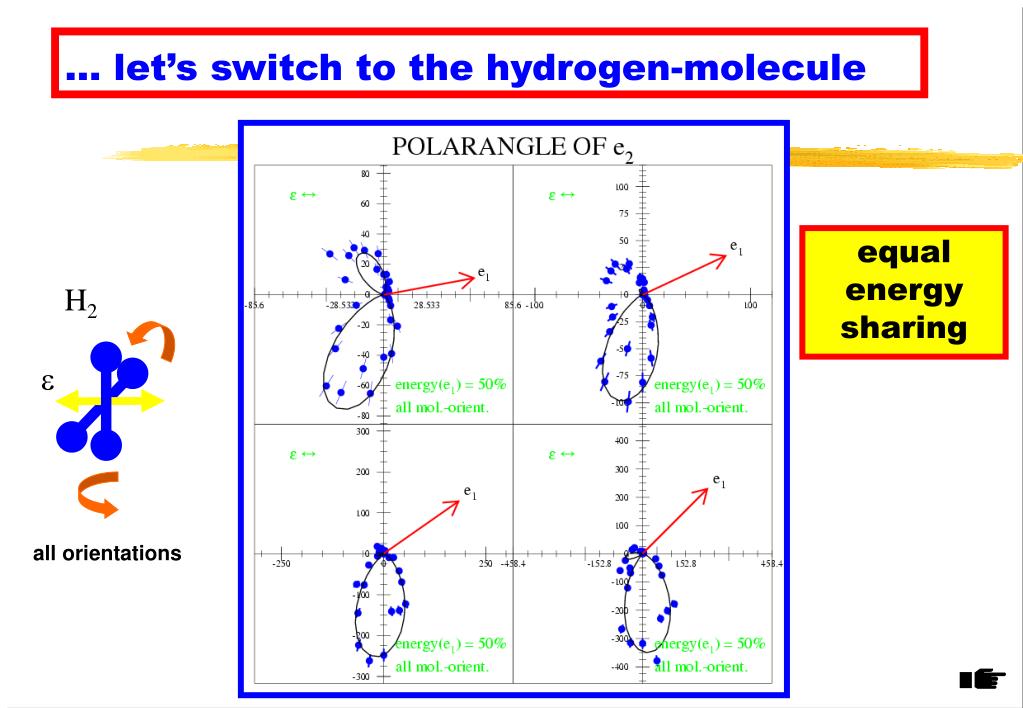

  24. … let’s switch to the hydrogen-molecule equal energy sharing H2 e all orientations

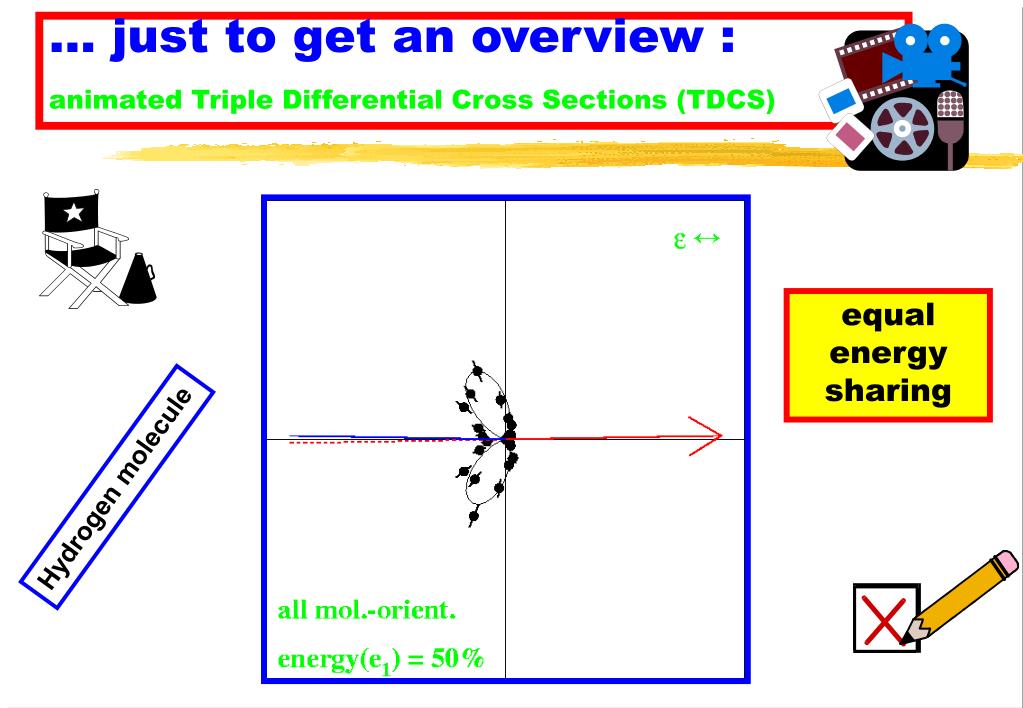

  25. … just to get an overview :animated Triple Differential Cross Sections (TDCS) equal energy sharing Hydrogen molecule

  26. Helium atomandhydrogen molecule… a comparison of both systems: Helium equal energy sharing all orientations H2 Hydrogen molecule e

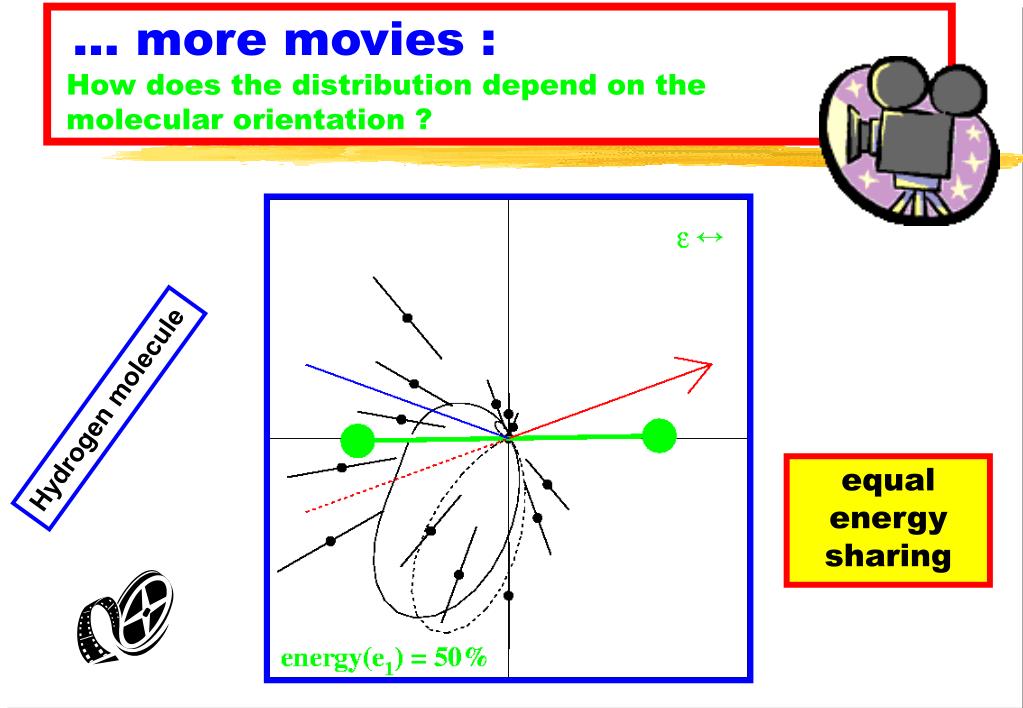

  27. … more movies :How does the distribution depend on the molecular orientation ? Hydrogen molecule equal energy sharing

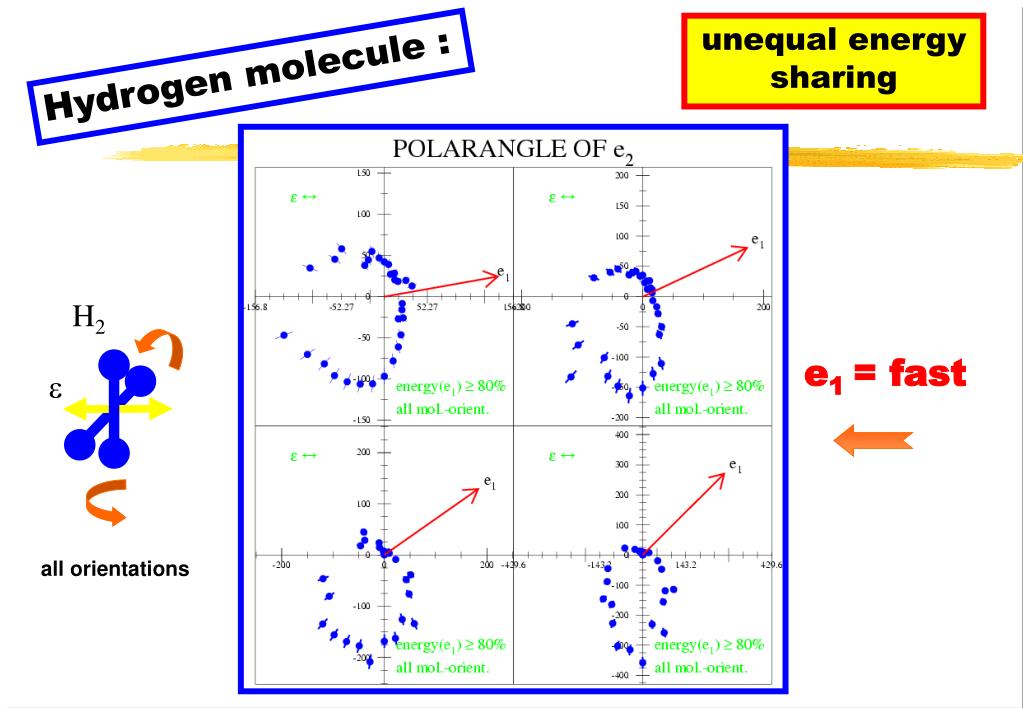

  28. unequal energy sharing Hydrogen molecule : H2 e1 = fast e all orientations

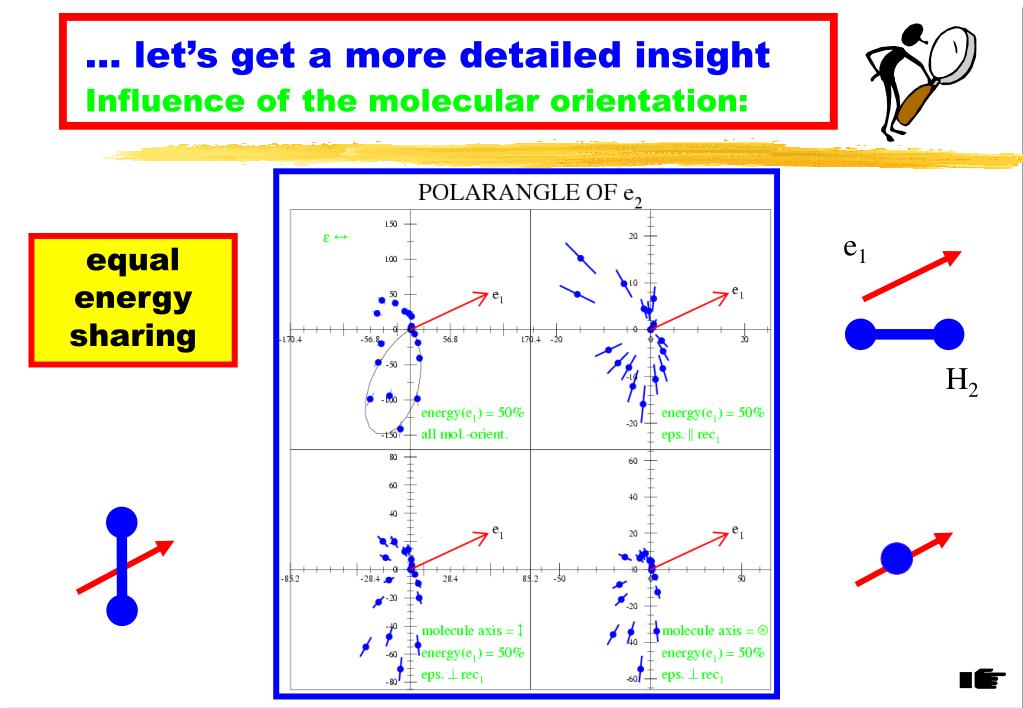

  29. … let’s get a more detailed insightInfluence of the molecular orientation: e1 equal energy sharing H2

  30. H2 unequal energy sharing e1 fast e1 slow

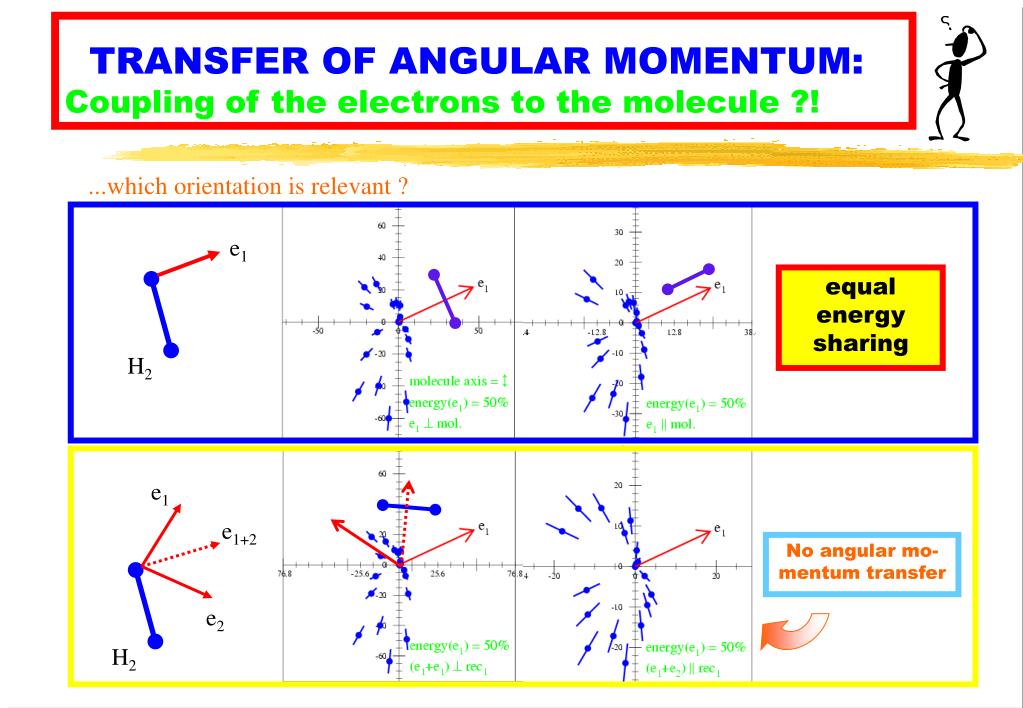

  31. TRANSFER OF ANGULAR MOMENTUM:Coupling of the electrons to the molecule ?! ...which orientation is relevant ? e1 equal energy sharing H2 e1 e1+2 No angular mo- mentum transfer e2 H2

  32. Let’s probe the molecule:…molecules illuminated from within... equal energy sharing Hydrogen molecule electron-electron interaction

  33. … go even deeper : let’s scan the coulomb explosion ! equal energy sharing Hydrogen molecule vibrational states

  34. finish line … summary and future prospectWhat is still to do ? What comes next...? • COLTRIMS: An imaging-system for molecules • pulsed extraction • multi hit capable detectors • 4p solid angle • snapshots of • Experimental results • Energy-sharing depends on the orientation of the molecule !? • Final state of the electrons in momentum space • Highly differential cross sections as a function of the molecular orientation • …Future: • more D2 : What’s going on with circular polarized light ? • new experiment with HD (angular momentum transfer)/ ALS (Berkeley) • simple molecules in strong laser-fields/ Roskos (FFM)/ Corkum (Canada) …goody

  35. ...goody…:“Alignment” even in atoms ?! • circular polarized e e Helium e • linear polarized
