integrating social skills in task oriented 3d iva

Integrating social skills in task-oriented 3D IVA

Fran Grimaldo, Miguel Lozano, Fernando Barber, Juan M. Orduña

Departament of Computer Science - University of Valencia (Spain)

[email protected]

IVA 2005, Kos (Greece)

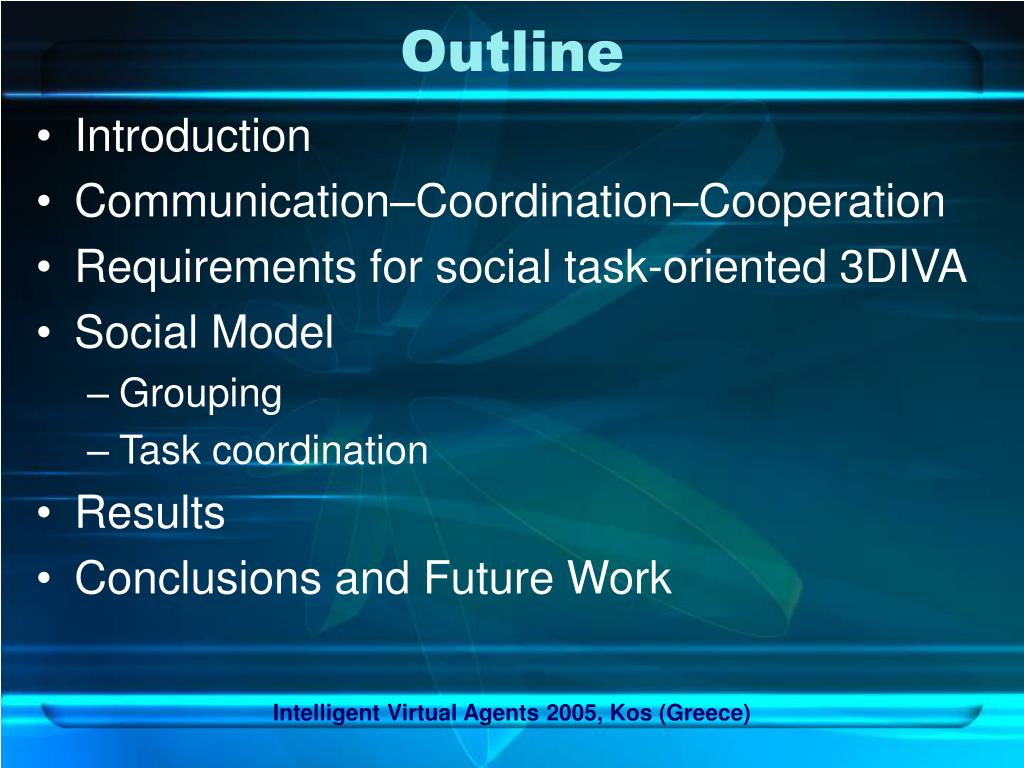

outline
Outline
  • Introduction
  • Communication–Coordination–Cooperation
  • Requirements for social task-oriented 3DIVA
  • Social Model
    • Grouping
    • Task coordination
  • Results
  • Conclusions and Future Work

Intelligent Virtual Agents 2005, Kos (Greece)

introduction
Introduction

Simple individuals with limited operation (e.g. movement)

Global approaches with somehow predefined interactions

Actors that are able to execute complicated tasks

3D IVA Spectrum

Reactive agents

Deliberative agents

From classical boids (Reynols) up to more complex crowds

Interactive storytelling and group simulation scenarios

Jack or Steve do not exactly perform p2p collaboration

Intelligent Virtual Agents 2005, Kos (Greece)

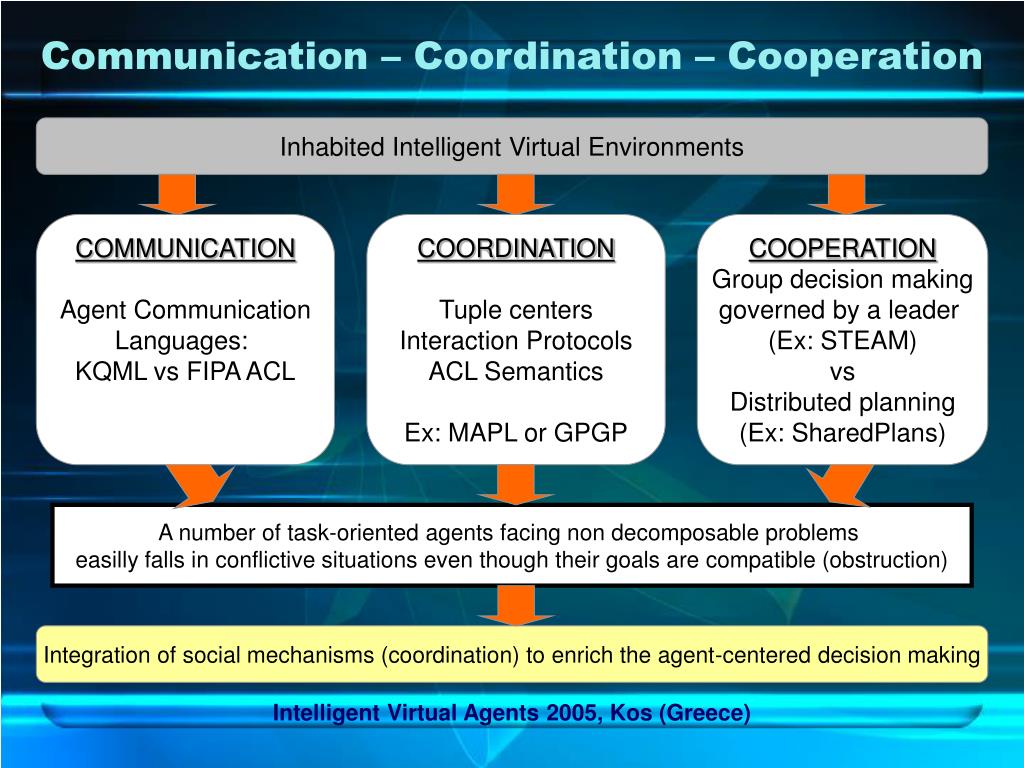

communication coordination cooperation
Communication – Coordination – Cooperation

Inhabited Intelligent Virtual Environments

COMMUNICATION

Agent Communication

Languages:

KQML vs FIPA ACL

COORDINATION

Tuple centers

Interaction Protocols

ACL Semantics

Ex: MAPL or GPGP

COOPERATION

Group decision making

governed by a leader

(Ex: STEAM)

vs

Distributed planning

(Ex: SharedPlans)

A number of task-oriented agents facing non decomposable problems

easilly falls in conflictive situations even though their goals are compatible (obstruction)

Integration of social mechanisms (coordination) to enrich the agent-centered decision making

Intelligent Virtual Agents 2005, Kos (Greece)

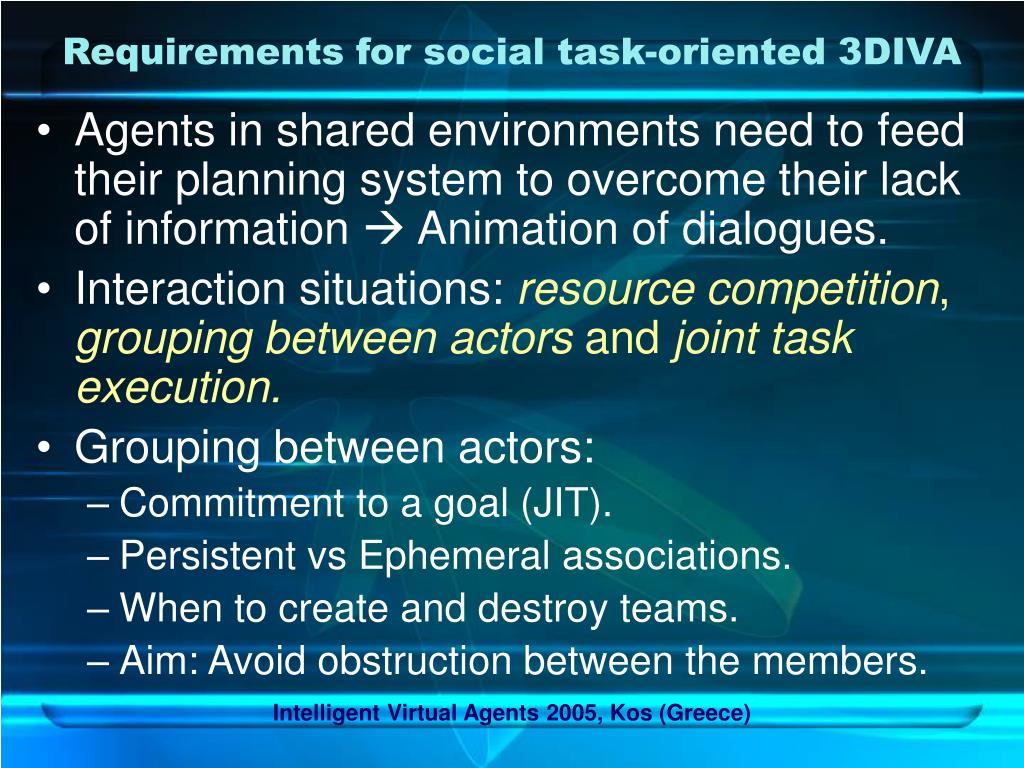

requirements for social task oriented 3diva
Requirements for social task-oriented 3DIVA
  • Agents in shared environments need to feed their planning system to overcome their lack of information  Animation of dialogues.
  • Interaction situations: resource competition, grouping between actors and joint task execution.
  • Grouping between actors:
    • Commitment to a goal (JIT).
    • Persistent vs Ephemeral associations.
    • When to create and destroy teams.
    • Aim: Avoid obstruction between the members.

Intelligent Virtual Agents 2005, Kos (Greece)

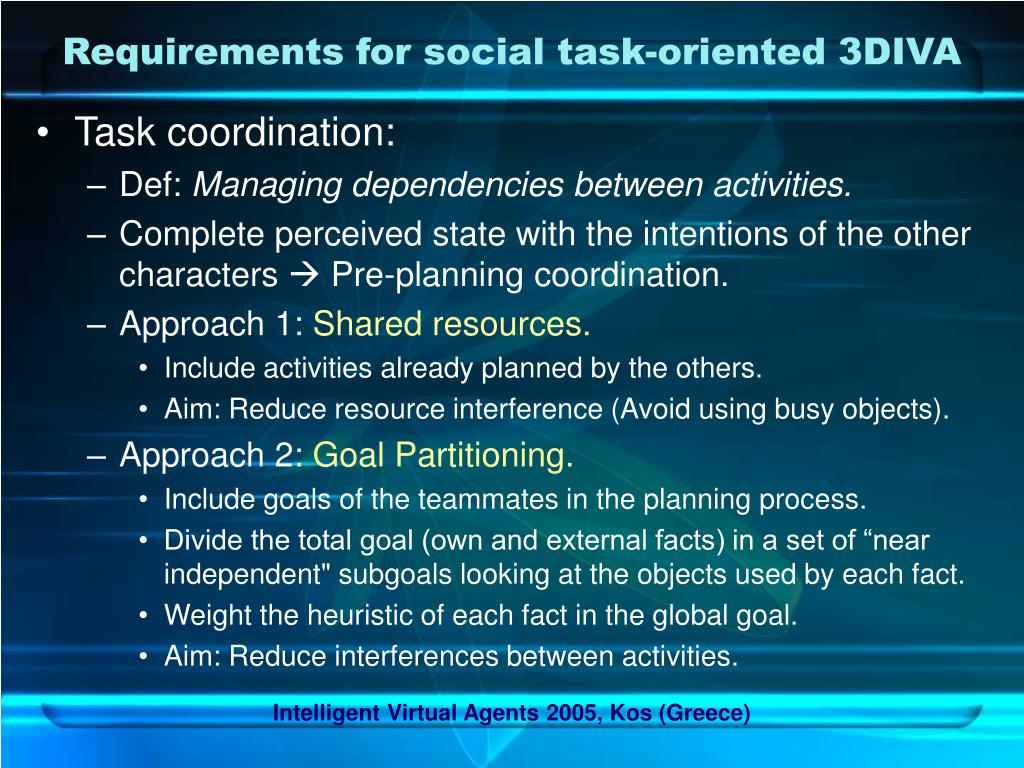

requirements for social task oriented 3diva1
Requirements for social task-oriented 3DIVA
  • Task coordination:
    • Def: Managing dependencies between activities.
    • Complete perceived state with the intentions of the other characters  Pre-planning coordination.
    • Approach 1: Shared resources.
      • Include activities already planned by the others.
      • Aim: Reduce resource interference (Avoid using busy objects).
    • Approach 2: Goal Partitioning.
      • Include goals of the teammates in the planning process.
      • Divide the total goal (own and external facts) in a set of “near independent" subgoals looking at the objects used by each fact.
      • Weight the heuristic of each fact in the global goal.
      • Aim: Reduce interferences between activities.

Intelligent Virtual Agents 2005, Kos (Greece)

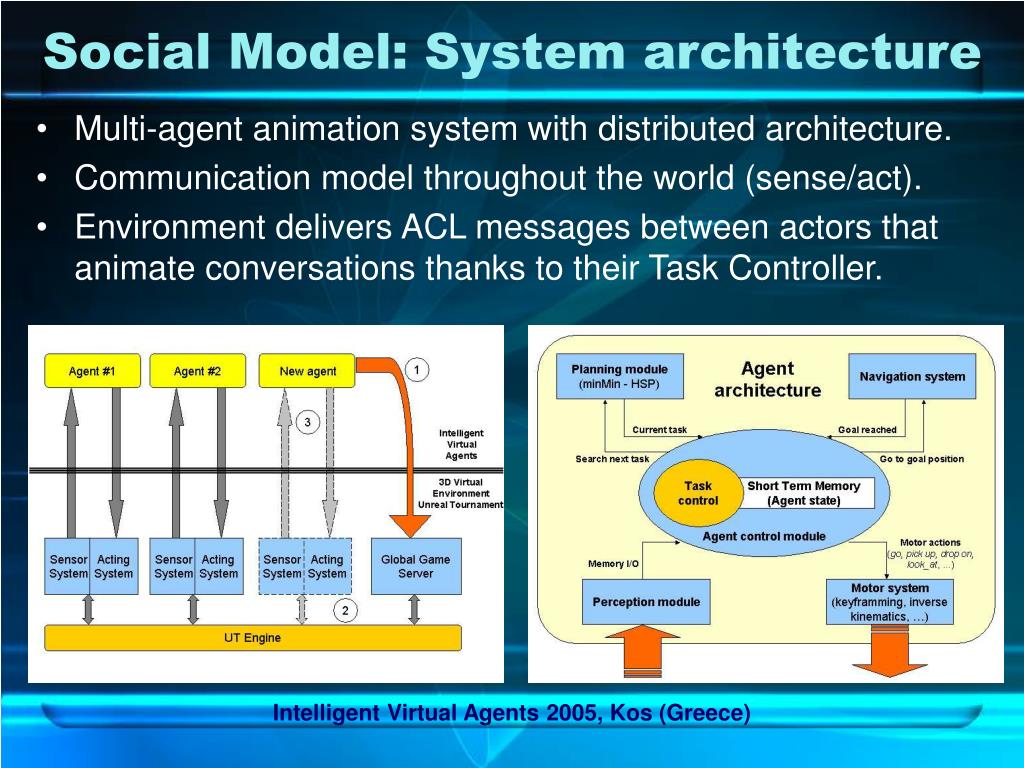

social model system architecture
Social Model: System architecture
  • Multi-agent animation system with distributed architecture.
  • Communication model throughout the world (sense/act).
  • Environment delivers ACL messages between actors that animate conversations thanks to their Task Controller.

Intelligent Virtual Agents 2005, Kos (Greece)

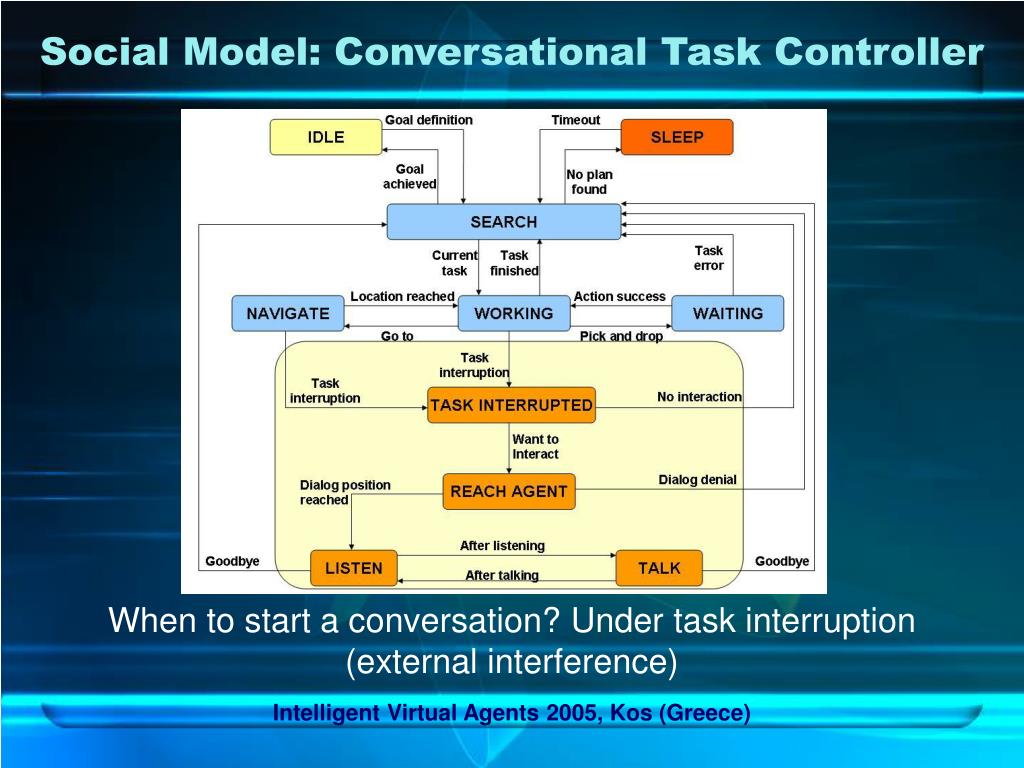

social model conversational task controller
Social Model: Conversational Task Controller

When to start a conversation? Under task interruption

(external interference)

Intelligent Virtual Agents 2005, Kos (Greece)

social model memory

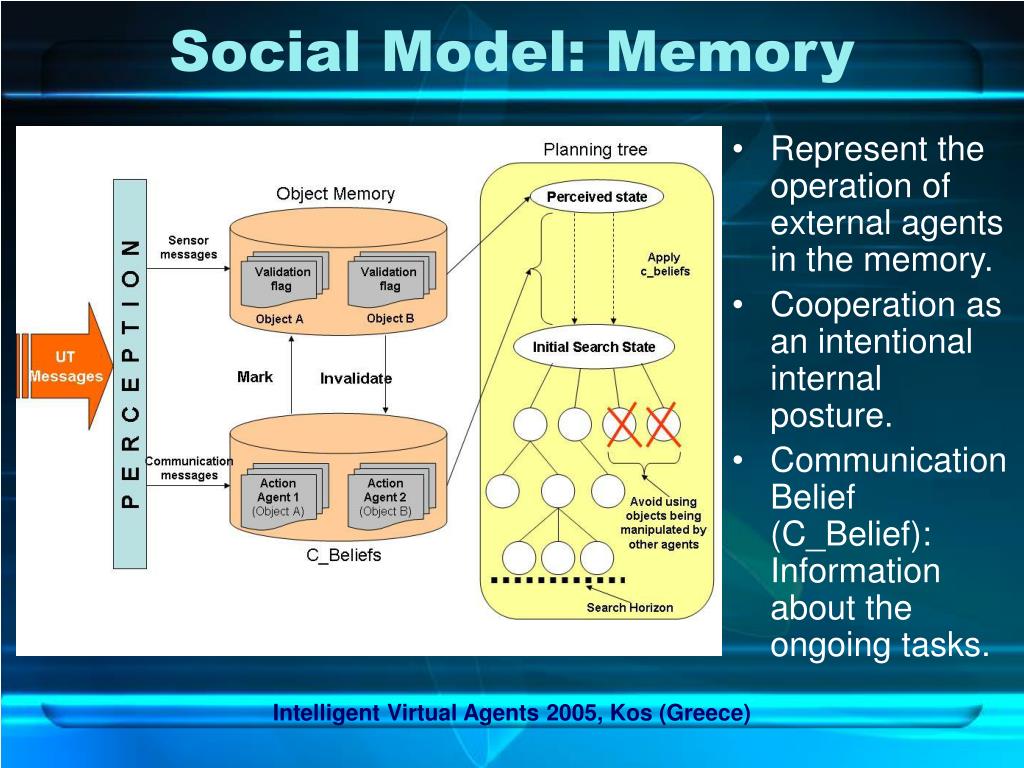

Social Model: Memory
  • Represent the operation of external agents in the memory.
  • Cooperation as an intentional internal posture.
  • Communication Belief (C_Belief): Information about the ongoing tasks.

Intelligent Virtual Agents 2005, Kos (Greece)

social model task coordination
Social Model: Task Coordination

Approach 1: Shared Resources

  • Trusting new c_beliefs:
    • HSP with STRIPS operators  No timing
    • Check compatibility of the new information
    • Lock resources being used (Mark signal)
  • Removal of c_beliefs from the memory:
    • Precondition checking over perceived state.
    • Invalidate signal.
  • How HSP planner uses c_beliefs:
    • Start the search from a future virtual state
    • Avoid using busy objects at the first level of the search.
    • Pre-Planning coordination (interleaved)

Intelligent Virtual Agents 2005, Kos (Greece)

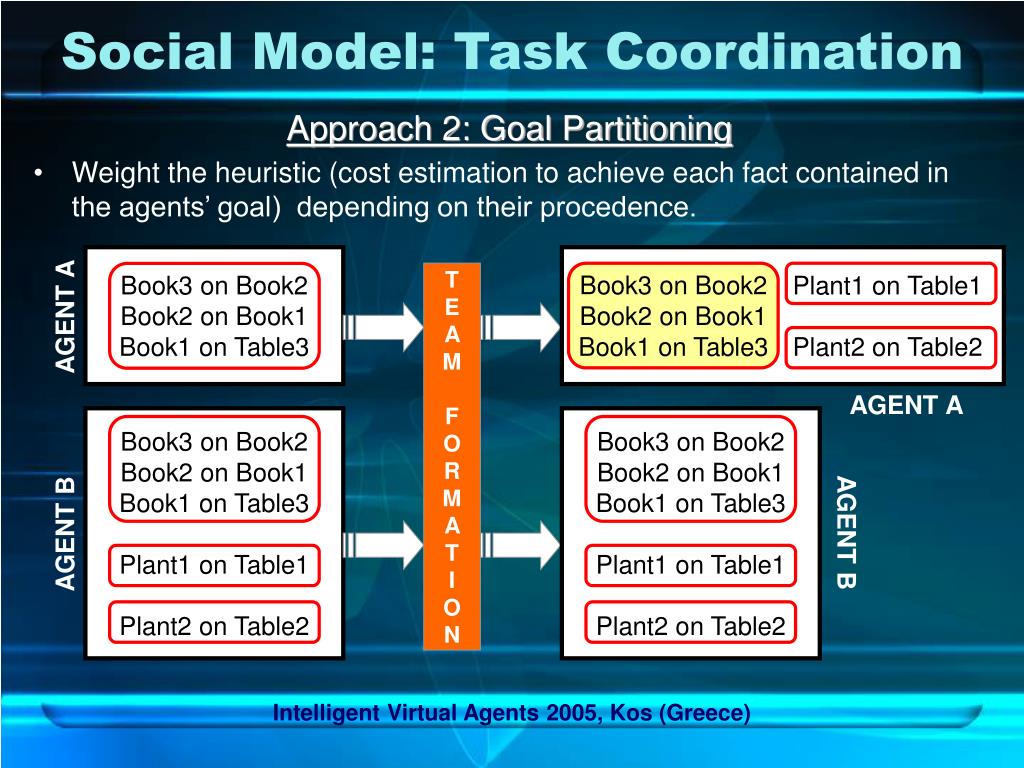

social model task coordination1
Social Model: Task Coordination

Approach 2: Goal Partitioning

  • Weight the heuristic (cost estimation to achieve each fact contained in the agents’ goal) depending on their procedence.

Book3 on Book2

Book2 on Book1

Book1 on Table3

Plant1 on Table1

Plant2 on Table2

T

E

A

M

F

O

R

M

A

T

I

O

N

Book3 on Book2

Book2 on Book1

Book1 on Table3

AGENT A

AGENT A

Book3 on Book2

Book2 on Book1

Book1 on Table3

Plant1 on Table1

Plant2 on Table2

Book3 on Book2

Book2 on Book1

Book1 on Table3

Plant1 on Table1

Plant2 on Table2

AGENT B

AGENT B

Intelligent Virtual Agents 2005, Kos (Greece)

social model task coordination2

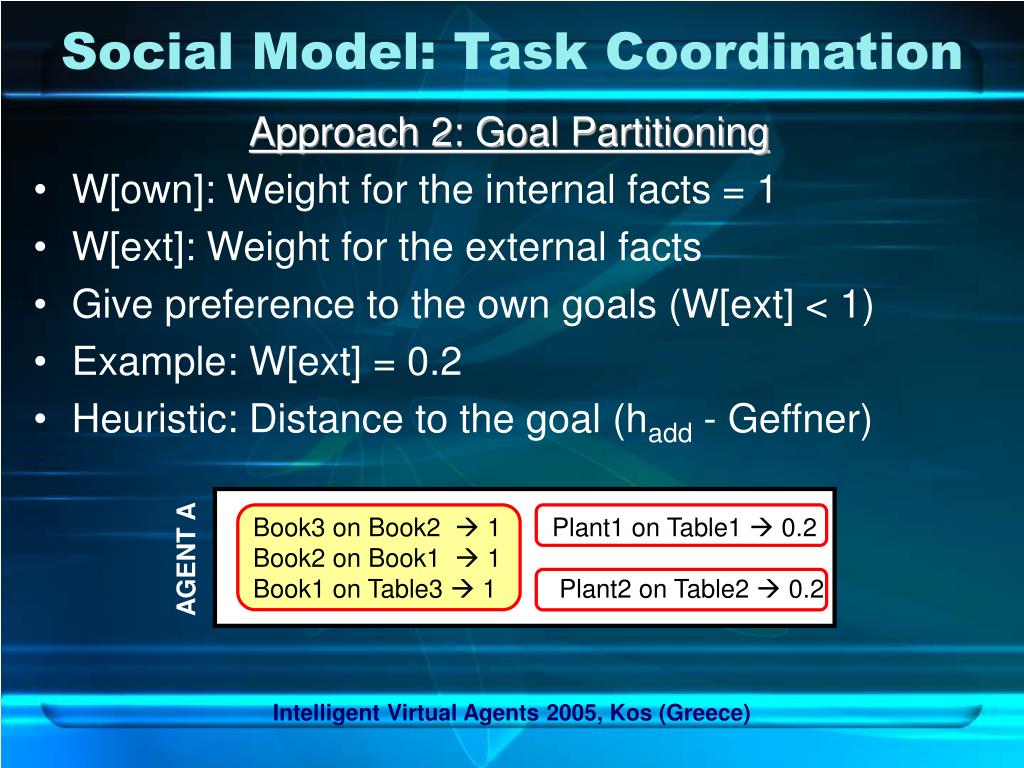

Social Model: Task Coordination

Approach 2: Goal Partitioning

  • W[own]: Weight for the internal facts = 1
  • W[ext]: Weight for the external facts
  • Give preference to the own goals (W[ext] < 1)
  • Example: W[ext] = 0.2
  • Heuristic: Distance to the goal (hadd - Geffner)

Plant1 on Table1  0.2

Plant2 on Table2  0.2

Book3 on Book2 1

Book2 on Book1 1

Book1 on Table3 1

AGENT A

Intelligent Virtual Agents 2005, Kos (Greece)

results

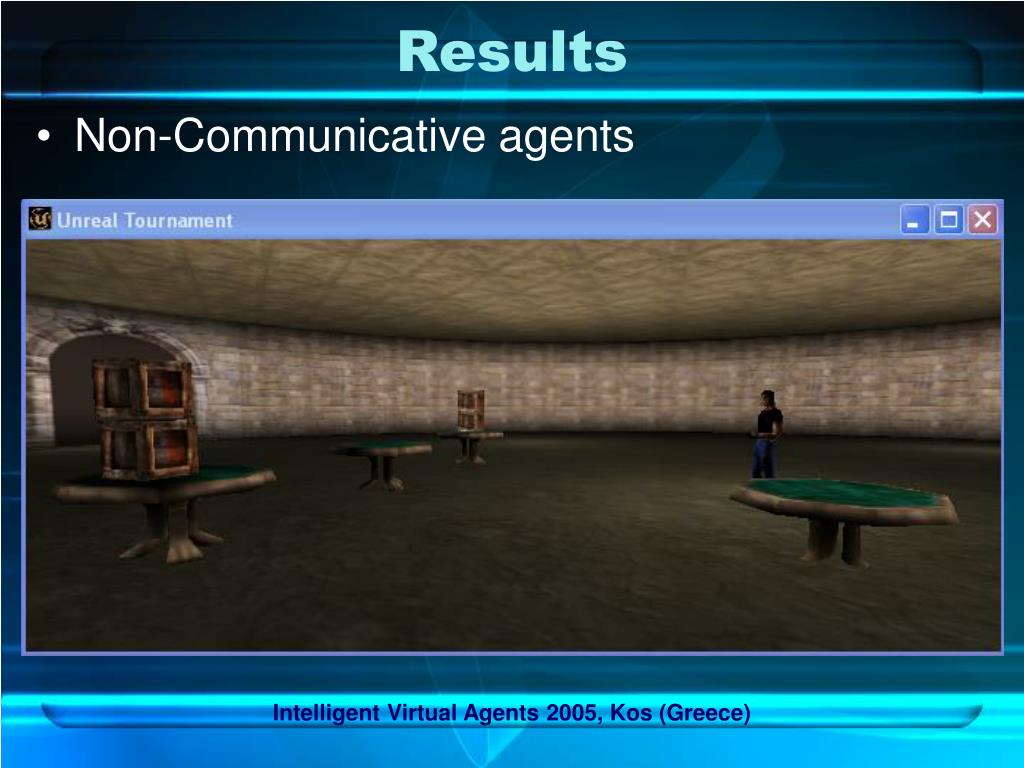

Results
  • Non-Communicative agents

Intelligent Virtual Agents 2005, Kos (Greece)

results1

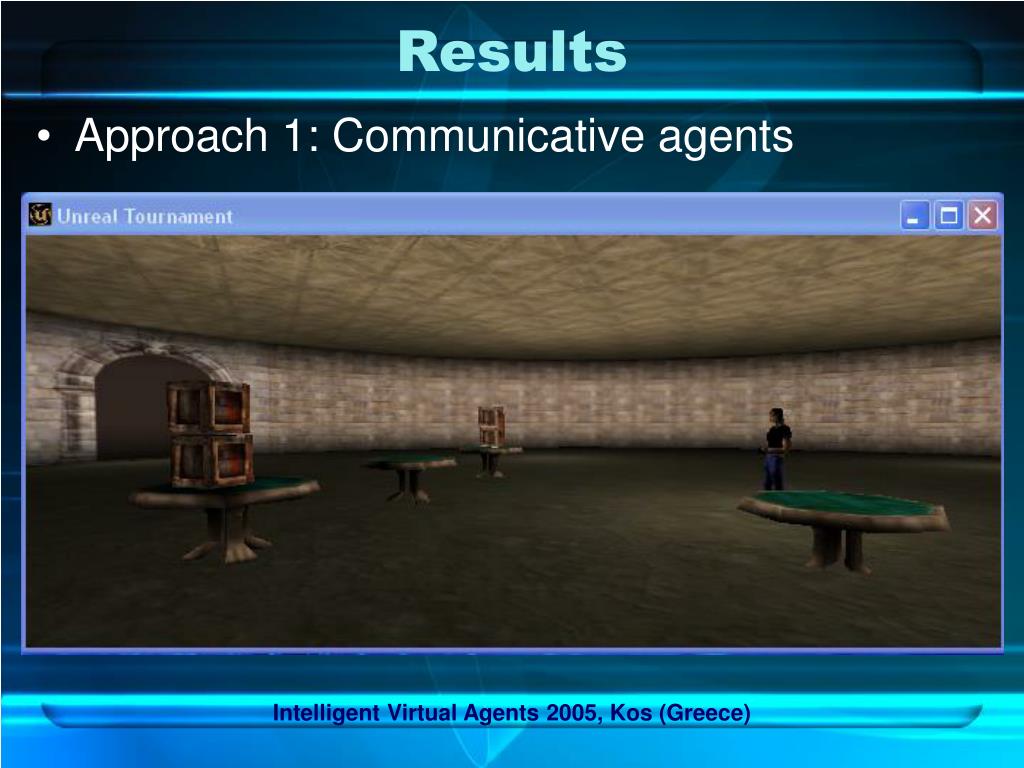

Results
  • Approach 1: Communicative agents

Intelligent Virtual Agents 2005, Kos (Greece)

results2

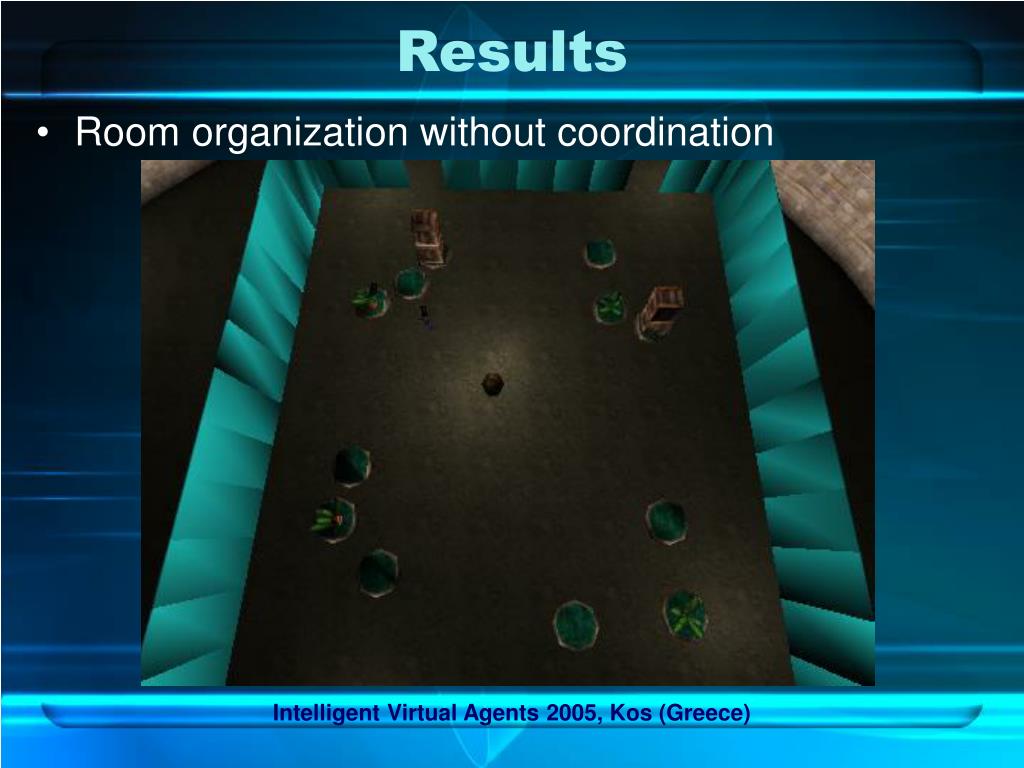

Results
  • Room organization without coordination

Intelligent Virtual Agents 2005, Kos (Greece)

results3

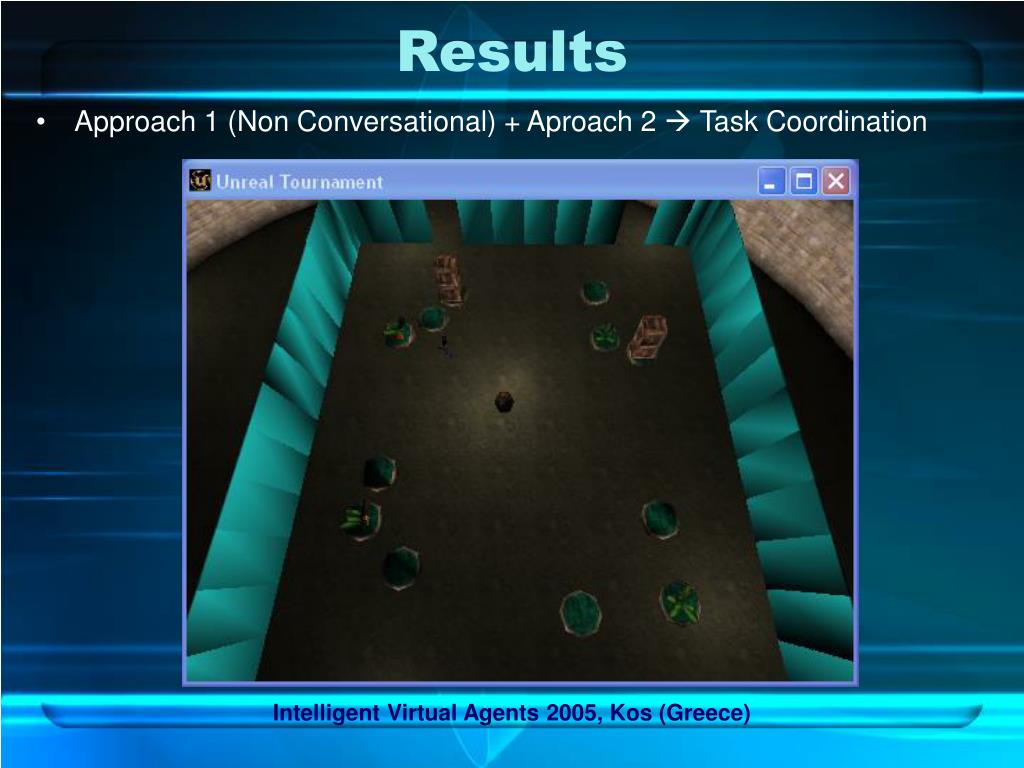

Results
  • Approach 1 (Non Conversational) + Aproach 2  Task Coordination

Intelligent Virtual Agents 2005, Kos (Greece)

results4
Results

Intelligent Virtual Agents 2005, Kos (Greece)

conclusions and future work
Conclusions and Future Work
  • The task-oriented 3DIVA presented incorporate social information into the agent-centered decision making in order to reduce interferences, resolve conflicts to finally enhance behavioral animation.
  • Grouping and task coordination helps to manage social behaviours in shared scenarios.
  • Test the model over more complex scenarios.
  • Include more sophisticated interactions between actors (e.g. ask someone to do something)

Intelligent Virtual Agents 2005, Kos (Greece)

integrating social skills in task oriented 3d iva1

Integrating social skills in task-oriented 3D IVA

Fran Grimaldo, Miguel Lozano, Fernando Barber, Juan M. Orduña

Departament of Computer Science - University of Valencia (Spain)

[email protected]

IVA 2005, Kos (Greece)
