  1. VMS wiring for 12V/10Ah Date：2008 / 02/ 29 Edit by ：Chris Lee

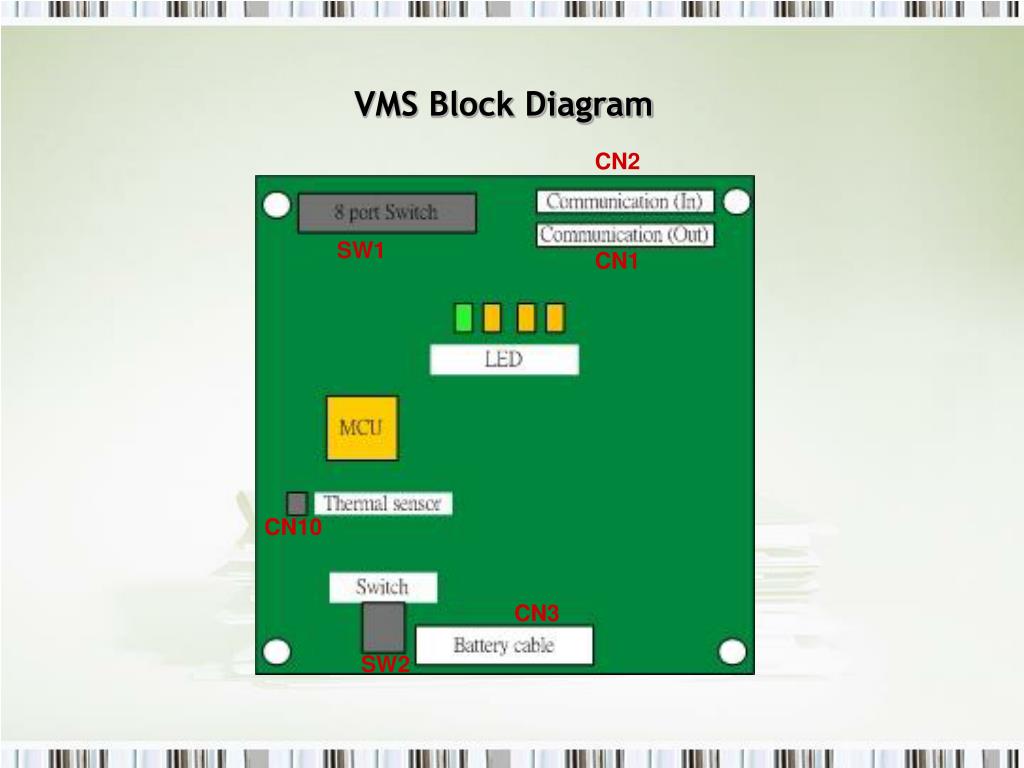

  2. CN2 SW1 CN1 VMS Block Diagram CN10 CN3 SW2

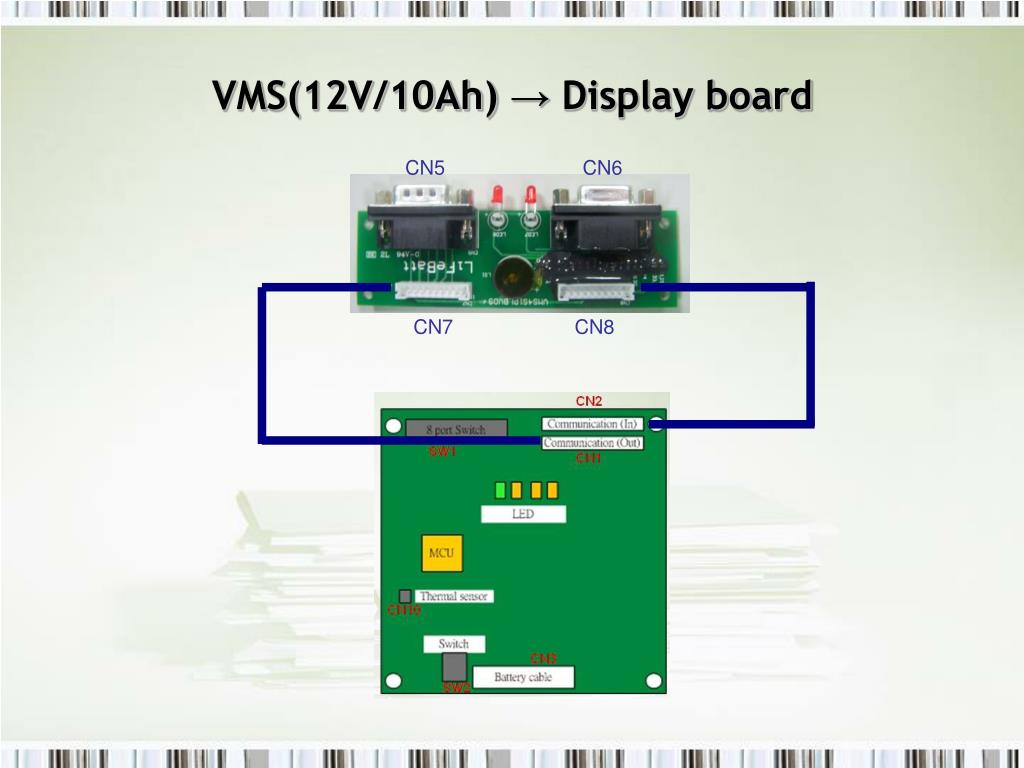

  3. VMS(12V/10Ah) → Display board CN5 CN6 CN7 CN8

  4. 4S1P ＋ ＋ ＋ ＋ BAT 4 － － － － BAT 3 BAT 2 BAT 1 VMS →Cell 6 5 4 3 2 1 BAT 4+ ←Pin 6 BAT 3+ ←Pin 5 BAT 3- ←Pin 4 BAT 2+ ←Pin 3 BAT 1+ ←Pin 2 BAT 1- ←Pin 1

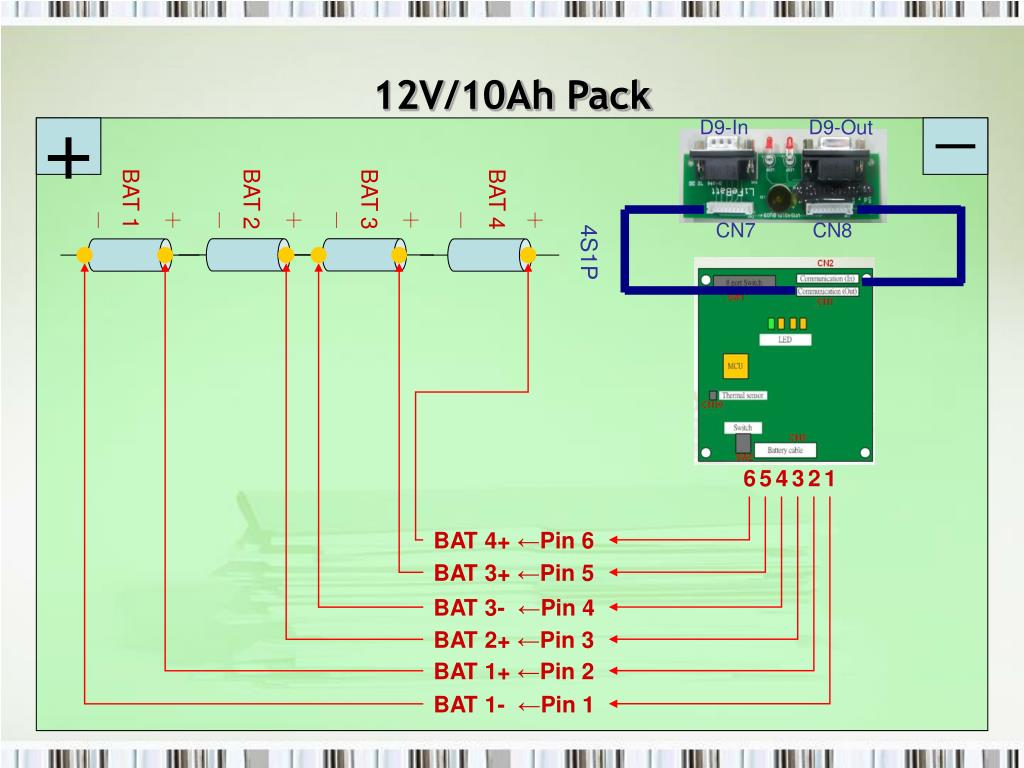

  5. 4S1P ＋ ＋ ＋ ＋ BAT 4 － － － － BAT 3 BAT 2 BAT 1 D9-In D9-Out + — CN7 CN8 12V/10Ah Pack 6 5 4 3 2 1 BAT 4+ ←Pin 6 BAT 3+ ←Pin 5 BAT 3- ←Pin 4 BAT 2+ ←Pin 3 BAT 1+ ←Pin 2 BAT 1- ←Pin 1

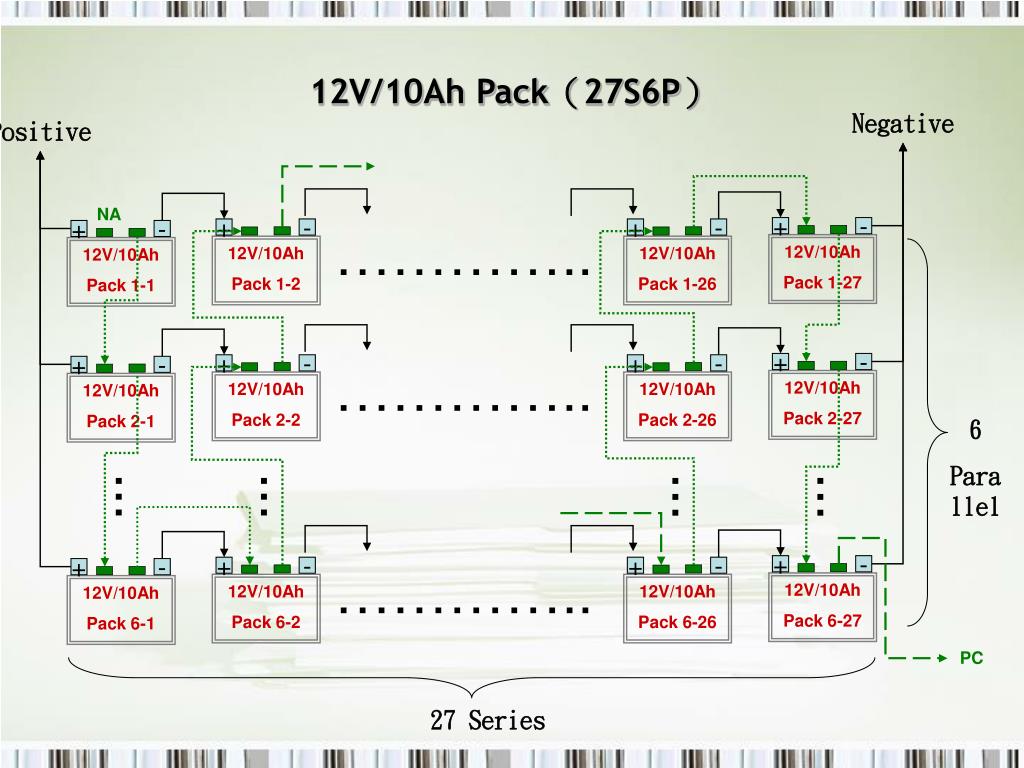

  6. + + + + + + + + + + + + - - - - - - - - - - - - 12V/10Ah Pack 1-27 12V/10Ah Pack 6-27 12V/10Ah Pack 6-2 12V/10Ah Pack 6-1 12V/10Ah Pack 6-26 12V/10Ah Pack 2-1 12V/10Ah Pack 2-27 12V/10Ah Pack 2-2 12V/10Ah Pack 1-2 12V/10Ah Pack 2-26 12V/10Ah Pack 1-1 12V/10Ah Pack 1-26 Negative Positive NA ………….. 12V/10Ah Pack（27S6P） ………….. 6 Parallel ... ... ... ... ………….. PC 27Series
