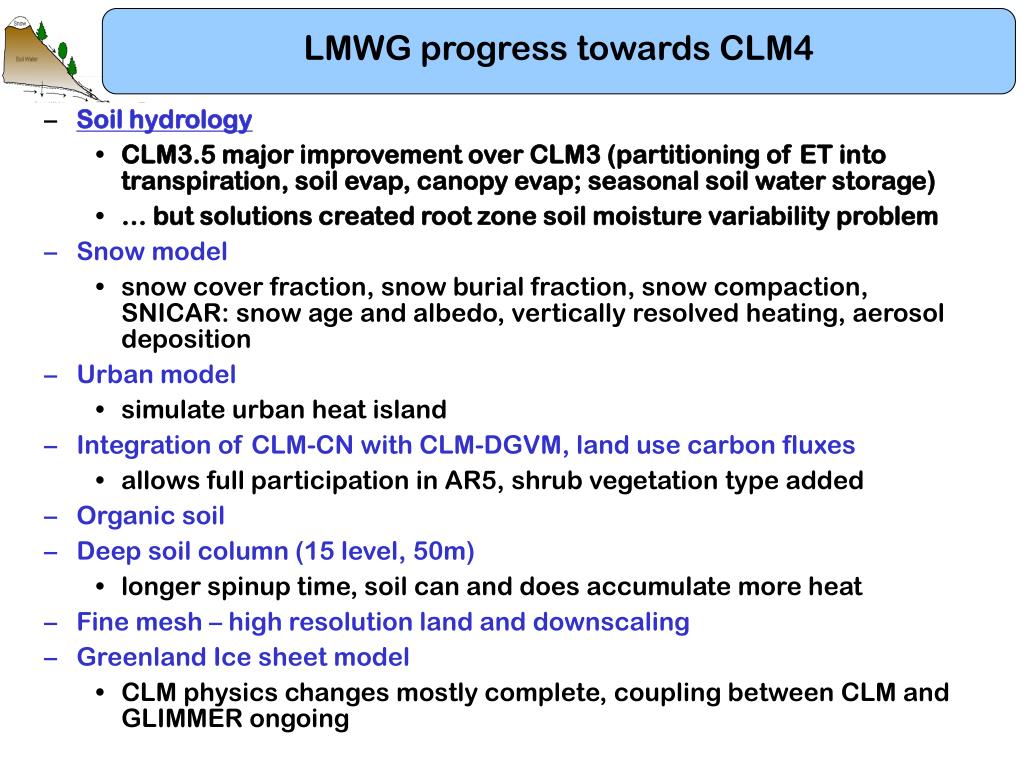

  1. LMWG progress towards CLM4 • Soil hydrology • CLM3.5 major improvement over CLM3 (partitioning of ET into transpiration, soil evap, canopy evap; seasonal soil water storage) • … but solutions created root zone soil moisture variability problem • Snow model • snow cover fraction, snow burial fraction, snow compaction, SNICAR: snow age and albedo, vertically resolved heating, aerosol deposition • Urban model • simulate urban heat island • Integration of CLM-CN with CLM-DGVM, land use carbon fluxes • allows full participation in AR5, shrub vegetation type added • Organic soil • Deep soil column (15 level, 50m) • longer spinup time, soil can and does accumulate more heat • Fine mesh – high resolution land and downscaling • Greenland Ice sheet model • CLM physics changes mostly complete, coupling between CLM and GLIMMER ongoing

  2. LMWG progress towards CLM4 • Soil hydrology • CLM3.5 major improvement over CLM3 (partitioning of ET into transpiration, soil evap, canopy evap; seasonal soil water storage) • … but solutions created root zone soil moisture variability problem • Snow model • snow cover fraction, snow burial fraction, snow compaction, SNICAR: snow age and albedo, vertically resolved heating, aerosol deposition • Urban model • simulate urban heat island • Integration of CLM-CN with CLM-DGVM, land use carbon fluxes • allows full participation in AR5, shrub vegetation type added • Organic soil • Deep soil column (15 level, 50m) • longer spinup time, soil can and does accumulate more heat • Fine mesh – high resolution land and downscaling • Greenland Ice sheet model • CLM physics changes mostly complete, coupling between CLM and GLIMMER ongoing

  3. Soil moisture variability Bondville, IL 1m Soil Moisture anomaly (mm) • 19 Illinois stations, 1981-2004 • Median σmodel / σobs: 0.44

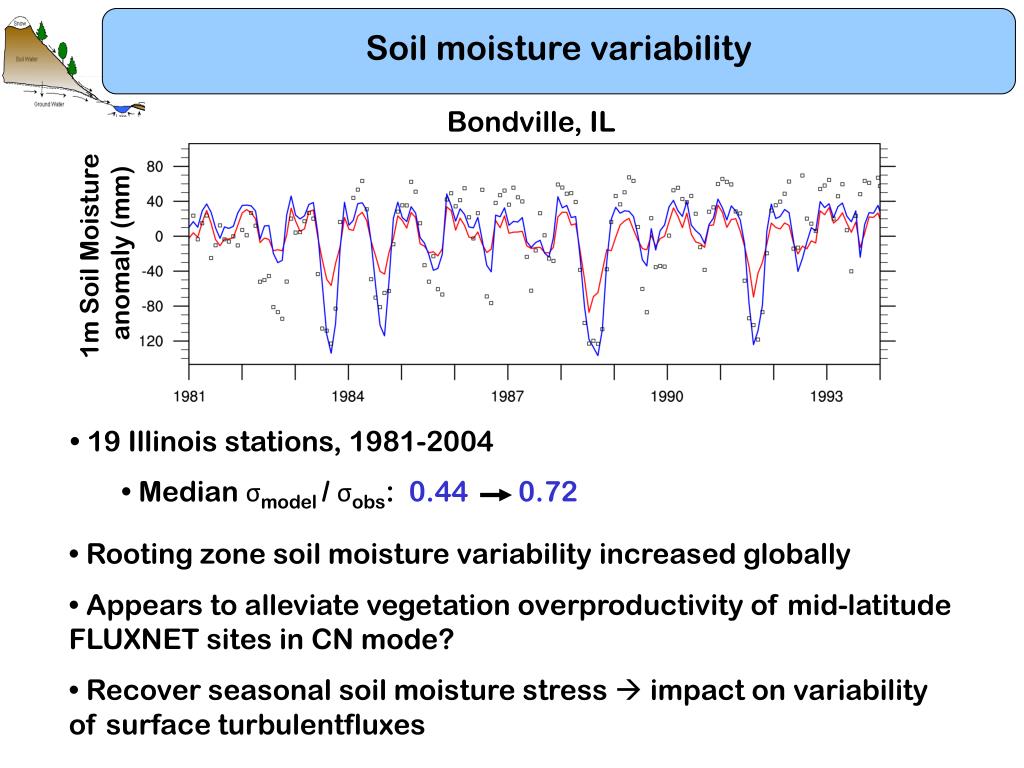

  4. Soil moisture variability Bondville, IL 1m Soil Moisture anomaly (mm) • 19 Illinois stations, 1981-2004 • Median σmodel / σobs: 0.440.72 • Rooting zone soil moisture variability increased globally • Appears to alleviate vegetation overproductivity of mid-latitude FLUXNET sites in CN mode? • Recover seasonal soil moisture stress  impact on variability of surface turbulentfluxes

  5. Land-atmosphere coupling strength:Influence of soil moisture on climate Globally averaged ∆Ω Precip Surface evaporation Pattern correlation ∆Ω(P) vs ∆Ω(E)

  6. LMWG progress towards CLM4 • Soil hydrology • CLM3.5 major improvement over CLM3 (partitioning of ET into transpiration, soil evap, canopy evap; seasonal soil water storage) • … but solutions created root zone soil moisture variability problem • Snow model • snow cover fraction, snow burial fraction, snow compaction, SNICAR: snow age and albedo, vertically resolved heating, aerosol deposition • Urban model • simulate urban heat island • Integration of CLM-CN with CLM-DGVM, land use carbon fluxes • allows full participation in AR5, shrub vegetation type added • Organic soil • Deep soil column (15 level, 50m) • longer spinup time, soil can and does accumulate more heat • Fine mesh – high resolution land and downscaling • Greenland Ice sheet model • CLM physics changes mostly complete, coupling between CLM and GLIMMER ongoing

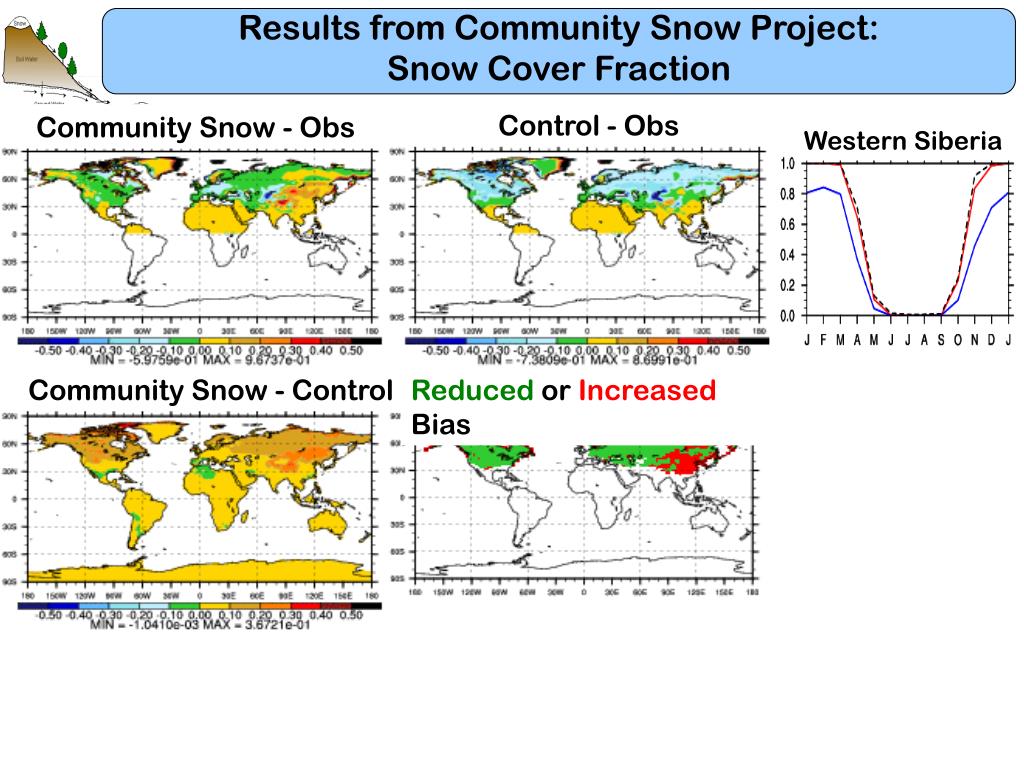

  7. Results from Community Snow Project: Snow Cover Fraction Control - Obs Community Snow - Obs Community Snow - Control Reduced or Increased Bias Western Siberia

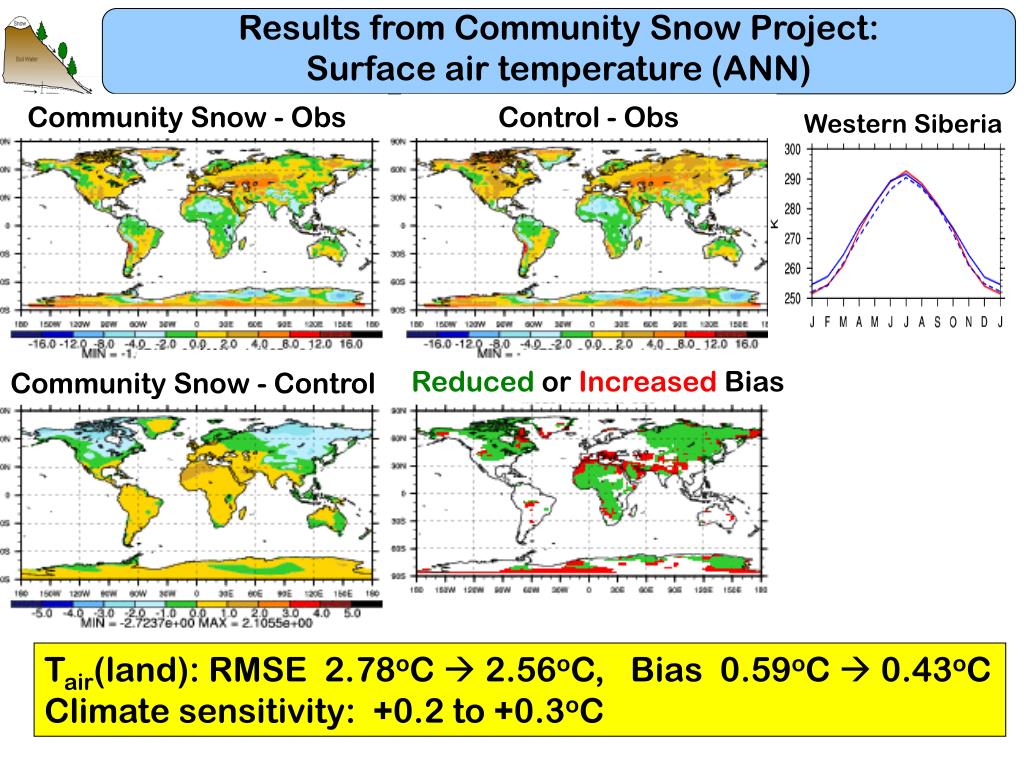

  8. Results from Community Snow Project: Surface air temperature (ANN) Community Snow - Obs Control - Obs Reduced or Increased Bias Community Snow - Control Western Siberia Tair(land): RMSE 2.78oC  2.56oC, Bias 0.59oC  0.43oC Climate sensitivity: +0.2 to +0.3oC

  9. LMWG progress towards CLM4 • Soil hydrology • CLM3.5 major improvement over CLM3 (partitioning of ET into transpiration, soil evap, canopy evap; seasonal soil water storage) • … but solutions created root zone soil moisture variability problem • Snow model • snow cover fraction, snow burial fraction, snow compaction, SNICAR: snow age and albedo, vertically resolved heating, aerosol deposition • Urban model • simulate urban heat island • Integration of CLM-CN with CLM-DGVM, land use carbon fluxes • allows full participation in AR5, shrub vegetation type added • Organic soil • Deep soil column (15 level, 50m) • longer spinup time, soil can and does accumulate more heat • Fine mesh – high resolution land and downscaling • Greenland Ice sheet model • CLM physics changes mostly complete, coupling between CLM and GLIMMER ongoing

  10. Urbanizing CLM Gridcell Industrial Landunits Glacier Wetland Urban Lake Vegetated High Density Suburban Roof Sunlit Wall Shaded Wall Pervious Impervious Canyon Floor

  11. Urban Heat Island as a function of H/W, meteorological conditions, rural environment • Heat island increases with increasing height to width ratio • Daily min temperatures increase more than daily max temperatures resulting in reduced diurnal temperature range • The magnitude of the heat island varies tremendously (dots) depending on prevailing meteorological conditions and characteristics of surrounding rural environments • These are known features of the urban environment that are captured by the model

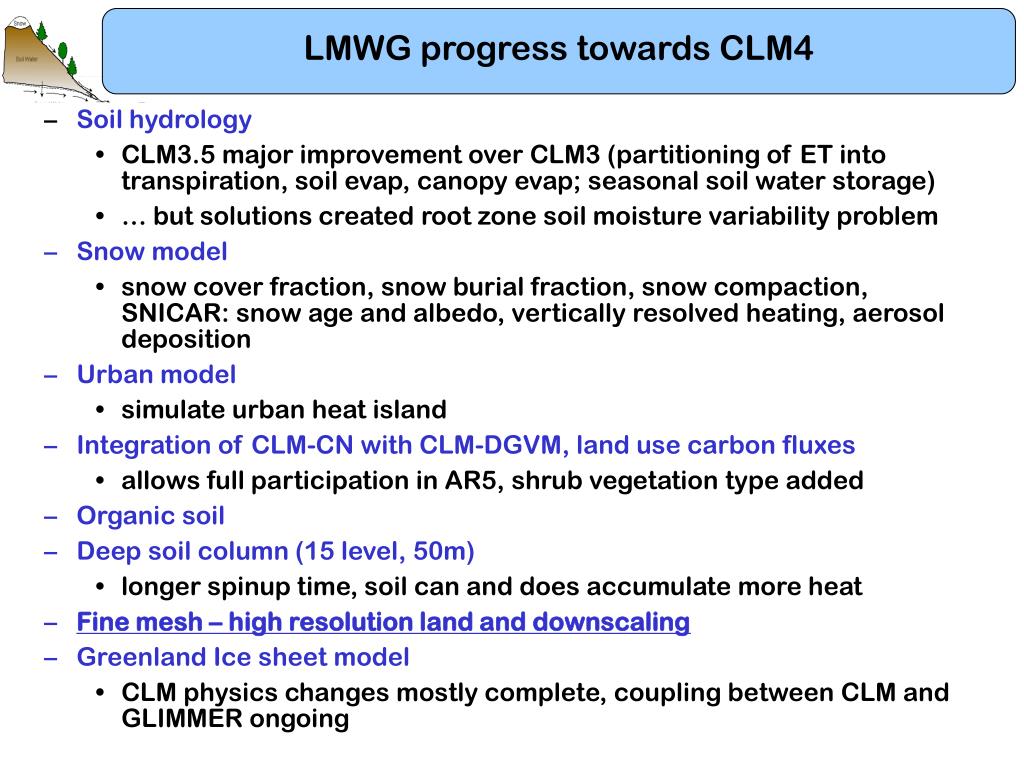

  12. LMWG progress towards CLM4 • Soil hydrology • CLM3.5 major improvement over CLM3 (partitioning of ET into transpiration, soil evap, canopy evap; seasonal soil water storage) • … but solutions created root zone soil moisture variability problem • Snow model • snow cover fraction, snow burial fraction, snow compaction, SNICAR: snow age and albedo, vertically resolved heating, aerosol deposition • Urban model • simulate urban heat island • Integration of CLM-CN with CLM-DGVM, land use carbon fluxes • allows full participation in AR5, shrub vegetation type added • Organic soil • Deep soil column (15 level, 50m) • longer spinup time, soil can and does accumulate more heat • Fine mesh – high resolution land and downscaling • Greenland Ice sheet model • CLM physics changes mostly complete, coupling between CLM and GLIMMER ongoing

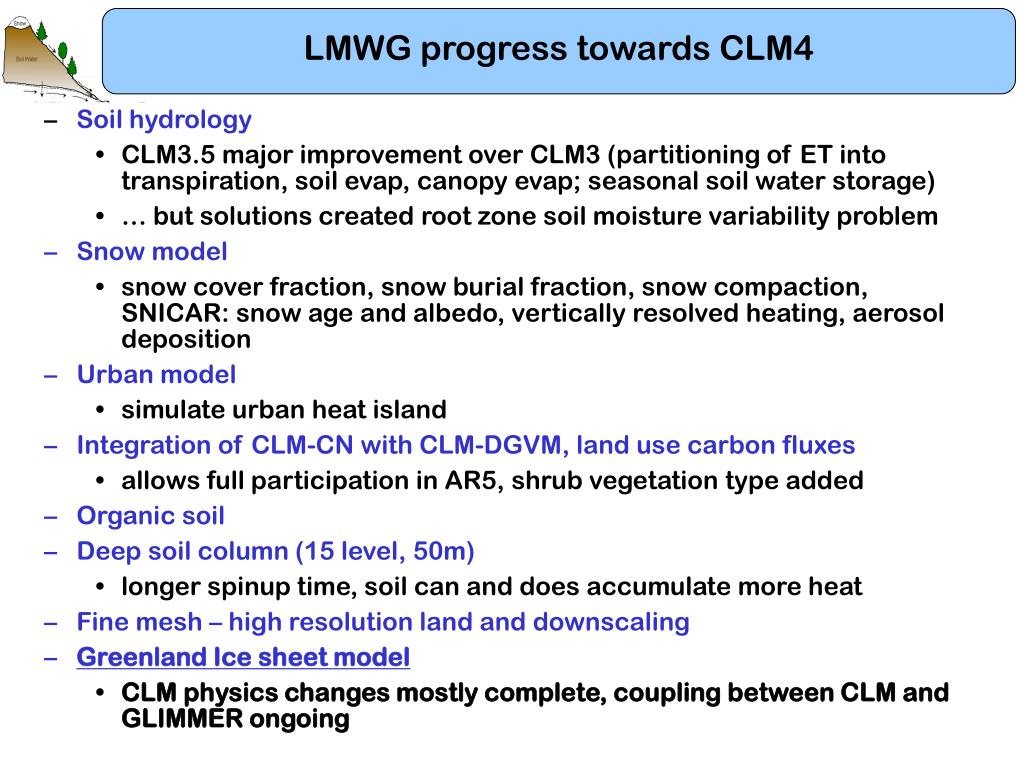

  13. LMWG progress towards CLM4 • Soil hydrology • CLM3.5 major improvement over CLM3 (partitioning of ET into transpiration, soil evap, canopy evap; seasonal soil water storage) • … but solutions created root zone soil moisture variability problem • Snow model • snow cover fraction, snow burial fraction, snow compaction, SNICAR: snow age and albedo, vertically resolved heating, aerosol deposition • Urban model • simulate urban heat island • Integration of CLM-CN with CLM-DGVM, land use carbon fluxes • allows full participation in AR5, shrub vegetation type added • Organic soil • Deep soil column (15 level, 50m) • longer spinup time, soil can and does accumulate more heat • Fine mesh – high resolution land and downscaling • Greenland Ice sheet model • CLM physics changes mostly complete, coupling between CLM and GLIMMER ongoing

  14. LMWG progress towards CLM4 • Soil hydrology • CLM3.5 major improvement over CLM3 (partitioning of ET into transpiration, soil evap, canopy evap; seasonal soil water storage) • … but solutions created root zone soil moisture variability problem • Snow model • snow cover fraction, snow burial fraction, snow compaction, SNICAR: snow age and albedo, vertically resolved heating, aerosol deposition • Urban model • simulate urban heat island • Integration of CLM-CN with CLM-DGVM, land use carbon fluxes • allows full participation in AR5, shrub vegetation type added • Organic soil • Deep soil column (15 level, 50m) • longer spinup time, soil can and does accumulate more heat • Fine mesh – high resolution land and downscaling • Greenland Ice sheet model • CLM physics changes mostly complete, coupling between CLM and GLIMMER ongoing

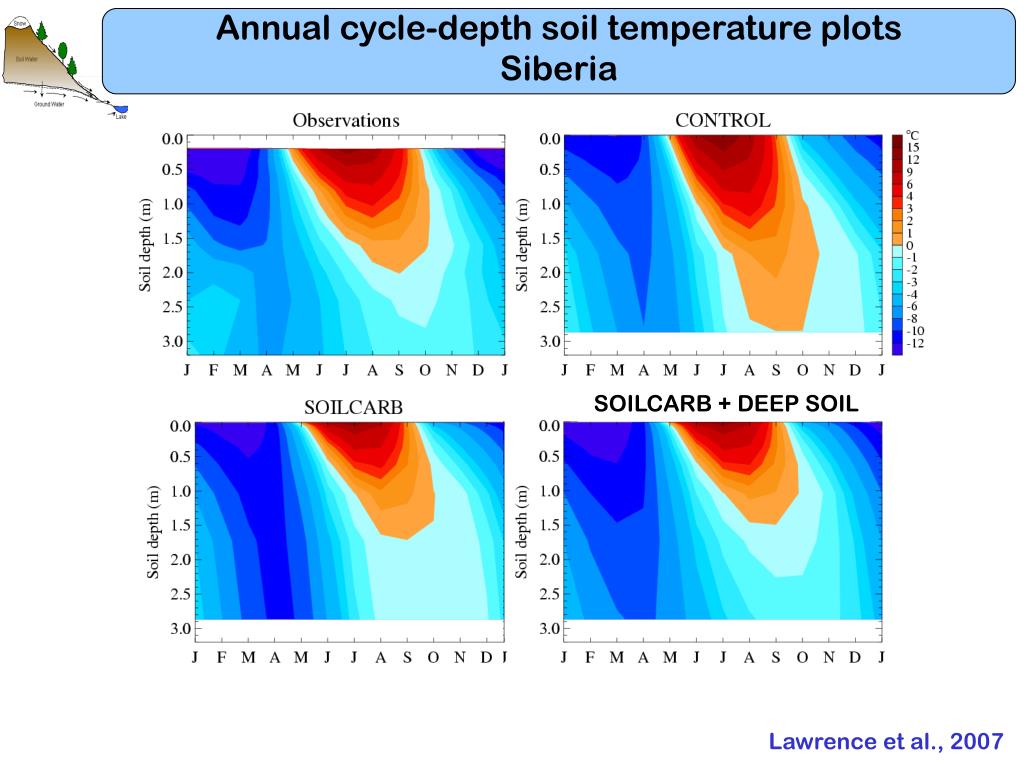

  15. Annual cycle-depth soil temperature plotsSiberia SOILCARB + DEEP SOIL Lawrence et al., 2007

  16. LMWG progress towards CLM4 • Soil hydrology • CLM3.5 major improvement over CLM3 (partitioning of ET into transpiration, soil evap, canopy evap; seasonal soil water storage) • … but solutions created root zone soil moisture variability problem • Snow model • snow cover fraction, snow burial fraction, snow compaction, SNICAR: snow age and albedo, vertically resolved heating, aerosol deposition • Urban model • simulate urban heat island • Integration of CLM-CN with CLM-DGVM, land use carbon fluxes • allows full participation in AR5, shrub vegetation type added • Organic soil • Deep soil column (15 level, 50m) • longer spinup time, soil can and does accumulate more heat • Fine mesh – high resolution land and downscaling • Greenland Ice sheet model • CLM physics changes mostly complete, coupling between CLM and GLIMMER ongoing

  17. LMWG progress towards CLM4 • Soil hydrology • CLM3.5 major improvement over CLM3 (partitioning of ET into transpiration, soil evap, canopy evap; seasonal soil water storage) • … but solutions created root zone soil moisture variability problem • Snow model • snow cover fraction, snow burial fraction, snow compaction, SNICAR: snow age and albedo, vertically resolved heating, aerosol deposition • Urban model • simulate urban heat island • Integration of CLM-CN with CLM-DGVM, land use carbon fluxes • allows full participation in AR5, shrub vegetation type added • Organic soil • Deep soil column (15 level, 50m) • longer spinup time, soil can and does accumulate more heat • Fine mesh – high resolution land and downscaling • Greenland Ice sheet model • CLM physics changes mostly complete, coupling between CLM and GLIMMER ongoing

  18. LMWG progress towards CLM4Possible • Prognostic canopy airspace • improves computational efficiency, storage of heat, moisture, carbon in plant canopy • Irrigation + global Integrated crop model • simulate growth, development, and management of crops • Minor changes • roughness length sparse/dense canopy; CCSM stability function; reference height • Dynamic wetlands (lakes) • Methane wetland emission model

  19. SOILCARB – CONTROL (JJA)
