  1. PRODUCT SPECIFICATION KELVINATOR FEATURES FLOSS PRIME 14. Tub Cleaning 15. Preset Time : 1~24 Hrs 16. 10 Water Levels 17. Child lock 18. Self Programming 19. 3D Waterfall 20. Error Code Alarm 21. Auto Balancing 22. Adjustable Leg 23. Rat Mesh • Wash & Spin Capacity : 7.0kg • Steel Tub • Painted Metal Body • Transparent Window (Plastic) • Normal Pulsator • Lint Filter • Double Water Inlet • Digital display • Memory Back Up • Auto Soak Option • Six Unique Program • Fuzzy Logic control • Air Dry Technical Specification • Machine dimension：550x565x924 (W x D x H)mm • Carton dimension： 586x603x970 (W x D x H)mm • Rated Power： Wash – 400W • Voltage： 230V / 50Hz • Weight: Net – 36kg, Gross – 40kg Model Name : Floss Prime Nomenclature : WM KT70FRGL-CME Color : Gray Light Wash Capacity : 7.0 Kg

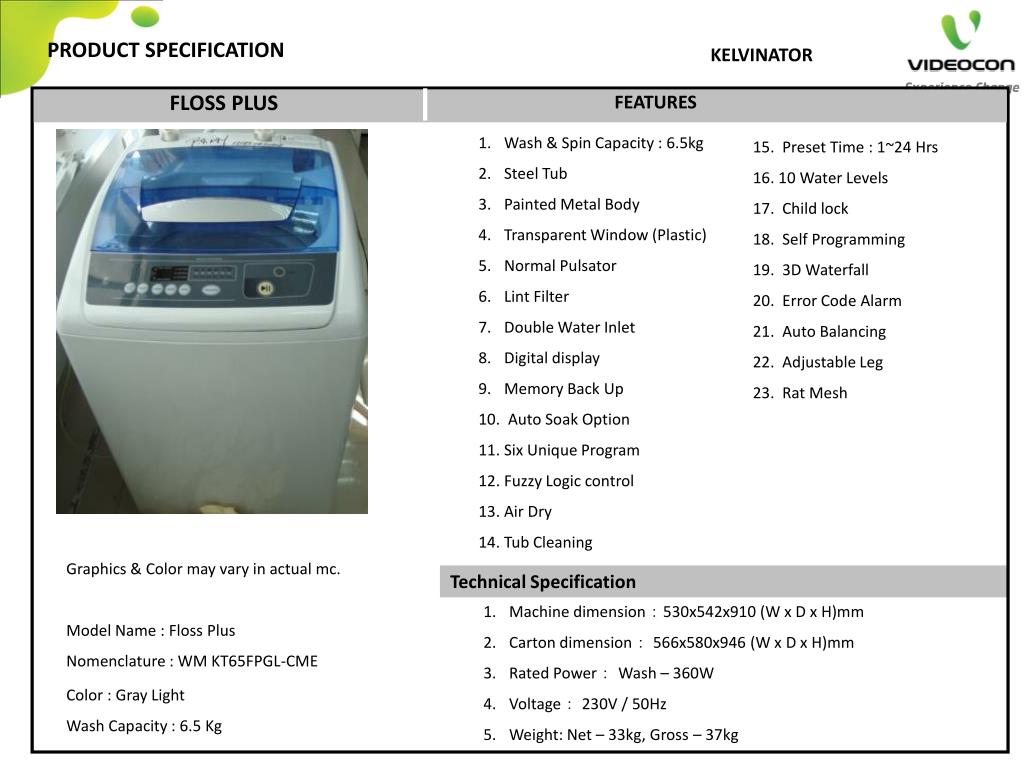

  2. PRODUCT SPECIFICATION KELVINATOR FLOSS PLUS FEATURES • Wash & Spin Capacity : 6.5kg • Steel Tub • Painted Metal Body • Transparent Window (Plastic) • Normal Pulsator • Lint Filter • Double Water Inlet • Digital display • Memory Back Up • Auto Soak Option • Six Unique Program • Fuzzy Logic control • Air Dry • Tub Cleaning 15. Preset Time : 1~24 Hrs 16. 10 Water Levels 17. Child lock 18. Self Programming 19. 3D Waterfall 20. Error Code Alarm 21. Auto Balancing 22. Adjustable Leg 23. Rat Mesh Graphics & Color may vary in actual mc. Model Name : Floss Plus Nomenclature : WM KT65FPGL-CME Color : Gray Light Wash Capacity : 6.5 Kg Technical Specification • Machine dimension：530x542x910 (W x D x H)mm • Carton dimension： 566x580x946 (W x D x H)mm • Rated Power： Wash – 360W • Voltage： 230V / 50Hz • Weight: Net – 33kg, Gross – 37kg

  3. PRODUCT SPECIFICATION KELVINATOR FEATURES KF-6511 Steel Tub Fuzzy Logic 8 Wash Program (Strong, Normal, Sari, Gentle – With & W/O Soak) Child Lock & Ex Dry Memory Backup Twister Pulsator Net Filter Powder coated metal body 8 Level Water Selection Auto Balancing Auto Error Detection (Dry Tap, No Drain, Door Open, Imbalance) Auto Off Buzzer Transparent Plastic Window Technical Specification Graphics & Color may vary in actual mc. Model Name : KF-6511 Nomenclature : WM KT6511GL-FAU Color : Gray Light Wash Capacity : 6.5 Kg • Machine dimension：560x580x935 (W x D x H)mm • Carton dimension： 607x645x1020 (W x D x H)mm • Rated Power： Wash – 390W • Voltage： 230V / 50Hz • Weight: Net – 35kg, Gross – 39kg

  4. PRODUCT SPECIFICATION KELVINATOR FEATURES FLOSS • Wash & Spin Capacity : 6.0kg • Steel Tub • Painted Metal Body • Transparent Window (Plastic) • Normal Pulsator • Lint Filter • Double Water Inlet • Digital display • Memory Back Up • Auto Soak Option • Six Unique Program • Fuzzy Logic control • Air Dry • Tub Cleaning 15. Preset Time : 1~24 Hrs 16. 10 Water Levels 17. Child lock 18. Self Programming 19. 3D Waterfall 20. Error Code Alarm 21. Auto Balancing 22. Adjustable Leg 23. Rat Mesh Technical Specification • Machine dimension：520x530x890 (W x D x H)mm • Carton dimension： 580x585x950 (W x D x H)mm • Rated Power： Wash – 360W • Voltage： 230V / 50Hz • Weight: Net – 30kg, Gross – 34kg Model Name : Floss Nomenclature : WM KT60FLGL-CME Color : Gray Light Wash Capacity : 6.0 Kg

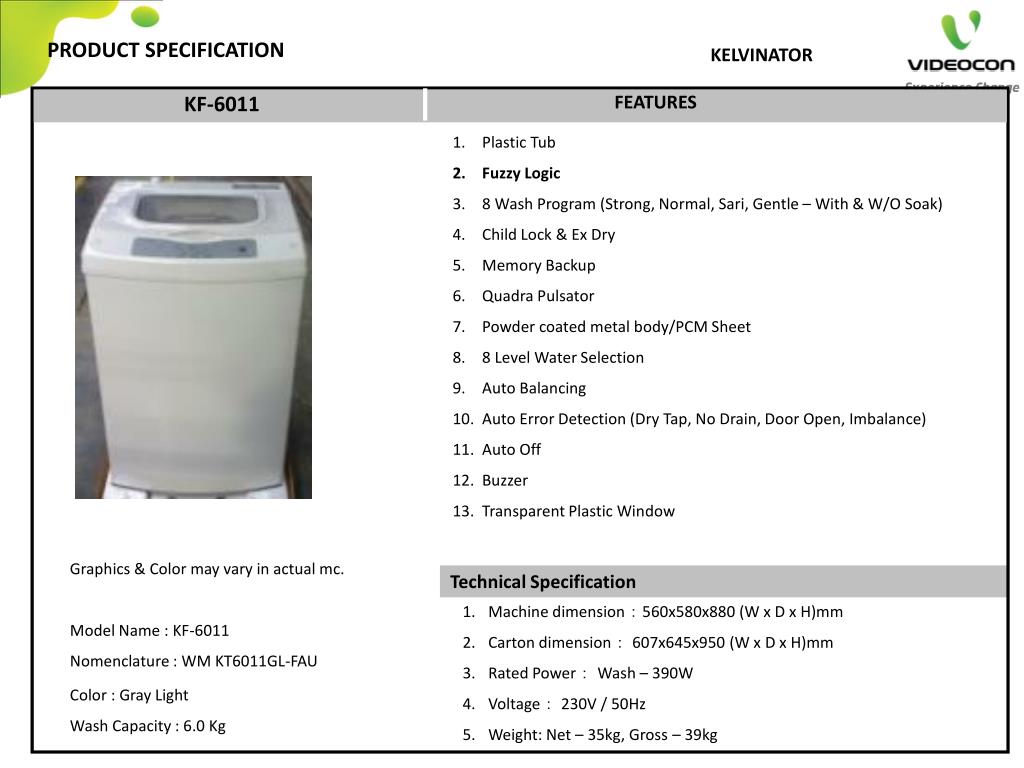

  5. PRODUCT SPECIFICATION KELVINATOR FEATURES KF-6011 Plastic Tub Fuzzy Logic 8 Wash Program (Strong, Normal, Sari, Gentle – With & W/O Soak) Child Lock & Ex Dry Memory Backup Quadra Pulsator Powder coated metal body/PCM Sheet 8 Level Water Selection Auto Balancing Auto Error Detection (Dry Tap, No Drain, Door Open, Imbalance) Auto Off Buzzer Transparent Plastic Window Graphics & Color may vary in actual mc. Model Name : KF-6011 Nomenclature : WM KT6011GL-FAU Color : Gray Light Wash Capacity : 6.0 Kg Technical Specification • Machine dimension：560x580x880 (W x D x H)mm • Carton dimension： 607x645x950 (W x D x H)mm • Rated Power： Wash – 390W • Voltage： 230V / 50Hz • Weight: Net – 35kg, Gross – 39kg

  6. PRODUCT SPECIFICATION KELVINATOR FEATURES VIAN PRIME Wash Capacity – 8.0kg Spin Capacity – 4.5kg Rust free plastic body Dual layer body Transparent window Normal Pulsator 2 Wash Programs Auto Soak Air dry Buzzer Net Filter Deco Knob Spin Shower Rinsing 4 Water Level Indicator Castor NEW Graphics may vary in actual mc. Model Name : VIAN PRIME Nomenclature : WM KS80VRGL-CME Color : GRAY LIGHT Wash Capacity : 8.0 Kg Technical Specification • Machine dimension：870x510x960 (W x D x H)mm • Carton dimension： 886x54x992 (W x D x H)mm • Rated Power： Wash - 400W, Spin – 135W • Voltage： 230V / 50Hz • Weight: Net – 23kg, Gross – 26kg

  7. PRODUCT SPECIFICATION KELVINATOR FEATURES KS-7211 3 Wash Programs Auto Soak Pulgitator Pulsator Anti Rust Body Anti Bacteria Technology Transparent Window Buzzer Lint Filter Collar Scrubber Centre fall Spin Shower Rinsing Castor 4 Water Level Indicator Chrome Knob Opaque Panel Deco Model Name : KS-7211 Nomenclature : WM KS7211GL-FKA Color : GRAY LIGHT Wash Capacity : 7.2 Kg Technical Specification • Machine dimension：780x480x970 (W x D x H)mm • Carton dimension： 800x520x1010 (W x D x H)mm • Rated Power： Wash - 350W, Spin – 180W • Voltage： 230V / 50Hz • Weight: Net – 23.5kg, Gross – 29kg

  8. PRODUCT SPECIFICATION KELVINATOR FEATURES KS-7212 3 Wash Programs Auto Soak Roller Coaster Pulsator Anti Rust Body Anti Bacteria Technology Transparent Window Buzzer Lint Filter Collar Scrubber Centre fall Spin Shower Rinsing Castor 4 Water Level Indicator Chrome Knob Transparent Panel Deco Technical Specification • Machine dimension：780x480x970 (W x D x H)mm • Carton dimension： 800x520x1010 (W x D x H)mm • Rated Power： Wash - 350W, Spin – 180W • Voltage： 230V / 50Hz • Weight: Net – 23.5kg, Gross – 29kg Model Name : KS-7212 Nomenclature : WM KS7212GL-FKA Color : GRAY LIGHT Wash Capacity : 7.2 Kg

  9. PRODUCT SPECIFICATION KELVINATOR FEATURES Lake Prime Wash Capacity : 7.2kg Anti Rust Plastic Body Dual layer plastic body Normal Pulsator Two Wash Programs Auto soak Buzzer Lint Filter Spin shower rinsing Single water inlet Water selector Lever Transparent Window Chrome Knobs Castor Technical Specification • Machine dimension：830x470x865 (W x D x H)mm • Carton dimension： 840x505x885 (W x D x H)mm • Rated Power： Wash – 400W, Spin – 180W • Voltage： 230V / 50Hz • Weight: Net – 21kg, Gross – 24.5kg Model Name : Lake Prime Nomenclature : WM KS72LRGL-CME Color : Gray Light Wash Capacity :7.2 Kg

  10. PRODUCT SPECIFICATION KELVINATOR FEATURES VIAN PLUS Wash Capacity – 7.0kg Spin Capacity – 4.5kg Rust free plastic body Dual layer body Transparent window Normal Pulsator 2 Wash Programs Auto Soak Air dry Buzzer Magic Filter Deco Knob Spin Shower Rinsing 4 Water Level Indicator Castor NEW Graphics may vary in actual mc. Model Name : VIAN PLUS Nomenclature : WM KS70VPGL-CME Color : GRAY LIGHT Wash Capacity : 7.0 Kg Technical Specification • Machine dimension：830x485x865 (W x D x H)mm • Carton dimension： 840x505x900 (W x D x H)mm • Rated Power： Wash - 370W, Spin – 135W • Voltage： 230V / 50Hz • Weight: Net – 21kg, Gross – 24.5kg

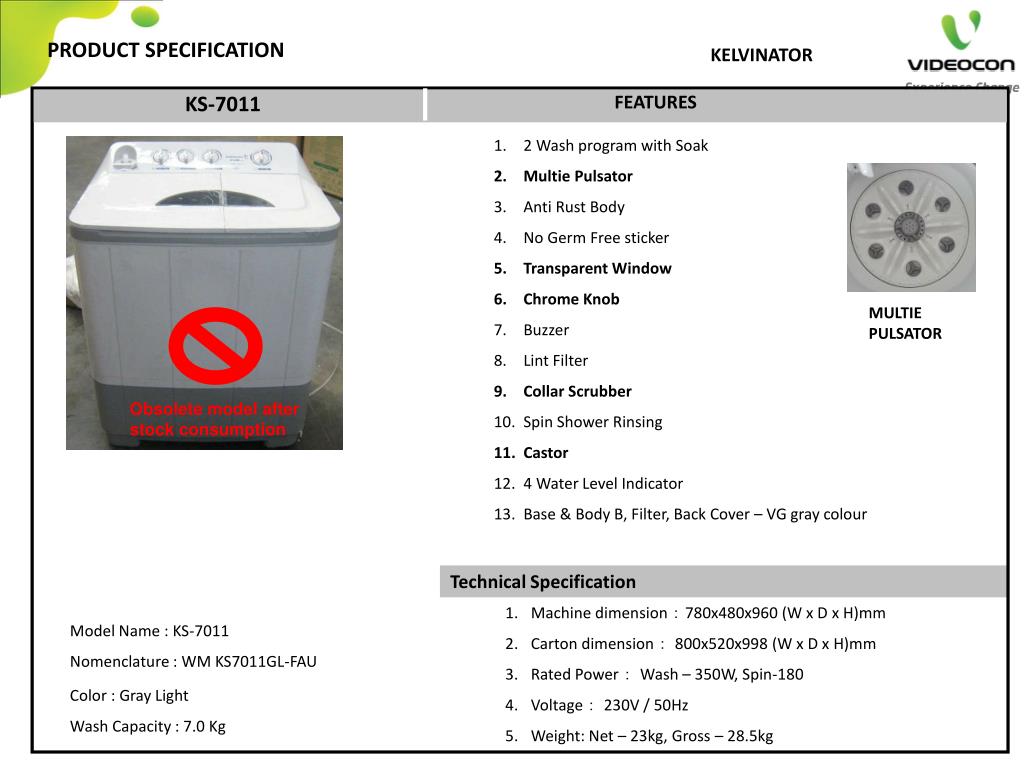

  11. PRODUCT SPECIFICATION KELVINATOR FEATURES KS-7011 2 Wash program with Soak Multie Pulsator Anti Rust Body No Germ Free sticker Transparent Window Chrome Knob Buzzer Lint Filter Collar Scrubber Spin Shower Rinsing Castor 4 Water Level Indicator Base & Body B, Filter, Back Cover – VG gray colour MULTIE PULSATOR Technical Specification Obsolete model after stock consumption • Machine dimension：780x480x960 (W x D x H)mm • Carton dimension： 800x520x998 (W x D x H)mm • Rated Power： Wash – 350W, Spin-180 • Voltage： 230V / 50Hz • Weight: Net – 23kg, Gross – 28.5kg Model Name : KS-7011 Nomenclature : WM KS7011GL-FAU Color : Gray Light Wash Capacity : 7.0 Kg

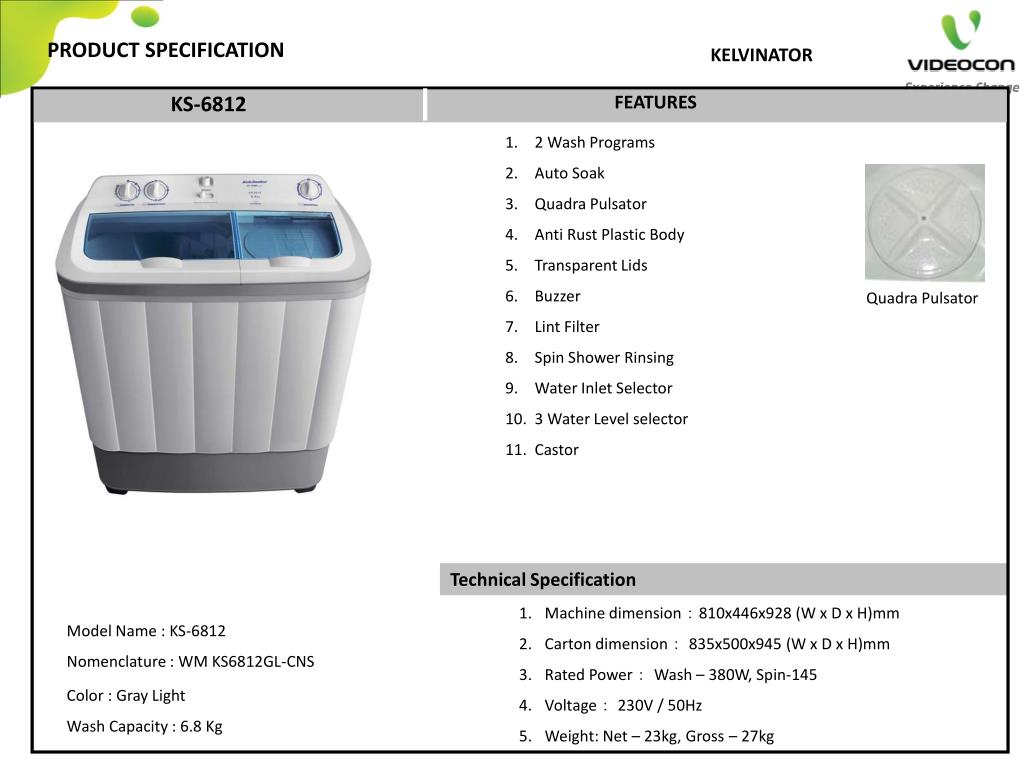

  12. PRODUCT SPECIFICATION KELVINATOR FEATURES KS-6812 2 Wash Programs Auto Soak Quadra Pulsator Anti Rust Plastic Body Transparent Lids Buzzer Lint Filter Spin Shower Rinsing Water Inlet Selector 3 Water Level selector Castor Quadra Pulsator Technical Specification • Machine dimension：810x446x928 (W x D x H)mm • Carton dimension： 835x500x945 (W x D x H)mm • Rated Power： Wash – 380W, Spin-145 • Voltage： 230V / 50Hz • Weight: Net – 23kg, Gross – 27kg Model Name : KS-6812 Nomenclature : WM KS6812GL-CNS Color : Gray Light Wash Capacity : 6.8 Kg

  13. PRODUCT SPECIFICATION KELVINATOR KS-6811 FEATURES 2 Wash program w/o Soak Reversomatic Pulsator Anti Rust Body No Germ Free sticker No Window Deco Knob No Buzzer Lint Filter Spin Shower Rinsing No Castor Collar Scrubber 4 Water Level Indicator Base & Body B, Filter, Back Cover – Dark gray color REVERSOMATIC PULSATOR Technical Specification Obsolete model after stock consumption • Machine dimension：780x480x960 (W x D x H)mm • Carton dimension： 800x520x998 (W x D x H)mm • Rated Power： Wash – 350W, Spin-180 • Voltage： 230V / 50Hz • Weight: Net – 23kg, Gross – 28.5kg Model Name : KS-6811 Nomenclature : WM KS6811GL-FAU Color : Gray Light Wash Capacity : 6.8 Kg

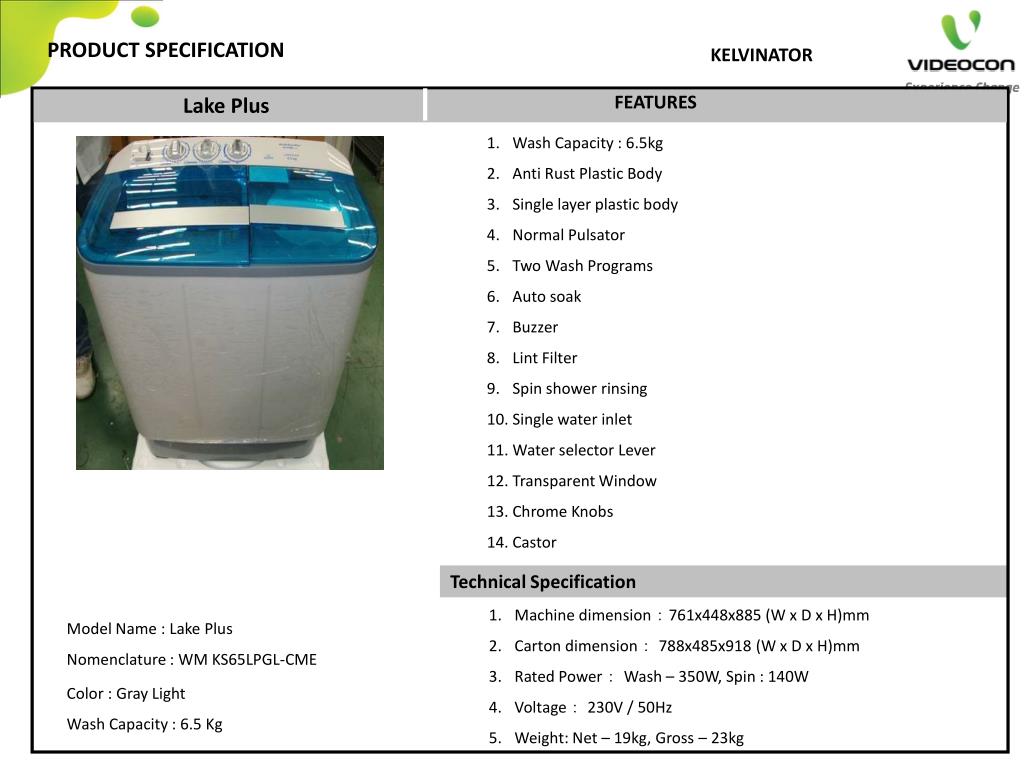

  14. PRODUCT SPECIFICATION KELVINATOR FEATURES Lake Plus Wash Capacity : 6.5kg Anti Rust Plastic Body Single layer plastic body Normal Pulsator Two Wash Programs Auto soak Buzzer Lint Filter Spin shower rinsing Single water inlet Water selector Lever Transparent Window Chrome Knobs Castor Technical Specification • Machine dimension：761x448x885 (W x D x H)mm • Carton dimension： 788x485x918 (W x D x H)mm • Rated Power： Wash – 350W, Spin : 140W • Voltage： 230V / 50Hz • Weight: Net – 19kg, Gross – 23kg Model Name : Lake Plus Nomenclature : WM KS65LPGL-CME Color : Gray Light Wash Capacity : 6.5 Kg

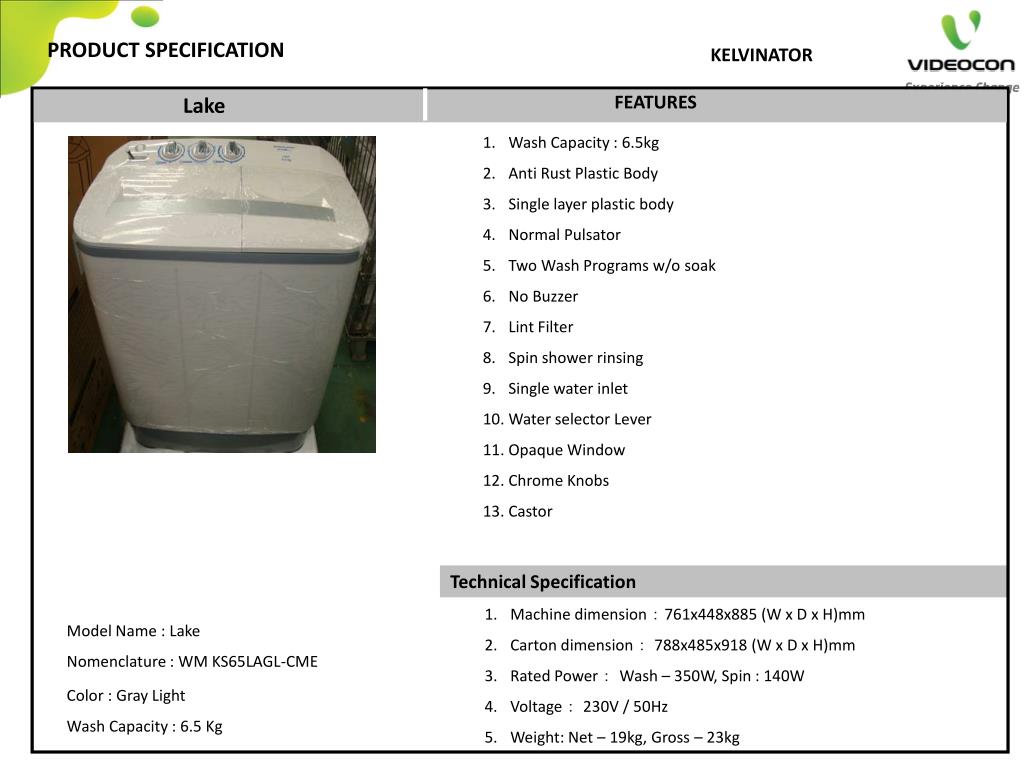

  15. PRODUCT SPECIFICATION KELVINATOR FEATURES Lake Wash Capacity : 6.5kg Anti Rust Plastic Body Single layer plastic body Normal Pulsator Two Wash Programs w/o soak No Buzzer Lint Filter Spin shower rinsing Single water inlet Water selector Lever Opaque Window Chrome Knobs Castor Technical Specification • Machine dimension：761x448x885 (W x D x H)mm • Carton dimension： 788x485x918 (W x D x H)mm • Rated Power： Wash – 350W, Spin : 140W • Voltage： 230V / 50Hz • Weight: Net – 19kg, Gross – 23kg Model Name : Lake Nomenclature : WM KS65LAGL-CME Color : Gray Light Wash Capacity : 6.5 Kg

  16. PRODUCT SPECIFICATION KELVINATOR FEATURES VIAN DLX Wash Capacity – 6.2kg Spin Capacity – 4.5kg Rust free plastic body Single layer body Transparent window Normal Pulsator 2 Wash Programs Auto Soak Buzzer Net Filter Deco Knob Spin Shower Rinsing 3 Water Level Indicator Castor NEW Graphics may vary in actual mc. Model Name : VIAN DLX Nomenclature : WM KS62VDGL-CME Color : GRAY LIGHT Wash Capacity : 6.2 Kg Technical Specification • Machine dimension：760x450x885 (W x D x H)mm • Carton dimension： 778x475x918 (W x D x H)mm • Rated Power： Wash - 340W, Spin – 135W • Voltage： 230V / 50Hz • Weight: Net – 19kg, Gross – 23kg

  17. PRODUCT SPECIFICATION KELVINATOR FEATURES VIAN Wash Capacity – 6.2kg Spin Capacity – 4.5kg Rust free plastic body Single layer body Transparent window Normal Pulsator 2 Wash Programs Auto Soak Buzzer Net Filter Deco Knob Spin Shower Rinsing 3 Water Level Indicator Castor NEW Graphics may vary in actual mc. Model Name : VIAN Nomenclature : WM KS62VNGL-CME Color : GRAY LIGHT Wash Capacity : 6.2 Kg Technical Specification • Machine dimension：760x450x885 (W x D x H)mm • Carton dimension： 778x475x918 (W x D x H)mm • Rated Power： Wash - 340W, Spin – 135W • Voltage： 230V / 50Hz • Weight: Net – 19kg, Gross – 23kg

  18. PRODUCT SPECIFICATION KELVINATOR FEATURES KS-6011 3 Wash program w/o Soak Multie Pulsator Anti Rust Body No Germ Free sticker Transparent Window Deco Knob No Buzzer 2 Wash Tub Scrubber Collar Scrubber Lint Filter Centre fall Spin Shower Rinsing No Castor 5 Water Level Indicator (Including Overflow) Base & Body B, Scrubber, Filter, Back Cover – Dark gray color Center Fall Spin Shower Multie Pulsator Technical Specification Obsolete model after stock consumption • Machine dimension：750x435x890 (W x D x H)mm • Carton dimension： 785x470x905 (W x D x H)mm • Rated Power： Wash – 340W, Spin-180 • Voltage： 230V / 50Hz • Weight: Net – 22.5kg, Gross – 26.5kg Model Name : KS-6011 Nomenclature : WM KS6011GL-FBU Color : Gray Light Wash Capacity : 6.0 Kg

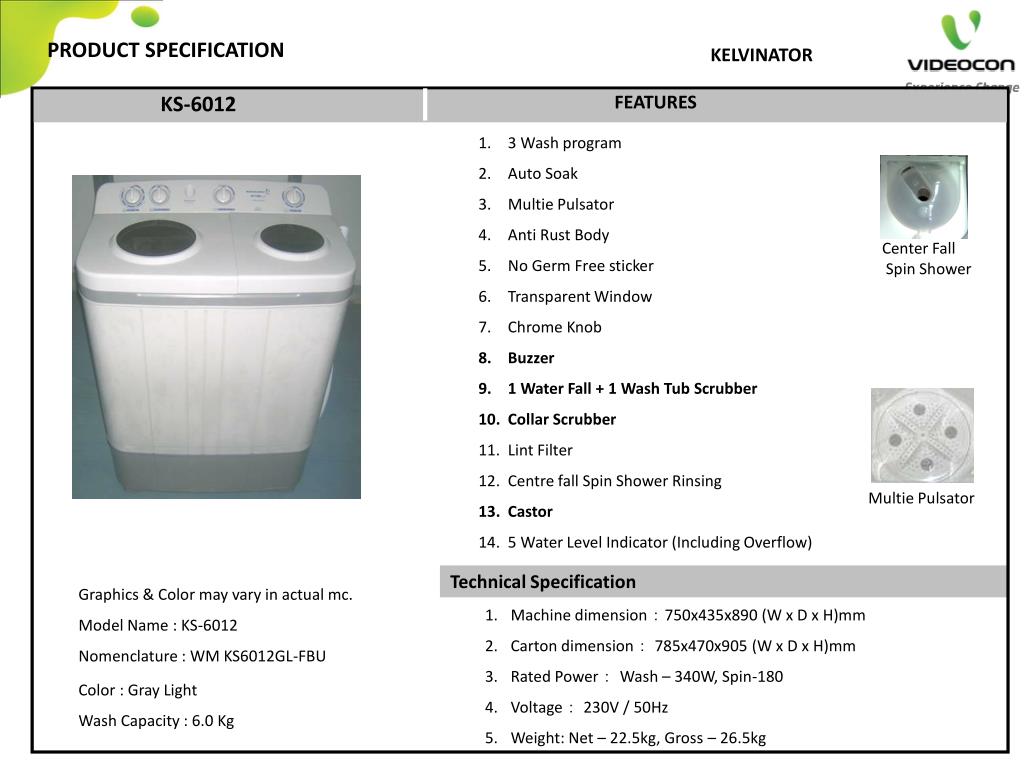

  19. PRODUCT SPECIFICATION KELVINATOR FEATURES KS-6012 3 Wash program Auto Soak Multie Pulsator Anti Rust Body No Germ Free sticker Transparent Window Chrome Knob Buzzer 1 Water Fall + 1 Wash Tub Scrubber Collar Scrubber Lint Filter Centre fall Spin Shower Rinsing Castor 5 Water Level Indicator (Including Overflow) Center Fall Spin Shower Multie Pulsator Technical Specification Graphics & Color may vary in actual mc. Model Name : KS-6012 Nomenclature : WM KS6012GL-FBU Color : Gray Light Wash Capacity : 6.0 Kg • Machine dimension：750x435x890 (W x D x H)mm • Carton dimension： 785x470x905 (W x D x H)mm • Rated Power： Wash – 340W, Spin-180 • Voltage： 230V / 50Hz • Weight: Net – 22.5kg, Gross – 26.5kg
