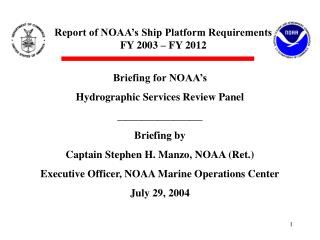

slide1

Briefing for NOAA’s

Hydrographic Services Review Panel

________________

Briefing by

Captain Stephen H. Manzo, NOAA (Ret.)

Executive Officer, NOAA Marine Operations Center

July 29, 2004

slide2

Purpose of This Briefing:

  • Present overview of Report of NOAA’s Ship Platform Requirements FY 2003 – FY 2012 to NOAA’s Hydrographic Services Review Panel
  • Internal NOAA report – Begun August 2002; Completed May 2003; Currently being updated
  • Copy of original report located at:
  • http://205.156.48.106/00003389/00021d31.pdf
slide3

Background:

  • Why? -- Response to DUS Scott Gudes’ Memo of July 30, 2002: Request for Report of NOAA’s Platform Requirements
  • What? -- 10-Year Analysis of NOAA’s Ship Platform Requirements and Recommendations on How Best to Fulfill the Requirements
  • Who? -- NMAO with input from and in coordination with the NOAA Line Offices
  • How? – Based on Ship Platform Requirements as identified by NOAA Line Offices
slide4

Background:

  • Report was fast-tracked – 3 month deadline for initial submission to VADM Lautenbacher
  • Copy provided to U.S. Commission on Ocean Policy
  • Report briefed to NOAA Science Advisory Board
  • Otherwise, it has been primarily used as an internal NOAA plan during the past 12- 18 months -- to help guide decisions regarding the NOAA fleet
  • Please note that all items recommended in this Report are not necessarily included in NOAA’s current programming or budget request
slide5

Six Mission Areas:

1) fisheries surveys and science

2) nautical charting/hydrographic surveys

3) blue water oceanography, climate and weather services

4) coastal oceanography

5) ocean exploration

6) homeland security

slide6

Assumptions:

1) NOAA’s Line Office reviews and documentation of ship platform requirements are valid

2) NOAA will meet its ship platform requirements using an appropriate mix of outsourcing and NOAA-owned and operated ships

3) Money will be tight and NOAA must be cost effective; conversion of surplus Navy vessels is a cost effective option for meeting NOAA’s ship platform requirements

slide7

Common Definition/Performance Metric:

  • Operating Day - “A day when a ship is not at its home port and is available for service”
  • Consistent with the way days are expressed in the academic fleet and private sector
slide8

Useful Service Life and Average Age:

  • Report assumes a “Useful Service Life” of 30 years for NOAA ships – consistent with the UNOLS academic research fleet plan
  • Based on 30 year useful service life, Report recommends NOAA set an “Average Age” goal of 15 years for the NOAA fleet – with ships ranging from 0 – 30 years
  • For a NOAA fleet of ~20 ships, this implies a long-term, replacement strategy of ~ one ship every 18 months.
slide9

Defining and Documenting Requirements:

  • Two Mission Areas – Fisheries Surveys and Science and Nautical Charting/Hydrographic Surveys – have well-documented, recent studies and reports on ship platform/data acquisition requirements that were reviewed and updated for this report
  • Two Mission Areas – “Blue Water” Oceanography and “Coastal” Monitoring and Assessment had requirements documented in FRAM Report, September 1990, that were reviewed and updated for this report
  • Two Mission Areas – Ocean Exploration and Homeland Security– reviewed and defined their requirements for this report
slide10

FY 2003 Ship Platform Requirements

  • 12,200* Operating Days – total requirement for all mission areas.
    • 4,680 Operating Days – 38% of requirement – to be met by Outsourcing.
    • 3,670 Operating Days – 30% of requirement – to be met by NOAA fleet of 15 ships.
    • 3,830 Operating Days – 32% of requirement – expected to be unmet for FY 2003.

* Does not include NOS contracts for Hydrographic Data

slide11

NOAA Ship Platform Utilization during the Past Decade

-- Significant Changes in NOAA’s Business Practice.

slide13

FY 2012 Ship Platform Requirements

  • 14,500 Operating Days – total requirement for all mission areas – 19% increase from FY 2003.
  • Recommended Approach/Solution:
    • 7,980 Operating Days – 55% of requirement – to be met by Outsourcing.
    • 5,350 Operating Days – 37% of requirement – to be met by NOAA fleet of 18 ships.
    • 1,140 Operating Days – 8% of requirement/ up to 6 ship-years remaining To Be Determined.
slide17

Nautical Charting/Hydrographic Survey Requirements:

  • Requirements for hydrographic data based on Office of Coast Survey’s National Survey Plan (November 2000) – updated w/ 2002 data
  • Requirements for maintaining federal expertise and for replacing NOAA’s hydrographic fleet based on 2000 Report to Congress – Maintaining Federal Expertise and Capability in Hydrographic Services
  • Cost-benefit analysis of in-house, contract, and time charter resources was prepared by KPMG Consulting for NOAA in September 2001
slide18

National Survey Plan:

  • Navigationally Significant -- 538,000 snm (approximately 16% of 3.4 million snm EEZ)
  • Critical Backlog -- 43,000 snm (approximately 8% highest priority portion of Navigationally Significant Area)
  • Resurvey Areas -- 5,000 snm (areas of Critical Backlog and Navigationally Significant that require periodic surveying due to silting, shoal migration, and new obstructions in shipping channels)
slide20

Current Status:

  • In FY 2004, NOAA’s hydrographic survey rate is approximately 2,800 snm per year (vice 9,500 snm requirement)
  • At this rate, the remaining 29,000 snm of Critical Backlog is not expected to be completed until the year 2016
  • At this rate, requirements for Resurvey Areas and Navigationally Significant Areas are not being met
slide21

To meet requirements, NOAA must:

  • Complete the remaining 29,000 snm of Critical Backlog
  • Begin surveying 1,000 snm per year in Resurvey Areas in order to maintain a 2-7 year cycle
  • Obtain 100% bottom coverage surveys in all Navigationally Significant Areas, and periodically resurvey them on a 50-60 year cycle
  • In order to fully address these core requirements NOAA needs to survey 9,500 snm per year (Note: This is more than 3 times the current rate)
slide24

Two Options for meeting NOAA’s Nautical Charting Requirements:

  • Both options phase in additional data acquisition resources gradually with the goal of meeting 9,500 snm by FY 2012 (Note: Option 1 is lowest cost option)
    • Option 1 -- 6 NOAA Hydrographic Survey ships by FY 2012 (THOMAS JEFFERSON, SWATH, FAIRWEATHER Replacement, RAINIER Replacement, New 2-Launch Atlantic/Gulf/Caribbean, and New 2-Launch Pacific/Alaska); 100% increase in Hydro Contracts; One Additional 2-Launch Time Charter; LIDAR Contracts
    • Option 2 – 5 NOAA Hydrographic Survey ships by FY 2012 (all except New 2-Launch Pacific/Alaska); 200% increase in Hydro Contracts; Two Additional 2-Launch Time Charters; LIDAR Contracts
slide27

The NOAA Fleet - Changes in FY 2003/2004:

  • 4 ships removed from service/replaced with newer ships converted for NOAA missions:
    • TOWNSEND CROMWELL/OSCAR ELTON SETTE
    • FERREL/NANCY FOSTER
    • MCARTHUR/MCARTHUR II
    • WHITING/THOMAS JEFFERSON (commissioned July 8, 2003 in Norfolk)
  • 3 ships added to NOAA fleet:
    • FAIRWEATHER (conversion) – Reactivation ceremony scheduled for August 18, 2004 in Ketchikan
    • HI’IALAKAI (conversion)
    • OSCAR DYSON (new construction)
slide28

The NOAA Fleet - Changes in FY 2003/2004:

  • NOAA active fleet expanded from 15 to 18 ships
  • USNS ASSERTIVE (T-AGOS 9) acquired from U.S. Navy as future replacement for DAVID STARR JORDAN
slide29

The NOAA Fleet – Expected Changes in FY 2005/2006:

  • Expect to acquire USNS CAPABLE (T-AGOS 16) from U.S. Navy as an additional ship for Ocean Exploration. Conversion likely to occur in FY 2005/2006. Begin operations TBD. When activated NOAA fleet would expand to 19 ships.
  • Ship Disposals:
    • MCARTHUR transfer to Utrok Atoll pending
    • FERREL transfer/disposal pending
    • WHITING transfer to Mexico – Legislation pending
slide30

The NOAA Fleet – Expected Changes in FY 2007/2008:

  • HENRY B. BIGELOW (FSV2) operational in FY 2007 -- overlaps/replaces ALBATROSS IV in FY 2008
  • FSV3 – Additional Fishery Survey Vessel for SE operational in FY 2007. Temporarily expands NOAA fleet to 20 ships – eventually replaces DELAWARE II when FSV6 comes on line to replace OREGON II
  • FSV4 – Additional Fishery Survey vessel shared by SW and NW operational in FY 2008. Expands NOAA fleet to 21 ships.
  • SWATH – operational in FY 2008 – replaces RUDE; homeported in New Hampshire
  • USNS ASSERTIVE (T-AGOS 9) converted FY 2007 to replace DAVID STARR JORDAN in FY 2008
slide31

Summary:

  • NOAA is working hard to modernize its aging fleet and to maintain federal expertise – in hydrographic services – and in other program areas, as well
  • The majority of NOAA fleet modernization in the recent past and immediate future has been in the area of fisheries surveys and science
slide32

Summary (con’t):

  • Ship Acquisition/Conversion -- NOAA has acquired/converted 6 T-AGOS ships from the U.S. Navy and is expected to soon acquire a 7th (CAPABLE – dedicated for Ocean Exploration).
    • 3 T-AGOS ships dedicated for fisheries programs (GUNTER, SETTE and ASSERTIVE/DSJ)
    • 2 T-AGOS ships serve multiple programs (MCARTHUR II and HI’IALAKAI)
    • 1 T-AGOS ship dedicated for TAO array (KA’IMIMOANA)
slide33

Summary (con’t):

  • Ship Acquisition/Conversion -- NOAA has also acquired/converted 1 YTT and 1 TAGS-51 from the U.S. Navy
    • YTT-12 -- NANCY FOSTER replaced FERREL dedicated for coastal oceanography programs on the east coast
    • TAGS-51 – THOMAS JEFFERSON replaced WHITING dedicated to nautical charting/hydrographic survey programs on the east coast
slide34

Summary (con’t):

  • New Construction
    • 4 new, purpose built Fishery Survey Vessels already in pipeline
    • 2 additional FSV’s currently in 10-year plan – different from first 4 (long-liner for Hawaii; shallow-draft for GOM)
    • 1 additional FSV (MILLER FREEMAN replacement) under consideration
    • SWATH vessel to replace RUDE for nautical charting/hydrographic surveys on east coast in pipeline
slide35

Summary (con’t):

  • Modernization/Reactivation
    • FAIRWEATHER modernization is now complete and the ship will be soon be reactivated and dedicated to nautical charting/hydrographic surveys in Alaska. Homeport is Ketchikan, Alaska. Given the significant investment involved, expect the ship to stay in service another 10-15 years vice being replaced in FY 2012.
