programmable shaders

Programmable Shaders

Graphics programmable functions pipeline

suriyong L.

introduction

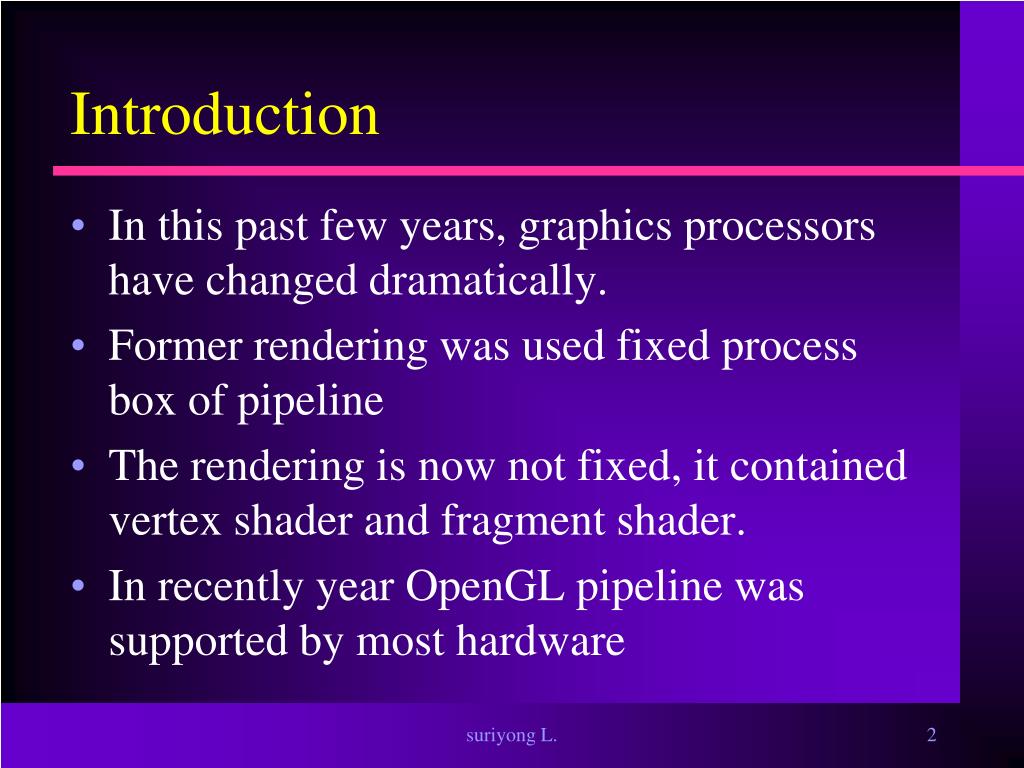

Introduction
  • In this past few years, graphics processors have changed dramatically.
  • Former rendering was used fixed process box of pipeline
  • The rendering is now not fixed, it contained vertex shader and fragment shader.
  • In recently year OpenGL pipeline was supported by most hardware

suriyong L.

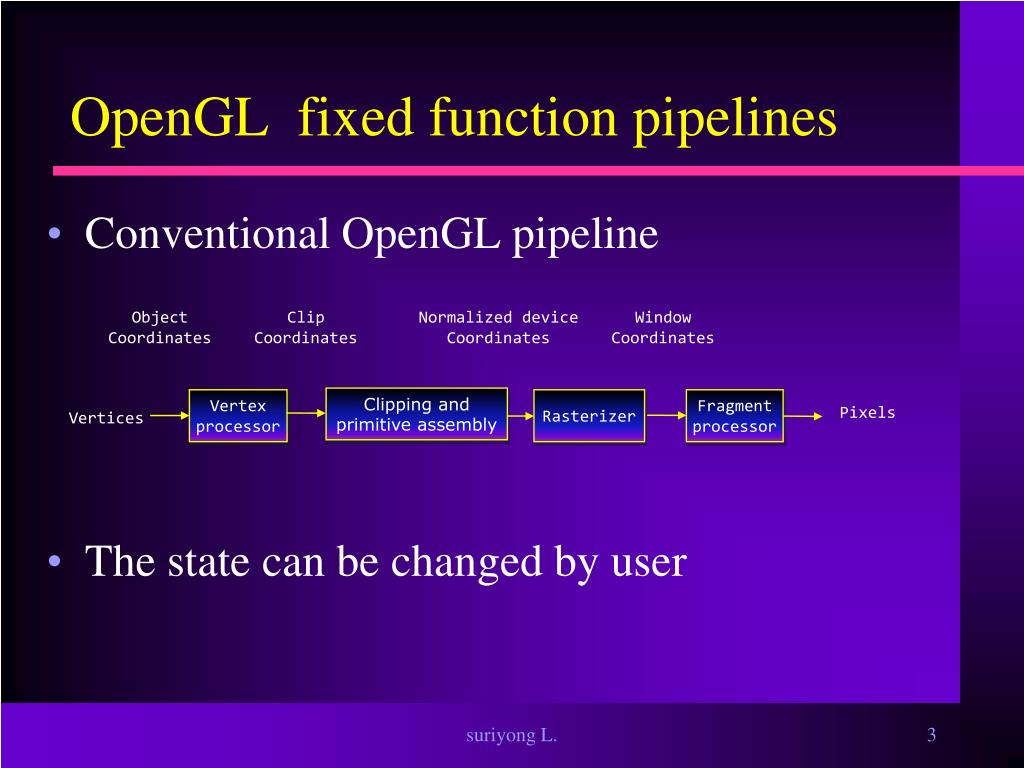

opengl fixed function pipelines
OpenGL fixed function pipelines
  • Conventional OpenGL pipeline
  • The state can be changed by user

Object Coordinates

Clip Coordinates

Normalized device Coordinates

Window Coordinates

Clipping and primitive assembly

Vertex processor

Rasterizer

Fragment processor

Pixels

Vertices

suriyong L.

programmable function pipeline

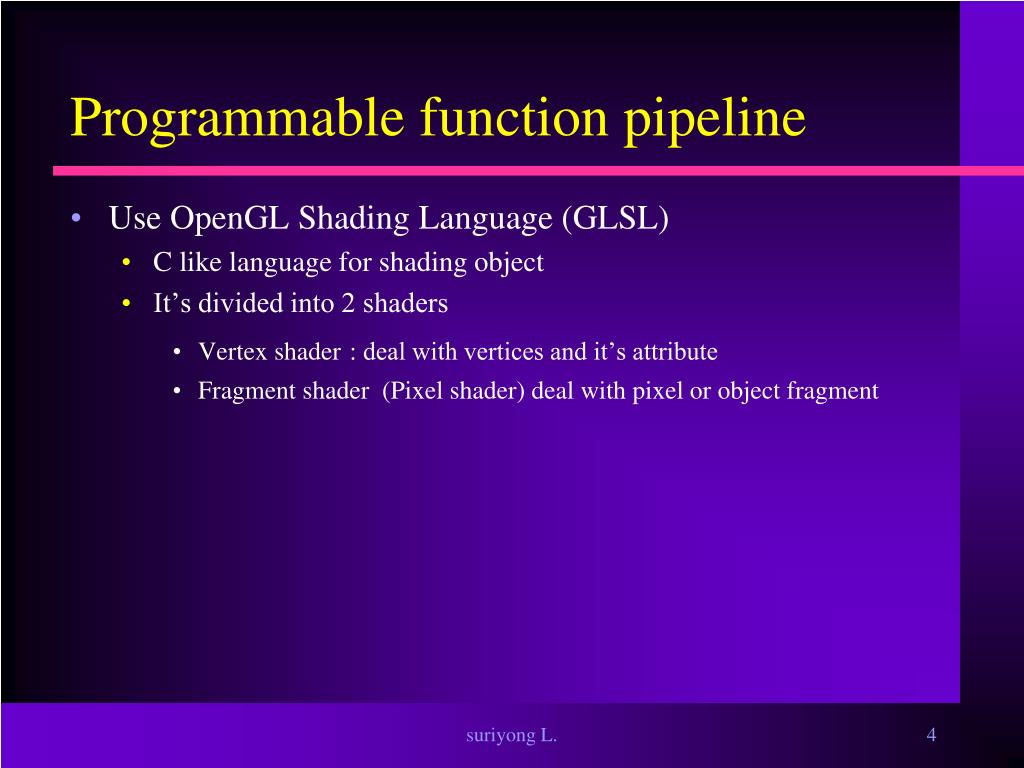

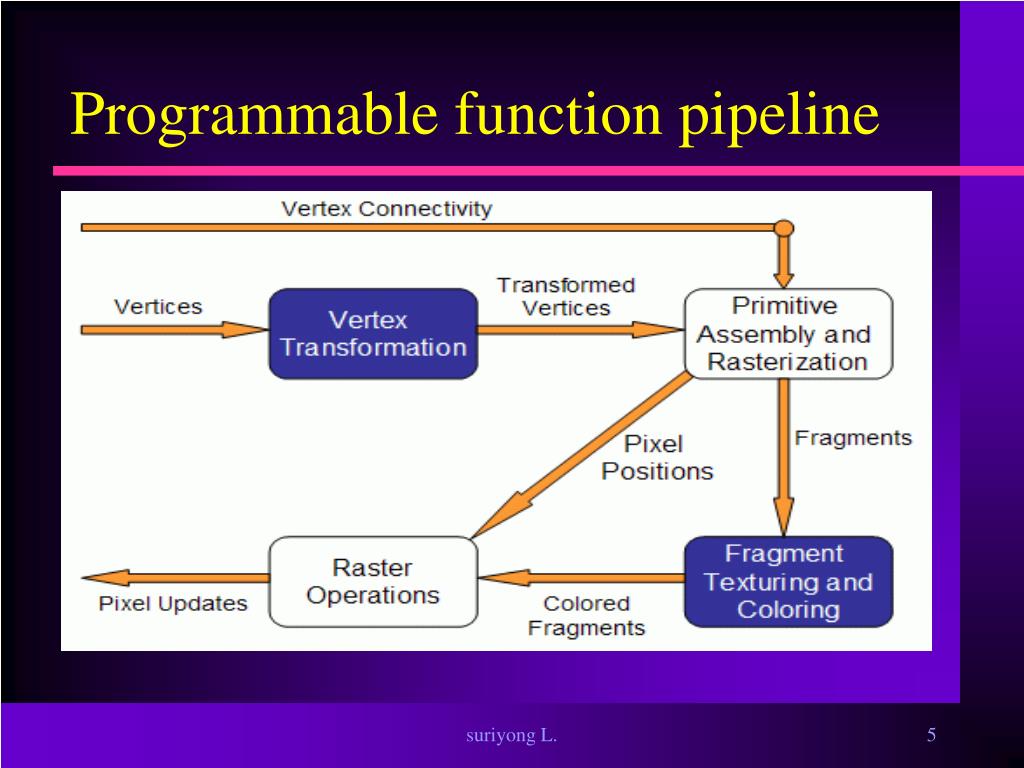

Programmable function pipeline
  • Use OpenGL Shading Language (GLSL)
    • C like language for shading object
    • It’s divided into 2 shaders
      • Vertex shader: deal with vertices and it’s attribute
      • Fragment shader (Pixel shader) deal with pixel or object fragment

suriyong L.

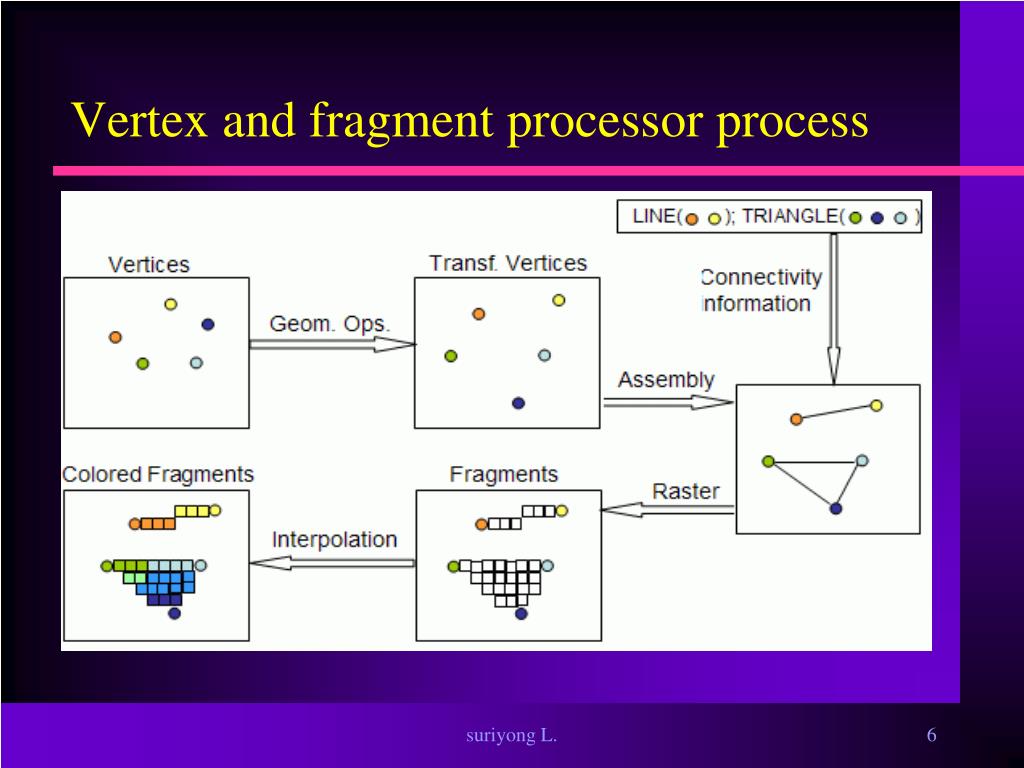

vertex processor

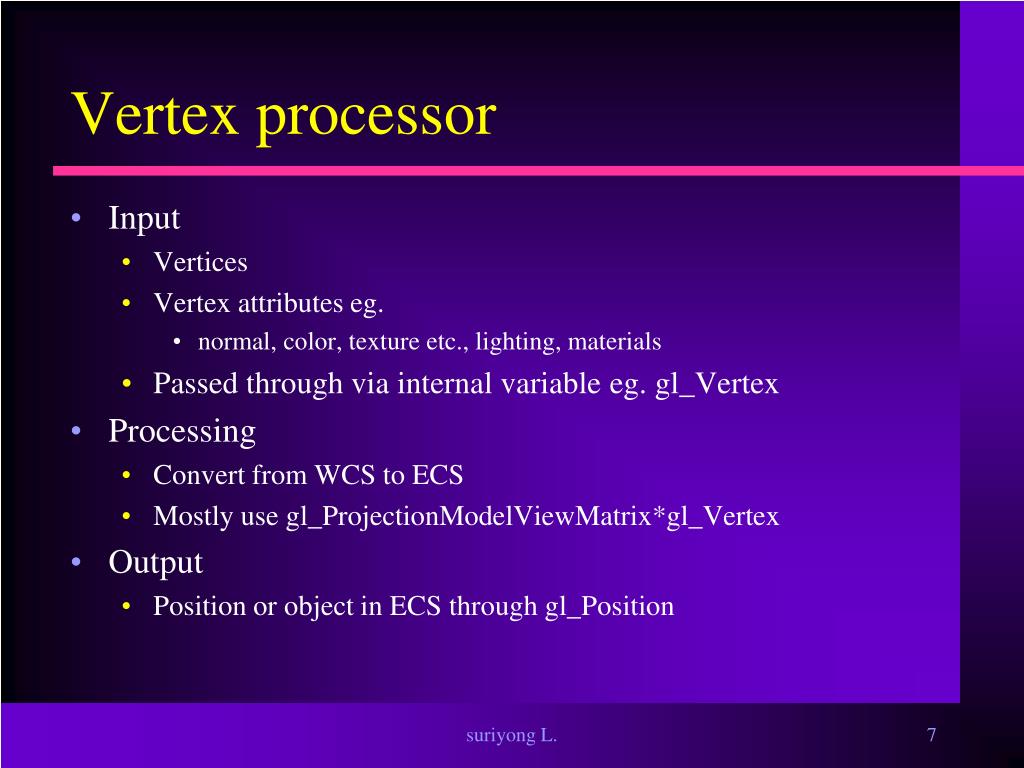

Vertex processor
  • Input
    • Vertices
    • Vertex attributes eg.
      • normal, color, texture etc., lighting, materials
    • Passed through via internal variable eg. gl_Vertex
  • Processing
    • Convert from WCS to ECS
    • Mostly use gl_ProjectionModelViewMatrix*gl_Vertex
  • Output
    • Position or object in ECS through gl_Position

suriyong L.

fragment processor

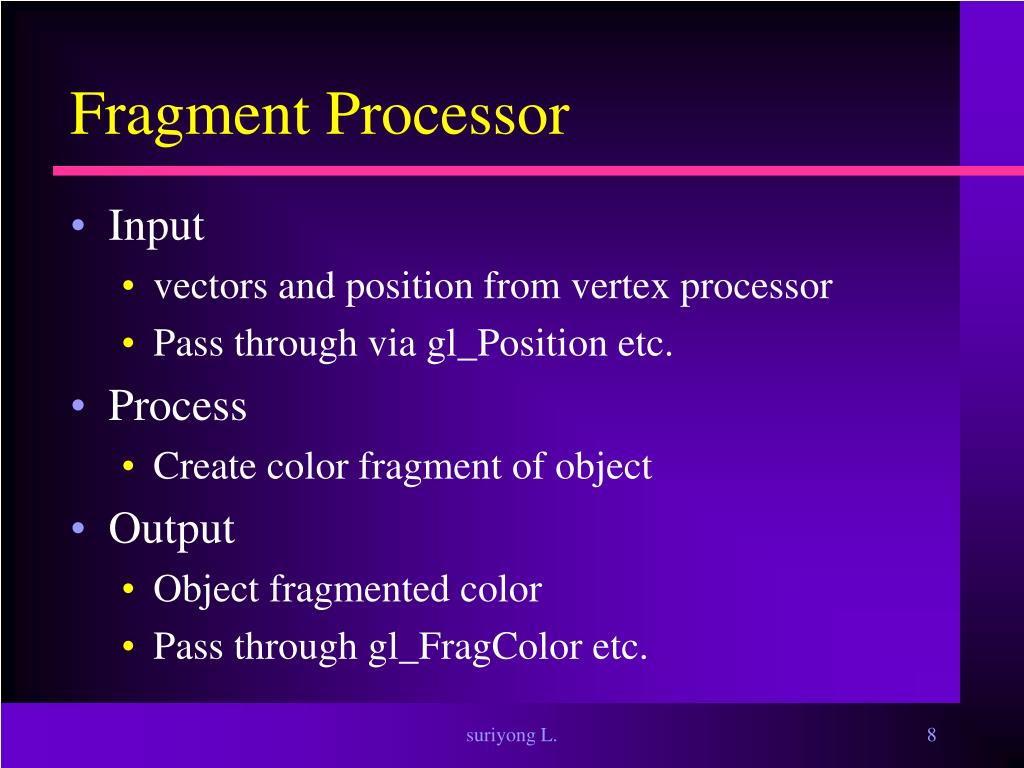

Fragment Processor
  • Input
    • vectors and position from vertex processor
    • Pass through via gl_Position etc.
  • Process
    • Create color fragment of object
  • Output
    • Object fragmented color
    • Pass through gl_FragColor etc.

suriyong L.

simple complete shader programs

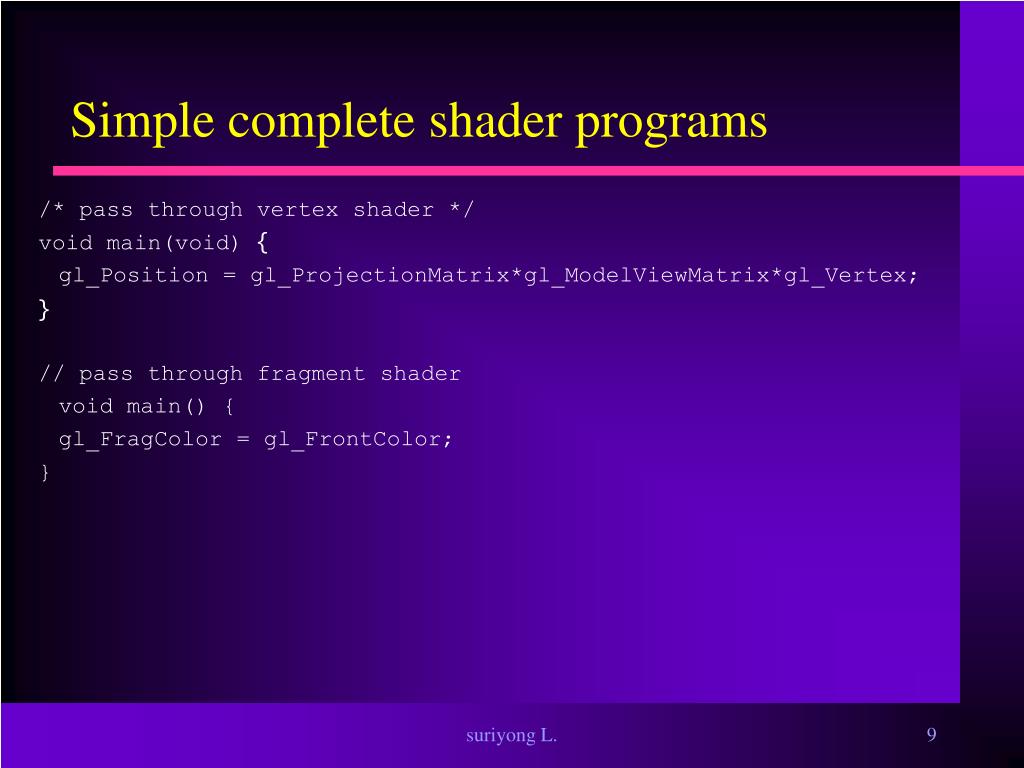

Simple complete shader programs

/* pass through vertex shader */

void main(void) {

gl_Position = gl_ProjectionMatrix*gl_ModelViewMatrix*gl_Vertex;

}

// pass through fragment shader

void main() {

gl_FragColor = gl_FrontColor;

}

suriyong L.

setting a project

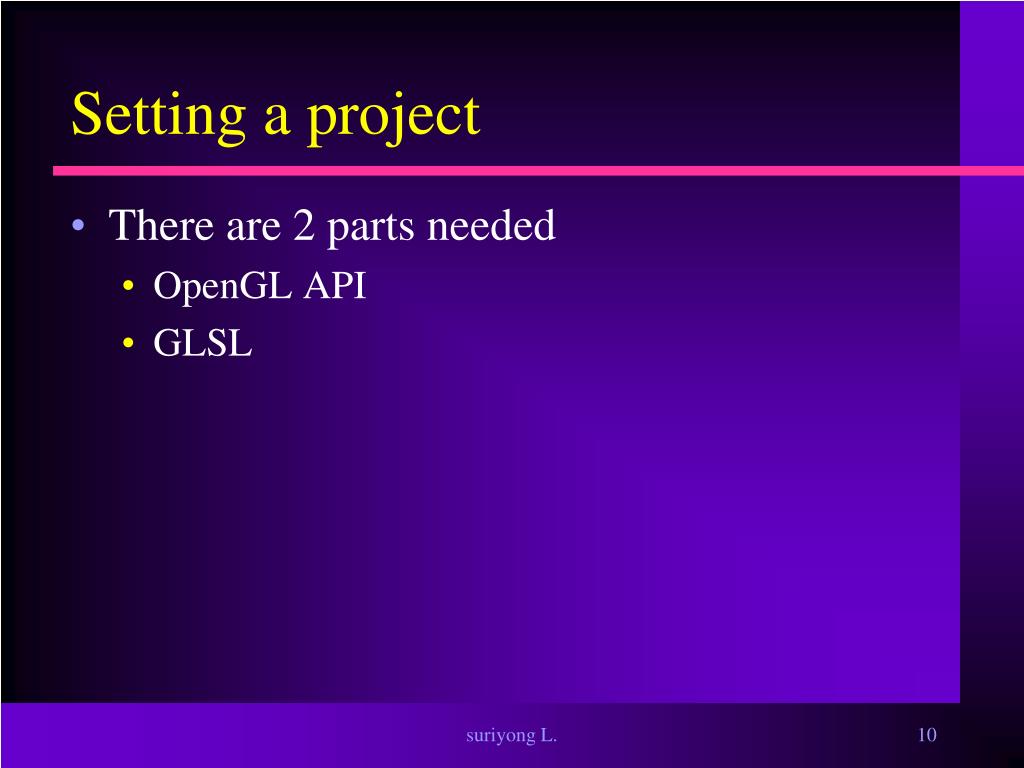

Setting a project
  • There are 2 parts needed
    • OpenGL API
    • GLSL

suriyong L.

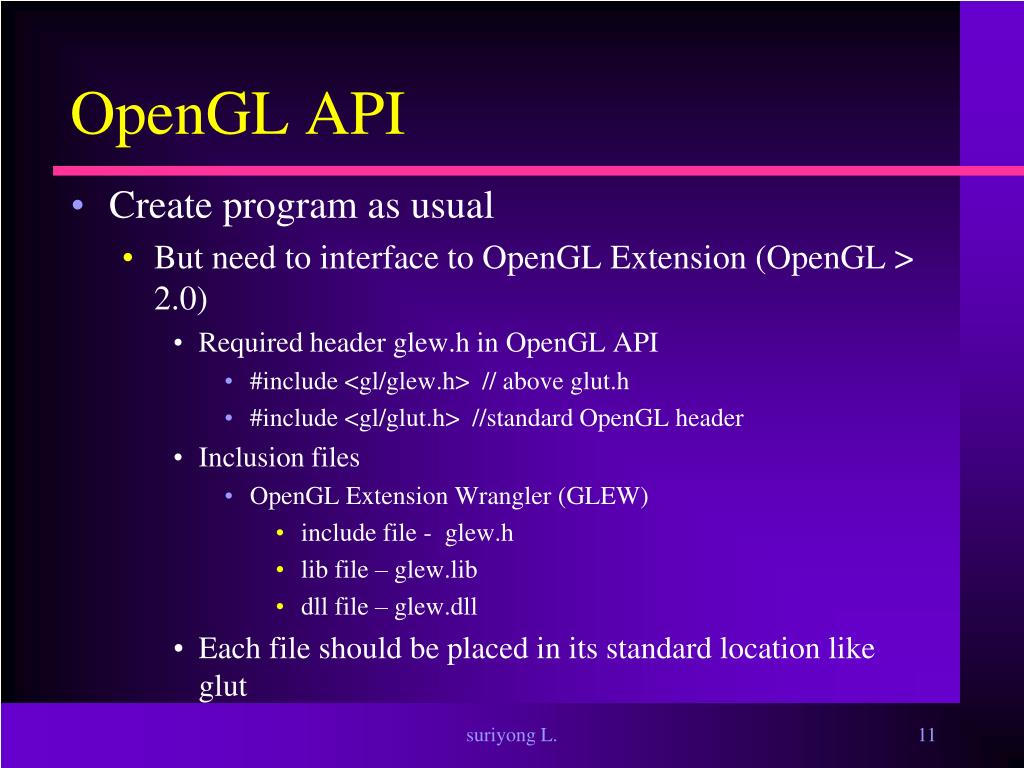

opengl api
OpenGL API
  • Create program as usual
    • But needto interface to OpenGL Extension (OpenGL > 2.0)
      • Required header glew.h in OpenGL API
        • #include <gl/glew.h> // above glut.h
        • #include <gl/glut.h> //standard OpenGL header
      • Inclusion files
        • OpenGL Extension Wrangler (GLEW)
          • include file - glew.h
          • lib file – glew.lib
          • dll file – glew.dll
      • Each file should be placed in its standard location like glut

suriyong L.

opengl api con

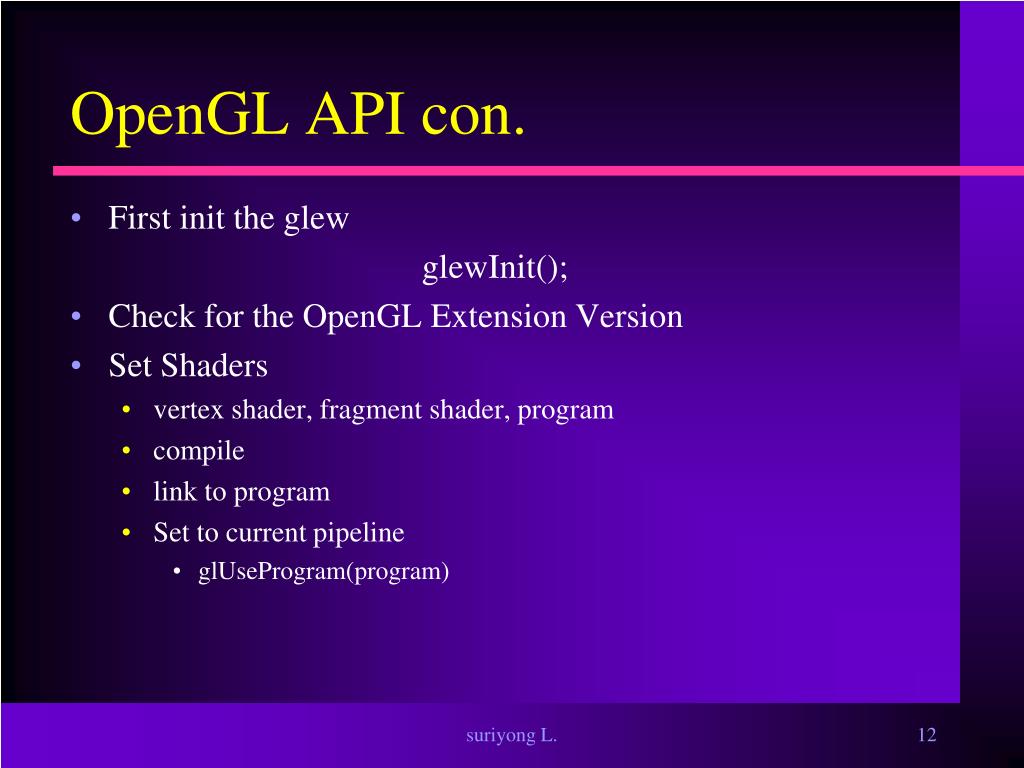

OpenGL API con.
  • First init the glew

glewInit();

  • Check for the OpenGL Extension Version
  • Set Shaders
    • vertex shader, fragment shader, program
    • compile
    • link to program
    • Set to current pipeline
      • glUseProgram(program)

suriyong L.

linking with glsl functions process diagram

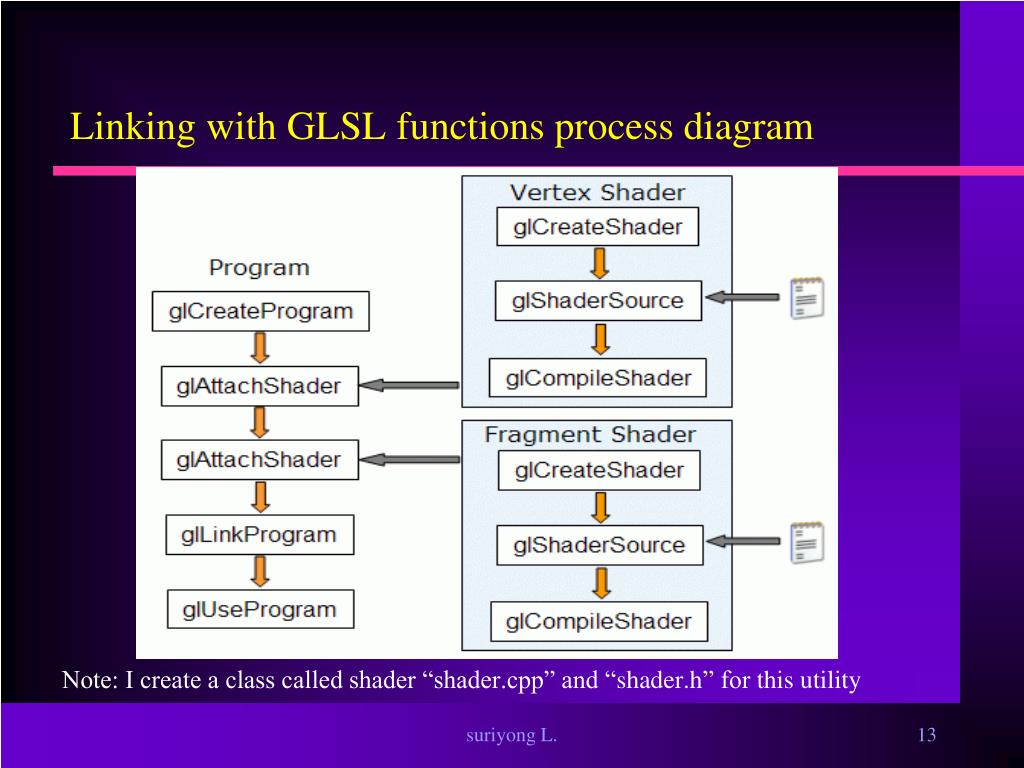

Linking with GLSL functions process diagram

Note: I create a class called shader “shader.cpp” and “shader.h” for this utility

suriyong L.

glsl part

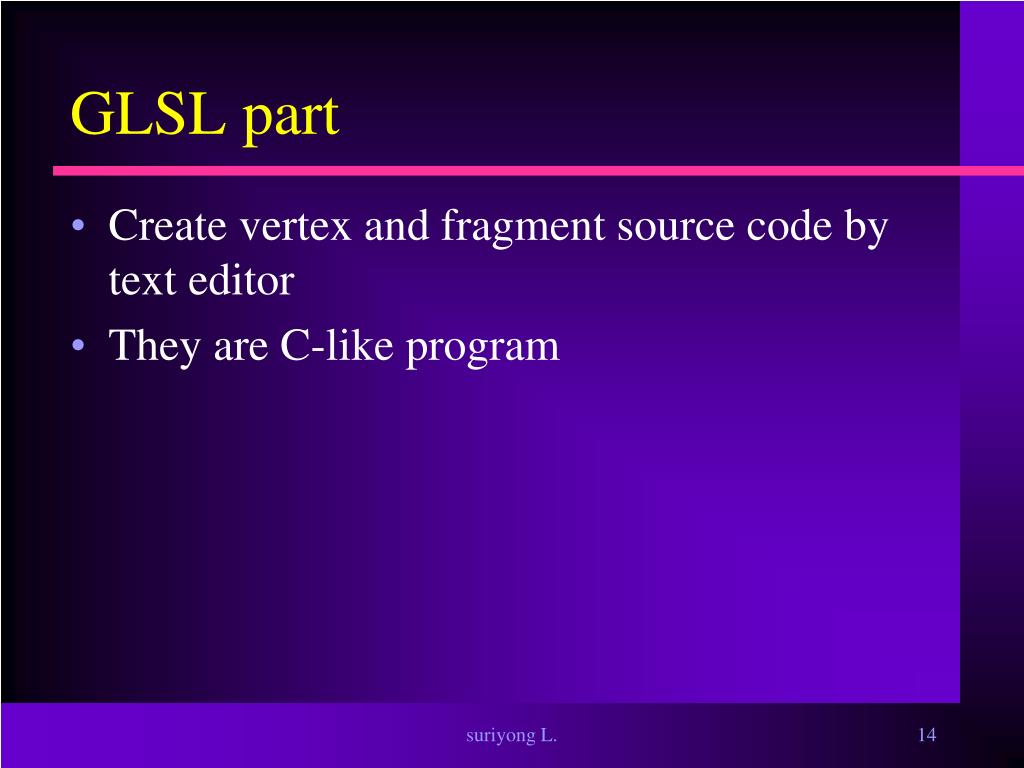

GLSL part
  • Create vertex and fragment source code by text editor
  • They are C-like program

suriyong L.

glsl fundamental

GLSL fundamental

suriyong L.

data types and qualifiers

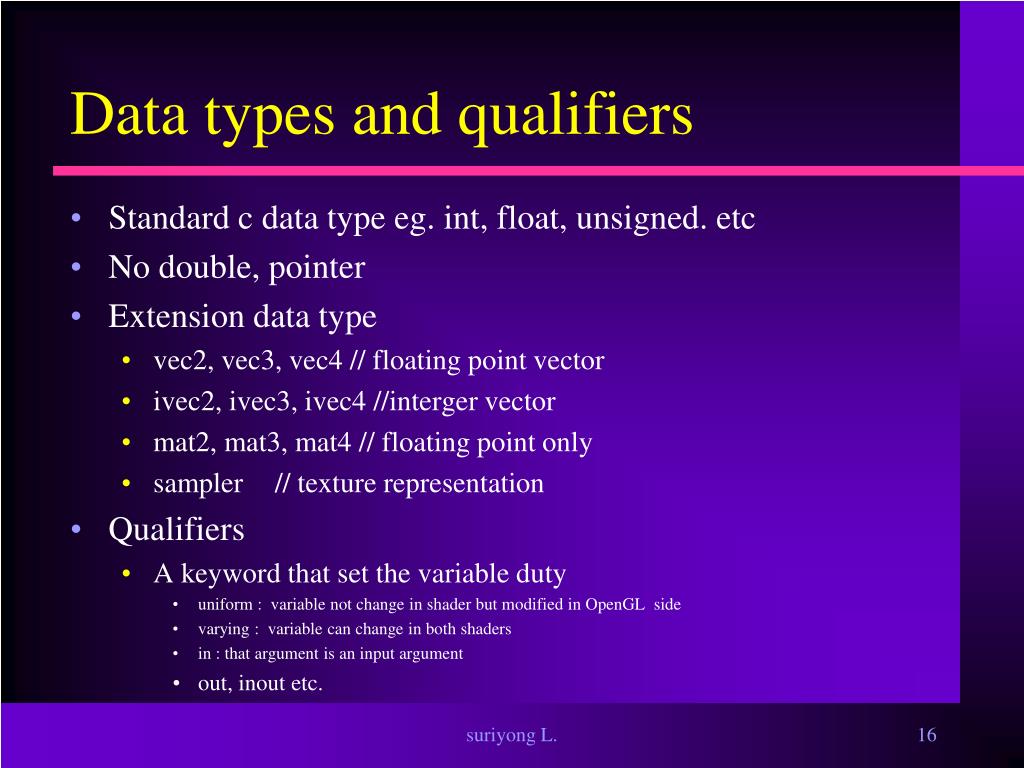

Data types and qualifiers
  • Standard c data type eg. int, float, unsigned. etc
  • No double, pointer
  • Extension data type
    • vec2, vec3, vec4 // floating point vector
    • ivec2, ivec3, ivec4 //interger vector
    • mat2, mat3, mat4 // floating point only
    • sampler // texture representation
  • Qualifiers
    • A keyword that set the variable duty
      • uniform : variable not change in shader but modified in OpenGL side
      • varying : variable can change in both shaders
      • in : that argument is an input argument
      • out, inoutetc.

suriyong L.

swizzling property
Swizzling property
  • Sometime the structure type is used in a different meaning eg.

vec4 pos; //as location,its members are x,y,z and w

  • If it is used in the color meaning

vec4 color; //as color, its members can be r,g,b and a

  • Both of them must have a known member type
  • Another meaning of swizzle
  • Its member can reorder or able to access multiple members at a time eg.

vec4 pos; // 4 members vector

pos.x // member x

pos.xy// member x and y return vec2 type

pos.wzyx // member with reverse order

pos.xxyy // member with only 2 repeat components

  • But this cannot !!!

pos.ryz // the compoent is not in the same group

suriyong L.

built in variable qualifier and data type

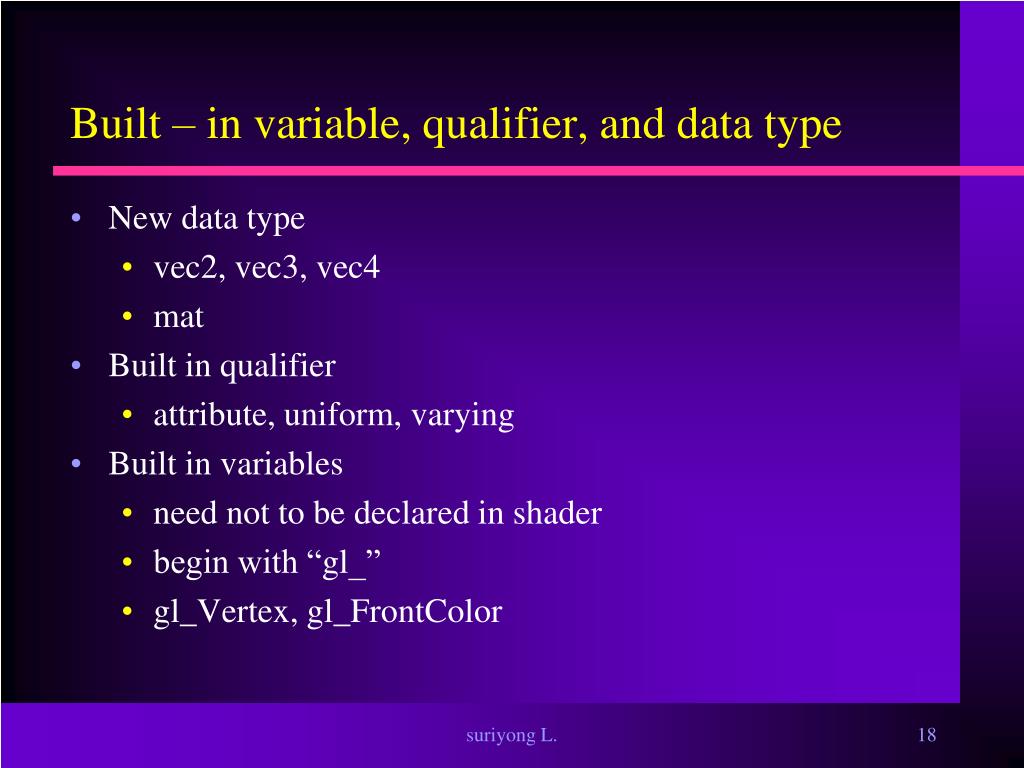

Built – in variable, qualifier, and data type
  • New data type
    • vec2, vec3, vec4
    • mat
  • Built in qualifier
    • attribute, uniform, varying
  • Built in variables
    • need not to be declared in shader
    • begin with “gl_”
    • gl_Vertex, gl_FrontColor

suriyong L.

attribute qualifier

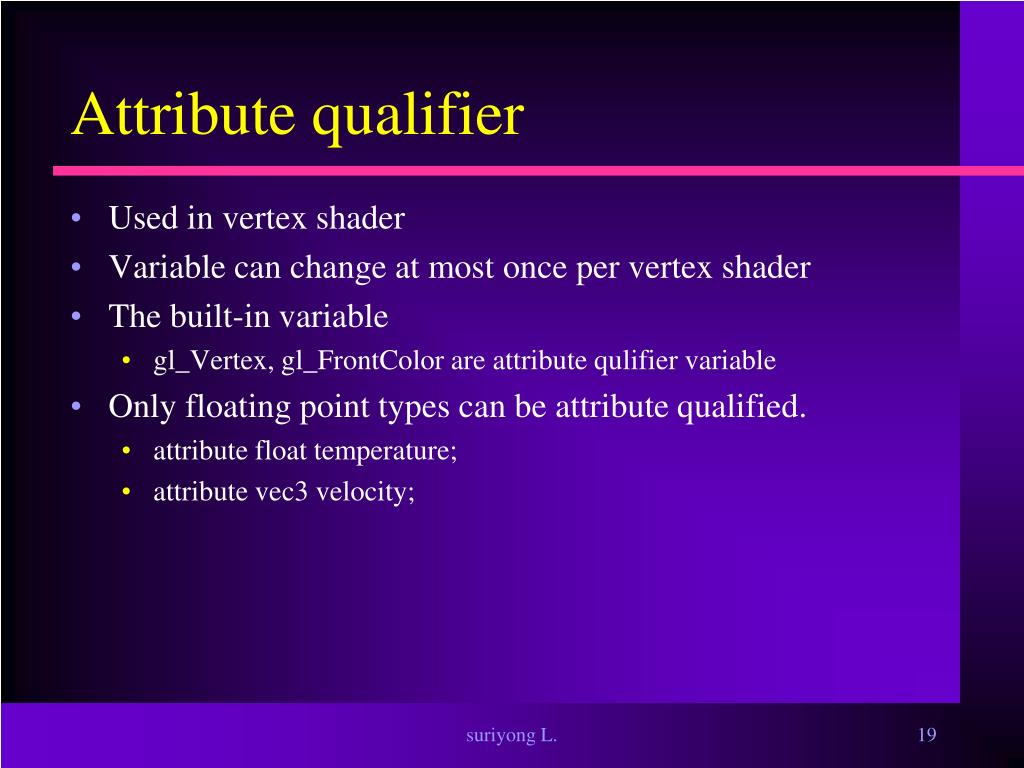

Attribute qualifier
  • Used in vertex shader
  • Variable can change at most once per vertex shader
  • The built-in variable
    • gl_Vertex, gl_FrontColor are attribute qulifier variable
  • Only floating point types can be attribute qualified.
    • attribute float temperature;
    • attribute vec3 velocity;

suriyong L.

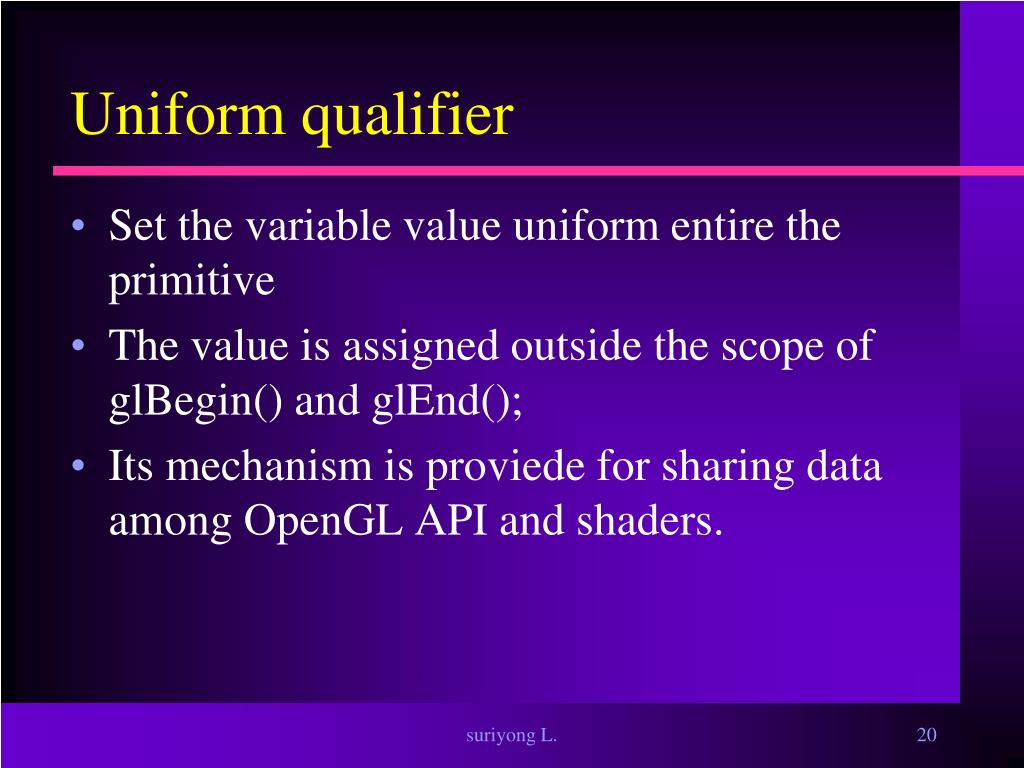

uniform qualifier
Uniform qualifier
  • Set the variable value uniform entire the primitive
  • The value is assigned outside the scope of glBegin() and glEnd();
  • Its mechanism is proviede for sharing data among OpenGL API and shaders.

suriyong L.

passing value opengl glsl

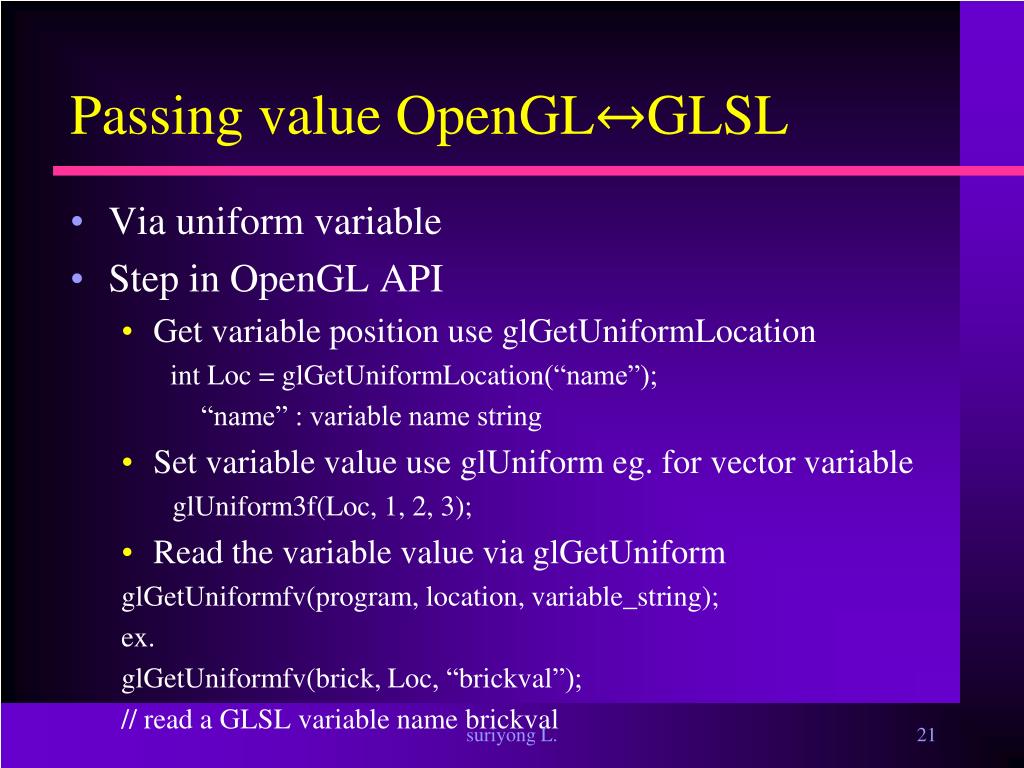

Passing value OpenGLGLSL
  • Via uniform variable
  • Step in OpenGL API
    • Get variable position use glGetUniformLocation

intLoc = glGetUniformLocation(“name”);

“name” : variable name string

    • Set variable value use glUniformeg. for vector variable

glUniform3f(Loc, 1, 2, 3);

    • Read the variable value via glGetUniform

glGetUniformfv(program, location, variable_string);

ex.

glGetUniformfv(brick, Loc, “brickval”);

// read a GLSL variable name brickval

suriyong L.

varying qualifier

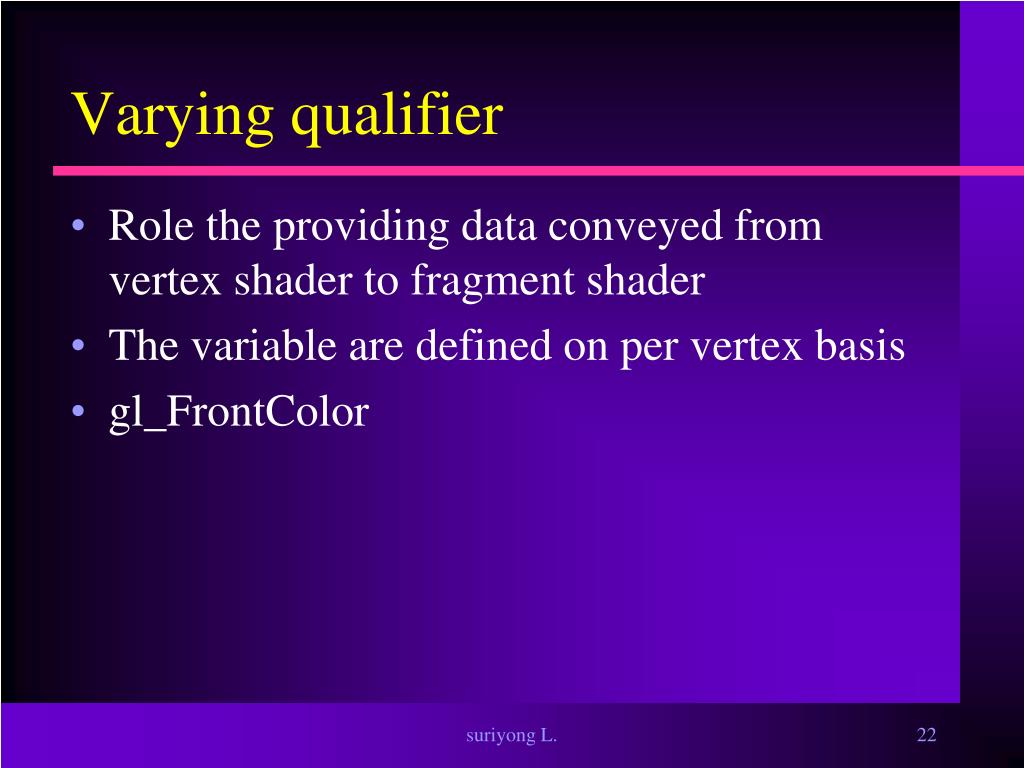

Varying qualifier
  • Role the providing data conveyed from vertex shader to fragment shader
  • The variable are defined on per vertex basis
  • gl_FrontColor

suriyong L.

fragment shader

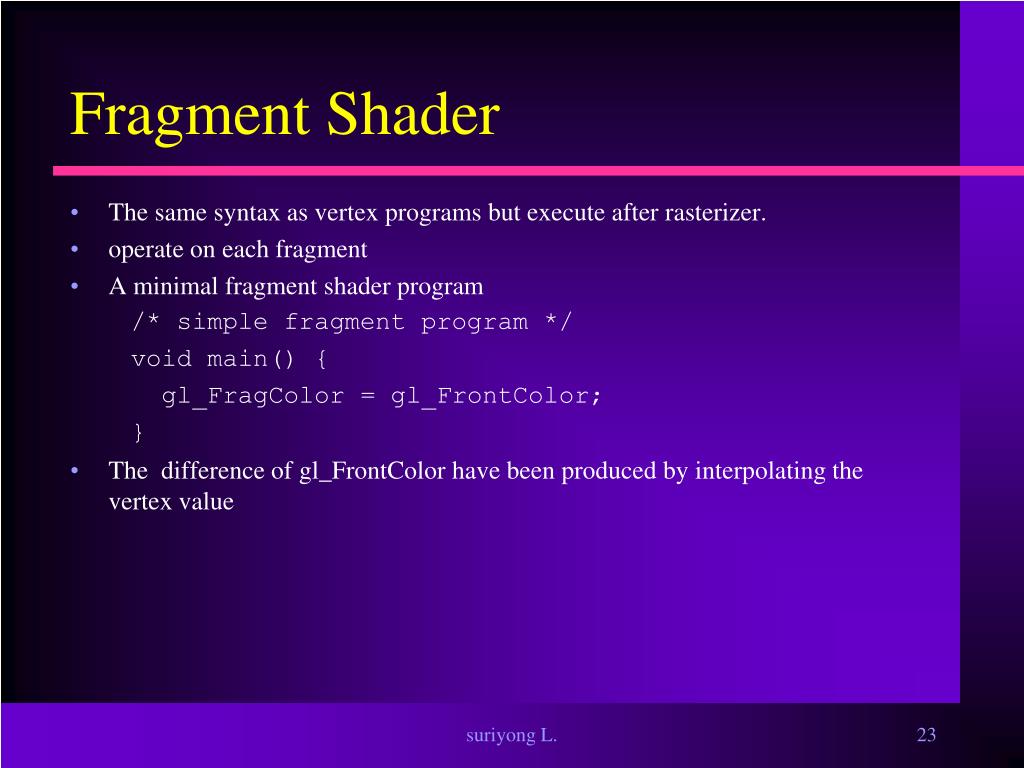

Fragment Shader
  • The same syntax as vertex programs but execute after rasterizer.
  • operate on each fragment
  • A minimal fragment shader program

/* simple fragment program */

void main() {

gl_FragColor = gl_FrontColor;

}

  • The difference of gl_FrontColor have been produced by interpolating the vertex value

suriyong L.

glsl lacks of pointer

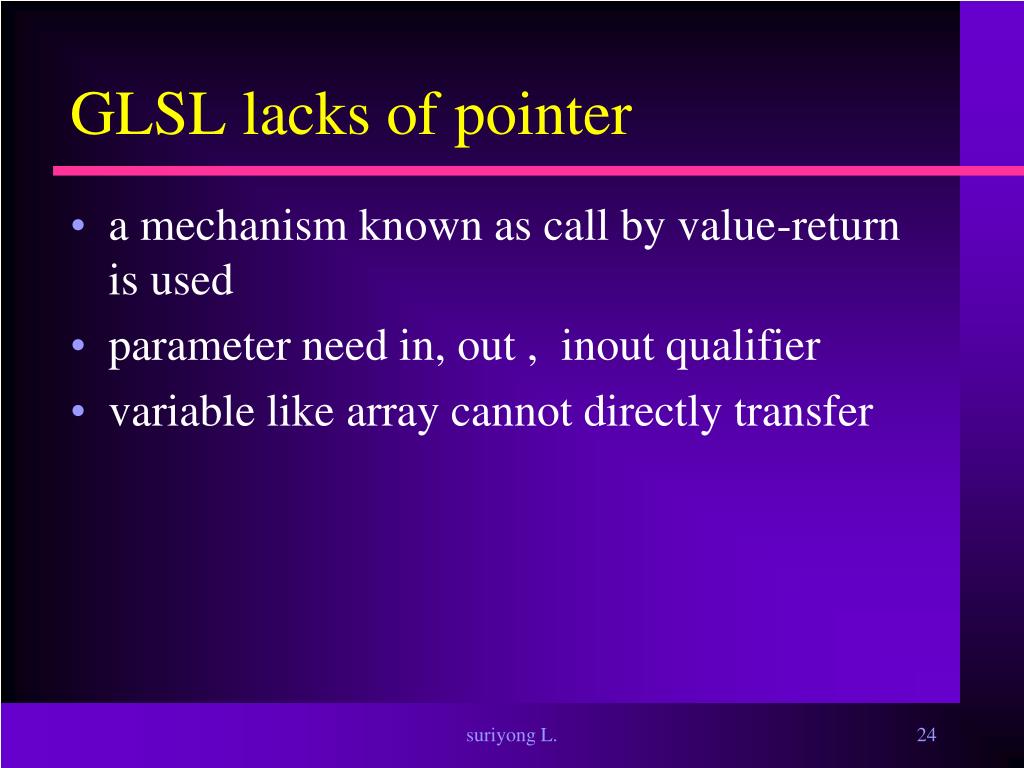

GLSL lacks of pointer
  • a mechanism known as call by value-return is used
  • parameter need in, out , inout qualifier
  • variable like array cannot directly transfer

suriyong L.

operator

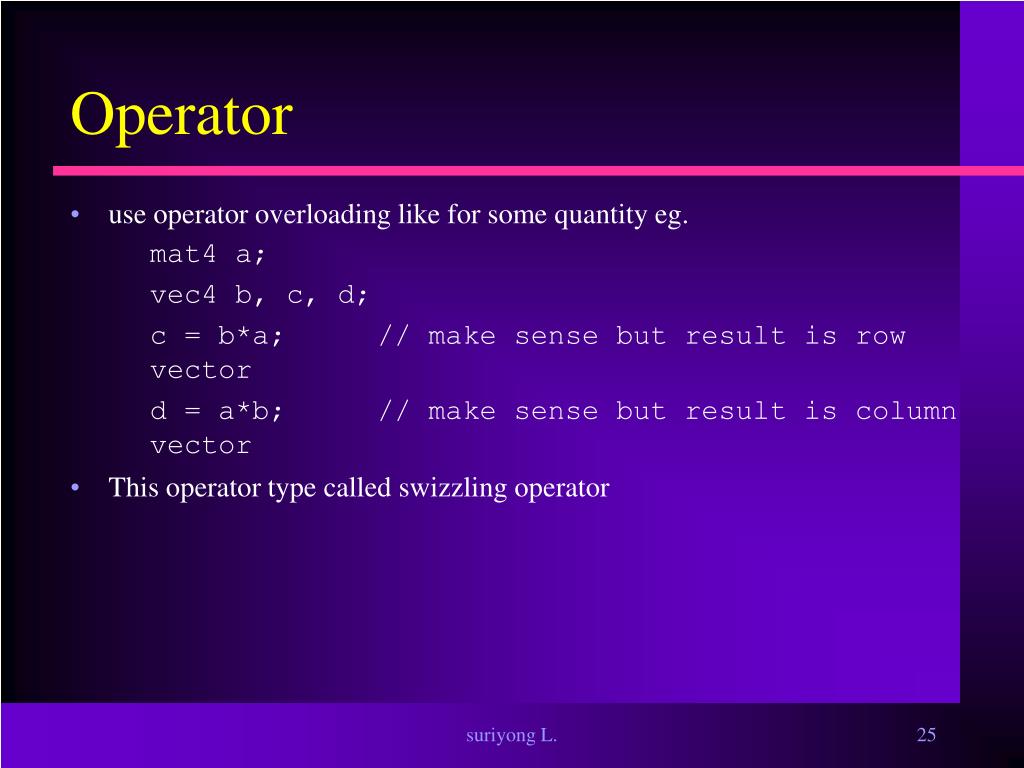

Operator
  • use operator overloading like for some quantity eg.

mat4 a;

vec4 b, c, d;

c = b*a; // make sense but result is row vector

d = a*b; // make sense but result is column vector

  • This operator type called swizzling operator

suriyong L.

built in variable

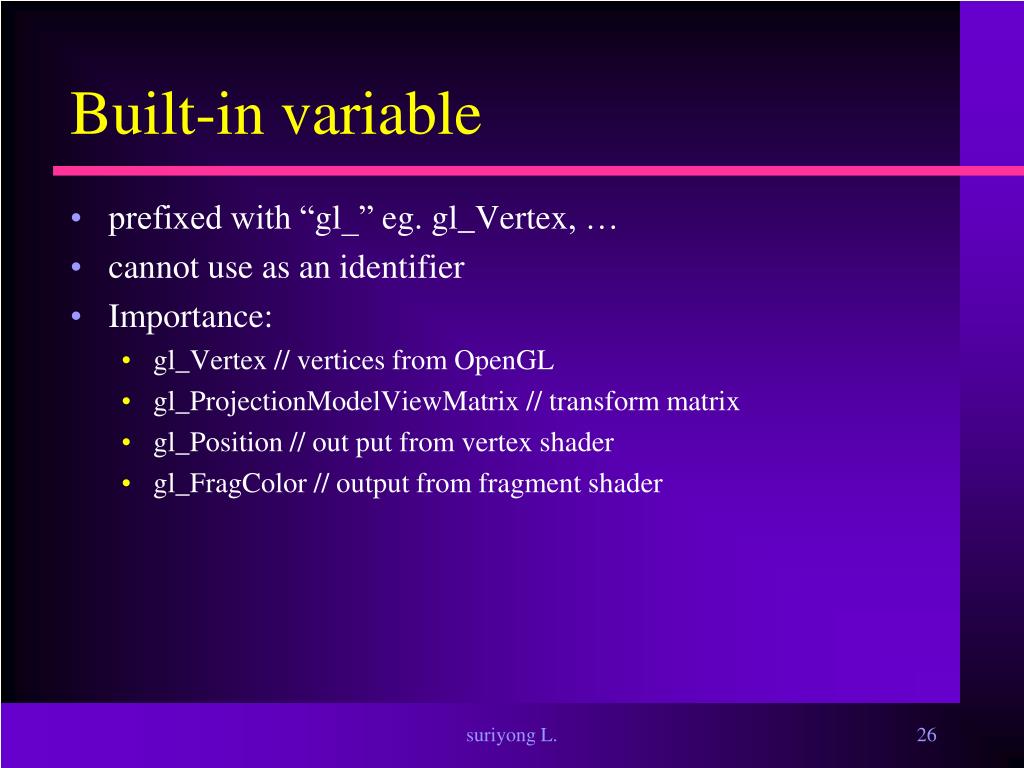

Built-in variable
  • prefixed with “gl_” eg. gl_Vertex, …
  • cannot use as an identifier
  • Importance:
    • gl_Vertex // vertices from OpenGL
    • gl_ProjectionModelViewMatrix // transform matrix
    • gl_Position // out put from vertex shader
    • gl_FragColor // output from fragment shader

suriyong L.

built in function

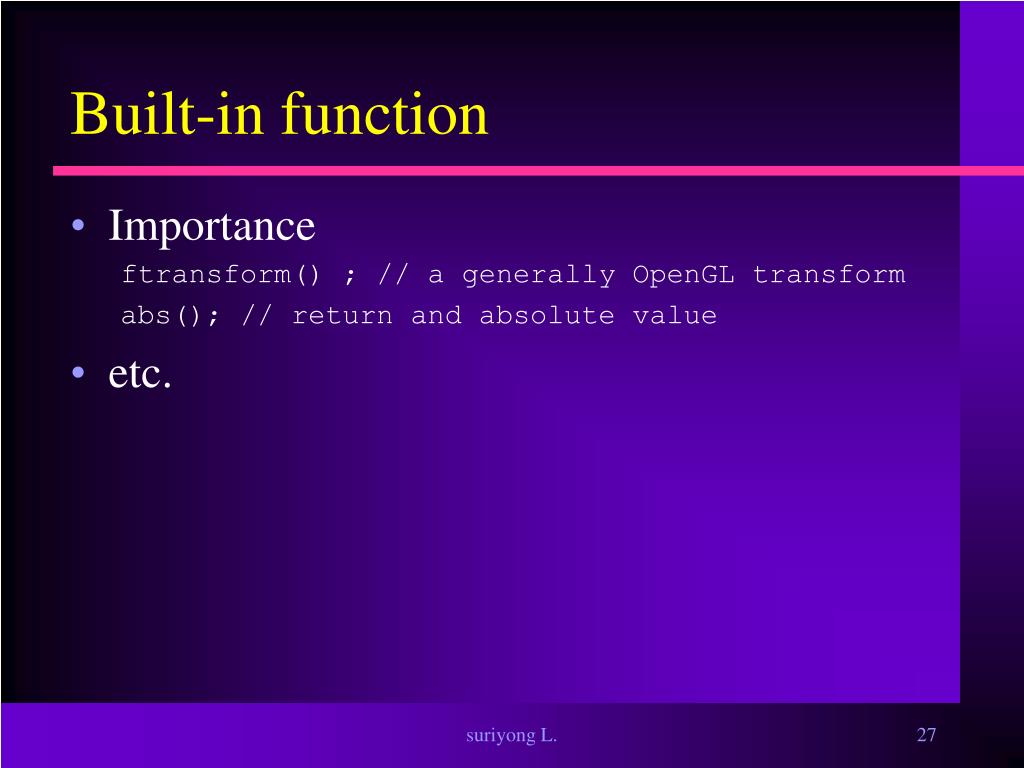

Built-in function
  • Importance

ftransform() ; // a generally OpenGL transform

abs(); // return and absolute value

  • etc.

suriyong L.

program examples

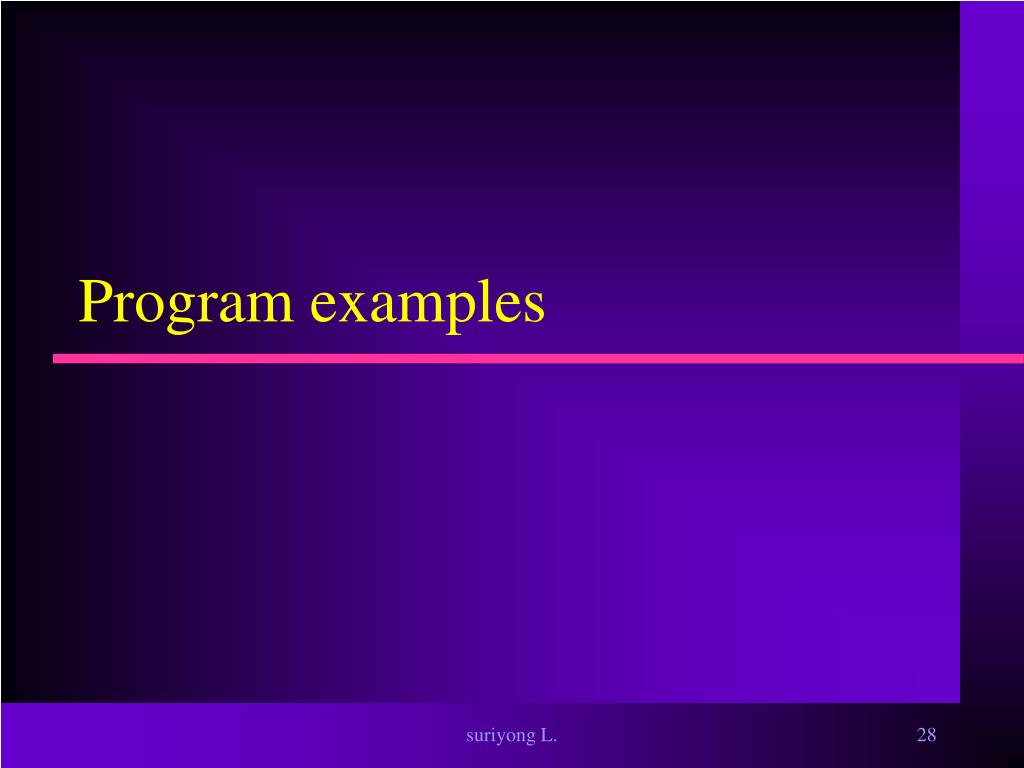

Program examples

suriyong L.

point light phong shading
Point Light Phong shading

//vertex shader

void main (void) {

vec3 transformedNormal;

float alphaFade = 1.0;

// Eye-coordinate position of vertex, needed in various calculations

vec4 ecPosition = gl_ModelViewMatrix * gl_Vertex;

gl_Position = ftransform();

transformedNormal = normalize(gl_NormalMatrix * gl_Normal);

flight(transformedNormal, ecPosition, alphaFade);

}

void flight(in vec3 normal, in vec4 ecPosition, float alphaFade) {

vec3 ecPosition3 = (vec3 (ecPosition)) / ecPosition.w;

vec3 eye = vec3 (0.0, 0.0, 1.0);

vec4 Ambient = vec4 (0.0);

vec4 Diffuse = vec4 (0.0);

vec4 Specular = vec4 (0.0);

pointLight(normal, eye, ecPosition3, Ambient, Diffuse, Specular);

vec4 color = gl_FrontLightModelProduct.sceneColor+ Ambient*gl_FrontMaterial.ambient + Diffuse * gl_FrontMaterial.diffuse;

color += Specular * gl_FrontMaterial.specular;

color = clamp( color, 0.0, 1.0 );

gl_FrontColor= color;

gl_FrontColor.a*= alphaFade;

}

suriyong L.

slide30

void pointLight(in vec3 normal, in vec3 eye, in vec3 ecPosition3, inout vec4 ambient, inout vec4 diffuse, inoutvec4 specular) {

vec3 VP = normalize(vec3(gl_LightSource[0].position) - ecPosition3); // incidence vec

float d = length(VP); // its distance

float attenuation = 1.0/(gl_LightSource[0].constantAttenuation+ gl_LightSource[0].linearAttenuation*d + gl_LightSource[0].quadraticAttenuation*d*d);

vec3 halfVector = normalize(VP + eye);

float nDotVP = max(0.0, dot(normal, VP));

float nDotHV = max(0.0, dot(normal, halfVector));

float pf = (nDotVP==0.0)? 0.0:pow(nDotHV, glFrontMaterial.shininess;

ambient += gl_LightSource[i].ambient * attenuation;

diffuse += gl_LightSource[i].diffuse * nDotVP * attenuation;

specular += gl_LightSource[i].specular * pf * attenuation;

}

// Fragment shader

void main() {

vec4 color;

color = gl_Color;

gl_FragColor = color;

}

suriyong L.

slide31

// Opengl Main program

#include <stdlib.h>

#include <GL/glew.h>

#include <GL/glut.h>

#include "shader.h“

intmain(intargc, char **argv) {

glutInitDisplayMode(GLUT_DOUBLE | GLUT_RGB | GLUT_DEPTH);

glutInitWindowSize(window_width, window_height);

glutInitWindowPosition(500,100);

glutCreateWindow("Hardware Shader sphere demo");

intgl_major, gl_minor;

glewInit();

getGlVersion(&gl_major, &gl_minor);

printf("GL_VERSION %d.%d\n", gl_major, gl_minor);

if (gl_major < 2) { printf("Require OpenGL 2.0 or greater...exiting\n"); exit(1); }

phong = Shader("phongPoint");

glEnable(GL_DEPTH_TEST); /* Enable hidden--surface--removal */

glShadeModel(GL_SMOOTH); /*enable smooth shading */

glEnable(GL_DEPTH_TEST); /* enable z buffer */

glClearColor (0.0, 0.0, 0.0, 0.0);glColor3f (1.0, 0.0, 0.0);

gluPerspective(45, window_width/window_height, 2, 9);glutReshapeFunc(myReshape);

glutDisplayFunc(display);glutIdleFunc(idle);

glutMainLoop();

return 0;

}

suriyong L.

slide32

float window_width = 300, window_height = 300, viewer[] ={0,0,5}, theta = 0.0;

Shader phong;

void display(void) {

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

glMatrixMode(GL_MODELVIEW);glLoadIdentity();

gluLookAt(viewer[0],viewer[1],viewer[2], 0,0,0, 0,1,0);

glUseProgram(phong.programObject);

glRotatef(theta, 0,0,1);

glutSolidSphere(1.0,20, 20);

glFlush(); glutSwapBuffers();

}

void myReshape(int w, int h) {

glViewport(0, 0, w, h);window_width = w; window_height = h;

glMatrixMode(GL_PROJECTION);glLoadIdentity();

gluPerspective(45, window_width/window_height, 2, 9);

glutPostRedisplay();

}

void idle() { theta += 0.01; glutPostRedisplay(); }

void getGlVersion( int *major, int *minor ){

const char* verstr = (const char*)glGetString( GL_VERSION );

if((verstr == NULL) || (sscanf( verstr, "%d.%d", major, minor ) != 2) ) {

*major = *minor = 0; fprintf( stderr, "Invalid GL_VERSION format!!!\n" );

}

}

suriyong L.

references

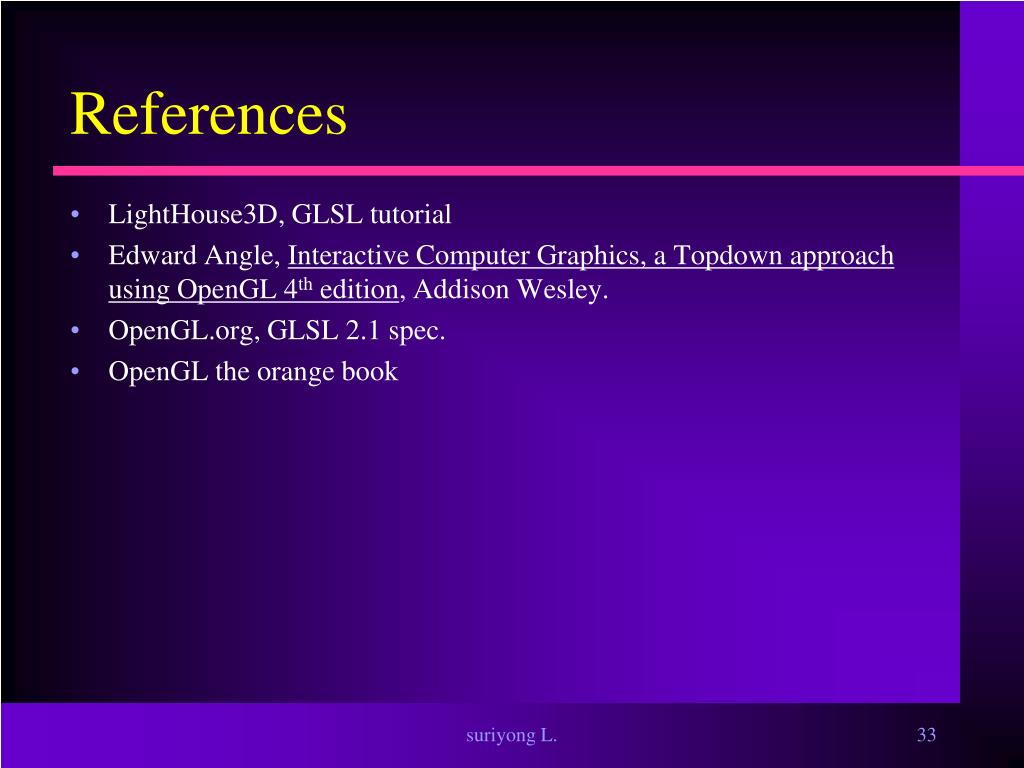

References
  • LightHouse3D, GLSL tutorial
  • Edward Angle, Interactive Computer Graphics, a Topdown approach using OpenGL 4th edition, Addison Wesley.
  • OpenGL.org, GLSL 2.1 spec.
  • OpenGL the orange book

suriyong L.
