shaders glsl

Shaders/GLSL

CS 4363/6353

another look at the pipeline

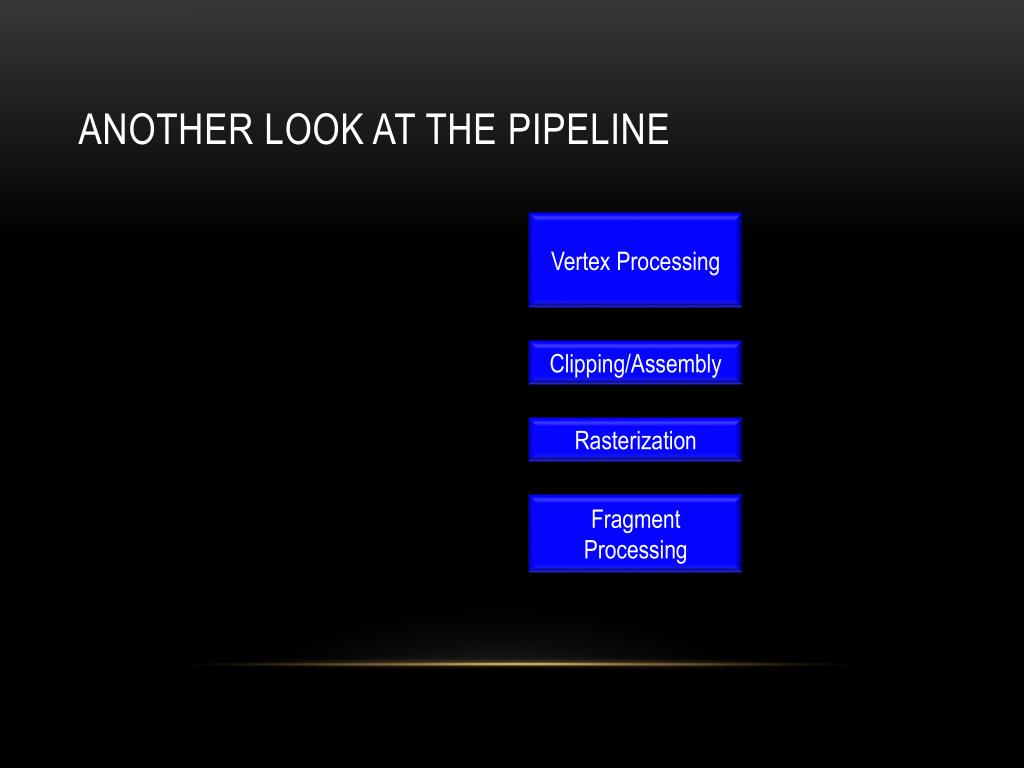

Another Look at the Pipeline

Vertex Processing

Clipping/Assembly

Rasterization

Fragment Processing

another look at the pipeline1

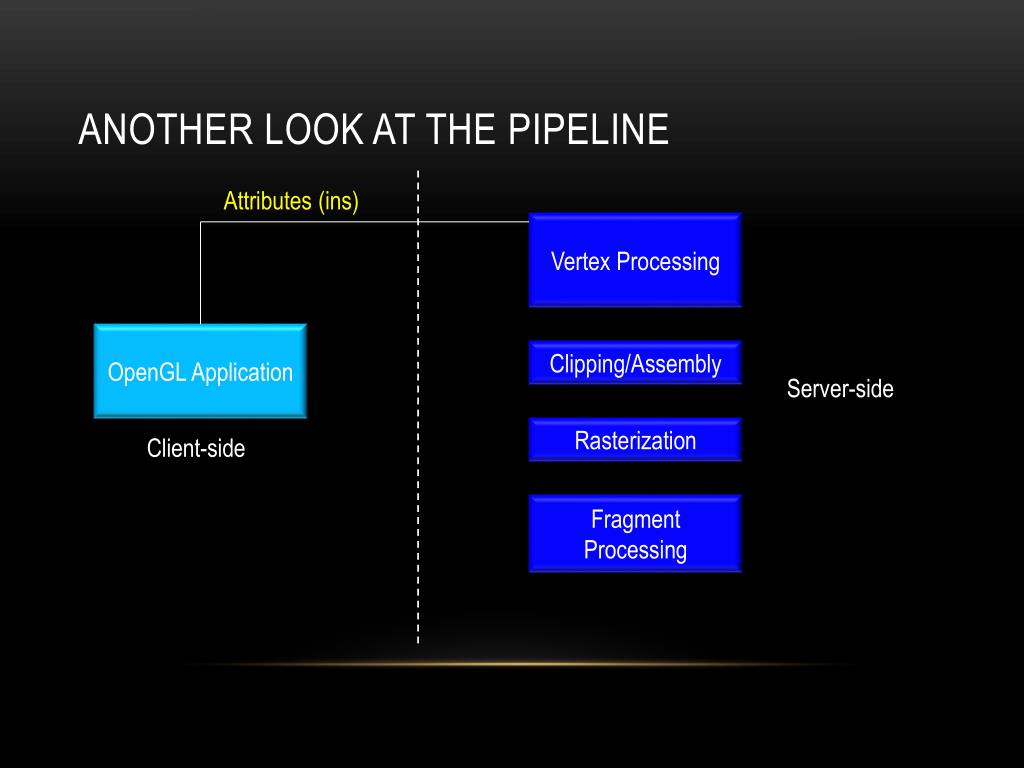

Another Look at the Pipeline

Attributes (ins)

Vertex Processing

OpenGL Application

Clipping/Assembly

Server-side

Rasterization

Client-side

Fragment Processing

attributes
Attributes
  • Remember, these are values that are per vertex!
  • Denoted with keyword in
  • Are read-only
  • Maximum of 16 attributes per shader program
  • Always stored as a vec4, even if you declare it as a single float!
  • Examples:
    • Raw vertex positions
    • Normals
    • Texture coordinates
  • Could also be other things?
another look at the pipeline2

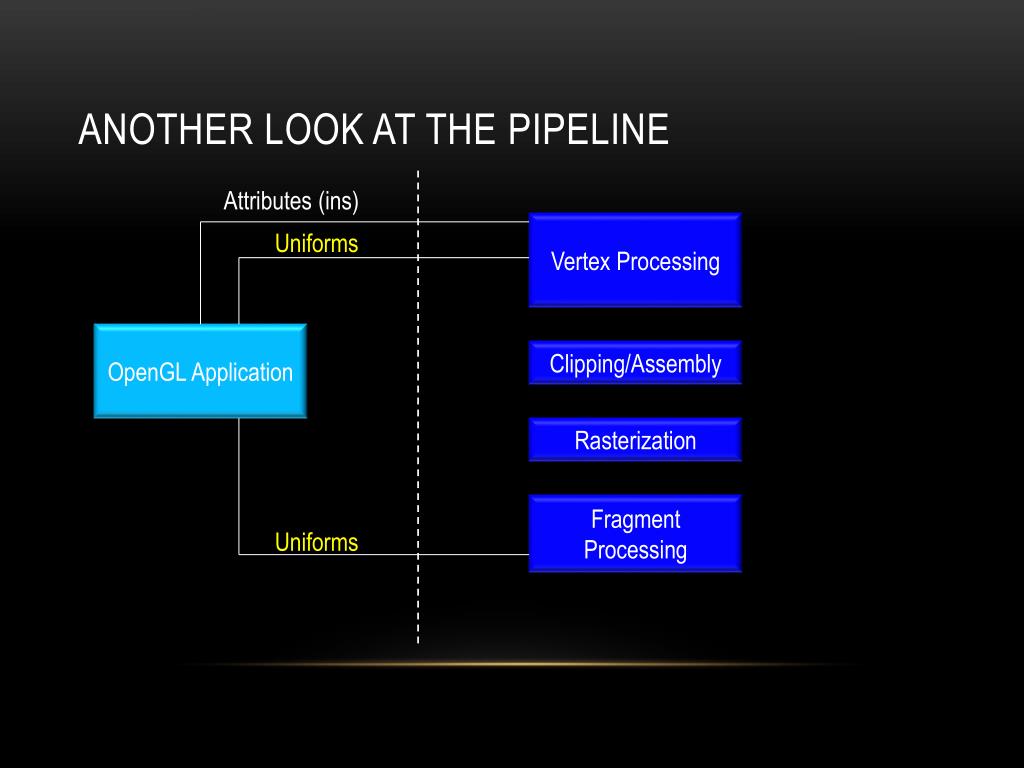

Another Look at the Pipeline

Attributes (ins)

Vertex Processing

Uniforms

OpenGL Application

Clipping/Assembly

Rasterization

Fragment Processing

Uniforms

uniforms
Uniforms
  • Uniforms are not individualized
  • Apply to all vertices/fragments
  • Denoted by the uniform keyword
  • Examples:
    • Matrices (ModelView, Perspective)
    • Light positions
another look at the pipeline3
Another Look at the Pipeline

Attributes (ins)

Vertex Processing

Uniforms

Texture data

OpenGL Application

Clipping/Assembly

Rasterization

Texture data

Fragment Processing

Uniforms

texture data

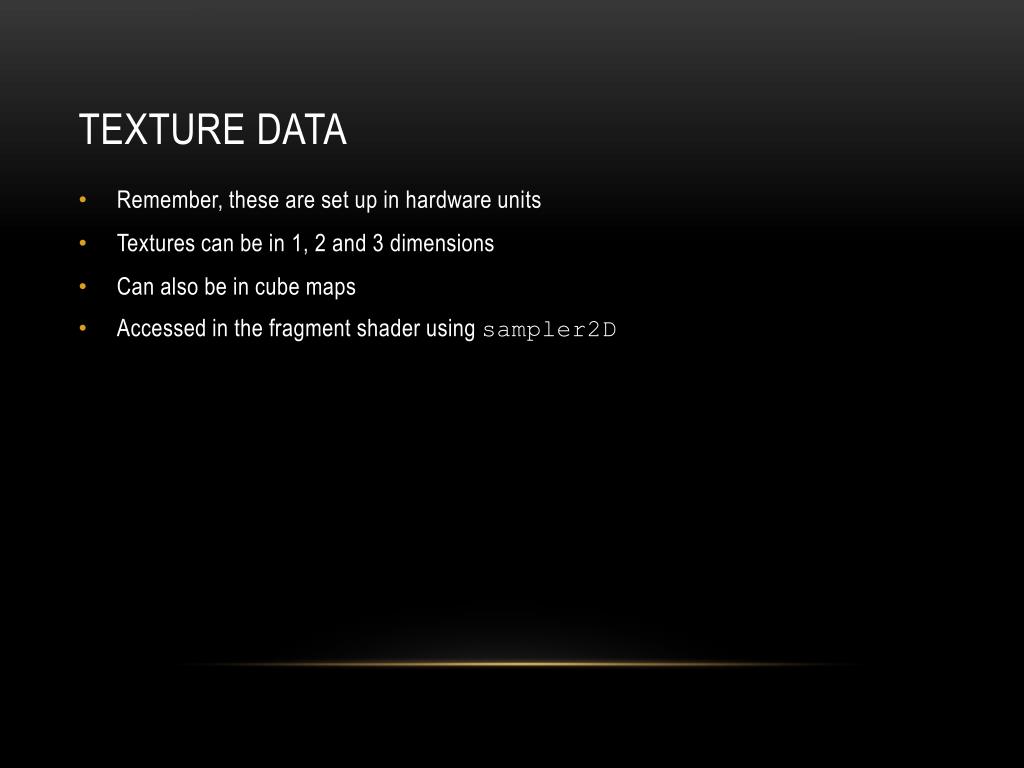

Texture Data
  • Remember, these are set up in hardware units
  • Textures can be in 1, 2 and 3 dimensions
  • Can also be in cube maps
  • Accessed in the fragment shader using sampler2D

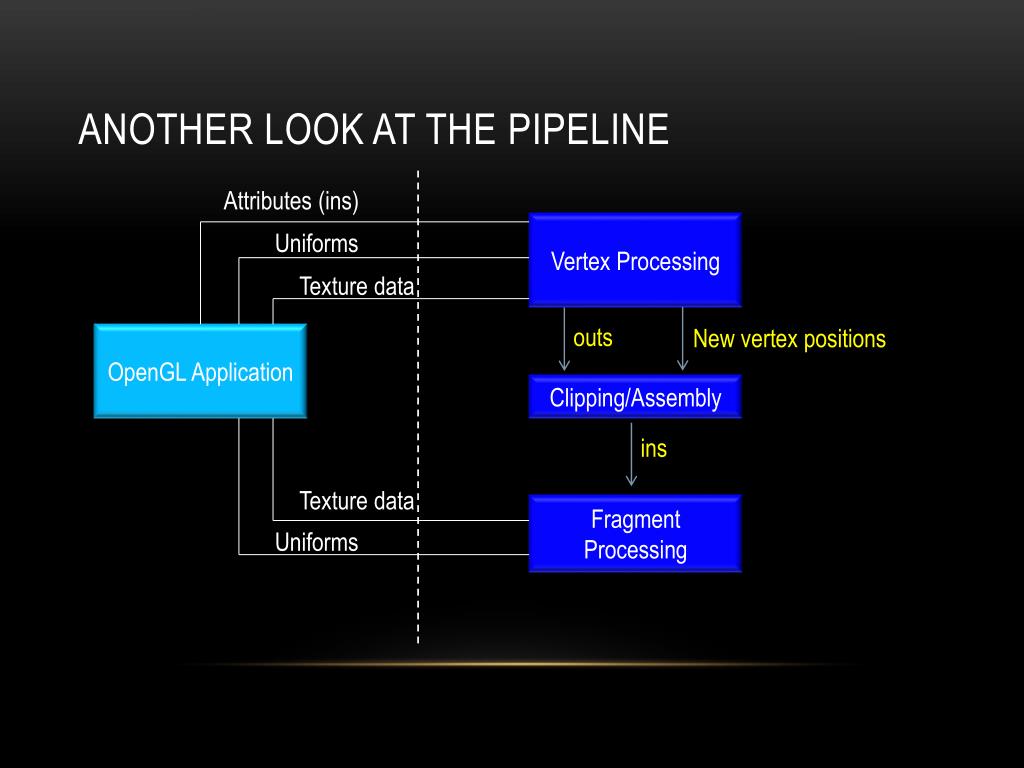

another look at the pipeline4
Another Look at the Pipeline

Attributes (ins)

Vertex Processing

Uniforms

Texture data

outs

New vertex positions

OpenGL Application

Clipping/Assembly

ins

Texture data

Fragment Processing

Uniforms

slide10
GLSL
  • Must have a minimum of two shaders
  • Syntax is similar to C (it has a main)
  • Supports functions
  • Doesn’t support pointers!
  • Has variables similar to C
    • bool finished = false;
    • intmyInt = -6;
    • uint = 567u;
    • float value = 42.0;
vectors
Vectors
  • GLSL supports vectors with 2, 3 and 4elements
    • vec2, vec3, vec4
    • ivec2, ivec3, ivec4
    • uvec2, uvec3, uvec4
    • bvec2, bvec3, bvec4
  • Initialize with a “constructor”
    • vec4 color = vec4 (1.0f, 0.0f, 1.0f, 1.0f);
  • Common operations
    • result = myVec + yourVec;
    • myVec += vec4 (1.0f, 0.5f, 0.4f, 0.2f);
    • myVec *= 3.0f;
individual elements
Individual Elements
  • Can access individual elements using
    • xyzw – typically for positions
    • rgba – usually for colors
    • stpq – usually for texture coordinates
    • … it’s your choice, but you can’t mix them!
  • Examples
    • myVec.x = 4.0f;
    • myVec.xy = vec2 (1.0f, 5.0f);
    • myVec.xyz = yourVec.xyz;
    • vColor.bgra = vOldColor.rgba; // called “swizzling”
a note about efficiency gotchas
A note about Efficiency & Gotchas
  • Vector operations are supported by hardware
  • Performed all at once!
  • Inefficient:
    • vPos.x = vPos2.x + 1.0f;
    • vPos.y = vPos2.y +3.0f;
    • vPos.z = vPos2.z + 2.0f;
  • Efficient:
    • vPos.xyz = vPos2.xyz + vec3 (1.0f, 3.0f, 2.0f);
  • Gotcha:
    • If you don’t use an attribute or uniform, OpenGL “optimizes” by removing it!
matrices
Matrices!
  • Several types in columns and rows:
    • mat2x2 (or simply mat2)
    • mat3x3 (or mat3)
    • mat4x4 (or mat4)
    • mat2x3 and mat2x4
    • mat3x2 and mat3x4
    • mat4x2 and mat4x3
matrices1
Matrices
  • Organized as an array of column vectors
    • mMV[3] = vec4(1.0f, 0.0f, 1.0f, 1.0f);
    • vec3 myVec = mMV[3].xyz;
  • Matrices can be multiplied by other matrices and vectors
  • Matrices have one nasty “constructor” and one good one

mat4 theMatrix = mat4 (1.0f, 0.0f, 0.0f, 0.0f,

0.0f, 1.0f, 0.0f, 0.0f,

0.0f, 0.0f, 1.0f, 0.0f,

0.0f, 0.0f, 0.0f, 1.0f);

mat4 theMatrix = mat4(1.0f);

storage qualifiers
Storage Qualifiers
  • in – passed in from a previous stage
  • out – going to the next stage
  • const – a read-only variable (one that doesn’t change)
  • uniform – does not change across vertices
  • inout – only used in functions (it’s essentially a pointer)
  • in centroid/out centroid – used in multisampled buffers (interpolation)
  • noperspective – don’t use perspectively-correct interpolation
  • flat – don’t interpolate (colors) at all; declared in both vertex and frag shaders
  • smooth – the default interpolation
example

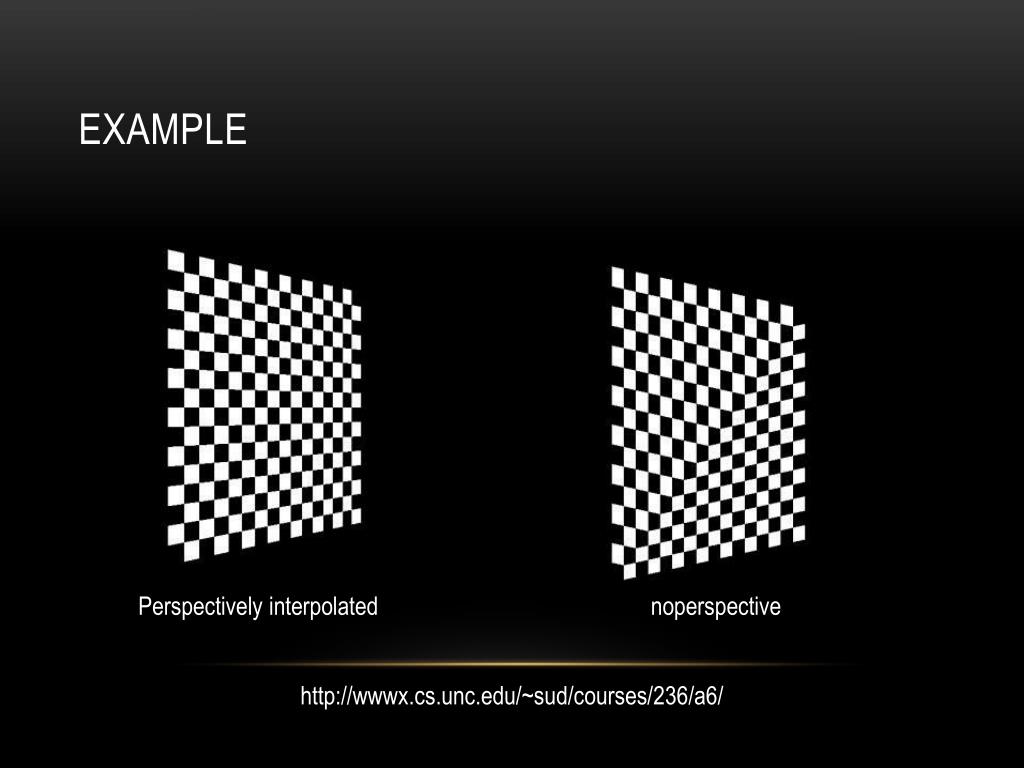

Example

noperspective

Perspectively interpolated

http://wwwx.cs.unc.edu/~sud/courses/236/a6/

a side by side comparison
A Side-By-SIDE Comparison
  • Show the relationship between client code and shader code
  • Assume you loaded a sphere, plane, or monkey face…
    • numVertices – the number of vertices (duh!)
    • vVerts – the position information of each vertex
    • vNorms – the normal information of each vertex
slide19

buffer

glBindVertexArray(vao);

GLuintbuffer;

glGenBuffers(1, &buffer);

Note: buffer “lives” on the graphics card in a nice, two-bedroom loft…

slide20

Hey – I’m active now

buffer

glBindVertexArray(vao);

GLuintbuffer;

glGenBuffers(1, &buffer);

glBindBuffer(GL_ARRAY_BUFFER, buffer);

slide21

Now I know how big I am!

buffer

glBindVertexArray(vao);

GLuintbuffer;

glGenBuffers(1, &buffer);

glBindBuffer(GL_ARRAY_BUFFER, buffer);

glBufferData(GL_ARRAY_BUFFER, numVertices*6*sizeof(GLfloat), NULL, GL_STATIC_DRAW);

Why 6?

slide22

Now I’m putting vVerts at the beginning

buffer

vVerts

glBindVertexArray(vao);

GLuintbuffer;

glGenBuffers(1, &buffer);

glBindBuffer(GL_ARRAY_BUFFER, buffer);

glBufferData(GL_ARRAY_BUFFER, numVertices*6*sizeof(GLfloat), NULL, GL_STATIC_DRAW);

glBufferSubData(GL_ARRAY_BUFFER, 0, numVertices*3*sizeof(GLfloat), vVerts);

glBufferSubData (GL_ARRAY_BUFFER, numVertices*3*sizeof(GLfloat), numVertices*3*sizeof(GLfloat), vNorms);

Put vVerts at 0… it’s pretty bigthough…

slide23

I’m putting vNormals next

buffer

vVerts

vNorms

glBindVertexArray(vao);

GLuintbuffer;

glGenBuffers(1, &buffer);

glBindBuffer(GL_ARRAY_BUFFER, buffer);

glBufferData(GL_ARRAY_BUFFER, numVertices*6*sizeof(GLfloat), NULL, GL_STATIC_DRAW);

glBufferSubData(GL_ARRAY_BUFFER, 0, numVertices*3*sizeof(GLfloat), vVerts);

glBufferSubData (GL_ARRAY_BUFFER, numVertices*3*sizeof(GLfloat), numVertices*3*sizeof(GLfloat), vNorms);

Put vNormals startingright after that!

It’s pretty bigtoo…

what we have so far
What we Have so far…
  • We have a buffer with an ID
  • That buffer lives on the graphics card
  • That buffer is full of vertex position/normal data
  • How do we get that info to our shader?
  • Immediately after this code, we put the following…
slide25

GLuintloc = glGetAttribLocation(shaderProgramID, "vPosition");

#version 150

in vec4 vPosition; // This will be referenced in your OpenGL program!!

in vec3 vNormal; // The normal of the vertex

out vec4 color; // Out to fragment shader

uniform mat4 p; // This is perpsective matrix

uniform mat4 mv; // This is the model-view matrix

uniform vec4 light_pos; // This is the light position

void main () {

gl_Position = p*mv*vPosition;

vec3 L = normalize (light_pos.xyz);

vec3 N = normalize (vNormal);

color = vColor*max(0.2f, dot(N, L));

}

slide26

Guys! I’m still active, remember?

buffer

GLuintloc = glGetAttribLocation(shaderProgramID, "vPosition");glEnableVertexAttribArray(loc);glVertexAttribPointer(loc, 3, GL_FLOAT, GL_FALSE, 0, 0);

#version 150

in vec4 vPosition; // This will be referenced in your OpenGL program!!

in vec3 vNormal; // The normal of the vertex

out vec4 color; // Out to fragment shader

uniform mat4 p; // This is perpsective matrix

uniform mat4 mv; // This is the model-view matrix

uniform vec4 light_pos; // This is the light position

void main () {

gl_Position = p*mv*vPosition;

vec3 L = normalize (light_pos.xyz);

vec3 N = normalize (vNormal);

color = vColor*max(0.2f, dot(N, L));

}

vVerts

vNorms

slide27

Tell vNormal where to look in me…

buffer

vVerts

vNorms

GLuintloc2 = glGetAttribLocation(shaderProgramID, "vNormal");glEnableVertexAttribArray(loc2);glVertexAttribPointer(loc2, 3, GL_FLOAT, GL_FALSE, 0, BUFFER_OFFSET(numVertices*3*sizeof(GLfloat)));

#version 150

in vec4 vPosition; // This will be referenced in your OpenGL program!!

in vec3 vNormal; // The normal of the vertex

out vec4 color; // Out to fragment shader

uniform mat4 p; // This is perpsective matrix

uniform mat4 mv; // This is the model-view matrix

uniform vec4 light_pos; // This is the light position

void main () {

gl_Position = p*mv*vPosition;

vec3 L = normalize (light_pos.xyz);

vec3 N = normalize (vNormal);

color = vColor*max(0.2f, dot(N, L));

}

slide28

GLuintloc = glGetAttribLocation(shaderProgramID, "vPosition");glEnableVertexAttribArray(loc);glVertexAttribPointer(loc, 3, GL_FLOAT, GL_FALSE, 0, 0);

GLuintloc2 = glGetAttribLocation(shaderProgramID, "vNormal");glEnableVertexAttribArray(loc2);glVertexAttribPointer(loc2, 3, GL_FLOAT, GL_FALSE, 0, BUFFER_OFFSET(numVertices*3*sizeof(GLfloat)));

#version 150

in vec4 vPosition; // This will be referenced in your OpenGL program!!

in vec3 vNormal; // The normal of the vertex

out vec4 color; // Out to fragment shader

uniform mat4 p; // This is perpsective matrix

uniform mat4 mv; // This is the model-view matrix

uniform vec4 light_pos; // This is the light position

void main () {

gl_Position = p*mv*vPosition;

vec3 L = normalize (light_pos.xyz);

vec3 N = normalize (vNormal);

color = vColor*max(0.2f, dot(N, L));

}

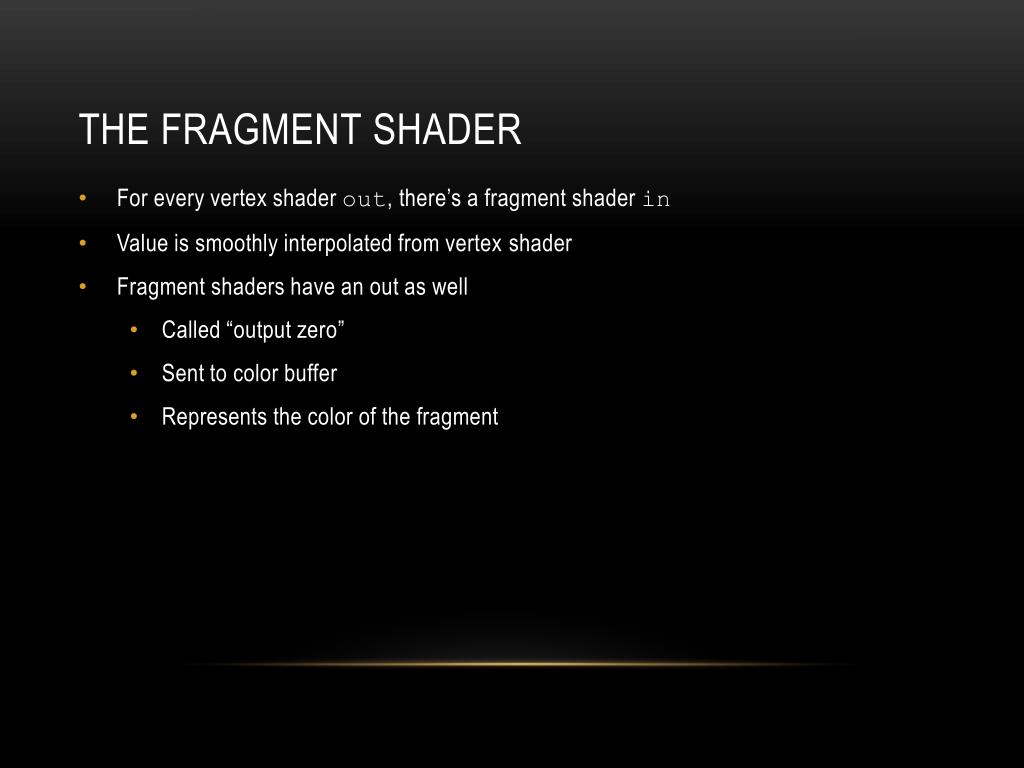

the fragment shader
the Fragment Shader
  • For every vertex shaderout, there’s a fragment shaderin
  • Value is smoothly interpolated from vertex shader
  • Fragment shaders have an out as well
    • Called “output zero”
    • Sent to color buffer
    • Represents the color of the fragment

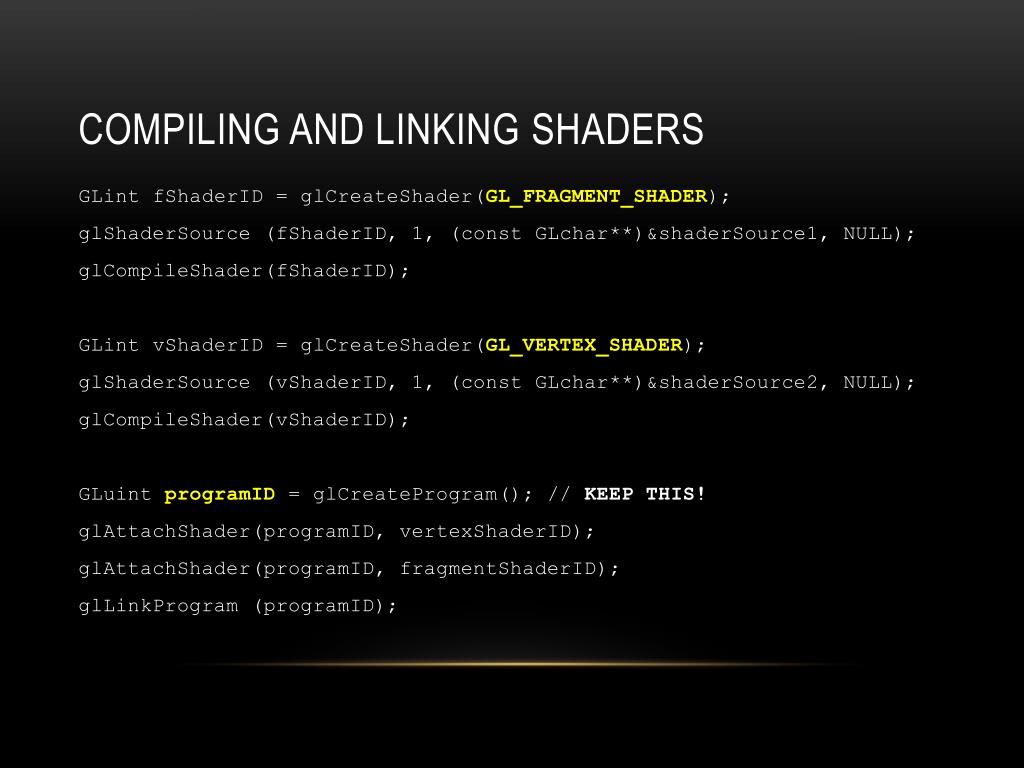

compiling and linking shaders
Compiling and Linking Shaders

GLintfShaderID = glCreateShader(GL_FRAGMENT_SHADER);

glShaderSource(fShaderID, 1, (constGLchar**)&shaderSource1, NULL);

glCompileShader(fShaderID);

GLintvShaderID = glCreateShader(GL_VERTEX_SHADER);

glShaderSource(vShaderID, 1, (constGLchar**)&shaderSource2, NULL);

glCompileShader(vShaderID);

GLuintprogramID = glCreateProgram(); // KEEP THIS!

glAttachShader(programID, vertexShaderID);

glAttachShader(programID, fragmentShaderID);

glLinkProgram(programID);

using deleting
Using/Deleting
  • To use the shader:
    • glUseProgram (GLuintprogID);
    • Any subsequent draw calls will use that shader
  • There are only a limited number of shaders on the graphics card (16)
  • When you’re done with one:
    • glDeleteShader( GLuintprogID);
slide32

#version 150

in vec4 vPosition; // This will be referenced in your OpenGL program!!

in vec3 vNormal; // The normal of the vertex

out vec4 color; // Out to fragment shader

uniform mat4 p; // This is perpsective matrix

uniform mat4 mv; // This is the model-view matrix

uniform vec4 light_pos; // This is the light position

void main () {

gl_Position = p*mv*vPosition;

vec3 L = normalize (light_pos.xyz);

vec3 N = normalize (vNormal);

color = vColor*max(0.2f, dot(N, L));

}

#version 150

out vec4 fColor;

in vec4 color; // from the vertex shader

void main () {

fColor = color;

}

a note about versions
A note About Versions
  • Version number – minimum version supported
  • Version numbers changed!
    • OpengGL 3.0 – GLSL version 1.3 (#version 130)
    • OpenGL 3.1 – GLSL version 1.4 (#version 140)
    • OpenGL 3.2 – GLSL version 1.5 (#version 150)
    • OpenGL 3.3 – GLSL version 3.0 (#version 300)
    • OpenGL 4.0 – GLSL version 4.0 (#version 400)
uniforms1
UniForms
  • Persistent across all vertices
  • Can’t be marked as in/out
  • Can’t be interpolated
  • Always read-only
  • Find uniform variables using:
    • glGetUniformLocation (GLuintprogID, constGLchar* varName);
setting uniforms

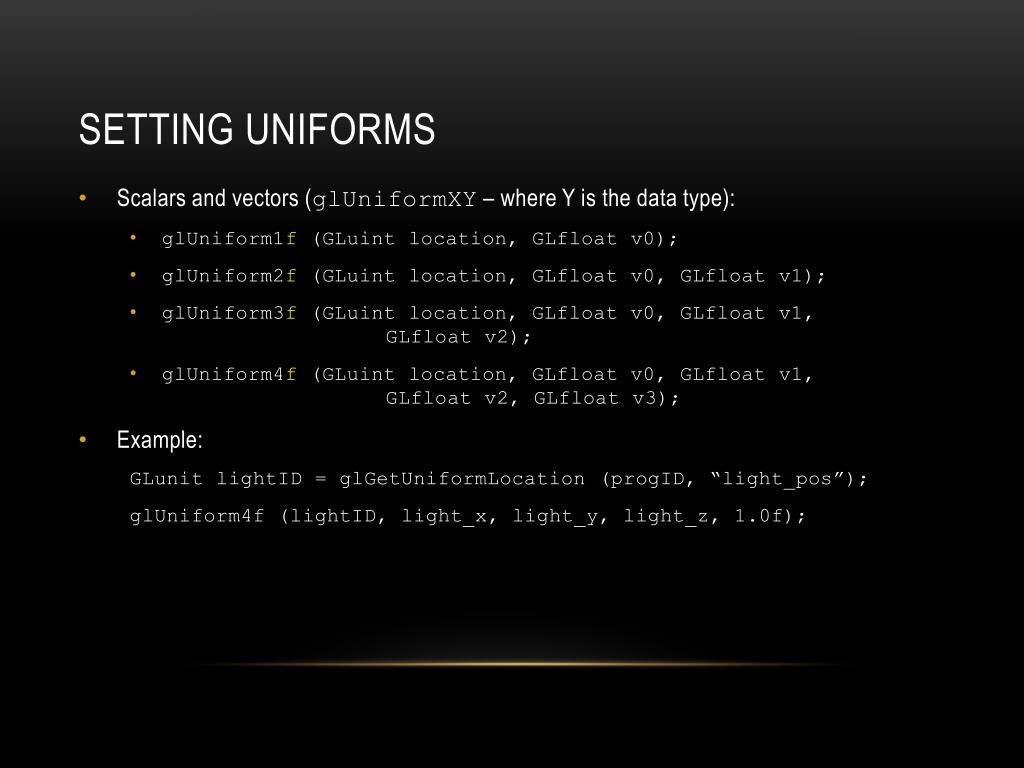

Setting Uniforms
  • Scalars and vectors (glUniformXY – where Y is the data type):
    • glUniform1f (GLuint location, GLfloat v0);
    • glUniform2f(GLuint location, GLfloat v0, GLfloatv1);
    • glUniform3f(GLuint location, GLfloatv0, GLfloatv1, GLfloat v2);
    • glUniform4f(GLuint location, GLfloatv0, GLfloatv1, GLfloat v2, GLfloatv3);
  • Example:

GLunitlightID = glGetUniformLocation (progID, “light_pos”);

glUniform4f (lightID, light_x, light_y, light_z, 1.0f);

setting uniforms1

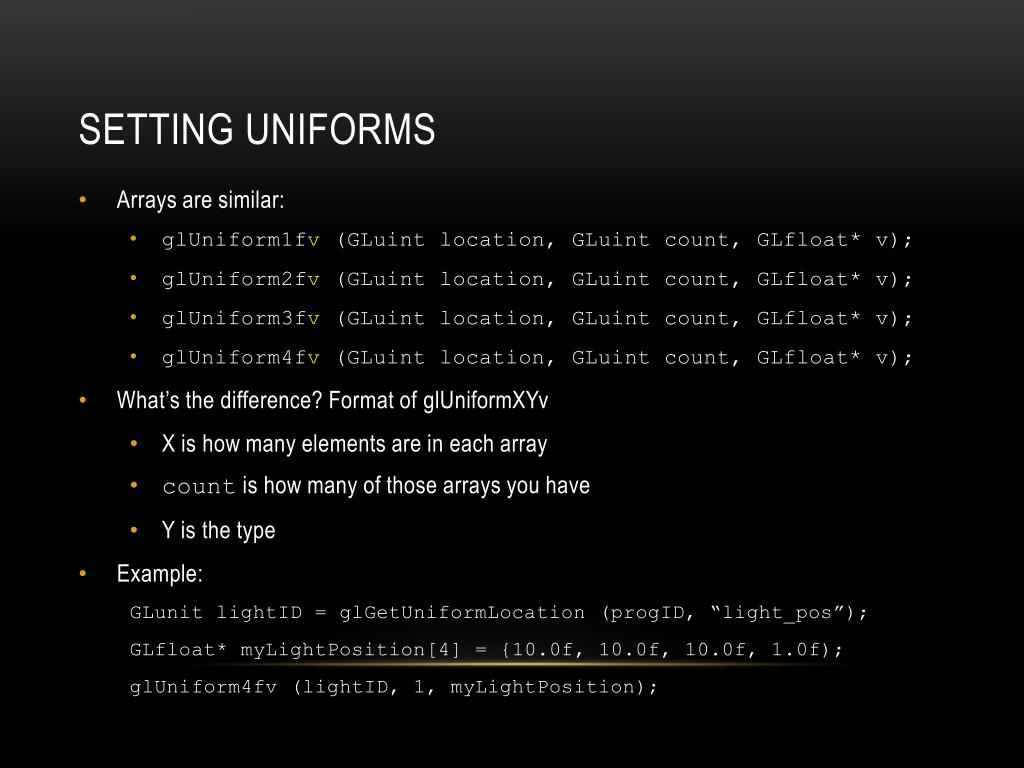

Setting Uniforms
  • Arrays are similar:
    • glUniform1fv (GLuint location, GLuint count, GLfloat* v);
    • glUniform2fv(GLuint location, GLuint count, GLfloat* v);
    • glUniform3fv(GLuint location, GLuint count, GLfloat* v);
    • glUniform4fv(GLuint location, GLuint count, GLfloat* v);
  • What’s the difference? Format of glUniformXYv
    • X is how many elements are in each array
    • count is how many of those arrays you have
    • Y is the type
  • Example:

GLunitlightID = glGetUniformLocation (progID, “light_pos”);

GLfloat* myLightPosition[4] = {10.0f, 10.0f, 10.0f, 1.0f);

glUniform4fv (lightID, 1, myLightPosition);

setting uniforms2

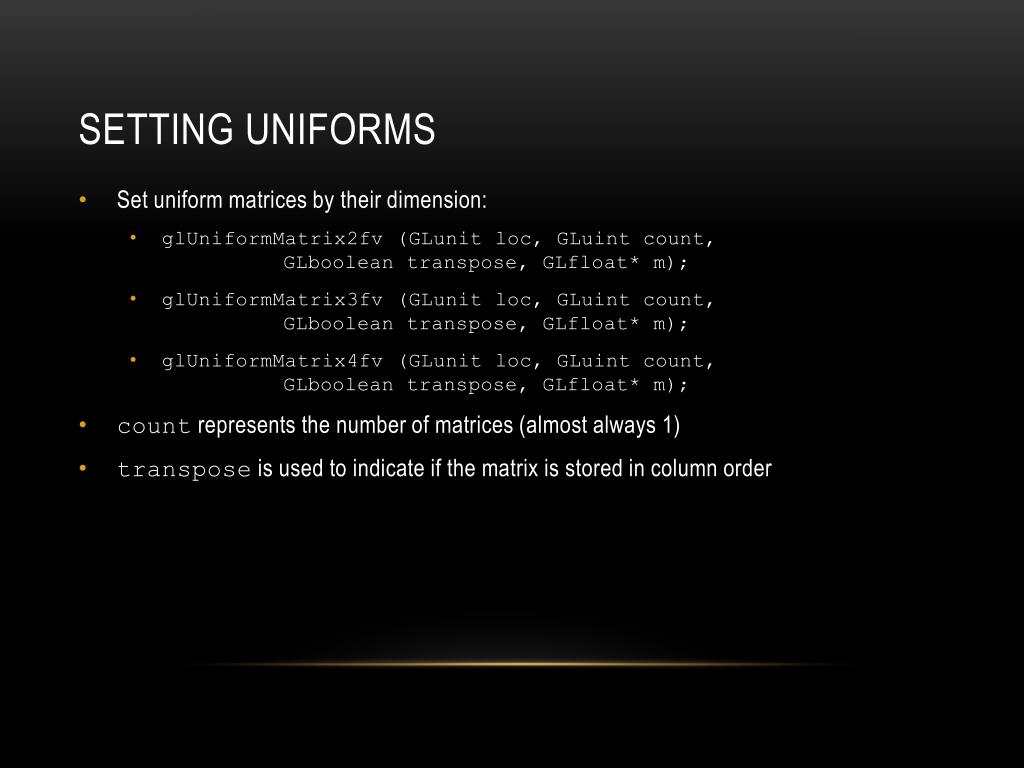

Setting Uniforms
  • Set uniform matrices by their dimension:
    • glUniformMatrix2fv (GLunitloc, GLuint count, GLboolean transpose, GLfloat* m);
    • glUniformMatrix3fv (GLunitloc, GLuint count, GLbooleantranspose, GLfloat* m);
    • glUniformMatrix4fv (GLunitloc, GLuint count, GLbooleantranspose, GLfloat* m);
  • count represents the number of matrices (almost always 1)
  • transpose is used to indicate if the matrix is stored in column order
built in glsl functions

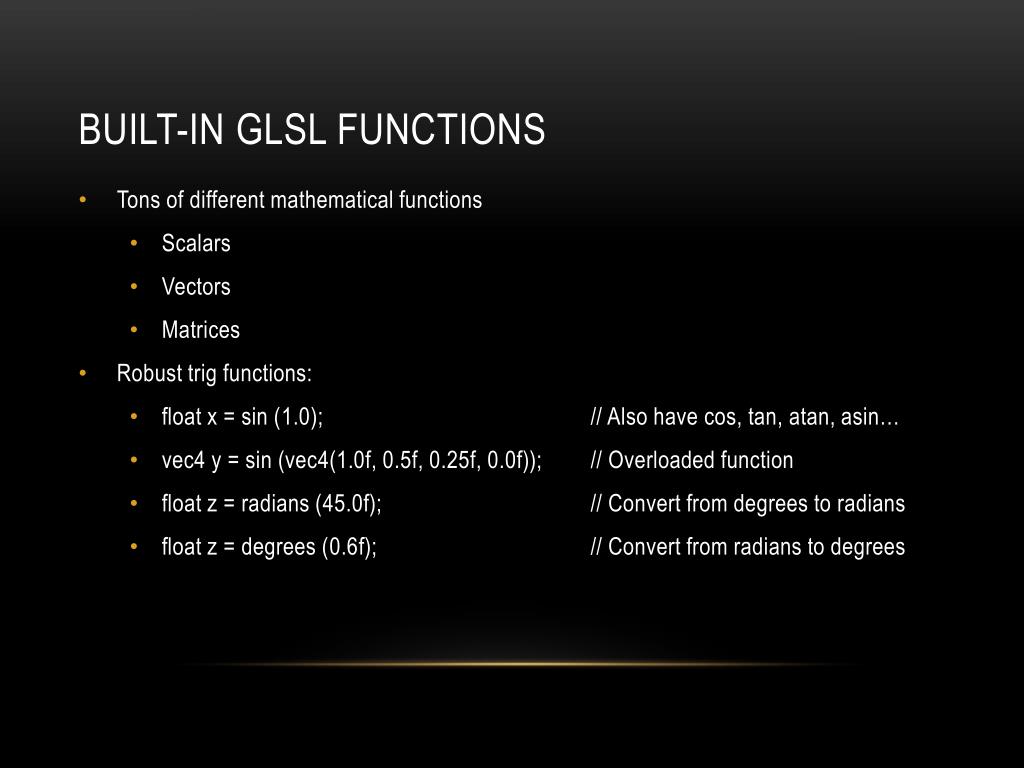

Built-In GLSL Functions
  • Tons of different mathematical functions
    • Scalars
    • Vectors
    • Matrices
  • Robust trig functions:
    • float x = sin (1.0); // Also have cos, tan, atan, asin…
    • vec4 y = sin (vec4(1.0f, 0.5f, 0.25f, 0.0f)); // Overloaded function
    • float z = radians (45.0f); // Convert from degrees to radians
    • float z = degrees (0.6f); // Convert from radians to degrees
built in glsl functions1
Built-IN GLSL Functions
  • Robust exponentials:
    • vec2 results = pow (vec2(2, 3), vec2 (2, 2)); // 2^2, 3^2
    • log( ) – natural log
    • exp( ) - ex
    • log2( ) – log base 2
    • exp2( ) – 2 to the power of…
    • sqrt( )
built in glsl functions2

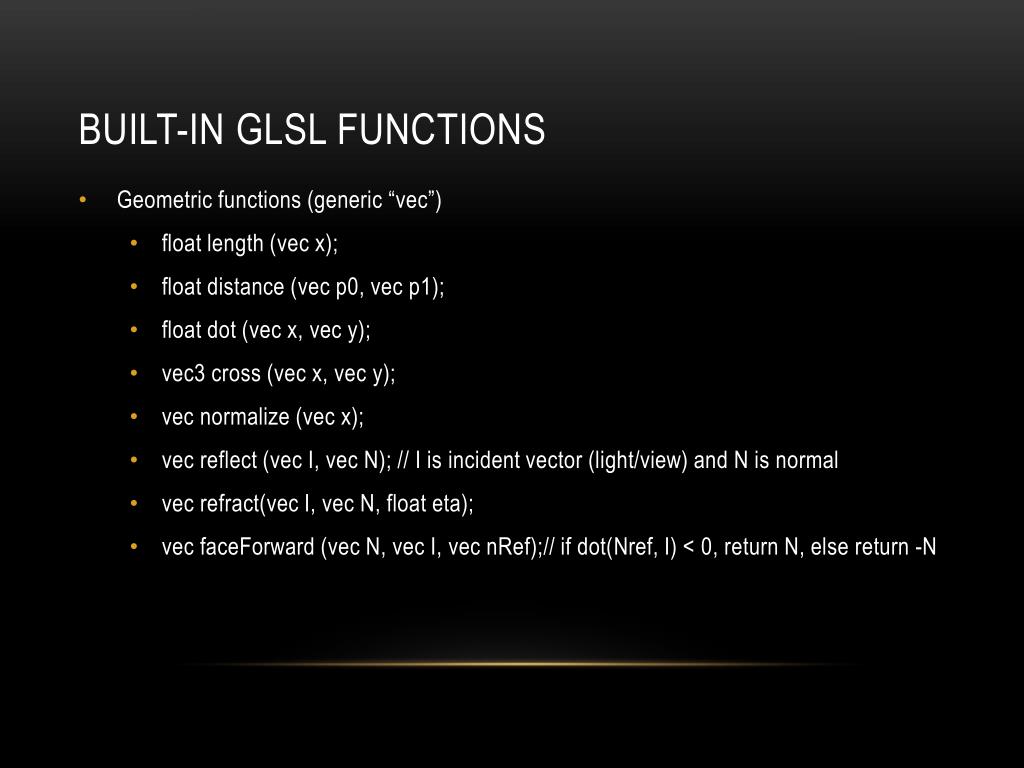

Built-In GLSL Functions
  • Geometric functions (generic “vec”)
    • float length (vec x);
    • float distance (vec p0, vec p1);
    • float dot (vec x, vec y);
    • vec3 cross (vec x, vec y);
    • vec normalize (vec x);
    • vec reflect (vec I, vec N); // I is incident vector (light/view) and N is normal
    • vec refract(vec I, vec N, float eta);
    • vecfaceForward (vec N, vec I, vecnRef);// if dot(Nref, I) < 0, return N, else return -N
built in glsl functions3

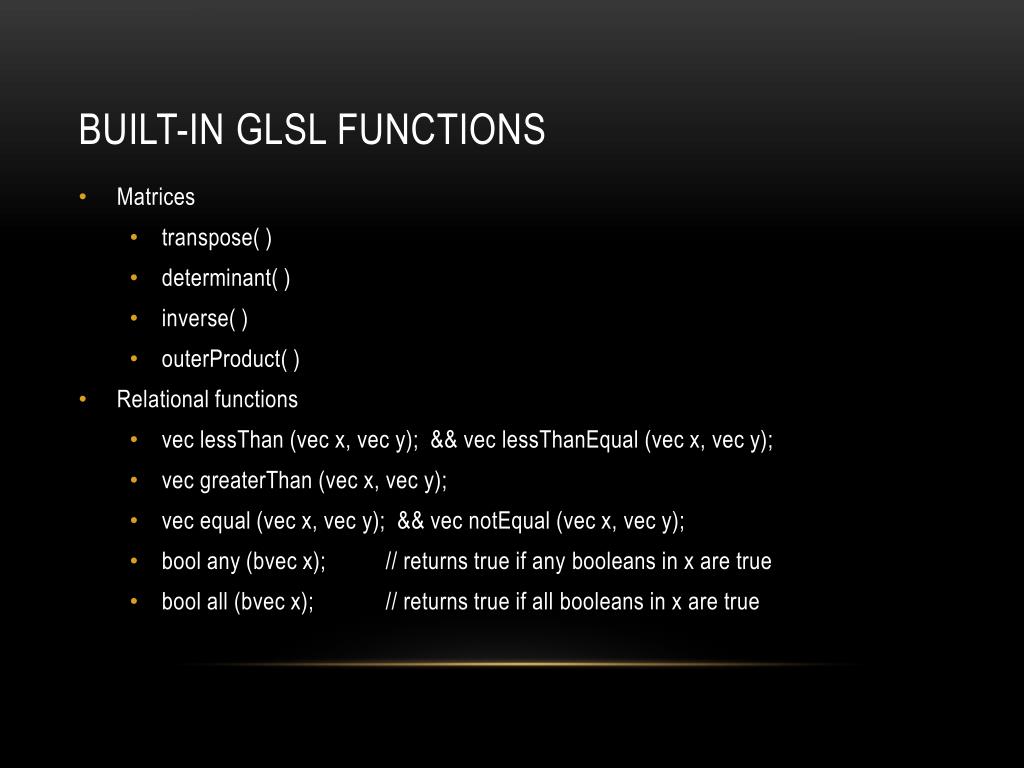

BUILT-IN GLSL Functions
  • Matrices
    • transpose( )
    • determinant( )
    • inverse( )
    • outerProduct( )
  • Relational functions
    • veclessThan (vec x, vec y); && veclessThanEqual (vec x, vec y);
    • vecgreaterThan (vec x, vec y);
    • vec equal (vec x, vec y); && vecnotEqual (vec x, vec y);
    • bool any (bvec x); // returns true if any booleans in x are true
    • bool all (bvec x); // returns true if all booleans in x are true
built in glsl functions4

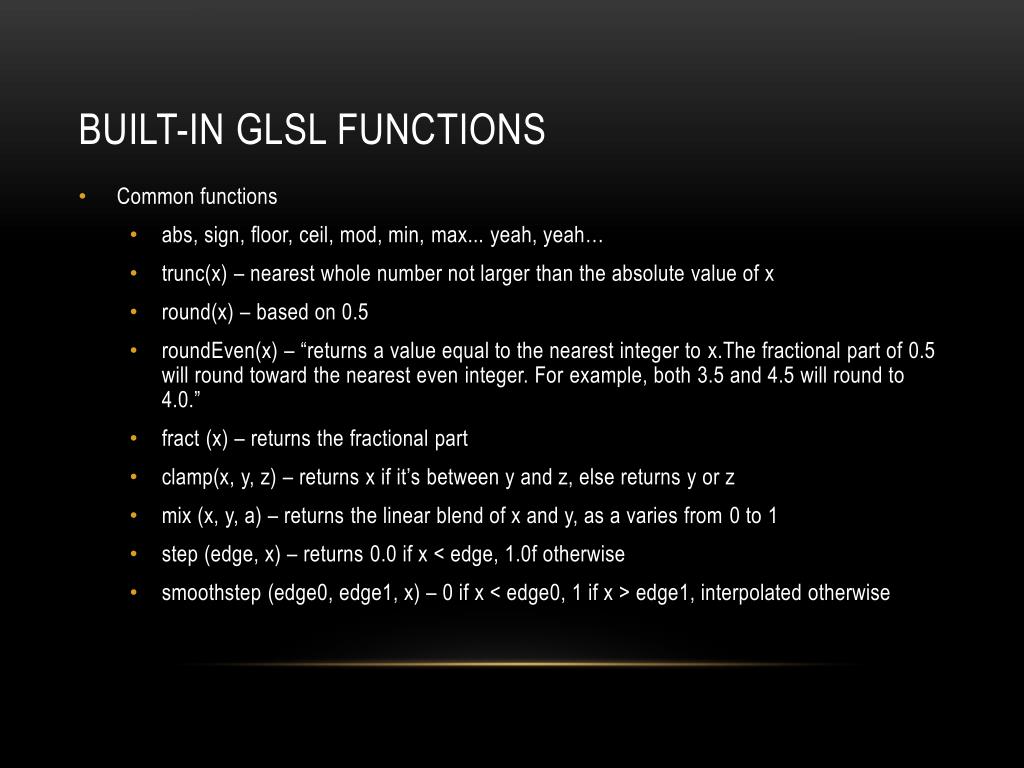

Built-In GLSL Functions
  • Common functions
    • abs, sign, floor, ceil, mod, min, max... yeah, yeah…
    • trunc(x) – nearest whole number not larger than the absolute value of x
    • round(x) – based on 0.5
    • roundEven(x) – “returns a value equal to the nearest integer to x.Thefractional part of 0.5 will round toward the nearest even integer. For example, both 3.5 and 4.5 will round to 4.0.”
    • fract (x) – returns the fractional part
    • clamp(x, y, z) – returns x if it’s between y and z, else returns y or z
    • mix (x, y, a) – returns the linear blend of x and y, as a varies from 0 to 1
    • step (edge, x) – returns 0.0 if x < edge, 1.0f otherwise
    • smoothstep (edge0, edge1, x) – 0 if x < edge0, 1 if x > edge1, interpolated otherwise
last of the built ins
Last of the Built-Ins
  • isnan(x) – true is x is not a number (NAN)
  • isinf(x) – returns true is x is +∞ or -∞
  • floatBitsToInt(x) – converts floating point values to ints
  • intBitstoFloat(x) – converts integers to floating points
