Dual Chambers Black Body Calibration Source - Nagman Instruments

Enables simultaneous measurement of 2 Pyrometers / Quick Measurement in 2 Points over the range<br>Compact, Light Weight, Bench-top & Portable<br>Dual Chamber Ranges : 50 to 300u00b0C & 250 to 600u00b0C<br>Excellent Accuracy & Stability<br>High Emissivity, wide Aperture<br>Auto-tune PID Controller<br>Low Power Consumption<br>Cost effective u2013 Best Value for Money<br>RS-232 Computer Interface u2013 Optional<br>Calibration Management Software u2013 Optional

nagman
Download Presentation

Dual Chambers Black Body Calibration Source - Nagman Instruments

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

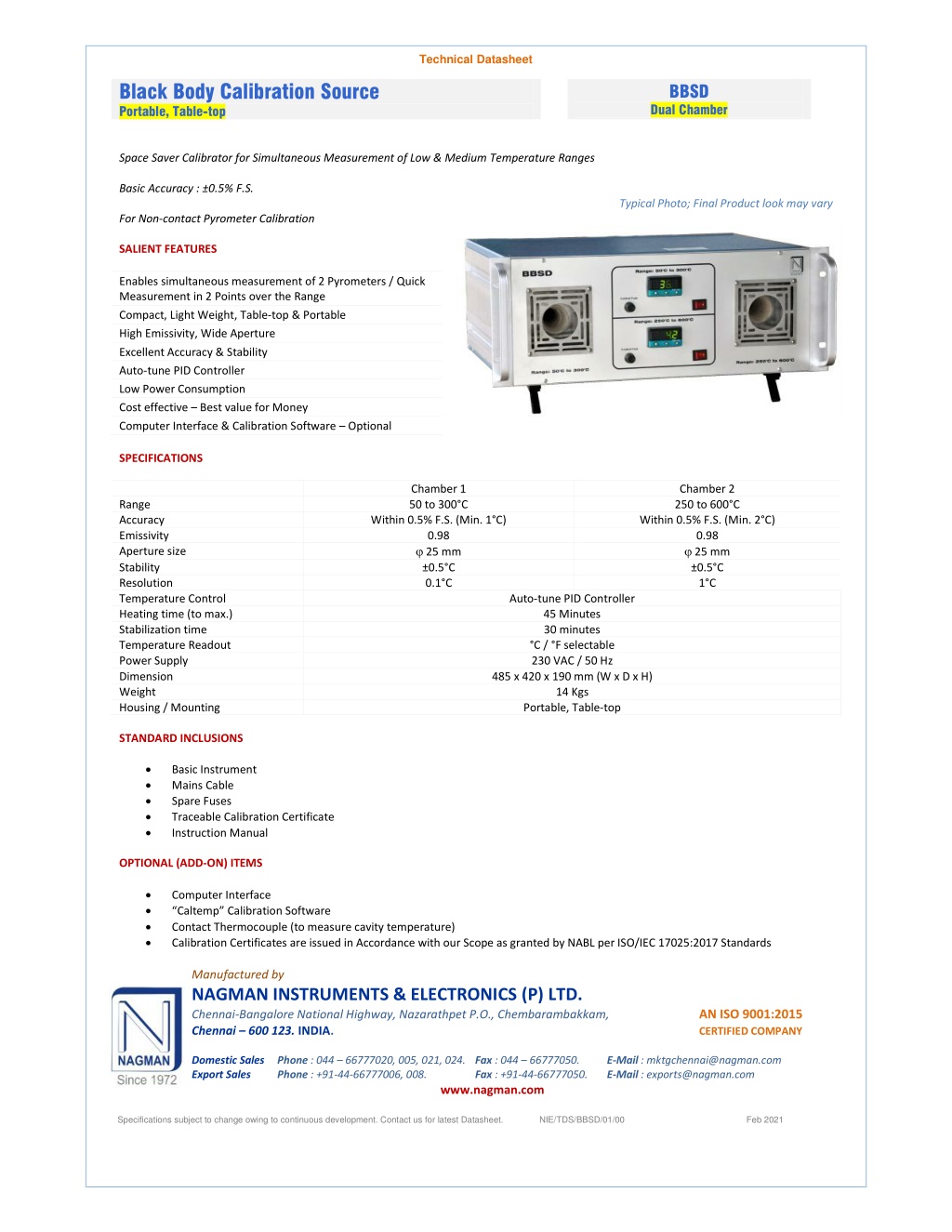

  1. Technical Datasheet Black Body Calibration Source Portable, Table-top BBSD Dual Chamber Space Saver Calibrator for Simultaneous Measurement of Low & Medium Temperature Ranges Basic Accuracy : ±0.5% F.S. Typical Photo; Final Product look may vary For Non-contact Pyrometer Calibration SALIENT FEATURES Enables simultaneous measurement of 2 Pyrometers / Quick Measurement in 2 Points over the Range Compact, Light Weight, Table-top & Portable High Emissivity, Wide Aperture Excellent Accuracy & Stability Auto-tune PID Controller Low Power Consumption Cost effective – Best value for Money Computer Interface & Calibration Software – Optional SPECIFICATIONS Chamber 1 50 to 300°C Chamber 2 250 to 600°C Range Accuracy Emissivity Aperture size Stability Resolution Temperature Control Heating time (to max.) Stabilization time Temperature Readout Power Supply Dimension Weight Housing / Mounting Within 0.5% F.S. (Min. 1°C) 0.98  25 mm ±0.5°C 0.1°C Within 0.5% F.S. (Min. 2°C) 0.98  25 mm ±0.5°C 1°C Auto-tune PID Controller 45 Minutes 30 minutes °C / °F selectable 230 VAC / 50 Hz 485 x 420 x 190 mm (W x D x H) 14 Kgs Portable, Table-top STANDARD INCLUSIONS      Basic Instrument Mains Cable Spare Fuses Traceable Calibration Certificate Instruction Manual OPTIONAL (ADD-ON) ITEMS     Computer Interface “Caltemp” Calibration Software Contact Thermocouple (to measure cavity temperature) Calibration Certificates are issued in Accordance with our Scope as granted by NABL per ISO/IEC 17025:2017 Standards Manufactured by NAGMAN INSTRUMENTS & ELECTRONICS (P) LTD. Chennai-Bangalore National Highway, Nazarathpet P.O., Chembarambakkam, Chennai – 600 123. INDIA. AN ISO 9001:2015 CERTIFIED COMPANY Domestic Sales Export Sales Phone : 044 – 66777020, 005, 021, 024. Fax : 044 – 66777050. Phone : +91-44-66777006, 008. E-Mail : mktgchennai@nagman.com E-Mail : exports@nagman.com Fax : +91-44-66777050. www.nagman.com Specifications subject to change owing to continuous development. Contact us for latest Datasheet. NIE/TDS/BBSD/01/00 Feb 2021
