Presentation Transcript
fpu struts filter wheel calibration source

FPUStruts, Filter Wheel, Calibration Source

D.Kampf, Dr. Roland Graue

Kayser-Threde GmbH

FPU Struts, Filter Wheel, Calibration Source

fpu suspension
FPU Suspension
  • Mechanical/thermal Decoupling : Isostatic Suspension with 6 Struts
    • X-Translation, Rotation about Z : 3 Struts
    • Z/Y - Translation and Rotation : 1 Strut/2 Struts
  • Dimensions:
    • Cross Section/Length Ratio : 50 mm2/70 mm
  • Material (Baseline) : Stainless Steel for Struts and Fittings
  • Mass (w/o contingency) : 1.5 kg

FPU Struts, Filter Wheel, Calibration Source

photoconductor detector suspension

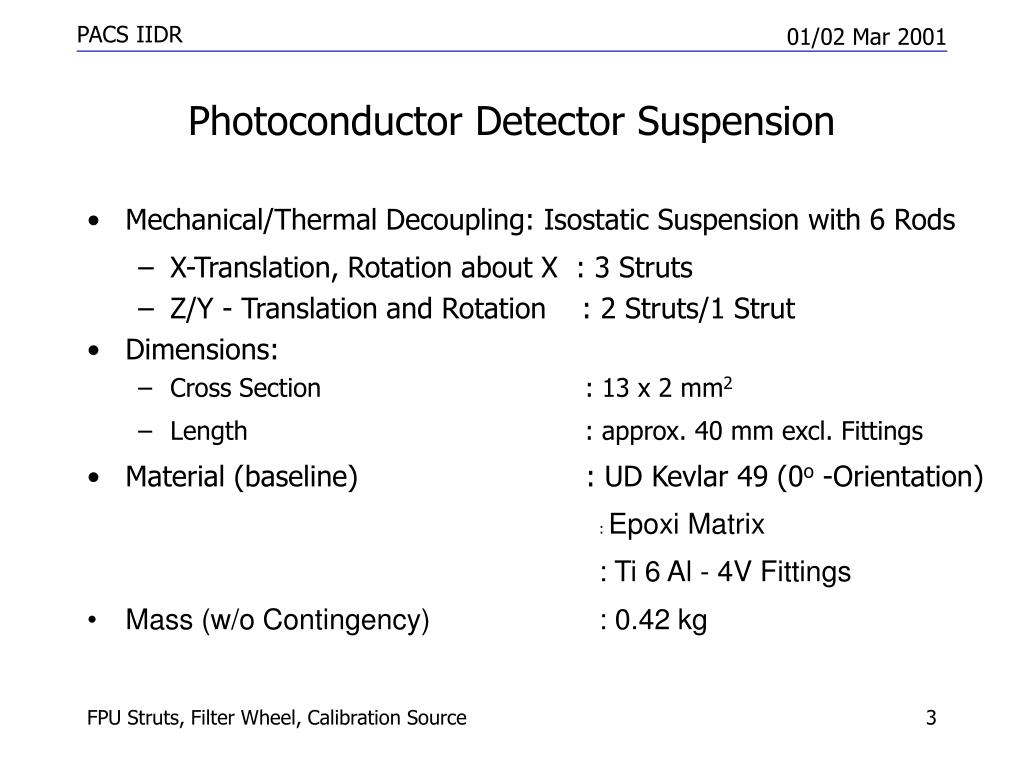

Photoconductor Detector Suspension
  • Mechanical/Thermal Decoupling: Isostatic Suspension with 6 Rods
    • X-Translation, Rotation about X : 3 Struts
    • Z/Y - Translation and Rotation : 2 Struts/1 Strut
  • Dimensions:
    • Cross Section : 13 x 2 mm2
    • Length : approx. 40 mm excl. Fittings
  • Material (baseline) : UD Kevlar 49 (0o -Orientation)

: Epoxi Matrix

: Ti 6 Al - 4V Fittings

  • Mass (w/o Contingency) : 0.42 kg

FPU Struts, Filter Wheel, Calibration Source

filter wheel assembly design

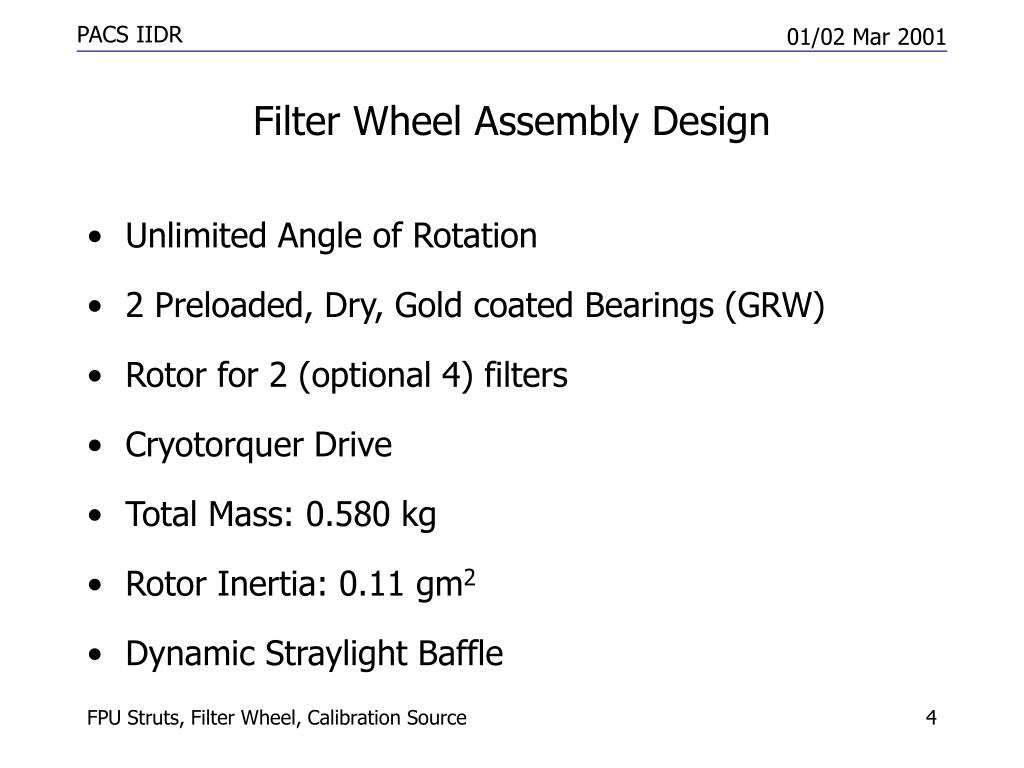

Filter Wheel Assembly Design
  • Unlimited Angle of Rotation
  • 2 Preloaded, Dry, Gold coated Bearings (GRW)
  • Rotor for 2 (optional 4) filters
  • Cryotorquer Drive
  • Total Mass: 0.580 kg
  • Rotor Inertia: 0.11 gm2
  • Dynamic Straylight Baffle

FPU Struts, Filter Wheel, Calibration Source

filter wheel cryotorquer drive

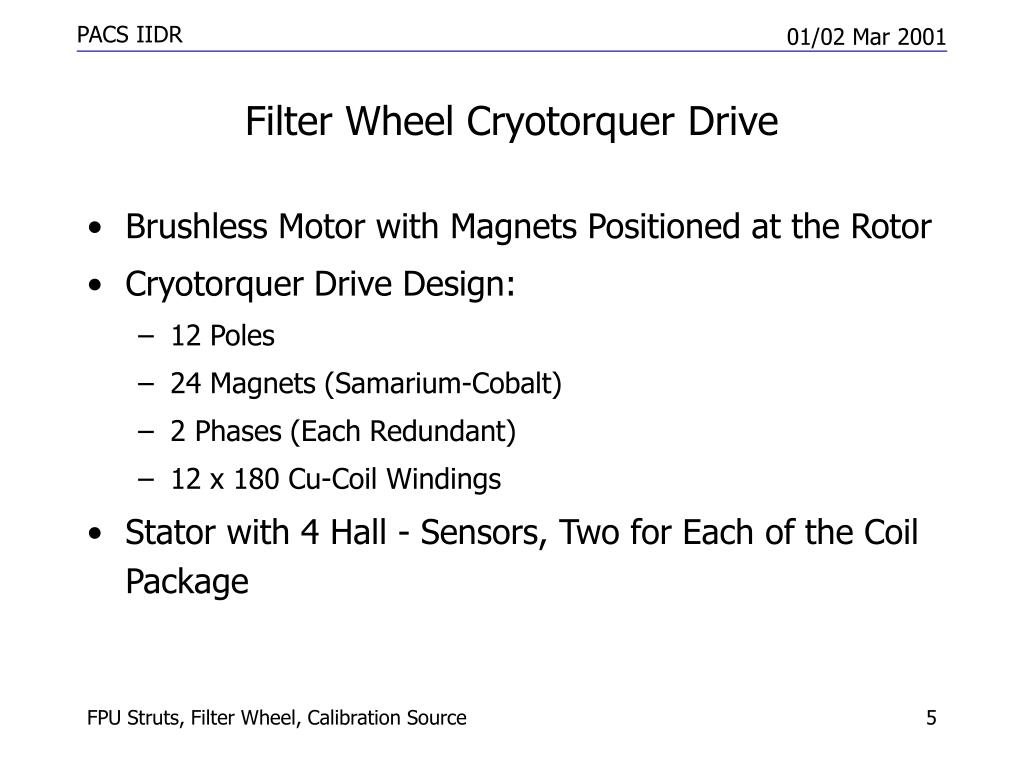

Filter Wheel Cryotorquer Drive
  • Brushless Motor with Magnets Positioned at the Rotor
  • Cryotorquer Drive Design:
    • 12 Poles
    • 24 Magnets (Samarium-Cobalt)
    • 2 Phases (Each Redundant)
    • 12 x 180 Cu-Coil Windings
  • Stator with 4 Hall - Sensors, Two for Each of the Coil Package

FPU Struts, Filter Wheel, Calibration Source

fw assembly

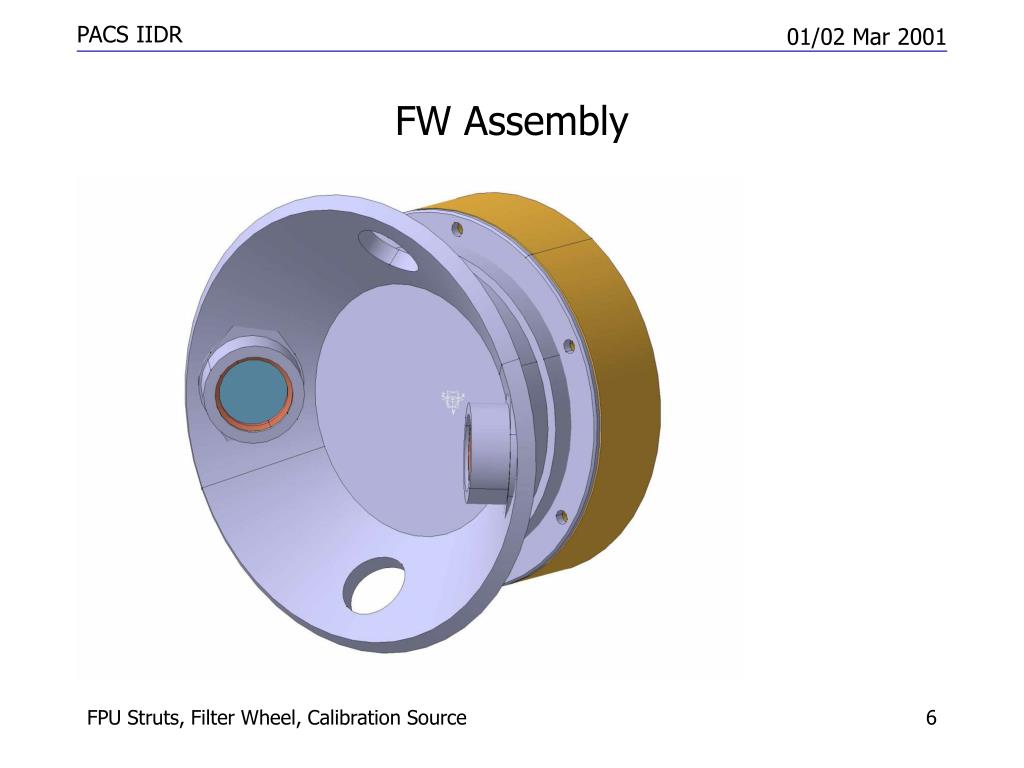

FW Assembly

FPU Struts, Filter Wheel, Calibration Source

fw bearing housing

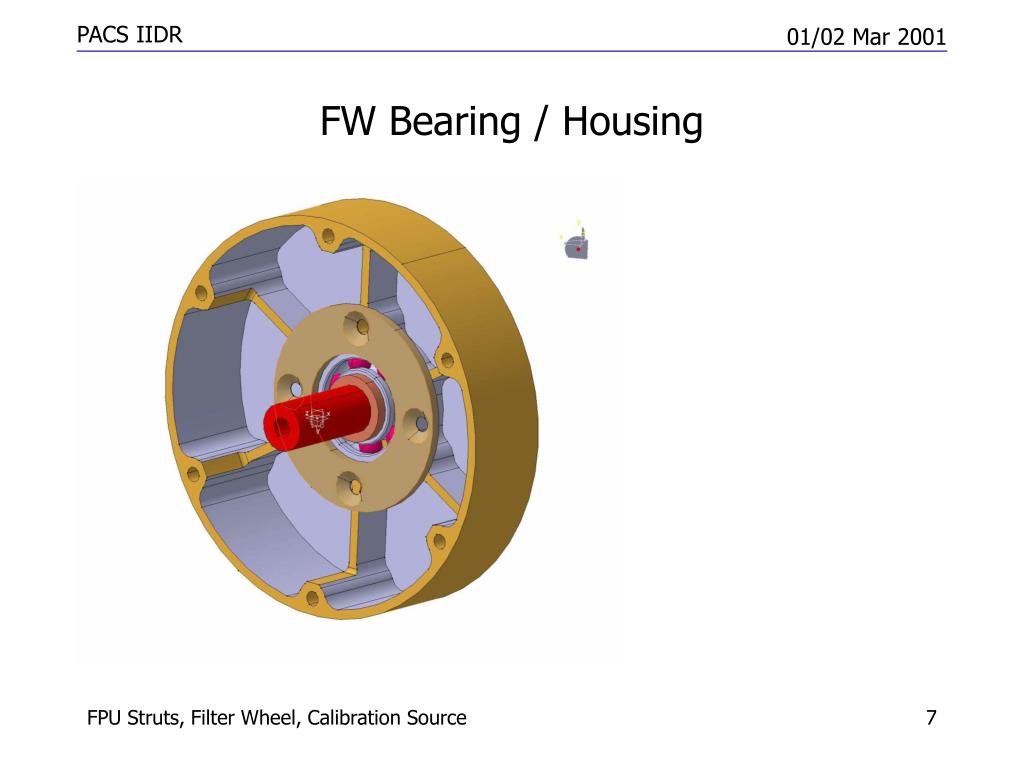

FW Bearing / Housing

FPU Struts, Filter Wheel, Calibration Source

cross section of the motor

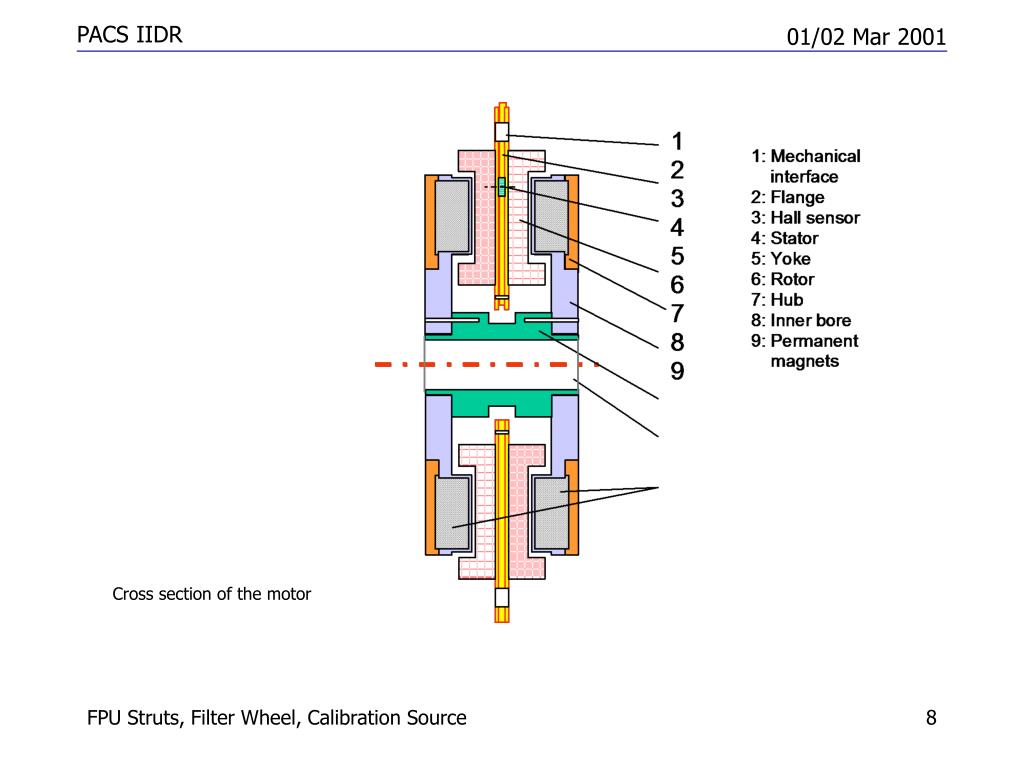

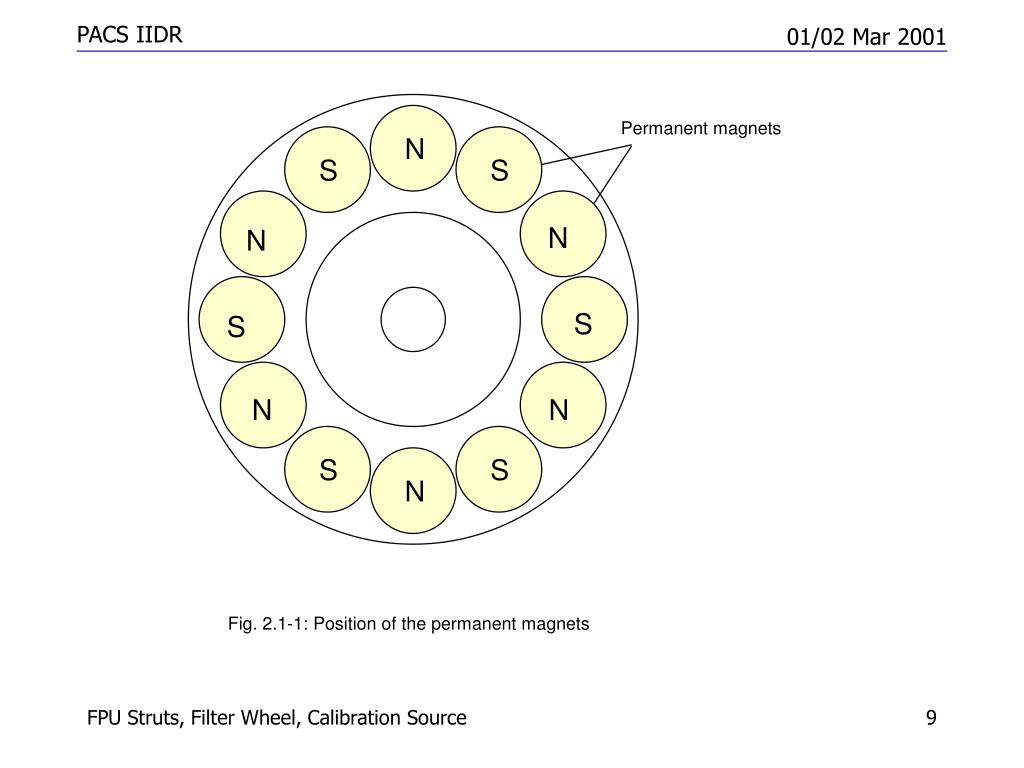

Cross section of the motor

FPU Struts, Filter Wheel, Calibration Source

slide10

Part-winding 1

(Phase 1)

Part-winding 2

(Phase 2)

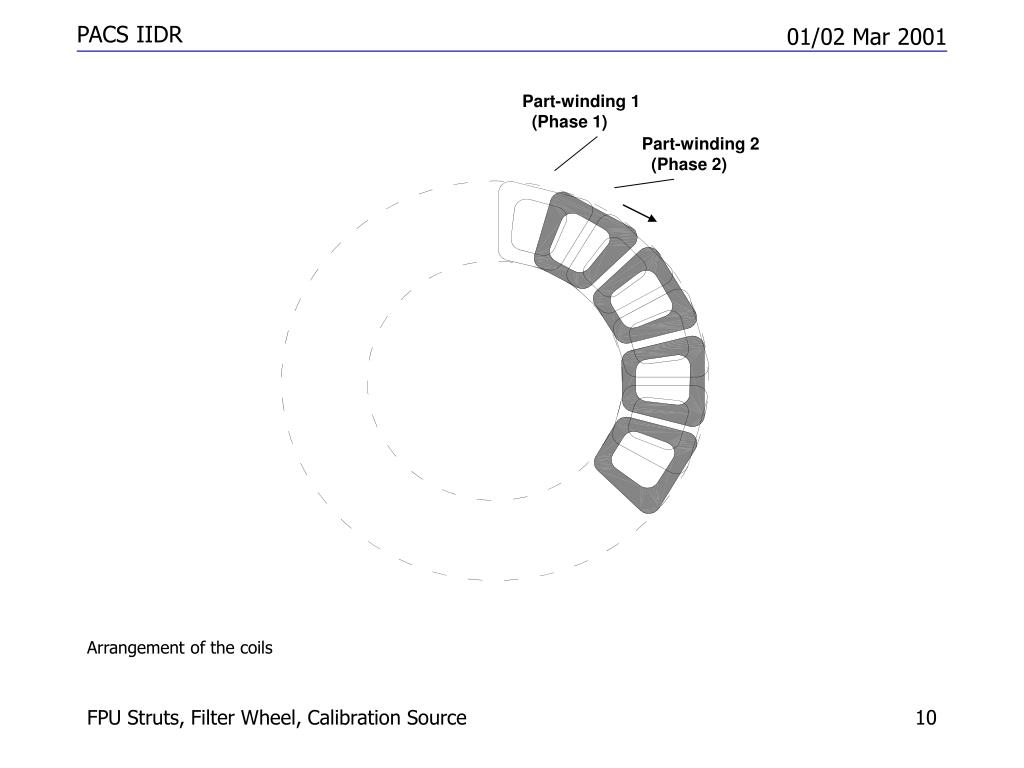

Arrangement of the coils

FPU Struts, Filter Wheel, Calibration Source

slide11

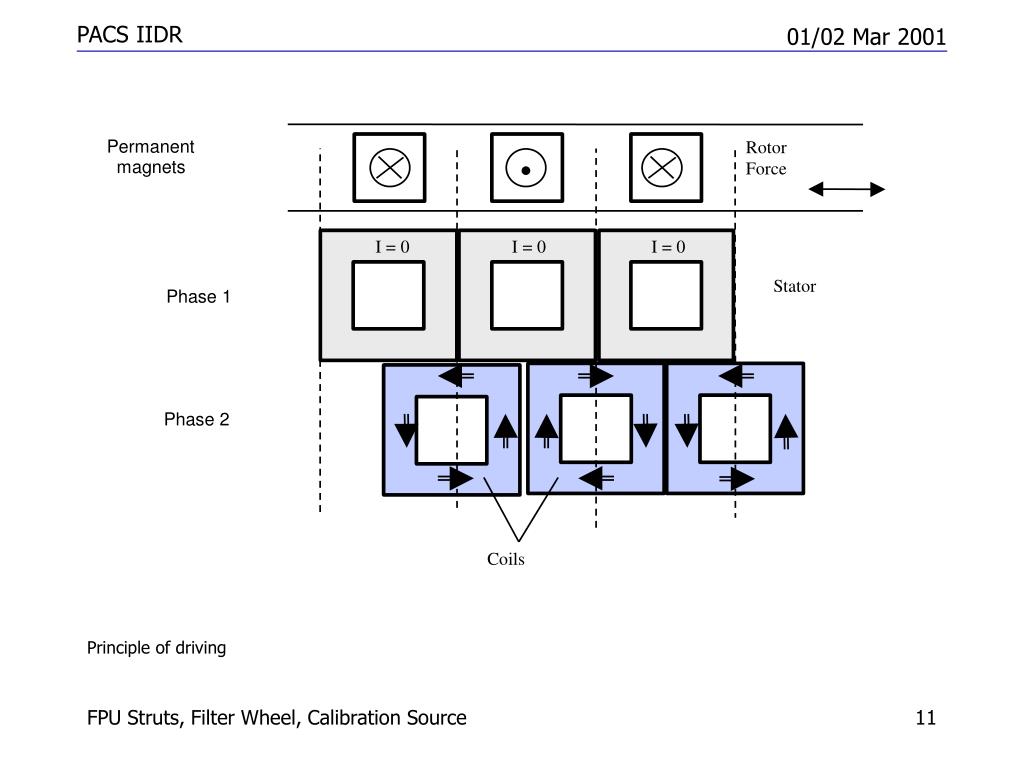

Principle of driving

FPU Struts, Filter Wheel, Calibration Source

slide12

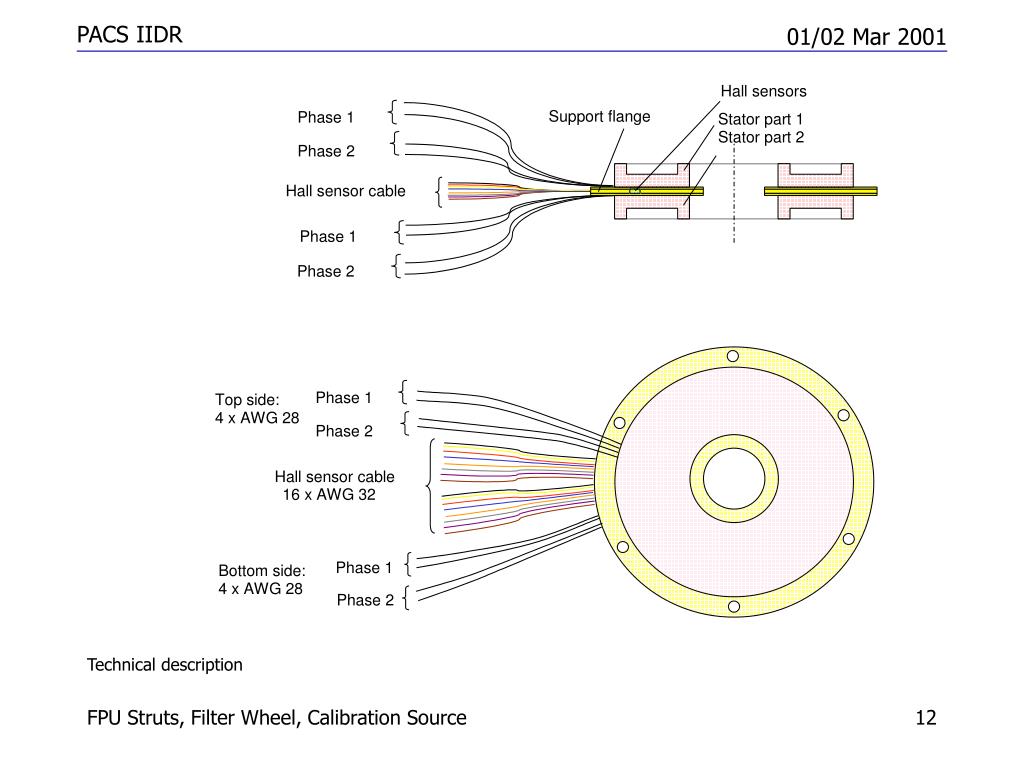

Technical description

FPU Struts, Filter Wheel, Calibration Source

filter wheel cryotorquer drive cont d

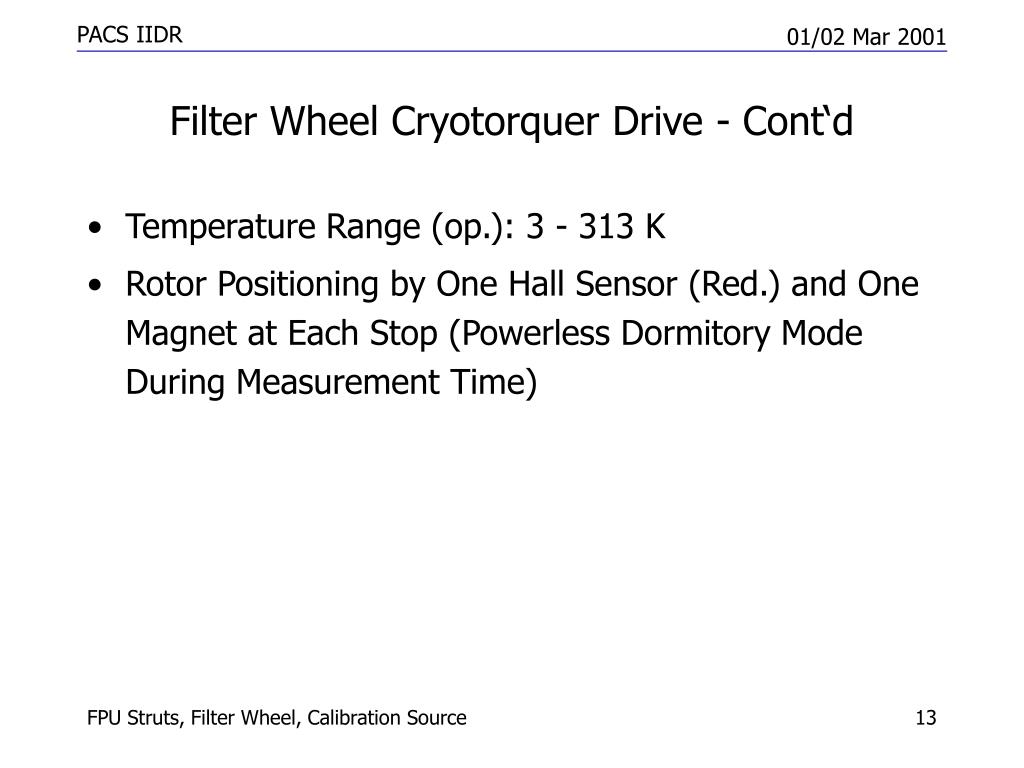

Filter Wheel Cryotorquer Drive - Cont‘d
  • Temperature Range (op.): 3 - 313 K
  • Rotor Positioning by One Hall Sensor (Red.) and One Magnet at Each Stop (Powerless Dormitory Mode During Measurement Time)

FPU Struts, Filter Wheel, Calibration Source

cryotorquer breadboard

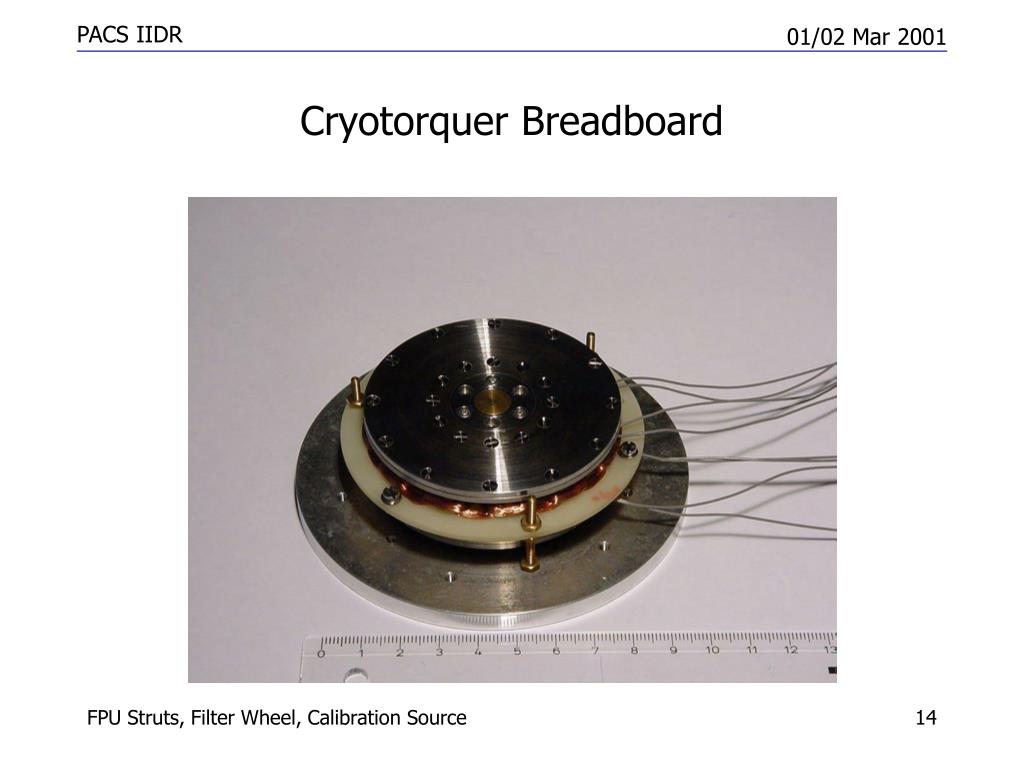

Cryotorquer Breadboard

FPU Struts, Filter Wheel, Calibration Source

filter wheel torquer status

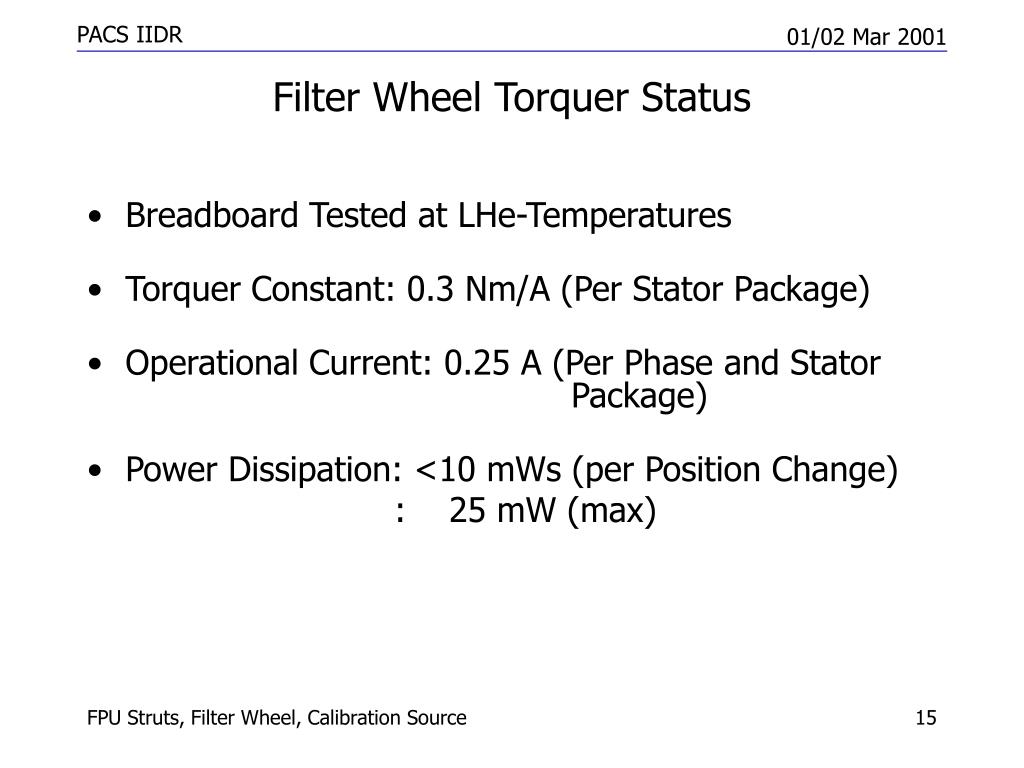

Filter Wheel Torquer Status
  • Breadboard Tested at LHe-Temperatures
  • Torquer Constant: 0.3 Nm/A (Per Stator Package)
  • Operational Current: 0.25 A (Per Phase and Stator Package)
  • Power Dissipation: <10 mWs (per Position Change)

: 25 mW (max)

FPU Struts, Filter Wheel, Calibration Source

filter wheel assembly

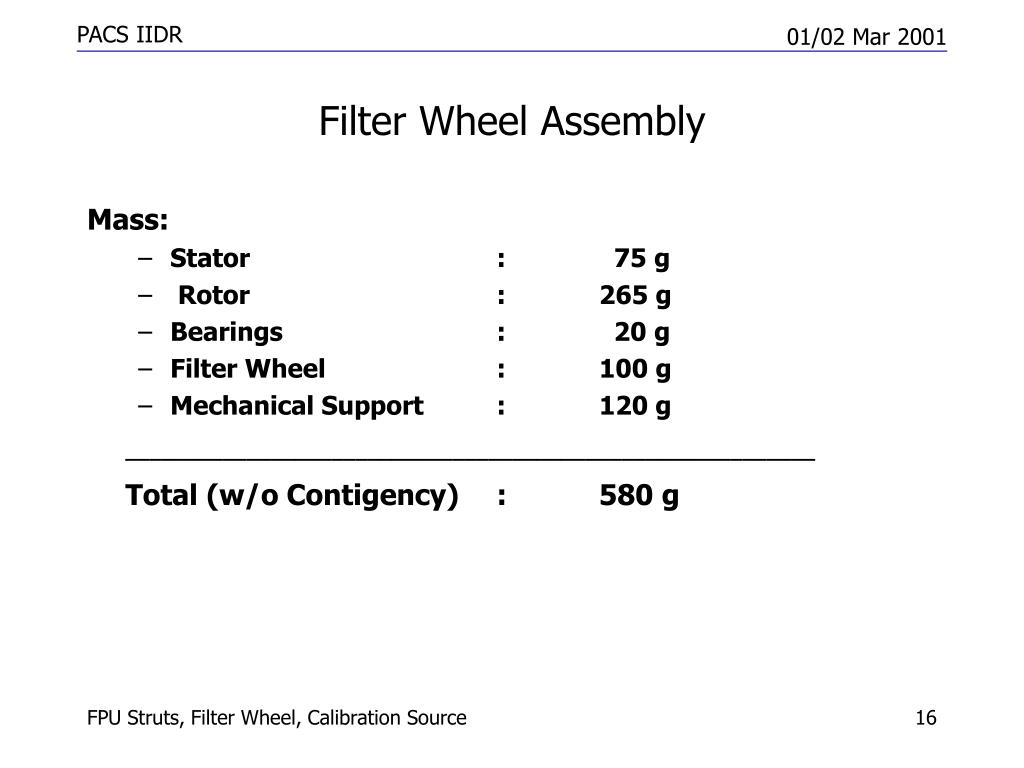

Filter Wheel Assembly

Mass:

  • Stator : 75 g
  • Rotor : 265 g
  • Bearings : 20 g
  • Filter Wheel : 100 g
  • Mechanical Support : 120 g

_________________________________________________________

Total (w/o Contigency) : 580 g

FPU Struts, Filter Wheel, Calibration Source

flow diagram for q tests cryomotor

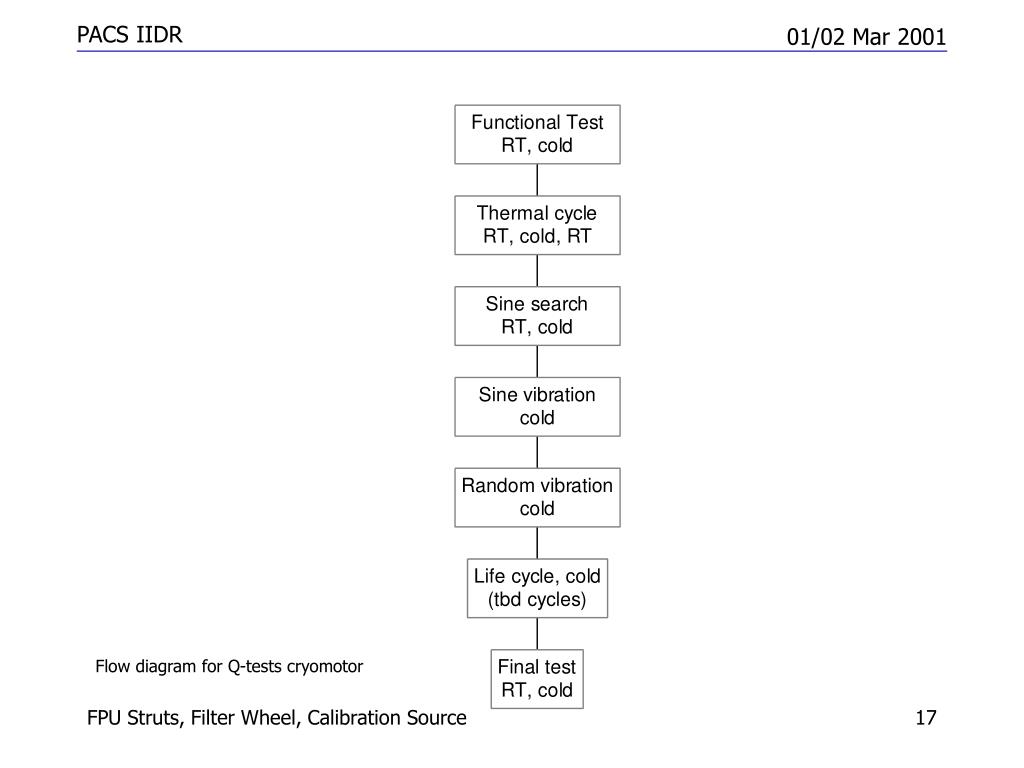

Flow diagram for Q-tests cryomotor

FPU Struts, Filter Wheel, Calibration Source

calibration sources

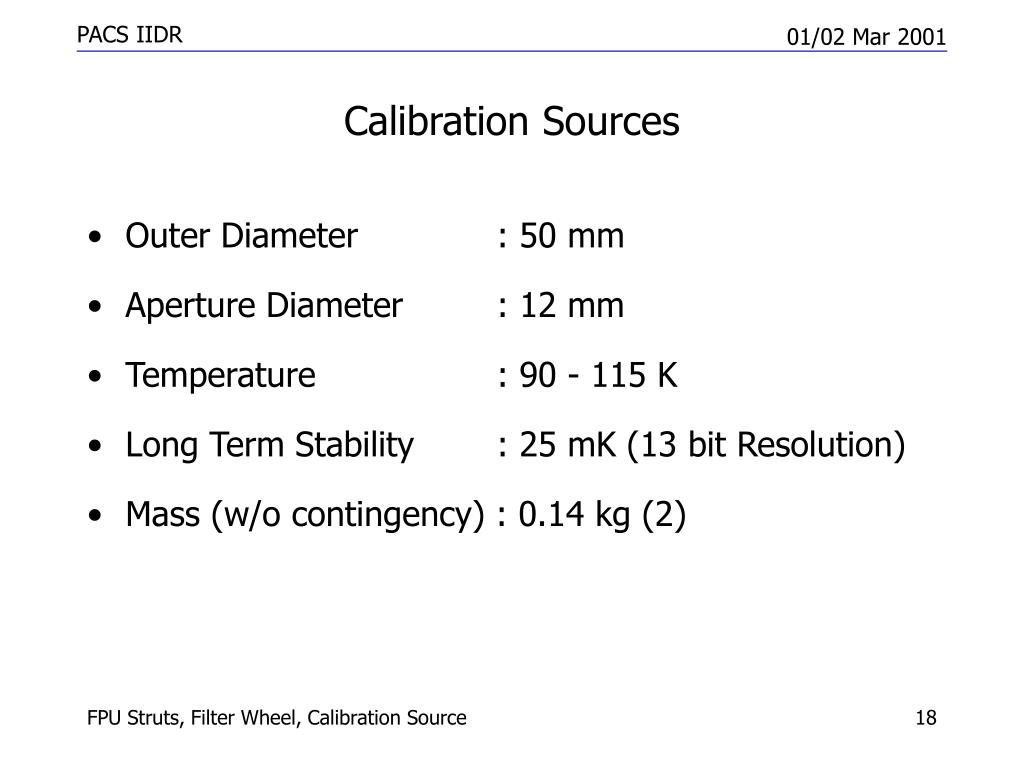

Calibration Sources
  • Outer Diameter : 50 mm
  • Aperture Diameter : 12 mm
  • Temperature : 90 - 115 K
  • Long Term Stability : 25 mK (13 bit Resolution)
  • Mass (w/o contingency) : 0.14 kg (2)

FPU Struts, Filter Wheel, Calibration Source

assembly

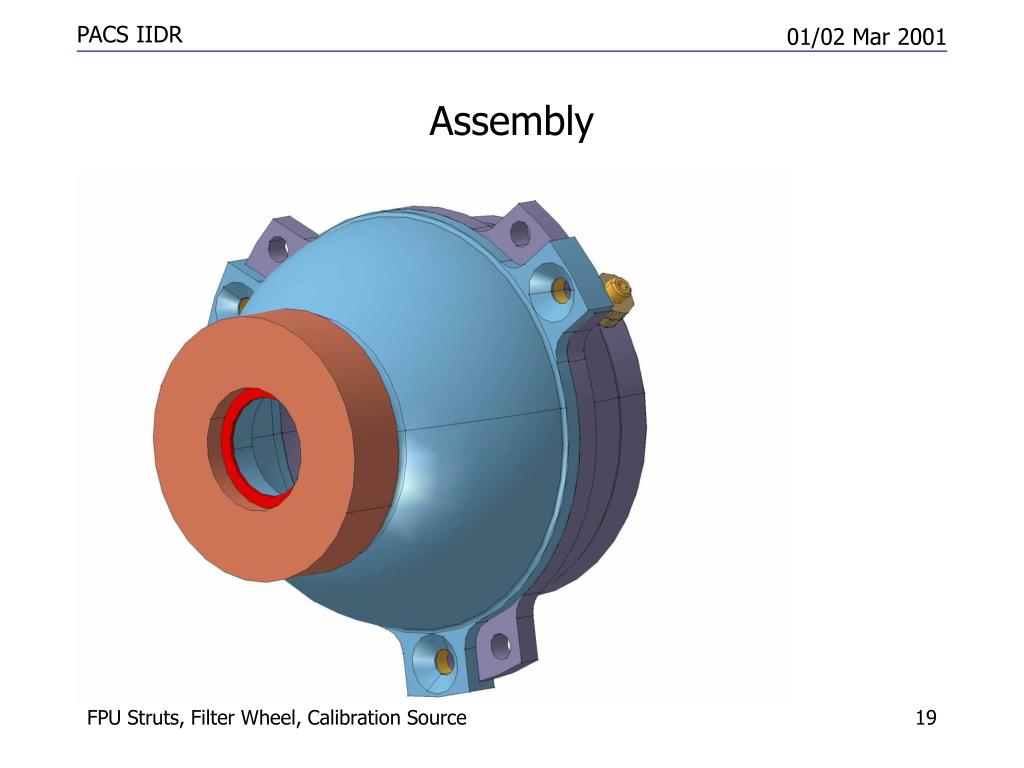

Assembly

FPU Struts, Filter Wheel, Calibration Source

baffle

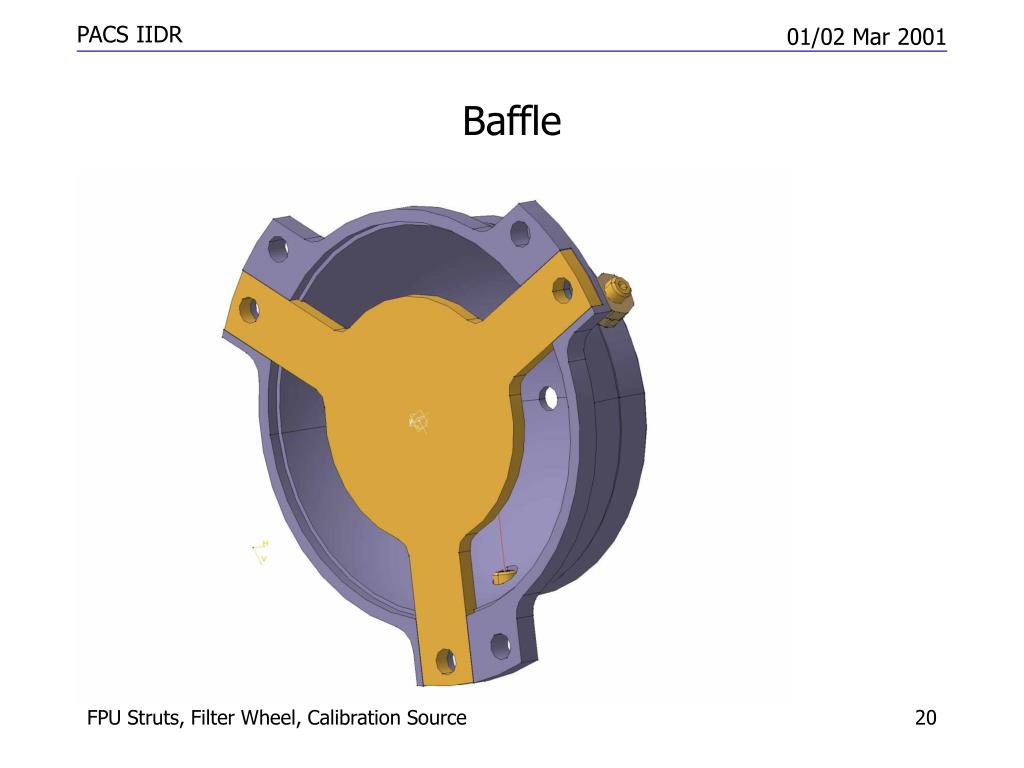

Baffle

FPU Struts, Filter Wheel, Calibration Source

pt500 1000 suspension

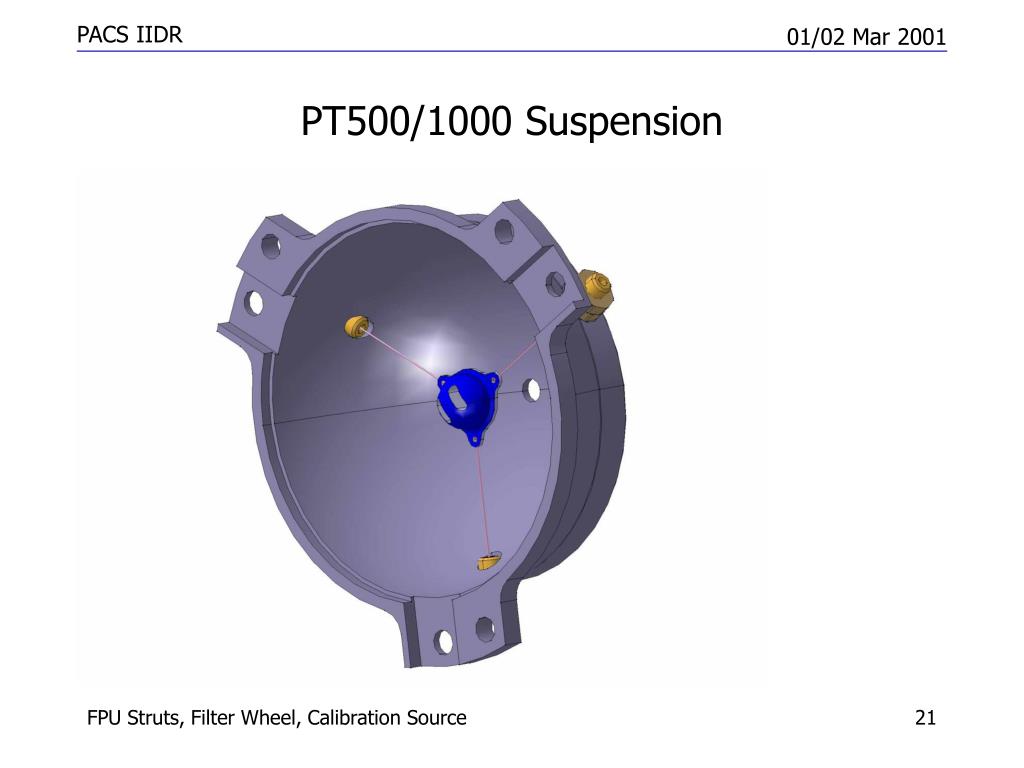

PT500/1000 Suspension

FPU Struts, Filter Wheel, Calibration Source

calibration source design

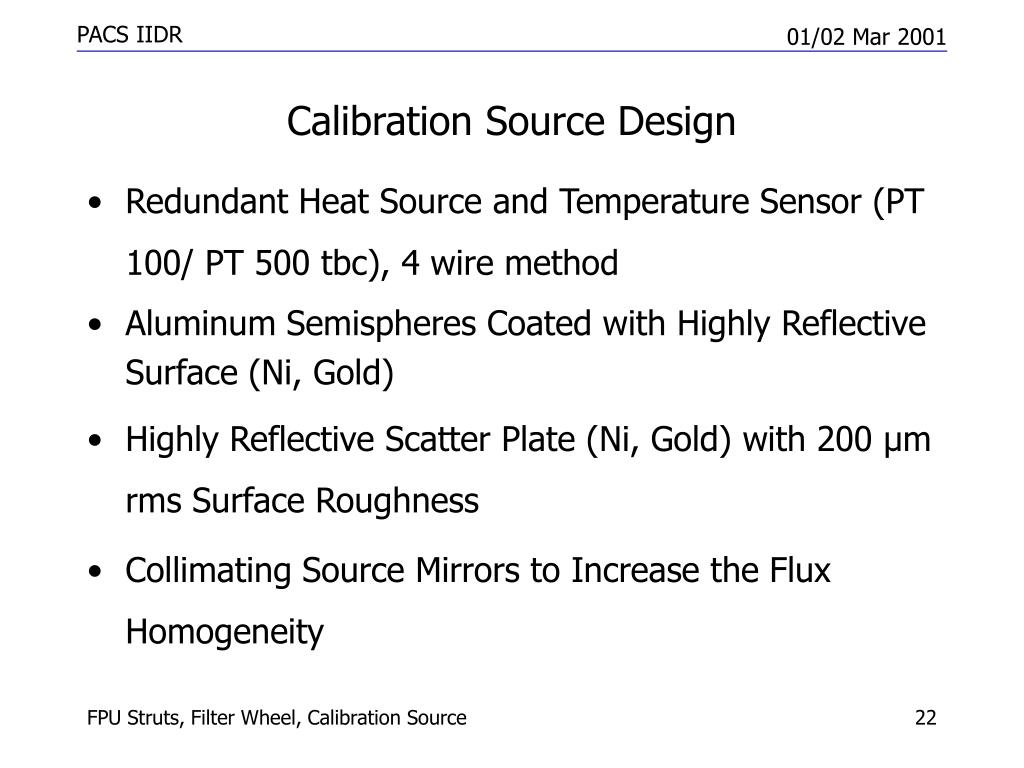

Calibration Source Design
  • Redundant Heat Source and Temperature Sensor (PT 100/ PT 500 tbc), 4 wire method
  • Aluminum Semispheres Coated with Highly Reflective Surface (Ni, Gold)
  • Highly Reflective Scatter Plate (Ni, Gold) with 200 µm rms Surface Roughness
  • Collimating Source Mirrors to Increase the Flux Homogeneity

FPU Struts, Filter Wheel, Calibration Source

icd status

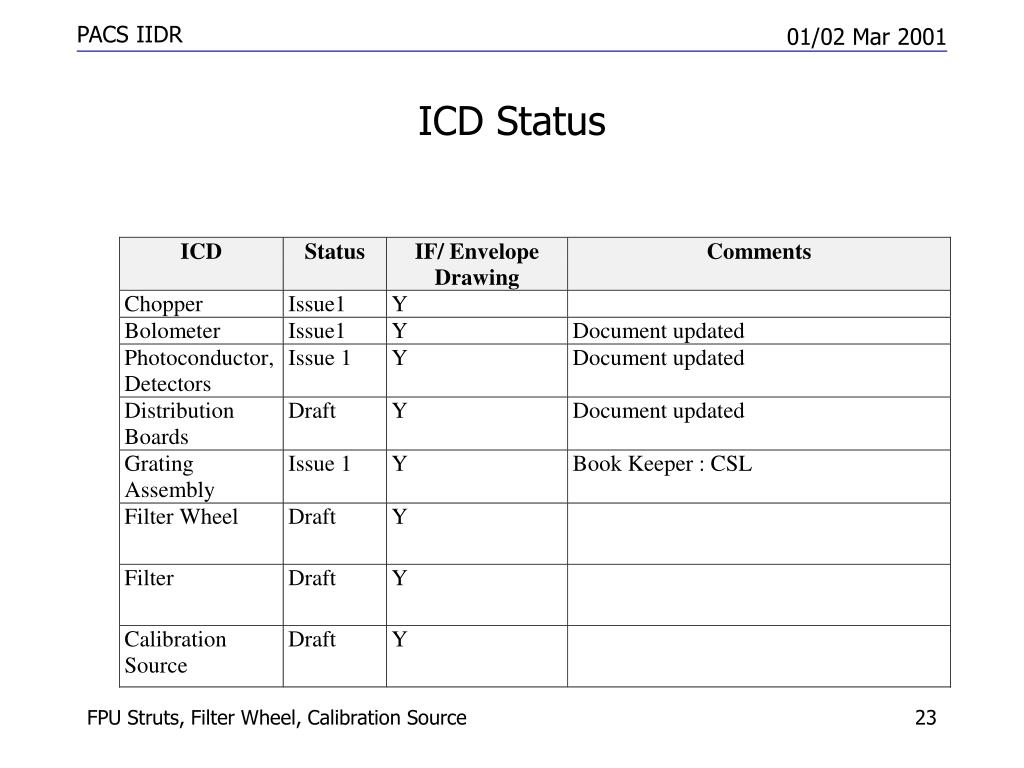

ICD Status

FPU Struts, Filter Wheel, Calibration Source
