  1. WIKA Calibration Line Calibration instruments - Temperature Can be used as reference temperature standards High-End PT100 and thermocouple thermometers < ± 20 ppb Temperature Calibrator Accuracy pyramid Industrial solution Bathes. Dry wells, Multi Temperature Hand-Helds Portable solution ≥ 0.05 °C

  2. Temperature Program • CPT1000 & others • Reference standards • CTD9300 & others • Dry well calibratiors Features & Benefits • CTM9100 • Multi function calibrator • CTB9430 & others • Calibration baths

  3. Temperature Hand-held application Precise temperature measurement Service industry Instrument and control workshops Industry (laboratory, workshop and production) Quality assurance Calibration laboratories

  4. Temperature Temperature dry well calibrators Calibration thermocouple Calibration resistance thermometer General handling

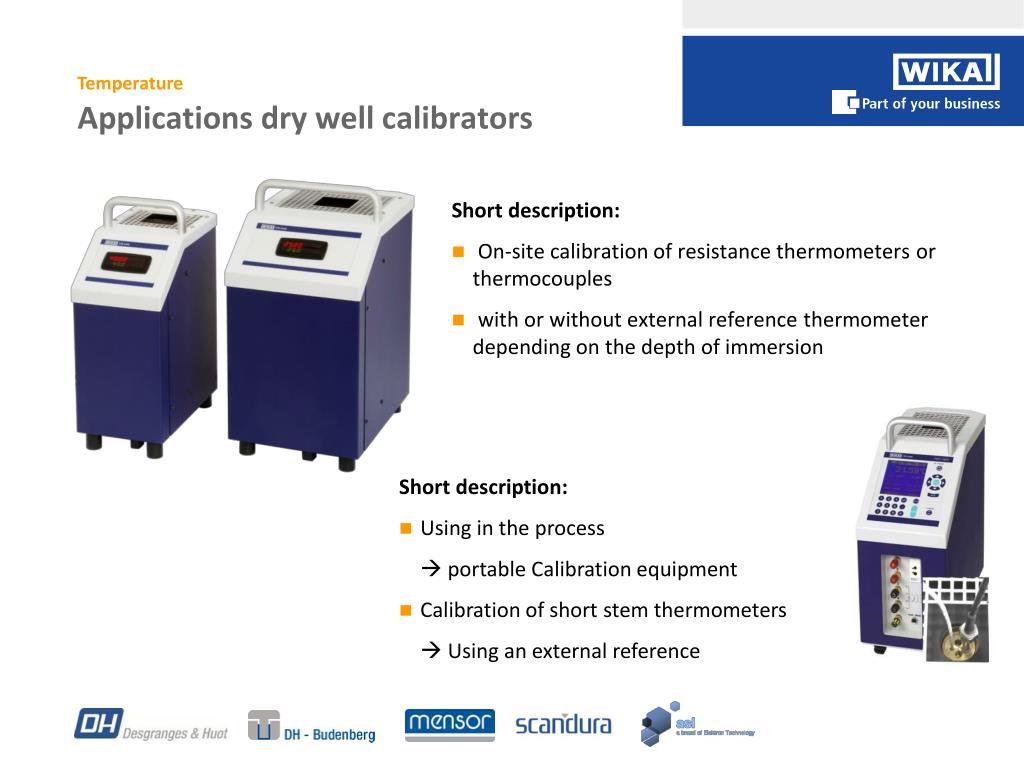

  5. Temperature Applications dry well calibrators • Short description: • Using in the process  portable Calibration equipment • Calibration of short stem thermometers  Using an external reference Short description: • On-site calibration of resistance thermometers or thermocouples • with or without external reference thermometer depending on the depth of immersion

  6. Temperature 干井式温度校验仪Temperature dry well calibrator CTD9300-165 CTD9300-650 • Temperature range -35⁰C to +165⁰C by Peltier elements • Temperature range +40⁰C to 650⁰C by resistance heating • Accuracy down to ± 0.1K, resolution 0.01K • Immersion depth 150mm • Heating up time 12min from 20 ⁰C to 165 ⁰C • Temperature ramp function • Automated calibration • Integratable measuring instrument for RTD, TC, mA & thermostats • Dry block temperature is user adjustable by a 6 points calibration Data sheet CT41.38

  7. Temperature 干井式温度校验仪Temperature dry well calibrator CTD9100-COOL • Temperature range -55⁰C to +650⁰C • Accuracy from 0.15 to 0.8K • Stability: 0.01…0.05K • Immersion depth: 150mm Tell me more…

  8. Temperature Compact temperature dry well calibrator CTD9100-375 CTD9100-ZERO CTD9100-1000 • Measuring range: Tamb to 375⁰C • Accuracy 0.2K • Stability 0.05K • Immersion depth: 100mm

  9. Temperature Temperature micro calibration bath portfolio

  10. Operating model: CTB9100 • Operating elements: • Store up to four set points • Select the saved temperature with U (long) • Change the temperature value with P (short) • Adjustment wheel for the velocity of the stirrer • Recommendation for an optimal calibration: • Adjust the velocity of the stirrer acc. to the liquid • Attention on the filling height (level indicator tool)

  11. Micro calibration bath CTB9100-165 CTB9100-225 • Temperature range -35⁰C to +225⁰C • Accuracy from 0.2 to 0.3K • Stability: ± 0.05K • Short heating and cooling times Tell me more…

  12. Temperature Temperature micro calibration bath applications • Calibration of short stem thermometers • Calibration of thermometer with a big diameter

  13. Temperature CEP 3000 applications 1) 2) • Transmitter Calibration (Simulate) • Thermometer Calibration (Measure)

  14. Multi-function calibrator CTM9100-150 • Temperature range -20⁰C to +150⁰C • Accuracy from 0.3 to 1K depending on the application • Immersion depth: 150mm • 4 in one: • dry well • micro-calibration bath • infrared calibrator • surface calibrator

  15. Temperature Temperature multifunctional calibrator portfolio

  16. Operating Manual: CTM9100CTM9100-150 • Operating elements: • Store up to four set points • Select the saved temperature with U (long) • Change the temperature value with P (short) • Adjustment wheel for the velocity of the stirrer • Recommendation for an optimal calibration: • use the correct operating mode incl. Int./ext. Reference • Minimum immersion depth 70 mm (dB) • Adjust the velocity of the stirrer acc. to the liquid (li) • Stabilization time of the device under test

  17. Temperature Temperature multifunctional calibrator portfolio DB ir li su

  18. Conclusion The shorter the probe the more difficult is the calibration in a dry well because of the axial gradient! The bigger the process connection the bigger must be the volume of the bath! Pay attention by using liquids! (Look at your guidelines)

  19. Infrared Calibrator CTI5000 • Measuring range: 50⁰C to 500⁰C • Accuracy 1K • Stability 0.1 … 0.4K • Large diameter of measuring surface

  20. Key customers
