  1. ABC : Adaptive Binary Cuttings for Multidimensional Packet Classification Publisher : TRANSACTIONS ON NETWORKING Author : Haoyu Song, Jonathan S. Turner Presenter : Yu-Hsiang Wang Date : 2012/05/09

  2. Outline • Observations • Algorithm Description • Algorithm Optimizations • Performance Evaluation

  3. Observations • In HiCuts and HyperCuts, a global expansion factor may not be suitable for all nodes. Bucket Size cannot guarantee either throughput or storage. • Our goal is to make the “optimal” decisions that consistently improve the throughput until the given storage is used up.

  4. Algorithm Description • DT : Decision Tree • CST : Cutting Shape Tree • CSB : Encode each CST with a Cutting Shape Bitmap.

  5. Algorithm Description • ABC Variation I • The maximum number of cuttings is constrained by the DT node size. • Choose one of the subregions produced so far and split it into two equal-sized subregions along a certain dimension until we run out of space in the DT node.

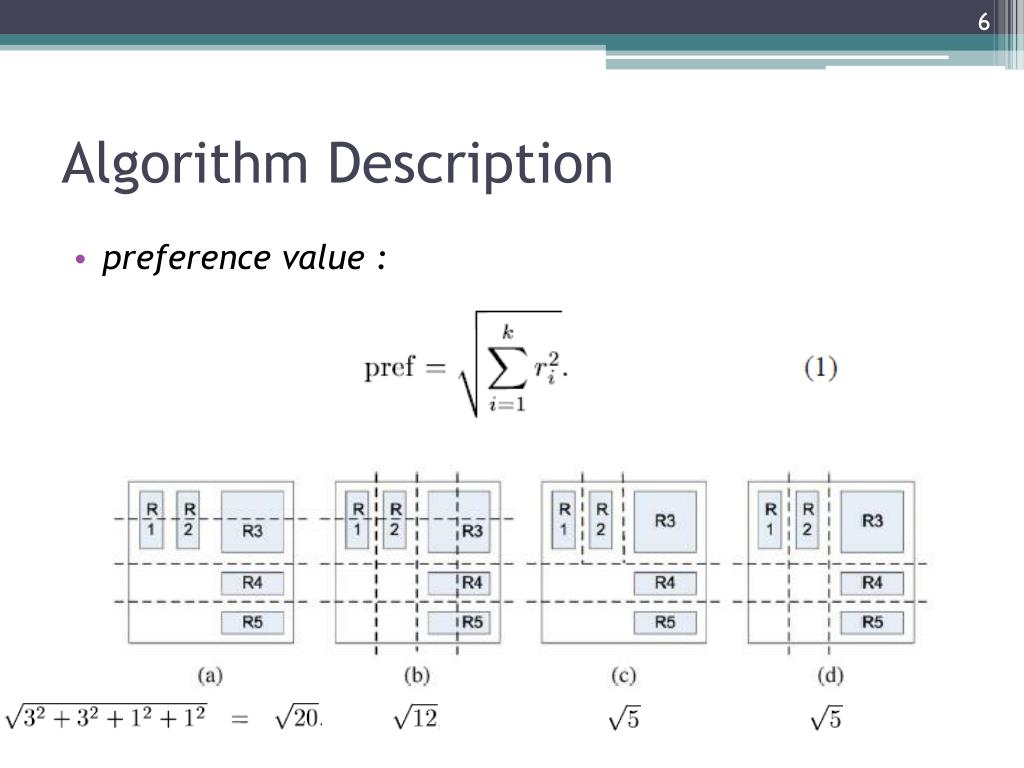

  6. Algorithm Description • preference value :

  7. Algorithm Description • If the current number of leaf nodes is less than k, we choose one leaf node to cut on a specific dimension. • Our goal is to find the leaf node i and the dimension d that can minimize the preference value.

  8. Algorithm Description i : current index in CSB j: the current index in CDV. Next index i’ in CSB is Next index j’ in CDV is

  9. Algorithm Description • ABC Variation II • Generate up to D separate CSTs, each for one dimension.

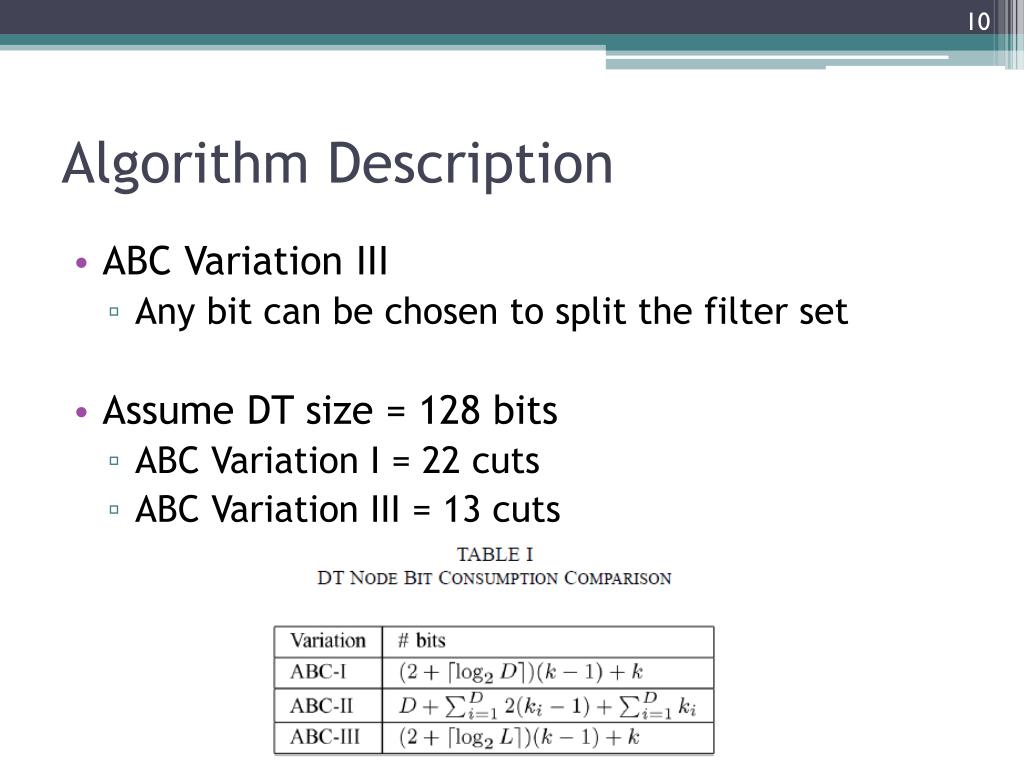

  10. Algorithm Description • ABC Variation III • Any bit can be chosen to split the filter set • Assume DT size = 128 bits • ABC Variation I = 22 cuts • ABC Variation III = 13 cuts

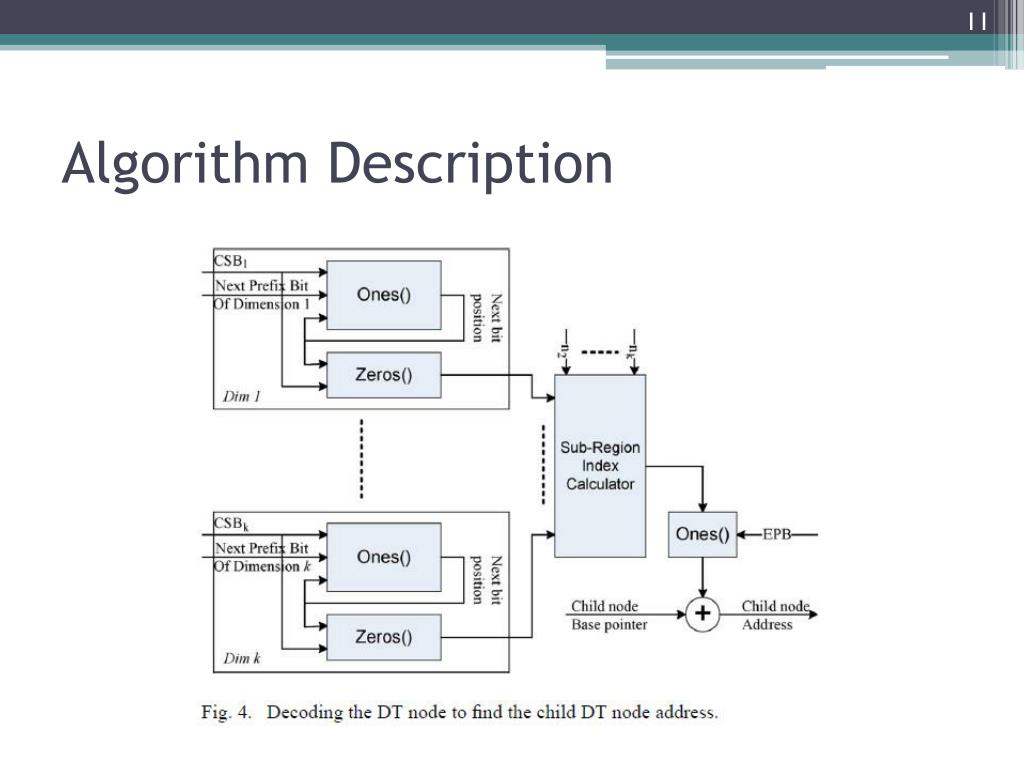

  11. Algorithm Description

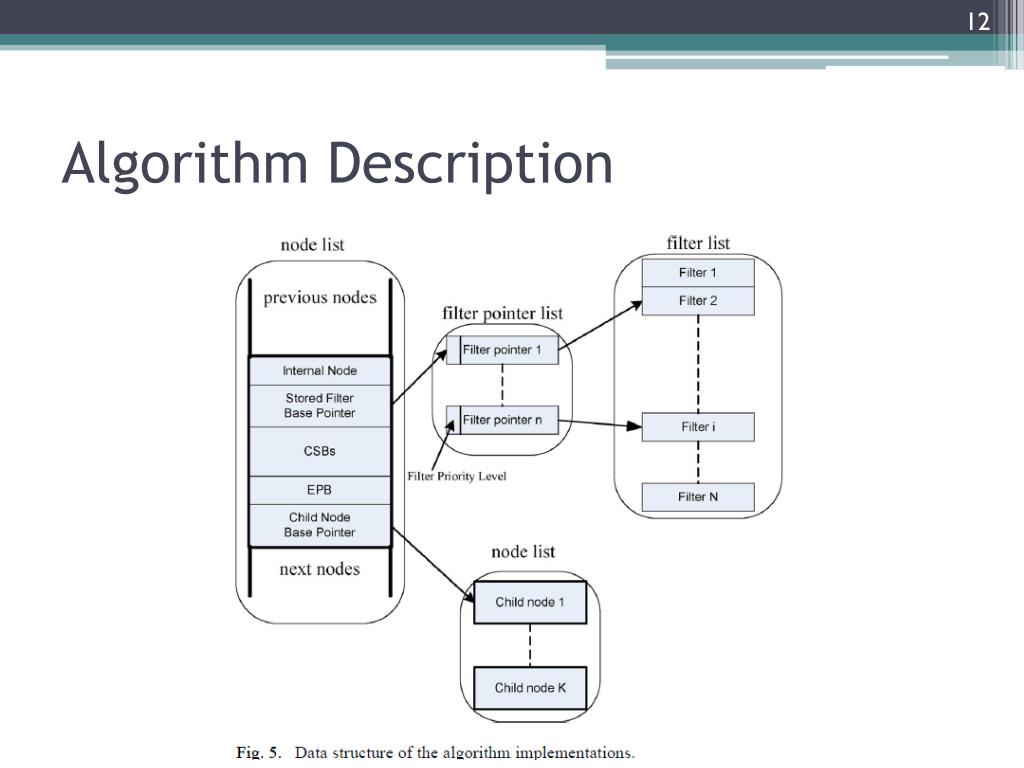

  12. Algorithm Description

  13. Algorithm Optimizations • Reduce Filters Using a Hash Table. • Filter Partition on the Protocol Field. • Partitioning Filters Based on Duplication Factor. • Holding Filters Internally and Reversing Search Order.

  14. Performance Evaluation • Performance : bytes retrieved per lookup • Scalability on Filter Set Size

  15. Performance Evaluation

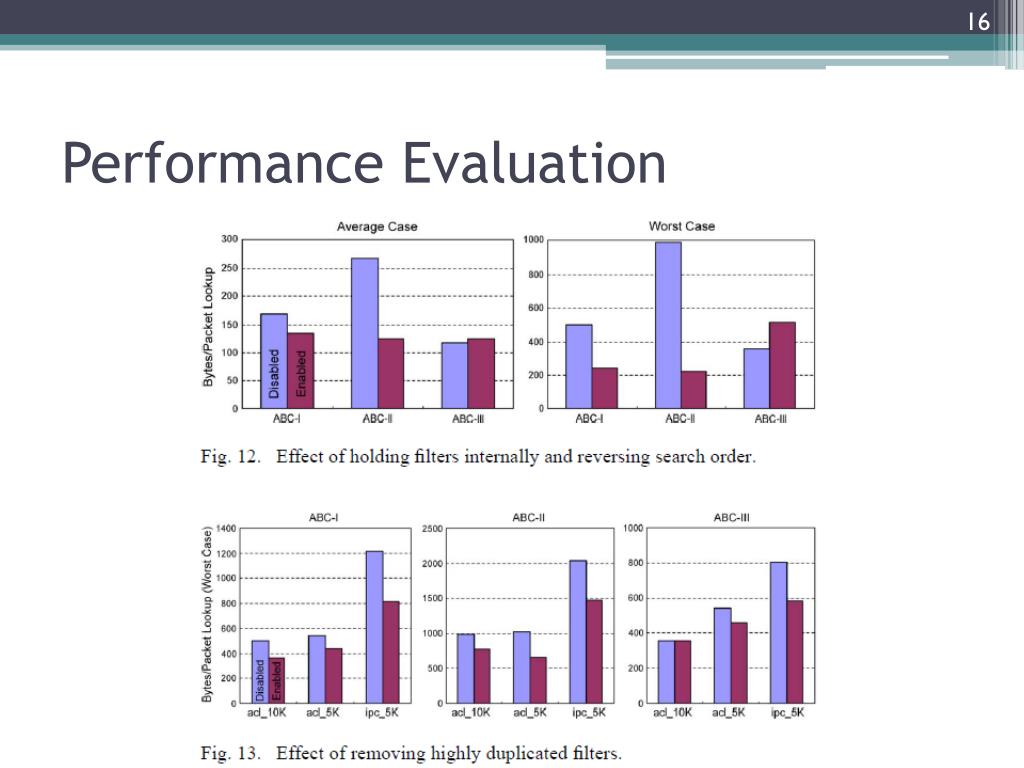

  16. Performance Evaluation

  17. Performance Evaluation
