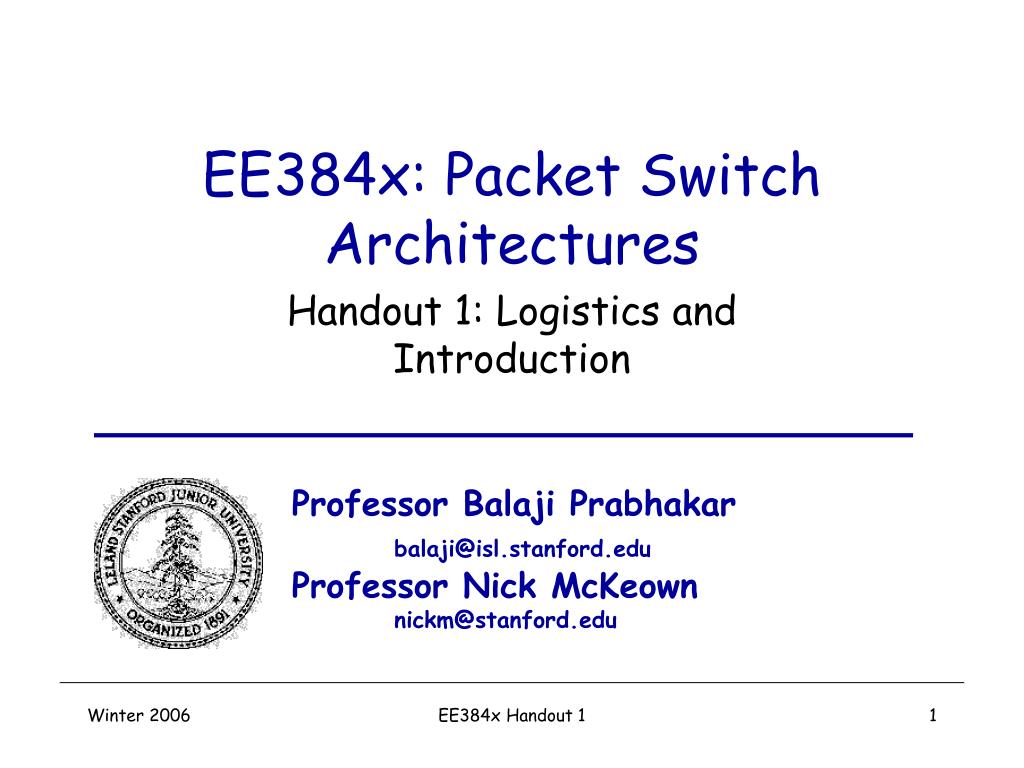

EE384x: Packet Switch Architectures

Handout 1: Logistics and Introduction

Professor Balaji Prabhakar

balaji@isl.stanford.edu

Professor Nick McKeown

nickm@stanford.edu

EE384x Handout 1

outline
Outline

This two course sequence is about the theory and practice of designing packet switches and Internet routers.

  • Introduction: What is a packet switch? The evolution of Internet routers, their basic architectural components, and some example architectures.
  • Part I: Output Queued Switches (Emphasis on Deterministic Analysis)OQ as the simplest and ideal architecture.Output queueing and shared-memory switches. Packet arrival processes: (s,r)-constrained arrivals, leaky buckets, Bernoulli arrivals, bursty arrivals, adversaries.Providing bandwidth and delay guarantees, scheduling, fairness, Fair-Queueing, Generalized Processor Sharing and Deficit Round Robin.Practical difficulties: When output queued switches are impractical.Memory bandwidth and capacity scaling. Some approaches: Emulating output queued switches. Parallel packet buffers as standalone shared memory, with design examples. Routers with a single stage of buffering and constraint sets, Parallel Shared Memory Routers, Distributed Shared Memory Routers, and Parallel Packet Switches. Output link scheduling in a Distributed Shared Memory router. Combined input and output queued (CIOQ) switches, stable marriage matchings.

EE384x Handout 1

outline3
Outline
  • Part II: Input Queued Switches (Emphasis on Probabilistic Analysis).What is an input-queued (IQ) switch?Definition of IQ switch with single FCFS queue. Switching fabrics, crossbars. Head of line blocking. The balls and bins model. Proof of Karol's 2-sqrt(2) (58%) result. Virtual output queues and crossbar schedulers. Bipartite Matchings: Maximum Sized Matchings, Maximum Weight Matchings, maximal matchings. Definitions of 100% throughput. When traffic is uniform: simple RR and random matchings. When traffic matrix is known: Birkhoff- von Neuman decomposition. When traffic is not known: heuristics. PIM, iSLIP, WFA.
  • Fundamentals (Review Sessions): Introduction to probability, Poisson process, Discrete and Continuous-time Markov chains. Basic queueing theory: M/M/1, M/G/1, Little’s result, PASTA.

EE384x Handout 1

outline ee384y
Outline EE384y
  • Part II: Input Queued Switches (Continued).Intro to Lyapunov functions, proof that max weight matching gives 100% throughput.Some case studies: The Tiny Tera architecture. The Cisco GSR 12000.
  • Part III: Other Switch ArchitecturesBuffered crossbars. Scaling crossbars and parallelism. Multistage switches: Clos networks, 2-stage switches (random and deterministic).
  • Part IV: Other Switch FunctionsAddress Lookup: Exact matches, longest prefix matches, performance metrics, hardware and software solutions. Packet Classification: For firewalls, QoS, and policy-based routing; graphical description and examples of 2-D classification, examples of classifiers, theoretical and practical considerations.
  • Special topics.
  • Project presentations.

EE384x Handout 1

some logistics
Some logistics

Web page: http://www.stanford.edu/class/ee384x

Course assistant:

Denise Murphy – denise@ee.stanford.eduPackard 267; Tel: (650) 723-4731

TAs:

Mohsen Bayati bayati@stanford.edu

Nandita Dukkipati nanditad@stanford.edu

Grades:

You need to sign up with “eeclass” on the EE384x web page.

EE384x Handout 1

more logistics
More Logistics

Prerequisite

  • EE284/CS244A and familiarity with probability.

Useful

  • Stats 116 (or EE178, EE278) and CS161

Papers

  • URLs to all the papers are on the eeclass web page.

Grading

  • (40%) 5 Problem sets
  • (10%) Several surprise quizzes
  • (20%) In-class midterm exam (February 21)
  • (30%) Final exam (Thursday March 23, 3:30 - 6:30 PM)

SITN Students

  • Same schedule as in-class students
  • Fax your assignment to us: (650) 618-1938

All deadlines are hard!

EE384x Handout 1

an introduction the class starts here
An IntroductionThe class starts here!

Background

  • What is a router?
  • Why do we need faster routers?
  • Why are they hard to build?

Architectures and techniques

  • The evolution of router architecture.
  • IP address lookup.
  • Packet buffering.
  • Switching.

EE384x Handout 1

what is routing

D

R3

R1

R4

D

A

B

E

R2

C

R5

Destination

Next Hop

F

D

R3

E

R3

F

R5

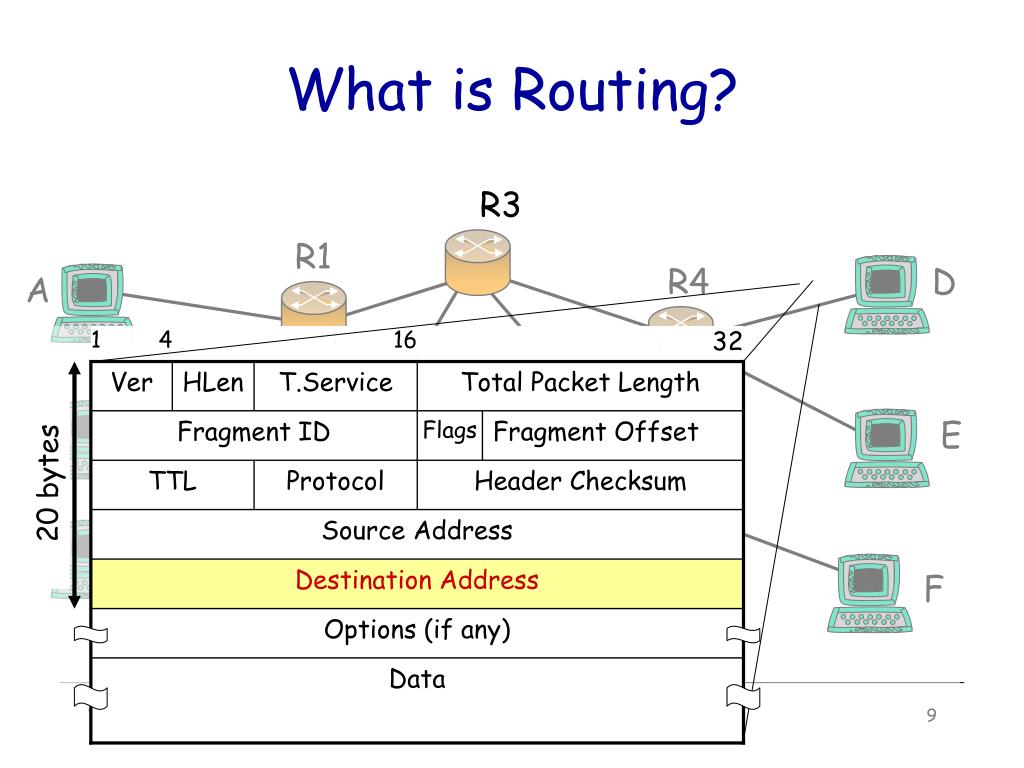

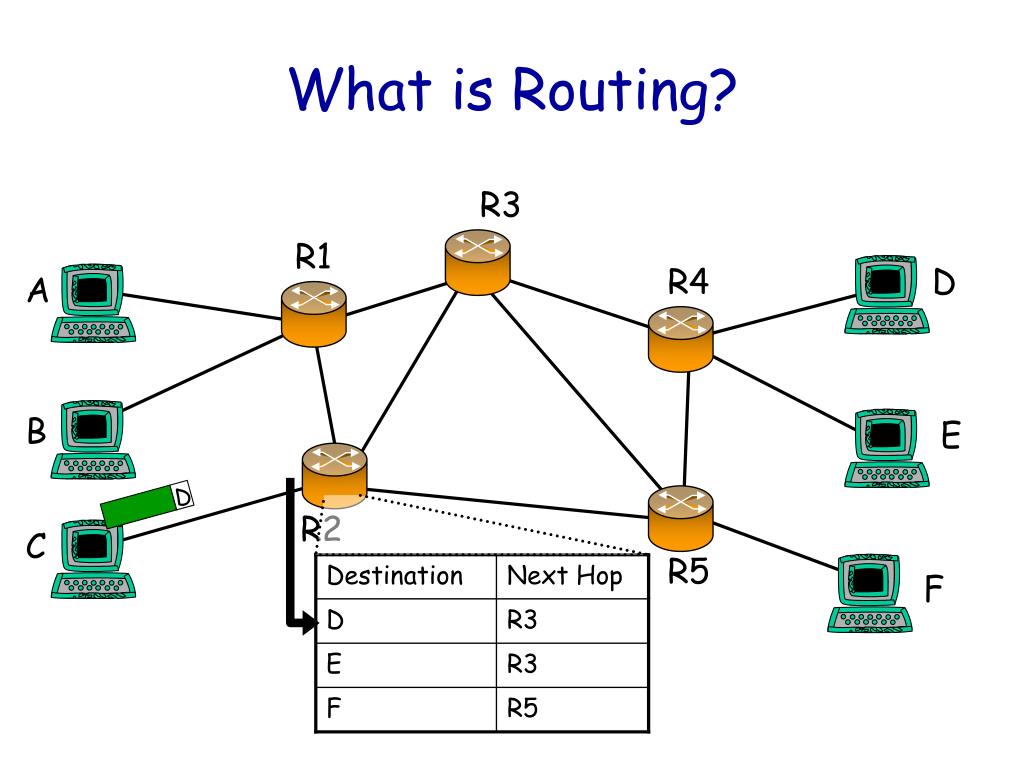

What is Routing?

EE384x Handout 1

what is routing9

R3

R1

R4

D

A

1

4

16

32

D

Ver

HLen

T.Service

Total Packet Length

Fragment ID

Flags

Fragment Offset

B

E

TTL

Protocol

Header Checksum

20 bytes

Source Address

R2

C

R5

Destination Address

Destination

Next Hop

F

D

R3

Options (if any)

E

R3

Data

F

R5

What is Routing?

EE384x Handout 1

what is routing10

R3

R1

R4

D

A

B

E

R2

C

R5

F

What is Routing?

EE384x Handout 1

points of presence pops

POP3

POP2

POP1

D

POP4

A

B

E

POP5

POP6

C

POP7

POP8

F

Points of Presence (POPs)

EE384x Handout 1

where high performance routers are used
Where High Performance Routers are Used

(2.5 Gb/s)

R2

(2.5 Gb/s)

R1

R6

R5

R4

R7

R3

R9

R10

R8

R11

R12

R14

R13

R16

R15

(2.5 Gb/s)

(2.5 Gb/s)

EE384x Handout 1

what a router looks like

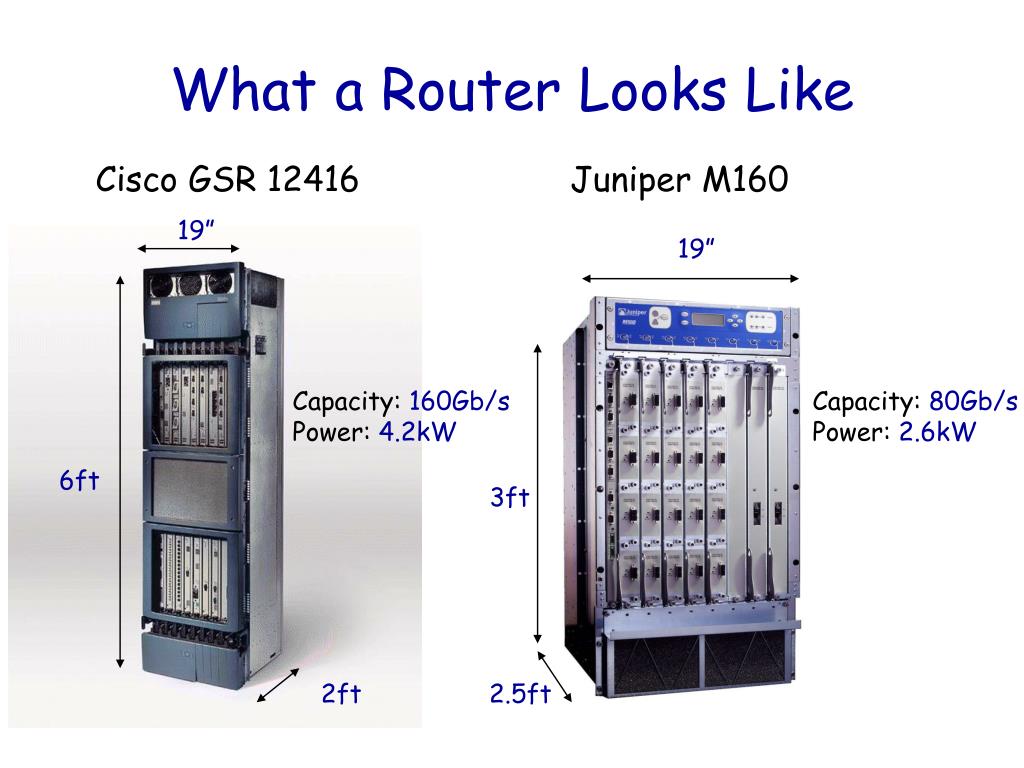

What a Router Looks Like

Cisco GSR 12416

Juniper M160

19”

19”

Capacity: 160Gb/sPower: 4.2kW

Capacity: 80Gb/sPower: 2.6kW

6ft

3ft

2ft

2.5ft

EE384x Handout 1

basic architectural components of an ip router
Basic Architectural Componentsof an IP Router

Routing

Protocols

Routing

Table

Control Plane

Datapath

per-packet

processing

Forwarding

Table

Switching

EE384x Handout 1

per packet processing in an ip router

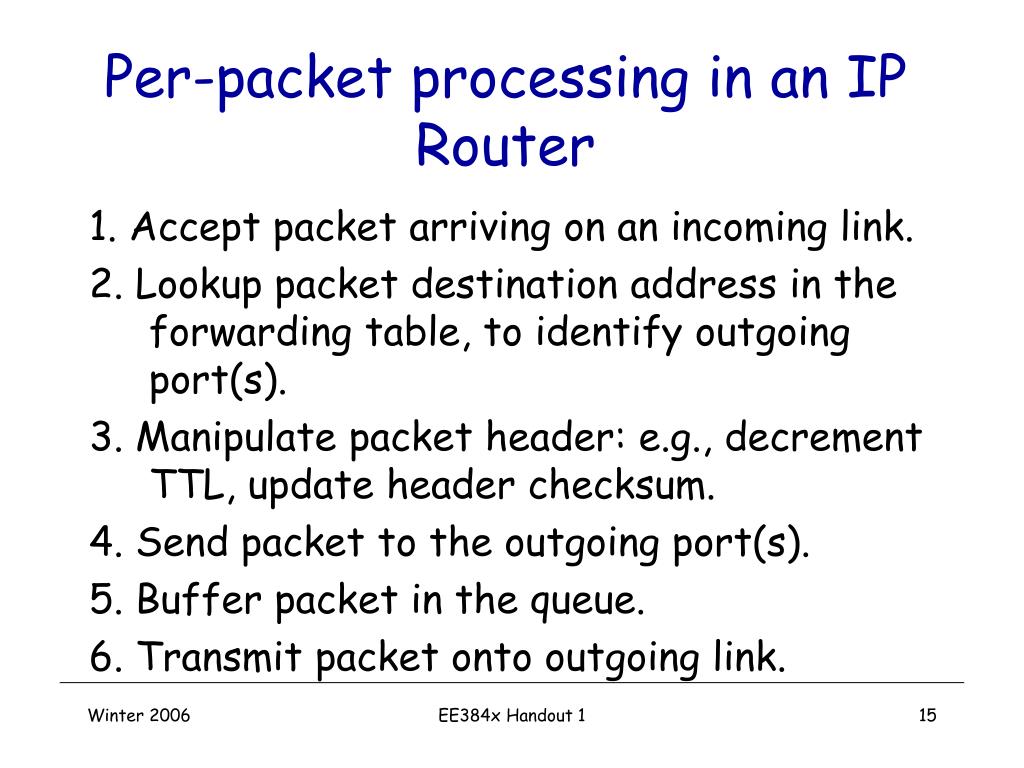

Per-packet processing in an IP Router

1. Accept packet arriving on an incoming link.

2. Lookup packet destination address in the forwarding table, to identify outgoing port(s).

3. Manipulate packet header: e.g., decrement TTL, update header checksum.

4. Send packet to the outgoing port(s).

5. Buffer packet in the queue.

6. Transmit packet onto outgoing link.

EE384x Handout 1

generic router architecture

Data

Hdr

Data

Hdr

IP Address

Next Hop

Address

Table

Buffer

Memory

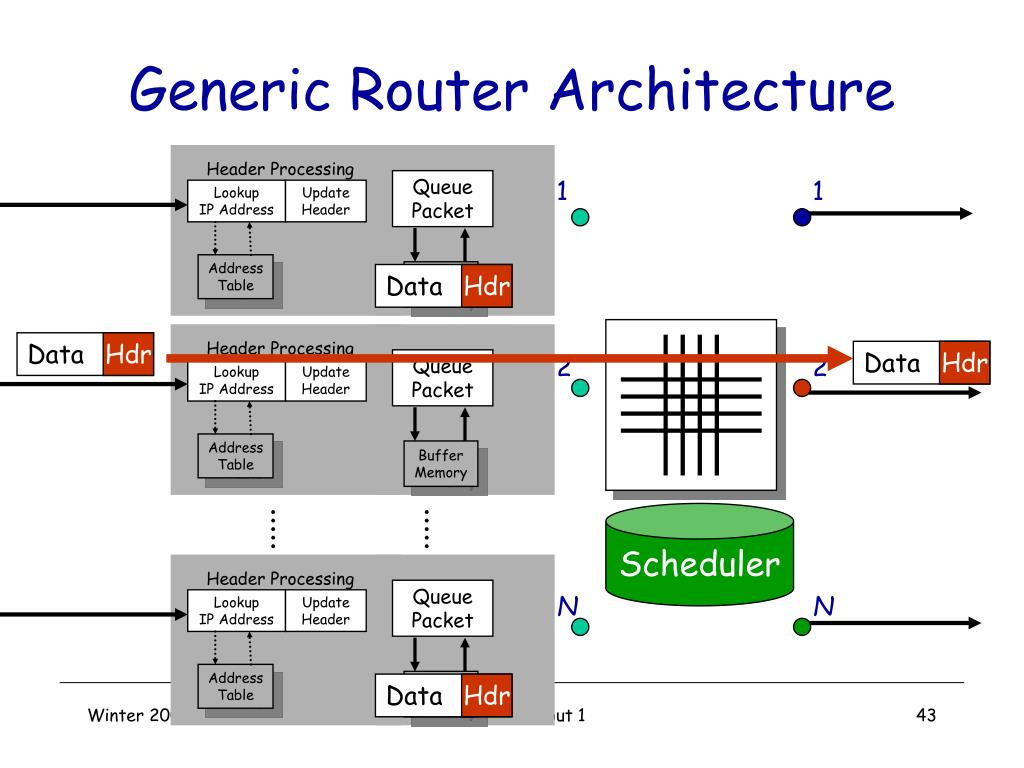

Generic Router Architecture

Header Processing

Lookup

IP Address

Update

Header

Queue

Packet

~1M prefixes

Off-chip DRAM

~1M packets

Off-chip DRAM

EE384x Handout 1

generic router architecture17

Data

Data

Data

Hdr

Hdr

Hdr

Header Processing

Header Processing

Header Processing

Lookup

IP Address

Lookup

IP Address

Lookup

IP Address

Update

Header

Update

Header

Update

Header

Address

Table

Address

Table

Address

Table

Data

Data

Hdr

Hdr

Data

Hdr

Generic Router Architecture

Buffer

Manager

Buffer

Memory

Buffer

Manager

Buffer

Memory

Buffer

Manager

Buffer

Memory

EE384x Handout 1

why do we need faster routers
Why do we Need Faster Routers?
  • To prevent routers becoming the bottleneck in the Internet.
  • To increase POP capacity, and to reduce cost, size and power.

EE384x Handout 1

why we need faster routers 1 to prevent routers from being the bottleneck

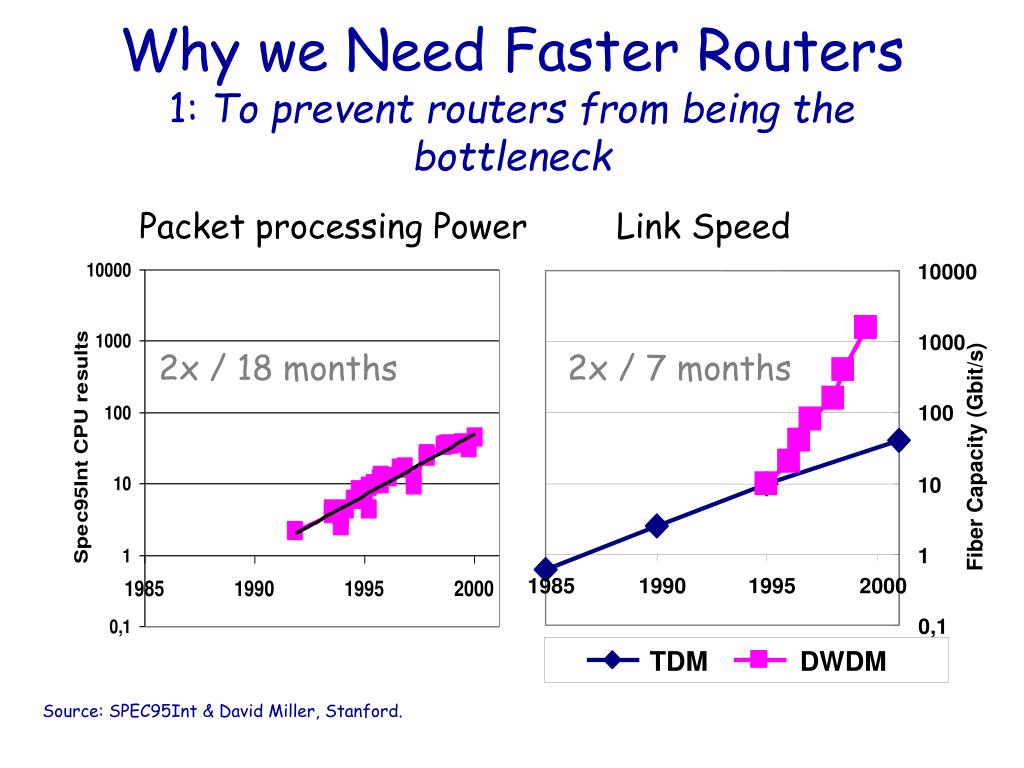

Why we Need Faster Routers 1: To prevent routers from being the bottleneck

Packet processing Power

Link Speed

10000

1000

2x / 18 months

2x / 7 months

100

Fiber Capacity (Gbit/s)

10

1

1985

1990

1995

2000

0,1

TDM

DWDM

Source: SPEC95Int & David Miller, Stanford.

EE384x Handout 1

why we need faster routers 2 to reduce cost power complexity of pops

POP with smaller routers

  • Ports: Price >$100k, Power > 400W.
  • It is common for 50-60% of ports to be for interconnection.
Why we Need Faster Routers 2: To reduce cost, power & complexity of POPs

POP with large routers

EE384x Handout 1

why are fast routers difficult to make

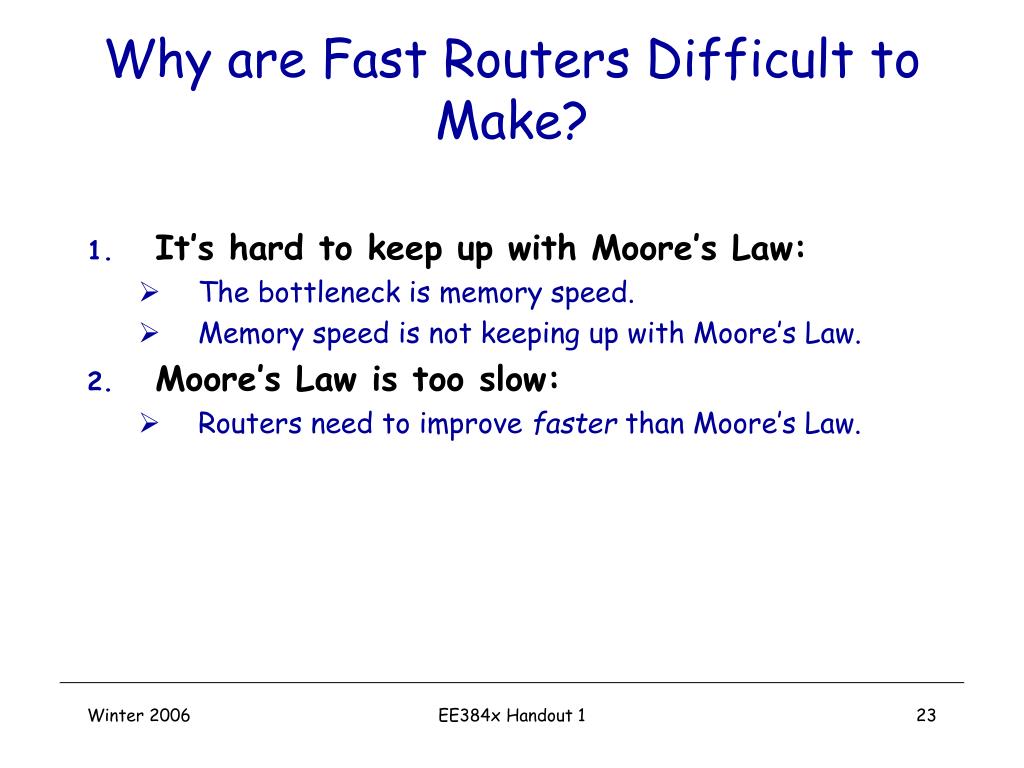

Why are Fast Routers Difficult to Make?
  • It’s hard to keep up with Moore’s Law:
    • The bottleneck is memory speed.
    • Memory speed is not keeping up with Moore’s Law.

EE384x Handout 1

why are fast routers difficult to make speed of commercial dram

1.1x / 18 months

Moore’s Law

2x / 18 months

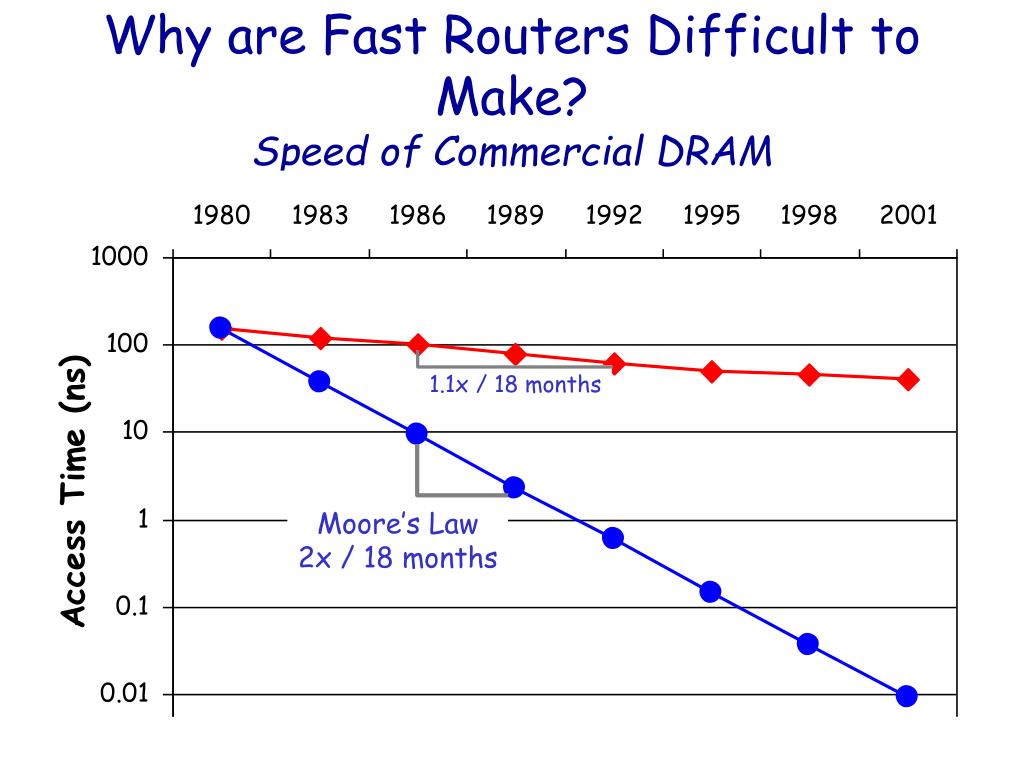

Why are Fast Routers Difficult to Make?Speed of Commercial DRAM
  • It’s hard to keep up with Moore’s Law:
    • The bottleneck is memory speed.
    • Memory speed is not keeping up with Moore’s Law.

EE384x Handout 1

why are fast routers difficult to make23
Why are Fast Routers Difficult to Make?
  • It’s hard to keep up with Moore’s Law:
    • The bottleneck is memory speed.
    • Memory speed is not keeping up with Moore’s Law.
  • Moore’s Law is too slow:
    • Routers need to improve faster than Moore’s Law.

EE384x Handout 1

router performance exceeds moore s law
Router Performance Exceeds Moore’s Law

Growth in capacity of commercial routers:

  • Capacity 1992 ~ 2Gb/s
  • Capacity 1995 ~ 10Gb/s
  • Capacity 1998 ~ 40Gb/s
  • Capacity 2001 ~ 160Gb/s
  • Capacity 2003 ~ 640Gb/s

Average growth rate: 2x / 18 months.

EE384x Handout 1

outline25
Outline

Background

  • What is a router?
  • Why do we need faster routers?
  • Why are they hard to build?

Architectures and techniques

  • The evolution of router architecture.
  • IP address lookup.
  • Packet buffering.
  • Switching.

EE384x Handout 1

slide26

CPU

Buffer

Memory

Route

Table

CPU

Line

Interface

Line

Interface

Line

Interface

Memory

MAC

MAC

MAC

Typically <0.5Gb/s aggregate capacity

First Generation Routers

Shared Backplane

Line Interface

EE384x Handout 1

slide27

Fwding

Cache

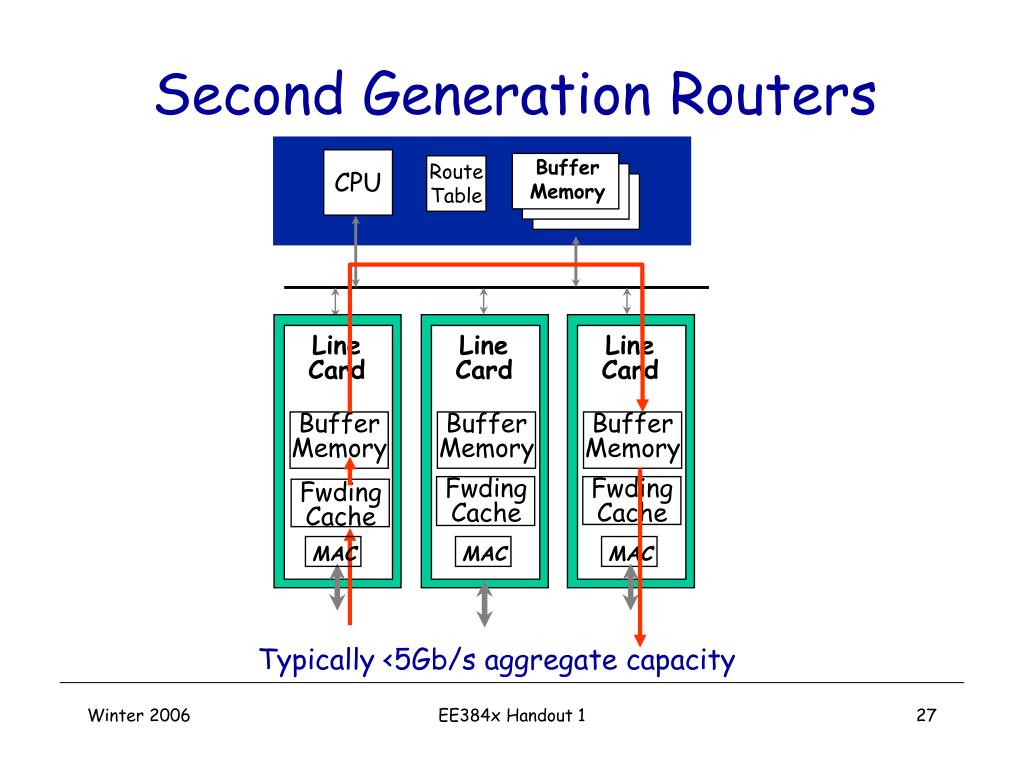

Second Generation Routers

CPU

Buffer

Memory

Route

Table

Line

Card

Line

Card

Line

Card

Buffer

Memory

Buffer

Memory

Buffer

Memory

Fwding

Cache

Fwding

Cache

MAC

MAC

MAC

Typically <5Gb/s aggregate capacity

EE384x Handout 1

slide28

Fwding

Table

Third Generation Routers

Switched Backplane

Line

Card

CPU

Card

Line

Card

Local

Buffer

Memory

Local

Buffer

Memory

Line Interface

CPU

Routing

Table

Memory

Fwding

Table

MAC

MAC

Typically <50Gb/s aggregate capacity

EE384x Handout 1

slide29

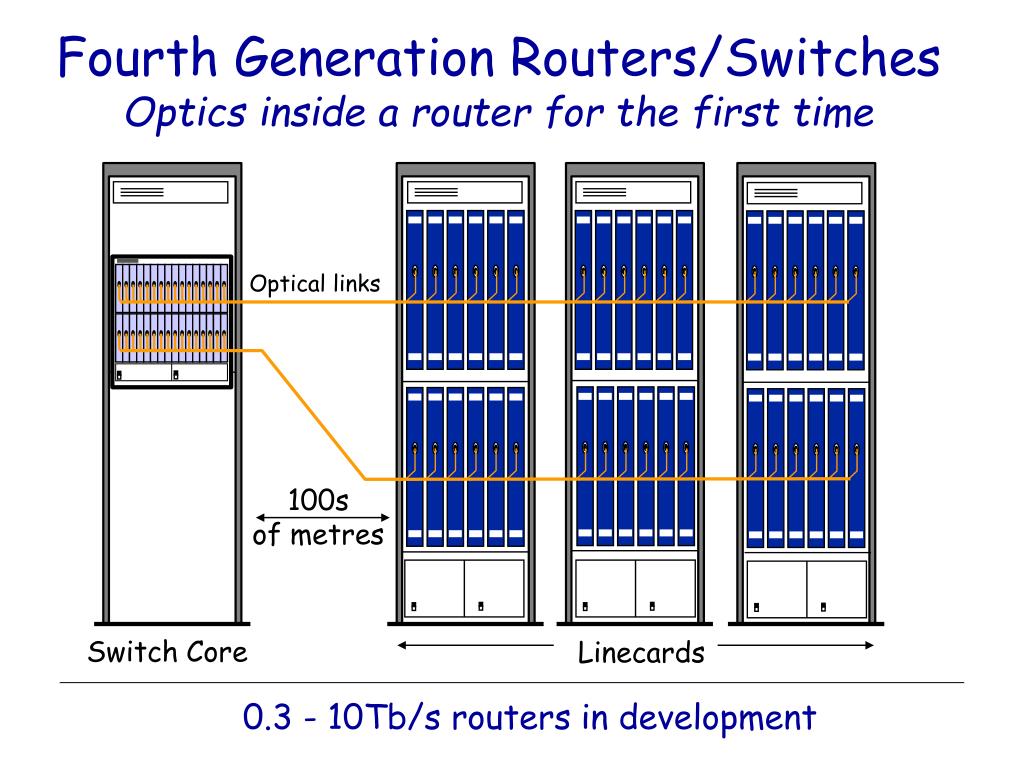

Fourth Generation Routers/SwitchesOptics inside a router for the first time

Optical links

100s

of metres

Switch Core

Linecards

0.3 - 10Tb/s routers in development

EE384x Handout 1

outline30
Outline

Background

  • What is a router?
  • Why do we need faster routers?
  • Why are they hard to build?

Architectures and techniques

  • The evolution of router architecture.
  • IP address lookup.
  • Packet buffering.
  • Switching.

EE384x Handout 1

generic router architecture31

Header Processing

Header Processing

Lookup

IP Address

Lookup

IP Address

Update

Header

Update

Header

Address

Table

Address

Table

Lookup

IP Address

Lookup

IP Address

Lookup

IP Address

Address

Table

Address

Table

Address

Table

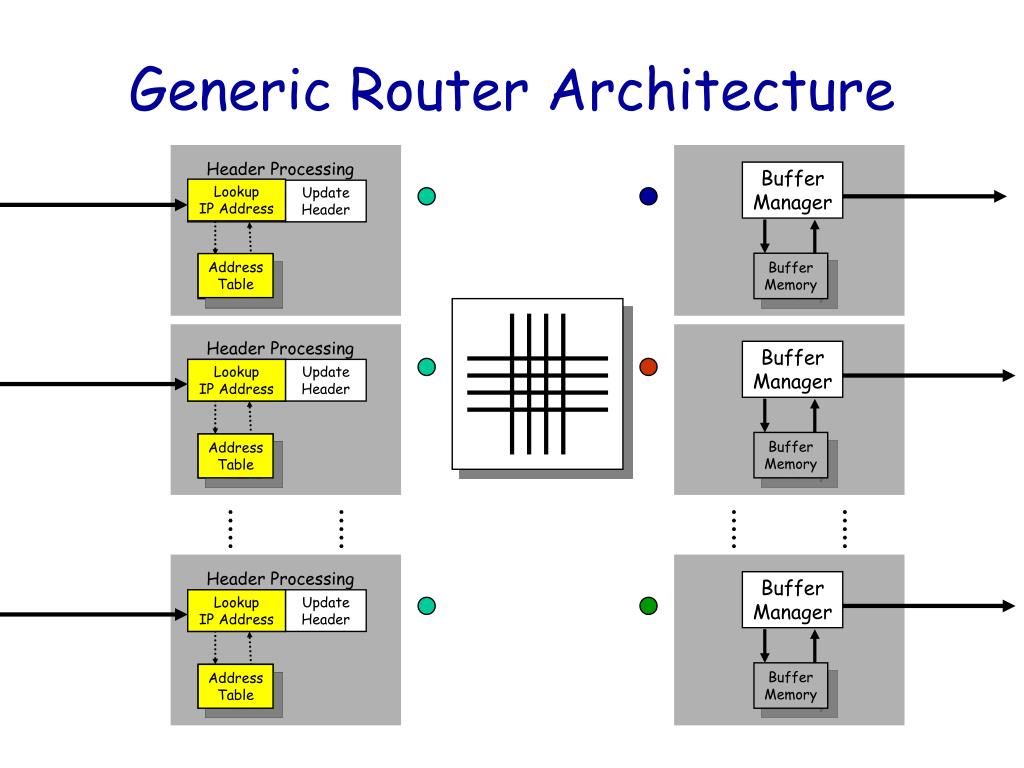

Generic Router Architecture

Buffer

Manager

Buffer

Memory

Header Processing

Buffer

Manager

Lookup

IP Address

Update

Header

Buffer

Memory

Address

Table

Buffer

Manager

Buffer

Memory

EE384x Handout 1

ip address lookup
IP Address Lookup

Why it’s thought to be hard:

  • It’s not an exact match: it’s a longest prefix match.
  • The table is large: about 150,000 entries today, and growing.
  • The lookup must be fast: about 30ns for a 10Gb/s line.

EE384x Handout 1

ip lookups find longest prefixes

128.9.16.14

IP Lookups find Longest Prefixes

128.9.172.0/24

128.9.16.0/21

128.9.172.0/21

142.12.0.0/19

65.0.0.0/8

128.9.0.0/16

0

232-1

Routing lookup:Find the longest matching prefix (aka the most specific route) among all prefixes that match the destination address.

EE384x Handout 1

ip address lookup34
IP Address Lookup

Why it’s thought to be hard:

  • It’s not an exact match: it’s a longest prefix match.
  • The table is large: about 150,000 entries today, and growing.
  • The lookup must be fast: about 30ns for a 10Gb/s line.

EE384x Handout 1

ip address lookup36
IP Address Lookup

Why it’s thought to be hard:

  • It’s not an exact match: it’s a longest prefix match.
  • The table is large: about 150,000 entries today, and growing.
  • The lookup must be fast: about 30ns for a 10Gb/s line.

EE384x Handout 1

lookups must be fast

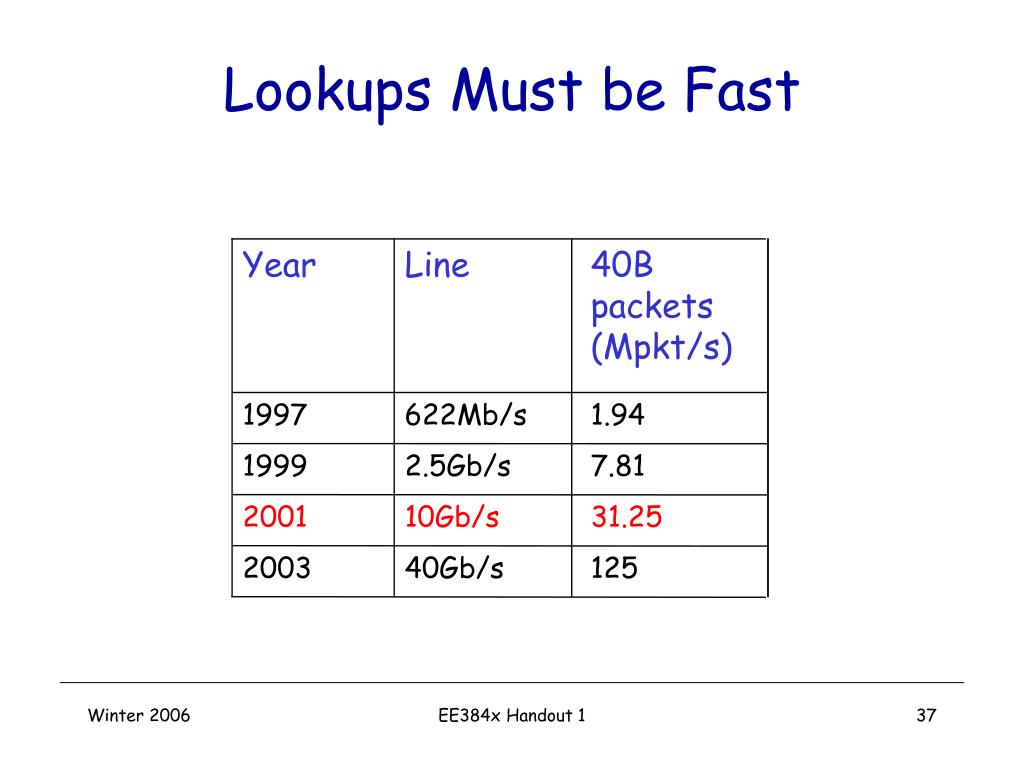

Lookups Must be Fast

Year

Line

40B packets (Mpkt/s)

1997

622Mb/s

1.94

1999

2.5Gb/s

7.81

2001

10Gb/s

31.25

2003

40Gb/s

125

EE384x Handout 1

outline38
Outline

Background

  • What is a router?
  • Why do we need faster routers?
  • Why are they hard to build?

Architectures and techniques

  • The evolution of router architecture.
  • IP address lookup.
  • Packet buffering.
  • Switching.

EE384x Handout 1

generic router architecture39

Header Processing

Header Processing

Header Processing

Lookup

IP Address

Lookup

IP Address

Lookup

IP Address

Update

Header

Update

Header

Update

Header

Address

Table

Address

Table

Address

Table

Buffer

Manager

Buffer

Manager

Buffer

Manager

Buffer

Memory

Buffer

Memory

Buffer

Memory

Generic Router Architecture

Queue

Packet

Buffer

Memory

Queue

Packet

Buffer

Memory

Queue

Packet

Buffer

Memory

EE384x Handout 1

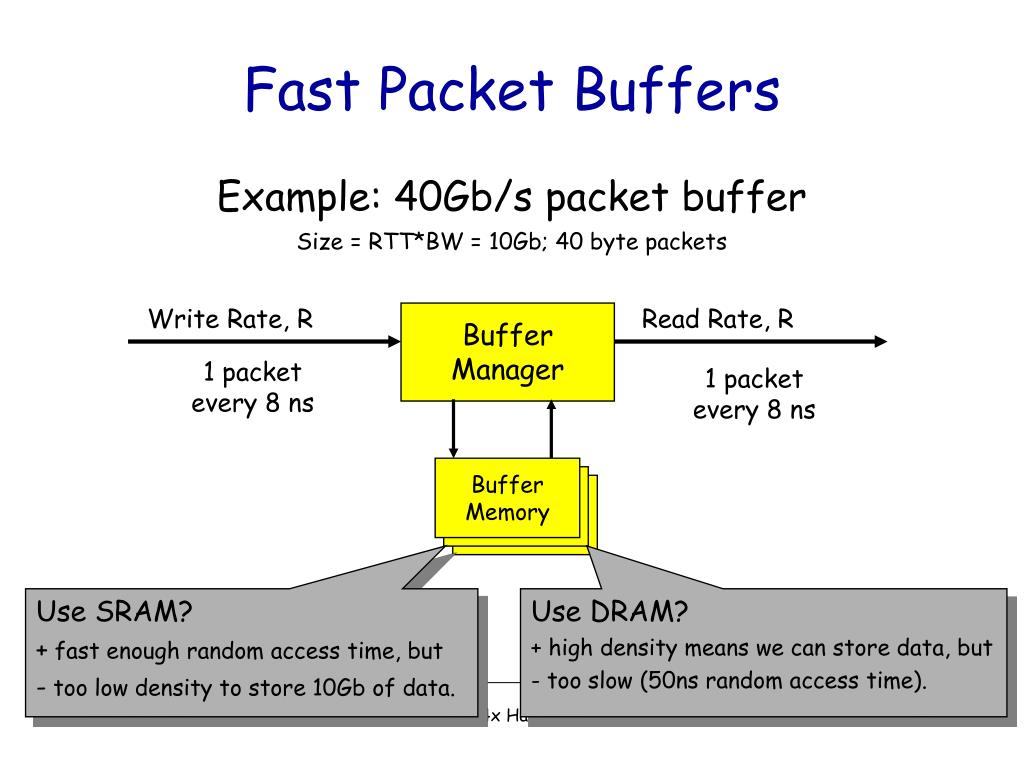

fast packet buffers
Fast Packet Buffers

Example: 40Gb/s packet buffer

Size = RTT*BW = 10Gb; 40 byte packets

Write Rate, R

Read Rate, R

Buffer

Manager

1 packet

every 8 ns

1 packet

every 8 ns

Buffer

Memory

Use SRAM?

+ fast enough random access time, but

- too low density to store 10Gb of data.

Use DRAM?

+ high density means we can store data, but

- too slow (50ns random access time).

EE384x Handout 1

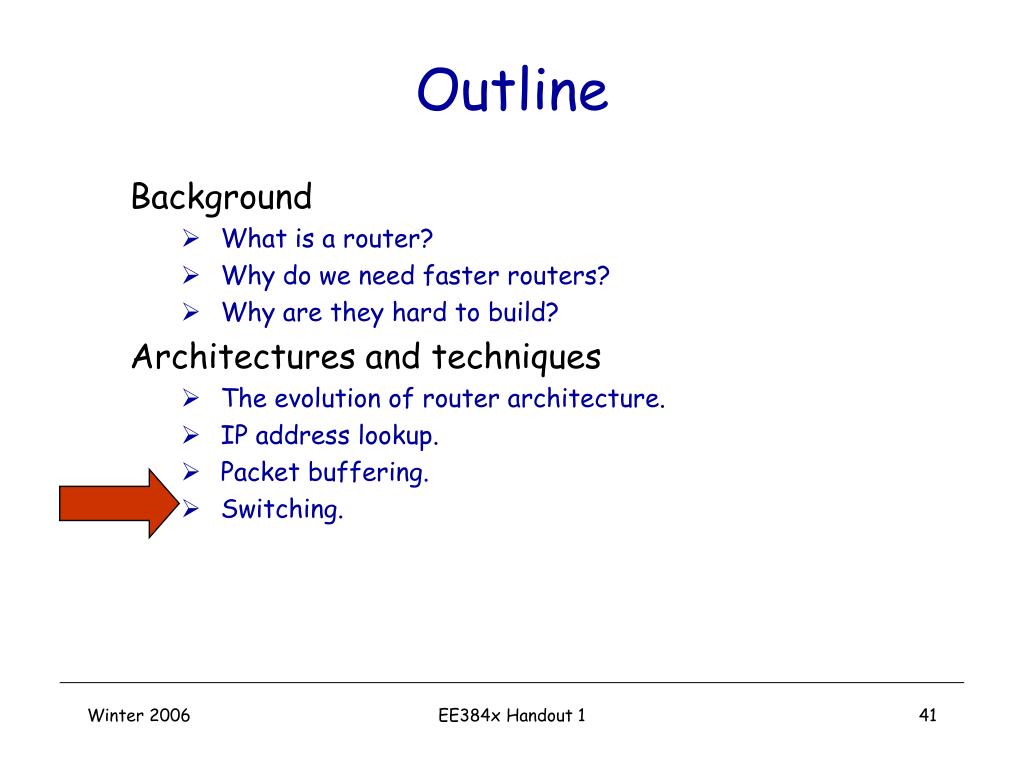

outline41
Outline

Background

  • What is a router?
  • Why do we need faster routers?
  • Why are they hard to build?

Architectures and techniques

  • The evolution of router architecture.
  • IP address lookup.
  • Packet buffering.
  • Switching.

EE384x Handout 1

generic router architecture42

Data

Data

Data

Hdr

Hdr

Hdr

Header Processing

Header Processing

Header Processing

Lookup

IP Address

Lookup

IP Address

Lookup

IP Address

Update

Header

Update

Header

Update

Header

Address

Table

Address

Table

Address

Table

N times line rate

Generic Router Architecture

1

1

Queue

Packet

Buffer

Memory

2

2

Queue

Packet

Buffer

Memory

N times line rate

N

N

Queue

Packet

Buffer

Memory

EE384x Handout 1

generic router architecture43

Data

Data

Data

Data

Data

Data

Hdr

Hdr

Hdr

Hdr

Hdr

Hdr

Header Processing

Header Processing

Header Processing

Lookup

IP Address

Lookup

IP Address

Lookup

IP Address

Update

Header

Update

Header

Update

Header

1

1

Address

Table

Address

Table

Address

Table

2

2

N

N

Generic Router Architecture

Queue

Packet

Buffer

Memory

Queue

Packet

Buffer

Memory

Scheduler

Queue

Packet

Buffer

Memory

EE384x Handout 1

a router with input queues
A Router with Input Queues

The best that any queueing system can achieve.

EE384x Handout 1

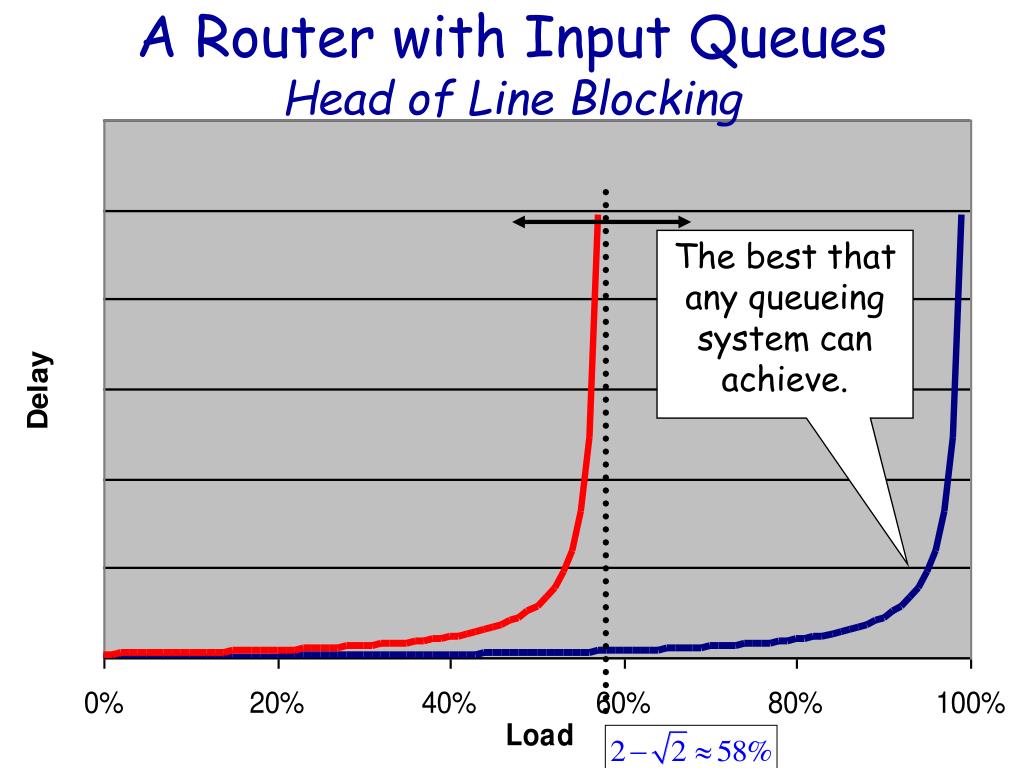

a router with input queues head of line blocking
A Router with Input QueuesHead of Line Blocking

The best that any queueing system can achieve.

EE384x Handout 1

head of line blocking
Head of Line Blocking

EE384x Handout 1

virtual output queues
Virtual Output Queues

EE384x Handout 1

a router with virtual output queues
A Router with Virtual Output Queues

The best that any queueing system can achieve.

EE384x Handout 1

maximum weight matching
Maximum Weight Matching

S*(n)

L11(n)

A11(n)

D1(n)

A1(n)

1

1

A1N(n)

DN(n)

AN1(n)

AN(n)

N

N

ANN(n)

LNN(n)

L11(n)

Maximum

Weight Match

LN1(n)

Bipartite Match

“Request” Graph

EE384x Handout 1

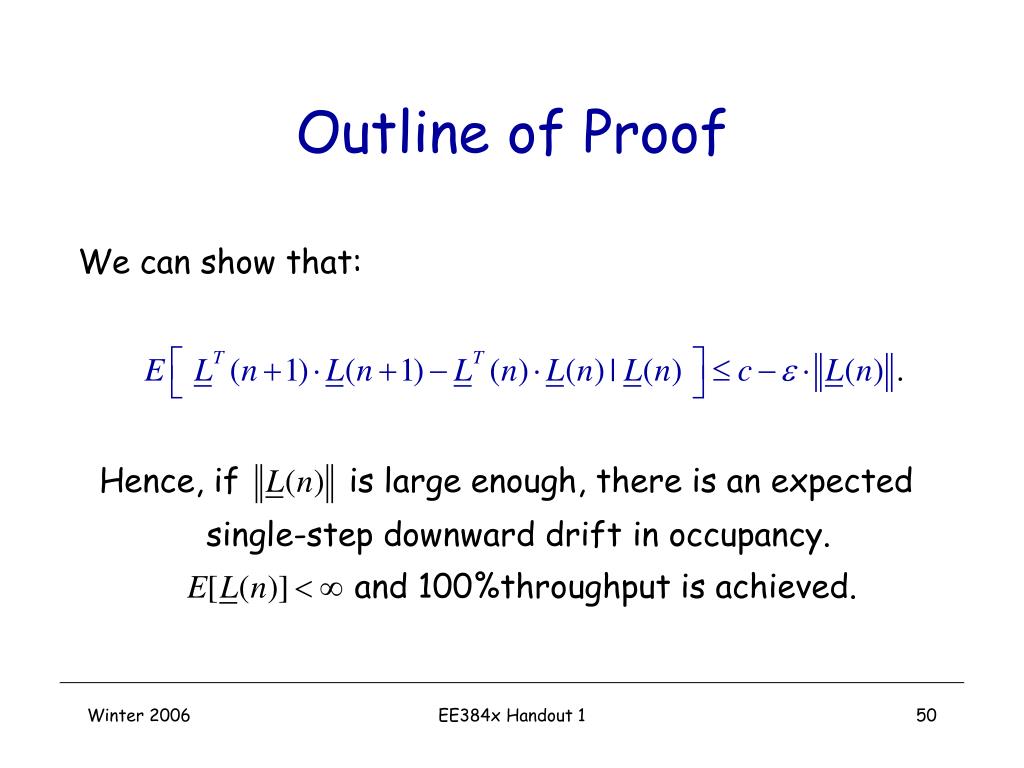

outline of proof
Outline of Proof

EE384x Handout 1

the evolution of switching

Different weight functions,

incomplete information, pipelining.

IQ + VOQ,

Maximum weight matching

100% [Various]

Randomized algorithms

100% [Tassiulas, 1998]

100% [M et al., 1995]

IQ + VOQ,

Maximal size matching,

Speedup of two.

100% [Dai & Prabhakar, 2000]

IQ + VOQ,

Sub-maximal size matching

e.g. PIM, iSLIP.

The Evolution of Switching

Theory:

Input

Queueing

(IQ)

58% [Karol, 1987]

Practice:

Input

Queueing

(IQ)

Various heuristics, distributed algorithms,

and amounts of speedup

EE384x Handout 1

current internet router technology summary
Current Internet Router TechnologySummary
  • There are three potential bottlenecks:
    • Address lookup,
    • Packet buffering, and
    • Switching.
  • Techniques exist today for:
    • 10+Tb/s Internet routers, with
    • 40Gb/s linecards.

EE384x Handout 1
