slide1

Presentation in the frame of

Photonic Crystals course

by R. Houdre

Photonic Crystal Fibers

Georgios Violakis

EPFL, Lausanne

June 2009

outline
Outline

Introduction to Photonic Crystal Fibers

Fiber types / classification

Common Fabrication Techniques

Properties of Microstructured Optical Fibers

Properties of Photonic Bandgap Fibers

Modeling of Photonic Crystal Fibers

Applications of PCFs

optical fibers
Optical Fibers

Anoptical fiberis a glass structurespecially designed in ordertoefficiently guidelightalongitslength (long distances)

Step Index Optical Fibers

Light guidance by means of total internal reflection. Widely utilized in telecommunications

Polymer jacket

Fiber cladding

Fiber core

photonic crystal fibers
Photonic Crystal Fibers

2 main classes of PCFs

High Index core Fibers

Photonic Bandgap Fibers

High N.A.

Low Index Core

Bragg Fiber

Highly non linear

Large Mode Area

Hollow Core

high index core fibers
High Index Core Fibers

High Index Fiber core

Light guidance by means of modified total internal reflection.

Introduction of low index (e.g. air) capillaries in the “cladding” area, effectively reduces the refractive index of the core surrounding area, allowing TIR

Low index capillaries, e.g. air channels

High index material, e.g. silica glass

photonic bandgap fibers
Photonic Bandgap Fibers

In most cases the core has a lower refractive index than the cladding area

“True” photonic crystal fibers.

Light guidance by means of light trapping in the core, due to the photonic bandgap zones of the “cladding”

Cladding structure must be able to exhibit at least one photonic bandgap at the frequency of interest

fabrication techniques i
Fabrication Techniques I

a) Preparation of each capillary

b) Assembly of capillaries to the desired structure

c) Preparation of the preform

d) Fiber drawing

fabrication techniques ii
Fabrication Techniques II

Variations of technique depending on the preform material

Chalcogenide fibers

Polymer fibers

Compound glass fibers

Variations of technique depending on the fiber layout

Honeycomb structure

Hollow core fibers

etc…

properties of microstructured optical fibers i
Properties of Microstructured Optical Fibers I

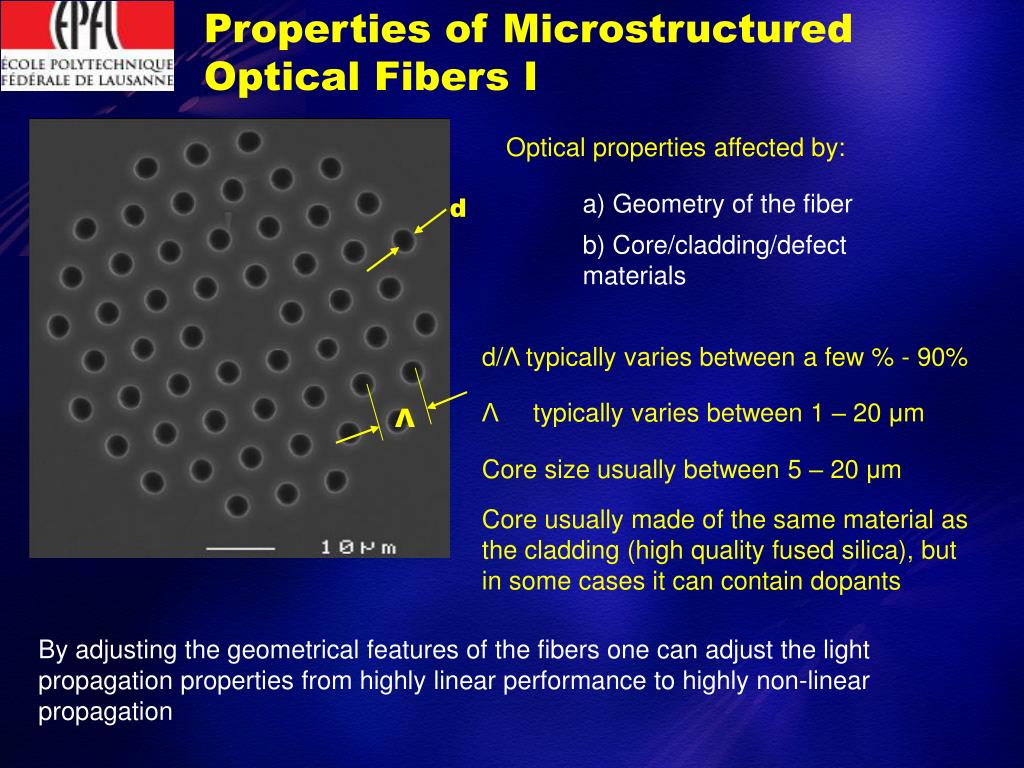

Optical properties affected by:

a) Geometry of the fiber

d

b) Core/cladding/defect materials

d/Λ typically varies between a few % - 90%

Λ typically varies between 1 – 20 μm

Λ

Core size usually between 5 – 20 μm

Core usually made of the same material as the cladding (high quality fused silica), but in some cases it can contain dopants

By adjusting the geometrical features of the fibers one can adjust the light propagation properties from highly linear performance to highly non-linear propagation

properties of microstructured optical fibers ii
Properties of Microstructured Optical Fibers II

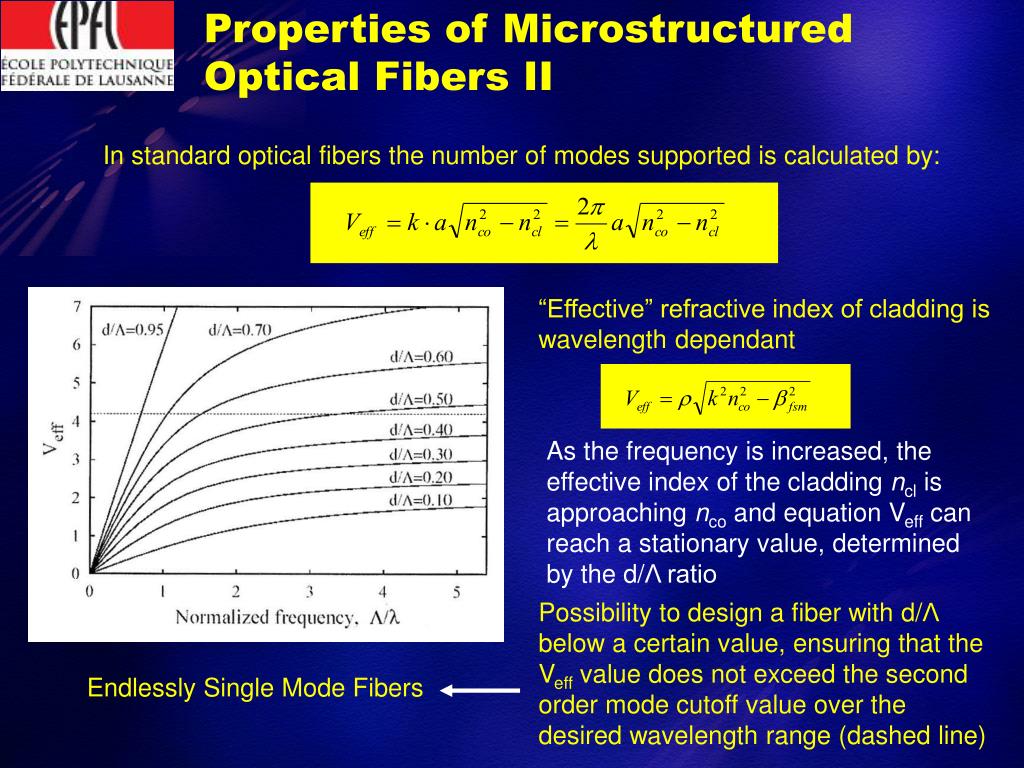

In standard optical fibers the number of modes supported is calculated by:

“Effective” refractive index of cladding is wavelength dependant

As the frequency is increased, the effective index of the cladding ncl is approaching nco and equation Veff can reach a stationary value, determined by the d/Λ ratio

Possibility to design a fiber with d/Λbelow a certain value, ensuring that the Veff value does not exceed the second order mode cutoff value over the desired wavelength range (dashed line)

Endlessly Single Mode Fibers

properties of microstructured optical fibers iii
Properties of Microstructured Optical Fibers III

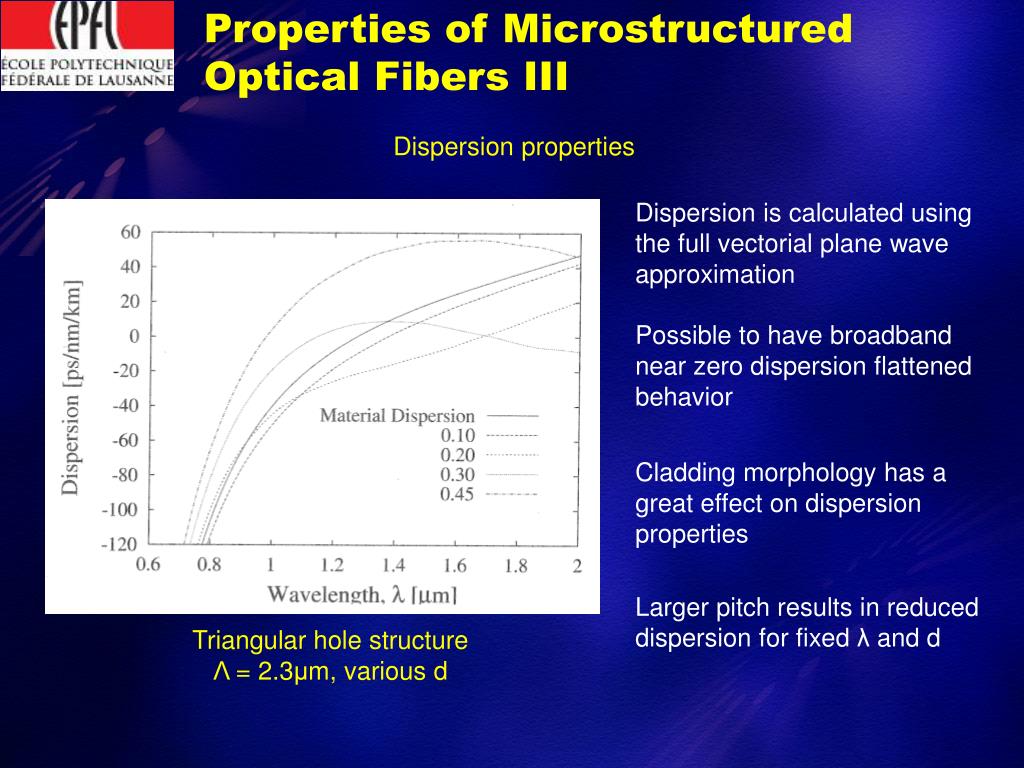

Dispersion properties

Dispersion is calculated using the full vectorial plane wave approximation

Possible to have broadband near zero dispersion flattened behavior

Cladding morphology has a great effect on dispersion properties

Larger pitch results in reduced dispersion for fixed λ and d

Triangular hole structure

Λ = 2.3μm, various d

properties of photonic bandgap fibers i
Properties of Photonic Bandgap Fibers I

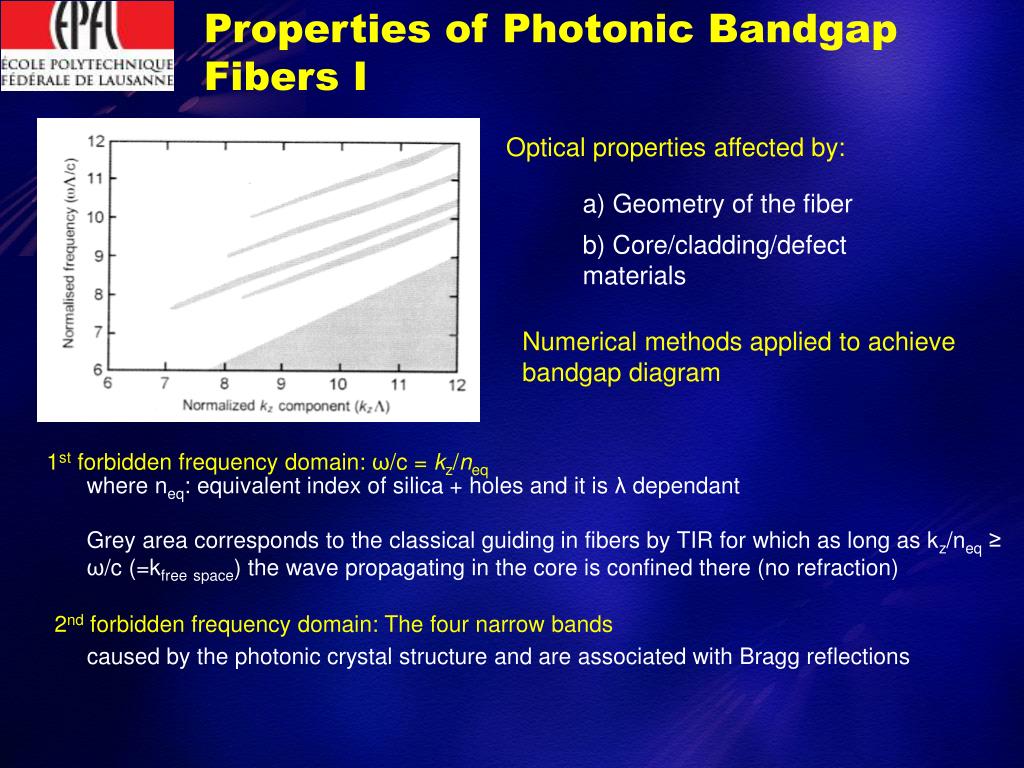

Optical properties affected by:

a) Geometry of the fiber

b) Core/cladding/defect materials

Numerical methods applied to achieve bandgap diagram

1st forbidden frequency domain: ω/c = kz/neq

where neq: equivalent index of silica + holes and it is λ dependant

Grey area corresponds to the classical guiding in fibers by TIR for which as long as kz/neq≥ω/c (=kfreespace) the wave propagating in the core is confined there (no refraction)

2nd forbidden frequency domain: The four narrow bands

caused by the photonic crystal structure and are associated with Bragg reflections

properties of photonic bandgap fibers ii
Properties of Photonic Bandgap Fibers II

Core – cladding design

The cladding must exhibit photonic bandgaps that cross the air line (requirement for hollow core fibers)

Number of modes in the core region:

NPBG is the number of PBG-guided modes, Deff: effective core diameter for PC, βL is the lower propagation constant of a given PBG

Core determination by the above equation for desired number of modes

properties of photonic bandgap fibers iii
Properties of Photonic Bandgap Fibers III

Losses

Losses decrease exponentially with the number of air hole rings in the cladding

For hollow core fibers it is also crucial the shape of the core

Dispersion

And area of mode

Higher leakage for first two core geometries

d/Λ ration also important as well as the air-silica filling ration

Theoretically predicted attenuation: 0.13dB/km at 1.9μm

Experimentally measured attenuation : 1.2dB/km at 1.62μm

properties of photonic bandgap fibers iv
Properties of Photonic Bandgap Fibers IV

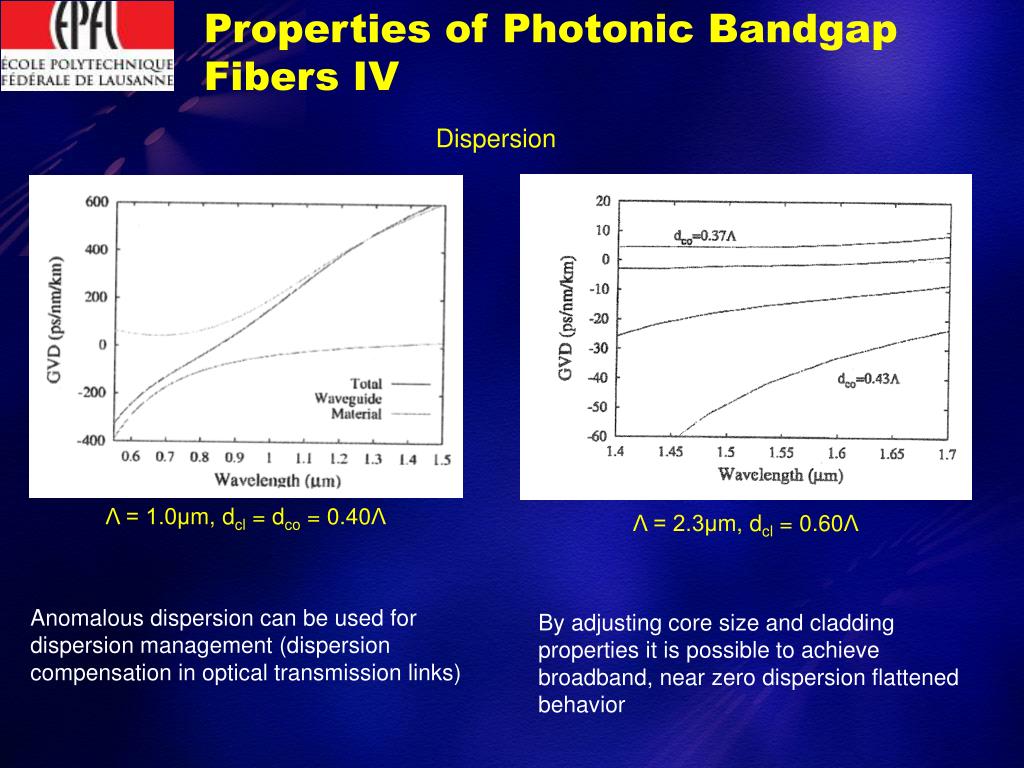

Dispersion

Λ = 1.0μm, dcl = dco = 0.40Λ

Λ = 2.3μm, dcl= 0.60Λ

Anomalous dispersion can be used for dispersion management (dispersion compensation in optical transmission links)

By adjusting core size and cladding properties it is possible to achieve broadband, near zero dispersion flattened behavior

properties of photonic bandgap fibers v
Properties of Photonic Bandgap Fibers V

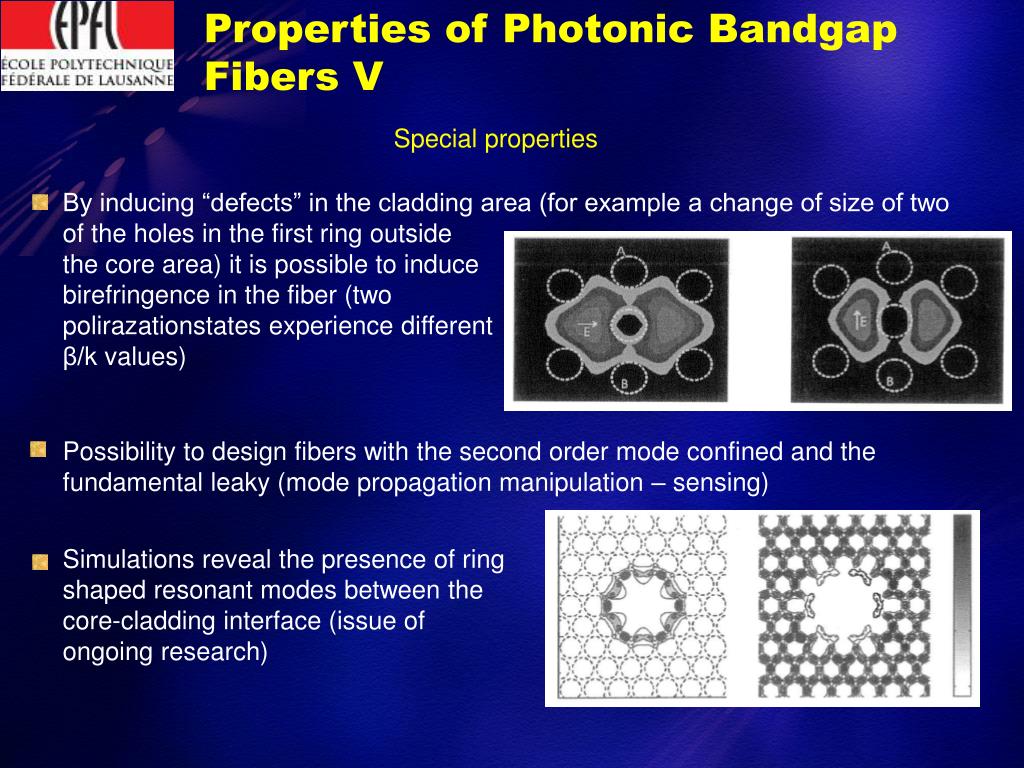

Special properties

By inducing “defects” in the cladding area (for example a change of size of two of the holes in the first ring outside

the core area) it is possible to induce

birefringence in the fiber (two

polirazationstates experience different

β/kvalues)

Possibility to design fibers with the second order mode confined and the fundamental leaky (mode propagation manipulation – sensing)

Simulations reveal the presence of ring shaped resonant modes between the core-cladding interface (issue of ongoing research)

modeling of pcfs i the effective index approach i
Modeling of PCFs IThe effective index approach I

Simple numerical tool

Evaluates the periodically repeated cladding structure an replaces it with an neff.

Core refractive index usually same as matrix material (e.g. fused silica)

Analogy to step index fibers and use of calculation tools readily available

Determination of neff

Determination of cladding mode field, Ψ, by solving the scalar wave equation within a simple cell centered on one of the holes

Approximation by a circle to facilitate calculations

Application of boundary conditions (dΨ/ds)=0

Propagation constant of resutling fundamental mode, βfsm used in:

modeling of pcfs i the effective index approach ii
Modeling of PCFs IThe effective index approach II

nco = nsilica

ncl = neff

rcore = 0.5*Λor 0.62*Λ

Full analogy to a step index fiber realized  Use of tools for step index fibers

Refractive index in matrix material can be also described as being wavelength dependent using the Sellmeier formula

Simple

Qualitative method

Minimum computational requirements

Cannot compute photonic bandgaps

modeling of pcfs ii plane wave expansion method i
Modeling of PCFs IIPlane-wave expansion method I

First theoretical method to accurately analyze photonic crystals

Bloch’s

theorem

Takes advantage of the cladding periodicity:

V and U in reciprocal space Fourier expansion in terms of the reciprocal lattice vectors G

Fourier transformation

Maxwell’s equations

Wave equation in the reciprocal space

Can be re-written in matrix form and solved using standard numerical routines as eigenvalue problems

Once the wave equation has been solved for one of the fields (e.g. H)

modeling of pcfs ii plane wave expansion method ii
Modeling of PCFs IIPlane-wave expansion method II

2 dimensional photonic crystals with hexagonal symmetry

R1, R2: real space primitive lattice vectors

G1, G2: reciprocal lattice vectors

Solutions for k vectors restricted in the 1st Brillouin zone

Calculation of the εr-1(G) which is required to set up the matrix equation

Calculates PBGs

Unsuitable for large structures

Good agreement with experiments

Unsuitable for full PCF analysis

Solution of E and H

Widely used

modeling of pcfs iii multipole method i
Modeling of PCFs IIIMultipole method I

Method used to calculate confinement losses in PCFs

Similar to other expansion methods, but: uses many expansions, one for each of the fiber holes in the fiber cladding

Does not require periodicity

Calculation of complex propagation constant (confinement losses)

Around a cylinder l the longitudinal E-field component Ez is:

with being the transverse wave number in silica

Inside the cylinder where ni=1, Ez is:

Application of

Boundary conditions:

where

modeling of pcfs iii multipole method ii
Modeling of PCFs IIIMultipole method II

In order to describe leaky modes, cladding is surrounding by jacketing material with nj = ne-jδ, δ<<1

Without jacket, expansions lead to fields that diverge far away from the core, because the modes are not completely bound

Confinement loss determined by the multipole method. Λ = 2.3μm, λ=1.55μm

modeling of pcfs iii multipole method ii1
Modeling of PCFs IIIMultipole method IIΙ

Calculates confinement loss

Computational intensive

Does not require symmetrical boundary conditions

Cannot analyze arbitrary cladding configurations (applies only for circular holes)

Does not make the assumption that the cladding area is infinite

modeling of pcfs iv fourier decomposition method
Modeling of PCFs IVFourier decomposition method

Calculates confinement losses in PCFs that do not have circular holes

Computational domain D with radius of R is used to encapsulate the centre of the waveguide

Mode field inside D is expanded in basis functions

Polar-coordinate harmonic Fourier decomposition of the basis functions

Iterations

Initial guess of neff

Improved estimate of neff

Requires adjustable boundary condition

Leakage loss prediction

modeling of pcfs v finite difference method i
Modeling of PCFs VFinite Difference method I

Finite Difference Time Domain method

Maxwell’s equations can be discretized in space and time (Yee-cell technique)

Field components of the mesh could be the discrete form of x-component of Maxwell’s first curl equation:

n: discrete time stepi,j: discretized mesh point

Δt: time increment

Δx, Δy: intervals between 2 neighboring grid points

modeling of pcfs v finite difference method ii
Modeling of PCFs VFinite Difference method II

Finite Difference Time Domain method

Artificial initial field distribution -> non physical components disappear in the time evolution and physical components (guided modes) remain

Boundary conditions using in most cases the Perfeclty Matched Layer (PML) technique

Fourier transformation

Fields in time domain

Fields in frequency domain

General approach

Requires detailed treatment of boundaries

Describes variety of structures

Computationally intensive

modeling of pcfs vi finite element method i

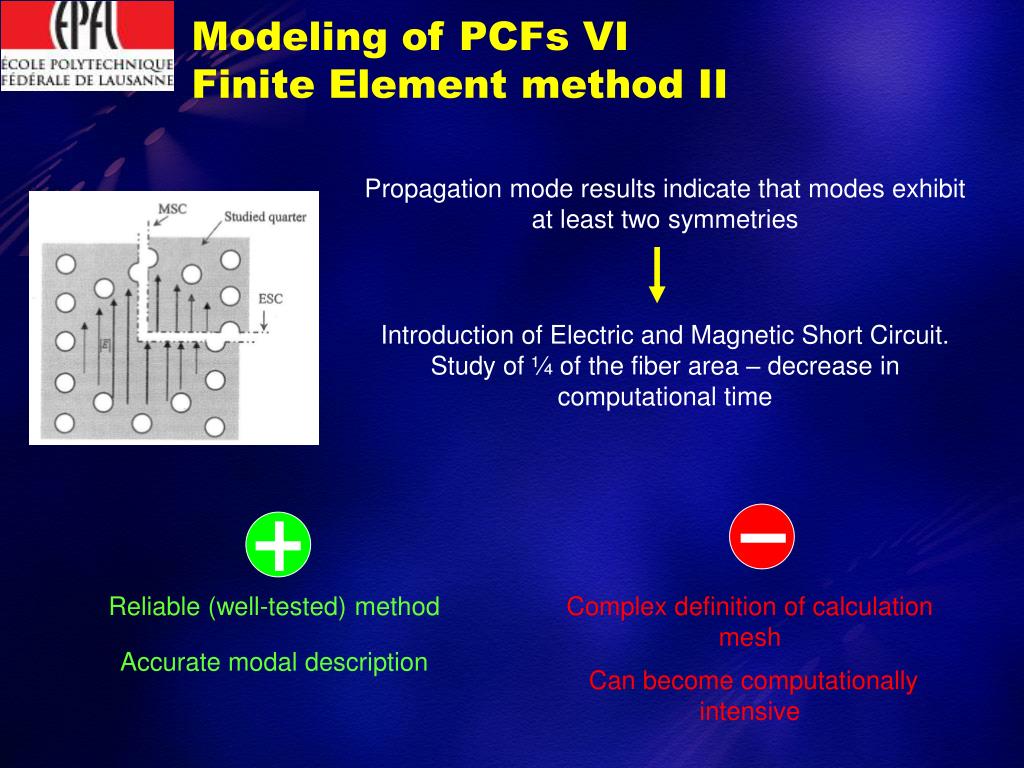

Modeling of PCFs VIFinite Element method I

The most generally used method for various physical problems

Method has been used for the analysis of standard step index fibers and it was later (2000) applied for photonic crystal fibers

Maxwell’s differential equations are solved for a set of elementary subspaces

Subspaces are considered homogenous (mesh of triangles or quadrilaterals)

Maxwell’s equations applied for each element

Boundary conditions (continuity of the field)

neff, E- and H- field can be numerically calculated

modeling of pcfs vi finite element method ii
Modeling of PCFs VIFinite Element method II

Propagation mode results indicate that modes exhibit at least two symmetries

Introduction of Electric and Magnetic Short Circuit. Study of ¼ of the fiber area – decrease in computational time

Reliable (well-tested) method

Complex definition of calculation mesh

Accurate modal description

Can become computationally intensive

modeling of pcfs vii other methods
Modeling of PCFs VIIOther methods

Finite Difference Frequency Domain

General approach, well tested, analyses any structure

Computationally very intensive, detailed boundary conditions

Beam propagation method

Reliable method, can use complex propagation constant

Also computationally intensive

Equivalent Averaged Index method

Qualitative results

Simple and efficient (fast method)

modeling examples of two pcfs
Modeling examples of two PCFs

ESM-12-01 Blaze photonics (Crystal Fibre A/S)

  • Core diameter: 12μm
  • Holey region diameter: 60μm
  • Cladding diameter: 125μm

LMA-10 Crystal Fibre A/S

mode field calculations using the multipole method
Mode field calculations using the multipole method

Calculation of the fundamental mode using the freely available CUDOS-MOF tools which are based on the multipole method

White holes represent air holes and blue background the silica matrix

http://www.physics.usyd.edu.au/cudos/mofsoftware/

mode field calculations using the fdtd method
Mode field calculations using the FDTD method

Calculation of the fundamental mode using commercially available FDTD software. (OptiFDTD)

Higher order modes, though calculated, are leaky and are not supported by the fiber which is endlessly single mode

http://www.optiwave.com/

mode field calculations using the fem method
Mode field calculations using the FEM method

Calculation of the fundamental mode using commercially available FEM software. (COMSOL multiphysics)

Higher order modes were not found to be supported for this kind of optical fiber

http://www.comsol.com/

photonic crystal fiber applications
Photonic Crystal Fiber Applications

Light guidance for λ that silica strongly absorbs (IR range)

High power delivery

Gas-filling the core (sensing, non-linear processes)

Gas-lasers (hollow core) / Fiber lasers (doped core)

In-fibre tweezers (nanoparticle transportation in the hollow core)

Tunable sensors (liquid crystals in PCFs)
