Understanding Optical Emission Spectrometer Testing Principles, Applications, and Benefits

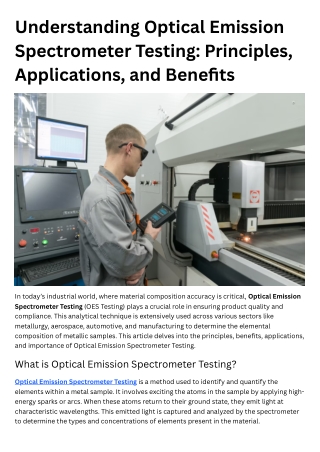

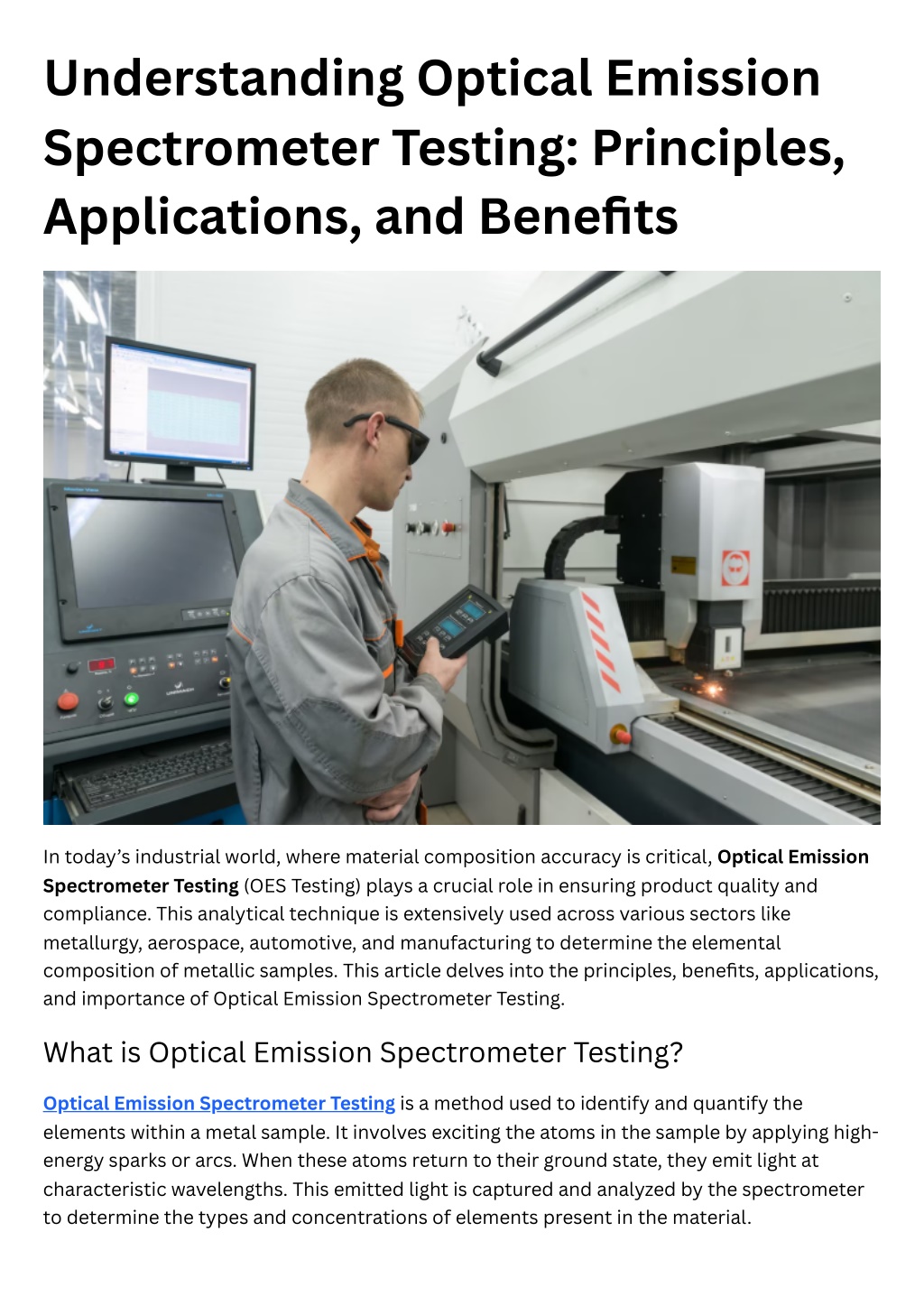

1. Understanding Optical Emission Spectrometer Testing: Principles, Applications, and Benefits In today’s industrial world, where material composition accuracy is critical, Optical Emission Spectrometer Testing (OES Testing) plays a crucial role in ensuring product quality and compliance. This analytical technique is extensively used across various sectors like metallurgy, aerospace, automotive, and manufacturing to determine the elemental composition of metallic samples. This article delves into the principles, benefits, applications, and importance of Optical Emission Spectrometer Testing. What is Optical Emission Spectrometer Testing? Optical Emission Spectrometer Testing is a method used to identify and quantify the elements within a metal sample. It involves exciting the atoms in the sample by applying high- energy sparks or arcs. When these atoms return to their ground state, they emit light at characteristic wavelengths. This emitted light is captured and analyzed by the spectrometer to determine the types and concentrations of elements present in the material.

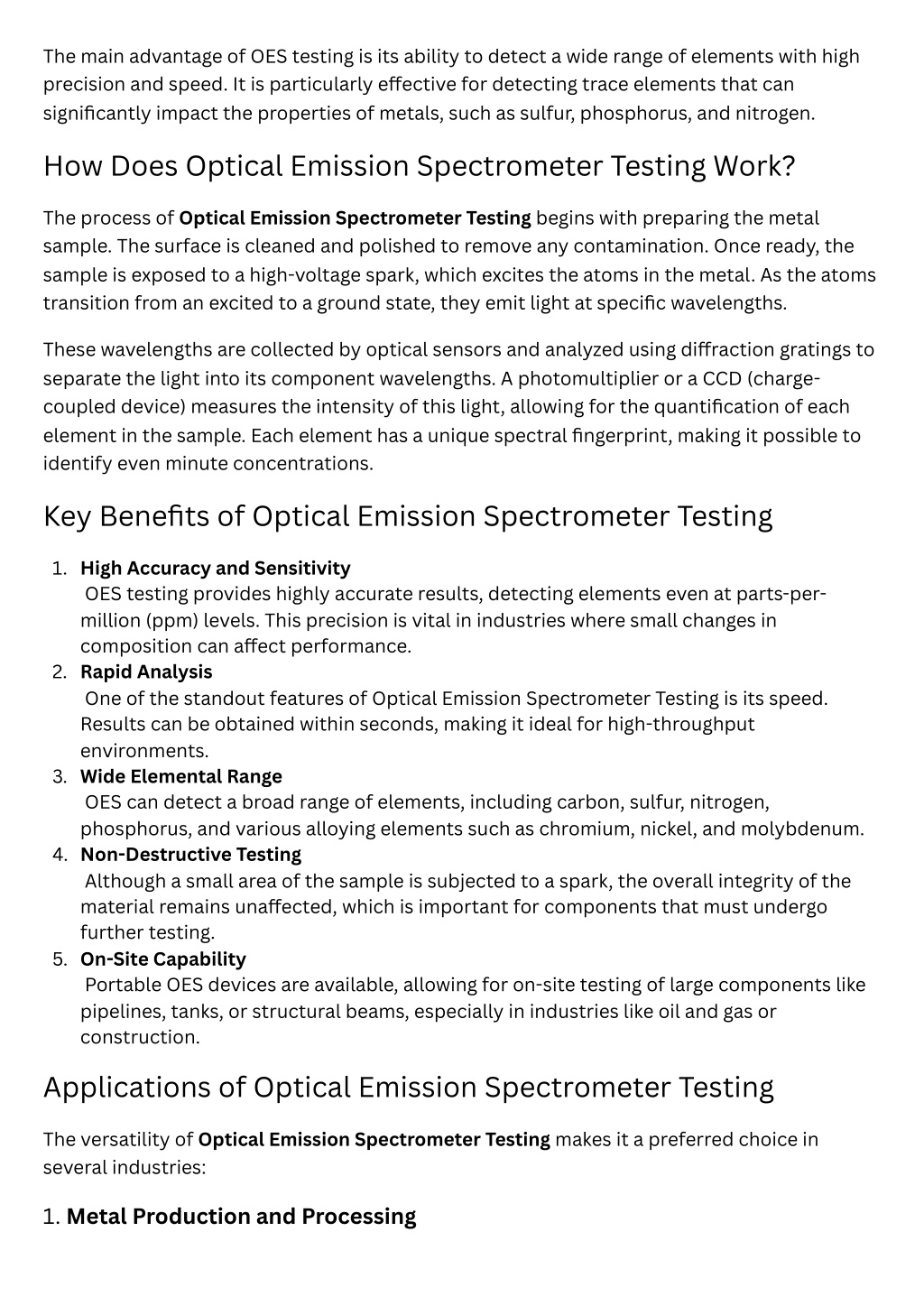

2. The main advantage of OES testing is its ability to detect a wide range of elements with high precision and speed. It is particularly e?ective for detecting trace elements that can significantly impact the properties of metals, such as sulfur, phosphorus, and nitrogen. How Does Optical Emission Spectrometer Testing Work? The process of Optical Emission Spectrometer Testing begins with preparing the metal sample. The surface is cleaned and polished to remove any contamination. Once ready, the sample is exposed to a high-voltage spark, which excites the atoms in the metal. As the atoms transition from an excited to a ground state, they emit light at specific wavelengths. These wavelengths are collected by optical sensors and analyzed using di?raction gratings to separate the light into its component wavelengths. A photomultiplier or a CCD (charge- coupled device) measures the intensity of this light, allowing for the quantification of each element in the sample. Each element has a unique spectral fingerprint, making it possible to identify even minute concentrations. Key Benefits of Optical Emission Spectrometer Testing 1.  High Accuracy and Sensitivity OES testing provides highly accurate results, detecting elements even at parts-per- million (ppm) levels. This precision is vital in industries where small changes in composition can a?ect performance. Rapid Analysis One of the standout features of Optical Emission Spectrometer Testing is its speed. Results can be obtained within seconds, making it ideal for high-throughput environments. Wide Elemental Range OES can detect a broad range of elements, including carbon, sulfur, nitrogen, phosphorus, and various alloying elements such as chromium, nickel, and molybdenum. Non-Destructive Testing Although a small area of the sample is subjected to a spark, the overall integrity of the material remains una?ected, which is important for components that must undergo further testing. On-Site Capability Portable OES devices are available, allowing for on-site testing of large components like pipelines, tanks, or structural beams, especially in industries like oil and gas or construction. 2.  3.  4.  5.  Applications of Optical Emission Spectrometer Testing The versatility of Optical Emission Spectrometer Testing makes it a preferred choice in several industries: 1. Metal Production and Processing

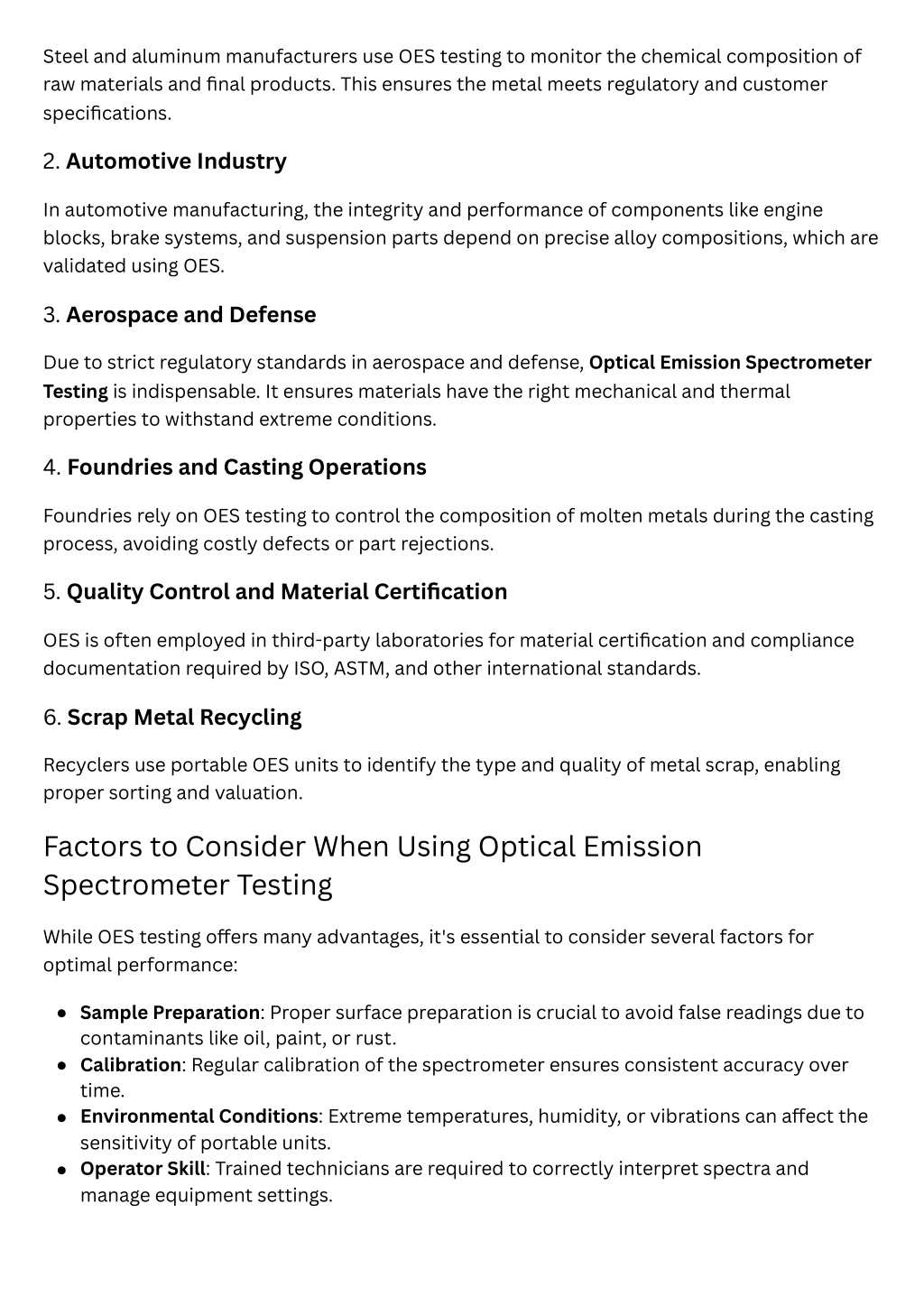

3. Steel and aluminum manufacturers use OES testing to monitor the chemical composition of raw materials and final products. This ensures the metal meets regulatory and customer specifications. 2. Automotive Industry In automotive manufacturing, the integrity and performance of components like engine blocks, brake systems, and suspension parts depend on precise alloy compositions, which are validated using OES. 3. Aerospace and Defense Due to strict regulatory standards in aerospace and defense, Optical Emission Spectrometer Testing is indispensable. It ensures materials have the right mechanical and thermal properties to withstand extreme conditions. 4. Foundries and Casting Operations Foundries rely on OES testing to control the composition of molten metals during the casting process, avoiding costly defects or part rejections. 5. Quality Control and Material Certification OES is often employed in third-party laboratories for material certification and compliance documentation required by ISO, ASTM, and other international standards. 6. Scrap Metal Recycling Recyclers use portable OES units to identify the type and quality of metal scrap, enabling proper sorting and valuation. Factors to Consider When Using Optical Emission Spectrometer Testing While OES testing o?ers many advantages, it's essential to consider several factors for optimal performance: Sample Preparation: Proper surface preparation is crucial to avoid false readings due to contaminants like oil, paint, or rust. Calibration: Regular calibration of the spectrometer ensures consistent accuracy over time. Environmental Conditions: Extreme temperatures, humidity, or vibrations can a?ect the sensitivity of portable units. Operator Skill: Trained technicians are required to correctly interpret spectra and manage equipment settings.

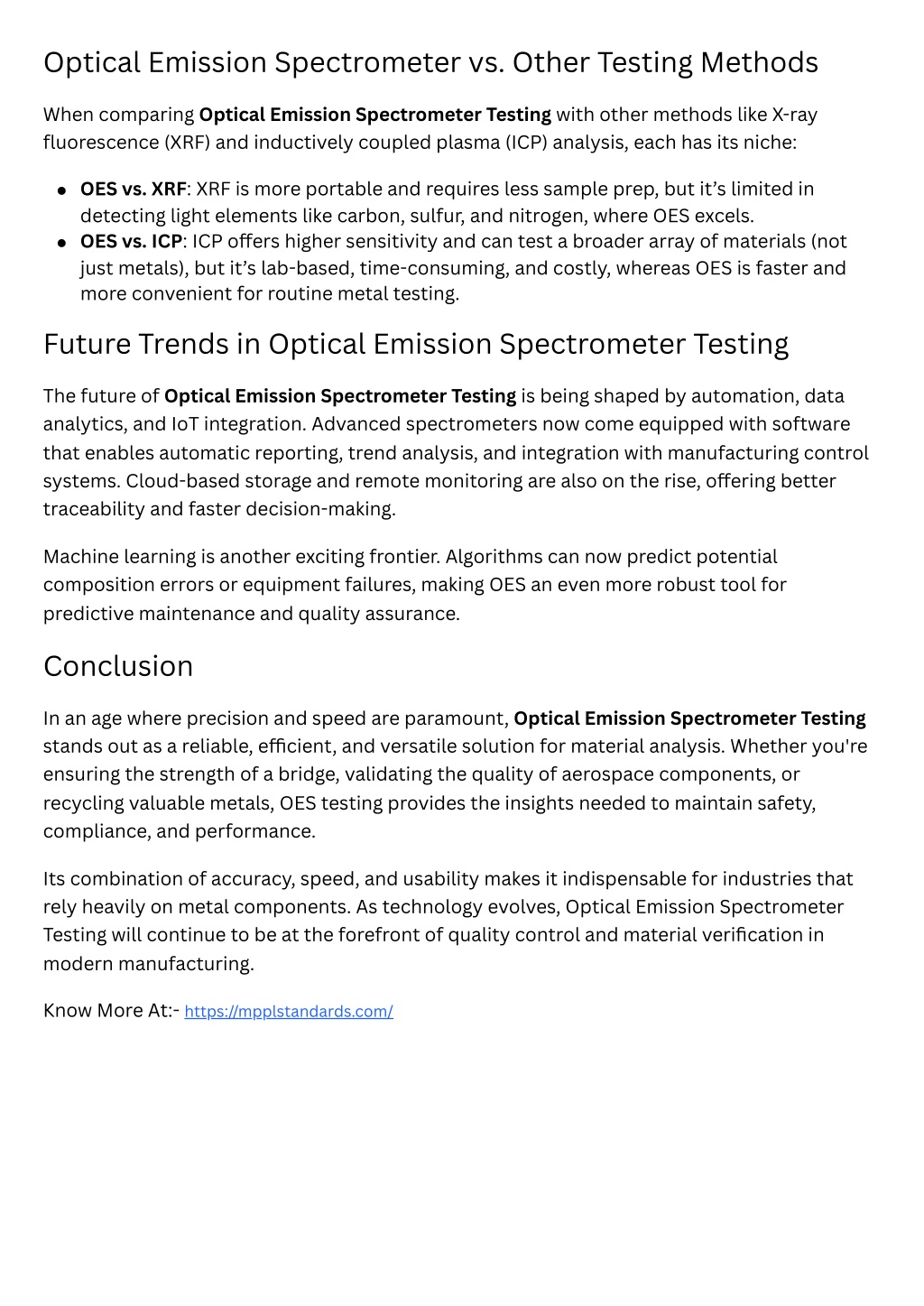

4. Optical Emission Spectrometer vs. Other Testing Methods When comparing Optical Emission Spectrometer Testing with other methods like X-ray fluorescence (XRF) and inductively coupled plasma (ICP) analysis, each has its niche: OES vs. XRF: XRF is more portable and requires less sample prep, but it’s limited in detecting light elements like carbon, sulfur, and nitrogen, where OES excels. OES vs. ICP: ICP o?ers higher sensitivity and can test a broader array of materials (not just metals), but it’s lab-based, time-consuming, and costly, whereas OES is faster and more convenient for routine metal testing. Future Trends in Optical Emission Spectrometer Testing The future of Optical Emission Spectrometer Testing is being shaped by automation, data analytics, and IoT integration. Advanced spectrometers now come equipped with software that enables automatic reporting, trend analysis, and integration with manufacturing control systems. Cloud-based storage and remote monitoring are also on the rise, o?ering better traceability and faster decision-making. Machine learning is another exciting frontier. Algorithms can now predict potential composition errors or equipment failures, making OES an even more robust tool for predictive maintenance and quality assurance. Conclusion In an age where precision and speed are paramount, Optical Emission Spectrometer Testing stands out as a reliable, efficient, and versatile solution for material analysis. Whether you're ensuring the strength of a bridge, validating the quality of aerospace components, or recycling valuable metals, OES testing provides the insights needed to maintain safety, compliance, and performance. Its combination of accuracy, speed, and usability makes it indispensable for industries that rely heavily on metal components. As technology evolves, Optical Emission Spectrometer Testing will continue to be at the forefront of quality control and material verification in modern manufacturing. Know More At:- https://mpplstandards.com/
