  1. Yasmine Calisesi Ozone Radiometer at 142 GHz:Calibration

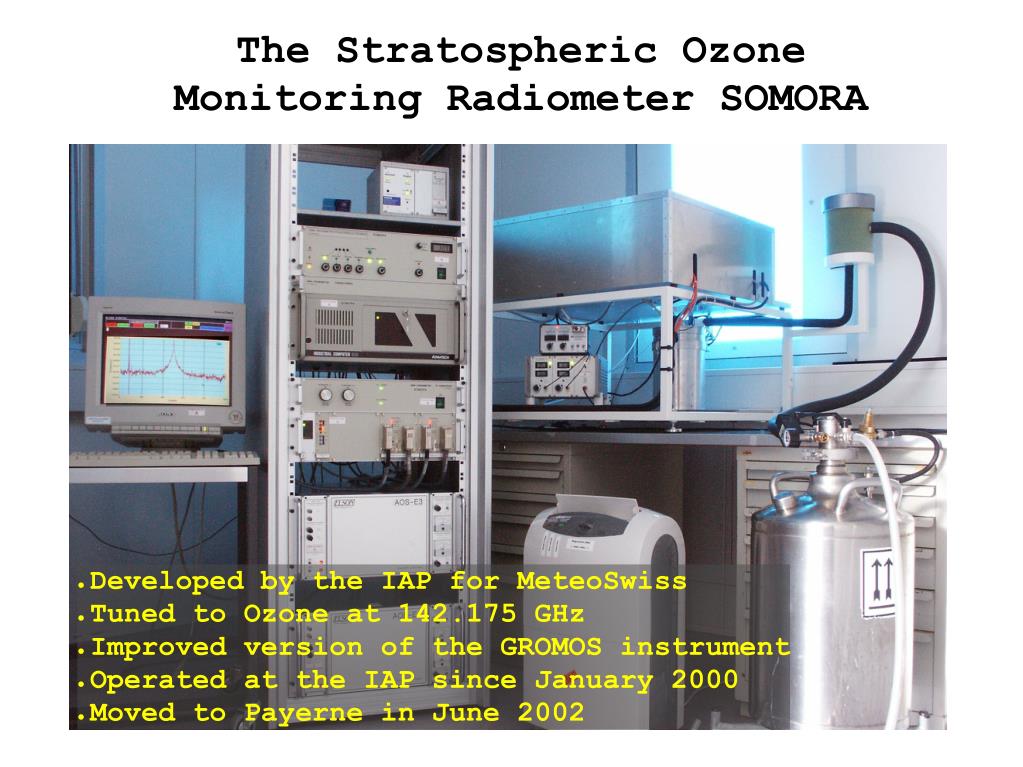

  2. The Stratospheric Ozone Monitoring Radiometer SOMORA • Developed by the IAP for MeteoSwiss • Tuned to Ozone at 142.175 GHz • Improved version of the GROMOS instrument • Operated at the IAP since January 2000 • Moved to Payerne in June 2002

  3. Somora location in Payerne

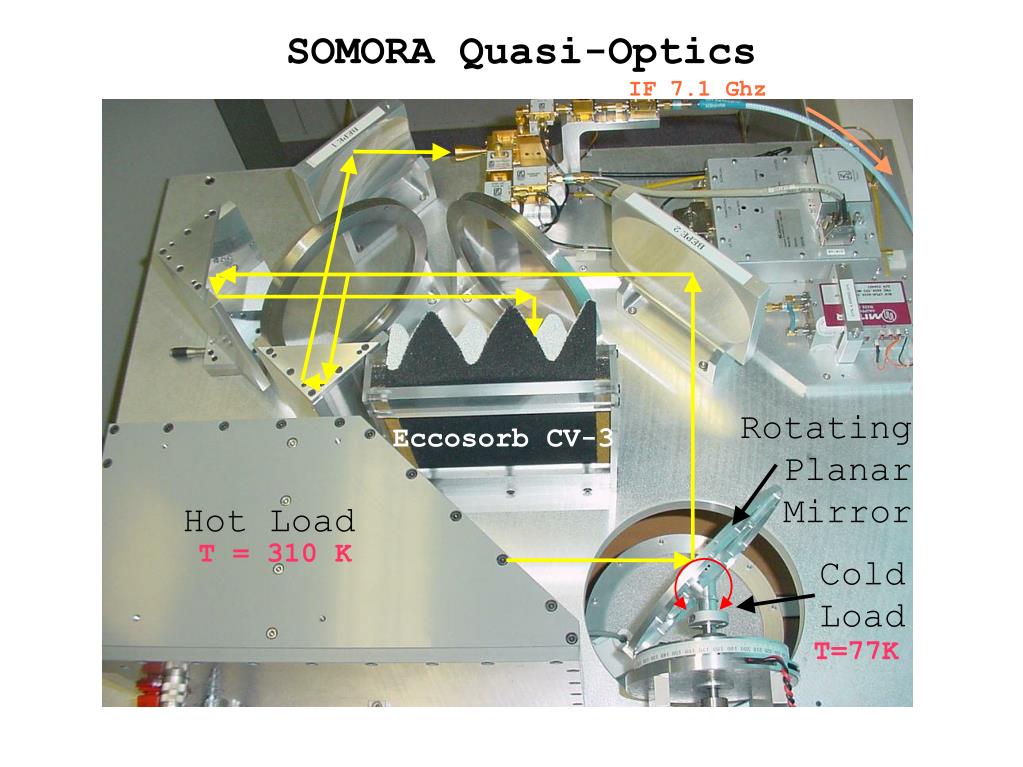

  4. IF 7.1 Ghz Rotating Planar Mirror Eccosorb CV-3 Hot Load T = 310 K Cold Load T=77K SOMORA Quasi-Optics

  5. Heating Element Fans PT 100 Eccosorb CV-3 PT 100 Polystyrene Window SOMORA Hot Load

  6. Eccosorb CV-3 SOMORA Cold Load Packaging Foam Material Dewar Vessel

  7. Expansion Vessel P = 0.4 Bar Liquid N2 Inlet Gaz-phase N2 exhaust

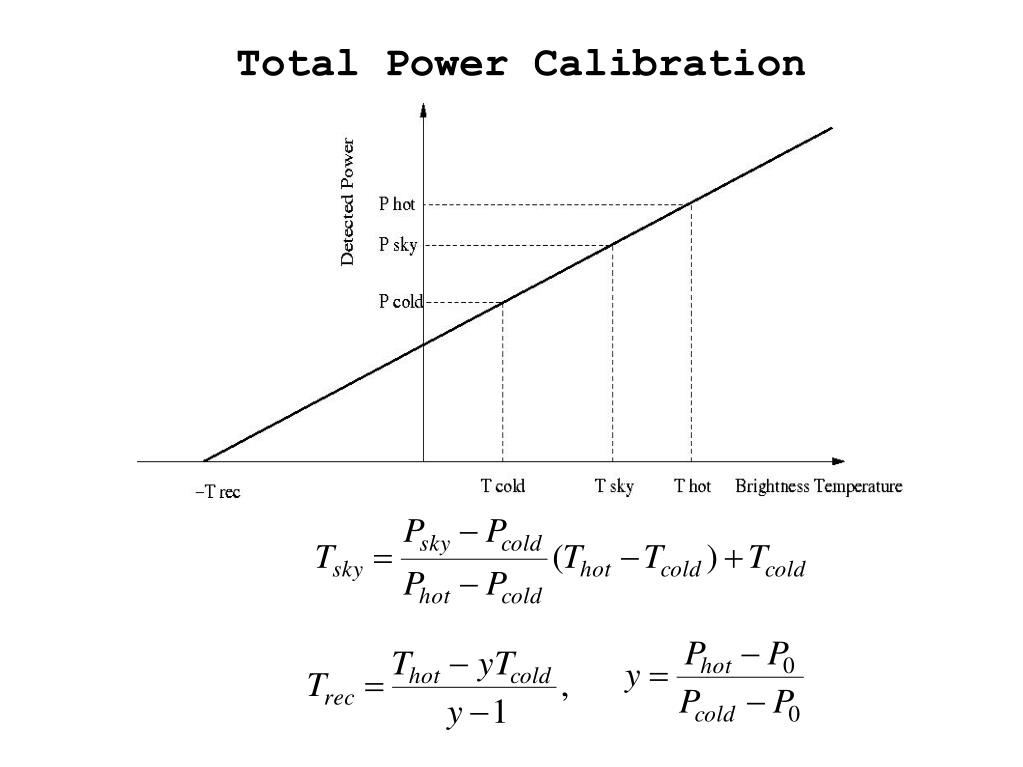

  8. Total Power Calibration

  9. In the RJ limit (hn << kT):  P ÷ T  P can be replaced by T in RT model Temperature Definitions • Physical Temperature • „Planck“ Brightness Temp.:

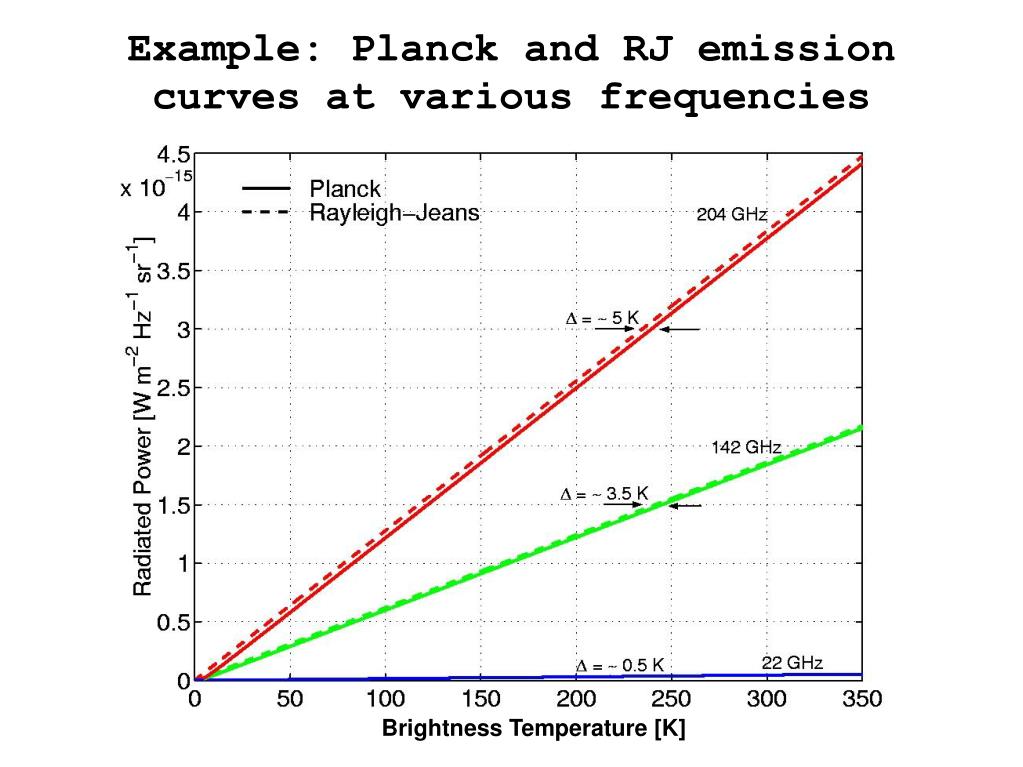

  10. Example: Planck and RJ emission curves at various frequencies Brightness Temperature [K]

  11. Conclusions: • SOMORA: Total power radiometer • P÷Tin considered T rangeTotal power calibration formula can be used • TRJ≠TPRadiative transfer computed in the units ofP
